Camfil CC400 User manual

TECHNICAL MANUAL
Air Cleaner CC400 Concealed
Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
1

TECHNICAL MANUAL
Air Cleaner CC400 Concealed
Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
INDEX2
1. PURPOSE 32
2. CONTENTS 3
3. VERSION HISTORY 3
4. IDENTIFICATION PLATE 3
5. GUARANTEESANDUNDERTAKINGS 3
6. PREFACE4
7. TECHNICALSPECIFICATIONS 4,5
8. USE5
8.1. WALL ANDCEILING MOUNTING 5
8.2. MOUNTING DRAWING 6
9. SAFETY INSTRUCTIONS 7, 8
10. DESIGN 8
10.1. CONSTITUENT STANDARD COMPONENTS 8
11. TRANSPORT ANDUNPACKAGING 8
10.2. AIR FLOW DETAILS 9
12. TAKING INTO OPERATION 10
12.1. POSITIONING 10
12.2. SYSTEM INTEGRATION 10
12.3,4,5.6 ELECTRICALCONNECTION 11
13. MEASSURING POINT FOR PA 12
14. AIR CLEANER ANDTHE ENVIRONMENT13
14.1. AIR CLEANER FILTERSANDTHE ENVIRONMENT 13
15. MAINTENANCE 13
16. INSTRUCTIONS FOR REPLACING AIR CLEANER FILTERS13,14
16.1. FILTER REPLACEMENT14
17. IP CLASSIFICATION 15
18. EU PROVISIONS GOVERNING THE PRODUCT15

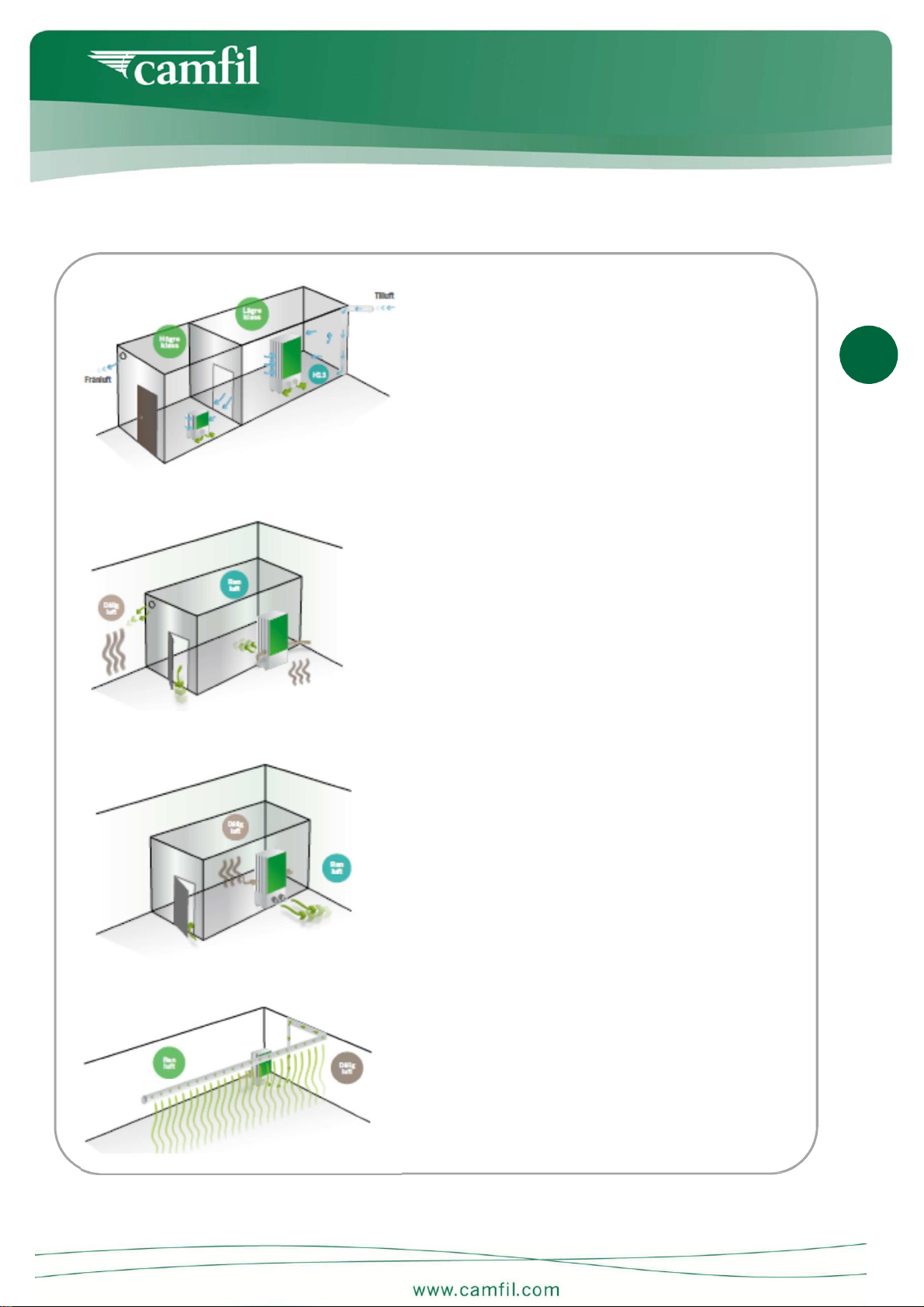

19. AIR CLEANER SYSTEM 16

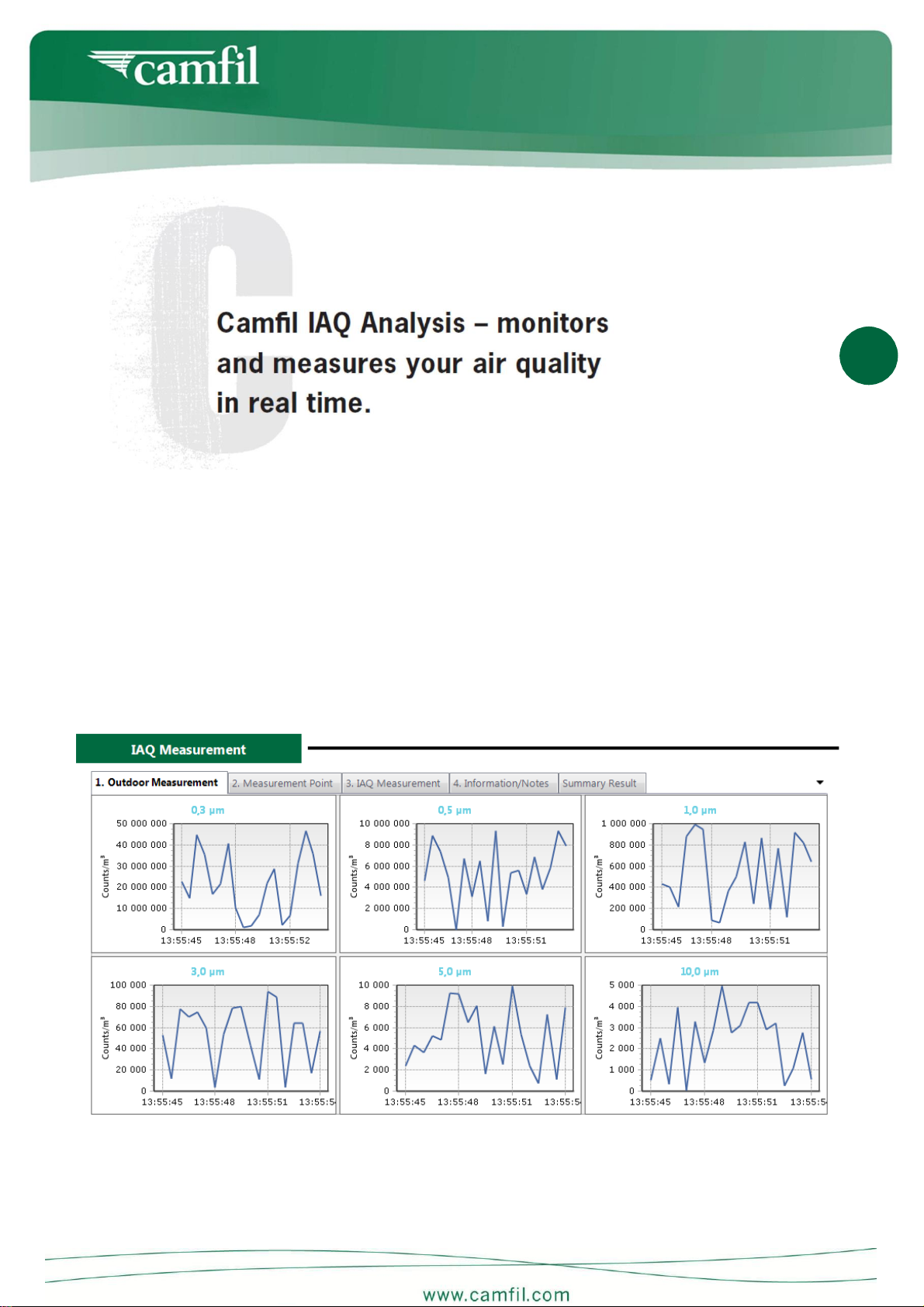

20.CAMFIL IAQ ANALYSIS 17

TECHNICAL MANUAL
Air Cleaner CC400 Concealed
Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
1. P u r pos e
This user manual is part of the documentation that must be available under appendix 5of the machine directive. The
purpose of the manual is to give details of the design of the Air Cleaner Concealed and how it works. New users must be
able to work safely with the Air Cleaner Concealed.
2. Contents 3
This user manual gives details of the Air Cleaner Ceiling only and must not be used for any other machine. Besides short
explanations of what the machine is used for, the first few sections also give some technical specifications. After these, there
are illustrated texts about the various parts that make up the Air Cleaner Concealed. The user manual also includes details
of safety procedures associated with the use of the machine.
3. Version h i s t o r y
Version
Date
Signature
Altered
001
See approval
Initial version

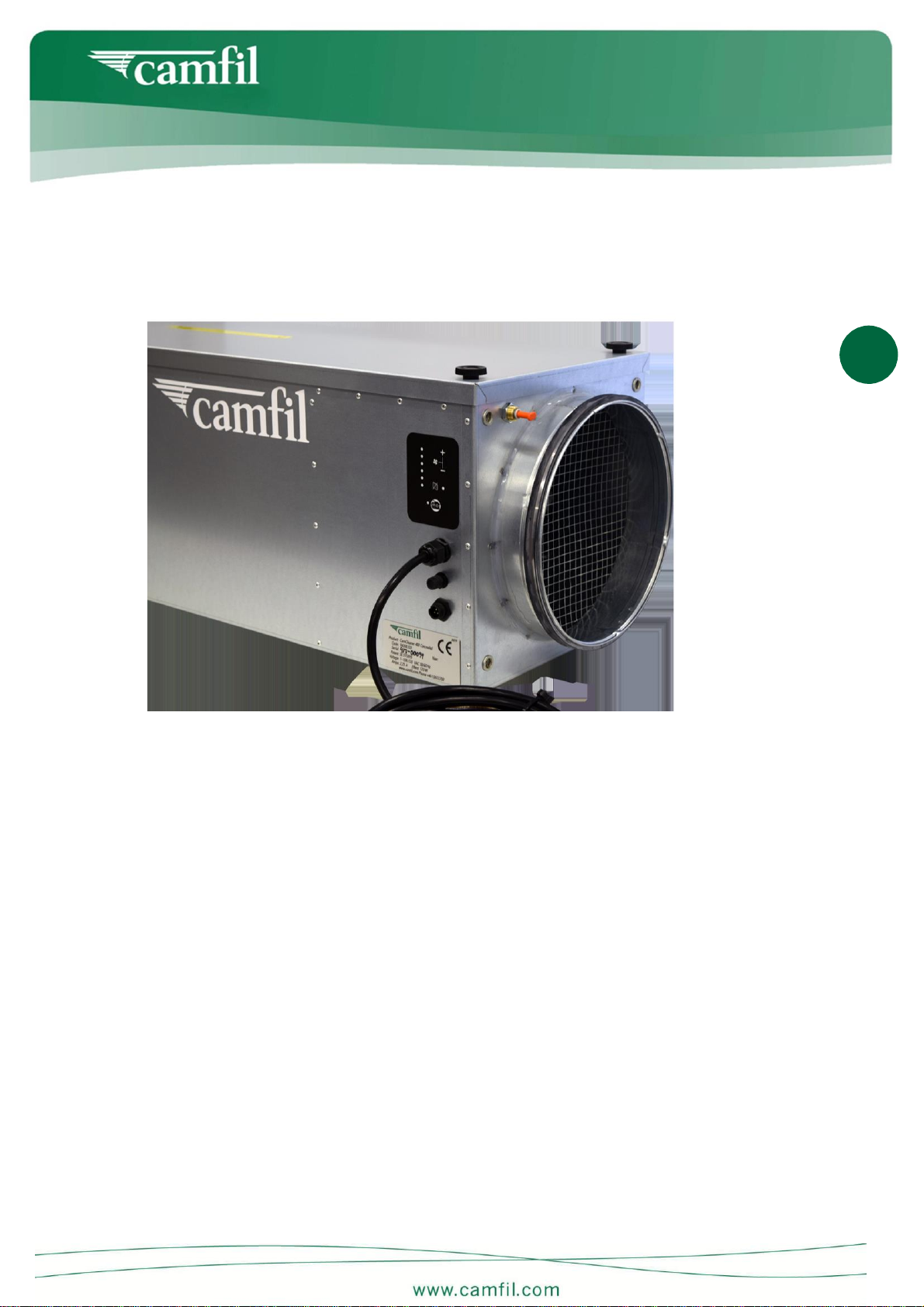

4. Identification p l a t e
All Air Cleaner Concealed type machines have the plate on their fan box.
5. Guaranteesand und e rt a k i ngs
The guarantee relates to full functionality as per the details in this user manual and covers errors in software and hardware
for aperiod of one year from the delivery date.
Should the equipment develop afault, please contact your distributor.
Distributor of Air Cleaner Concealed:
Camfil AB
Web: www.camfil.com

TECHNICAL MANUAL
Air Cleaner CC400 Concealed
Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
6. P r e f a c e
Thank you for buying an air purifier from Camfil AB.
We hope that you will be delighted with your Air Cleaner Concealed.
I m po r t a n t!
4
Before using your Air Cleaner Concealed air, it is important that you, as the user:read this user manual; read the fan
instructions; and, follow the safety instructions in both documents.
7. Technical sp e c i f i c a t i ons
External dimensions, vertical m od e l
Height: 313 mm
Width: 1112 mm
Depth: 327 mm
Weight: 21, 9kg (including new filters)
Filter weight: 6, 5kg (1 pcs XLT and 1pcs xHepa 13)
7.1 Fan sp e c i f i c a t i ons .
1-100..130V 1-200..240V

TECHNICAL MANUAL
Air Cleaner CC400 Concealed
Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
7.2 Air flow, Air Cleaner C onc ea l e d
Max 700m3/h at 400 Pa (max. mode with unused filters).
5
8. U s e
The Air Cleaner Concealed is used to clean air by mechanically filtering through highly efficient filters.
The system is developed for expert users as installation companies and not for consumer use.
8.1. Wall and ceiling m oun t i ng
If the Air Cleaner Concealed is to be mounted in aceiling or on awall, the following points must be borne in mind:
1. Ceiling mounting –the unit must be so mounted that there is no risk of trucks (and similar) colliding with it.
2. The ceiling or wall must be able to take aload of 88 kg.
3. Always install with safety switch, to disconnect the power supply during services or maintenance.
4. Only fixed mounting is permitted.
5. The Air Cleaner Ceiling must be mounted for filter replacement from the side and not upside down.
6. Mounting devices must be able to take aload of at least 88 kg
100..130V
200..240V

TECHNICAL MANUAL
Air Cleaner CC400 Concealed
Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018

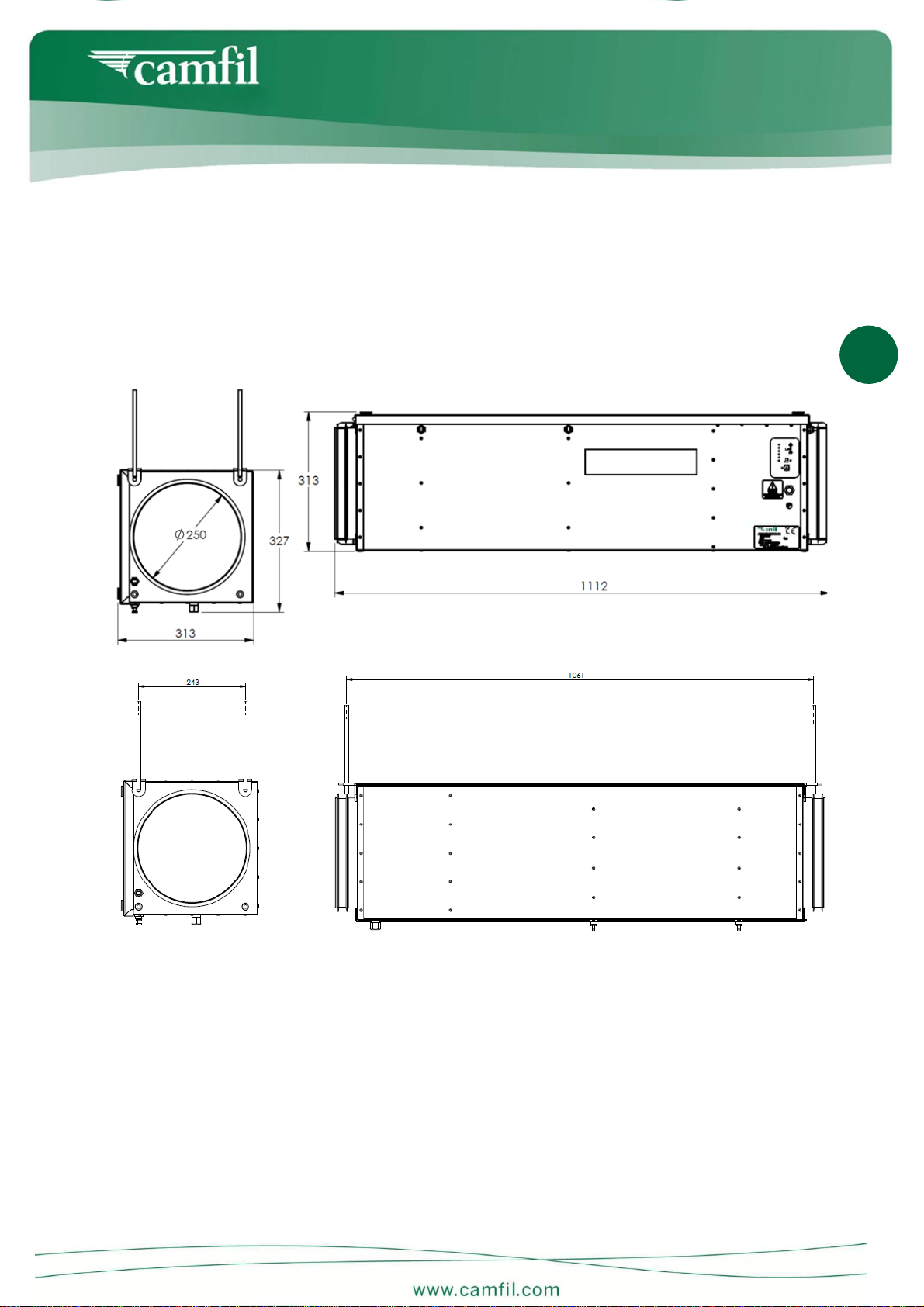

8.2. Mounting, d r a w i ngs
6

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
.9. Safety i ns tr uc t i ons
Read the user manual and follow the instructions given therein.
For installation, servicing, maintenance or filter replacement, the machine's power supply must be disconnected. 7
NB! Pull out the electrical connector! Or use the safety switch.
The machine is not to be regarded as de-energised until 5minutes after disconnection from the power supply.
Rotating parts do not stop immediately once power has been cut or the machine has been switched off. Allow 5minutes to
elapse before handling the cabinet.
1. In its standard version, the Air Cleaner Concealed must only be used for handling dry non-explosive materials. If
the air purifier is used for purposes other than those set out in the user manual, or is handled otherwise than set
out therein, Camfil AB can accept no liability whatsoever for the consequences of said use/handling.
2. NB! Fixed installation may only be carried out by aprofessional who has appropriate qualifications for the
assignment and who takes responsibility for the installation.
3. The machine must not be used in ATEX classified areas or where, at any time, there may be explosive gases.
4. Electrical connection may only be carried out by an appropriately qualified electrician. Wall outlets must also be
installed by an appropriately qualified electrician.
5. Accessories, filters, spare parts, etc. used with the Air Cleaner Concealed must be approved by Camfil AB.
Guarantee undertakings cease to apply if the foregoing is not respected. Please contact Camfil AB for the correct
accessories.
6. Do not cover inlets or outlets.
7. Inserting objects through inlets or outlets is forbidden.
8. The Air Cleaner Concealed must not be used in environments where burning/smoldering objects can get into the
machine.
9. The Air Cleaner Concealed must be used indoors only.
10. The Air Cleaner Concealed must be used in the -25˚C–60˚Ctemperature range only.
11. The Air Cleaner Concealed must not be drenched with water. The highest permitted humidity is 85% if carbon
filter is used.
12. The Air Cleaner Concealed must not be used for point extraction or dust separation. It must also not be used in
environments where dust explosions may occur.
13. Your Air Cleaner Concealed is equipped with “automatic start”.This means that, on power restoration after a
power disruption, the fan automatically returns to its speed before the disruption.
14. Follow the filter handling and replacement instructions very carefully. Incorrect handling can damage the filter
medium. In turn, this can mean that the promised filter class will not be achieved.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
15. Take great care when handling used filters. Incorrect handling can result in ill health or sickness. Follow the
instructions for filter replacement.
16. When replacing filters with the machine raised from the floor, it is recommended that the lock which cover and air
tightened the filters should be secured with wire.
10.Design 8
The Air Cleaner Concealed is aself-standing one-section design. The section houses the filters, fan section and all the
electrical connections.
The machine is entirely constructed of galvanized steel. Thus, it is environment friendly and readily recyclable
.
10.1. Constituent standard co m pon e n t s
In its standard version, the air purifier is supplied with the following components:
One Air Cleaner Concealed unit with 2pcs of circular take-off (Ø 250 mm).These have rubber gaskets and can be
connected to Spiro type circular ducts.
One protective Lock for filter replacement
Filters for the chosen purpose.
User manual.
Fan instructions (from the fan supplier).
If anything is missing, or if you require further information about accessories, please contact Camfil AB.
11. Transport and unp a ck a g i ng
When the Air Cleaner Concealed is to be installed, remove the packaging carefully. If sharp objects are used for unpack
aging, take care of the machine’s cables and metal finish.
Take especial care when handling the filters. See the filter replacement section.
Check that the product has not been damaged during transport. Report any transport damage to the carrier. Check also that
the delivery is complete.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
10.2. Air flow d e t a il s
9
1. The air first passes through
250mm circular ventilationduct
5. Outlet and inlet have 250mm circular
standard connection and must be
connected on the supply side
2. Then the air passes through one
prefilter“bagfilters”.
3.Behindthe prefilter, there is the HEPA
filter. This is aunique, environment-
friendly “absolute filter”. It is so efficient
that air must pass three times throughthe
ventilation systemto achieve the same
level of air purificationas it does in a
single circulationthrough the Air Cleaner.
The extremely large filter surface
increases both service life and filter
efficiency. Further increases of the
HEPA/EPAfilter’sservice life can be
achieved by careful management of pre-
filterreplacement.
2 1
3
4
5
4.The only moving
part in the Air Cleaner
is the fan. Our EC
fans consume little
energy.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
12.Taking into op e r a t i on
First, read the entire user manual.
Connect the plug into the power supply or connect to installed safety switch.
Only appropriately qualified electricians may carryoutwork on or in t h i s .
As standard thesystem has 6 step controller card .
10
You must be able to turn of thepower supply without touching the un i t .
12.1. P os i t i on i ng
The Air Cleaner Concealed must always be positioned and used indoors only.
Air outlets and intakes must not be obstructed during use. Before it is taken into operation, ensure that there is sufficient
space (50 cm) around outlet and inlet.
12.2. System i n t e g r a t i on
When connecting ventilation ducts to the Air Cleaner Concealed, these items must be secured to support their own weight.
There is not recommended to connect more than 8meters of 250mm circular ventilation ducts on outlet and inlet of the unit.
12.3. Electrical conn e c t i on
Electrical connection must be carried out by an appropriately qualified electrician. All routing of cables, etc. must be carried
out in accordance with the relevant regulations. TheAir Cleaner Concealed is factory supplied ready for plugging in. Any
intervention in the machine’s internal electrical systems must only be carried out by appropriately qualified persons using
Camfil AB supplied equipment.
The Air Cleaner Concealed must only be connected to the network voltage that is stated on the machine plate (identification
plate).

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
12.4. Electrical Connection ,1-phase EC f a n
NB! Only appropriately qualified electricians may carryout work on or in this machine.
11
Electrical connection with Controller Card, fuse holder and RS485 connector.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
13.Measuring points for Pa or filter efficiency t e s t s .
Filter efficiency Pressure drop
A=Before filter A+B =Pre filter
B=After Pre filter B+C =HEPA filter
C=After HEPA filter A+C =Pressure both filters 12
A
B
A
C

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
14.Air Cleaner Concealed andthe e nv i r on m e n t
The Air Cleaner Concealed air purifier is made from lead-free components. It can be recycled, used models must always
be sent to arecycling station for correct recycling and/or disposal of parts and components.
14.1. Air Cleaner Concealed filters and the e nv i r on m e n t
Note that filters must not be disposed of along with ordinary household waste. Scrapped filters must always be correctly 13
taken care of and handled safely. Recycling or disposal must always be carried out at an approved waste facility. If you have
any questions about this, please contact your local authority or distributor for advice on correct care.
15.Ma i n t e n a nc e
If necessary, the Air Cleaner Concealed can be cleaned using amild cleaning agent.
Before cleaning, always switch o ff t h e machine a nd pull ou t t h ee l e c t r i c a l c onn e c t o r !
16. Instructions for replacing Air Cleaner Concealed f il t e r s
WARNING! When handling used filters, personal protective equipment such as protective gloves and masks must be used.
To choose the correct type of respiratory protection, consult either the safety representative/officer at the workplace or the
manufacturer of the respiratory protection.
Used filters may contain harmful substances and particles. With incorrect handling, these can escape to the environment and
present risks of sickness and ill health.
Filters should be replaced on acontinuous basis. As regards frequency of filter replacement, see Camfil AB’s
recommendations.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
16.1. Filter r e p l a c e m e n t
Always use protective gloves and respiratory protection when handling used filters! Risk of ill health and s i ck n e ss .
1. Switch off the Air Cleaner Concealed by turning
the safety switch or electrical connector. Make
sure that the green operating led is off.
2. Undo the two knobs from the top cover and
remove it. NB! Hold the top cover firmly.
Alternatively, secure it during removal.
3. Grip the upper edge of the bag filter frame pull
it towards you. And put the filter into aplastic
bag.
4. Release the screw (counter clock wise) which
keeps the HEPA filter in place.
5. Take afirm grip the sling which is around the
HEPA filter and pull it towards you.
14
6. Lift the filter carefully out. Scrapped filters must
be taken care of as per the previously
explained instructions. Do the steps 1-6 in
reverse order.
Take anew HEPA filter out of its box. NB!
Do not touch the filter’s surface. Hold the
frame only!
Do the steps 1- 8in reverse order.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
17.IP c l a ss i f i c a t i on
The Air Cleaner Concealed is supplied with an IP 44 classification.
The IP code is defined as per international standard IEC 60529.
IP classifications define how much dust and water aproduct tolerates while maintaining full functionality and safety.
Important information 15
In accordance with the casing’s stated protection classification, the machine must not be placed in water or exposed to liquid
chemicals. Similarly, the machine must not be placed in extremely high or low temperatures.
The guarantee does not cover problems arising through carelessness/negligence.
Remember that the classification covers the machine only and not the filters. For information about filters, contact your local
Camfil office.
18.EU provisions governing the p r oduc t
This product complies with EU standards as per the “machine directive” (2006/42/EC), the “low voltage” directive
(2006/95/EC) and the “EMC directive” (2004/108/EC).
Note that correct observance of the installation and safety instructions is aprecondition for the compliance of all the
operating properties.
For more details of technical specifications, the standards that have been complied with and Camfil’s patents, please contact
Camfil AB.

Air Cleaner Consealed CC400 manual,
Ver. 001
Oct 2018
TECHNICAL MANUAL
Air Cleaner CC400 Concealed
16
19.Air Cleaner sys t e m
Two air purifiers work t og e t h e r
in acleaning sys t e m .
In compartment 1, the incoming air creates
overpressure. This means that the air,after it
has passed through the air purifier, is
transported to compartment 2. There, the air
is sucked through another Air Cleaner, which
further raises the air quality. You can also
use various effectivefilters in the air purifiers
to control the air quality. In this instance, a
class H13 filter is used in compartment 1,
where the contaminated incoming air enters.
This method is
used in premises used for production, in air
locksas well as in other environments.
Over p r e ssu r e.
Exactly as in the example above,
overpressure is created when the air is
purified and enters the compartment. By
doing this,athoroughly controlled indoor
environment is achieved in the
space in question. This is useful in processes
such as those involving installation, food,
electronic installation, and other sensitive
production units.
Under p r e ssu r e.
In this example, the air is sucked from the
compartment and purified before it is
discharged into the room. Air Cleaner also
makes it possible to clean the air many times
before allowing it to be released, in order to
achieve increased control over the air quality.
Under pressure is used, for example, on
building sites, and in industries and places
where asmall dirty production area in large
prem i ses
Cleaning zone in open p r e m i s e s .
In this example, the air is purified in the Air
Cleaner unit’sHEPA filter. Then it passes
through the pipe along the ceiling, where
air
Is discharged from the holes along the wall.
The purified air thus creates asort of curtain
that divides the room into two zones; one with
higher quality air and one with lower qua li ty
a i r.

Air Cleaner Consealed CC400 manual,
Ver. 001
Dec 2017
TECHNICAL MANUAL
Air Cleaner 400 Concealed
17
IAQ stands for Indoor Air Quality and is ameasurement of the
quality of indoor air. As an additional option for your Air
Cleaner system, you can choose Camfil IAQ Analysis which
provides adirect picture of the air quality in your rooms. We
monitor the air quality, and all measurements are saved in an
IAQ database which contains millions of measurement values
and benchmarks for the indoor environment and air quality. As
acustomer, you have the option of viewing the analysis in real
time at the time of measuring, and all measurements taken can
easily be compared with each other. With the aid of a
calibrated particlecounter, the quantity of particles in the air
can be examined. By subscribing to this service,
you will, as acustomer, always have aparticle counter in place
connected to acomputer which monitors the indoor
environment. When an abnormal particle distribution is
identified, or in cases of other suspected problems,we perform
an analysis with ascanning electron microscope (SEM) with
associated X-ray analysis system (EDAX). As required, the
quantity, weight and structure of the particles are analyzed as
well as the chemical composition of the air and element
content. We have more than 10 year’s experience of this. We
also work together with many of the world’s leading
laboratories for further analyses. Our IAQ reports are based
according to the following standards for air classification: SS
EN, SS EN ISO and IEST.

Air Cleaner Consealed CC400 manual,
Ver. 001
Dec 2017
TECHNICAL MANUAL
Air Cleaner 400 Concealed
CAMFIL
–the world’s largest and 18
leading manufacturer of
filters and clean air
solutions
There is agood chance that, at this very
moment, you are breathingcleanair thathas
passed through afilter manufactured by us. Our
products can be foundeverywhere from offices,
cleanrooms for sensitive electronics production
andmines to factories, hospitals and nuclear
power stations. Camfil Farr is aglobalcompany
with 29 subsidiaries, 23 productionplants and
an extensive network of agents in Europe, the
Americas and the Asia-Pacific region.
Air Cleaners
Air Cleaners is synonymous with highefficiency
purification, energy savingsandalmost silent
operation.Unlike all otherair purifiers on the
market, our HEPAfilters offer adegreeof
purification that can eliminate the tiniest and
most difficult to remove particles. Air Cleaner is
also entirely uniquein that it can suck in air from
two directions. This makes it possible to have
different cleaning zones and thereby
cons i derab l y increase the efficiency of air
purification.
