CAMION ICE MASTER U Series User manual

OWNER’S MANUAL
Version 1.7 Copyright © Enduraplas. All Rights Reserved.
Product Codes:
IMU100
ICE MASTER U-SERIES
®

2Ice Master®U-Series
English
CONTENTS
INTRODUCTION 3
WARNINGS 4 - 5
GETTING STARTED 6 - 10
CALIBRATING 11 & 12
MAINTAINING 13 & 14
TROUBLESHOOTING 15 & 16
PARTS BREAKDOWNS 17 - 25
WARRANTY 26 - 30
!

3Version 1.7
English
INTRODUCTION
Congratulations! You now own an Camion™ sprayer.
Durable design and construction assure you a lifetime of
extreme performance. No sprayer is tougher. No sprayer will
last longer.
Take a look through this owner’s manual to learn how the
pros use their Camion™ sprayer.
Discover More Helpful Tips:
blog.enduraplas.com/ice-control
Watch Instruction Videos:
www.youtube.com

4Ice Master®U-Series
English
WARNINGS
1. Do not exceed vehicle manufacturers loading, towing or
lifting specications and regulations.
2. Ensure tank is rmly secured in an appropriate manner.
3. Use caution at all times, particularly when driving on
rough terrain.
4. Comply with chemical manufacturers safety requirements
and all relevant legislations.
5. ALWAYS keep tank tightly covered, to prevent children or
animals from entering tank.
6. Tank is not re resistant. NEVER expose it to open ame
or heat.
7. Keep sharp objects from tank. Tank could be punctured
and contents could escape and cause injury to persons
or property.
8. This tank can be used only with polyethylene compatible
liquids. If you are uncertain, ask chemical supplier if
material can safely be stored in a polyethylene tank.
USE OF TANK WITH ANY OTHER MATERIAL COULD
CAUSE TANK TO FAIL, RESULTING IN INJURY OR
PROPERTY DAMAGE.
9. DO NOT MIX CHEMICALS. THIS CAN RESULT IN
DAMAGE TO THE TANK OR NEARBY PERSONS OR
PROPERTY.
10.Clean out tank before changing chemicals OTHERWISE
A DANGEROUS MIXTURE OF CHEMICALS
COULD CAUSE DAMAGE TO PERSONS, TANK OR
PROPERTY.
11. Regular service and maintenance is the Owner’s
responsibility and is a condition of your warranty.
12.FAILURE TO COMPLY WITH ALL WARNINGS
AND INSTALLATION INSTRUCTIONS WILL VOID
WARRANTY.
!

5Version 1.7
English
Discover More Helpful Tips:
blog.enduraplas.com/ice-control
Calcium Chloride Brine, Salt Brine and Premium Branded
Liquids.
Caution: Brine that contain tacky substances or solid
particles may clog pumps and nozzles. These are not
recommended.
Warning: DO NOT USE any products that contain
petroleum or petroleum by-products of any kind. These
destroy seals and will void warranty.
COMPATIBLE LIQUIDS
!
!
13.No modications and/or alterations may be made to this
sprayer. Any such modications not only void the sprayer
warranty but can make the unit dangerous to anyone
operating the pump.
14.Always inspect hoses and piping to avoid burst injuries.
15.DO NOT turn suction valve o󰀨 while pump is running.
NEVER RUN PUMP DRY.

6Ice Master®U-Series
English

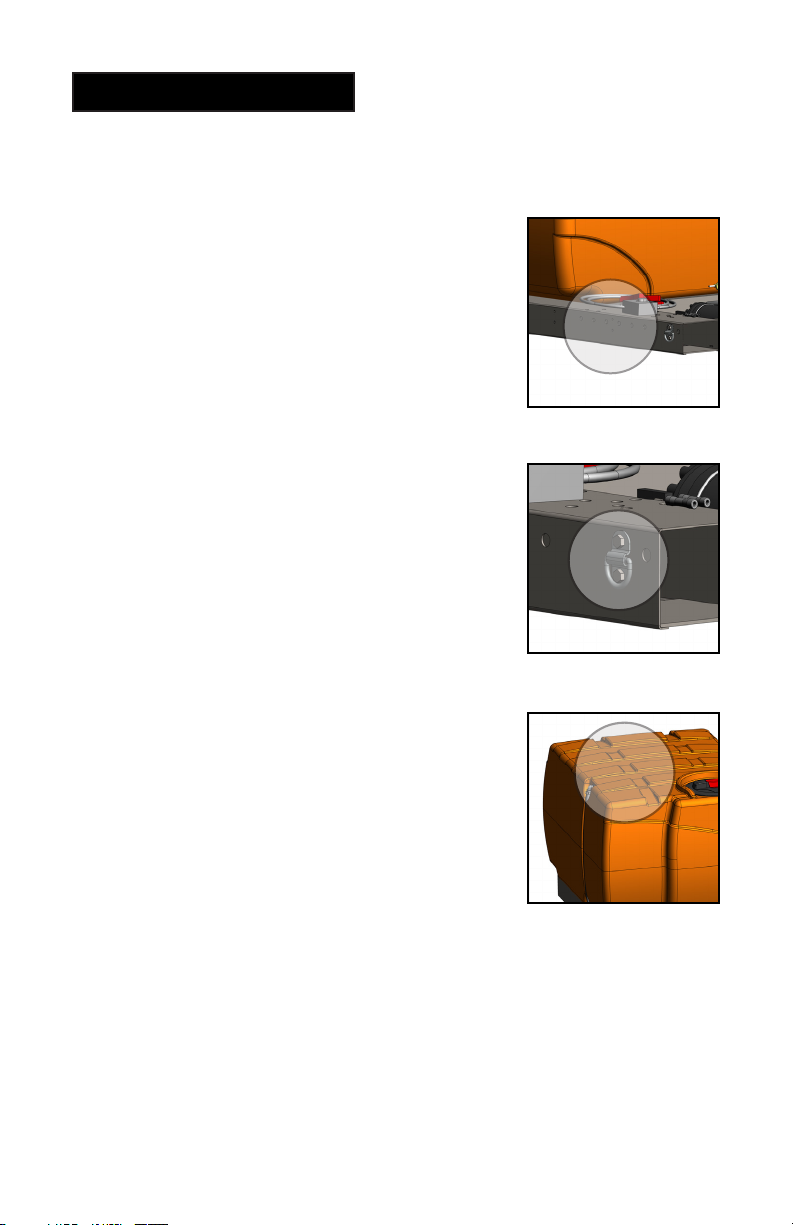

1) If you wish to use the d-ring tie-down
system, select your desired mounting
points on each side of the frame
2) Install 2 d-ring tie-downs on each side
of the frame using the supplied nuts and
bolts.
Installing the Mounting System
GETTING STARTED
3) Another option of mounting the
applicator to vehicle is to run straps
over the poly tank, securing to sides of
vehicle box.

7Version 1.7
English
GETTING STARTED

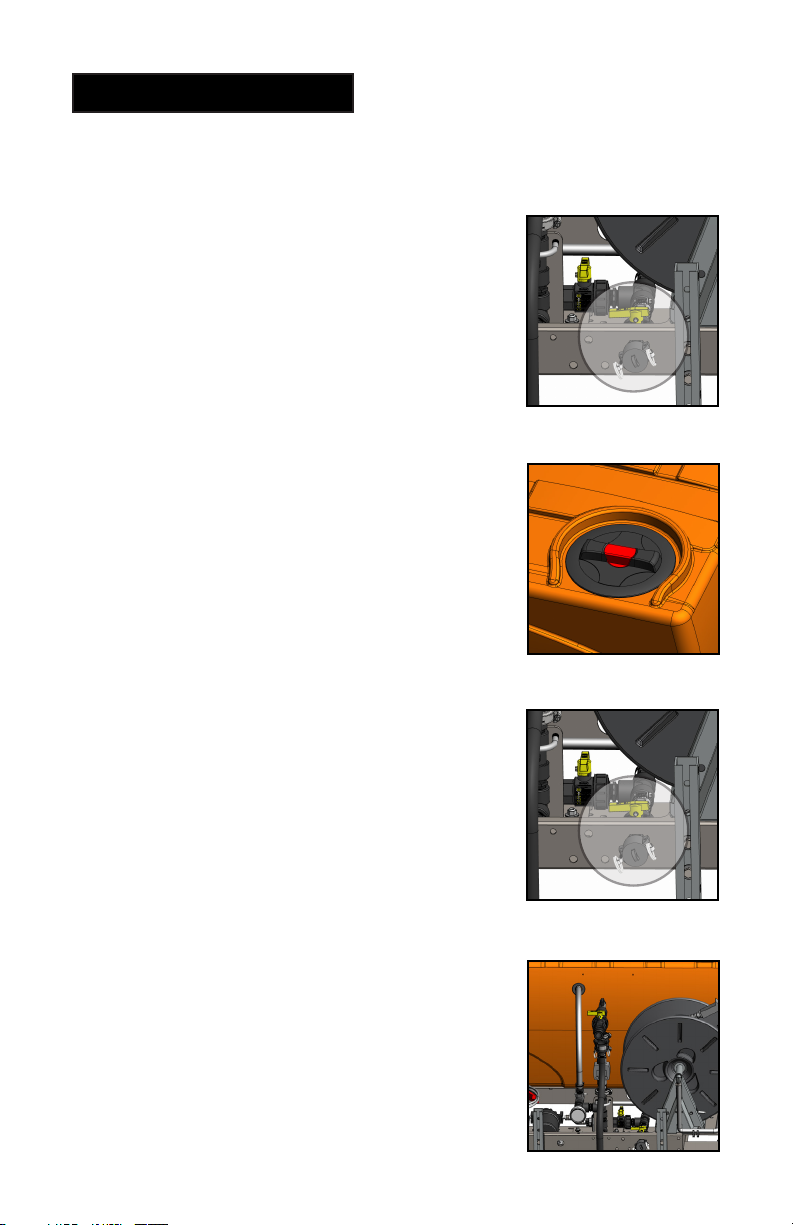

1) Route the cable to your vehicle
battery and connect the battery clips to
the battery.
3) Before turning your pump on, make
sure the pressure regulator is fully open
(counter clockwise) to avoid premature
wear or damage to the pump. This will
allow liquid to ow through return line
back into tank.
4) Ensure the valve between the tank
and pump is in open position before you
turn the pump on. This will ensure pump
does not run dry. Handle should be par-
allel to hose for open position.
Setting Up & Operating Sprayer
2) Take tank lid o󰀨 and ll tank at
least 1/4 full with water, enough to
run through the system to check all
components are functioning correctly.

8Ice Master®U-Series
English
GETTING STARTED
5) Turn on pump switch and run clean
water through the entire unit before
using salt brine to check for any
unexpected leaks caused in shipping.
Setting Up & Operating Sprayer
6) Unit is ready for use. Fill with desired
liquid.
7) Turn on pump and adjust pressure
regulator to desired pressure.

9Version 1.7
English
GETTING STARTED
1) Completely drain liquid out of tank
through the drain port on back of unit (in
a safe environment) and close the drain
valve when empty.
2) Fill the tank 1/4 with fresh water and
run pump to recirculate through system
for approximately 2 minutes.
4) Put a couple gallons of RV antifreeze
in tank and run pump to make sure the
antifreeze is through all of the lines.
Include running antifreeze through hose
reel.
Draining & Winterizing
3) Shut pump o󰀨 and drain liquid out
of back drain plug. Close valve and
reinstall drain cap.

10 Ice Master®U-Series
English
GETTING STARTED
5) Your applicator should now be safe to
store in a dry protected area.
Draining & Winterizing

11Version 1.7
English
CALIBRATING
NOZZLE COLOR PSI
CAPACITY
ONE
NOZZLE IN
GPM
4
MPH
6
MPH
8
GPM
10
MPH
White
20 0.56 42 28 21 16.6 30 0.72 53 36 27 21 40 0.80 59 40 30 24 50 0.88 65 44 33 26
Green
15 0.092 68 46 34 27 20 1.06 79 52 39 31 30 1.30 97 64 48 39 40 1.50 111 74 56 45
Note: Always double check your application rates.

12 Ice Master®U-Series
English
Gallons Per Minute Formula:
GPA x MPH x W (per nozzle)
5,940
Gallons Per Minute Formula:
GAL/1000FT x MPH x W (per nozzle)
136
Gallons Per Acre Formula:
5,940 x GPM (per nozzle)
MPH x W
Gallons Per 1000 Square Feet:
136 X GPM (per nozzle)
MPH x W
Convert Acres to Lane Mile:
1.4545 = 1 Lane Mile
GPM = Gallons Per Minute
GPA = Gallons Per Acre
GAL/1000 FT = Gallons Per 1000 Square Feet
W= Nozzle spacing

13Version 1.7
English
MAINTAINING
Keeping your sprayer in good condition will help you
lengthen the life of the sprayer. Everyone knows a well
maintained piece of equipment ensures a longer life span.
Sprayer maintenance can seem a huge task if you don’t
have the right tools.
Discover More Helpful Tips:
blog.enduraplas.com/ice-control
Watch Instruction Videos:
www.youtube.com

14 Ice Master®U-Series
English
The information applies in normal operating conditions. The specic intervals must be short- ened accordingly for longer daily working hours. If the machine is only used occasionally, the intervals can be extended accordingly.
Before starting work
At the end of work
and/or daily
Weekly or every 40
operating hours
After the rst 5
operating hours
Every 250 operating
hours o once a year
If damaged
If required
Complete machine
Visual inspection (condition, leaks) X Clean X
Tank, hoses and ttings
Clean X Drain X
In-line lter Clean X X Spray lance nozzle
Clean X Replace X
All accessible screws and nuts Retighten X Safety labels Replace X Pump Maintain Read and follow all maintenance and care instructions in the
Pump manual.

15Version 1.7
English
TROUBLESHOOTING
CONDITION CAUSE REMEDY
Pump will not
prime
1) Air leak on suction
plumbing
2) Blocked/Restricted
intake hose
3) Filter cap
disengaged
4) Filter gasket
damaged/missing
5) Tank is out of liquid
1) Tighten/replace
ttings & hose
clamps. Verify suction
hoses are in good
condition
2) Remove blockage
from suction line,
ensure line is not
kinked
3) Lock lter cap into
position
4) Replace lter
gasket
5) Fill tank with liquid
Pressure drops/
uctuates during
standard
operation
1) Restriction on
suction line
2) Pump sucking air
3) Plugged lter
4) Damaged regulator
1) Inspect tank and
suction lines and
remove restriction
2) Tighten ttings
3) Remove and
clean lter mesh and
housing
4) Remove regulator
stem and inspect for
broken parts/pieces

16 Ice Master®U-Series
English
CONDITION CAUSE REMEDY
Pressure gauge
not registering
1) Plugged with debris 1) Un-thread, check
and clean pressure
gauge
Hand gun loses
pressure
1) Debris in hose or
nozzle
2) Pump losing prime
3) Pump pressure
dropping/uctuating
1) Un-thread nozzle
tip and clean
2) See Remedy for
‘Pump will not prime
or loses prime’
3) See Remedy for
‘Pressure drops/
uctuates during
standard operation’
Discover More Helpful Tips:
blog.enduraplas.com/ice-control
Watch Instruction Videos:
www.youtube.com

17Version 1.7
English
OVERVIEW
Detail
View A
Detail View C
Deicing Hose
Reel Detail
4
35
8
49 7 48
Detail View B
53 50

18 Ice Master®U-Series
English
DETAIL VIEW A
Detail A
47
54
32
31
24
29
30
25
27
28
55
53
33
34
37
35
63
24
65
64
66
67
71
70
71
34
72
71
34
72
72
34

19Version 1.7
English
DETAIL VIEW B
Detail B
51214
16
19
18
58
61
60
59
17
16
15
22
19
16
21
17
16
20
16
15
6
56
57 1
68
69
62

20 Ice Master®U-Series
English

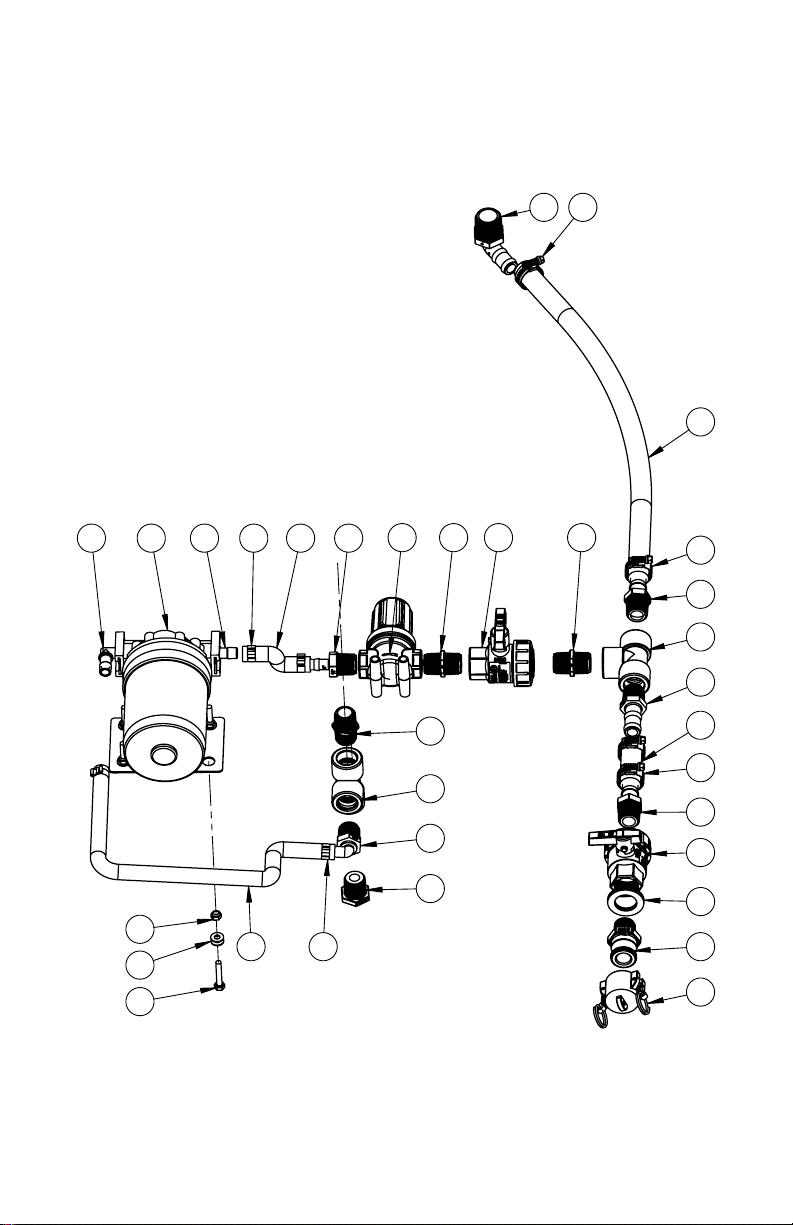

DETAIL VIEW C
Detail C
14
13
12
25
24
26
5352
39
38
36
40
54
42
32
24
32
54
46
41 54
254025
44455311
910
32
23
43
