Canoga Perkins 2346 User manual

EdgeAccess
Model 2346
T3 Fiber Optic Modem
User Manual

EdgeAccess®Universal Chassis System
2346 T3 Modem i
CAUTION!
This product may contain a laser diode emitter operating at a wavelength of 1300 nm - 1600 nm. Use
of optical instruments (for example: collimating optics) with this product may increase eye hazard.
Use of controls or adjustments or performing procedures other than those specified herein may result
in hazardous radiation exposure.
Under normal conditions, the radiation levels emitted by this product are under the Class 1 limits in
21 CFR Chapter 1, Subchapter J.
ATTENCION!
Cet équipement peut avoir une diode laser émettant à des longueurs d'onde allant de 1300nm à
1600nm. L'utilisation d'instruments optiques (par exemple : un collimateur optique) avec cet
équipement peut s'avèrer dangereuse pour les yeux. Procéder à des contrôles, des ajustements ou toute
procédure autre que celles décrites ci-après peut provoquer une exposition dangereuse à des
radiations.
Sous des conditions normales, le niveau des radiations émises par cet équipement est en dessous des
limites prescrites dans CFR21, chapitre 1, sous chapitre J.
NOTICE!
This device contains static sensitive components. It should be handled only with proper Electrostatic
Discharge (ESD) grounding procedures.
NOTE!
Cet équipement contient des composants sensibles aux décharges électro-statiques. Il doit absolument
être manipulé en respectant les règles de mise à la terre afin de prévenir de telles décharges.

EdgeAccess®Universal Chassis System
2346 T3 Modem
ii
NOTICE
Canoga Perkins has prepared this users manual for use by customers and Canoga Perkins personnel as
a guide for the proper installation, operation and/or maintenance of Canoga Perkins equipment. The
drawings, specifications and information contained in this document are the property of Canoga
Perkins and any unauthorized use or disclosure of such drawings, specifications and information is
prohibited.
Canoga Perkins reserves the right to change or update the contents of this manual and to change the
specifications of its products at any time without prior notification. Every effort has been made to
keep the information in this document current and accurate as of the date of publication or revision.
However, no guarantee is given or implied that the document is error free or that it is accurate with
regard to any specification.
CANOGA PERKINS CORPORATION
An Inductotherm Company
20600 Prairie Street
Chatsworth, California 91311-6008
Business Phone: [phone]
(Monday through Friday 7 a.m. - 5 p.m. Pacific Time)
FAX: [phone] (24 hrs.)
Web Site: www.canoga.com
Email: f[email protected]
Copyright © 2003 - 2005 Canoga Perkins Corporation
All Rights Reserved
EdgeAccess®
Universal Chassis System
2346 T3 Modem
Users Manual
Model Number 2346-UM
Part Number 6912680
Rev. D 09/2005
MM
To reference Technical Advisories and Product Release Notes, go to Canoga Perkins'
website: http://www.canoga.com/cservice.htm

EdgeAccess Universal Chassis System
2346 T3 Modem iii
Table of Contents
Chapter 1 Overview ................................................................................................ 1-1
Chapter 2 Hardware Installation and Functions ................................................. 2-1
Set Up and Installation........................................................................................................................ 2-1
Power Up and Front Panel Functions ................................................................................................. 2-3
Alarm Functions ................................................................................................................................. 2-4
Chapter 3 Software Management.......................................................................... 3-1
Setting Up for Network Management................................................................................................. 3-1
Set Up the Network Management Platform.................................................................................. 3-1
Set Up the PC for Terminal Operation ........................................................................................ 3-1
Management User Interface................................................................................................................ 3-2
General Screen Format................................................................................................................ 3-2
User Interface Organization ........................................................................................................ 3-3
Login and Main Menu.................................................................................................................. 3-3
Manage the 2346................................................................................................................................. 3-4
View the Hardware Setup............................................................................................................. 3-4
Set the Date and Time .................................................................................................................. 3-5
Set Up SNMP Access.................................................................................................................... 3-5
Manage and Check Traps and Alarms......................................................................................... 3-6
Set Up Baud Rates and Modem/SLIP/PPP Parameters............................................................... 3-7
Update Software........................................................................................................................... 3-9
Manage Security ............................................................................................................................... 3-10
Set Up Host Access..................................................................................................................... 3-10
Change Your Password.............................................................................................................. 3-11
Manage the Modem .......................................................................................................................... 3-11
Set Up Functions and Check Status ........................................................................................... 3-11
Monitor Modem Performance.................................................................................................... 3-12
Chapter 4 Maintenance and Troubleshooting...................................................... 4-1
General Maintenance .......................................................................................................................... 4-1
Manage Cable Links .................................................................................................................... 4-1
Check Optical Power Levels ........................................................................................................ 4-1
Troubleshooting.................................................................................................................................. 4-2
Check a New Installation ............................................................................................................. 4-3
Alarms .......................................................................................................................................... 4-3
Problems With Configuration ...................................................................................................... 4-4
SW2 (Software Control) Setting Ignored ..................................................................................... 4-4
Problems With Fiber Optics......................................................................................................... 4-4
PING ............................................................................................................................................ 4-4
Loopback...................................................................................................................................... 4-5

EdgeAccess®Universal Chassis System
2346 T3 Modem
iv
Chapter 5 Specifications..........................................................................................5-1
2346 Specifications .............................................................................................................................5-1
2346 Models........................................................................................................................................5-2
Appendix A Warranty............................................................................................A-1
Appendix B Acronym and Abbreviation List ...................................................... B-1
Index..........................................................................................................................I-1
List of Figures
Figure 1. The 2346 Front Panel..........................................................................................................1-1
Figure 2. Switch and Jumper Locations .............................................................................................2-2

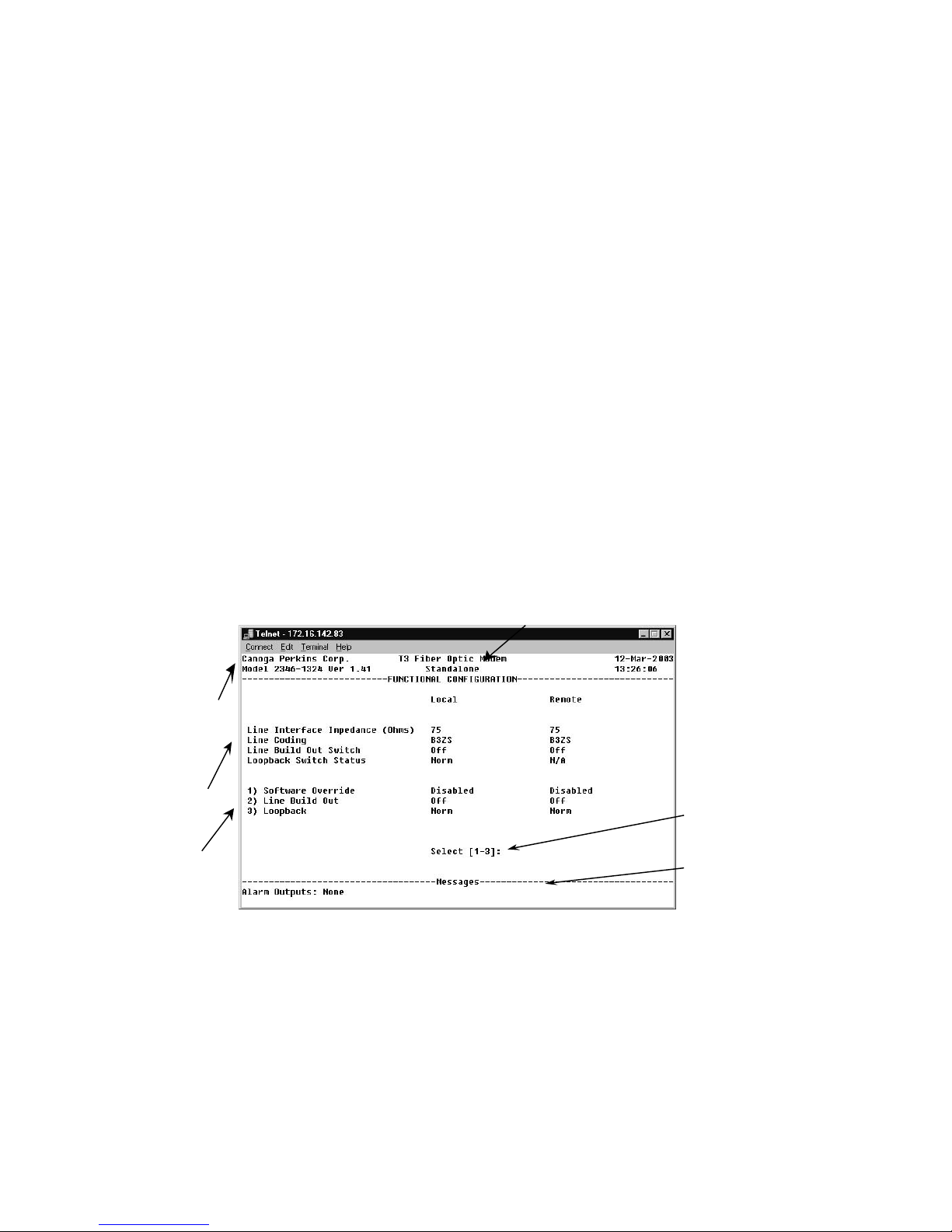

Figure 3. General Screen Format .......................................................................................................3-2
Figure 4. Normal Operation ...............................................................................................................4-6
Figure 5. Local Loopback ..................................................................................................................4-6
Figure 6. Local Bidirectional Loopback.............................................................................................4-6
Figure 7. Local Loopback at Both Ends.............................................................................................4-6
Figure 8. Remote Loopback...............................................................................................................4-7
Figure 9. Remote Bidirectional Loopback .........................................................................................4-7
List of Tables
Table 1. 2346 LED Functions ............................................................................................................2-3
Table 2. Main Menu Selections..........................................................................................................3-4
Table 3. Hardware Configuration Report...........................................................................................3-5
Table 4. Trap Configuration Options .................................................................................................3-6
Table 5. Alarm Output Options..........................................................................................................3-7
Table 6. System Alarms Definitions ..................................................................................................4-3

EdgeAccess Universal Chassis System
2346 T3 Modem 1-1
Chapter 1
Overview
The 2346 Managed T3 Fiber Optic Modem converts and extends T3/DS3 signals between devices
located up to 100 Km apart. Use the modem to extend a PBX, router, video codec, M13 multiplexer,
or ATM switch. The 2346 receives and transmits 44.736 Mbps data on single mode or multimode
fiber optic cable.
The 2346 front panel, shown in Figure 1, includes:
•Electrical and optical connectors
•Reset switch
•LEDs for:
•System status
•Configuration
•Electrical signal
•Optical signal
Figure 1. The 2346 Front Panel
The 2346 can be used in a variety of chassis. To install a 2346 in a UCS 1000 or UCS 1001 chassis,
you must use a Model 1230 Bus Access Module (BAM); however, you can install a 2346 directly in a
UCS 1002 or standalone enclosure.
•The UCS 1000 Chassis can hold up to 15 model 1230 BAMs with up to two 2346 modems per
BAM. This allows a total of 30 2346 modems per UCS 1000.
•The UCS 1001 Chassis can hold up to two model 1230 BAMs with up to two 2346 modems per
BAM. This allows a total of four 2346 modems per UCS 1001.
•The UCS 1002 Chassis directly hosts up to fourteen 2346 modems, or thirteen 2346 modems with
the optional Domain Management Module (DMM) installed.
•Each standalone enclosure, such as a Model 1020 or 1030E, holds one 2346 modem.
The 2346 is hot swappable; you can insert or remove it at any time without disrupting the data
transfer of other modules in the chassis.

EdgeAccess®Universal Chassis System
2346 T3 Modem
1-2

EdgeAccess Universal Chassis System
2346 T3 Modem 2-1
Chapter 2
Hardware Installation and Functions
Before setting up the 2346, make sure the chassis or enclosure is installed and its User Manual is
available for reference. If the system includes an optional DMM and CIM(s), make sure these are
available:
•Serial cable (required to connect to a VT100 type terminal or PC)
•VT100 type terminal or PC to run the User Interface Manager software
•The DMM and CIM manuals
Set Up and Installation
Unpack and inspect all components. Save the shipping carton and packing materials in case you need
to return the equipment to the manufacturer. Appendix A provides information for Return Material
Authorization (RMA).
1. Before inserting the 2346, check the front panel to verify that the 2346 provides the wavelength
that matches its link partner; see Figure 1.
2. Set SW2-1 and 2-2; see Figure 2.
•SW2-1, Line Buildout (LBO): Off (default) for Short LBO, <225 ft (68 m), or On for Long
LBO, >225 ft; when software control is enabled at the Functional Configuration screen,
SW2-1 is ignored.
•SW2-2, Software override: Off (default) is software, On is hardware; set to Hardware in
unmanaged environment, only. For installation in a managed environment where you plan to
use software control (see page 3-11), set SW 2-2 to Off.
Note: If the 2346 was previously installed in a managed environment and set in the User Interface
to software control, follow these steps to set it to hardware control when installing it in an
unmanaged environment:
a. Set SW2-2 to On.
b. Insert the 2346 in a slot with the power on, then remove it.
c. Set SW2-2 to Off.
d. Insert the 2346 in a slot with the power on, then remove it.
e. Set SW2-2 as needed.
3. Set jumper W10 as needed for normal (to NP) or wide pulse (to WP); see Figure 2. NP is the
default.

EdgeAccess®Universal Chassis System
2346 T3 Modem
2-2
SW2
W10
Figure 2. Switch and Jumper Locations
4. To install a 2346 in a UCS 1000 or 1001 chassis, you must use a Model 1230 BAM; each BAM
can hold up to two 2346 modems. Follow these steps to install the BAM and the 2346:
a. Insert a BAM into an available slot in a UCS 1000 or 1001. Slide the BAM into the rails and
push it firmly into the backplane, then tighten the captive screws. If you encounter
resistance, check that no connector pins are bent.
b. Insert a 2346 into an unused slot in the BAM. Slide the 2346 into the rails and push it firmly
into the backplane, then tighten the captive screw. If you encounter resistance, check that no
connector pins are bent.
5. To install a 2346 directly in a UCS 1002 or standalone enclosure, insert the 2346 into an unused
slot. Slide the 2346 into the rails and push it firmly into the backplane, then tighten the captive
screw. If you encounter resistance, check that no connector pins are bent.
If you encounter more difficulty, contact Canoga Perkins at [phone] for technical assistance.
Note: The BAM and 2346 are hot-swappable and can be inserted or removed without disrupting
data transfer in other application modules.
6. If the 2346 is in a standalone enclosure, set the switch on the enclosure for loopback to Normal.
The 2346 uses electrical cables to connect to the local site and fiber optic cables to connect to the
remote modem. Follow these steps to connect the electrical and optical cables:
7. To connect to the local site, plug the BNC cables from the local equipment into the Rx and Tx
connectors using Tx to Rx, and Rx to Tx orientation.
Dirty optical connectors are a common source of link loss or attenuation problems, especially for
single mode fiber (SMF). Clean the connectors before plugging in a cable and whenever there is a
significant or unexplained light loss. To prevent contamination, always install protective dust covers
on unused fiber optic connectors.
8. Wipe the ferrule and the end-face surface of the male fiber coupler with a lint-free isopropyl
alcohol pad from a fiber cleaning kit.
9. Use canned air to blow out any dust from the female fiber coupler.

EdgeAccess Universal Chassis System
2346 T3 Modem 2-3
Caution: To avoid damaging the fiber end-surface or connector, use extreme care when
installing or removing cables.
10. Plug in the optical cables:
•If you have a simplex optical connector, use a single strand, single mode fiber cable between
a pair of 2346 modems, one at 1310 nm wavelength and the other at 1550 nm wavelength.
•If you have a duplex connector, use Tx to Rx, and Rx to Tx orientation.
11. Label each cable and connector with a signal name and direction.
12. For cable connections to other modules in the chassis, see the appropriate user manual for details.
13. Measure and record fiber link attenuation and transmission power before starting normal link
traffic in order to identify potential problems with links near the lower limit of receiver
limitations. For details on link attenuation and transmission power, see Chapter 4.
Power Up and Front Panel Functions
During the initial power-up sequence, all LEDs light amber. When start-up is complete and data is
transmitting normally across the link, the STA LED lights green and the CFG/TST, LOS, and CLS
LEDs are off. During normal operation, the LED colors change according to system and port
conditions. The STA and CFG/TST LEDs show the module condition. The LOS and CLS LEDs
show the electrical and optical signal conditions. Table 3 shows the LED states for various
conditions.
Table 1. 2346 LED Functions
LED Status Description
STA Off No power
Green Normal operation
Amber System self-test
Amber blinking Downloading file or in power-up cycle
Red Failed system self-test
CFG/TST Off Normal operation
Red Software or line coding mismatch between local and remote
modems or improperly connected fiber optic cable
Amber Local or local bidirectional loopback
Amber blinking Remote or remote bidirectional loopback
LOS Off Normal operation
Red Local loss of electrical signal
Red blinking Remote loss of electrical signal
CLS Off Normal operation
Red Local loss of optical sync
Red blinking Remote loss of optical sync

EdgeAccess®Universal Chassis System
2346 T3 Modem
2-4
Alarm Functions
The 2346 can generate Major and Minor Alarms.
•UCS 1000 and 1001: a BAM is required and holds up to two 2346 modems. On the BAM, the
Status (STA) LED lights green if either 2346 is operating normally. If both modems have errors,
the BAM STA LED lights amber.
•UCS 1001: the alarm outputs are forwarded to the chassis motherboard.
•UCS 1000 and 1002: the alarms are forwarded over the backplane to the CIM and appear on the
Major (MAJ) and Minor (MIN) CIM LEDs and then are forwarded to the DMM for monitoring
and transfer to the Network Manager as traps.
•Model 1020 enclosure: the alarm information is forwarded to the management session.
•Model 1030 enclosure: alarms are not supported.
For details about setting up the Alarms, see Chapter 3; for viewing the Alarm Log, see Chapter 4.

EdgeAccess Universal Chassis System
2346 T3 Modem 3-1
Chapter 3
Software Management
You can manage the 2346 through VT100 Terminal Emulation, which is accessible by a Telnet
session, HyperTerminal or similar terminal emulation software, a standard SNMP network manager,
and CanogaView. If the 2346 is in UCS 1000 or 1002 with a CIM within a domain that includes a
DMM, you can access the 2346 through the DMM. If the 2346 is a standalone or in a UCS 1001, you
must access the 2346 directly through the serial port for the enclosure or BAM.
Setting Up for Network Management
Typically, the 2346 runs within the network on an Ethernet connection, communicating with your
Network Management Platform.
Set Up the Network Management Platform
You must run several Management Information Bases (MIBs) on your Network Management
Platform in order to successfully manage this module. Before you start, check that Standard MIB (the
industry-standard mib) is loaded. In addition, download Cp.mib, a private mib that supports all
Canoga Perkins products, available from the Canoga Perkins web site. Go to www.Canoga.com,
click Support, then click Software Download, and follow the prompts on screen.
Set Up the PC for Terminal Operation
Connect the VT100 terminal emulation session to the DMM or directly to a 2346, either standalone or
in a UCS chassis. Setting up the VT100 session depends on which connection, serial port or Ethernet,
you have available for access to the VT100 management program. Canoga Perkins suggests that you
use HyperTerminal for your first session.
You must set up TCP/IP for the DMM or directly-managed 2346 before you can use Telnet; for
details, see the manual for the DMM or go to page 3-7.
Note: For details on the DMM, see the Model 1500 Domain Management Module User Manual (for
UCS 1000) or the Model 1502 Domain Management Module User Manual (for UCS 1002).
These steps briefly describe how to set up your PC for a terminal connection. For details on using
Windows, see your Windows documentation.
1. Turn on your PC.
2. Accessories, the HyperTerminal Folder, and click HyperTerminal.
3. At the Connection Description dialog, select an icon, enter a name for the connection to the
system, and click OK.
4. At the Connect To dialog, pull down the Connect using menu, select the COM port, and
click OK.

EdgeAccess®Universal Chassis System
2346 T3 Modem
3-2
5. At the COM Properties dialog, on the Port Settings tab, check for these selections:
•Bits per second: 19200 bps
•Data bits: 8
•Parity: None
•Stop bits: 1
•Flow control: None
6. `Click OK. HyperTerminal connects to the system and the VT100 terminal emulation starts.
Management User Interface
The Management User Interface for the 2346 provides screens for setup, monitoring, and diagnostics.
These sections discuss the screens for the 2346, using a Telnet session for access. If you connect
through the DMM in the chassis, see the User Manual for your DMM for details about the DMM
screens.
General Screen Format
A typical screen, shown in Figure 3, includes standard descriptions and reference designations. Use
this and other screens to configure the system, set operational parameters, and verify the system
status. All screens use a common method for navigation.
Messages and
urgent status
Screen navigation
instructions
Change options
Status reports
Model number
Chassis and slot information
Figure 3. General Screen Format
Not all screens and menus provide options that you can change. Some menu items reach screens that
only report status, such as revision numbers, module type, or alarms. On other screens, you can move
through and select options, and enter data.

EdgeAccess Universal Chassis System
2346 T3 Modem 3-3
Use these keys to navigate the screens:
•Space bar When a menu item is highlighted, press <Space> to cycle through all options for that
item.
•Tab Press <Tab> to move the highlight to the next column to the right.
•Enter Press <Enter> to select the highlighted option for a menu item.
•Escape Press <Esc> once to cancel changes for the selected item or to return to the previous
screen; press <Esc> two or more times to return to the Main Menu from two or more menu levels
deep.
User Interface Organization
The user interface consists of selectable, nested screens, available in this order:
Main Menu
1. System Configuration
1. Hardware Configuration
2. Functional Configuration
3. Trap Configuration
4. Alarm Output Configuration
5. SNMP Configuration Parameters
8. Host Table
2. Link Error Counters
3. System Alarms
4. Utilities
8. PING Generation
5. Software Upgrade
Login and Main Menu
The first screen is the Login Menu. If this is your initial setup and no password has been set, press
<Enter> at the prompt for the password. Otherwise, type your password and press <Enter>.
After you log in, the Main Menu for the DMM appears. This is the main management screen for the
DMM. For details on all menu options, see the manual for your DMM. From this screen, you can
access the 2346 by either of two methods.

EdgeAccess®Universal Chassis System
2346 T3 Modem
3-4
•To reach the 2346 directly, follow these steps:
a. Type 4, "Manage or access a specific Module," and press <Enter>.
b. Type the slot and chassis numbers with a slash, such as "1/4" for chassis 1, slot 4, and then
press <Enter>.
c. At the Module Menu, type 4, "Access User Interface," then press <Enter> to reach the Main
Menu screen for the 2346.
•To reach the chassis, and then select the 2346, follow these steps:
a. Type 3, "Manage or access a specific Chassis," and press <Enter>, press <Space> to cycle
through the chassis in the domain, and then press <Enter> to select the chassis.
b. At the Chassis Management screen, press <Space> to cycle to the slot number for the 2346,
then press <Enter> to reach the Main Menu screen for the 2346.
Note: In a UCS 1000 chassis, the slots in the BAM appear as A and B for the slot that the BAM is
in.
You can reach all configuration options from the Main Menu; see Table 2.
Table 2. Main Menu Selections
Menu Item Description
1. System Configuration View and set values for the system information and communications
parameters
2. Link Error Counters View number of errors that occur on the link
3. System Alarms View current conditions for local and remote alarms
4. Utilities View and set values for general parameters and run the diagnostic PING
5. Software Update Download and install new firmware
Manage the 2346
You can manage the hardware and software for the module, including communication access.
View the Hardware Setup
To check information about both the local and remote 2346s, including the hardware setup, with
model and serial numbers, and basic system status, go to the Hardware Configuration report. See
Table 3. To view the Hardware Configuration screen, follow these steps:
1. At the Main Menu, type 1, "System Configuration," and press <Enter>.
2. At the System Configuration menu, type 1, "Hardware Configuration," and press <Enter>. The
Hardware Configuration screen appears.
3. To return to the Main Menu, press <Esc>.

EdgeAccess Universal Chassis System
2346 T3 Modem 3-5
Table 3. Hardware Configuration Report
Item Shows
Chassis/Slot, Type, Temperature Where the modem is installed and status, if available
Modem Model, Type, Revision, Serial No. Data for the modem and optical interface
Power Supply Pri, Sec Type(s) and status for the power supply(s)
Fan Installed Status if a fan is installed
Set the Date and Time
An accurate date and time in the assures accuracy for traps and alarms sent to the system
administrator, as well as for all listed events. If the 2346 is in a system with a DMM, the date and
time for the DMM overrides any date and time set in the 2346.
To set the date and time, follow these steps:
1. At the Main Menu, type 4, "Utilities," and press <Enter>; the Utilities menu appears.
2. At the Utilities menu, type 1, "Set Date and Time," and press <Enter>, then at the prompt to enter
the current date and time, type the current information in DD/MM/YYYY HH:MM format.
3. To return to the Main Menu, press <Esc>.
Set Up SNMP Access
SNMP access is available for a modem in a standalone enclosure, only. To set values for basic
system parameters, including some SNMP parameters, go to the SNMP Configuration Parameters
menu. To access the SNMP Configuration Parameters menu, follow these steps:
1. At the System Configuration menu, type 5, "SNMP Configuration," and press <Enter>. The
SNMP Configuration Parameters screen appears.
2. At the prompt, type the number for an item and follow the prompts on the screen to set values for
these items:
•System Contact: Who is responsible for the 2346, up to 50 characters
•System Name: What you call the 2346, up to 50 characters
•System Location: Where the 2346 is located, up to 50 characters
•Read Community: Name for the people who can view the reports, up to 10 characters;
default is public
•Write Community: Name for the people who can set values for parameters, up to 10
characters; default is public
•SLIP/PPP IP Address: Enter the IP address for access through SLIP or PPP
•Ethernet IP Address: Enter the IP address for access through the Ethernet network
•Ethernet Subnet Mask: Enter the mask that sets the network ID part of the IP address
•Ethernet Default Gateway: Enter the address of the network node that connects to another
network

EdgeAccess®Universal Chassis System
2346 T3 Modem
3-6
•BOOTP Enabled: Enable this if the module needs to obtain its IP address from a BOOTP
server; when the unit has an IP address, disable BOOTP
•Serial Port Config: Set the type of serial port connection: VT100, SLIP, or PPP
•Telnet Timeout: Set the time with no activity until a Telnet connection automatically logs out
3. To return to the System Configuration menu, press <Esc>.
Manage and Check Traps and Alarms
Traps are messages that require management attention and are routed to the Network Manager, but do
not trigger alarms. Conditions that generate an alarm require immediate attention. Enable or disable
traps on the Trap Configuration screen and enable or disable alarms on the Alarm Output
Configuration screen.
Use the Trap Configuration screen to view the current configuration and to enable or disable traps for
the 2346. For a list of events that trigger traps, see Table 4. To set up the traps, follow these steps:
1. At the System Configuration menu, type 3, "Trap Configuration," and press <Enter>.
2. At the Trap Configuration screen, type the number for a trap and press <Enter>. See Table 4.
3. Press <Space> to cycle to Enabled or Disabled and press <Enter>.
4. To return to the Main Menu, press <Esc>.
These selections do not affect how the Major and Minor LEDs on the CIM report alarms.
Table 4. Trap Configuration Options
Type of Trap When enabled, sends a Trap if. . .
2) LOS/CLS Loss of Signal (electrical)/Composite Loss of Signal (optical); one or
both received signals fail
3) SQL Squelch occurs (for received signal)
4) Configuration The 2346 is set up incorrectly, including mismatches with other modems
5) Diagnostic Loopback is enabled or disabled
6) Authentication An unauthorized host attempts SNMP access to the 2346
7) Power/Fan Malfunction Power is low or fan is off
8) Cold Start The 2346 is reset by a power failure or forced reset
9) Alarm Input UCS 1001 function; see the UCS 1001 User Manual
10) Security Violation Not used
Use the Alarm Output Configuration screen to view the current configuration and to enable or disable
alarms for the 2346. For a list of events that trigger alarms, see Table 4. To set up the alarms, follow
these steps:
1. At the System Configuration menu, type 4, "Alarm Output Configuration," and press <Enter>.

EdgeAccess Universal Chassis System
2346 T3 Modem 3-7
2. At the Alarm Output Configuration screen, type the number for an alarm and press <Enter>. See
Table 5.
3. Press <Space> to cycle to Enabled or Disabled and press <Enter>.
4. To return to the Main Menu, press <Esc>.
These selections do not affect how the CIM Major and Minor LEDs report alarms.
Table 5. Alarm Output Options
Alarm When enabled, sends an alarm if. . .
2) LOS/CLS Loss of Signal (electrical)/Composite Loss of Signal (optical); one or
both received signals fail; default is Off
3) SQL Squelch occurs (for received signal); default is Off
4) Configuration The 2346 is set up incorrectly or the local and remote software versions
do not match; default is Off
5) Power/Fan Power is low or fan is off; default is Minor
6) Power-On Self Test Modem failed when power was turned on; default is Major
7) BERT Bit Error Rate Test (BERT) detects data errors; for details on BERT
results, see page 3-12; default is Off
Note: The Bit Error Rate Test (BERT) sends a continuous 127-bit sequence within the optical data
stream to check for bit errors while the optical signal remains in sync.
Set Up Baud Rates and Modem/SLIP/PPP Parameters
Although the default values for the communication parameters meet requirements for most systems,
you may need to change them for your particular situation.
To reset the VT100 baud rate, follow these steps:
1. At the Main Menu, type 4, "Utilities," and press <Enter>.
2. At the Utilities menu, type 3, "VT100 Baud Rate," and press <Enter>, then press <Space> to
cycle between 9600 and 19200 bps.
3. To return to the Main Menu, press <Esc>.
To access the Modem/SLIP/PPP Configuration menu, follow these steps:
1. At the Main menu, type 4, "Utilities," and press <Enter>.
2. At the Utilities menu, type 4, "Modem/SLIP/PPP Configuration," and press <Enter>.
3. To select the baud rate for the serial port, type 4, "Modem/SLIP/PPP Configuration," and press
<Enter>, then press <Space> to cycle through the baud rate options; options include 9600, 19200,
38400, 57600, or 115200 bps.

EdgeAccess®Universal Chassis System
2346 T3 Modem
3-8
4. To enter a new Modem Initialization String, type 5, type the new string, and press <Enter>; the
default string is "AT".
Note: For details on a different initialization string, see the documentation for your modem.
5. To return to the Main Menu, press <Esc>.
Because the DMM defaults to VT100 mode when booting, you cannot see the screens and commands
used to switch to SLIP or PPP mode when you exit VT100 mode. Use a script file to successfully
exit VT100 mode and switch to SLIP or PPP.
1. To create a script on your PC, open Notepad and type the steps you would follow to enter SLIP or
PPP mode. On the last line, press <Space> once to select SLIP mode or twice for PPP mode
proc main
waitfor "Password :"
transmit $PASSWORD, raw
transmit "^M"
transmit "1^M"
transmit "5^M"
transmit "11^M"
transmit " ^M"
endproc
2. Save the Notepad document with a .SCP file extension in the folder where the Dialup Connection
application looks for scripts. The script will be available in the Dialup script menu. This file is
typically in the Windows\System32\ras\ folder.
3. To run the script, reach the Phonebook Entry dropdown menu and select either the PPP or the
SLIP script.
If you do not have a script file, you dial in through a modem, and the networking option is set to
VT100 operation, you will not see the screens, but the 2346 responds to the commands normally.
Follow these steps:
1. Dial in through a modem, then type your user name and password and press <Enter>.
2. Type 1and press <Enter>.
3. Type 5and press <Enter>.
4. Type 11 and press <Enter>.
5. Press <Space> once for SLIP mode or twice for PPP mode, then press <Enter> to confirm the
port choice.
The 2346 is ready to run TCP/IP applications.
