Canon imageCLASS MF269dw User manual

Getting Started
Getting Started
Mise en route
Introducción
Introdução
Quick Operation P.23
Quick Setup NEXT PAGE
Please read "Important Safety Instructions" before operating this product. After you finish
reading this guide, store it in a safe place for future reference.
The information in this document is subject to change without notice.
https://oip.manual.canon

Quick Setup
Getting Started
Please read "Important Safety Instructions" before
operating this product. P.32
After you finish reading this guide, store it in a safe place for
future reference.
The information in this document is subject to change
without notice.
Mise en route
Prenez connaissance des "Consignes de sécurité
importantes" avant toute utilisation de ce produit. P.46
Après en avoir pris connaissance, conservez ce guide dans
un endroit sûr en vue de consultations ultérieures.
Les informations contenues dans ce document peuvent
être modifiées sans avis préalable.
Introducción
Lea las "Instrucciones de seguridad importantes" antes de
usar este producto. P.60
Cuando termine de leer esta guía, guárdela en un lugar
seguro para futuras consultas.
La información de este documento puede ser modificada
sin previo aviso.
Introdução
Leia "Instruções de segurança importantes" antes de operar
este produto. P.74
Depois de ler este guia, guarde-o em um local seguro para
referência futura.
As informações contidas neste documento estão sujeitas a
alterações sem aviso prévio.
You can access
https://oip.manual.canon to read the User's Guide that
describes all functions of this machine.
Le guide de l'utilisateur,
qui décrit toutes les fonctions de cet appareil se trouve sur
https://oip.manual.canon.
Puede acceder a
https://oip.manual.canon para leer la Guía de usuario donde
se describen todas las funciones de este equipo.
Você pode acessar
https://oip.manual.canon para ler o Guia do usuário que
descreve todas as funções desta máquina.
2

Quick Setup
Installation of the Machine
*
*
× 1 × 1
*
* These items may not be
included depending on
the model of the machine.
A toner cartridge for
replacement comes
with MF269dw VP.
- Toner cartridge and drum cartridge (included with the
machine)
- The toner cartridge included with the machine varies
depending on the model you purchased.
Installation Requirements
Provide a space of 4" (100 mm) or more around
the machine.
MF269dw / MF269dw VP
MF267dw / MF264dw
1 1/2
"
(39 mm)
5 "
(128 mm)
16 "
(405 mm)
3 1/2 "
(87 mm)
15 3/8
"
(390 mm)
14 3/4
"
(375 mm)
11 5/8"
(295 mm)
1 3/4
"
(45 mm)
5 "
(128 mm)
16 "
(405 mm)
3 1/2 "
(87 mm)
15 3/8
"
(390 mm)
14 3/4
"
(375 mm)
10 5/8
"
(270 mm)
Items Included with the
Machine Installing the Machine
3

Quick Setup
Before starting the installation
• Remove all of the tape.
• Do not remove the sticker that covers the USB
port.
Sticker
1
2
3
4
5
6
7
Installation of the Machine
4

Quick Setup
8
9
10
11
Pt
Es
Fr
En
Next, proceed to configure the machine.
12
13
14
15
2
1
5

Quick Setup

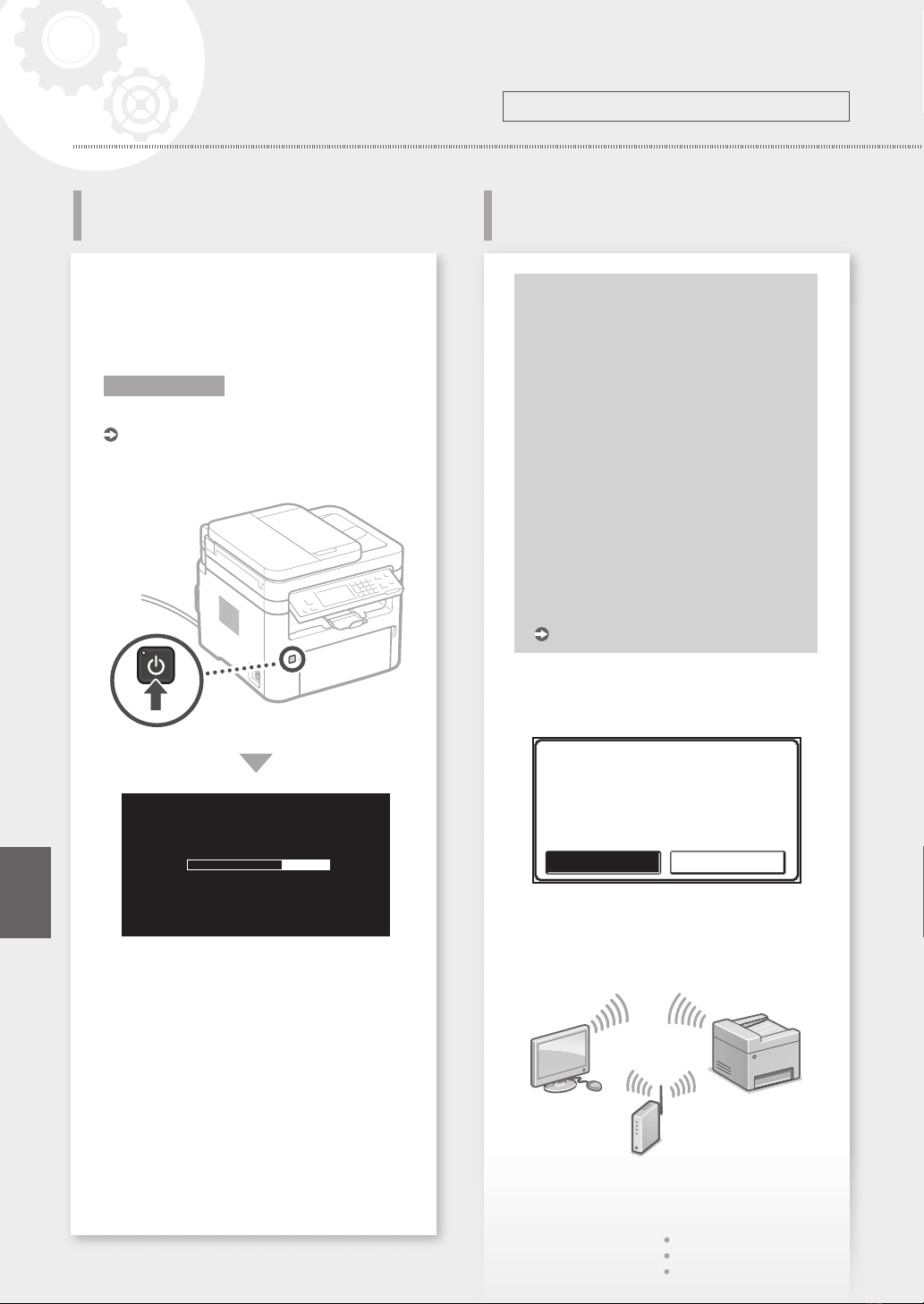

Configuring the Machine
1.
2. Configure the initial settings, according to the
screen.
• Set the language and country/region.
• Set the time zone and current date/time.
Before starting the configuration
• The machine cannot be connected to
both wired and wireless LANs at the same
time.
• If the machine is connected to an
unsecured network, your personal
information might be leaked to a third
party. Please be aware and careful of this.
• The machine does not come with a
router. Please have one ready, if
necessary.
• Even in an environment without wireless
LAN router, you can use Access Point
Mode to make a wireless connection to
the machine directly from your mobile
device (Direct Connection).
User's Guide
Specifying the connection method
Do you want to use the
wireless LAN to connect
to the network?
The settings can be
configured later.
Yes No
• To connect via wireless LAN : <Yes>
• To connect via wired LAN or USB : <No>
To connect via wireless LAN
1. Make sure that the computer is connected to a
router properly.
Configure the settings in the following order.
NOTE
Parts and functions of the operation panel
P.24 "Start the Operation from the Operation
Panel"
Configuring the Initial Settings
of the Machine Configuring the Method of Connecting to a Computer
The design of the operation panel differs
depending on the model of your machine. The
descriptions of the operation panel in this guide
basically presumes that the model is MF269dw.
6
En

Quick Setup
2. Check the network settings on the computer.
3. Take note of the SSID and network key.
• Check the label on the router. User's Guide
• The setting operation is easier if the router is
provided with a WPS mark. User's Guide
4. Set the access point and network key
according to the screen below.
For more information, refer
to the manual.
OK
1. Select <OK>.
2. Select <SSID Settings>.
3. Select <Select Access Point>.
4. Select the access point (SSID).
5. Enter a network key, and select <Apply>.
6. Select <Yes>.
• The IP address will be automatically
configured in a few minutes.
• "Connected." is displayed.
5. Install the driver and software.
P.8 "Installing the software"
To view a video guide on the process
You can find a video and guide to assist the
process for the Wireless Network connection
from the URL below. Viewing these guides will
ensure a smooth setup of the device into your
existing wireless environment.
http://www.usa.canon.com/WirelessHelp
Now you are finished with the
configuration of the initial settings.
To connect via wired LAN
The machine does not come with a LAN cable.
Please have one ready, if necessary.
1. Make sure that the computer is connected to a
router properly.
2. Check the network settings on the computer.
3. Connect the LAN cable.
• After connecting the cable, wait a few minutes
(until the IP address is set automatically).
• If a static IP address has been set on the
computer, set the machine's IP address
manually.
4. Install the driver and software.
P.8 "Installing the software"
Now you are finished with the
configuration of the initial settings.
For details
"Setting Up Using the Setup Guide" in the User's Guide
7
En

Quick Setup

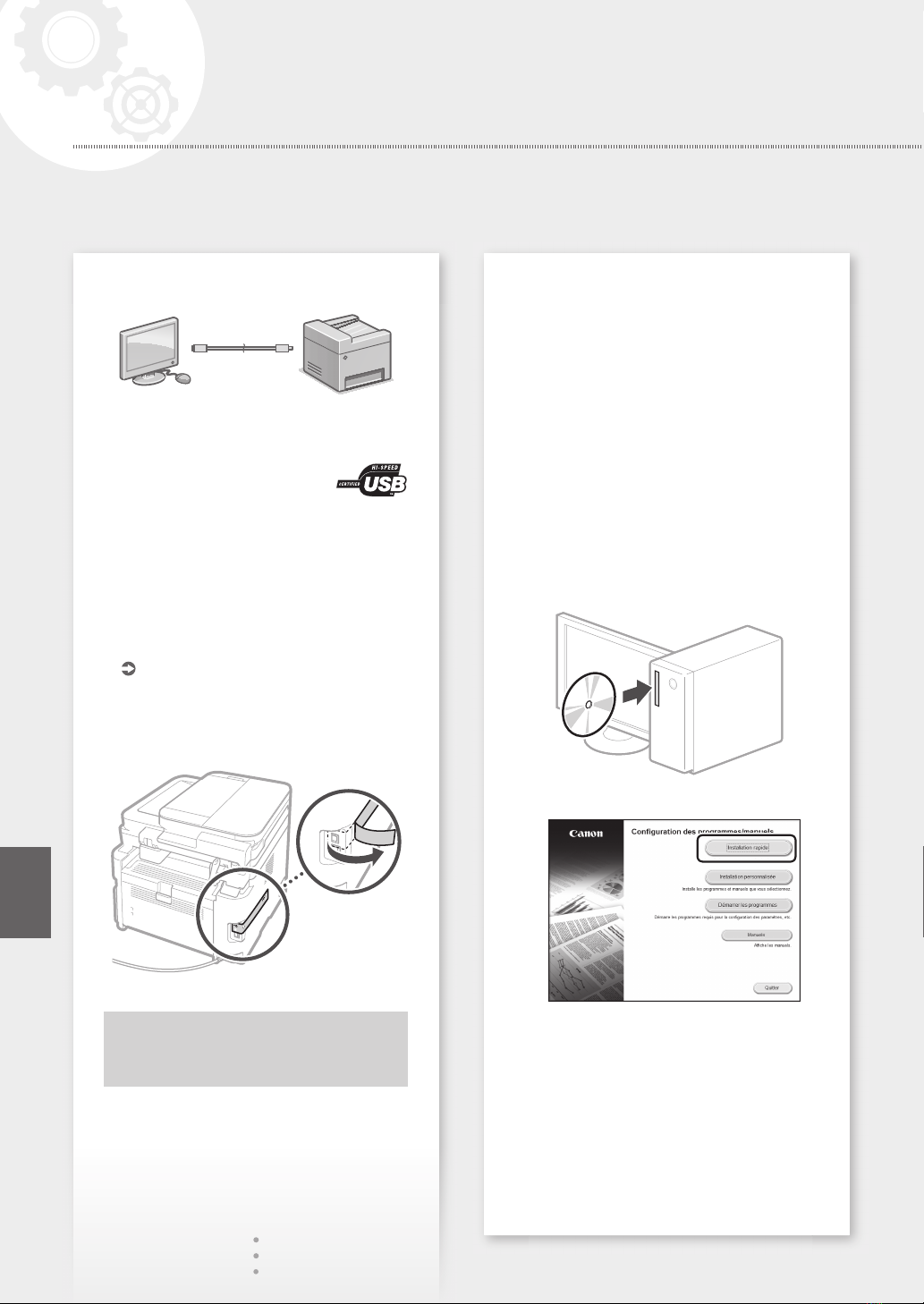

Installing the software
• The procedure described here is only applicable
when your computer runs on the Windows OS.
For more details on the software installation
procedure, see the driver's manual.
• For the installation when your computer runs on
the macOS, see the driver's manual.
• Your machine may not come with the driver for
the macOS, depending on the time of purchase.
New drivers are uploaded to the Canon website,
and you can download and use the latest one.
1.
2.
If the screen is not displayed properly,
re-insert the CD-ROM/DVD-ROM or search
for "D:\MInst.exe" on the Windows platform
(This description assumes that "D:" is the
CD-ROM/DVD-ROM drive name).
To connect via USB
• The machine does not come with a USB cable.
Please have one ready, if necessary.
• Make sure that the USB cable you
use has the following mark.
• Do not connect the USB cable
before installing the driver. If you did, disconnect
the USB cable from the computer, close the
dialog box, and then perform the following
procedure from step 1.
1. Install the driver and software.
P.8 "Installing the software"
• When a screen with instructions for
connecting the USB cable to the machine is
displayed, remove the sticker that covers the
USB port.
Now you are finished with the
configuration of the initial settings.
Configuring the Machine
8
En

Quick Setup
Before starting the configuration:
If your machine does not come with a
telephone cable, have one ready, as
necessary.
Configure the fax settings, according to the
screen below.
Copy
Home
Fax
Scan
Menu
Addr. Book
1/5
1. Select <Fax>.
2. Select <Set Up Now>.
3. Register the machine's telephone number (fax
number) and abbreviated user name.
Register the unit
telephone number
for this device.
Next
• The information below will be printed at the
top part of the paper output from the
destination machine as sender information.
02/02 2017 10:00AM FAX 123XXXXXXX CANON 0001
Sent Time
Number’s Type
Fax Number
Unit Name Page Number
Configuring Fax Settings
4. Set the reception mode.
• Make the setting by answering the questions
on your purposes of using the fax function.
5. Connect to a telephone line.
Next
Connect to socket on back of de
v
A
B
Telephone line jack
Telephone
6. Select <Next>.
7. Select <Yes>.
Now you are finished with the
configuration.
For details
"Configuring Initial Settings for Fax Functions" in the User's Guide
9
En

Configuration rapide

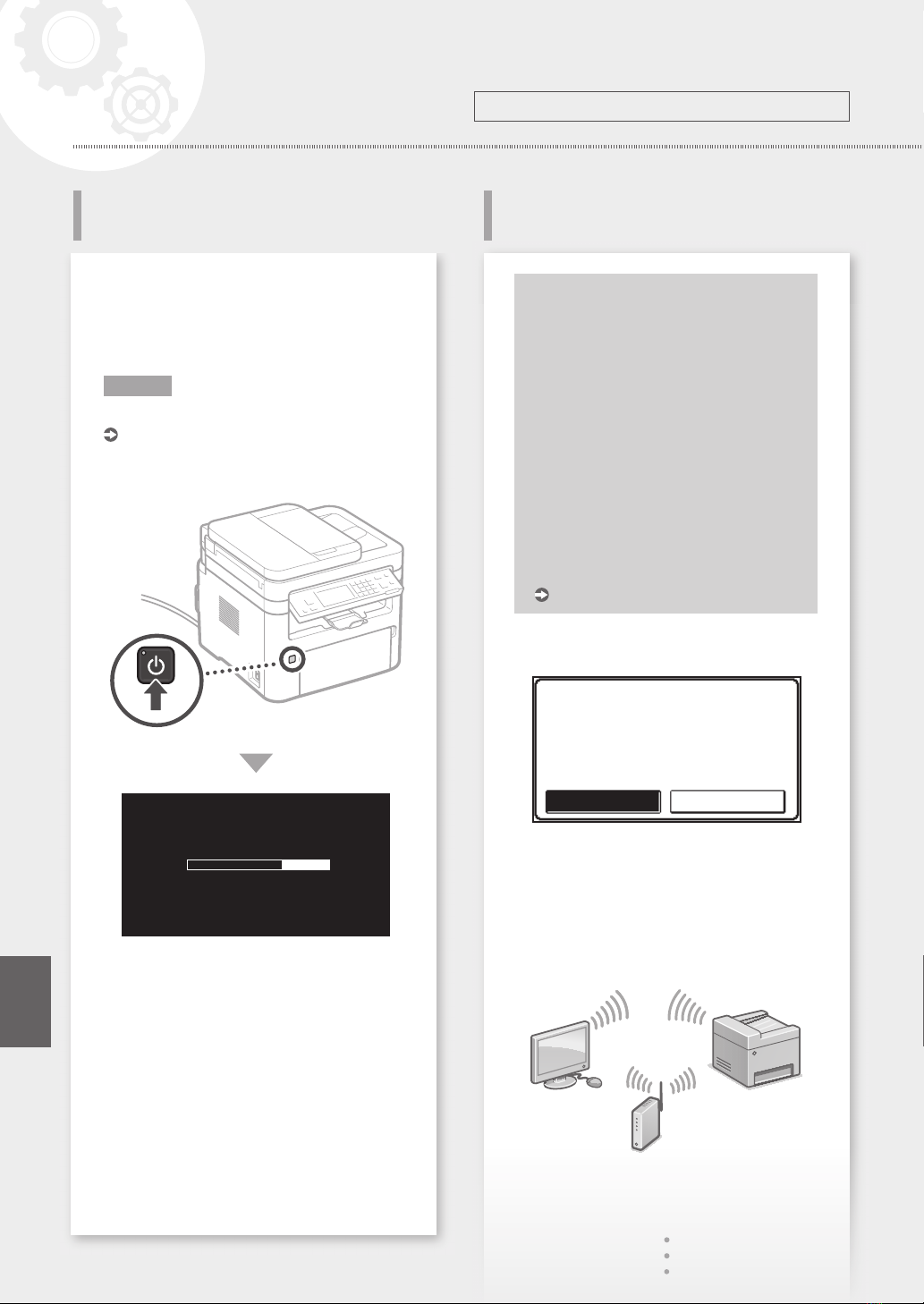

Configuration de l'appareil
1.
2. Configurez les réglages initiaux en suivant les
instructions à l'écran.
• Spécifiez la langue et le pays/la région.
• Spécifiez le fuseau horaire et réglez la date et
l'heure.
Avant commencer la configuration
• Cet appareil ne peut pas être connecté
simultanément par des réseaux sans fil et
filaires.
• Si l'appareil est connecté à un réseau non
sécurisé, vos informations personnelles
pourraient être divulguées à un tiers.
Soyez conscient de cette situation et
agissez prudemment.
• L'appareil n'est pas livré avec un routeur.
Vous devez vous en procurer un.
• Même dans un environnement sans
routeur de réseau sans fil, vous pouvez
utiliser le mode Point d'accès pour établir
directement une connexion sans fil entre
l'appareil et votre appareil mobile
(connexion directe).
Guide de l'utilisateur
Spécification de la méthode de
connexion
Souhaitez-vous utiliser le
réseau sans fil pour la
connexion au réseau ?
Les paramètres peuvent être
configurés ultérieurement.
Oui Non
• Connexion par réseau sans fil: <Oui>
• Connexion par réseau filaire ou USB: <Non>
Connexion par réseau sans fil
1. Assurez-vous que l'ordinateur est correctement
connecté à un routeur.
Configurez les réglages dans l'ordre suivant.
REMARQUE
Sections et fonctions du panneau de commande
P.38 "Démarrage à partir du panneau de
commande"
Configuration des réglages
initiaux de l'appareil Configuration de la méthode de connexion à un ordinateur
Le dessin du panneau de commande diffère selon le
modèle de votre appareil. Les descriptions du
panneau de commande dans le présent guide se
rapportent au modèle MF269dw.
10
Fr
