Canon CN-E18-80mm User manual

Digital Cinema Lens/ 数字电影镜头 /Dijital Sinema Lensi
CN-E18-80mm T4.4 L IS KAS S
CN-E70-200mm T4.4 L IS KAS S
取扱説明書
OPERATION MANUAL
使用说明书
KULLANIM KILAVUZU
ご使用の前に必ずこの取扱説明書をお読みください。
なお、取扱説明書は必要に応じてご覧になれるように大切に保管して
ください。
Read this operation manual before using the product.
Keep the manual in place for future reference.
在使用本产品之前, 请务必先仔细阅读本使用说明书。
请务必妥善保管好本书, 以便日后能随时查阅(保留备用)。
请在充分理解内容的基础上, 正确使用。
Ürünü kullanmadan önce bu kullanım kılavuzunu okuyun.
Daha sonra baş vurabileceğiniz şekilde kılavuzu saklayın.
Lens Accessory/ 镜头配件 /Lens Aksesuarı
ZSG-C10
Zoom Servo Grip/ 伺服变焦手柄 /Zum Servo Tutucu
日本語
ENGLISH
中 文
Türkçe
Русский язык
Қазақша

This operation manual explains the handling of three following products.
Refer to the operation manual of the product which you purchased.
Digital Cinema Lens CN-E18-80mm T4.4 L IS KAS S
CN-E70-200mm T4.4 L IS KAS S
Lens Accessory Zoom Servo Grip ZSG-C10

FCC REGULATIONS
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Do not make any changes or modications to the equipment unless otherwise specied in the manual. If such changes
or modications should be made, you could be required to stop operation of the equipment.
Canon U.S.A.,Inc.
One Canon Park,Melville,NY 11747,USA
Tel No.1-800-OK-CANON(1-800-652-2666)
Canadian Radio Interference Regulations
CAN ICES-3(B)/NMB-3(B)
Only for Digital Cinema Lens CN-E18-80mm T4.4 L IS KAS S, CN-E70-200mm T4.4 L IS KAS S
Only for Digital Cinema Lens CN-E18-80mm T4.4 L IS KAS S, CN-E70-200mm T4.4 L IS KAS S

Only for European Union and EEA (Norway, Iceland, and Liechtenstein)
This symbol indicates that this product is not to be disposed of with your household waste, according
to the WEEE Directive (2012/19/EU) and national legislation. This product should be handed over to a
designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product
or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper
handling of this type of waste could have a possible negative impact on the environment and human
health due to potentially hazardous substances that are generally associated with EEE. At the same time,
your cooperation in the correct disposal of this product will contribute to the effective usage of natural
resources. For more information about where you can drop off your waste equipment for recycling, please
contact your local city ofce, waste authority, approved WEEE scheme or your household waste disposal
service.
For more information regarding return and recycling of WEEE products, please visit
www.canon-europe.com/weee.

GENERAL SAFETY INFORMATION ..........E1
To the customer who purchased
Digital Cinema Lens

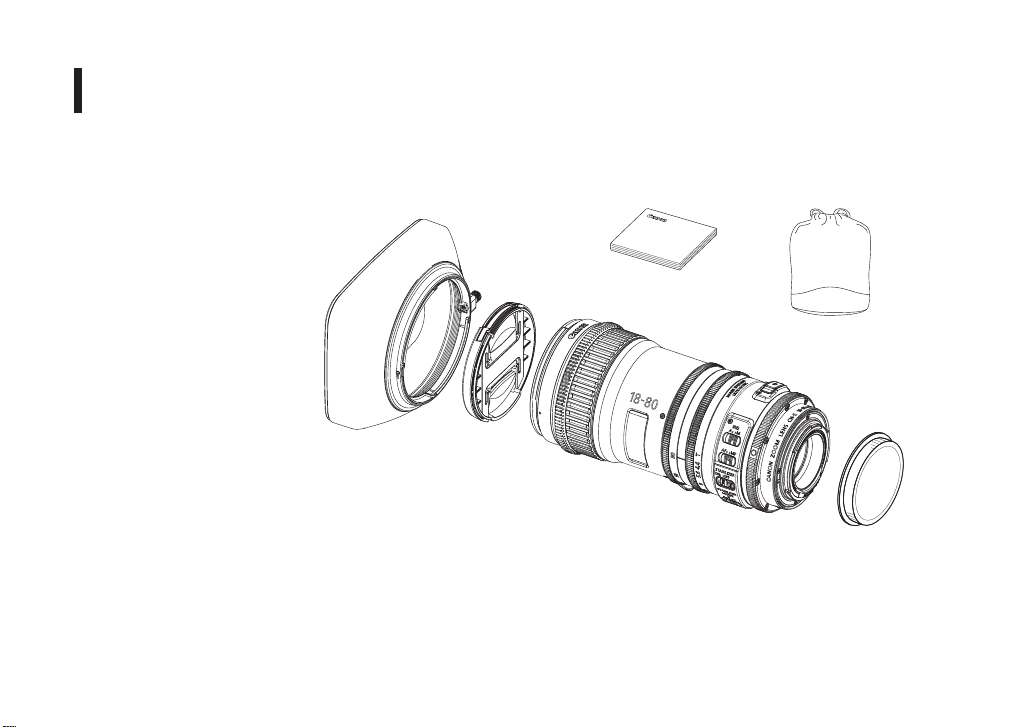

1.Standard Product Conguration ....................E7
2.Names of Parts..............................................E8
3.How to Mount.................................................E9
3-1. Mounting the Lens on the Camera ......................E9
3-2. Detaching the Lens from the Camera ............... E11
3-3. Attaching/Detaching the Hood...........................E12
3-4. Available Accessories........................................E13
3-5. Dimensions of Parts ..........................................E14
4.Turning on the Power ..................................E16
Table of Contents
5.Back Focus Adjustment ...............................E17
6.Zoom Operation...........................................E18
6-1. Manual/Servo Zoom Operation .........................E18
6-2. Operation by Zoom Demand .............................E19
7.Focus Operation ..........................................E20
7-1. Manual/Auto Focus Operation...........................E20
7-2. Operation by Focus Demand ............................E21
8.Manual/Auto Iris Operation..........................E22
9.Operating IS (Image Stabilizer) Function.....E23
10.Specications..............................................E24
Reference Information................................E26
Appendix
DEPTH-OF-FIELD Table .................................. apx. 1
External view .................................................... apx. 13
Index ................................................................... apx. 17
Digital Cinema Lens
CN-E18-80mm T4.4L IS KAS S
CN-E70-200mm T4.4L IS KAS S

E1
To the customer who purchased
Lens Accessory Zoom Servo Grip
1. Standard Product Conguration ...................E29
2. Names of Parts.............................................E30
3. Attaching Zoom Servo Grip to the Lens .......E31
4. Zoom Operation............................................E32
5. Other Functions............................................E33
Appendix
DEPTH-OF-FIELD Table .................................. apx. 1
External view...................................................... apx. 13
Index ........................................................ apx. 17
Lens Accessory Zoom Servo Grip
ZSG-C10

E1
GENERAL SAFETY
INFORMATION
The safety warnings and cautions provided on the product or
in this operation manual must be observed. Failure to observe
these warnings and cautions provided to guard against hazards
may result in injury or accident. Read this manual carefully
to familiarize yourself with its contents and to ensure proper
operation of this product.
Also, keep this manual in a safe place where it can easily be
referenced whenever required.
This manual uses the following symbols and terms in the
warning and caution notices for preventing accidents and
protecting the safety of the customer and others.
WARNING
This indicates a potentially hazardous situation which, if not
heeded, may result in death or serious injury to you or others.
Be sure to heed all warning notices to ensure safe operation
at all times.
CAUTION
This indicates a potentially hazardous situation which, if not
heeded, may result in a minor injury to you or others, or damage
to property. Be sure to heed all caution notices to ensure safe
operation at all times.
NOTE
This indicates cautions and recommendations for operation.
It contains information which, if not heeded, may result in this
product failing to function properly. These notices also contain
useful information for operation.

E2
E3
HANDLING THE PRODUCT
WARNING
1. Do not get this product wet or allow liquid inside. If water
gets inside, stop using the product immediately. Continuing
to use the product under this condition may cause a re or
electric shocks.
2. Do not stare at the sun or other bright objects through the
lens. It may injure your eyes.
3. Be sure to hold the connector when disconnecting the cable.
Pulling on the cable may sever or damage it and pose a risk
of a re or electric shocks from a short circuit.
CAUTION
1. Be careful not to drop the product when carrying it. Dropping
the product may cause injury.
2. Ensure that all mountings are securely tightened. If a
mounting becomes loose, parts may fall off and cause injury.
3. Inspect mountings regularly (about every six months to one
year) to ensure they are securely tightened. If a mounting
becomes loose, parts may fall off and cause injury.
4. When this product is used under a blazing sun, the inside
of the unit may be heated to high temperature. When it is
expected that the unit is exposed to elevated temperature,
take measures against heat as appropriate on the
customer’s side.
NOTE
1. Striking or dropping the lens may cause the malfunction of
the product.
2. This product is not waterproof. Take measures to avoid direct
contact with rain, snow, or moisture. Otherwise it may cause
the malfunction of the product.
3. In dusty environments, cover the lens mount when using,
attaching or removing the lens. If dust enters inside, it may
cause the malfunction of the product.
4. Take measures to avoid sudden changes in temperature
where the lens is used, which may prevent operation
temporarily if condensation forms in the lens.
5. Before use in particular environments, such as places where
chemical products are used, contact your dealer or Canon
representative.

E2
E3
DEALING WITH
ABNORMALITIES
WARNING
If any of the following situations occurs, immediately disconnect
the cable and contact your dealer or a Canon representative
listed on the next page.
・Smoke, fumes, or unusual noises
・Entry of foreign objects (such as liquid or metal objects)
inside the product
NOTE
1. Clean off any dust on the lens surface using a lens blower or
a soft lens brush. In case of getting ngerprints or stains on
the lens, use a clean cotton cloth moistened with commercial
lens cleaning uid, or use lens cleaning paper. Gently wipe in
a spiral pattern from the center of the lens. Be careful not to
rub dust across the lens, which may scratch the lens surface.
2. Routine inspection about once a year is recommended,
depending on the conditions and environment of use.
Request overhaul, if needed.
MAINTENANCE AND
INSPECTION
WARNING
Be sure to disconnect the cable and remove the lens from the
camera before cleaning outside of the lens. Do not use benzene,
thinner, or other ammable substances to clean the product.
Otherwise it may cause a re or electric shocks.

E4
TO THE CUSTOMER
1. Canon shall bear no responsibility for damage resulting
from improper operation of this product by the customer.
2. Canon shall make no guarantees about its marketability and
suitability for the customer’s purpose on the product quality,
functions, or operation manual. Moreover, Canon shall bear
no responsibility for any damage, direct or incidental, that
results from usage for the customer’s purpose.
3. Canon shall make no guarantees about the results obtained
using this product.
4. The product specications, conguration, and appearance
are subject to change without prior notice.
5. For further information on repairs, maintenance, or
adjustments not mentioned in this operation manual, contact
your Canon dealer or your Canon sales representative.
6. Note that Canon may be unable to undertake servicing or
repair of a product if it is modied without consulting Canon
or your Canon sales representative.
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku,
Tokyo 146-8501, Japan
Canon Europe Ltd
3 The Square, Stockley Park, Uxbridge,
Middlesex, UB11 1ET UK
All rights reserved.
No part of this operation manual may be reproduced or copied in any form or by any means without the written permission
of Canon Inc.
STORAGE
WARNING
Always attach the lens cap, hood cap, dust cap or covers
accompanied with the product when purchased before storage.
Storing the lens without the caps or covers attached poses a
risk of re if the lens concentrate light in direct sunlight.
NOTE
Immediately wipe off any moisture on the lens from misty or
foggy environments, using a dry cloth. Seal the lens in a plastic
bag with a desiccant (preferably new) to prevent moisture
inside. Otherwise it may cause the mold or the malfunction of
the product.

E4
Digital Cinema Lens
CN-E18-80mm T4.4 L IS KAS S
CN-E70-200mm T4.4 L IS KAS S

E6
E7
Forward
Thank you for purchasing Canon products.
This operation manual is applicable for the following models.
CN-E18-80mm T4.4 L IS KAS S
CN-E70-200mm T4.4 L IS KAS S
For the camera models that can be used with this product, contact your Canon dealer.

E6
E7
1. Standard Product Conguration
Lens body.............................1
Lens cap...............................1
Rear lens cap .......................1
Hood.....................................1
Lens case .............................1
Operation manual Operation manual
Lens cap
Lens body
Rear lens cap
Make sure all the following items are included in the packing box.
If you nd any item missing, please contact your Canon dealer.
•The illustrations in this manual show standard CN-E18-80mm T4.4 L IS KAS S.
Actual shapes may be slightly different depending on models and specications.
•Accessories other than those mentioned above may be required depending on
the specications of your lens. For details, contact your Canon dealer.
•CN-E70-200mm Ｔ4.4 L IS KAS S can be used with Canon extenders.
Hood
Lens case

E8
E9
2. Names of Parts
3
24 5 6 7 8
9
10
11
12
13 14 15 16
1
①Focus Ring
②Zoom Speed Adjusting Volume
③Focus Index Window
④Zoom Operation Change-over Knob
⑤Zoom Ring
⑥Iris Ring
⑦IS (Image Stabilizer) Mode Switch
⑧IS (Image Stabilizer) Switch
⑨Auto/Manual Focus Change-over Switch
⑩Iris Auto/Manual Change-over Switch
⑪F.B. Adjuster
⑫EF Mount
⑬External Power Input
⑭Zoom/Focus Remote Connector
⑮Zoom Operation Switch (Wide Angle Side)
⑯Zoom Operation Switch (Telephoto Side)

E8
E9
3. How to Mount
For the details of mounting the lens on the camera or detaching the lens from the camera, refer to the operation manual of the
camera.
3-1. Mounting the Lens on the Camera
1. Remove the rear lens cap from the lens.
2. Mount the lens on the camera.*1
*1：To the customer who purchased CN-E70-200mm T4.4 L IS KAS S
The following Canon extenders can be used with CN-E70-200mm T4.4 L IS KAS S.
Extender EF1.4 ×Ⅲ、EF2 ×Ⅲ
NOTE
When attaching the extender, rst attach the extender to the lens, then attach it to the camera.
To detach it, follow the same procedure in reverse. Attaching the camera before attaching the extender to the lens may cause
misoperation.

E10
E11
To the customer who purchased CN-E70-200mm T4.4 L IS KAS S
NOTE
•When using the lens with the extender, attaching the Canon lens holder LH-CS01 to the lens and xing it to the rig (rod)
is recommended for the stable shooting.
•LH-CS01 and the hexagon socket head wrench are included in the packing box with Zoom Servo Grip ZSG-C10.
•For purchasing LH-CS01（the hexagon socket head wrench included) separately, contact your Canon dealer.
Lens Holder Holes Lens Holder
1. After attachiing the extender, attach the lens holder into
the lens holder holes of the lens using the hexagon
socket head wrench.
2. Attach the lens to the camera. Refer to the operation
manual of the camera for the details of attaching the lens
to the camera.
3. Attach the rig (rod) available in the market to the lens
holder. For the procedure to attach the rig (rod) and the
lens holder, refer to the operation manual of the rig (rod).
Rig (rod) attaching side
Attaching the lens holder to the lens

E10
E11
3-2. Detachting the Lens from the Camera
1. Detach the lens from the camera.
2. Attach the rear lens cap to the detached lens.
NOTE
• After detaching the lens, place the lens with the rear end up to prevent the lens surface and contacts from getting
scratched.
• If the contacts get soiled, scratched, or have ngerprints on them, corrosion or faulty connections can result. The
camera and lens may not operate properly.
• If the contacts get soiled or have ngerprints on them, clean them with a soft cloth.

E12
E13
3-3. Attaching/Detaching the Hood
Attaching the hood
1. Align the red attaching position mark on the hood and the
red index mark on the lens.
2. Turn the hood until the red index mark on the lens and the
stop position mark on the hood are aligned. Then tighten
the hood lock knob.
Detaching the hood
1. Loosen the hood lock knob.
2. Turn the hood in the detaching direction.
Attaching
Detaching
Stop Position Mark
Hood Lock Knob
Red Index Mark
Attaching Position Mark
Hood

E12
E13
A variety of accessories are available by using the cinema lens adaptor with φ15 in rod diameter.
3-4. Available Accessories

E14
E15
(Unit : mm)
Spur gear specications
Focus drive gear Zoom drive gear Iris drive gear
Number of teeth 109 162 162
Module 0.8 0.5 0.5
P.C.D. φ87.2 φ81.0 φ81.0
Angular rotation Endless (Operation range 130°)90°90°
3-5. Dimensions of Parts
161.1
86.1
182.339.4
φ84
φ79.5
154.6
77.2
58.3
5
4.6
CN-E18-80mm T4.4 L IS KAS S
