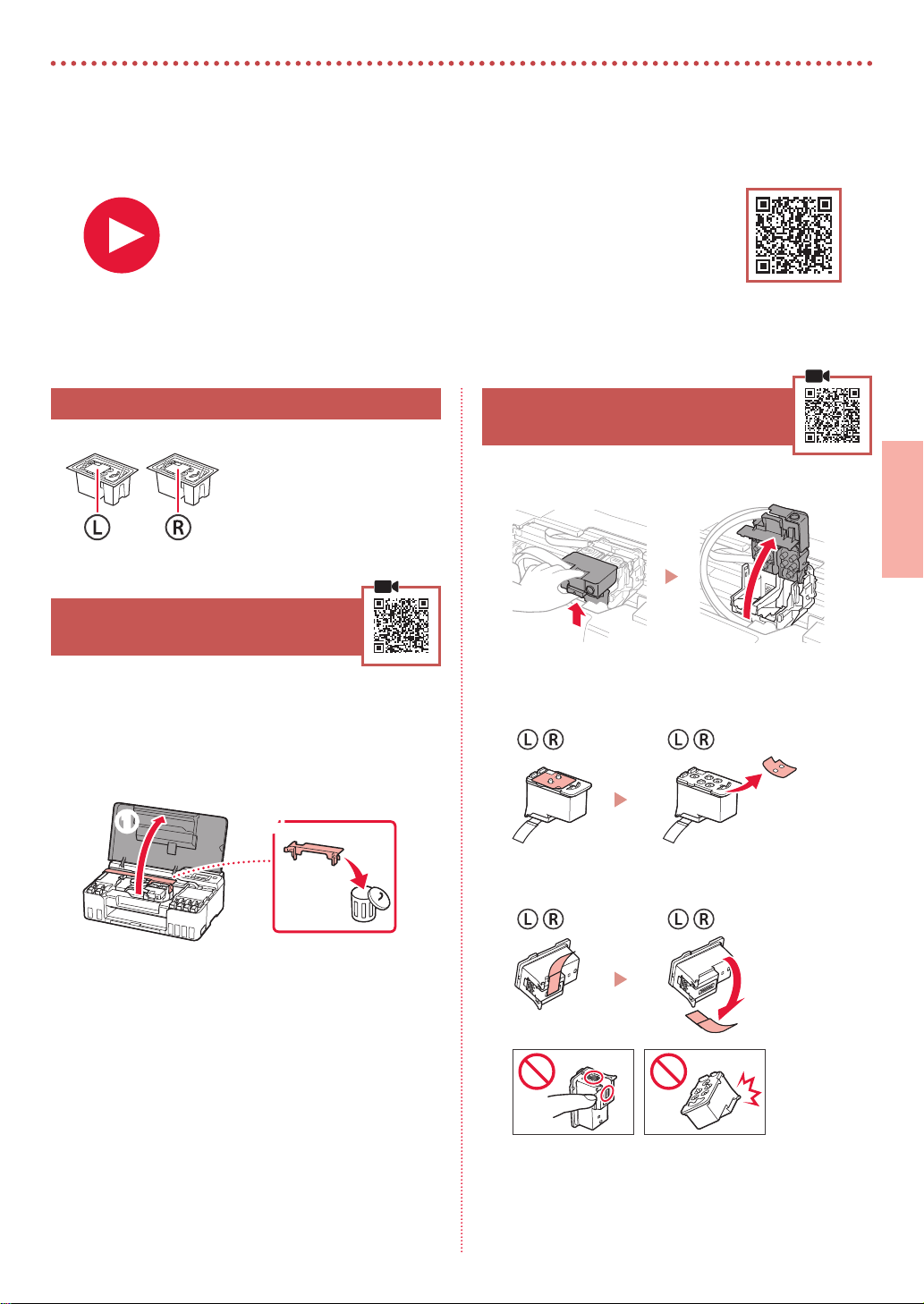

Setting Up the Printer
1. Box Contents
•
Print Heads • Ink Bottles
•
Power Cord
•
Setup CD-ROM
•
Safety and Important Information
•
Getting Started (this manual)
2. Removing Packing Materials
1 Remove and dispose of any packing materials
and orange tape.
2 Open the top cover, remove and dispose of the
orange tape and protective material inside.
a b

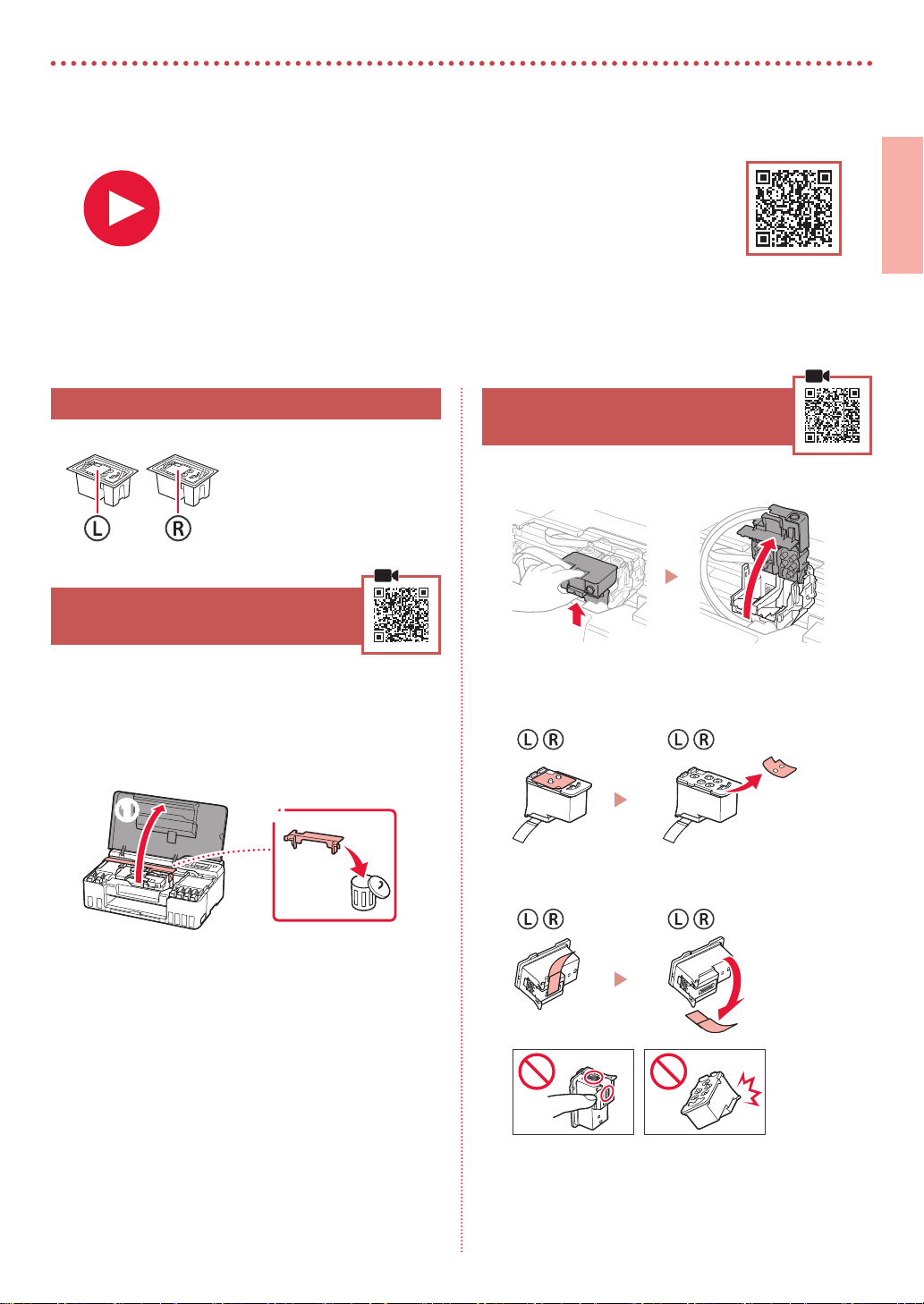

3. Installing the Print Heads
1 Open the print head locking cover.
2 Take out each print head from the package and
remove the label.
3 Remove the orange tape.
For Setup, visit the URL
https://ij.start.canon
or scan the code with your mobile device
•
Follow the instructions below if you do not have an internet connection.

2
Setting Up the Printer
4 Insert the L print head on the left and the R print
head on the right.
5 Close the print head locking cover and press
down until it clicks.
6 Press down both joint buttons completely until
they click.
Check!
7 Close the top cover.

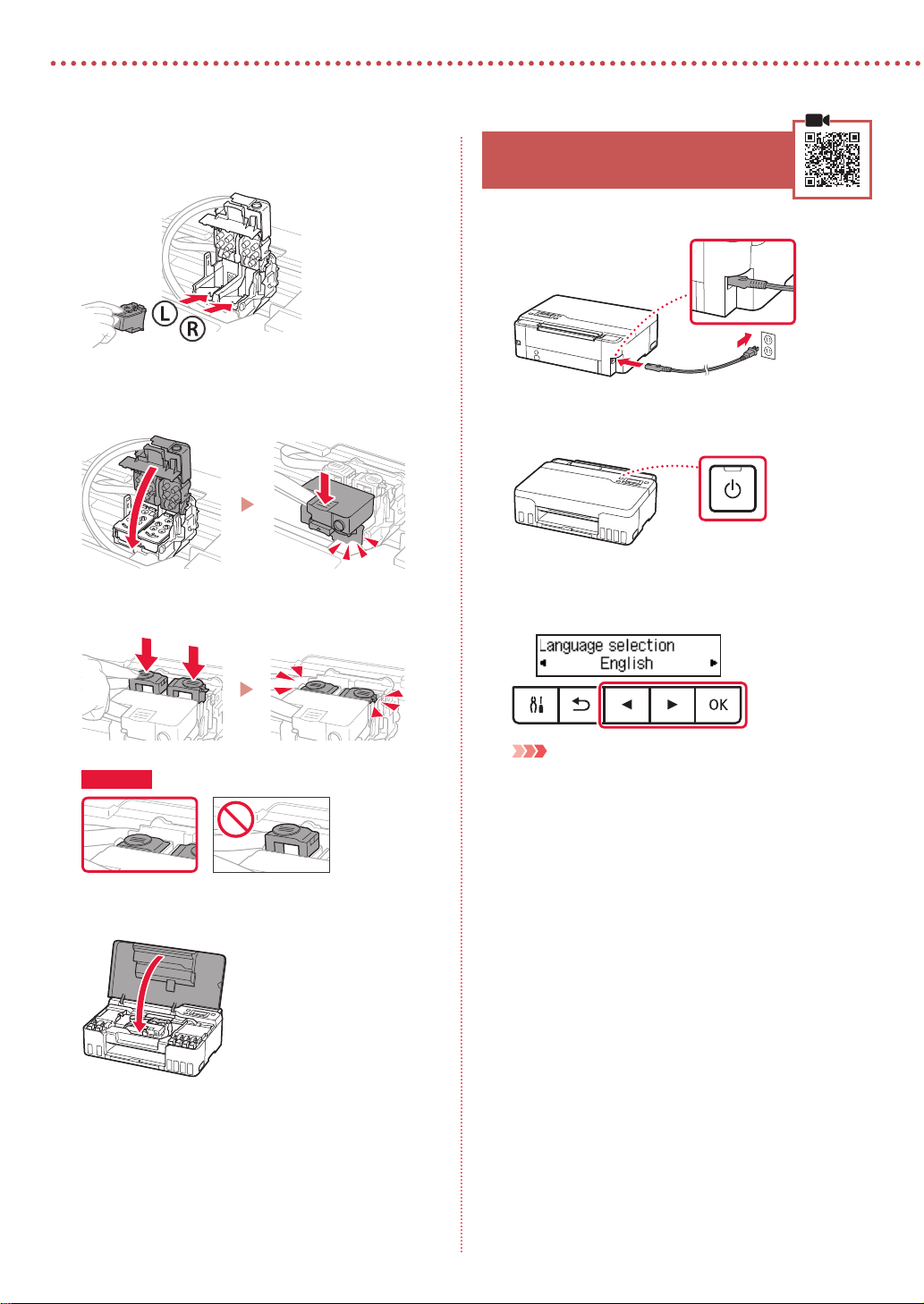

4. Turning on the Printer
1 Connect the power cord.
Back
2 Press the ON button.
3 When the following screen appears, use the [
and ]buttons to select a language, and then
press the OK button.
Important
If an error appears on the screen, see "If an error message
(support code) appears on the screen" on page 5 and
follow the instructions.

3
ENGLISH

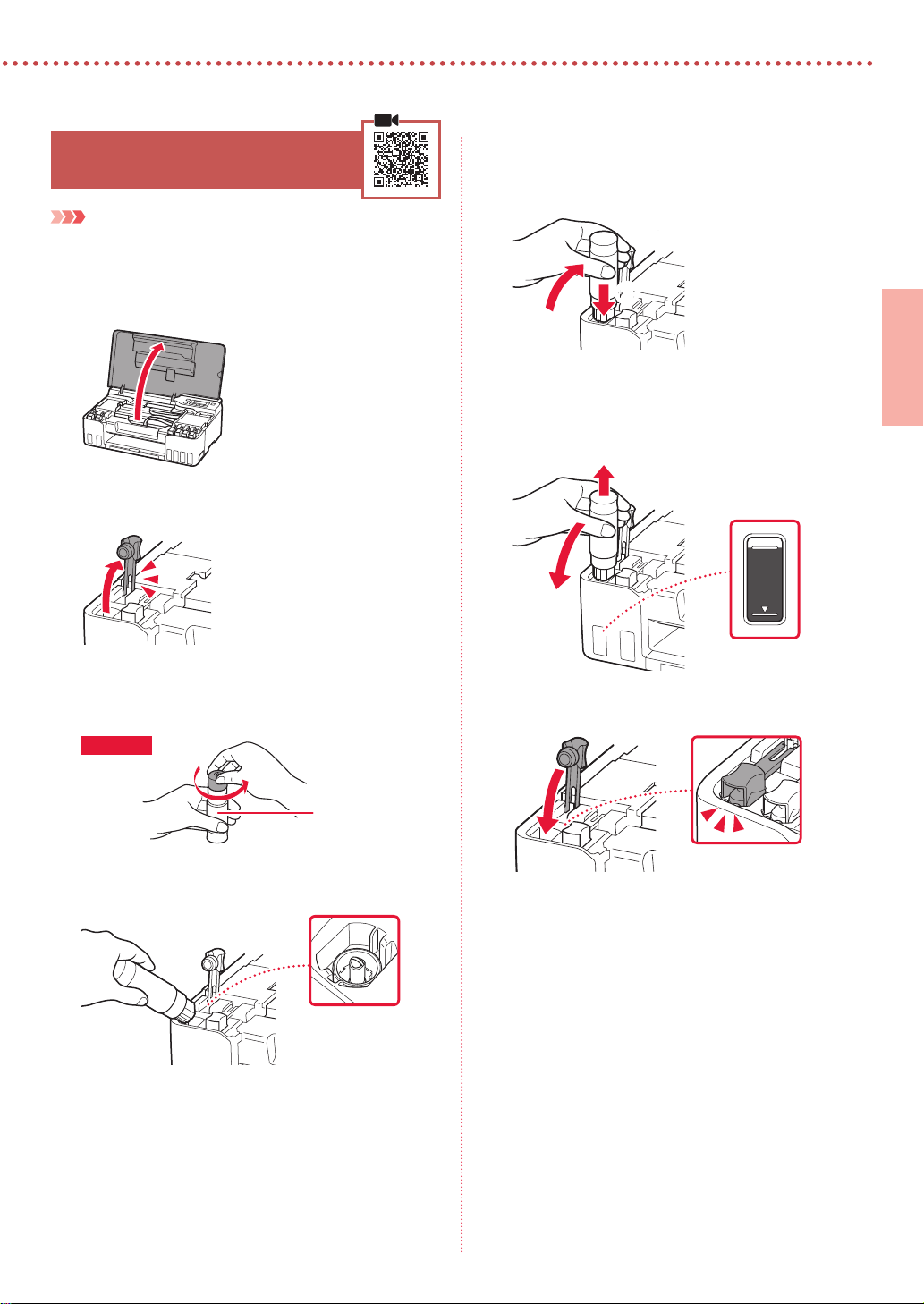

5. Pouring Ink
Important
This product requires careful handling of ink. Ink may splatter
when the ink tanks are lled with ink. If ink gets on your clothes or
belongings, it may not come o.
1 Open the top cover.
2 Open the gray tank cap on the left of the printer.
3 Hold the GY (gray) ink bottle upright and gently
twist the bottle cap to remove.
Check!
GY
4 Align the nozzle of the ink bottle with the inlet.
5 Slowly stand the ink bottle upside down and
push down to pour the ink.
• If the ink does not pour, gently remove the ink bottle
and try again.
a
b
6 Gently remove the ink bottle from the inlet.
• Be careful not to spill the ink.
a
b
7 Replace the tank cap securely.

4
Setting Up the Printer
8 Repeat steps 2 through 7 to pour all ink for all
colors into the ink tanks for each color.
• Pour the supplied ink that matches the color of the
tank cap.
C M YRGY BK
Check!
9 Close the top cover.
10 Use the [and ]buttons to select Yes , and
then press the OK button.

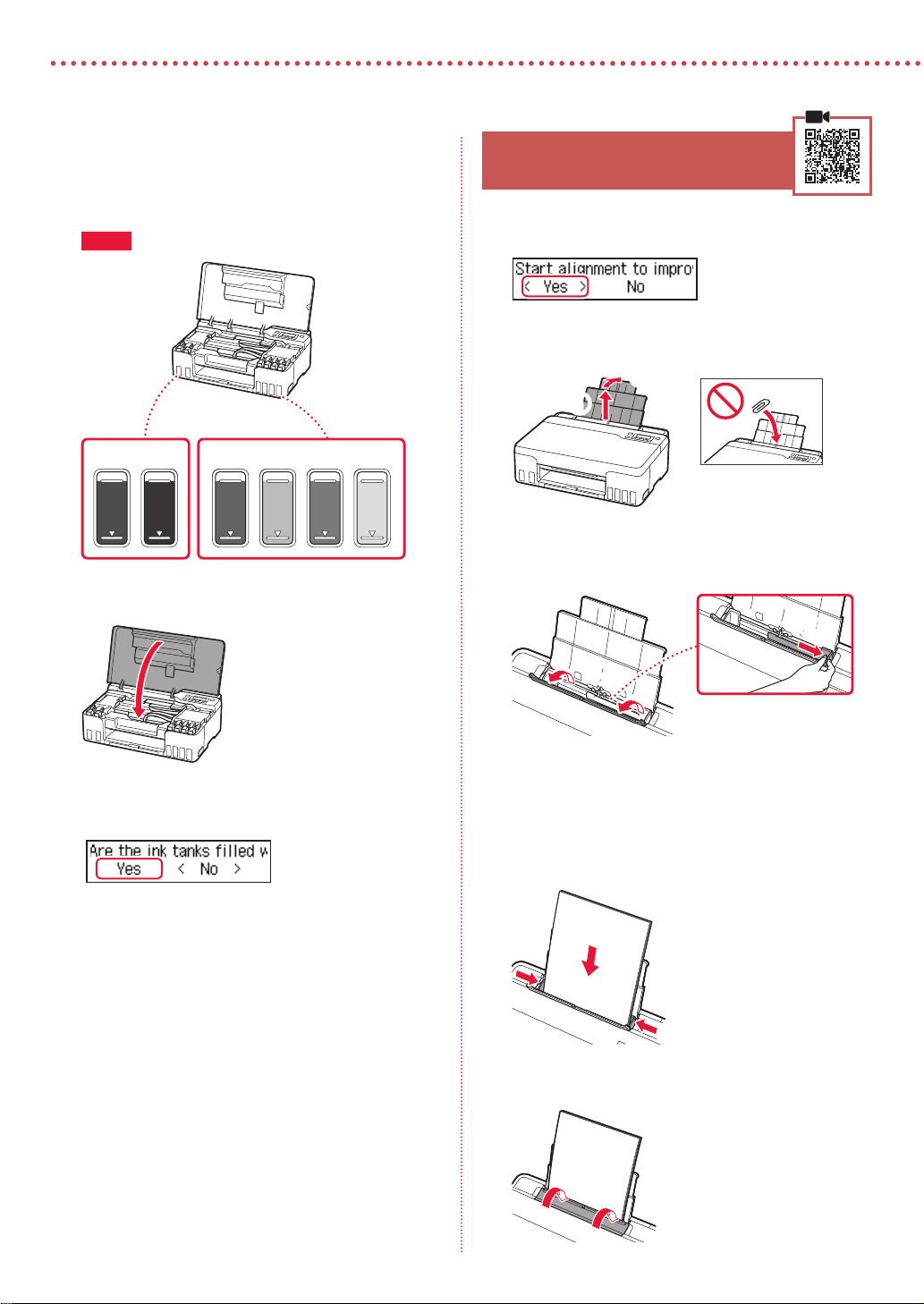

6. Loading Paper
1 Use the [and ]buttons to select Yes , and
then press the OK button.
2 Extend the paper support.
a
b
3 Open the feed slot cover and slide the right-
hand side paper guide to the far right.
b
a
4 Load paper.
• Load 2 or more sheets of Letter or A4 sized plain
paper.
• Slide the side paper guide against the edge of the
paper stack.
a
b
5 Close the feed slot cover.

5
ENGLISH
6 Extend the paper output tray.
7 Follow the on-screen instructions, and then
press the OK button.
• Please wait momentarily until the following screen
appears.
Proceed to the next page.
Check the support code, and then follow the
instructions if the displayed code is written below.
• 1890
Protective material remaining.
"2. Removing Packing Materials" on page 1
• 1470/1471
Print heads are not installed correctly.
"3. Installing the Print Heads" on page 1
• 1474
Print heads are not installed correctly.
Close the ink valve lever, and swap the left and right print
heads.
a
cb
"3. Installing the Print Heads" on page 1
• 5200
Ink system preparation was not completed successfully.
Press the ON button to restart the printer, and then see "5.
Pouring Ink" on page 3.
For all other cases, refer to the Online Manual.
If an error message (support code) appears on
the screen
Support code

7-a
6
Setting Up the Printer
Computer Smartphone
Computer and
smartphone
Connecting to a Computer
If you are using multiple computers, perform these steps on each computer.
1 Access the Canon website from your computer.
2 Select Set Up.
3 Enter your printer's model name and click Go.
4 Click Start.
5 Click (B) Connecting to a Computer/Smartphone.
• The following steps are for Windows users.
6 Click Download.
7 Run the downloaded le.
• Follow the on-screen instructions. This may take some time.
• To connect to a smartphone as well, see "7-b. Connecting to a Smartphone" on page 7.
What device are you connecting?
7-a. Connecting to a Computer
Using the Setup CD-ROM
Double click EasySetup.exe in the CD-ROM, and then continue from step 3. If you do not have an
internet connection, open the win folder in the CD-ROM and double click SETUP.exe. This will install
the printer driver.

7-b
7
ENGLISH
1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.
• Search for "Canon PRINT" in App Store, or Google Play.
• Access the Canon website to download the app.
2 Open your smartphone's Wi-Fi settings. Check that the network name (SSID) that starts
with "Canon_ij_" appears.
(Example of iOS screen)
The network name (SSID) that starts with "Canon_ij_"
• If "Canon_ij_" appears Proceed to step
3 .
• If "Canon_ij_" does not appear Proceed to step
4 .
3 Tap the network name (SSID) that starts with "Canon_ij_".
4 Open the installed app, and follow the on-screen instructions in the app to add your
printer.
Connecting to a Smartphone
If you are using multiple smartphones, perform these steps on each smartphone.
7-b. Connecting to a Smartphone
Once you have added your printer, you can print from your smartphone.
To print photos, see "Loading Photo Paper" on page 8.

8
1 Extend the paper support.
a
b
2 Open the feed slot cover and slide the right-
hand side paper guide to the far right.
a
b
3 Load several sheets of photo paper with the
print side facing up and slide the side paper
guide against the edge of the paper stack.
b
a
4 Close the feed slot cover.
5 When Save the rear tray paper information
appears on the printer's screen, press the OK
button.
6 Select the paper size and type, and press the OK
button.
7 Extend the paper output tray.

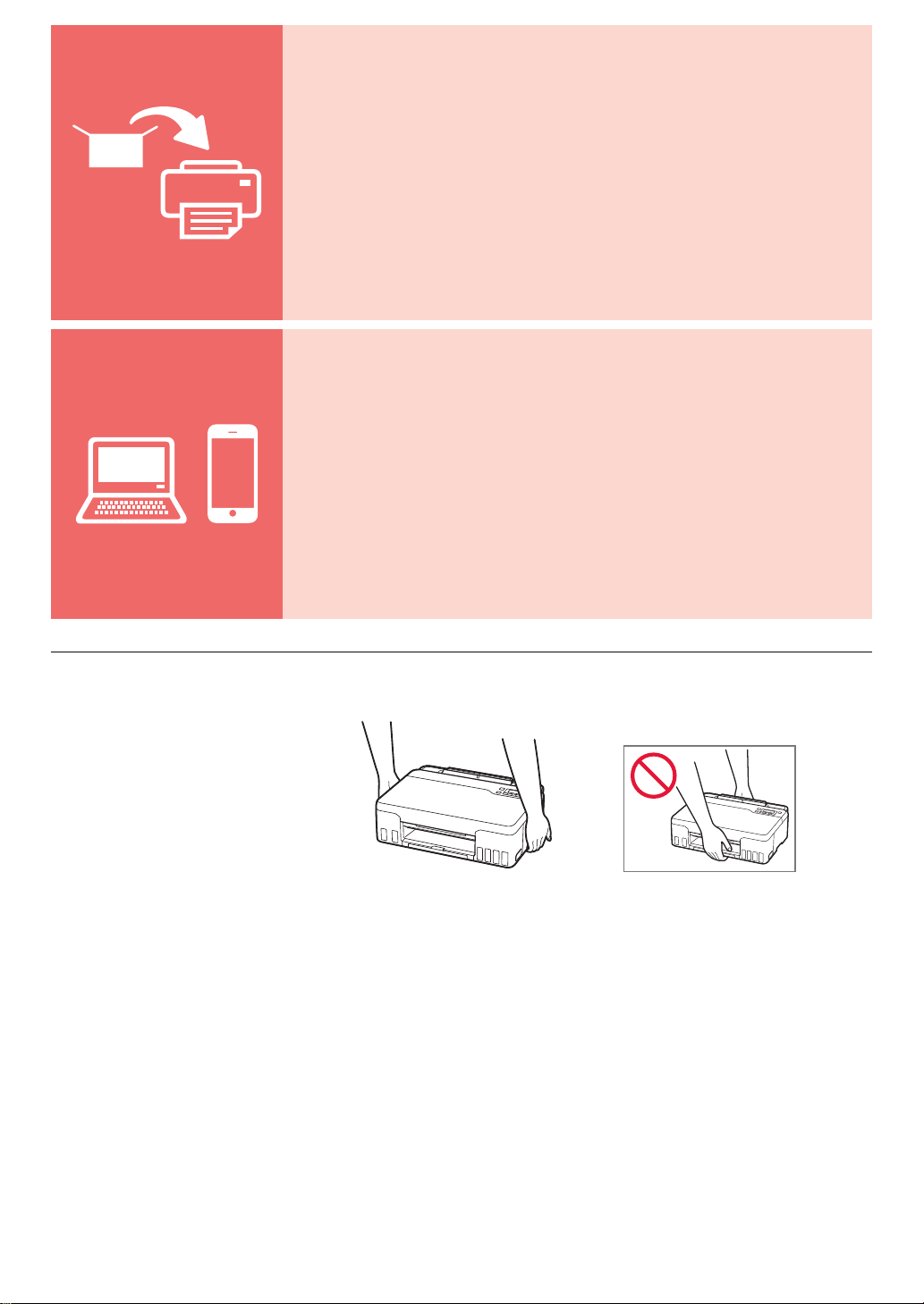

Transporting Your Printer
When relocating the printer, check the following. Refer to the Online Manual for details.
Check that both joint buttons are pressed down
completely to avoid ink leaks.
Check that the position of the ink valve lever is closed.
Pack the printer in a plastic bag in case ink leaks.
• Pack the printer in a sturdy box so that it is placed with its
bottom facing down, using sucient protective material
to ensure safe transport.
• Do not tilt the printer. Ink may leak.
• Please handle with care and ensure the box remains at
and NOT turned upside down or on its side, as the printer
may be damaged and ink in the printer may leak.
• When a shipping agent is handling transport of the
printer, have its box marked "THIS SIDE UP" to keep the
printer with its bottom facing down. Mark also with
"FRAGILE" or "HANDLE WITH CARE".
Loading Photo Paper
