Canon i470D Series User manual

BUBBLE JET PRINTER
Quick Start Guide
Table of Contents
Preface 1
Shipping Materials 1
Introduction 1
Setting Up 2
Preparing the Printer 2
Connecting the Printer to the Computer 3
Installing the Print Head 4
Loading Paper 7
Installing the Printer Driver 8
Aligning the Print Head 16
Basic Operations 22
Printing with Windows 22
Printing with Macintosh 24
Print Head Maintenance 26
Appendix 27
Notes on Handling the USB Interface (for Windows Users) 27
For Further Details... 27
Specifications 28
QA7-2636-V01 XX2003XX ©CANON INC.2003 PRINTED IN VIETNAM
QA7-2636-V01
BE

Exif Print
This printer supports Exif 2.2 (also called “Exif Print”).
Exif Print is a standard for enhancing the communication between digital cameras and printers. By
connecting to an Exif Print-compliant digital camera, the camera’s image data at the time of shooting is
used and optimized, yielding extremely high quality prints.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class B limits for radio noise emissions from a digital
apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,”
ICES-003 of the Industry Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils
numériques de Classe B prescrites dans la norme sur le matériel brouilleur NMB-003 d'Industrie
Canada intitulée « Appareils numériques ».
International ENERGY STAR®Program
As an ENERGY STAR®Partner, Canon Inc. has determined that this product meets the ENERGY
STAR guidelines for efficiency.
The International ENERGY STAR®Office Equipment Program is a global program
that promotes energy saving through the use of computer and other office equipment.
The program backs the development and dissemination of products with functions
that effectively reduce energy consumption. It is an open system in which business
can participate voluntarily. The targeted products are office equipment such as com-
puters, monitors, printers, faxes and copiers.
Their standards and logos are uniform among participating nations.
Power Requirements
Never use a power supply voltage other than that supplied in the country of purchase. Using the incor-
rect voltage could cause a fire or electric shock. The correct power supply voltages and frequencies are
as follows:
AC 100-127 V, 50/60 Hz
AC 220-240 V, 50/60 Hz
Printer Model: K10223 (i470D)

1
Preface
Shipping Materials
Thank you for purchasing a Canon Bubble Jet Printer.
Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon
Authorized Dealer or Sales Representative.
 Printer
 Setup Software & User’s Guide CD-ROM
 Quick Start Guide
 Print Head
 2 Ink Tanks
* A USB cable should be purchased separately according to your computer. For details on cable
specifications, refer to page 3.
Introduction
This Quick Start Guide uses the following symbols to indicate important information. Always observe the
instructions indicated by these symbols.
Instructions that, if ignored, could result in death or serious personal injury caused by incorrect
operation of the equipment. These must be observed for safe operation.
Instructions that, if ignored, could result in personal injury or material damage caused by incorrect
operation of the equipment. These must be observed for safe operation.
Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid
personal injury or damage to the printer.
Trademark Notices
•Canon
®
is a registered trademark of Canon Inc.
•BJ
™
is a trademark of Canon Inc.
•Microsoft
®
and Windows
®
are registered trademarks of Microsoft Corporation in the U.S. and other
countries.
• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.
• CompactFlash is a trademark of SanDisk Corporation.
• MEMORY STICK is a trademark of Sony Corporation.
• SmartMedia™ is a trademark of Toshiba Corporation.
• Microdrive is a trademark of International Business Machines Corporation.
• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of
their respective owners.
Copyright ©2003 CANON INC.
All rights reserved. No part of this publication may be transmitted or copied in any form whatsoever
without the express written permission.

2
Setting Up
1 Preparing the Printer
1
11
1 Place the printer on a flat surface.
2
22
2 Remove the tape from the printer as
shown.
The tape position is subject to change.
3
33
3 Attach the paper rest to the sheet
feeder.
4
44
4 Pull out the output tray.

3

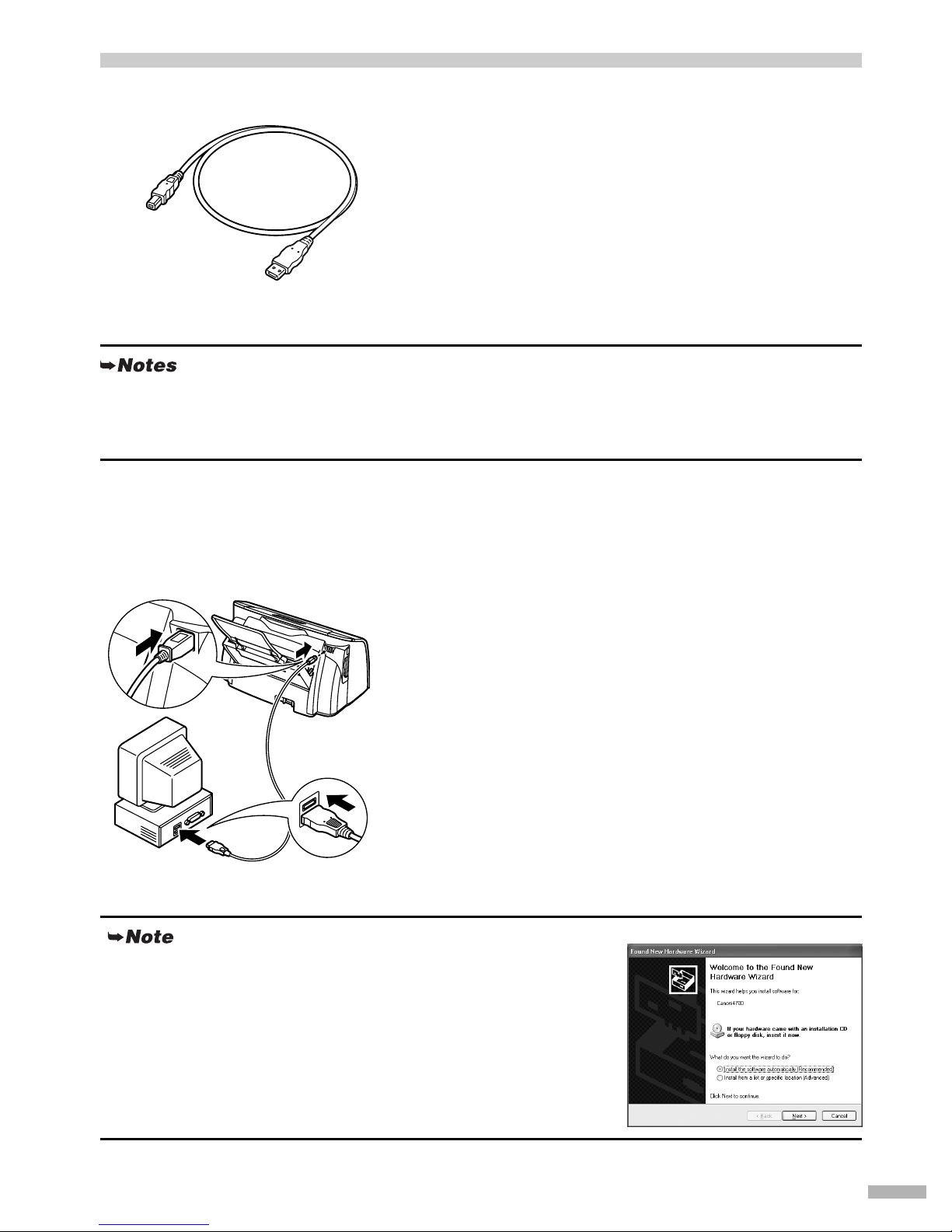

2 Connecting the Printer to the Computer
Use a USB cable.
Recommended: Canon or other computer manufacturer cable, up to 5 meters in length.
Follow the steps below to install the printer driver
correctly.
1
11
1 Ensure the printer and the computer are
switched off.
2
22
2 Connect the cable.
• If your computer has an earth connection, make sure that this is attached.
• If you do not intend to use the printer for a long period of time, unplug the power cord from the
power outlet after turning off the printer.
If the Add New Hardware Wizard or Found New Hardware Wizard
screen appears when carrying out the following operations, click
Cancel and turn off the computer.

4
3 Installing the Print Head
• Never attempt to plug the power cord into the power outlet or unplug the power cord when your
hands are wet.
• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy
objects on the power cord.
• Never use any power supply other than the standard power supply available in the country of
purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.
• Always push the plug all the way into the power outlet.


Installing the Print Head
1
11
1 Plug the printer in.
2
22
2 Turn on the printer. Do NOT turn on the
computer yet.
The POWER lamp flashes and the printer begins to
operate. Wait until the POWER lamp remains fully lit.
3
33
3 Open the output tray.
4
44
4 Open the front cover.
The print head holder moves to the center.
ON
output tray
print head holder

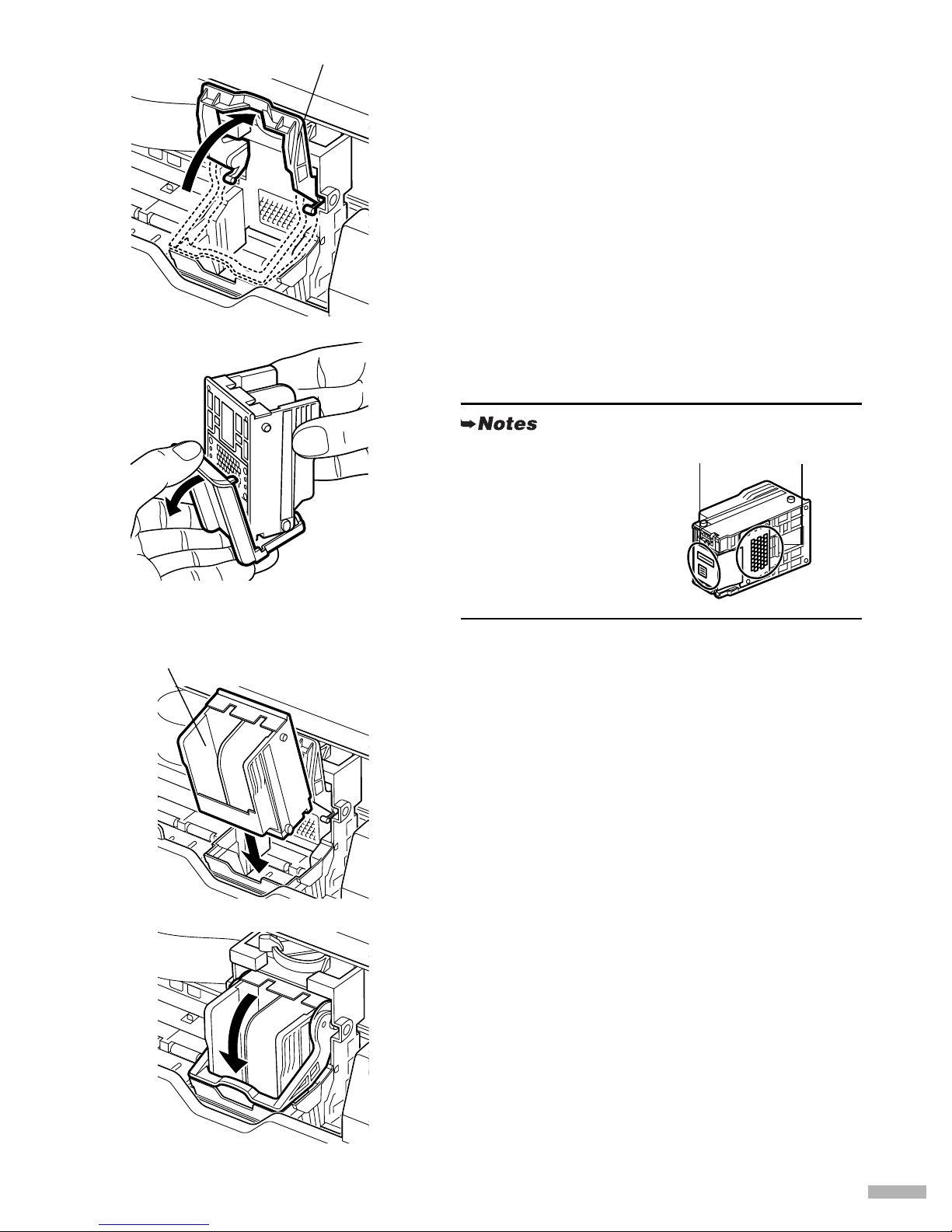

5
5
55
5 Raise the lock lever.
Do not touch internal parts other than the lock lever.
6
66
6 Remove the protective cap from the
print head.
7
77
7 Place the print head in the holder.
8
88
8 Lock the print head into place by
lowering the lever.
Do not touch the lock lever once the print head has been
installed.
• Do not touch the print
head nozzles or
electrical contacts.
• Do not attempt to
reattach the protective
cap once it has been
removed.
l
oc
k
l
ever
electrical
contacts
print head
nozzles
pr
i
nt
h
ea
d

6


Installing the Ink Tanks
• For safety reasons, store ink tanks out of the reach of small children.
• Do not drop or shake ink tanks as this may cause the ink to leak out and stain your clothes and hands.
1
11
1 Take out the black ink tank.
2
22
2 Hold the ink tank as shown in the
diagram and remove the protective cap.
3
33
3 Insert the black ink tank into the right-
hand slot.
4
44
4 Press the tab until it clicks into place.
5
55
5 Use the same procedure to install the
color ink tank in the left hand slot.
6
66
6 Close the front cover.
Wait until the POWER lamp remains fully lit (about 60
seconds).
• Do not touch the ink port.
• Do not attempt to reattach the
protective cap once it has
been removed.
protective cap
ink port

7
4 Loading Paper


Loading A4 (Letter) Size Plain Paper
1
11
1 Open the front cover.
2
22
2 Move the paper thickness lever at the
top of the print head holder to the left
position. Close the front cover.
3
33
3 Pull out the paper rest and the output
tray as shown.
4
44
4 To avoid paper jams, fan the stack to
remove static cling, then align the edges
of the stack by tapping it on a flat
surface.
5
55
5 Load the paper, aligning it with the right
side of the sheet feeder.
You can load up to 100 sheets of plain paper. Do not
exceed this limit.
6
66
6 Press the paper guide and slide it
against the left side of the stack of
paper.
Set the paper thickness lever to the left when using
plain paper, to the right when using thick paper.
Refer to the User’s Guide for information on loading
envelopes and other media.
You now need to install the printer driver:
Windows: Go to page 8
Mac OS 8.6-9.x: Go to page 11
Mac OS X: Go to page 13
paper thickness lever
print side

8
5 Installing the Printer Driver


Installing the Printer Driver – Windows
1
11
1 Ensure the printer and computer are
switched off.
2
22
2 Turn on the computer and start
Windows. If any applications
automatically run, quit them.
Disable any virus detection programs.
Do NOT turn the printer on at this stage.
If you are printing with only Direct Print, skip this chapter and go to “Aligning the Print Head” on
page 16.
• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be
correctly installed.
• The screens below refer to Windows XP installation. Screen may differ depending on the operating
system you are using.
• When installing the printer driver in Windows XP or Windows 2000, log on to the system as a
member of the Administrators group.
• The Setup Software & User’s Guide CD-ROM contains the application software. If you want to
install the application software, click Install on step 7. Internet Explorer 4.0 or later must be
installed for Easy-PhotoPrint.
If the following screen appears automatically, click Cancel and follow steps 1 to 8 to install the printer
driver.
Special Notes for Windows 98 or Windows Me USB Users
Click Cancel to quit the screen and turn off the printer. Next, remove and replace the USB cable
connected to your computer.
OFF

9
3
33
3 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
4
44
4 Follow the instructions displayed on
screen. When the screen shown on the
left is displayed, click Install.
5
55
5 When the screen shown on the left
appears, turn the printer on.
If the printer is recognized, the printer driver will be
automatically installed.
• If the CD-ROM does not run automatically, click
Start and select My Computer, then double-click
the CD-ROM icon. For non-XP Windows, double-
click My Computer in the Windows screen, then
double-click the CD-ROM icon.
• If the language selection screen appears, select a
language, then click the Next button.
If the connection is not recognized, refer to the
section “Notes on Handling the USB Interface (for
Windows Users)” on page 27.
ON

10
6
66
6 Click OK.
Before you use the printer, you must carry out print head
alignment on page 16.
7
77
7 Click Install to install the memory card
utility.
8
88
8 Click OK.
9
99
9 If you want to install the application
software, click Install.
Follow the instructions on screen to install the
application software. When the message “Software
installation is completed.” appears, click
OK .
10
1010
10 Click Exit.
• To view the User’s Guide, please refer to “How to View the User’s Guide” on page 27.
• If a message prompting you to restart the computer appears, click Ye s .
• For further information of applications and how to start them, refer to “Applications Included in the
CD-ROM Package” on page 28.

11



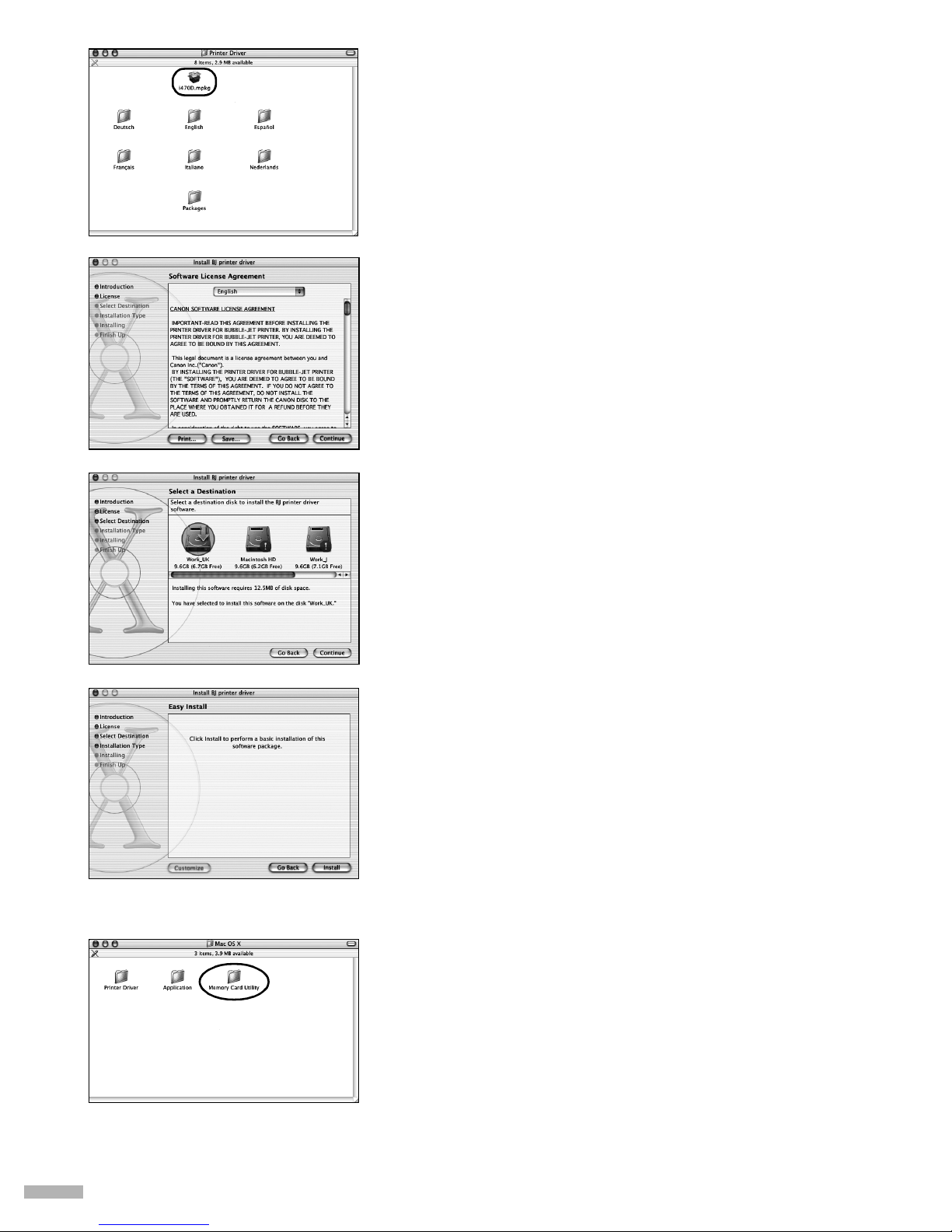

Installing the Printer Driver – Macintosh
For Mac OS 8.6-9.x Users
1
11
1 Turn on the Mac.
2
22
2 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
3
33
3 Double-click the Mac OS 8.6-9.x folder.
4
44
4 Double-click the Printer Driver folder,
then select a language.
5
55
5 Double-click Installer.
6
66
6 Read the License Agreement and click
Accept to continue.
• Do not remove or insert the USB cable during installation, as this may result in the computer or
printer not operating normally.
• Before installing the driver, disable all virus detection programs and automatically loading
programs or remove them from your system folder.
• The Setup Software & User’s Guide CD-ROM contains the application software, Easy-PhotoPrint,
to import and print image data. If you want to install Easy-PhotoPrint, double-click the application
folder, then double-click the Easy-PhotoPrint folder and then Installer. Refer to the Photo
Application Guide in your CD-ROM.

12
7
77
7 Click Install.
Wait for the installation to finish.
8
88
8 Click Restart.
The computer restarts.
9
99
9 Double click the Memory Card Utility
folder of the Mac OS 8.6-9.x folder.
10
1010
10 Double click the BJ Installer.
11
1111
11 Click .
12
1212
12 Read the Software License Agreement
and if you agree, click Agree and then
click .
If the above message appears, check that there are
no unsaved documents, then click the Continue
button. If a document needs to be saved, click
Cancel then save the document. After saving the
document, begin again from step 4.

13
13
1313

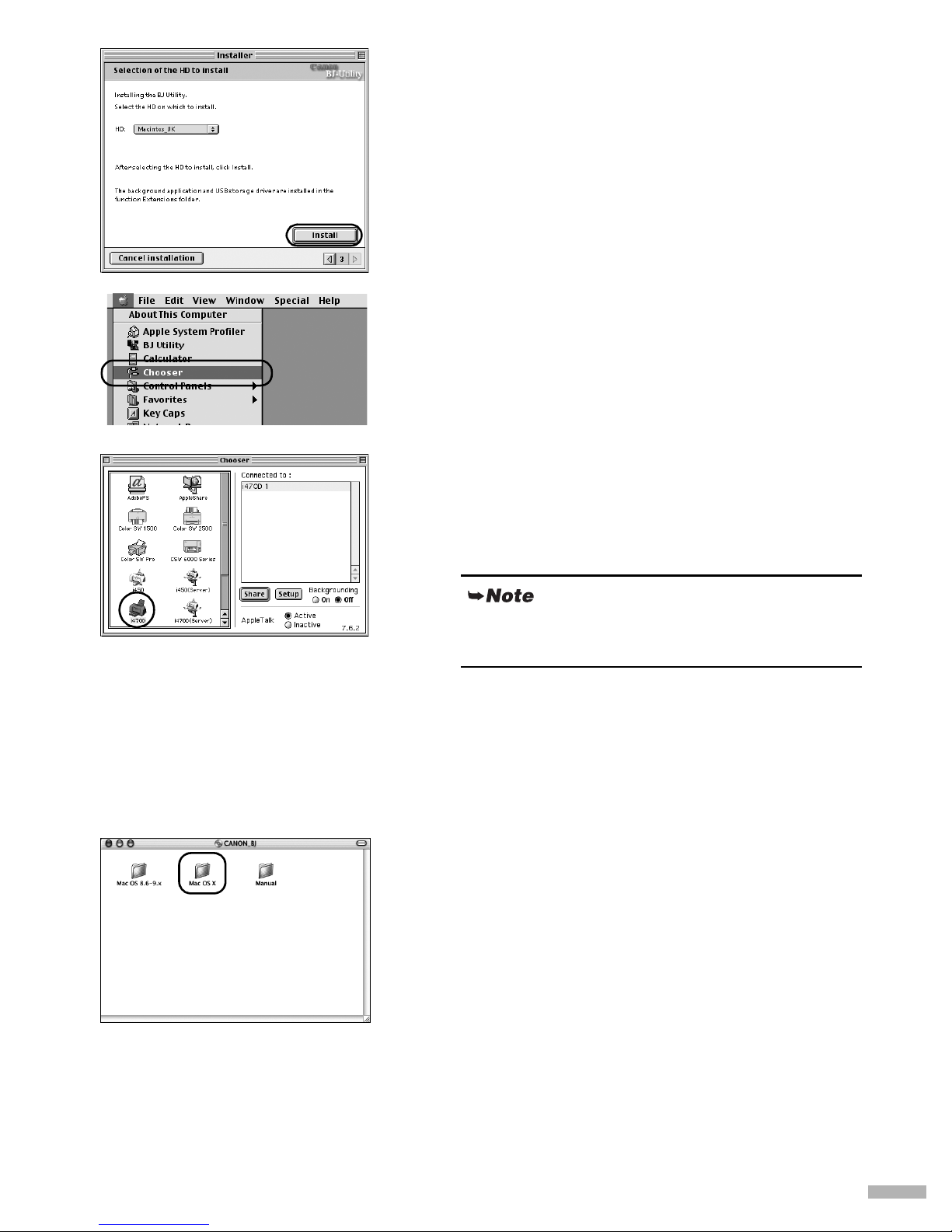

13 Click Install.
Installation is started, and when completed, a message
for successful installation will be displayed.
Click Restart now .
14
1414
14 Select Chooser in the Apple Menu.
15
1515
15 Click the icon for the printer you are
using and close Chooser.
Before you use the printer, you must carry out print head
alignment on page 18.
For Mac OS X Users
1
11
1 Turn on the Mac.
2
22
2 Place the Setup Software & User’s
Guide CD-ROM in the CD-ROM drive.
3
33
3 Double-click the Mac OS X folder, then
double-click the Printer Driver folder.
Refer to the User’s Guide when using this printer as
a network printer.

14
4
44
4 Double-click i470D.mpkg.
5
55
5 Enter an administrator name and a
password, then click OK.
6
66
6 Click Continue.
7
77
7 Read the License Agreement and click
Continue, then click Agree.
8
88
8 Select a destination to where you want
to install the printer driver, and click
Continue.
9
99
9 Click Install.
10
1010
10 A message asking for your confirmation
to restart your computer appears on the
screen. Read the message, then click
Continue Installation.
Software installation will start.
11
1111
11 Software installation is complete.
Restart your computer.
12
1212
12 Double click the Memory Card Utility
folder of the Mac OS X folder.

15
13
1313
13 Double click BJUtility.mpkg.
14
1414
14 Enter an administrator name and a
password, then click OK.
15
1515
15 Click Continue.
16
1616
16 Read the License Agreement and click
Continue, then click Agree.
17
1717
17 Select a destination to where you want
to install the memory card utility, and
click Continue.
18
1818
18 Click Install.
19
1919
19 A message asking for your confirmation
to restart your computer appears on the
screen. Read the message, then click
Continue Installation.
Software installation will start.
20
2020
20 Software installation is complete.
Restart your computer.
Before you use the printer, you must carry out print head
alignment. For instructions on how to align the print
head, refer to the Printer Driver Guide for Mac OS X. To
view the Printer Driver Guide for Mac OS X, double-
click the
Manual folder and Additional Guide for OSX
User
’ s folder and select the language folder that you use
as necessary.
You can also refer to the Printer Driver Guide for Mac
OS X for instructions on how to use the printer driver.

16
6 Aligning the Print Head
This operation must be carried out when using the printer for the first time. Aligning the print head positions
allows you to print without shifts in the color registration.


Aligning the Print Head – Windows
1
11
1 Click Start and select Control Panel,
Printers and Other Hardware, and
then Printers and Faxes.
2
22
2 Click the icon for your printer.
3
33
3 Open the File menu and select:
• Windows XP/Windows 2000 →
[Printing Preferences...]
• Windows Me/Windows 98 →[Properties]
to open the setting screen.
4
44
4 Click OK.
5
55
5 Click the Maintenance tab, and click
Print Head Alignment.
For non-XP Windows, click Start, then select
Settings, Printers.

17
6
66
6 Check that paper is loaded in the printer
and click OK. If a message warning you
not to perform other operations
appears, click OK.
It takes about 60 seconds to start printing.
7
77
7 After the pattern is printed, click Yes.
If the pattern is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.
8
88
8 Look at the print-out. From the patterns
in Column A, select the most even, least
irregular pattern and enter the number.
9
99
9 In the same way, one by one, select the
most even patterns printed with the
least irregularities from each of
Columns B to K, enter their numbers,
and click OK.
If it is difficult to pick the best pattern on Column H,
pick the setting that produces the least noticeable vertical
white stripes.
10
1010
10 Click OK.
This completes the printer setup. The printer is now
ready to use.
Less noticeable
white stripes
More noticeable
white stripes

18


Aligning the Print Head – Macintosh
1
11
1 Select Page Setup in the File Menu.
2
22
2 Click Utilities.
3
33
3 Select Test Print from the menu and
click Print Head Alignment.
4
44
4 Check that paper is loaded in the printer
and click OK.
It takes about 60 seconds to start printing.
If the pattern is not printed successfully, open the front
cover and ensure that the ink tanks are correctly
installed.
5
55
5 Look at the print-out. From the patterns
in Column A, select the most even, least
irregular pattern and enter the number.
For Mac OS X users, refer to the Printer Driver Guide for Mac OS X for instructions on how to
align the print head.
