Canon LBP-810 User manual

LBP-810 Laser Printer
Getting Started Guide
IMPORTANT:
Read this manual carefully before using your printer.
Save this manual for future reference.
LBP810-GSG.fm Page 1 Monday, March 12, 2001 11:06 AM

2
Copyright
Copyright ©2001 Canon Inc.
All information in this manual is copyrighted. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language or computer language, in any form or by
any means, electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise, without prior written consent from Canon.
Notice
Canon makes no guarantees of any kind with regard to this manual.
Canon shall not be held liable for errors contained herein or for
consequential or incidental damages incurred as a result of acting on
information contained in the manual.
Trademarks
LBP, Canon, and the Canon Logo are trademarks of Canon Inc.
Microsoft
®
, Windows
®
, and Windows NT
®
are either registered
trademarks or trademarks of Microsoft Corporation in the United States
and/or in other countries.
Other brand and product names are trademarks or registered trademarks
of their respective companies.
In this manual, Microsoft
®
, Microsoft
®
Windows
®
, and Microsoft
®
Windows NT
®
are referred to as Microsoft, Windows and Windows NT
respectively.
LBP810-GSG.fm Page 2 Monday, March 12, 2001 11:06 AM

English
Contents 3
Contents
Using Your LBP-810 Documentation .......................................... 4
Conventions .............................................................................. 4
Using the Online Documentation ............................................. 5
Checking the Package Contents ................................................... 6
Identifying the Parts ..................................................................... 7
Front View ................................................................................ 7
Rear View ................................................................................. 7
Selecting the Printer Location ...................................................... 8
Carrying the Printer................................................................... 8
Installing the EP-22 Cartridge ...................................................... 9
Inserting/Removing the Paper Supports ....................................... 13
Connecting the Printer to Your Computer .................................... 14
Parallel Cable ........................................................................... 14
USB Cable ................................................................................ 15
Connecting to the Power Supply .................................................. 17
Selecting Paper Delivery .............................................................. 18
Face-down Delivery ................................................................. 18
Face-up Delivery ...................................................................... 18
Loading Paper into the MP Tray .................................................. 19
Installing the CAPT ...................................................................... 21
Windows 95/98/Me CD-ROM Installation .............................. 21
Canon CAPT Tools Group ....................................................... 26
Printing ..................................................................................... 26
LBP810-GSG.fm Page 3 Monday, March 12, 2001 11:06 AM

4 Using Your LBP-810 Documentation
Using Your LBP-810 Documentation
Congratulations on your purchase of the Canon LBP-810 Laser Printer.
Your printer comes with the following documentation:
❏ The LBP-810 Getting Started Guide (This Guide)
Describes how to set up the printer and install the printing software
(CAPT). Read this manual first before operating your printer. The
Getting Started Guide is also available online (PDF).
❏ The LBP-810 User’s Guide (PDF)
Describes the printer’s features and its basic operation. The User’s
Guide is available online. Use this manual when you need a quick
reference help.
❏ Help
Provides help for the CAPT (Canon Advanced Printing Technology).
Use Help to get more information while operating the printer.
❏ CD-ROM Menu Help
Provides help for using the CD-ROM Menu.
❏ Readme File
Contains last-minute information about the Canon LBP-810 printer.
Conventions
This guide uses the following conventions:
CAUTION:
Indicates precautions that must be observed to prevent possible injury.
Indicates that neglecting the suggested procedure or practice could result
in damage to the printer.
Indicates notes and memos containing useful tips or detailed information.
LBP810-GSG.fm Page 4 Monday, March 12, 2001 11:06 AM

English
Using Your LBP-810 Documentation 5
Using the Online Documentation
To read the PDF files, insert the compact disc in your CD-ROM drive.
The CD-ROM menu appears automatically.
To access the CD-ROM Menu Help , click the CD-ROM Menu Help
button.
To access the LBP-810 Documentation , click the Canon LBP-810
Manuals button. To read the manual, you must have Adobe Acrobat
Reader installed.
To install Adobe Acrobat Reader , click the Acrobat Reader Install
button, and select the language folder you want to install. Double-click
the .EXE file in that folder. Adobe Acrobat Reader will install in the
language you selected. For help using Acrobat Reader, select the Online
Guide in the Acrobat Reader Help menu.
System Requirements
Before installing the LBP-810 Laser Printer’s printing software, make
sure your computer has the following minimum configuration:
❏ Pentium PC running Windows 95/98/Me or Windows NT 4.0/2000. A
Pentium 200 MMX processor or faster is recommended.
❏ 16 MB of RAM (32 MB for Windows NT 4.0/2000) and 15 MB of
available disk space. 24 MB of RAM (48 MB for Windows NT 4.0,
128MB for Windows 2000) is recommended.
❏ Monitor with a resolution of 640 x 480, showing at least 16 colors.
❏ A standard USB or parallel port and a CD-ROM drive.
❏ Sound card (if you want to hear audio messages).
LBP810-GSG.fm Page 5 Monday, March 12, 2001 11:06 AM

6 Checking the Package Contents

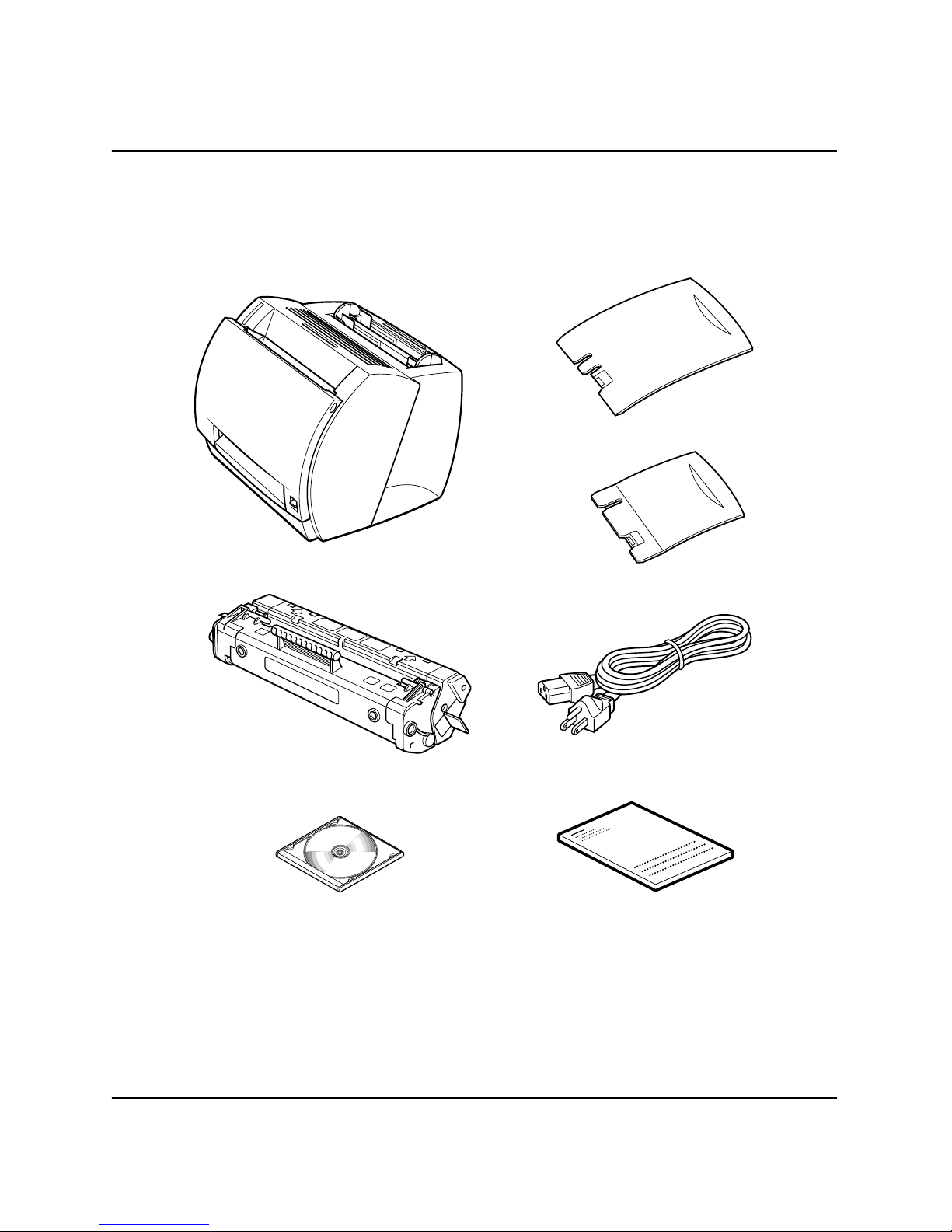

Checking the Package Contents
As you unpack the printer, save the carton and packing materials in case
you want to move or ship the printer in the future.
Input paper support
LBP-810 Printer
Output paper support
EP-22 cartridge
CD-ROM disc
Power cord
(Example: 120V Model)
Documentation
(Getting Started Guide)
LBP810-GSG.fm Page 6 Monday, March 12, 2001 11:06 AM

English
Identifying the Parts 7

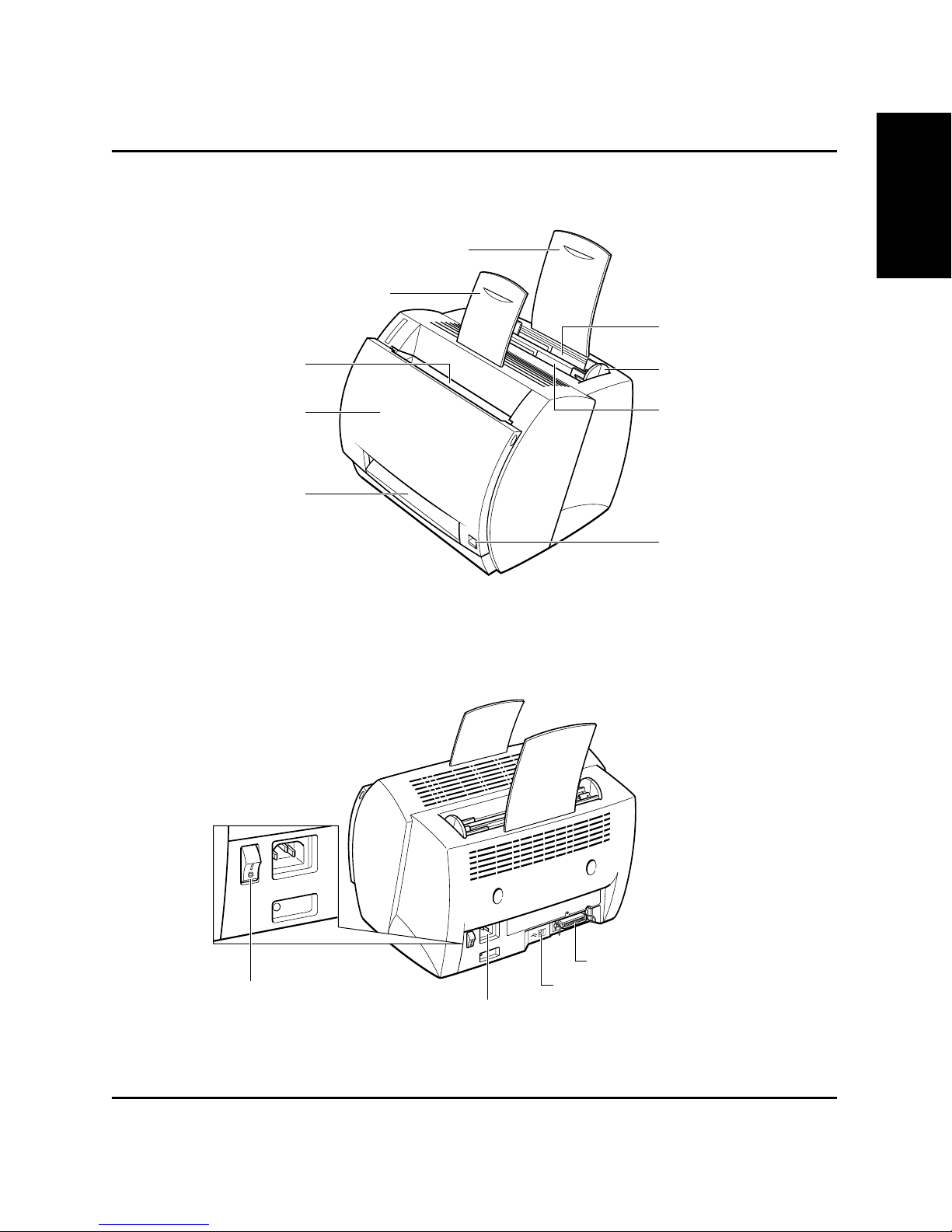

Identifying the Parts
Front View
Rear View
Multi-purpose tray
(MP tray)
Paper guides
Manual feed slot
Paper delivery
selector
Face-down
delivery slot
Front cover
Face-up
delivery slot
Face-down output
paper support
Input paper support
Power switch
Parallel port
interface connector
Power socket
USB port
interface connector
LBP810-GSG.fm Page 7 Monday, March 12, 2001 11:06 AM

8 Selecting the Printer Location
Selecting the Printer Location
When selecting a site for the printer, the location should provide ample
space for ventilation and easy servicing of the printer. Use the
dimensional diagrams below for space considerations.
(Dimensions are in millimeters.)
Carrying the Printer
CAUTION:
Do not carry the printer by holding the front panel, the face-up delivery
slot, or by holding it at the front and rear. This could result in damage to
the printer or personal injury if the printer is dropped.
768
345
405
312
100
266
378
550
Top view Side view
LBP810-GSG.fm Page 8 Monday, March 12, 2001 11:06 AM

English
Installing the EP-22 Cartridge 9
Installing the EP-22 Cartridge
The EP-22 cartridge contains a photosensitive part called the “drum,”
which has characteristics similar to photo film. It also contains black
carbon powder called “toner.” The drum is extremely sensitive to light
and may deteriorate if exposed to light. Poor print quality can result if the
toner becomes caked or unevenly distributed inside the cartridge.
Follow the instructions below when handling the cartridge.
❏ Do not open the protective bag containing the cartridge until you are
ready to install it in the printer.
❏ Save the protective bag. You may need to repack and transport the
cartridge at a later date.
❏ Do not expose the cartridge to direct sunlight. Do not expose it to
bright light or room light for more than 5 minutes.
❏ Do not open the drum’s protective shutter on the cartridge. If the
shutter is open and the drum is damaged, print quality may deteriorate.
❏ Do not touch the drum’s protective shutter.
Correct handling Incorrect handling
LBP810-GSG.fm Page 9 Monday, March 12, 2001 11:06 AM

10 Installing the EP-22 Cartridge
❏ Do not stand the cartridge on end, or turn it upside down. Toner could
become caked in the cartridge resulting in poor print quality.
❏ Keep the cartridge away from a monitor’s cathode ray tube (CRT),
disk drives, and floppy disks. The magnet inside the cartridge can
destroy the image data in the CRT, or data on the disks.
CAUTION:
Do not dispose of toner cartridges in fire. Toner powder is flammable.
1. Remove the cartridge from its protective bag.
Save the protective bag. You may need to repack and transport the
cartridge at a later date.
2. Gently rock the cartridge from side to side five or six times. This
evenly distributes the toner inside the cartridge. Uneven toner
distribution causes poor print quality.
LBP810-GSG.fm Page 10 Monday, March 12, 2001 11:06 AM

English
Installing the EP-22 Cartridge 11
3. Place the cartridge on a sturdy surface. Snap the tab at the end of the
cartridge backwards and fold it back and forth until it is loose.
4. While holding the cartridge firmly with one hand, pull the sealing
tape in the direction indicated in the illustration below.
The tape may snap if pulled in a direction wider than the indicated angle.
5. Grasp the top of the front cover on both sides, then gently pull until
the cover is fully open.
Pull in this direction Pull within this angle
LBP810-GSG.fm Page 11 Monday, March 12, 2001 11:06 AM

12 Installing the EP-22 Cartridge
6. Insert the cartridge into the printer along the guides. Make sure that
the cartridge slides all the way inside the printer.
D
o not touch the drum’s protective shutter.
7. Always close the front cover immediately after inserting a cartridge.
Do not leave the front cover open. Exposure to light can damage the
cartridge’s drum.
LBP810-GSG.fm Page 12 Monday, March 12, 2001 11:06 AM

English
Inserting/Removing the Paper Supports 13
Inserting/Removing the Paper Supports
Insert the paper supports firmly into the slots at the front and back of the
printer. The slots have guides to ensure the correct support is in the
correct slot.
Supports should curve slightly towards the rear of the printer. Do not
insert a support so that it curves towards the front of the printer.
To remove the paper supports, lift them out of the slots.
Slot
Guide
LBP810-GSG.fm Page 13 Monday, March 12, 2001 11:06 AM

14 Connecting the Printer to Your Computer
Connecting the Printer to Your Computer
Parallel Cable
Before connecting the printer to your computer, make sure the power to
your computer is turned off.
1. Connect one end of the interface cable to your printer. Secure the
cable by snapping the two wire clips on the printer into the cable
connector.
CAUTION:
Before connecting or disconnecting the interface cable, make sure that
the printer is turned off and that the power cord is unplugged from the
printer.
2. Connect the other end of the interface cable to the computer.
You must use a bi-directional cable for proper operation of the printing
software (CAPT).
LBP810-GSG.fm Page 14 Monday, March 12, 2001 11:06 AM

English
Connecting the Printer to Your Computer 15
USB Cable
USB (Universal Serial Bus) is a new standard for a computer and
peripherals.
❏ Do not connect/disconnect a USB cable in the following states:
• The printer driver is being installed.
• The starting period of Windows after turning on a computer.
• The printer is performing a printing action.
❏ You can connect/disconnect a USB cable even when the computer or
the printer is turned on. However, if the cable is connected/
disconnected in the states shown above, the computer and the printer
may not function properly.
❏ Connect/disconnect a USB cable at least five seconds after it was
disconnected/ connected.
❏ When the computer or the printer is turned on, be sure to connect/
disconnect a USB cable at least five seconds after it was disconnected/
connected. If you connect/disconnect a cable soon after it was
disconnected/connected, the printer may not function properly.
In order to use the printer via USB, the following requirement needs to be
satisfied.
❏ Your computer must be equipped with a USB port and it is necessary
that its operation is approved by the manufacturer.
CAUTION:
Before connecting the printer to the USB interface, be sure to connect the
grounding cord to evade electrical shock. Never connect the grounding
cord to gas pipes, water pipes, telephone line groundings, lightening rods,
etc., to evade fire or electrical shock. Do not touch the metal surface of a
USB plug when connecting/disconnecting a USB cable. It may cause
electrical shock.
LBP810-GSG.fm Page 15 Monday, March 12, 2001 11:06 AM

16 Connecting the Printer to Your Computer

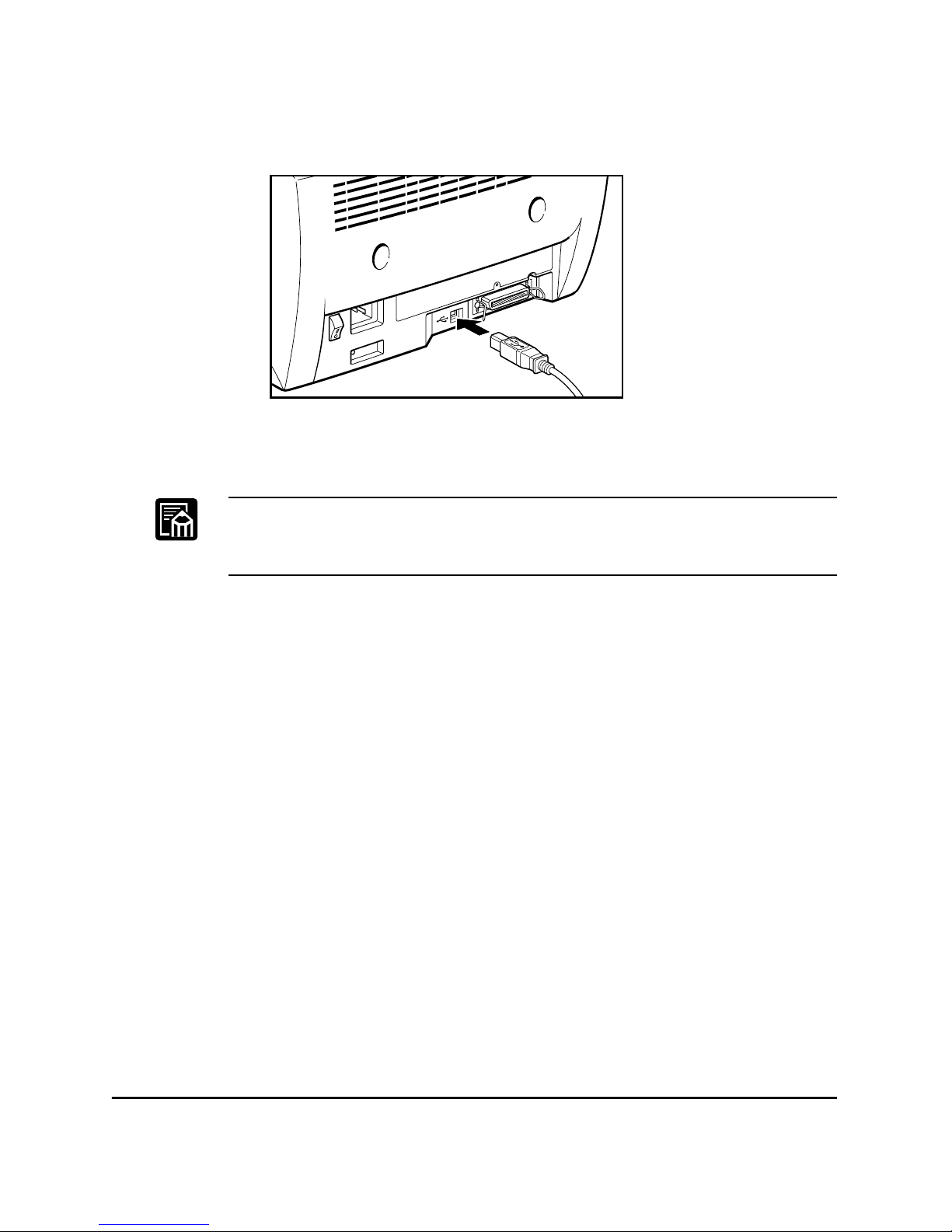

1. Connect the square shape plug of the USB cable to the USB interface
at the rear of the printer.
2. Connect the flat shape plug of the USB cable to the USB port of the
computer.
A dialog box to start the installation of the USB class driver may appear
when connecting a USB cable to your computer in the state the printer is
turned on. Refer to Plug and Play in the User's Guide.
LBP810-GSG.fm Page 16 Monday, March 12, 2001 11:06 AM

English
Connecting to the Power Supply 17

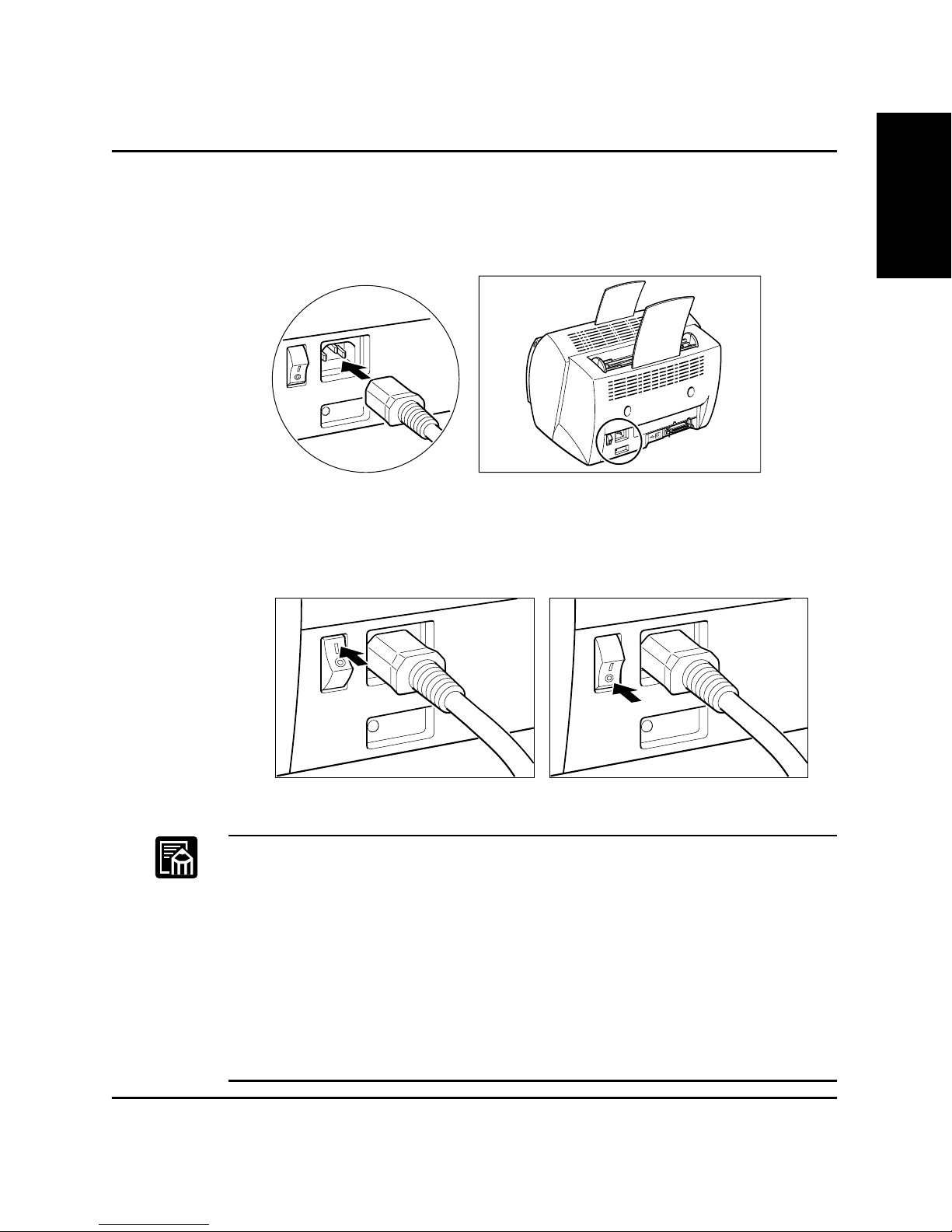

Connecting to the Power Supply
Before inserting the plug, make sure that the rating indicated on the
printer matches the voltage of the AC outlet.
1. Plug the power cord into the power socket.
2. Connect the other end of the power cord to the AC outlet.
3. Turn on the printer by pressing the Imark. Turn off the printer by
pressing the Omark.
If the power does not turn on even when the printer is plugged into an AC
outlet, check the following items:
❏Close the front cover if open.
❏Make sure the EP-22 cartridge is installed.
❏If the EP-22 cartridge is already installed, remove and reinstall it.
❏To reset the printer, turn off the power using the power switch, and
unplug the power cord. Wait two seconds or more, then connect the
printer to the AC outlet again.
On position Off position
LBP810-GSG.fm Page 17 Monday, March 12, 2001 11:06 AM

18 Selecting Paper Delivery
Selecting Paper Delivery
Use the paper delivery selector to choose face-up or face-down delivery.
Face-down Delivery
Use face-down delivery for plain paper only.
Face-up Delivery
Use face-up delivery for envelopes and transparencies, as well as other
special paper, including non-standard sized plain paper.
Face-down
Face-up
LBP810-GSG.fm Page 18 Monday, March 12, 2001 11:06 AM

English
Loading Paper into the MP Tray 19
Loading Paper into the MP Tray
The MP (multi-purpose) tray can hold up to approximately 125 sheets of
75 g/m2paper for high-volume printing. Acceptable paper sizes are
Legal, Letter, A4, Executive, and B5.
Follow the steps below to load a stack of paper.
Make sure that the input paper support is inserted into its slot in the
printer.
1. Prepare a stack of paper and tap it on a flat surface to properly align
the edges.
2. Align the stack of paper so that the side to be printed on faces the
front of the printer. The top edge of the paper should be toward the
bottom of the MP tray. Slide the stack in until it stops. Do not force
the paper into the printer.
This side
will be
printed on.
LBP810-GSG.fm Page 19 Monday, March 12, 2001 11:06 AM

20 Loading Paper into the MP Tray
3. Adjust the paper guides to the width of the stack of paper. For
A4-size or Letter/Legal-size paper, align the paper guides with the
icons inside the MP tray.
Adjust the guides so that there is no space between each paper guide and
the edge of the stack of paper.
When reloading, be sure to remove the paper remaining in the MP tray.
Stack it together with the new sheets before loading.
The MP tray is now ready to supply paper.
LBP810-GSG.fm Page 20 Monday, March 12, 2001 11:06 AM
