PROFESSIONAL PRODUCTS
The REALiS WUX400ST Pro AV Short Throw Compact Installation
LCOS Projector delivers high resolution WUXGA (1920 x 1200)
widescreen 16:10 video and still images with 4000 lumens of
brightness and a 2000:1 contrast ratio. With a throw ratio of 0.56:1,
the projector’s advanced Genuine Canon lens allows for displaying a
full 7 ft. wide image from less than 4 ft. away. Furthermore, the unit can
accommodate a wide range of installment environments with its large lens shift
range (V: 0-75% / H: ±10%). These features allow flexibility in projector placement, easier
set-up, and reduces the amount of space required for front- or rear-projection, while also ensuring
high brightness and distortion-free image quality. For greater flexibility, this compact and lightweight
(under 14 lb.) unit has a flat design, new heat exhaustion system, and offers optional feet to support a wide
range of installation configurations including stacking and high-precision positioning even when installing
the projector upside down with a flush ceiling mount. Another result of the new design concept is its
outstanding energy efficiency when powered on and in standby mode. The Canon REALiS WUX400ST also
features a next-generation Canon AISYS 5.0 optical engine, built-in edge blending with easy registration
adjustment, and Picture-by-Picture display that simultaneously projects two high quality images from
HDMI and DVI. Networking features include full control over IP and a Network Multi Projection function
that allows for video streaming (not audio) via LAN to the projector in multiple modes.
High Resolution Short Throw
Compact Installation
REALiS WUX400ST PRO AV SHORT THROW
COMPACT INSTALLATION LCOS PROJECTOR
• Native WUXGA (1920 x 1200) Resolution
• AISYS-enhanced LCOS Technology
• 4000 Lumens
• Throw Ratio 0.56:1
• Lens Shift for Flexible Installation
(V: 0-75% / H: ±10%)
• Supports 24p Video
• Electronic Zoom Function with Fixed Top Position
• Network Multi Projection
• Built-in Edge Blending Function
• Outstanding Power Efficiency
• WUX400ST D features DICOM Simulation Mode
• Large Classrooms
• Lecture Halls
• Auditoriums
• Houses of Worship
• Educational Facilities
• Museums and Galleries
• Corporate Board Rooms
• Conference Rooms
• Ad Agencies
• Photo Studios
• Digital Signage
• Simulation Centers
• Government
• Digital Signage
Recommended For:
Advanced short-throw and lens shift that delivers high
resolution and brightness provides installation flexibility
ideal for conference rooms, educational facilities, digital
signage, and more.
Key Features

24
PROFESSIONAL PRODUCTS
For more info:
1-800-OK-CANON (1-800-652-2666)
pro.usa.canon.com 2/14
PRODUCT NAME: WUX400ST ITEM CODE: 8678B002 UPC CODE: 013803227802

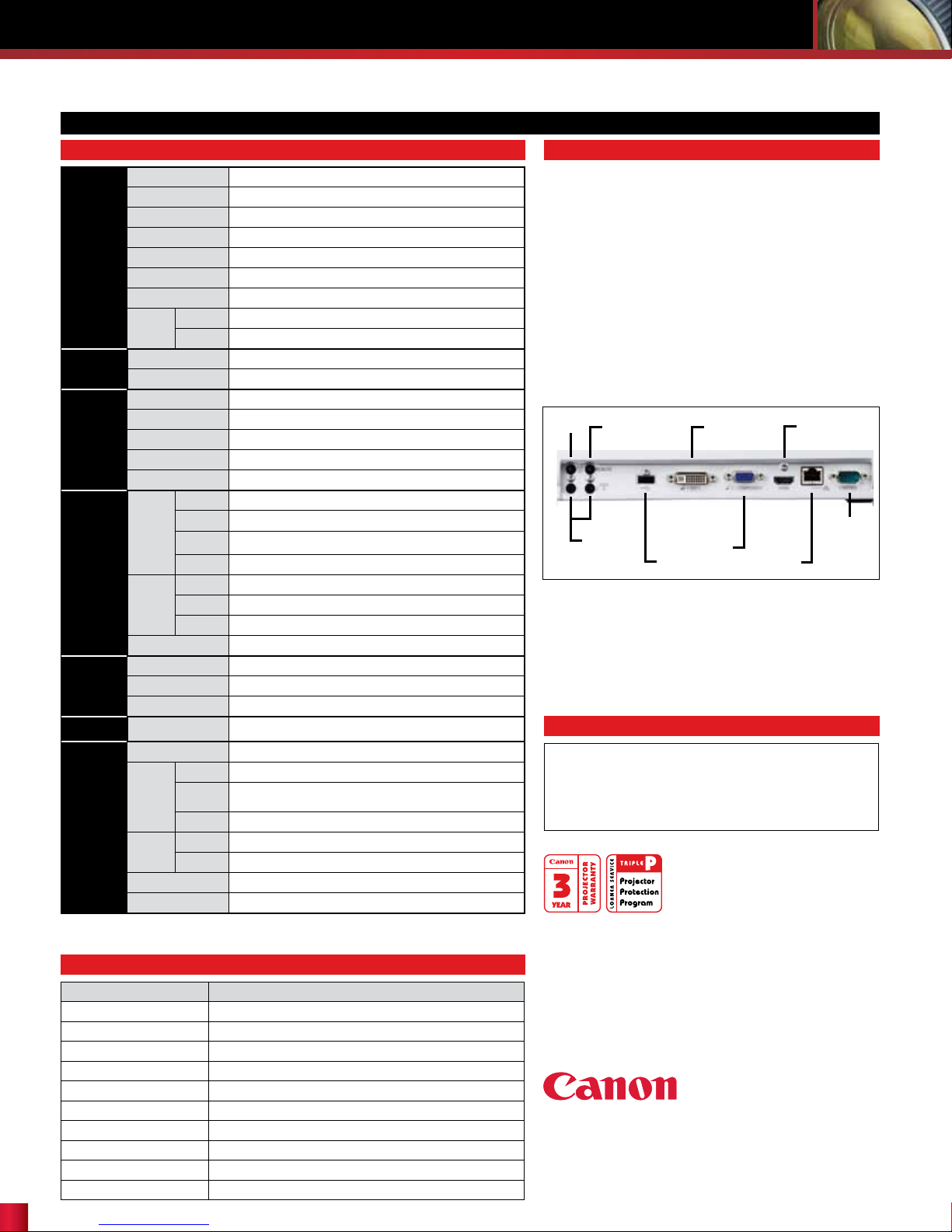

REALiS WUX400ST PRO AV COMPACT INSTALLATION LCOS PROJECTOR
SPECIFICATIONS
High End Installation Features
• Throw Ratio: 0.56:1
• Generous Lens Shift (V: 0-75% / H: ±10%)
• New Compact Design: physical design [at top and bottom, optional
feet, etc. for flexibility in placement such as mounting, stacking, vertical
installations (upward/downward)]
KEY FEATURES / TECHNOLOGY
BASIC
IMAGING DEVICE 0.71” LCOS Reflective LCD panels x 3
ASPECT RATIO 16:10
THROW RATIO 0.56:1
NATIVE RESOLUTION 1920 x 1200 (WUXGA)
BRIGHTNESS 4000 Lumens / 3080 (Power Saver Mode)
CONTRAST RATIO 2000:1
LENS SHIFT V: 0%-75%, H: ±10%
KEYSTONE
CORRECTION
VERTICAL ± 12°
HORIZONTAL ± 12°
ADjUSTmENTS
MOUNTING Ceiling, Rear, Rear-Ceiling, Upward, Downward
TILT ANGLE Adjustable feet up to 6 degrees
INPUT
SIGNALS
DIGITAL PC INPUT WUXGA/UXGA/WSXGA+/SXGA+/WXGA+/FWXGA/WXGA/SXGA/XGA/SVGA/VGA
ANALOG PC INPUT WUXGA/UXGA/WSXGA+/SXGA+/WXGA+/FWXGA/WXGA/SXGA/XGA/SVGA/VGA
DIGITAL VIDEO INPUT 1080P / 1080i / 720p / 576p / 480p
COMPONENT INPUT 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
USB DATA TRANSFER JPEG Still Image
TERmINALS
INPUT
DVI-I Analog PC / Digital PC Input
HDMI Version 1.3 Deep Color
Digital PC / Digital Video Input
MINI D-SUB
15PIN Analog PC / Component Video Input
MINI JACK Stereo Input x 2 / Stereo Output x 1
CONTROL
USB TYPE A USB Connection
D-SUB 9 PIN RS-232C Control
RJ-45 Network Network (1000BASE-T / 100BASE-TX / 10BASE-T)
BUILT-IN SPEAKER 5W (Mono)
LAmP
TYPE 250W NSHA (AC)
POWER 260W / 200W (Power Saver)
LAMP LIFE 3000 Hours / 5000 Hours (Eco Mode)
REmOTE
CONTROL SENSOR Wireless Infrared, Front/Back Wired Remote Control Connection
RATINGS
FAN NOISE 38dB / 32dB (Full Power / Power Saver)
POWER
CONSUMPTION 365W / 295W (Full Power/Power Saver)
STANDBY
POWER
CONSUMPTION
0.6 W (Standby with LAN on) / 0.2 W (Standby with LAN off)
VOLTAGE AC100 ~ 240V, 50 / 60 Hz
TEMPERATURE
OPERATING 32° to 104° F (0° to 40°C)
STORAGE 14° to 140° F (-10° to 60° C)
DIMENSIONS (W X D X H) 13.3 x 16.3 x 5.3 in. (337 x 415 x 134mm) (including protruding parts)
WEIGHT 13.9 lb. (6.3kg)
©2014 Canon U.S.A., Inc. All rights reserved. Not responsible for typographical errors.
Specications subject to change without notice. Products not shown to scale. Certain images
and effects are simulated. Canon and REALiS are registered trademarks of Canon Inc. in the
United States and may also be trademarks or registered trademarks in other countries. All other
products and brand names may be registered trademarks, trademarks or service marks of their
respective owners in the United States and/or other countries.
Wide Range of Connectivity
New USB and LAN interfaces for advanced control. USB based playback of
JPEG image files directly from a thumb drive without a PC connection. The
NMPJ System allows for image transmission as well as video streaming
(not audio) through the LAN to the projector allowing a wide variety of
multi-projection: Direct mode, Meeting mode, Classroom mode, and
Broadcast mode.
DVI Port HDMI
LAN
Component
Wired Remote
Control
USB
Audio In
Audio Out
RS232C
• Projector
• Remote Control
(AAA batteries x2)
• Power Cord
• VGA-VGA Cable
• Warranty Card
• Operation Manual
(Book and CD-ROM)
• Important Information
(Book)
WHAT’S IN THE BOX
*The REALiS WUX400ST D projector includes a DICOM® Simulation Mode. This model is not cleared or approved for medical
diagnosis and should not be used for these purposes.
OPTIONAL ACCESSORIES
Item Code No Description
8379B001 Replacement Air Filter RS-FL02
3096B001 Ceiling Extension RS-CL08 (16” - 24”)
3097B001 Ceiling Extension RS-CL09 (24” - 39”)
8378B001 Ceiling Mount RS-CL12
8680B001 Ceiling Mount RS-CL13
8377B001 Lamp Assembly RS-LP08
8380B001 Option Foot RS-FT01
5750B001 Remote Controller RS-RC05
8381B001 Remote Controller RS-RC06
2482V754 Compact Install Shipping Case
