Canon REALiS SX6000 Pro AV User manual

• 6000 Lumen Brightness
• Native SXGA+ (1400 x 1050) Resolution
• 1000:1 Contrast Ratio
• 96% Aperture Ratio LCOS Panels
• AISYS 4.1 Optical Technology
• Advanced White Balance
• Improved Reliability and Durability
• Increased Burn-In Resistance
• Outstanding Energy Efficiency
REALiS SX6000
PRO AV PROJECTOR
PROFESSIONAL PRODUCTS
• Higher Education
• Houses of Worship
• Museums
• Conference Centers
• Engineering Labs
• Government and Military
• Photo Studios/Galleries
Recommended For:
Equipped with new LCOS (Liquid Crystal on
Silicon) display panels featuring an improved
pixel-spacing aperture ratio of 96% for virtually
seamless imagery – and enhanced by Version
4.1 of Canon’s revolutionary AISYS (Aspectual
Illumination System) optical technology – the
REALiS SX6000 Pro AV Projector displays
exceptional 6000 lumen video and still images
at SXGA+ (1400 x 1050) resolution. Added
advantages to the SX6000’s advanced imaging
technologies include better white balance, improved
reliability and durability, and outstanding energy
efficiency. Advanced color tools (6-axis Color Adjustment,
Color Correction IC, and 3D Color LUT) also provide high color reproducibility. Multiple image
modes, integrated test patterns, a choice of three optional genuine Canon projection lenses, expanded
interfaces (including DVI-I and HDMI 1.3), an advanced wired remote control and installer-friendly
features makes the REALiS SX6000 a superb choice for many presentation venues.
A Bright
Performer
Key Features
Integrated test patterns controllable from the remote control enable
adjustment of the image angle, gradation, and color tone. System
faults can also be isolated.

100

50


100

50
Raster
100%
50%

For more info:
Call 1-800-OK-CANON (1-800-652-2666)
pro.usa.canon.com 0167W724
©2012 Canon U.S.A., Inc. All rights reserved. Not responsible for typographical errors.
Specications subject to change without notice. Some of the images and effects are simulated.
Canon and REALiS are registered trademarks of Canon Inc. in the United States and may also
be trademarks or registered trademarks in other countries. IMAGEANYWARE is a trademark
of Canon. All other products and brand names may be registered trademarks, trademarks or
service marks of their respective owners in the United States and/or other countries.
Connectability
Analog RGB / Component Video Input / 5BNCRJ45 N/W Port
DVI Port
Serial
(RS-232C)
HDMI 1.3
Audio In
Remote
Audio Out
Expanded interface options include DVI-I, HDMI 1.3, and analog RGB
inputs. Control connections include a network-ready RJ-45 port and
RS-232C serial connection. A separate stereo mini-jack input enables
direct connection with the hand-held remote-control, if desired.
Accessories
Three high-resolution interchangeable Genuine Canon projection lenses
are available for the REALiS SX6000 Pro AV Projector. These include a
1.5x Standard Zoom, a 0.8x Ultra Wide-Angle lens, and a 1.7x Long-Focus
Zoom. Each lens features advanced low-distortion and high-resolution
optical technologies originally developed for Canon’s world-renowned line
of EF lenses.
OPTIONAL ACCESSORIES
Item Code No. Description
4966B001 Standard Zoom Lens RS-IL01ST
4967B001 Long Focus Zoom Lens RS-IL02LZ
4968B001 Ultra Wide-Angle Lens RS-IL03WF
5017B001 Replacement Lamp RS-LP07
4971B001 Replacement Air Filter RS-FL01
5750B001 Wired Remote Controller RS-RC05
4969B001 Ceiling Mount RS-CL11
3096B001 Ceiling Extension RS-CL08 (16” – 24”)
3097B001 Ceiling Extension RS-CL09 (24” – 39”)
5471B001 Top Cover RS-TC01 (Dark Grey)
LENS SPECIFICATIONS
*The maximum upward shift and the maximum horizontal shift cannot be used simultaneously.
PRODUCT NAME SX6000
3 LENS
OPTIONS
RS-IL01ST
STANDARD
ZOOM LENS
PROJECTION LENS F1.89 – 2.65 / f= 23.0 – 34.5 mm
LENS SHIFT* (Vertical) Down 12% ~ Up 50% / (Horizontal) Left 10% ~ Right 10%
ZOOM 1.5 x Optical Zoom (Powered)
FOCUS Powered
SCREEN SIZE 40” to 600”
PROJECTION
DISTANCE 4.3-31.5 ft (1.3-9.6 m), 100”: 10.5 - 15.7 ft. (3.2-4.8 m)
THROW RATIO 1.5:1 ~ 2.21:1
RS-IL02LZ
LONG FOCUS
ZOOM LENS
PROJECTION LENS F1.99 - 2.83 / f= 34.0 – 57.7 mm
LENS SHIFT* (Vertical) Down 12% ~ Up 50% / (Horizontal) Left 10% ~ Right 10%
ZOOM 1.7 x Optical Zoom (Powered)
FOCUS Powered
SCREEN SIZE 40” to 600”
PROJECTION
DISTANCE 6.23 ~ 46.59 ft (1.9–14.2 m) / 100”: 15.4 – 26.24 ft. (4.7 – 8.0 m)
THROW RATIO 2.1:1– 3.72:1
RS-IL03WF
ULTRA
WIDE-ANGLE
LENS
PROJECTION LENS F2.0 / f= 12.8 mm
LENS SHIFT* (Vertical) Down 5% ~ Up 5% / (Horizontal) Left 2% ~ Right 2%
ZOOM Fixed
FOCUS Powered
SCREEN SIZE 40” to 300”
PROJECTION
DISTANCE 2.3 -17.1 ft (0.7 - 5.2 m) / 100”: 5.6 ft (1.7 m)
THROW RATIO 0.8:1
PRODUCT NAME: REALiS SX6000 ITEM CODE: 5749B002 UPC CODE: 013803142563

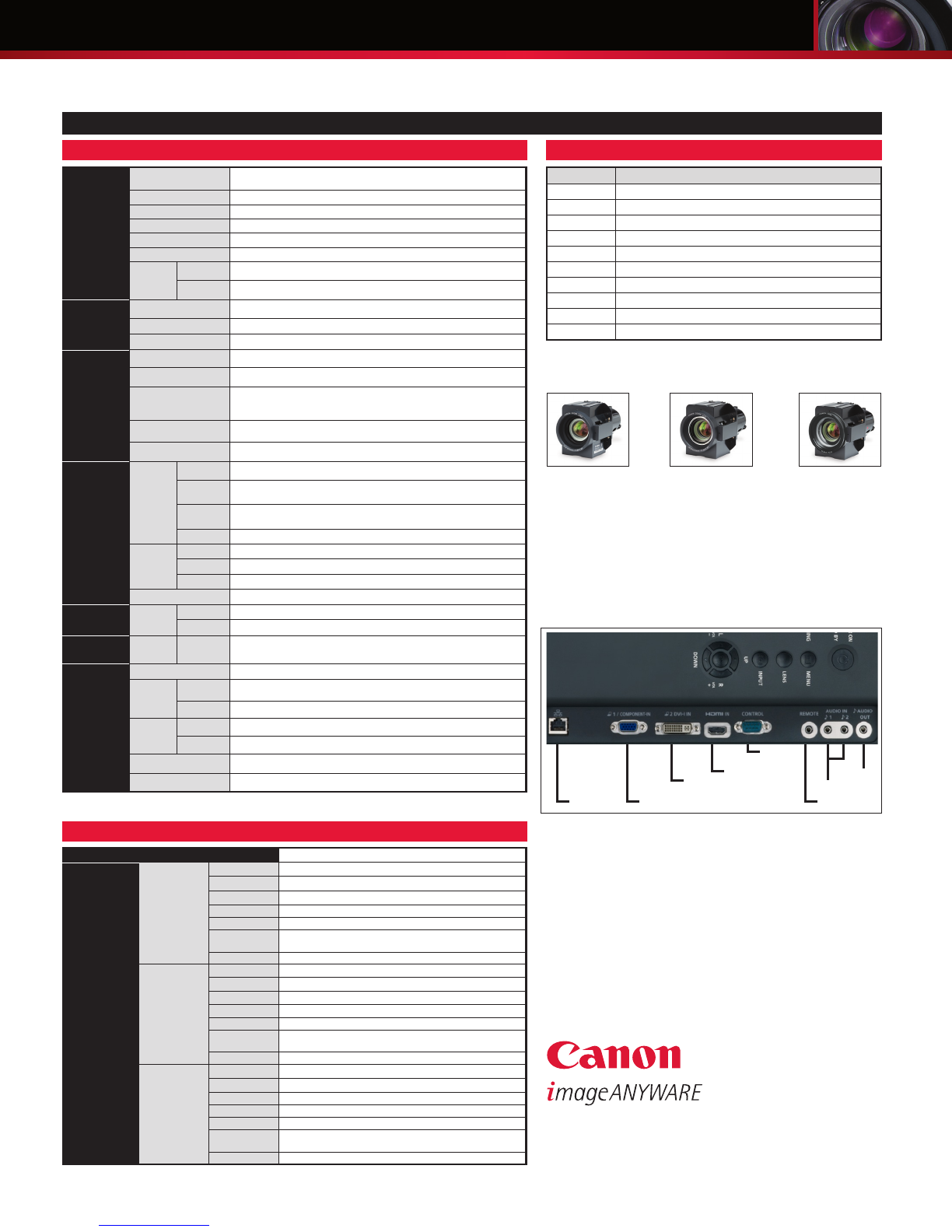

REALiS SX6000 PRO AV PROJECTOR
SPECIFICATIONS
PROFESSIONAL PRODUCTS
BASIC
IMAGING DEVICE 0.72” LCOS Reflective LCD Panels x 3
ASPECT RATIO 4:3
NATIVE RESOLUTION 1400 x 1050 (SXGA+)
BRIGHTNESS 6000 Lumens
UNIFORMITY 88%
CONTRAST RATIO 1000:1
KEYSTONE
CORRECTION
VERTICAL ± 20°
HORIZONTAL ± 20°
ADJUSTMENTS
IMAGE MODES Standard, Presentation, Vivid Photo, Photo/sRGB, Dynamic, Video, Cinema, User 1-5
MOUNTING Ceiling, Rear, Rear-Ceiling, Upward, Downward
TILT ANGLE Adjustable feet up to 6 degrees
INPUT
SIGNALS
DIGITAL PC INPUT UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA
ANALOG INPUT UXGA / WSXGA+ / SXGA+ / WXGA+ / WXGA / SXGA / XGA / SVGA / VGA
SCANNING FREQUENCY
H Freq. 15.625-75 KHz
V Freq. 50-60.317 Hz
Max dot clock 162 MHz
DIGITAL VIDEO INPUT 1080p / 1080i / 720p / 576p / 480p
COMPONENT INPUT 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
TERMINALS
INPUT
DVI-I 29PIN Analog PC / Digital PC input
HDMI Version 1.3 Deep Color
Digital PC / Digital Video Input
MINI D-SUB
15PIN Analog PC / Component Video Input
MINI JACK Stereo Input x 2
CONTROL
MINI JACK Wired remote control connection x1
D-SUB 9 PIN RS-232C Control
RJ-45 Network (100BASE-TX / 10BASE-T)
BUILT-IN SPEAKER 5W (Mono)
LAMP LAMP TYPE 330W NSH (AC)
LAMP LIFE 3000 Hours
REMOTE
CONTROL
REMOTE
CONTROL SENSOR Wireless Infrared, Front/Back Wired Remote Control Connection
RATINGS
FAN NOISE 40dB
POWER
CONSUMPTION 435W / 1.7W (Standby) / 0.35W (Standby with LAN off)
VOLTAGE AC100 ~ 240V, 50 / 60 Hz
TEMPERATURE
OPERATING 41° to 95° F (5° to 35° C) 85% RH or less
STORAGE 14° ~ 140° F (-10° ~ 60° C)
DIMENSIONS (W X D X H) 15 x 6.69 x 16.9 in. (without lens, including protruding parts)
WEIGHT 18.74 lb. (without lens)
