Canon Wux6000 Installation manual

MULTIMEDIA PROJECTOR

WUX6000

User Commands

WUX6000

User Commands

- -

Table of Contents

Table of Contents ........................................................................................................ii

1. Overview .................................................................................................................1

2. Communication Specifications.................................................................................2

Communication Specifications................................................................................................................ 2

Usable Character Codes......................................................................................................................... 2

Communication System (Serial).............................................................................................................. 4

Communication System (LAN)................................................................................................................ 4

Command Format................................................................................................................................... 4

Response Format ................................................................................................................................... 5

Other....................................................................................................................................................... 7

3. Communication Flow...............................................................................................8

Command Transmission (PC side) ......................................................................................................... 8

Command Reception (projector side)...................................................................................................... 8

Command/Response ..............................................................................................................................8

Response Reception Timeout................................................................................................................. 8

Other....................................................................................................................................................... 8

4. Command List.........................................................................................................9

5. Guide to command description..............................................................................12

EXAMPLE............................................................................................................................................. 12

6. Command Details..................................................................................................14

6AXADJ ................................................................................................................................................ 14

6AXR..................................................................................................................................................... 15

6AXG .................................................................................................................................................... 16

6AXB..................................................................................................................................................... 17

6AXC..................................................................................................................................................... 18

6AXM.................................................................................................................................................... 19

6AXY..................................................................................................................................................... 20

AMBADJ ............................................................................................................................................... 21

AMBLEVEL........................................................................................................................................... 22

AMBTYPE............................................................................................................................................. 23

ASELA1 ................................................................................................................................................ 24

ASELA2 ................................................................................................................................................ 25

ASELC.................................................................................................................................................. 26

ASELD.................................................................................................................................................. 27

ASELH.................................................................................................................................................. 28

ASELL................................................................................................................................................... 29

ASELU.................................................................................................................................................. 30

ASPECT................................................................................................................................................ 31

AUTOPC............................................................................................................................................... 32

AUTOSETEXE...................................................................................................................................... 33

AVOL..................................................................................................................................................... 34

BLANK.................................................................................................................................................. 35

BRI........................................................................................................................................................ 36

COLOR_TEMP ..................................................................................................................................... 37

COMVER.............................................................................................................................................. 38

WUX6000

User Commands

- -

iii

CONT.................................................................................................................................................... 39

DGAMMA.............................................................................................................................................. 40

DZOOM_POS....................................................................................................................................... 41

DZOOM_RAT........................................................................................................................................ 42

ERR ...................................................................................................................................................... 43

FINE_GAMMA_R.................................................................................................................................. 44

FINE_GAMMA_G ................................................................................................................................. 45

FINE_GAMMA_B.................................................................................................................................. 46

FLTWRN............................................................................................................................................... 47

FNBND.................................................................................................................................................. 48

FREEZE................................................................................................................................................ 49

GAMMA ................................................................................................................................................ 50

HDMI_IN............................................................................................................................................... 51

HDMI_OVSCAN.................................................................................................................................... 52

HTMPINF.............................................................................................................................................. 53

HUE ...................................................................................................................................................... 54

IMAGE .................................................................................................................................................. 55

IMAGEFLIP........................................................................................................................................... 56

INPUT................................................................................................................................................... 57

KREP.................................................................................................................................................... 58

LAMP.................................................................................................................................................... 59

LAMPCOUNTER .................................................................................................................................. 60

LMPWRN.............................................................................................................................................. 61

LPOSLD................................................................................................................................................ 62

MAIN..................................................................................................................................................... 63

MEMF ................................................................................................................................................... 65

MEMG................................................................................................................................................... 66

MEMS................................................................................................................................................... 67

MUTE.................................................................................................................................................... 68

NR......................................................................................................................................................... 69

NRMPG................................................................................................................................................. 70

NRMSQT .............................................................................................................................................. 71

POWER ................................................................................................................................................ 72

PRODCODE......................................................................................................................................... 73

RC......................................................................................................................................................... 74

RGBGAIN ............................................................................................................................................. 76

RGBOFFSET........................................................................................................................................ 77

ROMVER.............................................................................................................................................. 78

SAT....................................................................................................................................................... 79

SAVEIMGPROF.................................................................................................................................... 80

SCRNASPECT ..................................................................................................................................... 81

SHARP.................................................................................................................................................. 82

SIGMSG................................................................................................................................................ 83

SIGNAL_INFO...................................................................................................................................... 84

SIGNALSTATUS................................................................................................................................... 85

TEMP.................................................................................................................................................... 86

TPTN..................................................................................................................................................... 87

ZSCLR.................................................................................................................................................. 89

7. Error List................................................................................................................90

8. Error Processing....................................................................................................91

9. Simplified Version for the Manual..........................................................................92

WUX6000

User Commands

-1-

1. Overview

These specifications describe the methods of controlling Projector WUX6000 from PC or other

controllers over an RS232C connection or LAN.

Symbol

The following symbols are used in these specifications:

Symbol Description

[ ] Data in [ ] can be omitted.

| Same as OR.

WUX6000

User Commands

-2-

2. Communication Specifications

Communication Specifications

The projector can be controlled via RS-232C or LAN cable connection.

PC - Projector connection configuration

RS-232C connection LAN connection

Item Specifications Item Specifications

Connection

system PC and projector connected on a "1:1"

basis Connection

system TCP / IP connection

Connection

signal line 3-line connection of SD, RD, and SG Connection

signal line Straight when connecting via network

Connection

cable 9-pin RS-232C cable (crossover) Connection

cable LAN cable

LAN

1000BASE-T

100BASE-TX

10BASE-T

* Signal lines other than the three SD, RD, and SG lines are not used in the projector.

* Loop back its own signals on the PC side as necessary.

* To use the LAN connection, the network function on the projector must be turned on.

In addition, to allow network communication between the PC and projector, connect cables between the

devices, and set the IP addresses, subnet masks, and other network parameters.

PROJECTOR

COM PORT SERVICE

PORT

Network connection

LAN PORT

RS-232C

crossover cable

SD SD

RD RD

SG SG

送信データ送信データ

受信データ

信号用設置信号用設置

受信データ

Send Data

Receive Data

Signal Ground

Send Data

Receive Data

Signal Ground

WUX6000

User Commands

-3-

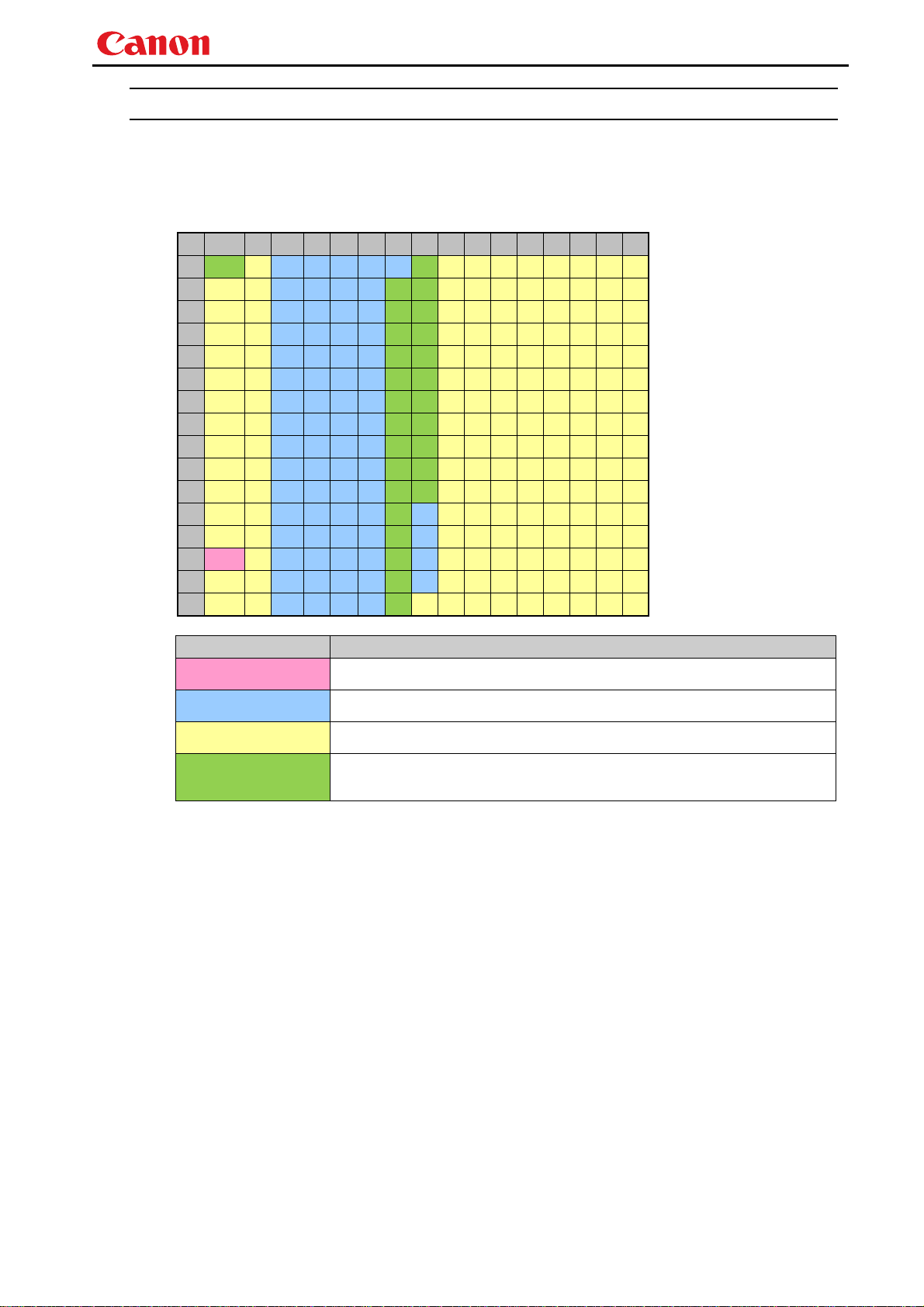

Usable Character Codes

Use ASCII codes in the red and blue areas of the following table.

No distinction is made between double-byte characters and single-byte characters. All characters are

interpreted as single-byte characters. Do not use double-byte or triple-byte characters. They will all be

recognized as single-byte characters.

Uppercase and lowercase alphabet letters are recognized as the same character.

0 1 2 3 4 5 6 7 8 9 A B C D E F

0 NUL SP 0 @ P ` p 

1 ! 1 A Q a q 

2 " 2 B R b r 

3 # 3 C S c s 

4 $ 4 D T d t 

5 % 5 E U e u 

6 & 6 F V f v 

7 ' 7 G W g w 

8 ( 8 H X h x 

9 ) 9 I Y i y 

A * : J Z j z 

B + ; K [ k { 

C , < L \ l | 

D CR - = M ] m } 

E . > N ^ n ~ 

F / ? O _ o

Item Specifications

Delimiters CR(0Dh)

Characters usable as delimiters.

General Characters 20h to 60h, 7Bh to 7Eh

Characters usable in commands.

Invalid Characters Do not use the codes in regions other than the red and blue areas or invalid characters.

If used, it will be handled as a space (20h).

Unrecommended

characters

Do not use as a general rule.

Both upper case and lower case letters can be used in commands, but upper case should

be used in most cases.

WUX6000

User Commands

-4-

Communication System (Serial)

Item Specifications

Communication system RS-232-C Start-stop synchronization half-duplex communication

Transmission speed 19.2 Kbps

Character length 8 bits / character

Stop bit 2 bits

Parity None

Command format Variable-length records with terminals as delimiters

Maximum transmission

length Maximum of 256 characters (bytes) including delimiters.

Delimiters

CR (0Dh) can be used as a delimiter.

Delimiter in the response is CR.

Command code ASCII codes (20h to 7Eh)

Codes other than ASCII codes (20h to 7Eh), delimiter code (0Dh), or NUL (00h) are

handled as spaces (20h).

Communication procedure No procedure

Flow control None

Error control None

Break signal Not supported

Timeout Tc Between characters: 1 s

Tr Between command /

response interval: 15 s

* For timeout, see chapter 3, "Communication Flow" on page 8.

Communication System (LAN)

Item Specifications

Communication system TCP/IP connection. Port: 33336

Remark If a command is not received for 30 seconds, the socket will be closed.

Command Format

Format

Commands are sent from PC to the projector in the following format:

<command text><delimiter> or

<command text>=(value>(delimiter>

<command text> Character strings consisting of 1 or more alphanumeric letters

<value> Character strings consisting of 1 or more alphanumeric letters

<delimiter> CR(0Dh)

For <command strings> and <value>, see explanation about each command.

Example) When checking the power status (POWER)

PC to PJ

G E T = P O W E R CR

47h 45h 54h 3Dh 50h 4Fh 57h 45h 52h 0Dh

WUX6000

User Commands

-5-

Response Format

Responses are sent from the projector to PC in the following format:

There are multiple response types, each having different <response string> format.

<Response character

string> Character strings consisting of 1 or more alphanumeric letters

First 2 digits are always 1 lowercase alphabet letter and a ":" (colon).

The first character indicates the response type.

Response

type Meaning Example

i Normal response i:OK

g Reference command

response g:BRI=0

e Error response e:0002 INVALID_COMMAND

<delimiter> CR(0Dh)

Format varies according to the type, as follows:

Normal response

A response when command is processed normally.

The projector receives the next command only after receiving this response.

Format)

i:OK<delimiter>

Example)

PC to PJ

P O W E R = O N CR

50h 4Fh 57h 45h 52h 3Dh 4Fh 4Eh 0Dh

PJ to PC

i : O K CR

69h 3Ah 4Fh 4Bh 0Dh

WUX6000

User Commands

-6-

Reference command response

A response when reference is made properly for a reference command.

Format)

g:<command string>=<value><delimiter>

Example)

PC to PJ

G E T = P O W E R CR

47h 45h 54h 3Dh 50h 4Fh 57h 45h 52h 0Dh

PJ to PC

g : P O W E R = O N CR

67h 3Ah 50H 4Fh 57h 45h 52h 3Dh 4Fh 4Eh 0Dh

Error response

A response when an error occurred.

Format)

e:<error ID><space><error info string><delimiter>

<error ID> 4 alphanumeric letters

<space> Space character (20h)

<error info string> Character strings consisting of 1 or more alphanumeric letters

* Refer to “Error List”

Example)

PC to PJ

A U T O P C CR

41h 55h 54h 4Fh 50h 43h 0Dh

PJ to PC

e : 2 0 1 F I N V A L I D _

65h 3Ah 32h 30h 31h 46h 20h 49h 4Eh 56h 41h 4Ch 49h 44h 5Fh

S I G N A L CR

53h 49h 47h 4Eh 41h 4Ch 0Dh

WUX6000

User Commands

-7-

Normal response (BUSY)

This response is sent when a command cannot be received during processing.

Format)

i:BUSY<delimiter>

Example)

PC to PJ

A U T O P C CR

41h 55h 54h 4Fh 50h 43h 0Dh

PJ to PC

I : B U S Y CR

69h 3Ah 42h 55h 53h 59h 0Dh

Other

Command recognition

The receiver (projector) retains incoming characters within a specific Tc, and recognizes the data as

"received command" when delimiter is received.

If the character interval received exceeds the Tc or if a delimiter is not received within 256 characters,

all data already received is lost, and the mode is reset to standby to receive commands again.

Parameter value

Definition of <Parameter value> is as follows:

<value n> <Numerical value> | <ID> | “<Character string>”

The decimal string consists of minimum 1 letter and maximum 5 letters.

Valid value range is -32768 to 32767.

<ID> 1 or more ASCII characters (20h to 60h, 7Bh to 7Eh)

<character string> 0 or more ASCII characters (20h to 60h, 7Bh to 7Eh)

WUX6000

User Commands

-8-

3. Communication Flow

Command Transmission (PC side)

Commands should be sent from PC in a way that each character is sent within the specified Tc

(inter-character timeout).

Command Reception (projector side)

The projector retains incoming characters within a specific Tc, and recognizes the data as "received

command" when delimiter is received.

If the character interval received exceeds the Tc or if a delimiter is not received within 256 characters,

all data already received is lost, and the mode is reset to standby to receive commands again.

Command/Response

A response is always returned within Tr(*) for a command sent from the PC.

(*) The timeout interval between command and response (Tr) is 15 seconds.

Response Reception Timeout

If a response is not received within the Tr (timeout interval between command and response) while

standing by a waiting response after sending a command from the PC, it is deemed to have exceeded

the “response reception timeout.” Please resend the command.

Other

To execute commands via the network, the network function must be enabled in advance.

Only a portion of the commands can be executed when the projector is in standby mode.

The PC side cannot send the next user command before a response for the first command is returned.

If two or more user commands are received, user commands from 2nd one are discarded. If 2 or more

user commands are received, only the 1st command is processed, and a response is returned when

finished.

PC プロジェクター

Tr以内

コマンド

レスポンス

Command

Response

Projector

Within Tr

Command 1

Response to Command 1

Command 2

Command 3

Projector

Within Tr Processed

Discarded

WUX6000

User Commands

-9-

4. Command List

Item Command Setting Reference Description Power mode restriction

LAN RS-232C

SL0 SL1 SL3 PM ON ST PM ON

1 6AXADJ Yes Yes 6-axis color adjustment - - - - Yes - - Yes

2 6AXR Yes Yes

6-axis color adjustment R
