FEATURES
■XGA Resolution (1024 x 768)
■12x Optical Powered Zoom Lens
■Connects easily to your projector, computer monitor,
TV, VCR or DVD recorder
■VGA Input/Output
■S-Video and Composite Output
■White Paper Mode – enhances text document display
■Zoom Preset
■Image Freeze
■Auto and Manual Focusing, Exposure and
White Balance
■One Shot Auto Focus – ideal when switching
objects frequently
■Adjustable Twin Fluorescent Lamps – provides
uniform lighting
■Foldable Design for Excellent Portability
■Size (W x D x H):
In Use: 28.4 x 20.7 x 21.9 in. (722 x 525 x 556 mm)
Folded: 19.1 x 20.7 x 7.2 in. (486 x 525 x183 mm)
■1-Year Parts and Labor Limited Warranty
20.7 lbs
(9.4kg) 12x Optical Powered Zoom
• Visualizer • VGA Cable • AC Cable • Dust Cover
• User’s Manual • Warranty Information
KIT CONTENTS
XGA
1024 x 768
Lightweight Visualizer connects directly to the
projector to display paper documents and 3-D objects.
Index
REALiS
LCOS Projectors
WUX10 Mark II
WUX10 Mark II D . . 1
SX7 . . . . . . . . . 2
SX6. . . . . . . . . . 3
SX80 Mark II
SX80 Mark II D. . . . 4
SX60 . . . . . . . . . 5
SX800 . . . . . . . . 6
X700 . . . . . . . . . 7

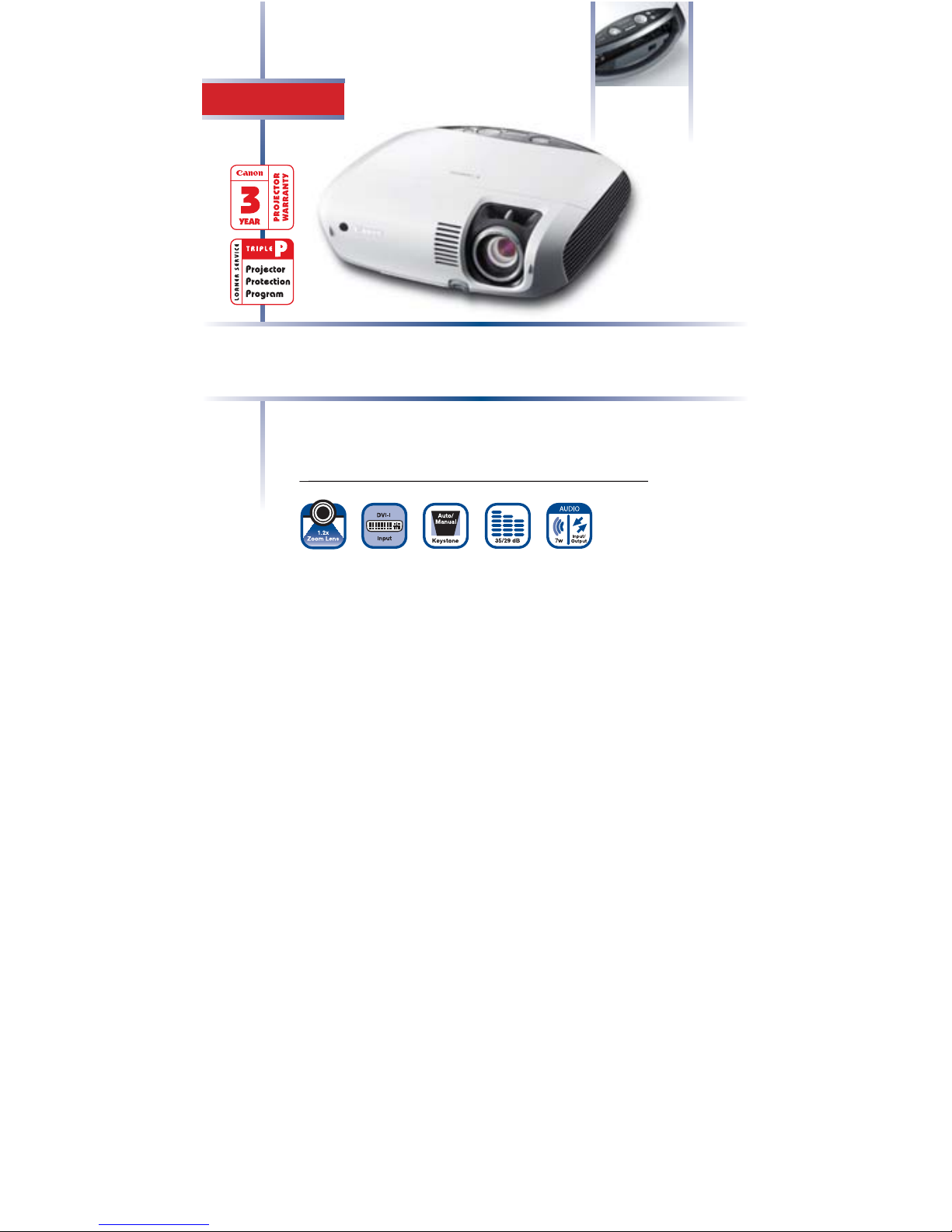

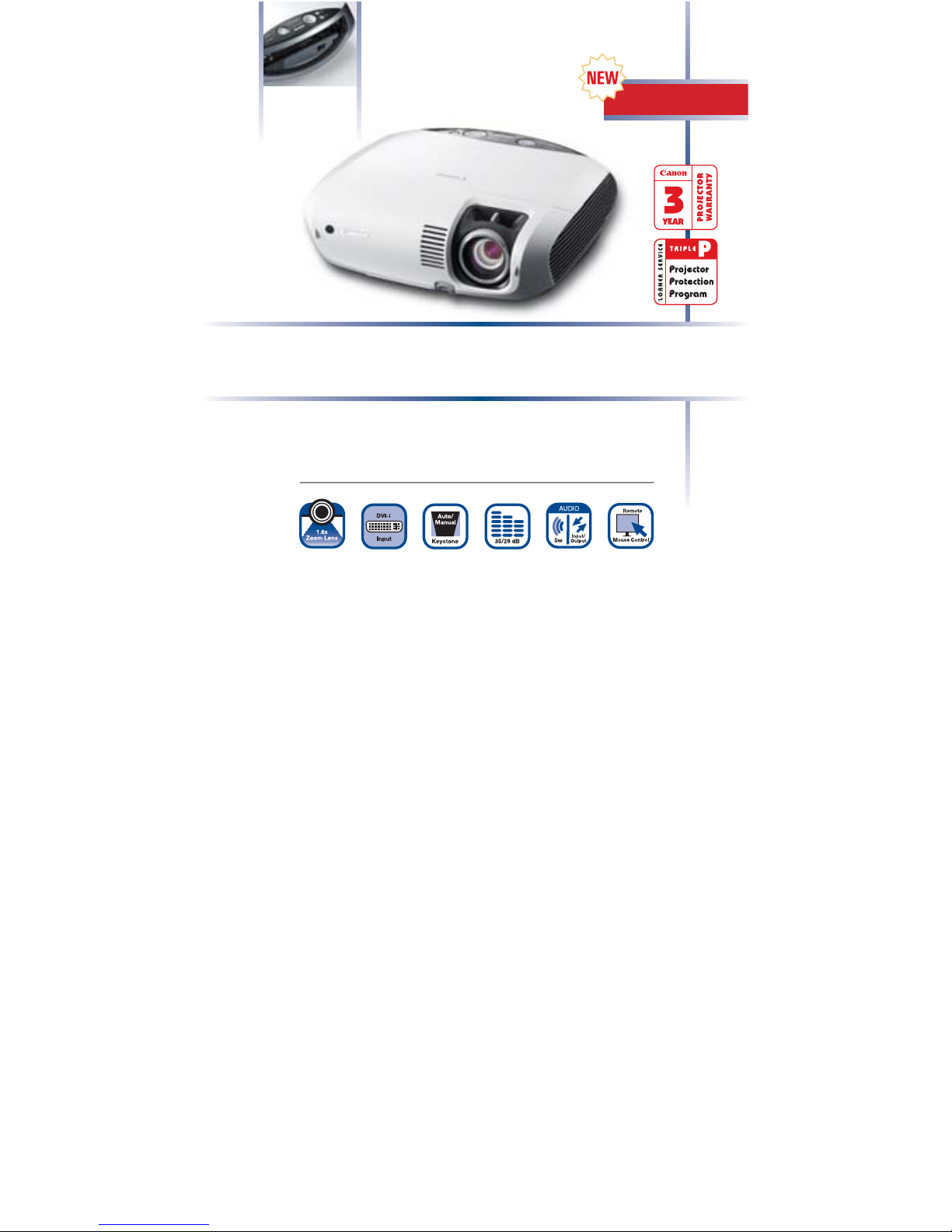

LV Series
LCD Projectors
LV-7585 . . . . . . . 8
LV-7375 . . . . . . .10
LV-8300 . . . . . . .11
LV-7370 . . . . . . .12
LV-7275 . . . . . . .13

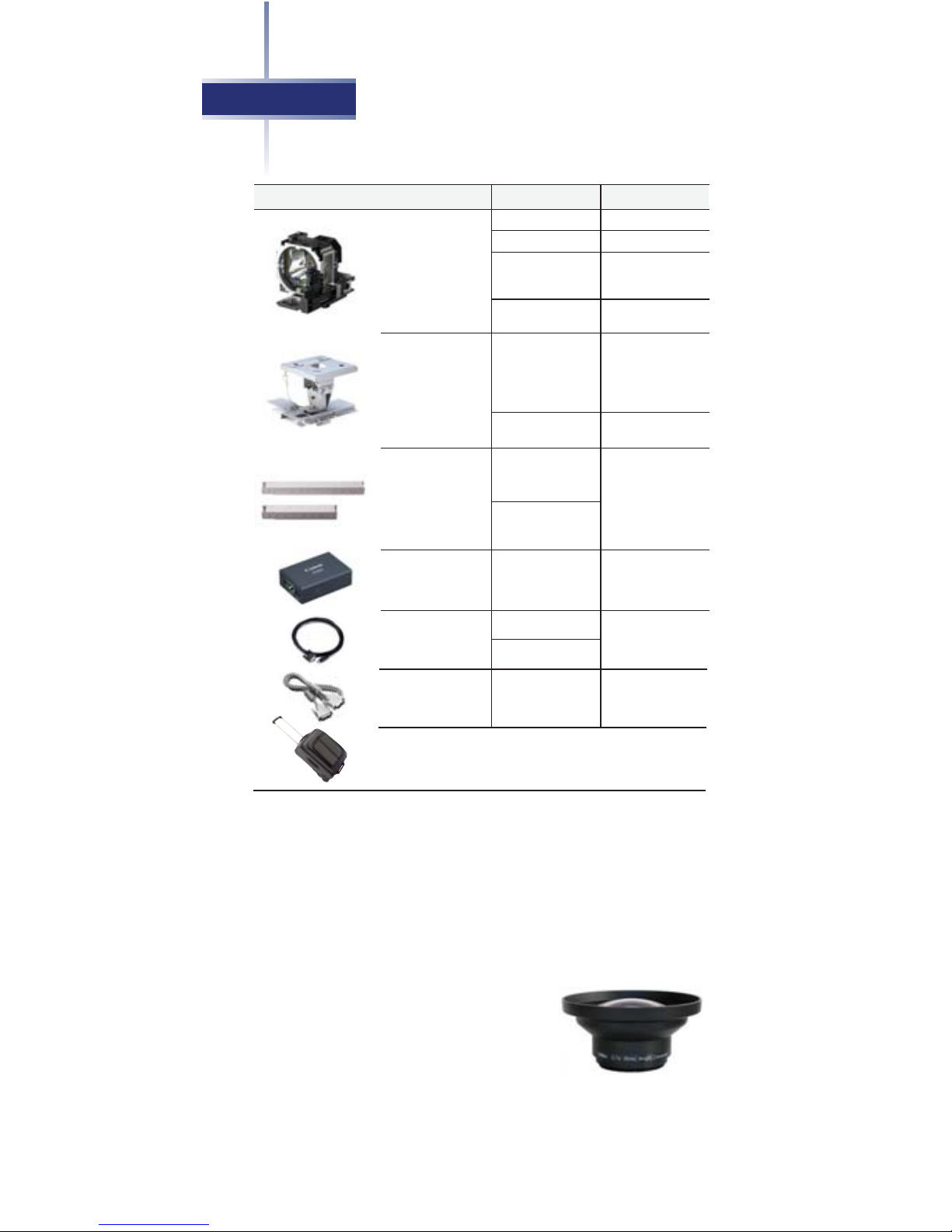

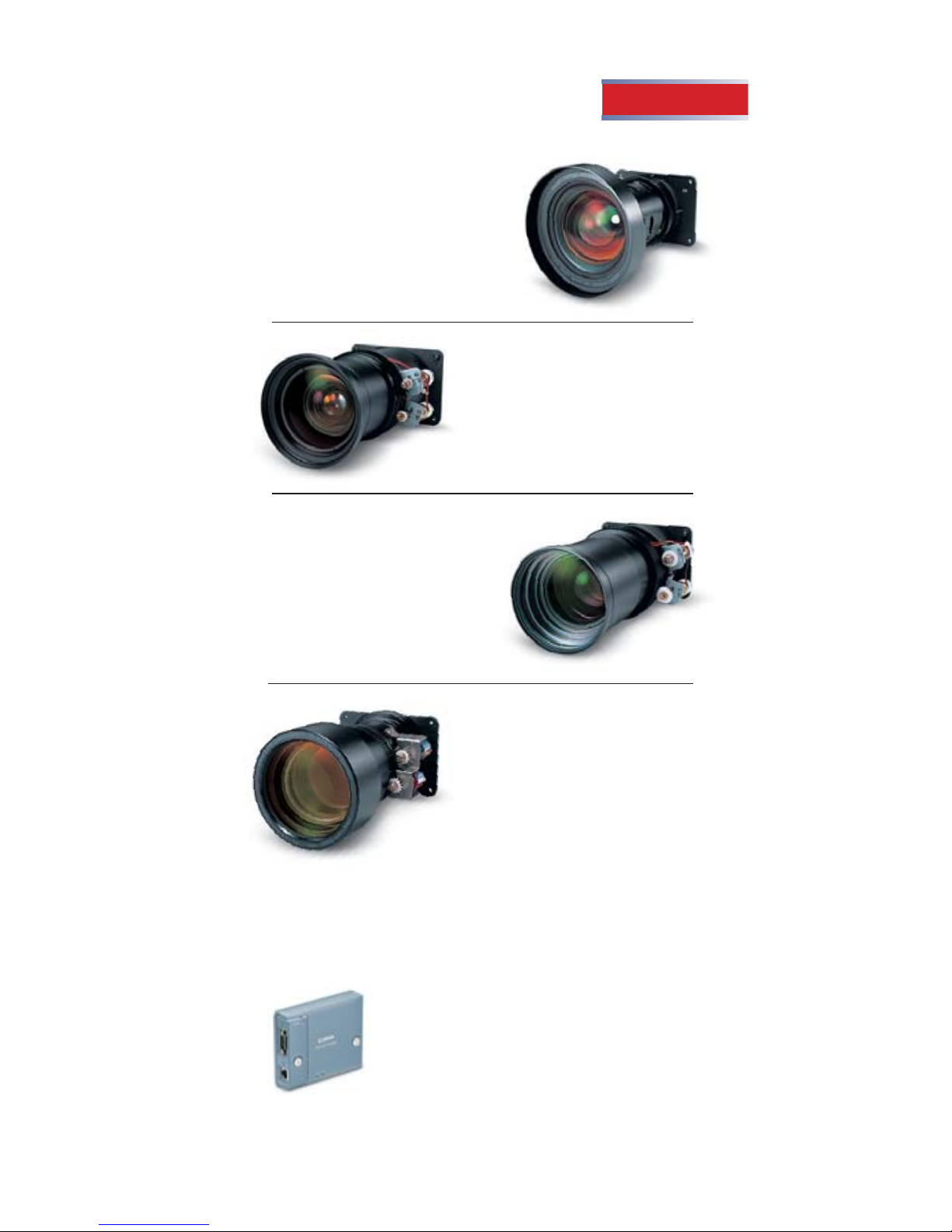

Optional Accessories
LV-7585 . . . . . . . 9
REALiS . . . . . . . .14
LV Series . . . . . . .15
Throw Distance
Chart . . . . . . . . .15

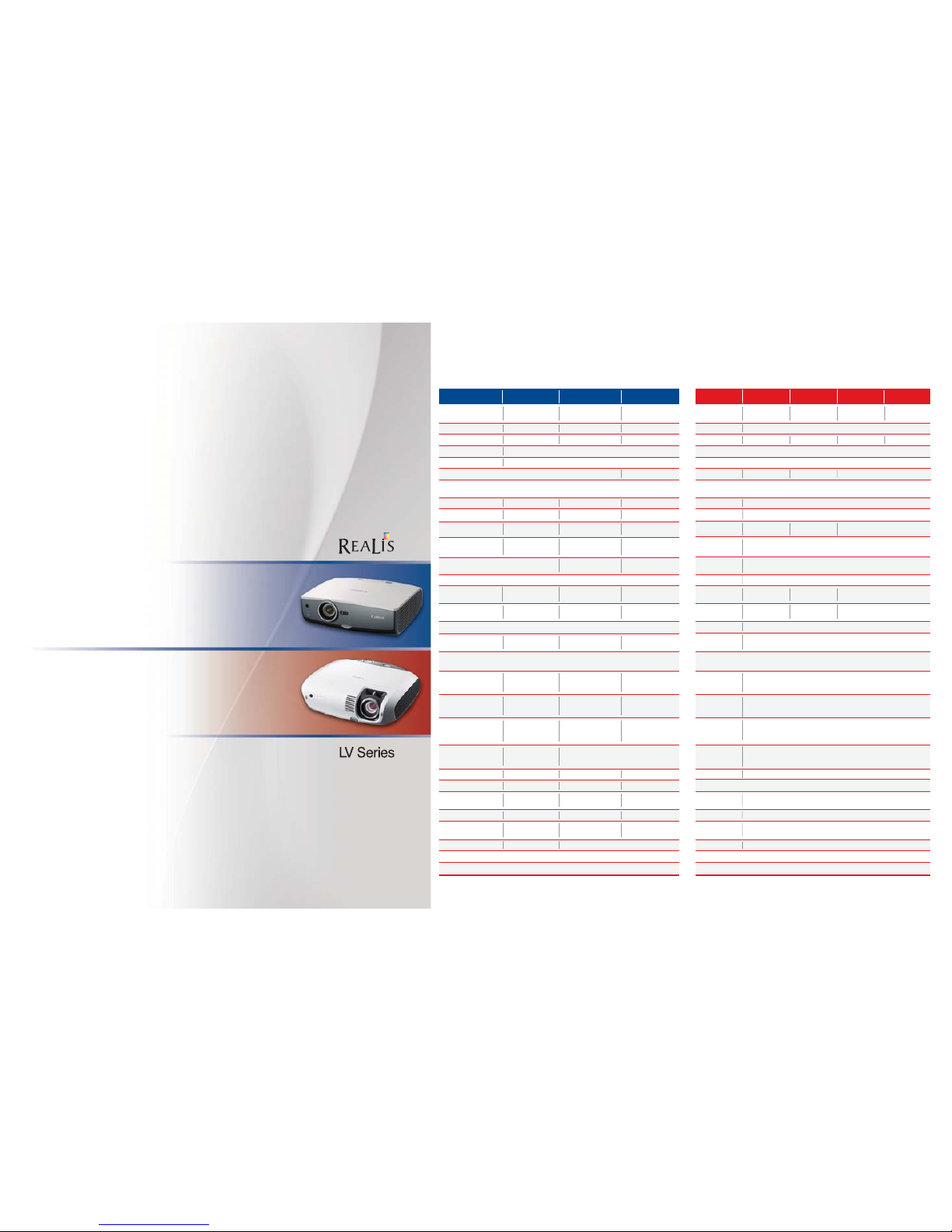

Comparison
Chart . . . . . . . . .16
Visualizer
RE-455X . . . . . . .19
Canon’s Projector Protection Program, also known as “Triple P,”
is a service program that provides a loaner projector of equal or
greater quality in the event that your projector needs to be
repaired.
■Free to any buyer within the 3-year new product limited
warranty
■Canon Customer Support Center toll-free hotline:
1-800-828-4040
■Customer Service Hours: 8 a.m. to midnight,
Monday - Friday and 10 a.m. to 8 p.m., Saturday EST
■For next business day delivery of loaner projector(s), a
Customer Activation Form must be received by Canon
Customer Support Center by 3 p.m. EST (Monday - Friday)
■Customer must provide a valid credit card as security for
the loaner unit
■Delivery not available on Saturday and Sunday
■Program available for products purchased and utilized
in the U.S.A. only
■Applies to Canon Multimedia Projectors only
■Loaner unit based on availability
■Program subject to change at any time without any
given notice
19
RE-455X
REALiS — LCOS PROJECTORS
WUX10 MARK II ■WUX10 MARK II D ■SX7 ■SX6
SX80 MARK II ■SX80 MARK II D ■SX60 ■SX800 ■X700
LV SERIES — LCD PROJECTORS
LV-7585 ■LV-7375 ■LV-8300 ■LV-7370 ■LV-7275
VISUALIZER — RE-455X
>f]eZ^VUZRAc`[VTe`cd
R_UGZdfR]ZkVc
FULL LINE PRODUCT GUIDE
usa.canon.com/projectors

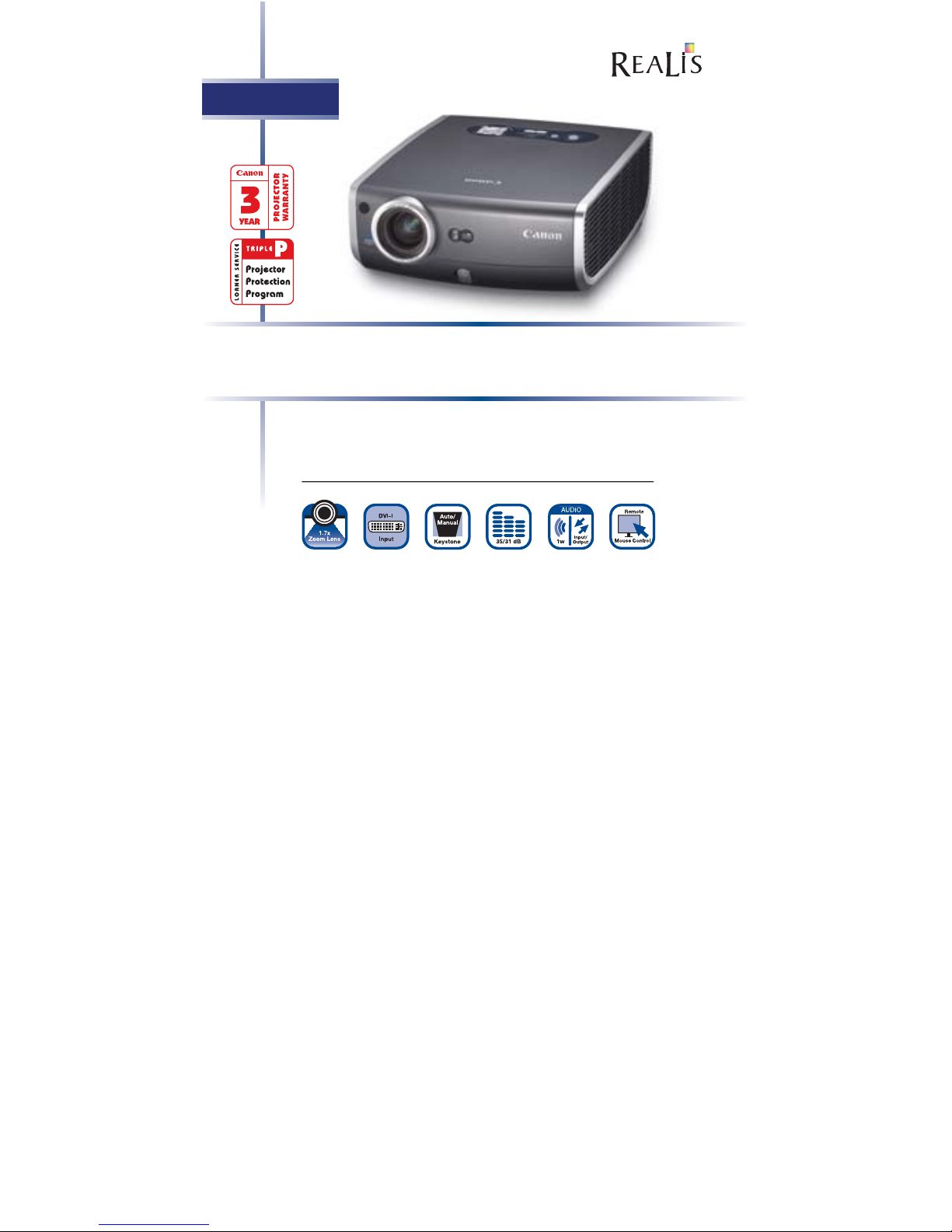

FEATURES
■Native WUXGA Resolution (1920 x 1200)
■3200 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.5x Optical Powered Zoom Lens (10:0 Lens Offset)
■1000:1 Contrast Ratio
■Full 10-bit Image Processing:
Capable of displaying over 1 billion colors
■DICOM Simulation Mode (WUX10 Mark II D only)
■Photo Image Mode
■HDMI Version 1.3 Deep Color with 1080p Support
■Network Ready RJ-45 Port
■Auto/Manual Keystone Correction (+/- 20˚ Vertical)
■Throw Distance: 3.9 to 29.9 ft. (1.2 to 9.1 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 36/32 dB (Quiet Mode)
■Computer/Video Terminals: DVI-I, HDMI, VGA,
Component, Composite Video
■Audio Terminals: 3 Inputs, 1 Output
■Long Lamp Life 3000h (Quiet Mode)
■Size (W x D x H): 11.2 x 13.2 x 4.5 in.
(284 x 336 x 114 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
10.8lbs
(4.9kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (DVI-VGA) • Component to VGA Adapter Cable
• Power Cable • Lens Cap • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
Bring WUXGA High-Definition features to the business
environment in this compact, lightweight, high-performance projector.
WUXGA
1920 x 1200 3200
Lumens
LCOS
1
See back cover for details on our “Triple P” Loaner Service Program.
WUX10 MARK II
WUX10 MARK II D

2
FEATURES
■Native SXGA+ Resolution (1400 x 1050)
■4000 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.7x Optical Powered Zoom Lens
■1000:1 Contrast Ratio
■Adobe RGB Color-Match System
■HD Ready
■Auto/Manual Keystone Correction
(+/- 20 degrees Vertical, +/- 20 degrees Horizontal)
■Throw Distance: 3.9 to 29.5 ft. (1.2 to 9.0 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 35/31 dB (Quiet Mode)
■Computer/Video Terminals: DVI-I, VGA, Component,
S-Video, Composite Video
■Audio Terminals: 3 Inputs, 1 Output
■Output Terminal: VGA
■Optional Network Adapter RS-NA01 Compatible
■Long Lamp Life 3000h (Quiet Mode)
■Size (W x D x H): 10.5 x 13.2 x 4.5 in.
(266 x 336 x 114 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (DVI-VGA) • Component to VGA Adapter Cable
• USB Cable • Power Cable • Lens Cap • Soft Carrying Case
• Quick Start Guide • Warranty Information
KIT CONTENTS
10.6lbs
(4.8kg)
Remarkable color and smooth reproduction make the SX7
perfect for applications with the most precise requirements.
SXGA+
1400 x 1050 4000
Lumens
LCOS
SX7
See back cover for details on our “Triple P” Loaner Service Program.

3
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (DVI-VGA) • Component to VGA Adapter Cable
• USB Cable • Power Cable • Lens Cap • Soft Carrying Case
• Quick Start Guide • Warranty Information
KIT CONTENTS
Exceptional image quality and color display make the
SX6 perfect for demanding professional conditions.
10.4lbs
(4.7kg)
SXGA+
1400 x 1050 3500
Lumens
LCOS
FEATURES
■Native SXGA+ Resolution (1400 x 1050)
■3500 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.7x Optical Powered Zoom Lens
■1000:1 Contrast Ratio
■Adobe RGB Color-Match System
■HD Ready
■Auto/Manual Keystone Correction
(+/- 20 degrees Vertical, +/- 20 degrees Horizontal)
■Throw Distance: 3.9 to 29.5 ft. (1.2 to 9.0 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 35/31 dB (Quiet Mode)
■Computer/Video Terminals: DVI-I, VGA, Component,
S-Video, Composite Video
■Output Terminal: VGA
■Optional Network Adapter RS-NA01 Compatible
■Long Lamp Life 2000h (Quiet Mode)
■Size (W x D x H): 10.5 x 13.2 x 4.5 in.
(266 x 336 x 114 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
SX6
See back cover for details on our “Triple P” Loaner Service Program.

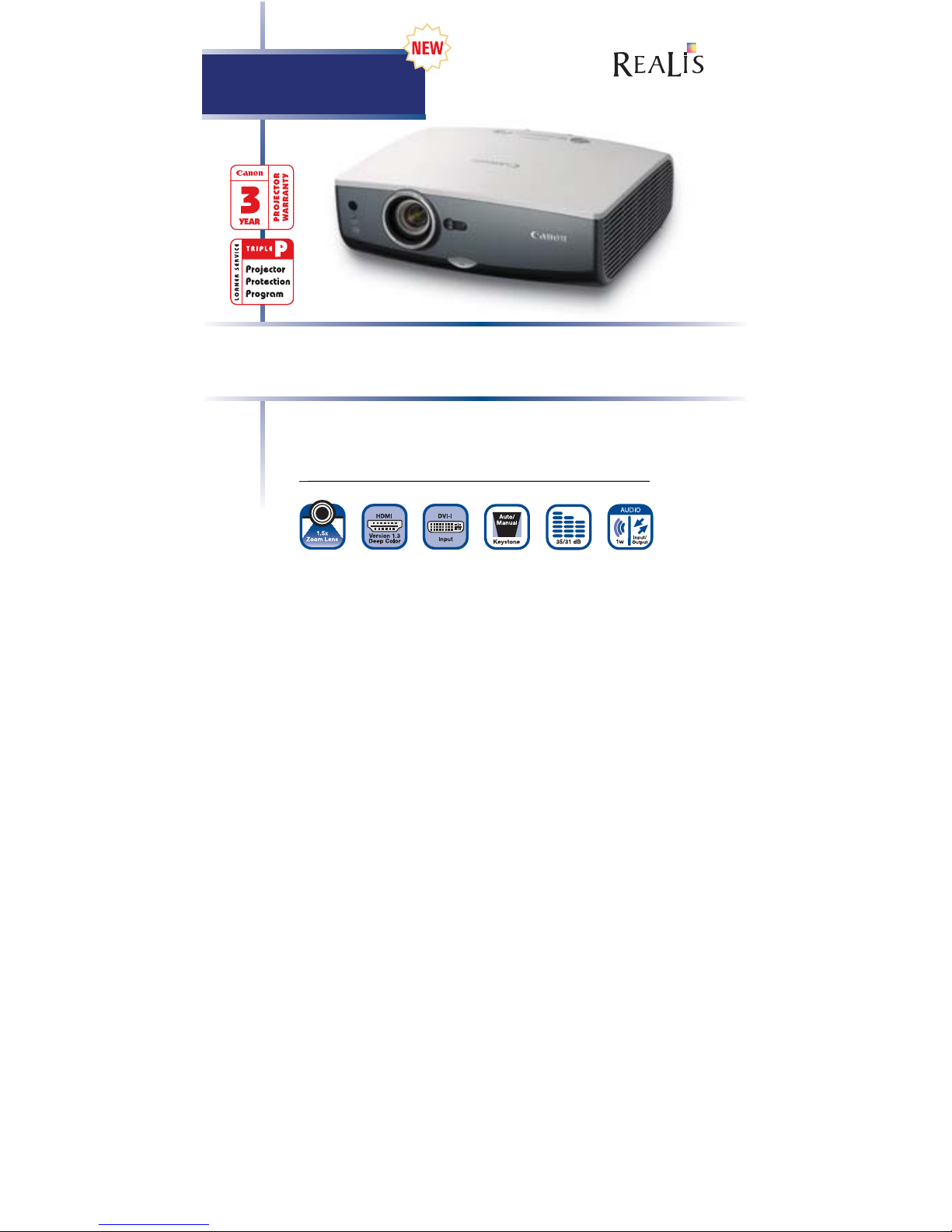

SX80 MARK II
SX80 MARK II D
FEATURES
■Native SXGA+ Resolution (1400 x 1050)
■3000 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.5x Optical Powered Zoom Lens (10:0 Lens Offset)
■900:1 Contrast Ratio
■DICOM Simulation Mode (SX80 Mark II D only)
■Photo Image Mode
■HDMI Version 1.3 Deep Color with 1080p Support
■PC-Free Presentations and PictBridge
■Network Ready RJ-45 Port
■Auto/Manual Keystone Correction (+/- 20˚ Vertical)
■Throw Distance: 3.9 to 29.9 ft. (1.2 to 9.1 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 35/31 dB (Quiet Mode)
■Computer/Video Terminals: DVI-I, HDMI, VGA,
Component, S-Video, Composite Video
■Audio Terminals: 3 Inputs, 1 Output
■Size (W x D x H): 13.0 x 13.4 x 4.8 in.
(332 x 340 x 121 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
11.5lbs
(5.2kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (DVI-VGA) • Component to VGA Adapter Cable
• Power Cable • Lens Cap • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
Outstanding image quality, detail and color reproduction using
SXGA+ resolution enables realistic, full-screen display.
SXGA+
1400 x 1050 3000
Lumens
LCOS
4See back cover for details on our “Triple P” Loaner Service Program.

SX60
10.1lbs
(4.6kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (DVI-VGA) • Component to VGA Adapter Cable
• USB Cable • Power Cable • Lens Cap • Soft Carrying Case
• Quick Start Guide • Warranty Information
KIT CONTENTS
Whisper-quiet operation and Home Cinema Mode allow the
highest quality presentations, even in a pitch-dark room.
SXGA+
1400 x 1050 2500
Lumens
LCOS
FEATURES
■Native SXGA+ Resolution (1400 x 1050)
■2500 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.7x Optical Powered Zoom Lens
■1000:1 Contrast Ratio
(2000:1 in Home Cinema Mode)
■HD Ready
■Auto/Manual Keystone Correction
(+/- 20 degrees Vertical, +/- 20 degrees Horizontal)
■Throw Distance: 3.9 to 29.5 ft. (1.2 to 9.0 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 30/27 dB (Quiet Mode)
■Computer/Video Terminals: DVI-I, VGA, Component,
S-Video, Composite Video
■Output Terminal: VGA
■Optional Network Adapter RS-NA01 Compatible
■Long Lamp Life 4000h (Quiet Mode)
■Size (W x D x H): 10.5 x 13.2 x 4.5 in.
(266 x 336 x 114 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
5
See back cover for details on our “Triple P” Loaner Service Program.

SX800
FEATURES
■Native SXGA+ Resolution (1400 x 1050)
■3000 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.5x Optical Powered Zoom Lens
■900:1 Contrast Ratio
■10:0 Lens Offset
■Auto/Manual Keystone Correction
(+/- 20 degrees Vertical)
■Throw Distance: 3.9 to 29.9 ft. (1.2 to 9.1 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 35/31 dB (Quiet Mode)
■Auto Flesh Tone
■Computer/Video Terminals: VGA, Component,
Composite Video
■Audio Terminals: 3 Inputs, 1 Output
■Long Lamp Life 2500h (Quiet Mode)
■Size (W x D x H): 13.0 x 13.4 x 4.8 in.
(332 x 340 x 121 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
11.0lbs
(5.0kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (VGA-VGA) • Component to VGA Adapter Cable
• Power Cable • Lens Cap • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
With high definition and SXGA+ expanded display, this projector
offers an affordable option for high-definition projection.
SXGA+
1400 x 1050 3000
Lumens
LCOS
6See back cover for details on our “Triple P” Loaner Service Program.

X700
FEATURES
■Native XGA Resolution (1024 x 768)
■4000 Lumens (88% Uniformity)
■AISYS-Enhanced LCOS Technology
■1.7x Optical Powered Zoom Lens
■1000:1 Contrast Ratio
■Auto/Manual Keystone Correction
(+/- 20 degrees Vertical, +/- 20 degrees Horizontal)
■Throw Distance: 3.9 to 29.5 ft. (1.2 to 9.0 m)
■Projected Image Size: 40 to 300 in.
■Auto Setup
■Quiet Operation: 35/31 dB (Quiet Mode)
■Computer/Video Terminals: DVI-I, VGA, Component,
S-Video, Composite Video
■Audio Terminals: 3 Inputs, 1 Output
■Output Terminal: VGA
■Optional Network Adapter RS-NA01 Compatible
■Long Lamp Life 3000h (Quiet Mode)
■Size (W x D x H): 10.5 x 13.2 x 4.5 in.
(266 x 336 x 114 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
10.6 lbs
(4.8kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (DVI-VGA) • Component to VGA Adapter Cable
• USB Cable • Power Cable • Lens Cap • Soft Carrying Case
• Quick Start Guide • Warranty Information
KIT CONTENTS
With 4000 lumens and a host of easy-to-use features, this
projector offers affordability and exceptional image quality.
XGA
1024 x 768 4000
Lumens
LCOS
7
See back cover for details on our “Triple P” Loaner Service Program.

LV-7585
* See page 9 for lens options.
FEATURES
■Native XGA Resolution (1024 x 768)
■6500 Lumens (88% Uniformity)
■1600:1 Contrast Ratio
■1.3x Optical Powered Zoom (standard lens)
■Auto-Winding Filter System
■Powered Lens Shift V (1:1-10:0), H (2:3-3:2)
■4 optional projector lenses available*
■Manual Keystone Correction
(+/- 40 degrees Vertical, +/- 20 degrees Horizontal)
■Throw Distance: 4.6 to 48.2 ft. (1.4 to 14.7 m)
■Projected Image Size: 31 to 400 in.
■Quiet Operation: 40/32 dB (Quiet Mode)
■Computer/Video Terminals: DVI-D (Supports HDCP),
VGA, Component, S-Video, Composite Video
■Output Terminal:
VGA
■Optional Network Adapter LV-NI02 (SNMP Compatible)
■Size (W x D x H): 14.6 x 17.3 x 7.4 in.
(370 x 440 x 187 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
28.7lbs
(13.0kg)
• Projector • Wireless/Wired Remote Control (AAA Batteries Included)
• Power Cable • Lens Cap • Computer Cable (VGA) • Quick Start
Guide • Warranty Information
KIT CONTENTS
6500 lumens, optional lenses and the Auto-Winding
Filter System provide installation-friendly design.
XGA
1024 x 768 6500
Lumens
LCD
8See back cover for details on our “Triple P” Loaner Service Program.

LV-7585
PROJECTOR LENSES
Lens changes must be performed by a Canon-authorized representative.
Network Imager LV-NI02
Connects the LV-7585 to your computer network, enabling remote
management of the projector through a simple browser-based
graphic user interface. This makes a number of tasks easier,
such as programming for operation on a daily or
weekly schedule, input mode switching and picture
adjustment. Sends status alerts via e-mail and
offers remote transfer of images and centralized
control of multiple projectors.
Replacement Lamp LV-LP29
Ceiling Mount Adapter LV-CL13
High Ceiling Mount Adapter LV-CL14
OTHER ACCESSORIES
Ultra Wide-Angle Lens LV-IL01
■Lens: f=22.33 mm, F2.5
■Throw Distance: 3.7 to 6.4 ft.
(1.13 to 1.96 m)
■Projected Image Size: 70 to 120 in.
■Throw Ratio: 0.8:1 (D:W)
Ultra Long Focus Zoom Lens LV-IL04
■Lens: f=111.6 to 155.2 mm,
F2.06 to 2.73, 1.4x zoom
■Throw Distance: 11.4 to 82.0 ft.
(3.48 to 25.0 m)
■
Projected Image Size: 40 to 300 in.
■Throw Ratio: 4.15 to 5.78:1 (D:W)
Wide-Angle Zoom Lens LV-IL02
■Lens: f=34.33 to 48.02 mm,
F2.5 to 3.06, 1.4x zoom
■Throw Distance: 3.2 to 25.4 ft.
(0.98 to 7.74 m)
■
Projected Image Size: 40 to 300 in.
■Throw Ratio: 1.25 to 1.8:1 (D:W)
Long Focus Zoom Lens LV-IL03
■Lens: f=63.5 to 111.5 mm,
F2.03 to 2.89, 1.8x zoom
■Throw Distance: 8.9 to 46.7 ft.
(2.73 to 14.23 m)
■Projected Image Size:
60 to 300 in.
■Throw Ratio: 2.29 to 4.17:1 (D:W)
Optional Accessories
9

NEW
Built-In Handle
LV-7375
FEATURES
■Native XGA Resolution (1024 x 768)
■3500 Lumens (85% Uniformity)
■500:1 Contrast Ratio
■1.2x Optical Zoom Lens
■Auto/Manual Keystone Correction
(+/- 30 degrees Vertical)
■Throw Distance: 2.6 to 37.0 ft. (0.8 to 11.3 m)
■Projected Image Size: 21 to 300 in.
■Quiet Operation: 35/29 dB (Quiet Mode)
■DVI-I Interface with HDCP
■Screen Color Correction
■Whiteboard Mode
■Color Management System
■Network Ready RJ-45 Port
■7W Built-in Speakers
■Long Lamp Life 4000h (Quiet Mode)
■Size (W x D x H): 12.5 x 13.2 x 4.4 in.
(317 x 336 x 111 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
7.3lbs
(3.3kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (VGA-VGA) • DVI to VGA Adapter
• Power Cable • Lens Cover • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
XGA
1024 x 768 3500
Lumens
LCD
10
With 3500 lumens, easy-to-use features and portable design,
this projector is a great solution for almost any environment.
See back cover for details on our “Triple P” Loaner Service Program.

LV-8300
NEW
Built-In Handle
FEATURES
■Native WXGA Resolution (1280 x 800)
■3000 Lumens (85% Uniformity)
■500:1 Contrast Ratio
■1.2x Optical Zoom Lens
■Auto/Manual Keystone Correction
(+/- 30 degrees Vertical)
■Throw Distance: 2.3 to 35.1 ft. (0.7 to 10.7 m)
■Projected Image Size: 21 to 300 in.
■Quiet Operation: 35/29 dB (Quiet Mode)
■DVI-I Interface with HDCP
■Screen Color Correction
■Whiteboard Mode
■Color Management System
■Network Ready RJ-45 Port
■7W Built-in Speakers
■Long Lamp Life 4000h (Quiet Mode)
■Size (W x D x H): 12.5 x 13.2 x 4.4 in.
(317 x 336 x 111 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
7.3lbs
(3.3kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (VGA-VGA) • DVI to VGA Adapter
• Power Cable • Lens Cover • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
WXGA
1280 x 800 3000
Lumens
LCD
11
With WXGA resolution and a sleek, portable design, this
projector meets the increasing demand for widescreen display.
See back cover for details on our “Triple P” Loaner Service Program.

LV-7370
FEATURES
■Native XGA Resolution (1024 x 768)
■3000 Lumens (85% Uniformity)
■500:1 Contrast Ratio
■1.2x Optical Zoom Lens
■Auto/Manual Keystone Correction
(+/- 30 degrees Vertical)
■Throw Distance: 2.6 to 37.0 ft. (0.8 to 11.3 m)
■Projected Image Size: 21 to 300 in.
■Quiet Operation: 35/29 dB (Quiet Mode)
■DVI-I Interface with HDCP
■Screen Color Correction
■Whiteboard Mode
■Color Management System
■Network Ready RJ-45 Port
■7W Built-in Speakers
■Long Lamp Life 4000h (Quiet Mode)
■Size (W x D x H): 12.5 x 13.2 x 4.4 in.
(317 x 336 x 111 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
7.3lbs
(3.3kg)
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (VGA-VGA) • DVI-VGA Adapter
• Power Cable • Lens Cover • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
XGA
1024 x 768 3000
Lumens
LCD
12
With a sophisticated new design and easy-to-use features,
this projector is ideal for easy portability or ceiling installation.
See back cover for details on our “Triple P” Loaner Service Program.
NEW
Built-In Handle

LV-7275
FEATURES
■Native XGA Resolution (1024 x 768)
■2600 Lumens (85% Uniformity)
■500:1 Contrast Ratio
■1.2x Optical Zoom Lens
■Auto/Manual Keystone Correction
(+/- 30 degrees Vertical)
■Throw Distance: 2.6 to 37.0 ft. (0.8 to 11.3 m)
■Projected Image Size: 21 to 300 in.
■Quiet Operation: 35/29 dB (Quiet Mode)
■DVI-I Interface with HDCP
■Screen Color Correction
■Whiteboard Mode
■Color Management System
■Network Ready RJ-45 Port
■7W Built-in Speakers
■Long Lamp Life 4000h (Quiet Mode)
■Size (W x D x H): 12.5 x 13.2 x 4.4 in.
(317 x 336 x 111 mm)
■3-Year Parts and Labor Limited Warranty
120-Day Lamp Warranty
• Projector • Wireless Remote Control (AAA batteries included)
• Computer Cable (VGA-VGA) • DVI-VGA Adapter
• Power Cable • Lens Cover • Soft Carrying Case • Quick Start Guide
• Warranty Information
KIT CONTENTS
13
6.8lbs
(3.1kg)
XGA
1024 x 768 2600
Lumens
LCD
This lightweight includes a DVI interface for
advanced connectivity and HD compatibility.
See back cover for details on our “Triple P” Loaner Service Program.
NEW
Built-In Handle

REALiS
Product Model No. Use with
■WUX10 MARK II / WUX10 MARK II D
■SX80 MARK II / SX80 MARK II D
■SX7 ■SX6 ■SX60 ■SX800 ■X700
RS-LP03
RS-LP04
RS-CL07
RS-LP05
RS-CL08
15.75"-23.60"
RS-CL09
23.60"-39.37"
RS-CL10
LV-CA29
*Compatible with RS-CL07 and RS-CL10
DVI-D Cable
REALiS Wheeled Carrying Case
Compatible with all REALiS Models
Ceiling
Extension*
RS-CA01 9.8'
RS-232C
Cable
Replacement
Lamp
RS-LP02
RS-NA01
Network
Adapter
Ceiling Mount
1025V632 18"
14
■
■
■ ■ ■
■ ■ ■ ■ ■
■
■ ■ ■
■ ■ ■
■■■
■■ ■
■
■ ■ ■
■
■ ■ ■
■ ■
■ ■
ATTACHMENT LENS FOR REALiS SX7/SX6/SX60/X700
0.7x Wide Angle Converter Lens T-WC070
Allows you to expand the projected image size — without changing the
distance between the projector and screen. Simply attach it onto a
compatible Canon REALiS projector via the slip-on adapter, and adjust the
image size.** Excellent for shorter projection distances for meeting rooms,
rear-projection, etc.
■Lens Construction: 4 elements in 4 groups
■Type of Coating: Multi-Coated
■Dimensions: 4.67" (d) x 2.14" (l)
Rear Thread: 58mm x 0.75mm pitch
Net Weight: 16 oz. (353 grams)
■
Accessories included: 58mm adapter ring to be slipped over the projector
lens housing; security leash to connect converter with projector
■Wide Angle Throw Ratio (with adapter): 1.02:1
Optional Accessories
**Converter lens limits the zoom range of the projector.

LV Series
LV-7585 (Standard Lens)
Projection Image Size 31" 40" 100" 200" 300" 400"
Wide 4.6' 4.6' 11.8' 23.9' 36.0' 48.2'
Tele 4.6' 6.9' 15.4' 31.5' 47.2' 48.2'
Projection
Distance
LV-8300
Projection Image Size 25" 40" 60" 100" 200" 300"
Wide 2.3' 3.6' 5.6' 9.5' 19.4' 28.9'
Tele 3.0' 4.6' 5.9' 11.5' 23.3' 35.1'
Projection
Distance
LV-7375, LV-7370, LV-7275
Projection Image Size 25" 40" 60" 100" 200" 300"
Wide 2.6' 3.9' 6.2' 10.2' 20.3' 30.8'
Tele 3.0' 4.9' 7.2' 12.1' 24.6' 37.1'
Projection
Distance
15
LV-LP31
LV-CL15
LV-CA32
LV-CA29
■ ■■ ■
■ ■■ ■
■ ■■ ■
■ ■■ ■
■LV-7375 ■LV-8300 ■LV-7370 ■ LV-7275
Ceiling Mount
Adapter
Component
Cable
Product Model No. Use with
Replacement
Lamp
DVI-D Cable
Projection
Distance
REALiS SX80 MARK II, SX80 MARK II D, SX800
Projection Image Size 40" 80" 100" 150" 200" 300"
Wide 3.9' 7.9' 9.8' 14.8' 19.7' 29.9'
Tele 5.6' 11.5' 14.4' 21.7' 29.2' —
REALiS SX7, SX6, SX60, X700
Projection Image Size 40" 80" 100" 150" 200" 300"
Wide 3.9’ 7.9' 9.8' 14.8' 19.7' 29.5'
Tele 5.9’ 11.5' 14.4' 21.7' 29.2' —
Projection
Distance
Projection
Distance
REALiS WUX10 MARK II, WUX10 MARK II D
Projection Image Size 40" 80" 100" 150" 200" 300"
Wide 3.9' 7.9' 9.8' 14.8' 20.0' 29.9'
Tele 5.6' 11.5' 14.4' 22.0' 29.2' —
Optional Accessories
PROJECTOR THROW DISTANCE CHART

COMPARISON CHART
REALiS
1 Not available on the WUX10 2 Component (5BNC) using analog PC input 2
16
NEW
Brightness
(Lumens) 3200 Lumens 4000 Lumens 3500 Lumens
Contrast Ratio 1000:1
Imaging Technology 0.7” LCOS x 3
DICOM Simulation Mark II D only N/A
Photo Mode YES N/A
Native Resolution 1920 x 1200 Pixels 1400 x 1050 Pixels
Max. Resolution 1920 x 1200 1600 x 1200
Supported
Weight 10.9lbs 10.6lbs 10.4lbs
Dimensions (WxDxH) 11.2” x 13.2” x 4.5” 10.5” x 13.2” x 4.5”
Lens Offset 10:0, Fixed 9:1, Fixed
Zoom 1.5x Powered, 1.7x Powered, 12x Digital
Lens 12x Digital
Focus Powered (Auto/Manual)
Screen Size 40” - 300”
Projection 3.9 - 29.9 ft 3.9 - 29.5 ft (1.2 - 9.0 m)
Distance (1.2 - 9.1 m)
Throw Ratio
(D:W) 1.48 - 2.18:1 1.46 - 2.43:1
Uniformity 88%
Digital Keystone ± 20˚ vertical ± 20˚ vertical (Auto/Manual)
Correction (Auto/Manual) ± 20˚ horizontal (Manual)
Computer Digital PC Input (DVI-I), Analog PC Input (D-sub 15 pin
Input/Output and/or DVI-I), Analog PC Output (D-sub 15 pin)
1
Scanning H:15 ~ 75kHz, H:15 ~ 100 kHz, V:50 ~ 100Hz,
Frequency V:50 ~ 85Hz,
Dot clock: 170MHz
Dot clock: 170MHz
Video HDMI, Component
2
,DVI-I, Component
2
,
Inputs Composite S- Video, Composite
1080p / 1080i / 1035i /
Video 720p / 576p / 480p / 1080i / 1035i / 720p /
Support 576i / 480i 575p / 480p / 575i / 480i
Audio Stereo audio input x3, Stereo audio
Input/Output Stereo audio output x1 input x1
Mouse Control N/A USB
Serial Control D-Sub 9 pin Mini DIN 8 pin
Network Yes, RJ-45 Optional Adapter (RS-NA01)
Lamp Type 275W NSH (AC) 270W NSH (DC)
Lamp Life
(Normal/Quiet) 2000/3000 Hours 1500/2000 Hours
Noise Level 36/32dB 35/31dB
Power Voltage AC 100 - 240V, 50/60Hz
Warranty 3 years parts and labor, 120-day lamp warranty
FEATURE
WUX10 Mark II
WUX10 Mark II D
SX7 SX6

At the heart of our LV Multimedia
Projectors lies the power of the
genuine Canon lens. Among
its many advantages: dramatic
image reproduction, razor-sharp
projection in short and long
range and remarkable resolution
and contrast — all with minimal
internal reflection, flare or
ghosting. User-friendly features
like easy lamp replacement,
sleek ergonomic design and
convenient carrying handle round
out the refined functionality of
our newest models.
Other manufacturers offer their
version of LCD-class projectors.
An ideal balance of consistency,
color and image clarity of the
Canon LV Series. Perfect for
any venue, the LV Series brings
every presentation to life.
When it comes to demonstrating sheer performance, no one
outshines Canon. Our REALiS and LV Series Multimedia
Projectors are powerful proof of how Canon's focus on the
optical sciences results in best-in-class projection technology.
Using revolutionary LCOS
technology, Canon projectors will
display your images in ways that
leave your audiences amazed.
LCOS stands for Liquid Crystal
on Silicon — a technology
whose higher aperture ratio
allows for the reproduction of
images greater than with LCD or
DLP projection.
The benefits of Canon AISYS-
enhanced LCOS will absolutely
floor you. Astoundingly
accurate image reproduction.
Print legibility down to 7-point
type. Breathtaking colors in
crisp, exquisite and pixel-free
clarity and detail. Offering a
significantly larger display range,
our SXGA+ projectors allow you
to view more data than either
XGA or WXGA, with a higher
resolution than ever before.
For performance you have to
see to believe, step up to the
new reality. Step up to REALiS
projectors.
Sharpen your performance
with LCD projection:
The Canon LV Series
Take your presentation to
the LCOS extreme – with
Canon REALiS Projectors
LV Series
SX8 0 Mark II
SX8 0 Mark II D
SX60 SX800 X700
REALiS
7 With MLA 8 Using PC 1 Input 9With Remote Mouse Receiver
Errors and omissions excepted. Weight and dimensions are approximate. Specifications subject to change without notice.
3 In Home Cinema Mode 4Not available on the SX800 5DVI-I replaced by the D-sub 15pin on the SX800
6 Component (5BNC) using analog PC input 2
17 18
NEW NEW
LV-7585 LV-7375 LV-8300 LV-7370 LV-7275
6500 Lumens 3500 Lumens 3000 Lumens 3000 Lumens 2600 Lumens
1600:1 500:1
1.3” LCD
7
x 3 0.63" LCD
7
x 3 0.59" LCD
7
x 3 0.63" LCD
7
x 3 0.63” LCD x 3
N/A
N/A
1024 x 768 Pixels 1024 x 768 Pixels 1280 x 800 Pixels 1024 x 768 Pixels
1600 x 1200
28.7lbs 7.3lbs
14.6”x 17.3” x 7.4” 12.5”x 13.2” x 4.4”
V: 1:1-10:0, Variable
H: 2:3-3:2, Variable 8.4:1.6 8.5:1.5 8.4:1.6
1.3x Optical
1.2x Optical Zoom Manual
Zoom (Powered)
Powered
(Auto/Manual) Manual
31” - 400” 21” - 300”
4.6 - 48.2 ft 2.6 - 37.0 ft 2.3 - 35.1 ft 2.6 - 37.0 ft
(1.4 - 14.7 m) (0.8 - 11.3 m) (0.7 - 10.7 m) (0.8 - 11.3 m)
1.77 - 2.30:1 1.53 - 1.84:1 1.44 - 1.74:1 1.53 - 1.84:1
90% 85%
± 40˚ vertical
± 20˚ horiz. (Manual) ± 30˚ vertical (Auto/Manual)
Digital PC Input DVI-I (LV-7585: DVI-D), Analog PC Input D-sub 15 pin
and/or DVI-I (LV-7585: D-sub 15 pin only), Analog PC Output (D-sub 15 pin)
H:15 ~ 100kHz,
V:48 ~ 100kHz, H:15 ~ 100kHz, V:50 ~ 120kHz, Dot clock: 108MHz
Dot clock: 180MHz
Component Video,
(5 BNC) Composite, Component Video (with adapter)
8
, Composite, S-Video
S- Video
1080i / 1035i /
720p / 480p / 1080 1080i / 720p / 576p / 576i / 480p / 480i
(PsF/24,25,30)
Stereo Mini Jack Input x2,
N/A Stereo RCA Jack Input x1 (L/R),
Stereo Mini Jack Output x1
USB N/A
D-Sub 9 pin
Optional Network Yes, RJ-45
Imager (LV-NI02)
330W NSHA 230W NSHA
2000/3000 Hours 3000/4000 Hours
40/32dB 35/29dB
AC 100 - 240V, 50/60Hz
3 years parts and labor, 120-day lamp warranty
(RS-NA01) (RS-NA01)
3000 Lumens 2500 Lumens 3000 Lumens 4000 Lumens
900:1 1000:1/2000:1
3
900:1 1000:1
0.55” LCOS x 3 0.7” LCOS x 3 0.55” LCOS x 3 0.7” LCOS x 3
Mark II D only N/A
YES N/A
1400 x 1050 Pixels 1024 x 768 Pixels
1600 x 1200
11.5lbs 10.1lbs 11.0lbs 10.6lbs
13.0” x 13.4” x 4.8” 10.5” x 13.2” x 4.5” 13.0” x 13.4” x 4.8” 10.5” x 13.2” x 4.5”
10:0, Fixed 9:1, Fixed 10:0, Fixed 9:1, Fixed
1.5x Powered, 1.7x Powered, 1.5x Powered, 1.7x Powered,
12x Digital 12x Digital 12x Digital 12x Digital
Powered
Powered (Auto/Manual) Powered (Auto/Manual)
40” - 300”
3.9 - 29.9 ft 3.9 - 29.5 f 3.9 - 29.9 ft 3.9 - 29.5 ft
(1.2 - 9.1 m) (1.2 - 9.0 m) (1.2 - 9.1 m) (1.2 - 9.0 m)
1.48 - 2.18:1 1.46 - 2.43:1 1.48 - 2.18:1 1.46 - 2.43:1
88%
± 20˚ vertical
± 20˚ vert. (Auto/Manual) ± 20˚ vertical ± 20˚ vert. (Auto/Manual)
(Auto/Manual) ± 20˚ horiz. (Manual) (Auto/Manual) ± 20˚ horiz. (Manual)
Digital PC Input (DVI-I)
4
, Analog PC Input (D-sub 15 pin
and/or DVI-I)
5
, Analog PC Output (D-sub 15 pin)
4
H:15 ~ 75kHz, H:15 ~ 100 kHz, H:15 ~ 75kHz, H:15 ~ 100kHz,
V:50 ~ 85Hz, V:50 ~ 100Hz, V:50 ~ 85Hz, V:50 ~ 100Hz,
Dot clock: 170MHz Dot clock: 170MHz Dot clock: 170MHz Dot clock: 170MHz
HDMI, Component
6
, DVI-I, Component
6
, Component
6
, DVI-I, Component
6
,
Composite S-Video, Composite Composite S- Video, Composite
1080p / 1080i /1035i / 1080i / 1035i / 720p / 1080p / 1080i / 1035i / 1080i / 1035i / 720p /
720p / 576p / 480p / 575p / 575i / 480i 720p / 576p / 480p / 575p / 575i / 480i
576i / 480i 576i / 480i
Stereo audio input x3, Stereo audio Stereo audio input x3,
Stereo audio output x1 input x1 Stereo audio output x1
N/A USB N/A USB
D-Sub 9 pin Mini DIN 8 pin D-Sub 9 pin Mini DIN 8 pin
Yes, RJ-45 Optional Adapter N/A
Optional Adapter
230W NSH (AC) 180W NSH (DC) 230W NSH (AC) 275W NSH (DC)
2000/2500 Hours 2500/4000 Hours 2000/2500 Hours 2000/3000 Hours
35/31dB 30/27dB 35/31dB
AC 100 - 240V, 50/60Hz
3 years parts and labor, 120-day lamp warranty
