IRISPen Air 7
Quick User Guide
(Android)

This Quick User Guide helps you get started with the IRISPen AirTM 7.
Please read this guide before operating this scanner and its software. All information is subject to
change without prior notice.
Table of Contents
1. Introduction
2. Installation of the IRISPenTM app
3. Quick Setup of the IRISPenTM
4. Scanning
5. Troubleshooting
6. Specifications
7. Compliance
1. Introduction
IRISPen AirTM 7 is a Smart wireless pen scanner that allows you to scan lines of text to the IRISPenTM
app on your Android device. In the app the scans can be edited, translated, read out loud and shared
through your favorite Cloud accounts.
Thanks to I.R.I.S.' OCR technology (Optical Character Recognition) IRISPen AirTM 7 recognizes 130
languages*, barcodes and CMC7 fonts in Online mode. When using the IRISPenTM in Offline mode,
not all languages are supported. A message is displayed when a language requires Online mode.
You can also have the application automatically translate the scanned text and read it out loud.
Note that with IRISPen AirTM 7 you scan one line at a time.
*130 languages will be supported in the final version of IRISPen AirTM 7, which clients will be able to download through the
Update feature in the current application.
Before you begin:
Charge the IRISPenTM for 5 hours. To do so, plug it into a computer using the provided USB cable and
power on the computer, or plug the IRISPenTM into a power outlet. The green battery led blinks slowly
when the battery is being charged. When the battery led stays on, the battery is fully charged.
Note: charging the IRISPenTM by connecting it to a USB port on your Android device (should it
have one) is not supported.
Note:the battery life in usage is about 4 hours. When the battery is almost dead, the battery
led starts blinking fast. The recharge time is about 2.5 hours. Note that the battery status is
also indicated within the IRISPenTM app.

2. Installation of the IRISPenTM app
Important: to install the IRISPenTM app you need a wireless Internet connection.
Open the Play Store on your Android device.
Search for the IRISPen AirTM 7 app and install it.
To do so follow the on-screen instructions.
Once the app has been installed, tap Open.

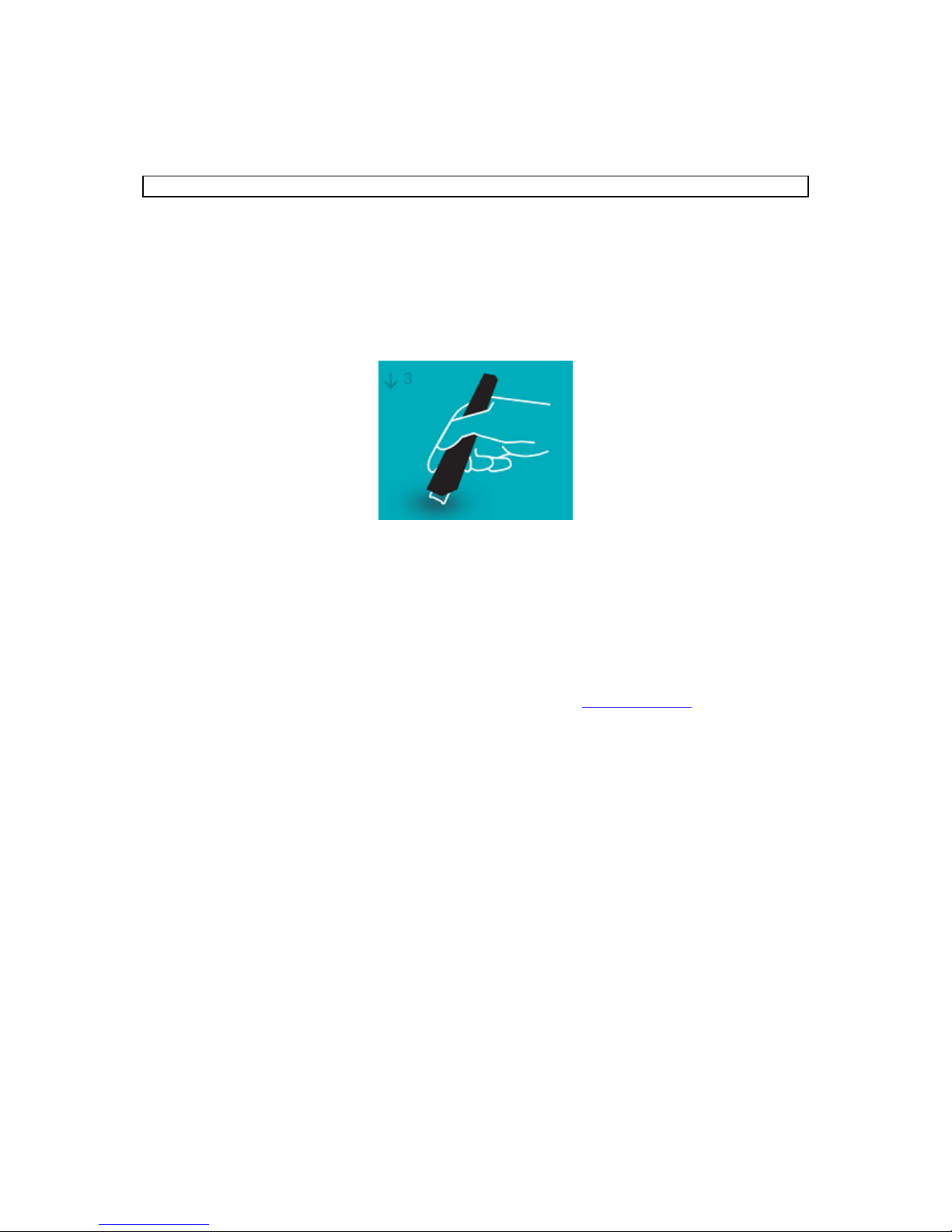

Press the scanning tip for 3 seconds to power on the pen, as shown in the IRISPenTM app.
The blue Bluetooth led on the pen starts to blink slowly.
Tap Start.
If Bluetooth is not enabled on your device, a message appears that "An app wants to
turn on Bluetooth". Select Allow.
Tap Select scanner.
When the Bluetooth connection has been established the blue led stays on. A message
appears that the scanner is successfully connected.
Note that connection may take some time.
Should you have trouble connecting the pen, see the Troubleshooting section.
Tap Next to continue with he Quick Setup.
Note: next time you just need to open the app and power on the IRISPenTM.

3. Quick Setup of the IRISPenTM
When you start the app for the first time the Quick Setup is displayed.
In the Quick Setup you can select:
The Scanning hand:
Select Right hand to scan lines from left to right.
Select Left hand to scan lines from right to left.
The Input language
IRISPenTM supports 130* languages.
*130 languages will be supported in the final version of IRISPen AirTM 7, which clients will be able to download
through the Update feature in the current application.
Online / Offline mode
Select On to activate Online mode and connect to IRISPen AirTM 7 Cloud. Or select Off
to work in Offline mode.
Speech speed
Move the slider to adjust the Text to Speech reading speed.
To access these Settings later on, tap the Settings icon ( ) in the bottom right corner.

Scanning Tips
Then continue to Scanning tips.

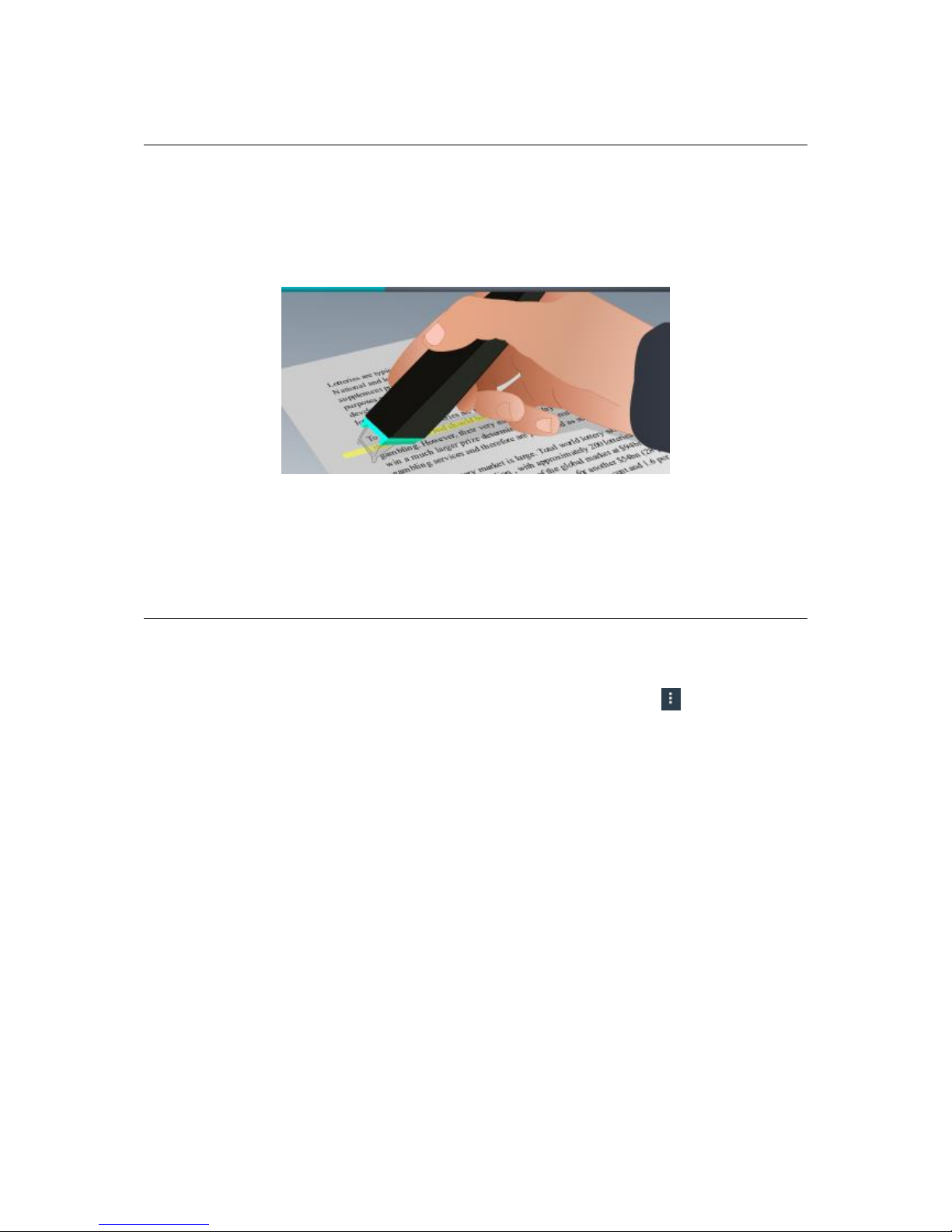

Hold the pen upright to scan text. Do not scan in a 45 degree angle or less.
Make sure both sharp ends of the scanner tip always touch the page during scanning.
Scan one line of text at a time. Make sure the line is approximately in the middle of the two
scanner tips.
Avoid scanning too slowly. Slide the IRISPenTM smoothly, in a fluid motion.
Avoid applying excessive pressure. Otherwise, the scanning may result in jerky, uneven
motions.
Tap the arrow next to Give it a go when you are done.
Practice Scanning
You can now practice your scanning and watch the results.
When you are done, tap Finish.
To access the Scanning Tips or Practice menu again, tap the menu icon ( ) in the top right
corner of the main screen and select Scanning Tips or Practice.

4. Scanning
In this section we explain the different scanning possibilities of the IRISPenTM.
Tap the plus sign to start a new document.
A new document is always named "untitled document". To rename it, tap inside the
title and enter a name of your choice.
"Ready to scan" now appears on the screen.
Slide the pen over a line of text as explained in the Quick Setup.
The scanned text appears in the application. You can add multiple lines to a document
until the document if full.
Note that you still need to scan one line at a time.
Tip: to add a scan on a new line, click with the pen after you have scanned the line.
If necessary, the results of the scan can be modified manually. To do so, tap inside the text
and edit it.
Note that the standard Cut, Copy, Paste options are available as well.
To delete an entire document, tap the menu icon ( ), and select Delete.
Reading text out loud
Note: make sure Online mode is activated to use this feature. An Internet connection (Wifi, 3G or
4G) is required to activate Online mode.
To read the text out loud, tap the menu icon ( ), and select Speak.
By default 17 languages are supported: English, French, Dutch, German, Italian, Polish, Russian,
Spanish, Brazilian, Danish, Finnish, Norwegian, Swedish, Simplified Chinese, Traditional Chinese,
Japanese and Korean.
When you select another language that is not installed by default, a pop-up window appears
prompting you to install a Text to Speech engine that supports the required language from Google
Play Store.
Note: clicking Yes does not automatically open Play Store or download the required engine.
This must be done manually.

Translating text
Note: make sure Online mode is activated to use this feature. An Internet connection (Wifi, 3G or
4G) is required to activate Online mode.
To translate the text you have scanned, tap the Translate icon ( ).
Tap the language on the right-hand side and select the required language from the list. The text is
translated immediately.
Note: the language on the left cannot be changed. This is the input language you selected
during the Quick Setup. To select a different input language go to the Settings menu ( ).
Then start a new document in the app.
To read the translated text out loud, tap the Speak icon ( ).
To share the translated text, tap the Share icon ( ).
Saving and Sharing your Scans
To share your scans, tap the menu icon ( ). Then select Share.
The Cloud accounts that are configured on your device are displayed. Select the destination of your
choice.
To share multiple documents at once, return to the main screen. Tap and hold a document
you want to share, select the others and tap the share icon.
Returning to the main screen
To return to the main screen tap the return button on your device.
In the main screen:
You have an overview of all your documents and how many scans they each contain.
You can use the Search feature ( ) to search for documents.
You can add new documents by tapping the plus sign.
Delete multiple documents:
Tap and hold the document you want to delete.
Select other documents to be deleted.
Then tap the delete icon ( ).
Share multiple documents:
Tap and hold the document you want to share.
Select other documents to be shared.
Then tap the share icon ( ).
Access the Settings menu ( ).

Check the battery status.
Powering off the IRISPenTM
To power off the IRISPenTM, rapidly click the scanning tips three times against a surface.
Note: when the IRISPenTM is inactive for 12 minutes, it auto powers off.
5. Troubleshooting
Should you experience issues when using the IRISPen AirTM 7, tap the menu icon ( ) and select Help
and Support.

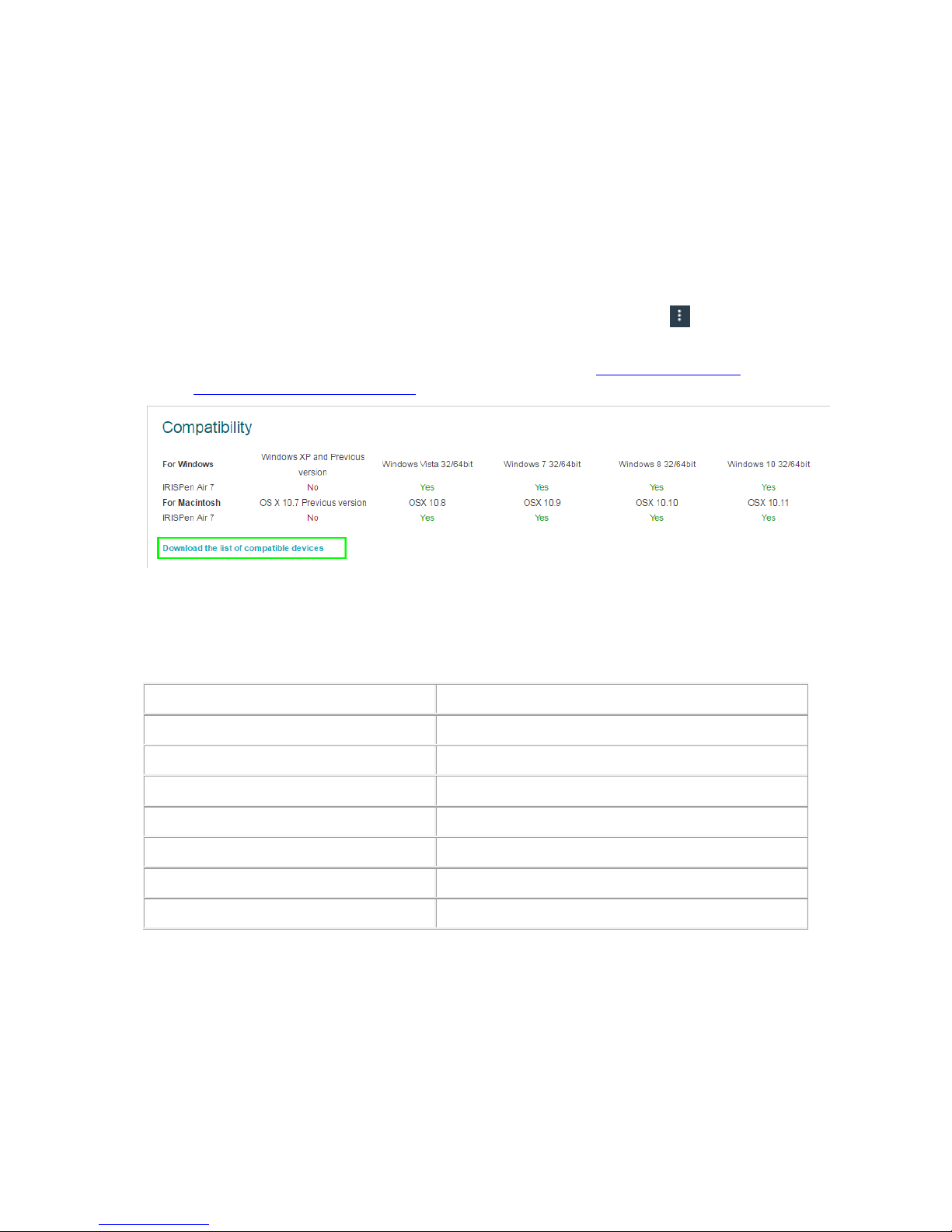

Tip: for a list of compatible devices, click the links to go to the IRISPen AirTM 7 section of the
I.R.I.S. Technical Support website and scroll down to Compatibility.
6. Specifications
Product Specifications
Scanner sensor
CMOS
Scanner Size ( H x L x D)
3,5 x 15 x 2,5 cm ( 1.37 x 5.51 x 0.98)
Scanner weight
28gr
Max scanning size
8 mm
Grey Depth
1 bit
DPI resolution
300
Scanning speed
3 sec
USB
2.0

Bluetooth Specifications
Standard
Bluetooth Low Energy Core 4.0 specification compliant
Frequency Range
Used in operation 2402 MHz –2480 MHz
Occupied block 2400 MHz –2483.5 MHz
Number of channels
40 channels, each 2 MHz wide
Data Rate
1 Mbps
Transmit Power (EIRP)
0.35 mW max
Battery Specifications
Type
Single cell lithium-polymer (LiPo)
Model
GSP051050
Rated capacity
200mAh
Rated voltage
3.7 V
Maximum voltage
4.2 V
Max discharge current
200 mA
Dimensions of battery (H x L x D)
5,0 x 10 x 50 mm
Weight
6 g max
All software and drivers are available for download at www.irislink.com/softwaredownload.
7. Compliance
RoHS and WEEE Compliance
This product is compliant with RoHS Regulations of the European Parliament and Council Directive
on the Restrictions of the Use of Certain Hazardous Substances in Electrical and Electronic
Equipment (2002/95/EC), and with the Waste Electrical and Electronic Equipment (WEEE) Directive
(2002/96/EC).
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the limits for the class B digital device,
pursuant to part 15c of the FCC Rules. These limits are designed to provide reasonable protection
against interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and if not installed, and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try and correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant
to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used
with this equipment. Operation with non-approved equipment or unshielded cables is likely to result
in interference to radio and TV reception. The user is cautioned that changes and modifications
made to the equipment without the approval of manufacturer could void the user's authority to
operate this equipment. This device complies with part 15c of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
