Canyon CNS-TWS6B User manual

Wireless stereo headset
CNS-TWS6B
CNS-TWS6BE
QUICK START GUIDE V 1.0.0

2
A

3
B

4
C

5
D

6
E

7
F

8
G

9
H

10
I

11
J

12
canyon.eu

13
ENG: WIRELESS STEREO HEADSET
Model: CNS-TWS6B (black); CNS-TWS6BE (beige)
Technical features
General options: 5 V DC, 300 mA, 1,5 W; 20–20,000 Hz; BT 5.3.
Transmission power per channel < 20 mW. BT signal transmission distance
(without obstacles) up to 10 m. Game mode: 50 ms delay.
Charging case: 64×48×26 mm. Battery: Li-Polymer, 3.7 V, 400 mAh, non-
removable; charging time up to 2 h. Battery life ≥ 300 cycles.
Earphones: 39×19×17 mm; 30 mAh (×2); charging time up to 1.5 hours.
Speakers: 107 dB (at 1 kHz); 3 mW; impedance 16 ohm. Driver: 13 mm. Built-
in microphone (×2): omnidirectional; −42 dB; 2 V; 125 dB (max. input); 100–
10,000 Hz. Playback time: up to 4.5 hours on a single earphones' charge (up
to 22 hours in total with a charging case). Standby battery life: up to 180 days.
Material: earphones and charging case – ABS plastic without dusting;
protective case – silicone. Weight: 39.5 g. Moisture protection: no. Operation:
temperature 0...+45 °C, relative humidity max. 60 % (non-condensing).

14

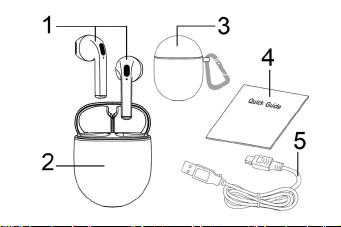

Accessories (Fig. A): 1. Earphones. 2. Charging case. 3. Protective silicone
case with carabiner. 4. Quick start guide. 5. USB Type-C – USB Type-A cable
(25 cm).

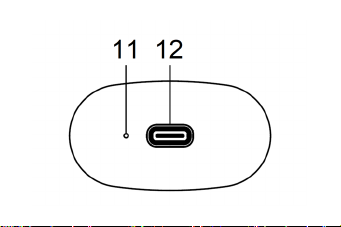

Appearance (Fig. B, C): 6. Speaker. 7. Microphone. 8. Charging contacts.
9. Touch button. 10. Earphones LED. 11. Charging case LED. 12. USB Type-
C connector.
First use (Fig. D, E)
Before use, charge the case (2) by connecting it with the USB cable (5)
included in the package to a power source (adapter not included). You can
also use an external battery or a PC as a power source. The LED
indicator (11) blinks green while the case is charging and lights steadily when
charging is complete.
After that charge the earphones by placing them into the charging case
(Fig. E). During charging, the earphones' LEDs (10) light red. When charging
is complete, the LEDs turn off.

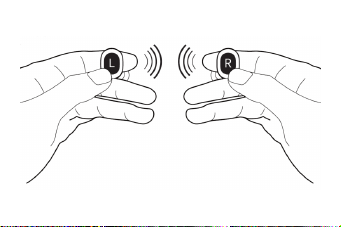

Turning on the earphones (Fig. F, G). Remove the earphones from the case
and they will turn on automatically. If the earphones do not turn on, press and
hold the touch button (9) for 4 seconds.

15
Pairing the earphones with the device (Fig. H). Place the case with the
earphones and the device within 90 cm of each other. Remove the earphones
from the charging case. The connection between the earphones will be
established automatically, and a short tone will sound. Flashing red and blue
LEDs (10) indicate that the earphones are ready for pairing with the device.
Turn on the BT devices, go to the BT settings and select the "Canyon TWS6"
earphones. If the pairing is successful, you will hear a tone.
Control when listening to audio recordings (Fig. I, J). Select a track on
your device. Play/pause: press the touch button (9) on either earphone twice.
Skip: press the touch button (9) on the right (skip to next track) or left (skip to
previous track) earphone three times.
Control with an incoming call (Fig. I, J). When there is an incoming call, to
answer or end the call, press the touch button (9) on either earphone twice.
To reject an incoming call: press and hold the button (9) of either earphone for
2 seconds.
Call the voice assistant (Fig. I). Press and hold the touch button (9) of the
left earphone for 2 seconds.

16
Switching on the game mode (Fig. J). Press and hold the touch button (9)
of the right earphone for 2 seconds.
Resetting the pairing of the earphones to the device
Take the earphones out of the case. Press and hold the touch buttons (9) of
both earphones simultaneously for 4 seconds to reset the pairing to the
device. Place the earphones into the charging case. Then repeat the process
of pairing the earphones to a new device (Fig. H).

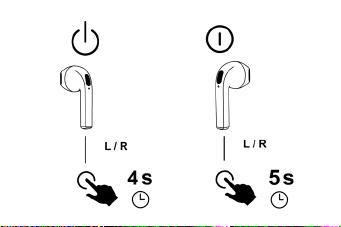

Turning off the earphones (Fig. G). To turn off put the earphones into the
charging case or press and hold the touch button (9) for up to 5 seconds. Also,
if there is no connection to the device for more than 5 minutes, the earphones
outside the charging case will turn off automatically.
SAFETY INSTRUCTIONS
WARNING! Set the volume to the minimum level before using the earphones
This will help to avoid hearing damage due to sudden exposure to sound at
maximum volume. Do not use earphones while driving. Protect from high
humidity, water and dust, heat and direct sunlight. Do not drop, disassemble,
or attempt to repair yourself. Clean off dirt with a soft, dry cloth without the use
of detergents.

17
TROUBLE-SHOOTING
The earphones do not connect. Charge the earphones, check the
connection settings of the device. Make sure that the earphones are specified
as the audio output device. Turn the earphones off and on again.
Distorted sound. Reduce the distance between the earphones and the
device. Adjust the sound volume. Check for other wireless devices that are
causing interference near the earphones. If these steps do not solve the
problem, contact support at canyon.eu/user-help-desk.
WARRANTY CONDITIONS. The warranty is 2 years from the date of
purchase, unless otherwise specified by a local law. Service life is 2 years.
For more information about the warranty, visit canyon.eu/warranty-terms.
The information contained herein is subject to change without prior notice to
the user. For the latest information and details about the device, connection
process, certifications, warranty, and quality, refer to the appropriate
installation and operation manuals available at canyon.eu/drivers-and-
manuals. All trademarks and brand names are the property of their respective
owners. The electromagnetic compatibility of equipment directive

18
2014/30/EU. Information about certificates is available at
canyon.eu/certificates. Made in China.
Manufacturer/Importer: ASBISc Enterprises PLC, Iapetou, 1, Agios
Athanasios, 4101, Limassol, Cyprus. Tel. [phone], asbis.com.
DISPOSAL INFO
These symbols indicate that you should follow the Waste
Electrical and Electronic Equipment (WEEE) regulations when
disposing of the device. According to the regulations, the
device, its batteries and accumulators, and its electrical and
electronic accessories must be disposed of separately at the
end of their service life. Do not dispose of the device together
with unsorted municipal waste, as this would be harmful to the
environment. To dispose of the device and its batteries, return
them to the point of sale or take them to your local recycling
center. For more information about recycling of this unit,
contact your local household waste disposal service.
