Canyon CNS-TWS8B User manual

Wireless stereo headset
CNS-TWS8B
CNS-TWS8W
QUICK START GUIDE V 1.0.0

2
A

3
B

4
C

5
D

6
E

7
F

8
G

9
H

10
I

11
J

12
canyon.eu

13
ENG: WIRELESS STEREO HEADSET
Model: CNS-TWS8B (black); CNS-TWS8W (white)
Specifications
General parameters: DC 5 V, 400 mA, 2.0 W, 20−20,000 Hz. BT 5.3.
Transmission power per channel < 20 mW. BT signal transmission distance
(without obstacles) up to 10 m. Game mode: 50 ms delay.
Charging case: 59×49×26 mm. Battery: Li-Polymer, 3.7 V, 470 mAh, non-
removable; charging time up to 2 hours. Battery life ≥ 300 cycles.
Earphones: 36×20×17 mm; 80 mA; 40 mAh (×2); charging time up to 50 min.
Speakers: channel separation 85 dB ± 3 dB (at 1 kHz); sensitivity 98 dB;
3 mW; impedance 32 ohms. Driver: 13 mm. Built-in microphones (2 × 2):
omnidirectional; −42 dB; 125 dB (max. input); 2 V; 100−10,000 Hz. Playback
time: up to 7.5 hours on a single headphone charge (up to 32 hours in total
with a charging case). Battery life in the standby mode: up to 180 days.
Material: earphones and charging case - uncoated ABS plastic; ear cushions
- silicone. Weight: 40,7 g. Moisture protection: no. Operation: temperature
0...45 °C, relative humidity max. 60 % (non-condensing).

14

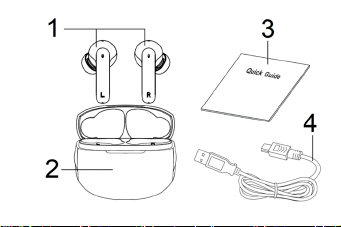

Accessories (fig. A, B): 1. Earphones. 2. Charging case. 3. Quick Start
Guide. 4. USB Type-C – USB Type-A cable (25 cm). 5. Silicone ear cushions
(size: S (×2), M (×2), L (×2)).
Appearance (fig. B, C): 6. Speaker. 7. Earpiece LED indicator. 8. Touch
button. 9. Microphone. 10. Earphones' charging contacts. 11. Case LED
indicator. 12. USB Type-C connector.
First use (fig. D, E)

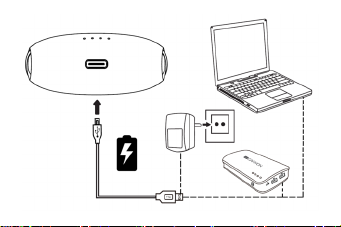

Before use, charge the case by connecting it with the USB cable (4) included
in the package to a power source (adapter not included). You can also use an
external battery or a PC as a power source. The LED indicator (11) flashes
white while the case is charging and lights steadily when charging is complete.

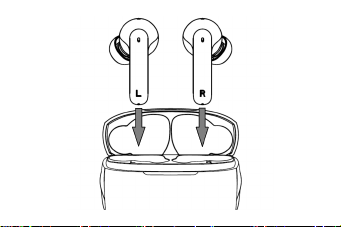

Next, charge the earphones by placing them in the charging case. The
earphones' LEDs (7) light red constant during charging and the case LED (11)
lights white for 4 s. When charging is completed, all LEDs turn off.

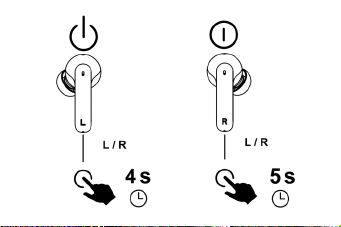

Turning on the earphones (fig. F, G). Remove the earphones from the case
and they will turn on automatically. If it does not turn on, press and hold the
touch button (8) for 4 s.
Pairing the earphones with the device (fig. H). Place the case with the
earphones and the device within 90 cm of each other. Remove the earphones

15
from the charging case. The connection between the earphones will be
established automatically, and a short tone will sound. Flashing red and blue
lights (7) indicate that the headphones are ready for pairing with the device.
Turn on the BT unit, go to the BT settings and select the "Canyon TWS8"
earphones. If the pairing is successful, you will hear a tone.
Control when listening to audio recordings (fig. I, J). Select a track on your
device. Play/pause: press the touch button (8) of either earphone twice. Skip:
press the touch button (8) on the right (skip to the next track) or left (skip to
the previous track) earphone three times.
Control with an incoming call (fig. I, J). When there is an incoming call, to
answer or end the call, press the touch button (8) on either earphone twice.
To reject an incoming call: press and hold the button (8) of either earphone for
2 seconds.
Call the voice assistant (fig. I). Press and hold the touch button (8) of the
left earphone for 2 s.
Switching on the game mode (fig. J). Press and hold the touch button (8) of
the right earphone for 2 s.
Reset the pairing of the earphones to the device. Take the earphones out
of the case. Press and hold the touch buttons (8) of both earphones

16
simultaneously for 4 seconds in order to reset the pairing to the device. Place
the earphones into the charging case. Then repeat the process of pairing the
earphones to a new device (fig. H).
Turning off the earphones (fig. G). To turn off, put the earphones in the
charging case or press and hold the touch button (8) for up to 5 s. Also, if you
are not connected to the device for more than 5 minutes, the earphones
outside of the charging case will turn off automatically.
SAFETY INSTRUCTIONS
WARNING! Set the volume to the minimum level before using the earphones
This will help to avoid hearing damage due to sudden exposure to sound at
maximum volume. Do not use earphones while driving. Protect from high
humidity, water and dust, heat and direct sunlight. Do not drop, disassemble,
or attempt to repair it by yourself. Clean off dirt with a soft, dry cloth without
the use of detergents.
TROUBLE-SHOOTING
The earphones do not connect. Charge the earphones, check the
connection settings of the device. Make sure that the earphones are specified
as the audio output device. Turn the earphones off and on again.

17
Distorted sound. Reduce the distance between the earphones and the
device. Adjust the sound volume. Check for other wireless devices that are
causing interference near the earphones. If these steps do not solve the
problem, contact support at canyon.eu/user-help-desk.
WARRANTY TERMS
The warranty is 2 years from the date of purchase, unless otherwise specified
by local law. The service life is 2 years. Additional warranty information is
available at canyon.eu/warranty-terms.
The information contained herein is subject to change without prior notice to
the user. For up-to-date information and details on the device, connection
process, certificates, warranty and quality, please refer to the relevant
installation and operation manuals available at canyon.eu/drivers-and-
manuals.
All trademarks and brand names are the property of their respective owners.
Directive 2014/30/EU on electromagnetic compatibility of equipment.
Information about certificates is available at canyon.eu/certificates.
Made in China.

18
Manufacturer/Importer: ASBISc Enterprises PLC, Iapetou, 1, Agios
Athanasios, 4101, Limassol, Cyprus. Tel.: [phone], asbis.com.
DISPOSAL INFO
These symbols indicate that you should follow the Waste
Electrical and Electronic Equipment (WEEE) regulations when
disposing of the device. According to the regulations, the
device, its batteries and accumulators, and its electrical and
electronic accessories must be disposed of separately at the
end of their service life. Do not dispose of the device together
with unsorted municipal waste, as this would be harmful to the
environment. To dispose of the device and its batteries, return
them to the point of sale or take them to your local recycling
center. For more information about recycling of this unit,
contact your local household waste disposal service.
