Caple CCH600SS User manual

Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk
Chimney hood
instruction manual
CCH600SS / CCH600BK /
CCH700 / CCH900SS /
CCH900BK / CCH100
CCH_v2.indd 1 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
2
CONTENTS
Introduction 3
Safety instructions 4
Environmental protection 9
Installation 10
Installing the charcoal filter 14
Operation 15
Care and maintenance 16
Troubleshooting 17
Guarantee 19
CCH_v2.indd 2 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
3
INTRODUCTION
Thank you for choosing this Caple extractor hood.
To ensure that you get the best results from your new extractor, we strongly suggest
that you read this instruction manual thoroughly before use. If treated with care,
your Caple extractor should give you years of trouble-free use.
To register ownership, please ensure you complete and return the guarantee card
supplied with the appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information
related to the installation, use and maintenance of the appliance.
This hood is designed to extract unpleasant odours from the kitchen; it is not
intended to extract steam. In order to operate the unit correctly and safely, please
read this instruction manual carefully before installation and use.
The cooker hood uses high quality materials and is made with a streamlined design.
Equipped with an electric motor and centrifugal fan, it provides strong extraction
with low noise. It also features non-stick grease filters and an easy installation.
CCH_v2.indd 3 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
4
IMPORTANT
This appliance must only be used for the
purpose it is intended. Other types of use are not
permitted and may prove dangerous. Caple will
not be held liable for any damage caused by the
incorrect use of the appliance.
Do not use any accessories or attachments not
recommended by Caple as this may result in fire,
electric shock or injury.
To protect against fire, electrical shock and injury
to persons, do not immerse cords or plugs in
water or any other liquid.
Never touch the appliance with wet or damp
hands.
Never pull the power cable as you could damage
it. If the appliance is faulty, do not attempt to
repair it. Isolate it from the mains electric supply
and contact Caple Service either by phone
0117 938 7420 or email [email protected]
Keep all packaging (including plastic bags,
polystyrene foam etc) out of the reach and away
from children.
Do not rest large or unstable objects on any part
of the appliance.
CCH_v2.indd 4 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
5
IMPORTANT
Caple cannot be held responsible for injuries or
losses caused by incorrect use or installation of
this product. Please note that Caple reserve the
right to invalidate the guarantee supplied with
this product following incorrect installation or
misuse of the appliance. Under no circumstances
should any external covers be removed for
servicing or maintenance except by suitably
qualified personnel.
SAFETY INSTRUCTIONS
-Never let children operate the machine.
-The cooker hood is for home use only, not suitable for
barbecuing, restaurants or other commercial purposes.
-The cooker hood and its filter should be cleaned regularly
in order to keep in good working condition.
-Clean the cooker hood according to the instruction
manual to reduce the risk of fire.
-When using a gas hob, do not leave naked flames under
the extractor.
-Before connecting this appliance check that the power
supply cord is not damaged.
CCH_v2.indd 5 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
6
-If the room where the hood is to be used contains a fuel
burning appliance such as a central heating boiler then
its flue must be of the sealed or balanced flue type. If
other types of flue or appliances are fitted ensure that
there is an adequate supply of air to the room.
-The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
-Regulations concerning the discharge of air have to be
conformed to.
-Do not flambé under the cooker hood.
-Never leave frying pans unattended during use as over-
heated fats and oils may catch fire.
-To ensure the best performance, we recommend
switching on the extractor 15 minutes before cooking
and leave it running 15 minutes after. This will ensure
that the air in the kitchen is being circulated before
cooking commences and the air is being cleaned after
cooking has finished.
-The performance of your extractor will vary depending
on a number of factors. These include type of extraction,
room volume, length of ducting, ventilation available and
the cleanliness of the filters.
CCH_v2.indd 6 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
7
-This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
-Children should be supervised to ensure that they do not
play with the appliance.
-Cleaning and user maintenance must not be made by
children without supervision.
-Never immerse the appliance in water.
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be used
in:
• Staff kitchen areas in shops, offices and other working
environments.
• Bed and breakfast type environments.
• By clients in hotels, motels and other residential type
environments.
-To avoid all risk, if the power cable is damaged, it must
only be replaced by a Caple appointed engineer.
CCH_v2.indd 7 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
8
-Appliances can be used by persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved.
-Children must not play with this appliance.
-When not in use and before cleaning, always isolate the
appliance from the electrical supply.
ELECTRICAL SHOCK HAZARD
-Only plug this unit into a properly earthed outlet. If in
doubt seek advice from a suitably qualified engineer.
-Failure to follow these instructions can result in death,
fire, or electrical shock.
-This appliance must be connected to the mains by
a competent person. We recommend that the
appliance is connected by a qualified electrician
who is a member of the N.I.C.E.I.C who will
comply with the I.E.E and local regulations.
Electrical information can be found on the
rating plate.
CCH_v2.indd 8 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
9
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive 2002/96/EC on
Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies
with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic
Compatibility (EMC).
CCH_v2.indd 9 30/06/2016 14:04

Instruction manual CCH
Please keep this instruction manual for future reference
10

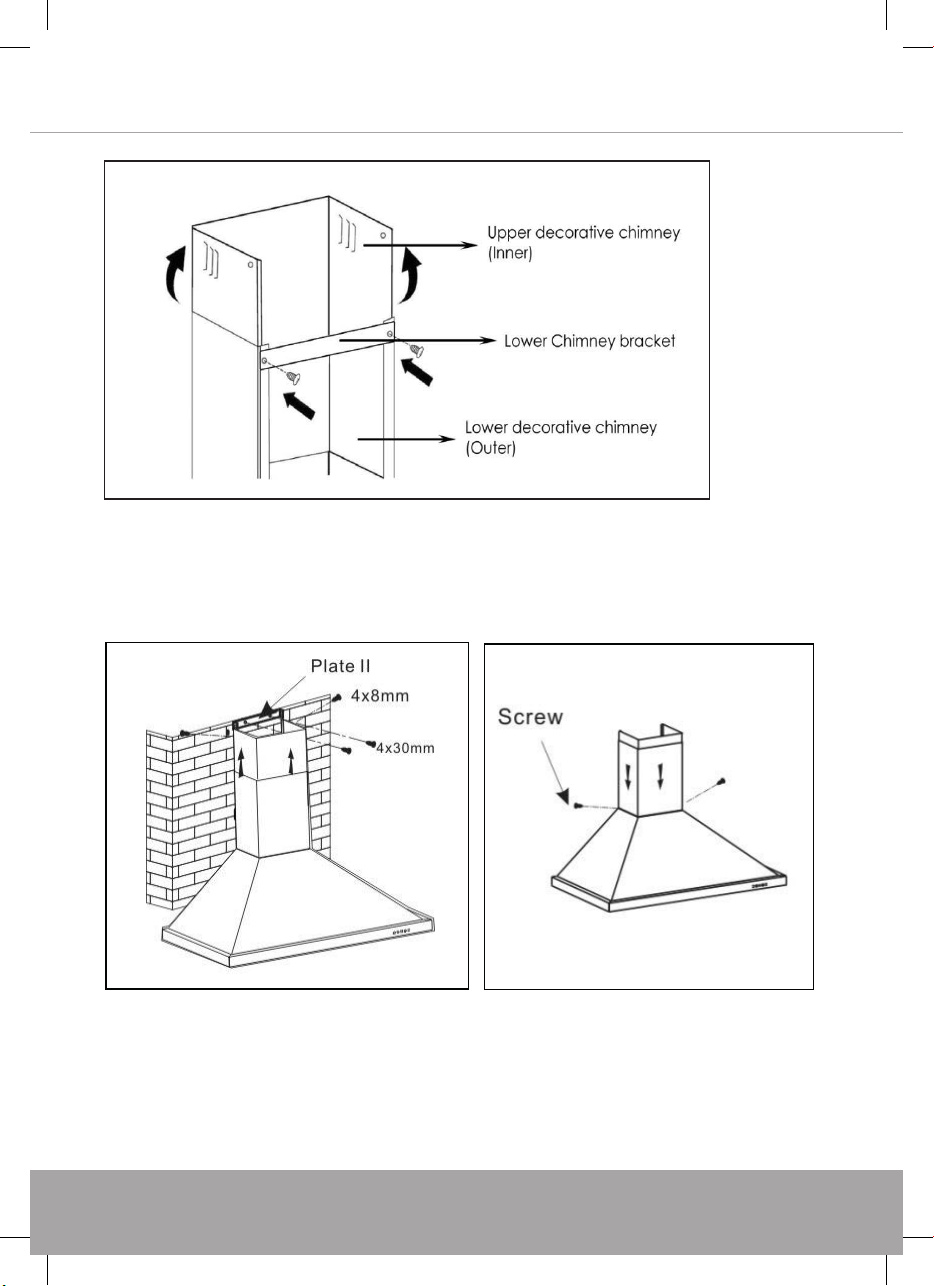

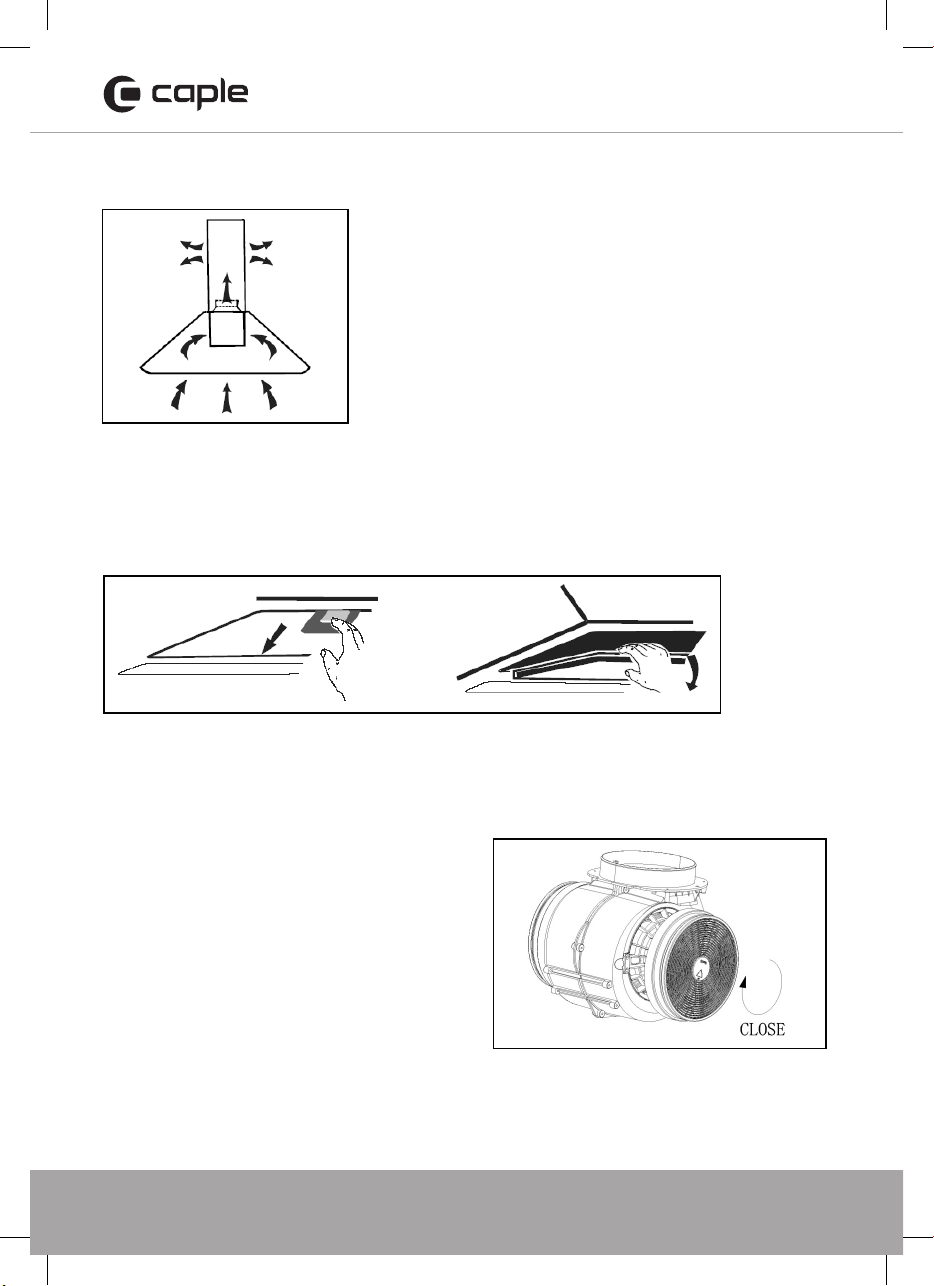

INSTALLATION
Prepare for the installation:

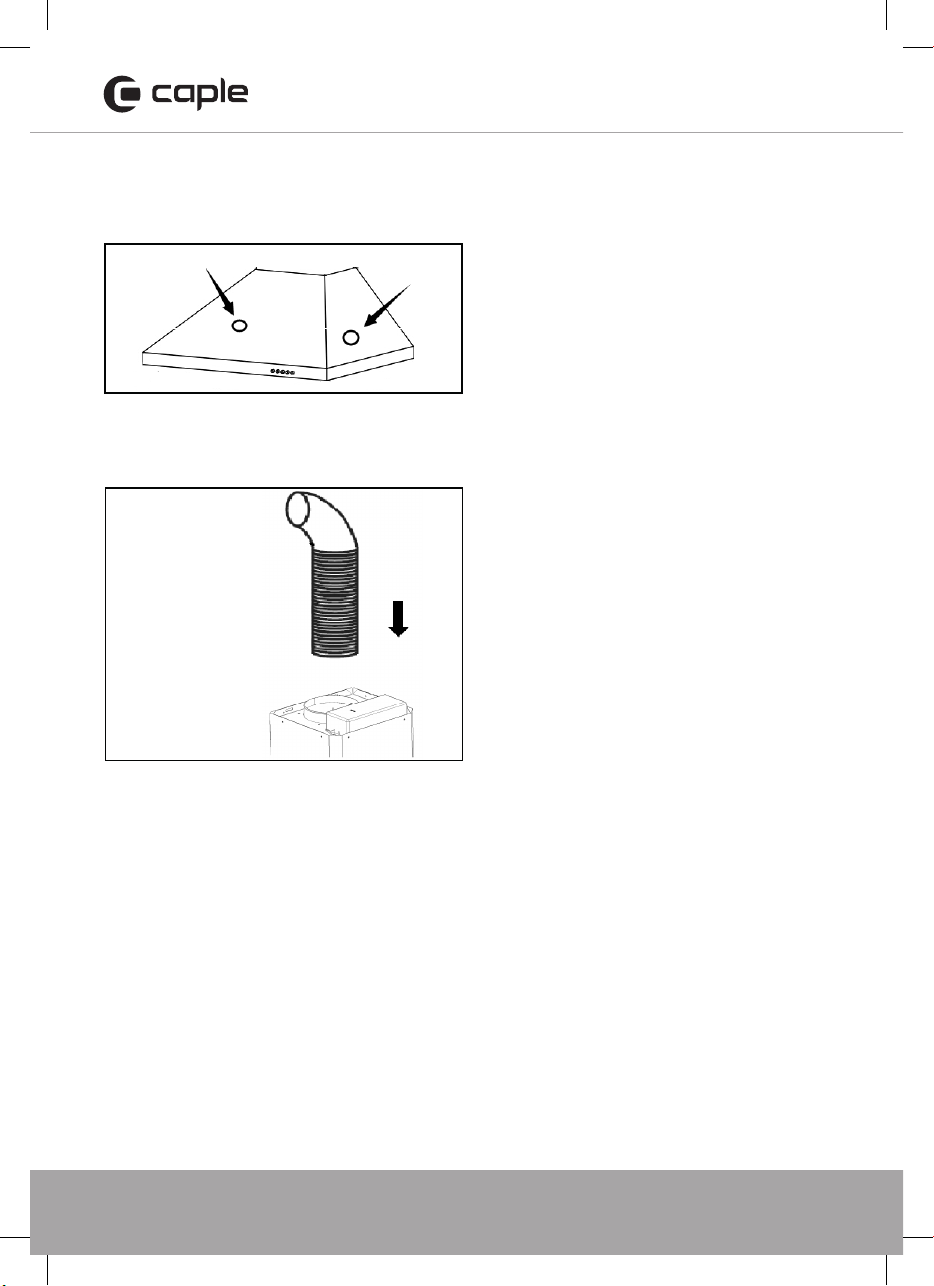

If you have an outlet to the outside, your cooker hood can be
connected as per the below picture by means of an extraction
duct with an interior diameter of 150mm.
Before installation, turn the unit off and unplug it from
the outlet.
The cooker hood should be placed at a minimum distance of
65~76cm above the hob. It is the manufacturer of the hob
who determines the clearance required and the clearance
quoted by the hob manufacturer must be followed. In the
absence of any instructions supplied with a gas hob the
minimum distance between the hob and the hood must be
at least 760mm.
4

 
 
 

 
 
            
          
            




4

 
 
 

 
 
            
          
            




4

 
 
 

 
 
            
          
            




