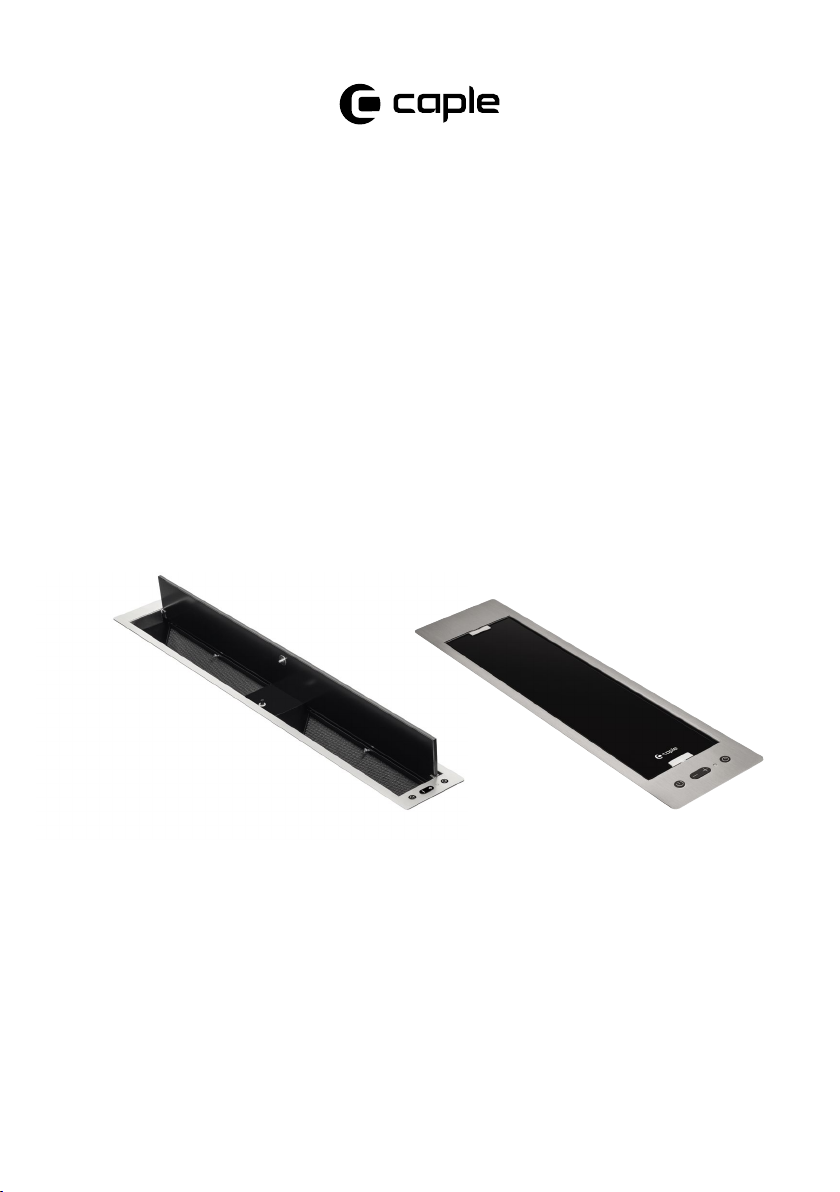

Caple DD903BK User manual

Downdraft Hood
Instruction Manual
DD903BK
& DD522BK
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual DD903BK & DD522BK
2Please keep this instruction manual for future reference
CONTENTS
Safety Instructions 3
Safety Instructions and Warnings 4
Dimensions 8
Installation 8
Grease Filter Removal, Installing the Activated Charcoal Filter 16
Electrical Connection 17
Operating the Downdraft Extractor 19
Cleaning the Extractor 21
Troubleshooting 22
Aftersales Service 23
Caple Contact Details 24

Instruction manual DD903BK & DD522BK 3 Please keep this instruction manual for future reference
INTRODUCTION
Thank you for choosing this Caple downdraft extractor.
To ensure that you get the best results from your new
downdraft extractor, we strongly suggest that you read
this instruction manual thoroughly before use. If treated
with care, your Caple product should give you years of
trouble-free use.
To register ownership, please ensure you complete and
return the guarantee card supplied with the appliance or
visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with
all the required information related to the installation, use
and maintenance of the appliance.
This downdraft extractor is designed to extract unpleasant
odours and cooking vapours from the kitchen. In order
to operate the unit correctly and safely, please read this
instruction manual carefully before installation and use.
Please read this manual carefully before using your
appliance. It contains important safety advice; it explains
how to use and look after your appliance so that it will
provide you with many years of reliable service.
Should a fault arise, please first consult the
“Troubleshooting” section. You can often rectify minor
problems yourself, thus saving unnecessary service costs.
Please keep this manual in a safe place and pass it on to
new owners for their information and safety.

Instruction manual DD903BK & DD522BK
4Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
AND WARNINGS:
These hoods have been designed for personal use in the
home. The appliance must be used by adults. Make sure that
the appliance is out of reach of children and that they do not
use it to play with. Make sure that children do not operate
the controls.
-When the appliance is delivered, check the overall
appearance of the packaging.
-Any remarks should be written on the delivery note, of
which you keep a copy. Your appliance is designed for
normal domestic use. It is not designed for commercial or
industrial use, or for purposes other than those for which
it was designed.
-Any consequences of or damage from incorrect
installation or incorrect use of the appliance will not be
covered by the manufacturer’s guarantee.
-Do not ever change or try to change the characteristics
of this appliance. This would be a danger. Repairs must
be performed only by a Caple approved engineer.
-Always disconnect the hood before carrying out cleaning
or maintenance operations.
-Adequately ventilate the room when a cooker hood
and other appliances, powered by energy other than
electricity, are used simultaneously, so that the hood
does not suck any-combustion fumes.

Instruction manual DD903BK & DD522BK 5 Please keep this instruction manual for future reference
-Do not cook food over open flames (flambé) or operate
gas hobs without pots or pans on them while using the
hood (the flames may get sucked into the hood causing
damage to the appliance).
-Frying under the appliance must be done under constant
supervision as hot oils and fats may ignite.
-Respect the guidelines for cleaning and replacement of
grease filters. Accumulated deposits of grease are a
fire hazard.
-This appliance must not be used near hobs powered by
wood or coal or in any case, near hobs with power levels
that could damage the appliance.
-Never use steam or high pressure devices for cleaning
your hood (regulations regarding electrical safety).
-Never use the cooker hood without the grease
filters fitted.
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

Instruction manual DD903BK & DD522BK
6Please keep this instruction manual for future reference
We are constantly seeking to improve our products, we
reserve the right to modify their technical, functional, or
aesthetic characteristics deriving from their upgrading.
In the event a downdraft is installed with an external motor,
for normal downdraft operation, it is necessary to use an
external motor made by the same manufacturer.
The air collected must not be conveyed into a flue used
for smoke or fumes from appliances powered by anything
other than electricity (central heating systems, etc.). As far
as discharging exhaust air is concerned, please follow the
guidelines given by competent authorities.
There must be a minimum space of 50mm between the edge
of a gas hob and the downdraft frame.

Instruction manual DD903BK & DD522BK 7 Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk.

Instruction manual DD903BK & DD522BK
8Please keep this instruction manual for future reference
DESCRIPTION OF THE APPLIANCE
DD903BK
DD522BK
DESCRIPTION OF
THE APPLIANCE
BACK AIR OUTLET LOWER AIR OUTLET
DD903BK
DD522BK
4
DESCRIPTION OF
THE APPLIANCE
BACK AIR OUTLET LOWER AIR OUTLET
DD903BK
DD522BK
4

Instruction manual DD903BK & DD522BK 9 Please keep this instruction manual for future reference
INSTALLATION
1. Before carrying out the appliance installation, please check that all components are not
damaged, in such a case contact your retailer and do not carry out any installation operation.
Furthermore, please read carefully all of the following installation instructions.
› Use an air exhausting pipe whose maximum length
does not exceed 5 meters.
› Limit the number of elbows in the piping, since each
elbow reduces the air capacity of 1 linear meter. (eg. if
you use no. 2 x 90° elbows, the length of piping should
not exceed 3 meters).
› Avoid abrupt direction changes.
› Use a 150mm constant diameter rigid ducting pipe for
the whole length.
› Use piping approved by standards in force.
The manufacturer shall not be deemed responsible for air
capacity or noise problems caused by failure to comply with
the above instructions and no warranty on the product shall
be provided.
2. Before making the hole, check that there are no structural
or other parts inside the cabinet, where the appliance is to
be placed, which could hinder a proper installation. Check
that the dimensions of the Downdraft and the ones of hob
are compatible with the cabinet so that the installation
can be carried out properly.
Fig. 1
Fig. 3 Fig. 4
Fig. 5
Fig. 2
11
Fig. 1
Fig. 3 Fig. 4
Fig. 5
Fig. 2
11
Fig. 1
Fig. 2

Instruction manual DD903BK & DD522BK
10 Please keep this instruction manual for future reference
Fig. 1
Fig. 3
Fig. 4
Fig. 5
Fig. 2
11
3. Make a rectangular opening
DD903BK: 102 x 832mm
DD522BK: 114 x 486mm
Fit the product in the opening, by inserting it from above as shown in fig. 1.

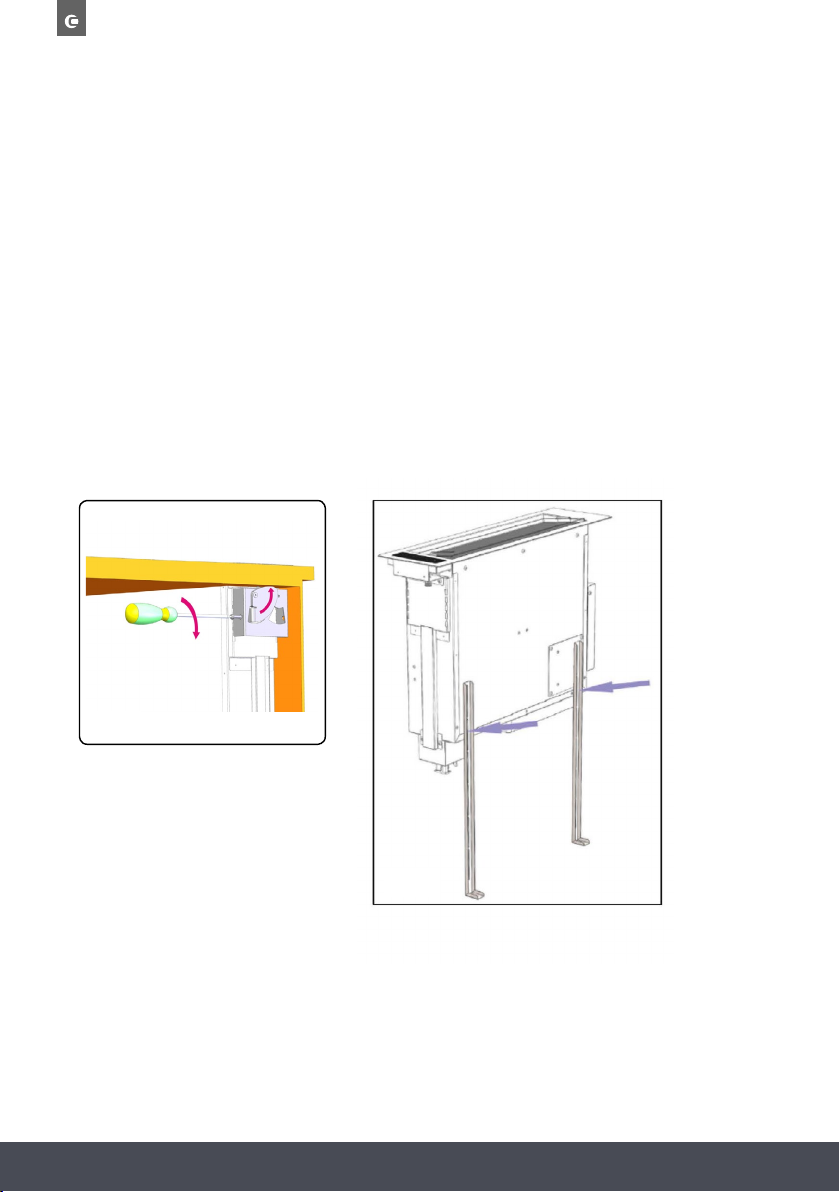

4. Secure the product inside the furniture by using the specific brackets provided. Proceed to the
installation of the brackets in the sides of the product, in the specific hooks, as shown in Fig. 2.
5. Then tighten the screws manually, as in fig.3, to secure the product to the furniture. Before
tightening the screws, make sure that the product is perfectly balanced. Pay attention in order
not to tighten the screws too much.
For the DD522BK if the structure of the cabinet does not allow to use the brackets in fig. 2, it
is possible to use the alternative brackets, as in figure 13.
Fig. 13
Fig. 3

Instruction manual DD903BK & DD522BK 11 Please keep this instruction manual for future reference

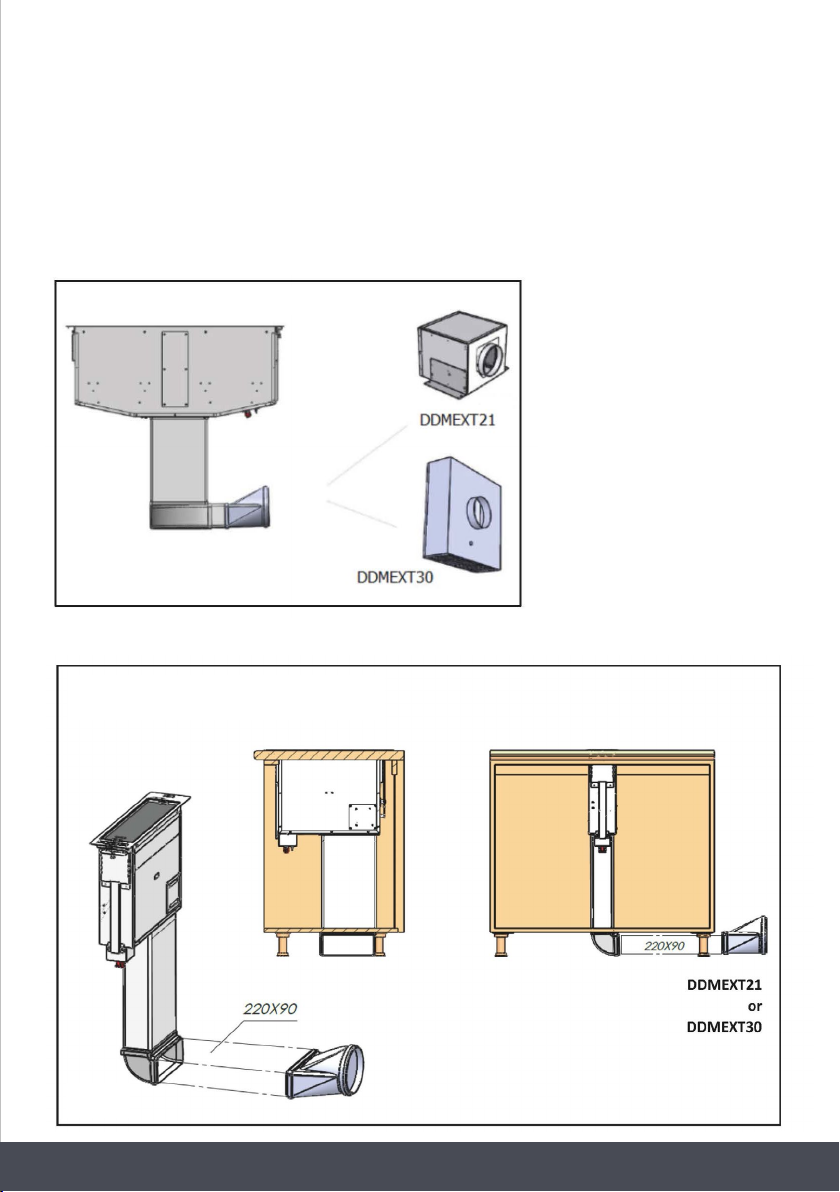

6. If the Downdraft is equipped with an external motor, fit the external motor then install the
exhaust air ducting according to the relevant installation diagrams:
DDMEXT21 & DDMEXT30 - Figure 9 &11
DDMEXT28 - Figure 10 & 12.
Fig. 9
Fig. 11
DD903BK
DD522BK with DDMEXT21 or DDMEXT30

Instruction manual DD903BK & DD522BK
12 Please keep this instruction manual for future reference
DD903BK with DDMEXT28 plinth motor
Fig. 10
Fig. 12
DD522BK with DDMEXT28 plinth motor

Instruction manual DD903BK & DD522BK 13 Please keep this instruction manual for future reference
7. Then fit the air outlet ducts between the external motor and the product. Select the air outlet
among the two available options and fit the adaptor supplied with the appliance. DD903BK: If
you intend to use the rear air exit, you will first have to remove the flange from product, install
the product in the furniture then restore the flange as shown in fig. 4.
8. Place the metal box containing the electronic
components in an easily reachable area for
possible technical assistance operations, by
connecting the related connectors (fig. 5).
Fig. 1
Fig. 3 Fig. 4
Fig. 5
Fig. 2
11
Fig. 4
Fig. 5

Instruction manual DD903BK & DD522BK
14 Please keep this instruction manual for future reference
Fig. 7
Fig. 8 Fig. 9
Fig. 6
12
9. If the product is equipped with external motor, connect
the motor unit cable to the specific terminal board
found in the plastic box shown
in fig. 6.
10. Power the downdraft.
11. If the appliance is to be used in the recirculation mode,
place the charcoal filters behind the grease filters (see
fig 7) and then settle the front glass by sticking the
magnets into the specified seats.
HOW THE DOWNDRAFT WORKS
This appliance is intended to extract cooking fumes, greases and vapours. It has been designed to
work in either ventilation mode or in recirculation mode.
EXTERNALLY VENTED MODE
The downdraft can be installed in this mode with outside discharge of extracted air: in this case
it is necessary to connect the ducting channel to the outside wall (ducting pipes are not supplied
with this product).
Fig. 7
Fig. 8 Fig. 9
Fig. 6
12
Fig. 6
Fig. 7

Instruction manual DD903BK & DD522BK 15 Please keep this instruction manual for future reference
RECIRCULATION MODE
In case fumes and vapours cannot be extracted outside, the appliance can be used in recirculation
mode. Activated charcoal filters are required for this type of extractor:
2 x CAP66CF charcoal filters are required for the DD903BK
1 x CAP72CF charcoal filter is required for the DD522BK.
These can be purchased directly from www.caple.co.uk or by calling our sales office on
0117 938 1900.
Air recycled through the charcoal filters is recirculated back into the room via a 5mm ventilation
slot in the kitchen plinth (fig 8a) or a plinth grill (fig 8b).
NOTE:
Universal plinth grille (GRILL/SENSE600) can be purchased at www.caple.co.uk
CAUTION:
Installation must comply with the regulations in force regarding the ventilation of enclosed
environments. The use of discontinued ducts is not allowed without the approval of a
qualified technician.
5mm gap
Fig 8a Fig 8b

Instruction manual DD903BK & DD522BK
16 Please keep this instruction manual for future reference
REMOVAL OF GREASE FILTER, AND MOUNTING THE
CHARCOAL FILTER
The removal and fitting of the grease and charcoal filters need to be carried out with the
downdraft in the open position (see figure 7). To open the downdraft, push the key. Remove
the grease filter first and then pull the plastic key of the charcoal filter panel to disengage it from
it’s setting. Follow these steps in reverse order to insert the active charcoal filter.
NOTE:
To maintain effective use of your downdraft, the charcoal filter should be replaced at least every
6 months.
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8

Instruction manual DD903BK & DD522BK 17 Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
WARNING
Place the metal box containing the electronic components at a distance of no less than 65cm from
the hobs or in any case, 65cm from the suctioning surface of the cooker hood.
After having replaced the filters, reinstall the front stainless steel panel, otherwise the Downdraft
is not able to function.
NOTE
We recommend installing the metal box containing the electronic components at least 10cm
above floor level and at a suitable distance from all heat sources (e.g. ovens or hobs).
CAUTION
This appliance is fitted with an H05 VVF 3 conductor, 0.75 mm2(neutral, phase, and ground)
power cord. This can be connected up to a 220 - 240V monophase electrical network through a
CEI 60083 approved power socket, which must remain accessible after installation, in compliance
with installation regulations.
We decline any responsibility in case of accidents caused by a lack of ground connection or
incorrect ground connection. The appliance must be fed through a differential protection device
(RCD), with a nominal residual current not exceeding 30mA. If the power cord is damaged, call
Caple Service to avoid any risk.
WARNING
The downdraft connection to the electrical network must be carried out only by professional
and qualified technicians. The downdraft must be connected to a properly installed and suitable
electrical network. The electrical system must comply with VDE0100 standard.
DANGER
If the cooker hood presents any anomaly, disconnect the appliance or remove the fuse
corresponding to the appliance power disconnecting line.
If the appliance has no plug or if the plug is not easily accessible, then a device needs to be
fitted to cut it off from the electric network; this device must have an opening distance between
contacts on all poles of at least 3mm.

Instruction manual DD903BK & DD522BK
18 Please keep this instruction manual for future reference
ELECTRICAL CONNECTION
While installing the appliance and carrying maintenance operation, make sure it is disconnected
from the electrical network or the fuses are cut out or removed.
Check that:
› Power is enough.
› Feeder lines (mains) are in good condition.
› The cable diameter complies with installation regulations.

Instruction manual DD903BK & DD522BK 19 Please keep this instruction manual for future reference
OPERATING THE DOWNDRAFT EXTRACTOR
PUSH BUTTON CONTROL PANEL
› 10 minute timer, after which the motor is turned off and the front is closed. The
setting of the function is signalled by indicator the motor speed indicator flashing.
THE MOTOR SPEED INDICATOR
› The LED gives off four different colours, depending on the set speed.
› First speed colour: WHITE
› Second speed colour: GREEN
› Third speed colour: BLUE
› Fourth speed colour: RED
› The key is only active with open top (45° 90°). For each selection of the function
there is an increase of the motor speed, up to the fourth speed.
› The key is only active with open top (45° 90°). Each time you select the function you
have a speed decrease of the motor, up to the first speed.
When the product is switched off, the first touch activates the top panel until it reaches
the intermediate opening of 45°. As the intermediate opening is reached, the motor is
automatically set to the 2nd speed. Another press will start full opening (90°) of the
top panel, maintaining the speed of the motor. Another press will stop the motor and
completely close the top panel.
NOTE:
When the top panel is opened at 45°, hold down the
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8
button for 3 seconds, the top
panel will close and the motor turns off.
When the top panel is closed, hold down the
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8
button for 3 seconds, the top panels
opens by 90° and the motor is activated at the second speed.
WARNING:
The product DD522BK allows the opening of the glass top only by 90°
(no 45° opening is possible).
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8

Instruction manual DD903BK & DD522BK
20 Please keep this instruction manual for future reference
TIMING
› This product is equipped with intelligent electronics which include a timer device for speed
controls when the air capacity exceeds 650m³/h. Internal motor models, with maximum air
capacity higher than 650m³/h, are equipped with a timer device that automatically switches
the speed from 4th to 3rd speed, after 6 minutes operation.
› External motor models are equipped with remote motors that, as for internal motor versions,
include a timer device that switches down the speed when it exceeds 650 m³/h.(See
External Motors Instructions). Remote motors, whose air capacity exceeds 650m³/h at both
4th and 3rd speed, will have the following by default timer control functions: The speed is
automatically switched from 4th to 2nd speed, after 6 minutes operation.
› If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after
› 7 minutes operation. Operation speeds can also be changed during operation. The energy
consumption of the appliance in standby mode is lower than 0.5W.
OTHER FUNCTIONS:
AUTOMATIC TURN OFF
After 4 hours of continuous operation from the last setup, the appliance turns off automatically.
GREASE FILTERS SATURATION
After 30 hours of operation, the speed indicators
Push button control panel (fig. 8)
A: 10 minutes timer, after which the motor is
turned off and the front is closed.
The setting of the function is signaled by
indicator(B) flashing.
B: The motor speed indicator.
The LED gives off four different colors, depending
on the set speed.
First speed color: WHITE
Second speed color: GREEN
Third speed color: BLUE
Fourth speed color: RED
C: The key is only active with open top (45° 90°).
For each selection of the function there is an
increase of the motor speed, up to the fourth
speed.
D: the key is only active with open top (45° 90°).
Each time you select the function you have a
speed decrease of the motor, up to the first
speed.
E: When the product is switched off, the first
touch activates the top panel until it reaches the
intermediate opening of 45°.
As the intermediate opening is reached, the
motor is automatically set to the 2nd speed.
Another press will start full opening (90°) of
the top panel, maintaining the speed of the motor.
Another press will stop the motor and completely
close the top panel.
NOTE:
- When the top panel is opened at 45°, hold down
the E button for 3 seconds, the top panel will
close and the motor turns off.
- When the top panel is closed, hold down the E
button for 3 seconds, the top panels opens by 90°
and the motor is activated at the second speed.
Warning: The product DD522BK allows the
opening of the glass top only by 90° (no 45°
opening is possible).
HOW THE
DOWNDRAFT WORKS
TIMING
As a result of the new EU65 “Energy label” and
EU66 “ Ecodesign” regulations issued by the Euro-
pean Commission, which came into force as from
January 1st, 2015 , our products have been adap-
ted to comply with these new requirements.
All of the models complying with the energy label
requirements, are equipped with new electronics
including a timer device for suction speeds control,
when the air capacity exceeds 650m³/h.
Internal motor models, with maximum air capacity
higher than 650m³/h, are equipped with a timer de-
vice that automatically switches the suction speed
from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote
motors that , as for internal motor versions, inclu-
de a timer device that switches down the suction
speed when it exceeds 650 m³/h. (See External
Motors Instructions)
Remote motors, whose air capacity exceeds
650m³/h at both 4th and 3rd speed, will have the
following by default timer control functions:
The suction speed is automatically switched from
4th to 2nd speed, after 6 minutes operation.
If the appliance is working at 3rd speed, it is auto-
matically switched to 2nd speed, after 7 minutes
operation. Operation speeds can also be changed
during operation.
The energy consumption of the appliance in stand
– by mode is lower than 0.5W.
Other functions:
Automatic turn off:
After 4 hours of continuous operation from the last
setup, the appliance turns off automatically.
Grease lters saturation
After 30 hours of operation, the speed indicators
“B” will all flash simultaneously, signaling the
grease filters saturation. To reset this alarm, hold
the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
8
Fig.8
will all flash simultaneously, signalling the
grease filters saturation. To reset this alarm, hold the “TIMER” button down for at least 3 seconds,
while the extractable unit is open.
