Caple Zalto ZAL48CO User manual

Zalto Island Extractor
Instruction Manual
ZAL48CO,
ZAL48SL,
ZAL48BK
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
2Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions and Warnings 4
Environmental Protection 7
Installation 8
Remote Control 11
Timing 14
Care and Maintenance 15
Caple Contact Details 16

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 3
Please keep this instruction manual for future reference
INTRODUCTION
Thank you for choosing this Caple island extractor.
To ensure that you get the best results from your
new extractor, we strongly suggest that you read this
instruction manual thoroughly before use. If treated with
care, your Caple product should give you years of trouble-
free use.
To register ownership, please ensure you complete and
return the guarantee card supplied with the appliance or
visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with
all the required information related to the installation, use
and maintenance of the appliance.
This extractor is designed to extract unpleasant odours
and cooking vapours from the kitchen. In order to operate
the unit correctly and safely, please read this instruction
manual carefully before installation and use.
Please read this manual carefully before using your
appliance. It contains important safety advice; it explains
how to use and look after your appliance so that it will
provide you with many years of reliable service.
Please keep this manual in a safe place and pass it on to
new owners for their information and safety.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
4Please keep this instruction manual for future reference
SAFETY INSTRUCTIONS
AND WARNINGS:
-The cooker surface and the inferior part of the cooker
hood must be at a minimum distance of 65 cm.
-The appliance is not intended for use by young children
or infirm persons without supervision. Young children
should be supervised to ensure they do not play with
the appliance.
-When performing the electrical connections on the
appliance, please make sure that them current-tap is
provided with earth connection and that voltage values
correspond to those indicated on the rating label placed
inside the appliance itself.
-Please disconnect the appliance from power mains,
before carrying out any cleaning or maintenance
operation. If the appliance is not equipped with a non-
separable flexible cable and plug, or with another device
ensuring omnipolar disconnection from the mains, with
an opening distance between the contacts of at least 3
mm, then such disconnecting devices must be provided
in the fixed installation.
-If the appliance is equipped with a powercord and a
plug, it shall be placed in such a way that the plug can
be reached easily.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 5
Please keep this instruction manual for future reference
-The use of materials which can burst into flames should
be avoided in close proximity of the appliance. When
frying, please pay particular attention to fire risk due
to oil and grease. Being highly inflammable, fried oil is
especially dangerous. Do not use uncovered electric grills.
In order to avoid possible fire risk, all instructions for
grease filter cleaning and for removing eventual grease
deposits should be strictly followed.
-Two persons are needed for the installation of
this product.
-This appliance complies with all relevant local and
national safety requirements. Inappropriate use can,
however, lead to personal injury and damage to property.
-The cooker hood is not intended for outdoor use.
-It must only be used as a domestic appliance to extract
vapours and remove odours from cooking. Any other
usage is not supported by the manufacturer and could
be dangerous.
-Where a recirculation cooker hood is fitted above a gas
hob, please ensure that there is an adequate supply of
fresh air into the room in which it is installed. Please
seek the advice of a qualified gas fitter (e.g. GasSafe in
the UK) if necessary.
-Children under 8 years of age must be kept away from
the cooker hood unless they are constantly supervised.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
6Please keep this instruction manual for future reference
-Children 8 years and older may only use the cooker hood
unsupervised if they have been shown how to use it
safely and recognise and understand the consequences
of incorrect operation.
-The electrical safety of this appliance can only be
guaranteed when correctly earthed. It is essential
that this standard safety requirement is met. If in any
doubt please have the electrical installation tested by a
qualified electrician.
-Do not connect the appliance to the mains electricity
supply by a multi-socket unit or an extension lead. These
are a fire hazard and do not guarantee the required
safety of the appliance.
-The cooker hood can get very hot during cooking due to
heat rising from the hob.
-Do not touch the housing or the grease filters until the
cooker hood has cooled down.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 7
Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is
marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. The symbol on the product indicates that this
product may not be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. Disposal must be carried
out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date of
purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together with
proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all applicable
legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the Technical
Fiche that supports the energy labelling data, please visit the product page on our website
www.caple.co.uk.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
8Please keep this instruction manual for future reference
INSTALLATION
This appliance can be used in recirculation mode only. In recirculation mode the air and fumes
conveyed by the appliance are cleaned by both a grease filter and an active charcoal filter, and
then released back into the room.
Prior to installation, make sure that the packaging is intact and all the parts are unbroken,
otherwise stop the installation and contact your retailer. The manufacturer is not responsible for
damages caused by material handling or product installation.
Before installing the appliance read all these instructions carefully.
Start by removing the product from the packaging and lay it on a suitable surface such as a soft
material such as sponge or fabric to protect the surface of the hood.
Ceiling Plate
Cover for Ceiling Plate
Cooker Hood

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 9
Please keep this instruction manual for future reference

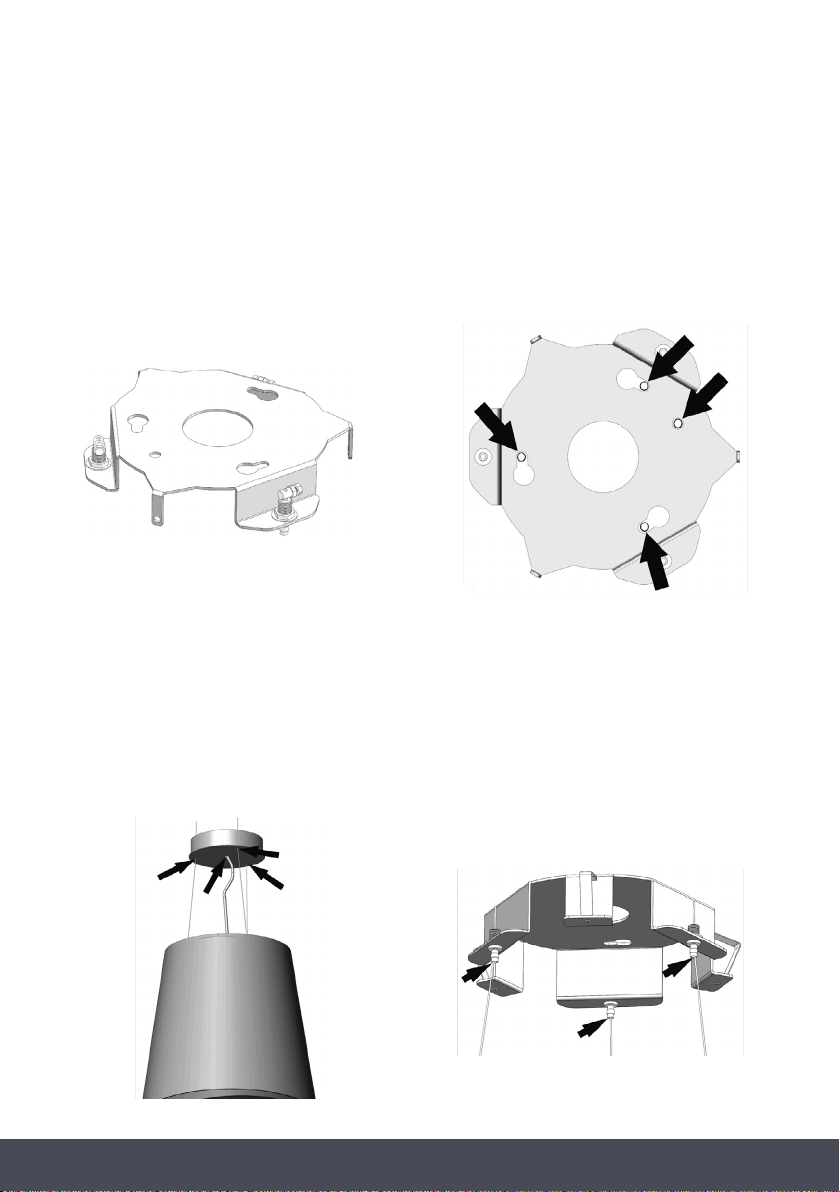

› Take the mounting plate out of the packaging (Fig.1); to install the hood, position it in the
desired place of the ceiling, making sure the centre of the plate is aligned with the centre of
the hob.
› Check that the ceiling structure is suitable to bear the weight of the appliance. Mark the
holes to be drilled at the smaller openings of the plate (Fig.2). Drill the holes using an 8mm
diameter twist drill.
Fig 1. Fig 2
› Fix the plate to the ceiling, by using the plastic dowels and the screws supplied with
the appliance.
› Take the ceiling plate cover out of the packaging and then introduce the power cord and the
three steel wires into the holes (Fig.3). Place the appliance close to the ceiling plate, and
then insert the steel wires into the specific supports (Fig.4).
Fig 3 Fig 4

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
10 Please keep this instruction manual for future reference

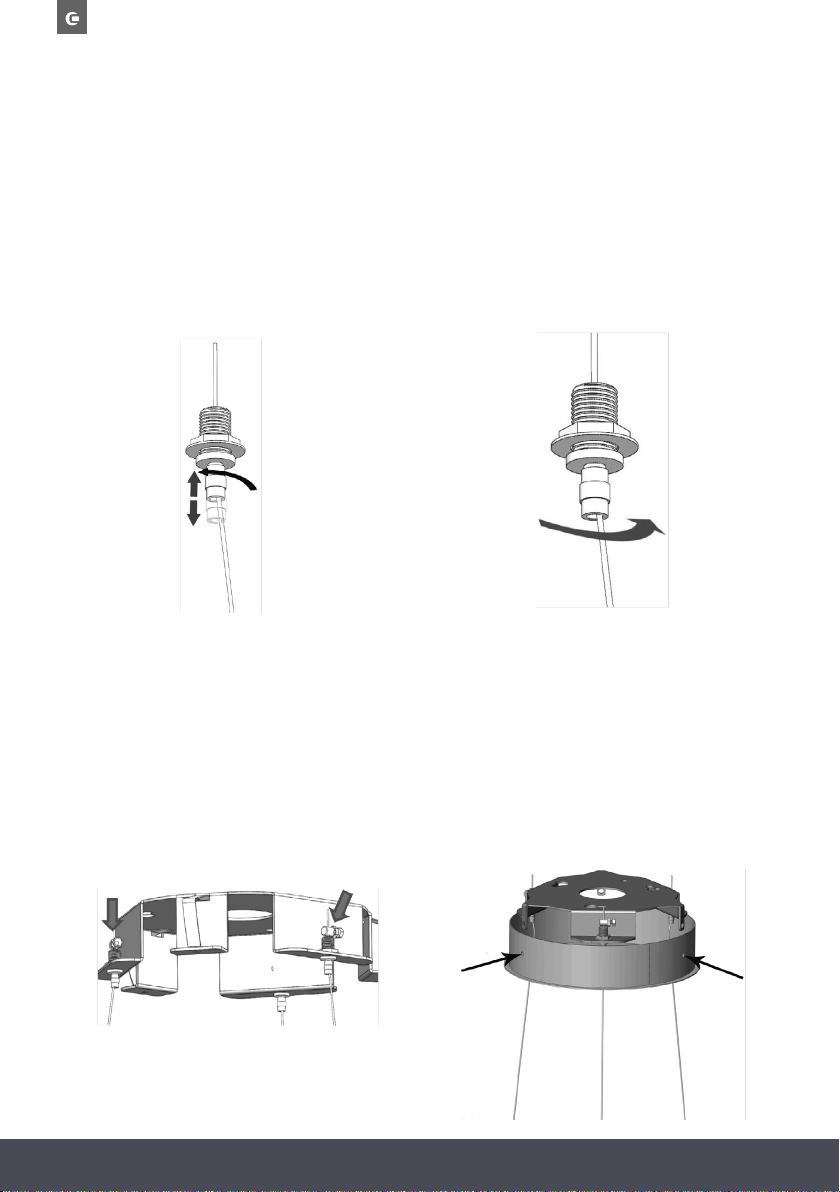

› Adjust the height of the product, moving the steel cables up and down inside the support. It
is necessary to unscrew and push the support in order to allow the movement of the
cable (Fig.5).
› Check that the remaining length of steel cables from the supports are the same, in order
to ensure that it will be installed perfectly parallel to the ceiling and fully level. Tighten the
appropriate support by screwing it (Fig.6) and fixing the steel cables.
Fig 5 Fig 6
› Add the clips as a further safety precaution to lock the cables in position (Fig.7).
› Perform the electrical connection.
› Place the ceiling plate cover in such a way as to hide the plate previously mounted, then
secure it by using the three screws provided (Fig.8).
Fig 7 Fig 8

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 11
Please keep this instruction manual for future reference

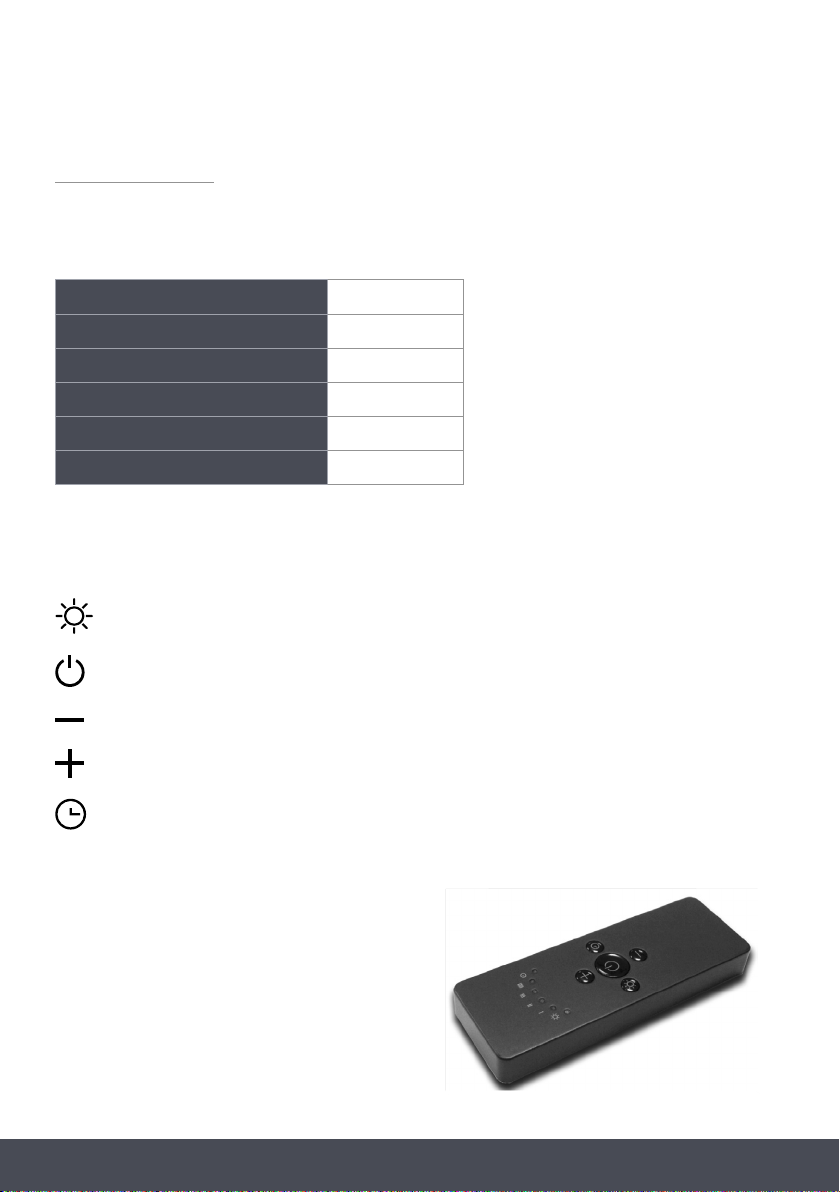

REMOTE CONTROL
When using for the first time, press and hold the light button for 5 seconds.
Remote control used for the remote operation of Caple island hoods:
ALKALINE BATTERY POWERED 12 V mod. 27 A
OPERATING FREQUENCY 433.92 Mhz
COMBINATIONS 32.768
MAX. CONSUMPTION 25 mA
OPERATING TEMPERATURE -20 ÷ + 55 °C
DIMENSIONS 120 x 45 x 15 mm
OPERATION
The remote is equipped with 5 buttons for cooker hood management, as specified below:
Light ON/OFF command.
Motor ON (speed level 1) / OFF command.
Reduce speed.
Increase speed.
10-minute timer.
INITIAL OPERATING CONDITION
The manufacturer supplies the remote control
ready to be used with codes pre-set in the Factory.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
12 Please keep this instruction manual for future reference
STANDARD CONFIGURATION:
Standard configuration requires all cooker hood remote controls to be provided with the same
transmission code. In the event two cooker hood remote control systems are installed in the same
room or nearby, each system may affect the operation of the another. Therefore, the code of one
radio control system must be changed.
GENERATING A NEW TRANSMISSION CODE:
The remote control system is provided with pre-set codes. Should new codes be required, proceed
as follows: Press simultaneously buttons:
for two seconds. When LEDs light on, press buttons:
(within 5 seconds). LEDs flashing 3 times indicate the procedure is completed.
WARNING:
This operation permanently deletes the pre-set codes.
LEARNING THE NEW TRANSMISSION CODE:
Once the transmission code is changed in the remote control unit, the electronic central unit of the
cooker hood must be made to set the new code in the following way:
Press the main power-off button of the hood and then restore power to the electronic control unit.
Within the next 15 seconds, press the Light Button to synchronise the central unit with
the code.
RESET OF THE FACTORY CONFIGURATION:
To restore the Factory configuration, follow the procedure described below: press
simultaneously buttons:
for 2 seconds. When LEDs light on, press buttons
(within 5 seconds). LEDs flashing 6 times indicate the procedure is completed.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 13
Please keep this instruction manual for future reference
WARNING:
This operation permanently deletes the pre-set codes.
EMERGENCY BUTTON:
In the event that the remote control does not work, use the emergency button to switch the
appliance off.
After any necessary repairs have been performed, reset the emergency button.
WARNING:
The battery should be replaced every year to guarantee the optimal range of the transmitter. To
replace the battery, take the plastic lid off, remove the battery and replace it with a new one,
observing the correct battery polarities. Used batteries should be discarded in special
collection bins.
WARNING:
Any adjustments or modifications which have not been expressly approved by the holder of the
legal conformity certificate may invalidate the user’s rights relating to the operation of the device.
The products are endowed with an electronic device which allows the automatic switching off
after 4 hours working from the last operation.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK
14 Please keep this instruction manual for future reference
TIMING
› This product is equipped with intelligent electronics which include a timer device for speed
controls when the air capacity exceeds 650m³/h. Internal motor models, with maximum air
capacity higher than 650m³/h, are equipped with a timer device that automatically switches
the speed from 4th to 3rd speed, after 6 minutes operation.
› External motor models are equipped with remote motors that, as for internal motor versions,
include a timer device that switches down the speed when it exceeds 650 m³/h.(See
External Motors Instructions). Remote motors, whose air capacity exceeds 650m³/h at both
4th and 3rd speed, will have the following by default timer control functions: The speed is
automatically switched from 4th to 2nd speed, after 6 minutes operation.
› If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after7
minutes operation. Operation speeds can also be changed during operation. The energy
consumption of the appliance in standby mode is lower than 0.5W.

Instruction manual ZAL48CO, ZAL48SL, ZAL48BK 15
Please keep this instruction manual for future reference
CARE AND MAINTENANCE
› An accurate maintenance guarantees good functioning and long-lasting performance.
› Particular care must be made when handling the grease filter. Rotate the lower panel of the
appliance by pulling the side knob (Fig.10). Remove the grease filter by acting on the side
handle. After cleaning or replacement operations refit the grease filter and close the lower
panel previously opened.
› The active charcoal filter used in these hoods can be washed and re-used for up to a
maximum 3 years. We recommend that these are replaced during this period.
› To purchase replacement charcoal filters please visit www.caple.co.uk
› To wash the charcoal filters, wash by hand with warm water or in the dishwasher, and then
bake in the oven at 90 degrees for 1 hour.
› To clean the appliance itself tepid water and neutral detergent are recommended, while
abrasive products should be avoided.
› The power cord must be replaced only by qualified person.
› To replace the fluorescent circular lamp rotate the lower panel of the appliance by pulling
the side knob (Fig. 9-10). Remove the screws found on the panel and open it; replace the
fluorescent lamp and then refit the panel.
FIG.9
FIG.10
FIG.9
FIG.10
Fig 9 Fig 10

Caple Service
Fourth Way
Avonmouth
Bristol
BS11 8DW
T: 0117 938 1900
E: [e-mail]
www.caple.co.uk
