Caple WI6161 User manual

Fully Integrated
Undercounter Wine Cabinet
Instruction Manual
WI6161
Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk

2Instruction manual Wi6161 Please keep this instruction manual for future reference
CONTENTS
Introduction 3
Safety Instructions 4
Environmental Protection 8
Installation 9
Control Panel 11
Using The Shelves 13
How To Replace The Charcoal Filter 14
How To Change The Door Opening 15
Fitting A Kitchen Plinth 16

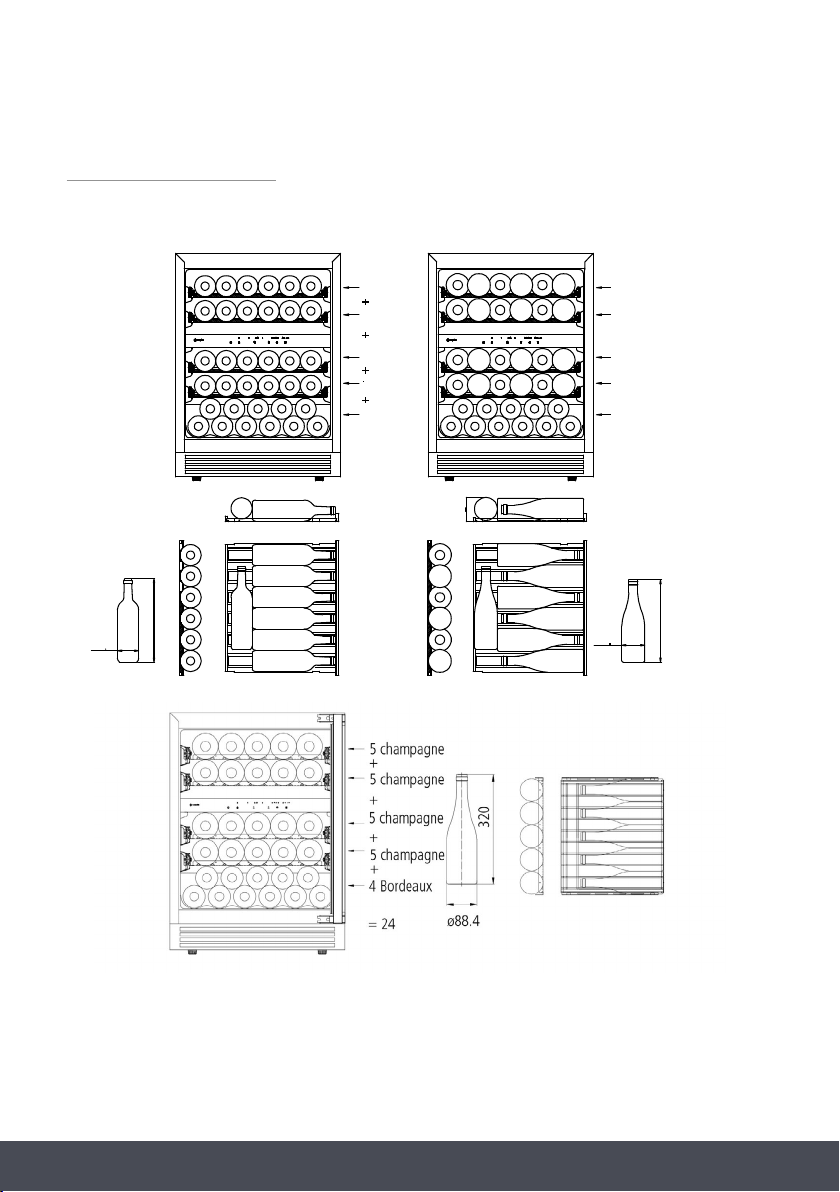

Wine Bottle Stacking 17
Installation Dimensions 18
Installing The Top Fixing Bracket 19
Installing The Side Fixing Bracket 20
Installing The Furniture Door 21
Using The Foot Sliders 25
Care and Maintenance 26
Troubleshooting 28
Recommended Temperatures 30
Caple Contact Details 32

3Please keep this instruction manual for future reference Instruction manual Wi6161
INTRODUCTION
Thank you for choosing this Caple wine cabinet.
To ensure that you get the best results from your new wine cabinet, we strongly suggest that
you read this instruction manual thoroughly before use. If treated with care, your Caple product
should give you years of trouble-free use.
To register ownership, please ensure you complete and return the guarantee card supplied with
the appliance or visit www.caple.co.uk and register here.
This instruction manual is designed to provide you with all the required information related to
the installation, use and maintenance of the appliance.
Please read this manual carefully before using your appliance. It contains important safety
advice; it explains how to use and look after your appliance so that it will provide you with
many years of reliable service.
Should a fault arise, please first consult the “Troubleshooting” section. You can often rectify
minor problems yourself, thus saving unnecessary service costs.
Please keep this manual in a safe place and pass it on to new owners for their information
and safety.

4Instruction manual Wi6161 Please keep this instruction manual for future reference
WARNINGS
-To prevent damaging the door gasket, make sure the
door is fully open when pulling shelves out of the
rail compartment.
-The appliance must be positioned so that the plug is
accessible. Release the electric cord and move your
cabinet to its final location. Do not move your cabinet
while loaded with wine as you may distort the body.
-The wine cabinet should be installed in a suitable place
in order to avoid touching the compressor.
-After unpacking, make sure that the appliance is in
perfect order. If you have any doubt, do not use it and
contact your retailer.
-If the supply cord is damaged, it must be replaced by
a Caple service agent or a similarly qualified person in
order to avoid a hazard.
-This product is not designed for commercial use, it is a
household appliance only.
-This appliance is intended to be used exclusively for
the storage of wine.

5Please keep this instruction manual for future reference Instruction manual Wi6161
IMPORTANT
Caple cannot be held liable for any non compliance with
these instructions.
ELECTRICAL SHOCK HAZARD
-Read all instructions before using the wine cabinet.
-DANGER or WARNING: Risk of child entrapment.
-Before you throw away your old wine cabinet: Take off
the door, leaving the shelves in place so that children
cannot easily climb inside.
-Never allow children to operate, play with, or crawl
inside the appliance.
-Never clean appliance parts with flammable fluids. The
fumes can create a fire hazard or explosion.
-Do not store or use gasoline or any other flammable
vapours and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard
or explosion.
-The refrigerant of this appliance is R600a, flammable
and explosive articles should not be put in or near the
cabinet, to avoid the risk of fire or explosion.
-Cleaning and user maintenance shall not be made by
children without supervision.
-When positioning the appliance, ensure the supply
cord is not trapped or damaged.

6Instruction manual Wi6161 Please keep this instruction manual for future reference
-This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children
shall not play with the appliance.
-Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
-Do not use plug adapter.
-Store wine in sealed bottles.
-Do not overload the cabinet.
-Do not open the door unless necessary.
-Do not cover shelves with aluminium foil or any other
shelf material which may prevent air circulation.
-Should the wine cabinet be stored without use for long
periods it is suggested, after careful cleaning, to leave
the door ajar to allow air to circulate inside the cabinet
in order to avoid possible formations of condensation,
mould or odours.
-Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
-Do not damage the refrigerant circuit.
-Do not use electrical appliances inside the storage
compartments of the appliance,unless they are the type
recommended by the manufacturer.

7Please keep this instruction manual for future reference Instruction manual Wi6161
Symbol ISO 7010 W021
Warning; Risk of fire / flammable materials
APPROPRIATE USE:
-This appliance is intended to be used in household and
similar applications such as:
› Staff kitchen areas in shops, offices and other
working environments.
› Farm Houses.
› By clients in hotels, motels and other residential
type environments.
› Bed and breakfast type environments.

8Instruction manual Wi6161 Please keep this instruction manual for future reference
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice. This
appliance is marked according to the European directive on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. The symbol on the product indicates that
this product may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. Disposal
must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please
contact your local council, your household waste disposal service or the retailer where you
purchased the product.
WARRANTY
Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you
must provide the following information to your retailer in order to receive a replacement: date
of purchase, model and serial number. Registration can also be completed online by visiting
www.caple.co.uk.
Ensure you keep your warranty card safe, you may need to show it to Caple Service together
with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
Spare parts are only available from Caple Service and spare parts authorised centres.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).
UKCA DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies with all
applicable legislation.
TECHNICAL FICHE
This appliance conforms to all current and applicable energy regulations. To view the
Technical Fiche that supports the energy labelling data, please visit the product page on our
website www.caple.co.uk

9Please keep this instruction manual for future reference Instruction manual Wi6161
INSTALLATION
BEFORE USING YOUR WINE CABINET
› Remove the exterior and interior packing.
IMPORTANT:
Before connecting the wine cabinet to the power source, let it stand upright for at least 12
hours. This will reduce the possibility of a malfunction in the cooling system from handling
during transportation.
› Clean the interior surface with lukewarm water using a soft cloth.
Make sure to turn the unit off and unplug it from the outlet.
NOTE:
To protect the appliance in transit and delivery the door is packed tightly against the cabinet.
When first installed this can mean the door seal appears thinner on one side of the door due to
compression, this is normal and once out of the box it will relax over a short period of time and
the door will return to the normal position. If you wish to speed up the process you can gently
warm the seal with a hair dryer on a low temperature setting. This can help relax the seal
helping it return to normal thickness a little faster.
INSTALLATION OF YOUR WINE CABINET
› Place your wine cabinet on a floor that is strong enough to support it when it is
fully loaded.
› To level your wine cabinet, adjust the front levelling leg at the bottom of the cabinet.
› Ensure it is perfectly level, as this will minimise any vibrations.
› This appliance uses flammable refrigerant. Never damage the cooling pipework
during transportation.
› Locate the wine cooler away from direct sunlight and sources of heat (ovens, hobs, heaters,
radiators, etc.). Never clean appliance parts with flammable fluids. The fumes can create
a fire hazard or explosion. When disposing your appliance, please choose an authorised
disposal site.
› Avoid locating the unit in moist areas.

10 Instruction manual Wi6161 Please keep this instruction manual for future reference
› It is fitted with a power cord having an earth wire terminating in a 13amp plug.
› Ensure the product is correctly ventilated (see page 15 & 17).
› Consult a qualified electrician or service engineer if the earthing instructions are not
completely understood.
› Plug the wine cabinet into an exclusive, properly installed-grounded wall outlet. Do not
under any circumstances cut or remove the third (ground) pin from the plug. Any questions
concerning power and/or grounding should be directed toward a certified electrician or
Caple service.
WARNING:
Incorrect earthing can result in the risk of electric shock.
AMBIENT TEMPERATURES
Please use the cabinet within ambient temperatures between 16-32ºC, if the ambient
temperature is higher or lower than this, it will cause the temperature to fluctuate in the
cabinet, possibly preventing it from reaching 5-18ºC.

11Please keep this instruction manual for future reference Instruction manual Wi6161
CONTROL PANEL
11
44
Control panel
•“ ”
Indicator light illuminates to signify the cooling mode is currently in operation.
•“ ”Button
Used to switch the internal light on/off.
•“ ” Button
To switch the appliance on/off (press and hold this buttons for approximately 3 seconds).
•“ ” Button
Used to raise the temperature in 1ºC increments.
•“ ” Button
Used to lower the temperature by in 1ºC increments.
Setting the temperature
•To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
•Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
•The temperature setting can be adjusted from 5°C to 18°C
•To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
Note
•If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the wine cabinet will not start.
•When you use the wine cabinet for the first time or you restart the cabinet after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine cabinet has been running for a few hours everything will be back
to normal.
5
Control panel
•“ ”
Indicator light illuminates to signify the cooling mode is currently in operation.
•“ ”Button
Used to switch the internal light on/off.
•“ ” Button
To switch the appliance on/off (press and hold this buttons for approximately 3 seconds).
•“ ” Button
Used to raise the temperature in 1ºC increments.
•“ ” Button
Used to lower the temperature by in 1ºC increments.
Setting the temperature
•To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
•Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
•The temperature setting can be adjusted from 5°C to 18°C
•To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
Note
•If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the wine cabinet will not start.
•When you use the wine cabinet for the first time or you restart the cabinet after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine cabinet has been running for a few hours everything will be back
to normal.
5
Control panel
•“ ”
Indicator light illuminates to signify the cooling mode is currently in operation.
•“ ”Button
Used to switch the internal light on/off.
•“ ” Button
To switch the appliance on/off (press and hold this buttons for approximately 3 seconds).
•“ ” Button
Used to raise the temperature in 1ºC increments.
•“ ” Button
Used to lower the temperature by in 1ºC increments.
Setting the temperature
•To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
•Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
•The temperature setting can be adjusted from 5°C to 18°C
•To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
Note
•If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the wine cabinet will not start.
•When you use the wine cabinet for the first time or you restart the cabinet after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine cabinet has been running for a few hours everything will be back
to normal.
5
Control panel
•“ ”
Indicator light illuminates to signify the cooling mode is currently in operation.
•“ ”Button
Used to switch the internal light on/off.
•“ ” Button
To switch the appliance on/off (press and hold this buttons for approximately 3 seconds).
•“ ” Button
Used to raise the temperature in 1ºC increments.
•“ ” Button
Used to lower the temperature by in 1ºC increments.
Setting the temperature
•To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
•Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
•The temperature setting can be adjusted from 5°C to 18°C
•To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
Note
•If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the wine cabinet will not start.
•When you use the wine cabinet for the first time or you restart the cabinet after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine cabinet has been running for a few hours everything will be back
to normal.
5
Control panel
•
Indicator light illuminates to signify the cooling mode is currently in operation.
•“ ”Button
Used to switch the internal light on/off.
•“ ” Button
To switch the appliance on/off (press and hold this buttons for approximately 3 seconds).
•“ ” Button
Used to raise the temperature in 1ºC increments.
•“ ” Button
Used to lower the temperature by in 1ºC increments.
Setting the temperature
•To set the temperature, connect the power cord to a properly grounded outlet. In the event of
a power interruption, the previous temperature setting is automatically erased and it will default
to a preset temperature setting of 12°C
•Set the desired cooling temperature by pressing the buttons adjacent to the “ / "
indicators. Each press of the buttons will scroll through the available temperature settings in
increments of 1°C.
•The temperature setting can be adjusted from 5°C to 18°C
•To view the actual temperature at anytime press and hold the temperature adjustment button
(up or down) for approximately 5 seconds, the actual temperature will temporarily flash in the
LED display for 5 Seconds. After this it will revert back to the set temperature.
Flashing LED = Cabinet temperature
Steady LED = Set temperature
Note
•If the unit is unplugged, power lost or turned off, you must wait 3 to 5 minutes before restarting
the unit. If you attempt to restart before this time delay, the wine cabinet will not start.
•When you use the wine cabinet for the first time or you restart the cabinet after having been shut
off for a long time, there could be a few degrees variance between the temperature you select
and the one indicated on the LED readout. This is normal and it is due to the length of the
activation time. Once the wine cabinet has been running for a few hours everything will be back
to normal.
5
WI6133 Wine Cabinet manual.indd 11 17/10/2017 12:45
CONTROL PANEL
TOUCH CONTROL KEYS AND SYMBOLS
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
To switch the appliance on/off. Press and hold this button for approximately
1 second to turn the appliance on. Press and hold this button for approximately 3 seconds to
turn the appliance off.
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
To turn the lock function on/off. Press and hold this button for approximately 3 seconds to
activate/deactivate. When activated, the
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
symbol will illuminate.
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
or
lower
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
zone, it will revert back to its lowest temperature value.
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
Upper zone = 5-10ºC
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
NOTE:
Press and hold
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
for 3 seconds, to change the display from ºC to ºF.

12 Instruction manual Wi6161 Please keep this instruction manual for future reference
This button is used to toggle between the different operational functions. When selected,
the relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until
you change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will
be disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
This button is used to toggle between the different light functions. When selected, the
relevant symbol will illuminate:
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
The internal light will switch on when the door is opened, and off when the door
is closed.
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
The internal light is continuously on. However after 3 minutes the light
will dim.
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
The internal light will remain on for 10 minutes once the door is closed and then
turn off.
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
This symbol indicates the brightness adjuster: Hold the light key
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
for 3 seconds until
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold and for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. The highest temperature is 18ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
then reverts back to the normal display, and the temperature is now set.
Press this button to lower the temperature in 1ºC increments. The lowest temperature is 5ºC.
Once the required temperature is selected, the LED display will temporarily flash for 5 seconds,
it then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
This symbol indicates the brightness adjuster: Hold the light key for 3 seconds until
flashes. Then use the and keys to adjust the brightness of the internal light.
CONTROL PANEL AND OPERATION
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
flashes. Then use the
CONTROL PANEL AND OPERATION
TOUCH CONTROL KEYS AND SYMBOLS
This button is used to toggle between the different operational functions. When selected, the
relevant symbol will illuminate:
Standard mode - Select this function to operate the wine cabinet in standard mode.
ECO mode - An energy saving mode where both the inner light and control panel
lights are off (except the indicator). The LED display is also switched off, until you
change the temperature using the and keys, this will be displayed for 5
seconds and then switch off again. The compressor is also delayed 5 minutes in order
to save energy.
Intelligent mode - In intelligent mode, the wine cabinet will adjust the fan speed
according to the ambient temperature. This will reduce noise levels and save energy.
DEMO mode - When DEMO mode is selected, the compressor and PTC heater will be
disabled, and the fan input voltage reduces to 9V. The HI/LO temperature alarm is
also disabled during DEMO mode.
Note: Press and hold the keys for 3 seconds, to change the display from ºC to ºF.
To switch the appliance on/off .
Press and hold this button for approximately 1 second to turn the appliance on.
Press and hold this button for approximately 3 seconds to turn the appliance off.
To turn the lock function on/off.
Press and hold this button for approximately 3 seconds to activate/deactivate.
When activated, the symbol will illuminate.
Press this button to raise the temperature in 1ºC increments. Once the temperature reaches
the highest temperature value for the upper or lower zone, it will revert back to its lowest
temperature value.
Upper zone = 5-10ºC
Lower zone = 10-18ºC
Once the required temperature is selected, the LED display will temporarily flash for 5
seconds, then reverts back to the normal display, and the temperature is now set.
This button is used to toggle between the different light functions. When selected, the relevant
symbol will illuminate:
The internal light will switch on when the door is opened, and off when the door is closed.
The internal light is continuously on. However after 3 minutes the light will dim.
The internal light will remain on for 10 minutes once the door is closed and then turn off.
for 3 seconds until
This symbol indicates the brightness adjuster: Hold the light key
flashes. Then use the right hand side keys to adjust the brightness of the internal light.
The cooling symbol will illuminate to show when the wine cabinet is currently cooling.
The alarm symbol will illuminate to show the alarm is on. This will activate when either
the door has been left open for a long period of time, or the temperature has fluctuated
too high or low (HI or LO will also show in display to confirm this).
keys to adjust the brightness of the internal light.
NOTE:
This product contains a light source of energy efficiency class G

13Please keep this instruction manual for future reference Instruction manual Wi6161
USING THE SHELVES
To prevent damaging the door gasket, make sure to have the door opened fully when pulling
shelves out of the rail compartment.
REMOVING THE SHELVES
1. Fully extend the shelf you wish to remove
2. Lift the front of the shelf up to remove from the front clips
3. Holding onto the shelf runner, push the shelf in and then pull up at the back to release
from the rear clips.
Glass shelves are available if you wish to store cans or smaller bottles in your wine cabinet.
These can be purchased directly from www.caple.co.uk
USING THE SHELVES
To prevent damaging the door gasket, make sure to have the door opened fully when pulling
shelves out of the rail compartment.
Removing the shelves
1. Fully extend the shelf you wish to remove
2. Lift the front of the shelf up to remove from the front clips
3. Holding onto the shelf runner, push the shelf in and then pull up at the back to
release from the rear clips.
Glass shelves are available if you wish to store cans or smaller bottles in your wine cabinet.
These can be purchsed directly from www.caple.co.uk

14 Instruction manual Wi6161 Please keep this instruction manual for future reference
HOW TO REPLACE THE CHARCOAL FILTER
1. Open the door and remove the top 2 shelves (see removing the shelves).
2. Turn the filter as per Fig A.
3. As per Fig B, the filter should line up with the notches as shown.
4. Pull filter out (Fig C).
5. Insert replacement filter and twist as per Fig A to lock into position.
6. Re-install the shelves.
NOTE:
The charcoal filter should be replaced every 3-6 months depending on the unit’s exposure level
to odour.
Visit www.caple.co.uk to purchase the replacement charcoal filters.

15Please keep this instruction manual for future reference Instruction manual Wi6161
HOW TO CHANGE THE DOOR OPENING
This appliance has reversible doors but is delivered with a right hand hinged door.
Should wish to reverse the hinge on your unit, follow the directions below:
1. Decorative
2. Door
3. Hinge
4. Screws
1. Open the door and remove the decorative covers (1) on the left hand side as shown
in Fig.A
2. Fix the screws into these positions a per Fig.B, but do not fasten the screws.
3. Remove all screws from both the upper and lower hinge, and then remove the door.
4. Rotate the door 180 degrees, and place the hinges into the screws fixed in Fig.B. Once
slotted onto these screws, tighten the screws to secure the hinges (Fig D).
5. Placed the decorative covers in the right hand side and screw holes as shown in Fig.D

16 Instruction manual Wi6161 Please keep this instruction manual for future reference
FITTING A KITCHEN PLINTH
This model is recessed to fit a kitchen plinth. A H55mm vent slot is required in the plinth to
ensure air is able to ventilate properly. See diagram below. Failure to include this vent slot will
invalidate the guarantee. The appliance comes included with a decorative grille which slots-
onto the kitchen plinth.

17Please keep this instruction manual for future reference Instruction manual Wi6161
WINE BOTTLE STACKING
Stores Max. 39 Bordeaux style bottles 750ml.
NOTE:
If you wish to store other style bottles i.e champagne, the maximum storage capacity will be
less than as shown above.
Shelves may also need to be removed to allow more bottles to be stored.
7 Bordeaux
7 Bordeaux
7 Bordeaux
7 Bordeaux
11 Bordeaux
=
39
7 Burgundy
7 Burgundy
7 Burgundy
7 Burgundy
11 Burgundy
=
39
+
+
+
+
Ø76.4
300.5
Ø82.4
296

18 Instruction manual Wi6161 Please keep this instruction manual for future reference
INSTALLATION DIMENSIONS
DIMENSIONS
550mm
min. 825mm
600mm
595mm
min. 583mm
820-885mm
710mm
88mm

19Please keep this instruction manual for future reference Instruction manual Wi6161
INSTALLING THE TOP FIXING BRACKET
This bracket will keep the product secure and help prevent it moving when in use.
After installing the wine cabinet, please open the door, adjust the fixing bracket and fix this
into the work surface with three screws using a screwdriver.
A. Top Fixing Bracket
B. Work Surface
C. Screw
D. Screwdriver

20 Instruction manual Wi6161 Please keep this instruction manual for future reference
INSTALLING THE SIDE FIXING BRACKET
This bracket will keep the product secure and help prevent it moving when in use.
1. Screw
2. Fixing bracket
3. Kitchen cabinet
As per Fig A, line the fixing bracket (2) with the two holes at the top of the wine cabinet. Use
the screws (1) to secure into position.
As per Fig B, use the screws (1) to secure the bracket to the side of the kitchen cabinet (3).
Fig A Fig B
