Caraudio-Systems CI-TF-NTG2 User manual

Version 30.09.2014 CI-TF-NTG2
TV-Free
Video-in-motion Interface
CI-TF-NTG2
For Mercedes Benz
Comand APS NTG2, NTG2.5, NTG4-204,
NTG4-212 and Comand Online NTG4.5
navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle’s software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

Version 30.09.2014 CI-TF-NTG2
Page1
Contents
1. Prior to installation
1.1. Delivery contents
1.2. Check compatibility of vehicle and accessories
1.3. Setting the Dip-switches of the CAN-Box TV-500
1.3.1.1. Exception: Vehicles with Comand Online NTG4.5
1.4. Pin-assignments
2. Installation
3. Activation of the video-in-motion function
4. Specifications
5. Technical support
1. Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1. Delivery contents
CAN-box TV-500
HW_____ SW_____
Harness
TV-NTG2
Take down the SW-version and HW-version of the interface-boxes, and store this
manual for support purposes!

Version 30.09.2014 CI-TF-NTG2
Page2
1.2. Check compatibility of vehicle and accessories
Requirements
brand
compatible vehicles
navigation system
Mercedes Benz
A-Class (W169) from 09/2004 til 06/2008, B-
Class (W245) from 09/2004 til 06/2008, C-Class
(W203) from 04/2004 til 02/2007, CLC-Class
(CL203) from 06/2008 til 09/2008, CLK-Class
(C209 W209) from 06/2004, G-Modell (G463)
from 04/2007 til 08/2008, GL-Class (X164) til
06/2008, ML-Class (W164) til 06/2008, R-Class
(W251) til 06/2008, Sprinter, Viano
Comand APS NTG2
A-Class (W169) from 07/2008, B-Class (W245)
from 07/2008 til 10/2011, CLS-Coupe (W219)
from 04/2008 til 12/2010, E-Class (W211) from
06/2008 til 03/2009, G-Modell (G463) from
09/2008, GL-Class (X164) from 07/2008, ML-
Class (W164) from 07/2008 til 10/2011, R-Class
(W251) from 07/2008, SL-Class (R230) from
04/2008, SLK-Class (R171) from 04/2008 til
02/2011, Viano
Comand APS NTG2.5
C-Class (W204) from 03/2007 til 02/2011, CLC-
Class (CL203) from 09/2008, GLK-Class (X204)
from 09/2008, SLS (C197) from 03/2010
Comand APS NTG4-204
E-Class (W212) from 04/2009 til 05/2011, E-
Class Coupe (W207) from 05/2009 til 05/2011,
CLS-Coupe (C218) from 01/2011 til 05/2011
Comand APS NTG4-212
A-class (W176) from 07/2012, B-class (W246)
from 11/2011 til about end of 2014, C-class
(W204) from 03/2011, C-class Coupe (C204)
from 06/2011, CLA-Coupe (C117) from 01/2013,
CLS-Coupe (C218) from 06/2011, E-class
(S/W212) from 06/2011 til about 10/2014, E-
class Coupe (C207) from 06/2011, G-model
(G463) from 07/2012, GL-class (X166) from
11/2012, GLA-class (X156) from 09/2013, GLK-
class (X204) from 01/2011, ML-class (W166)
from 11/2011, SLK-class (R172) from 03/2011,
SL-class (R231) from 2012
Comand Online NTG4.5
VW
Crafter
Comand APS NTG2
Limitations
Comand APS NTG2.5 While the video-in-motion function is active, the navigation will
not work!
Comand Online NTG4.5 On some vehicles the navigation will not work while the video-
in-motion function is active. This can only be detected by a test
drive with built-in TV-free!

Version 30.09.2014 CI-TF-NTG2
Page3
1.3. Setting the Dip-switches of the Can-Box TV-500
Vehicle/ navigation
Dip 1
Dip 2
Dip 3
Dip 4
Dip 5
Dip 6
Vehicles with NTG2/NTG4-xxx*
ON
OFF
OFF
OFF
OFF
OFF
Vehicles with NTG2.5
OFF
OFF
OFF
OFF
OFF
OFF
* With dip1 to OFF on vehicles with NTG2/NTG4-xxx the included green cable is used to
activate the video-in-motion function.
Note: Dip switch functions of the TV-500
Dip 1 –activation TV-free
Dip 2 –no function
Dip 3 –no function
Dip 4 –no function
Dip 5 –CAN-bus termination resistor on the vehicle side
Dip 6 –CAN-bus termination resistor on the head-unit side
1.3.1. Exception: Vehicles with Comand Online NTG4.5
On some vehicles with Comand Online NTG4.5 the navigation performance is affected as
long as the video-in-motion function is activated. This can only be detected by a test drive
with built-in TV-free with Dip 1 to ON!
If the navigation performance is affected you have to set Dip 1 to OFF. As long as the video-
in-motion function is activated, the navigation will NOT be working! You can activate and
deactivate the video-in-motion function by pressing a button (see chaper “Activation of the
video-in-motion function”).
Vehicle/ navigation
Dip 1
Dip 2
Dip 3
Dip 4
Dip 5
Dip 6
NTG4.5 with TV-free pemanent
ON
OFF
OFF
OFF
OFF
OFF
NTG4.5 with TV-free selective
(hang-up button)
OFF
OFF
OFF
OFF
OFF
OFF
Note: It is possible to install the TV-free on vehicles with Comand Online NTG4.5 with
selective activation generally.

Version 30.09.2014 CI-TF-NTG2
Page4

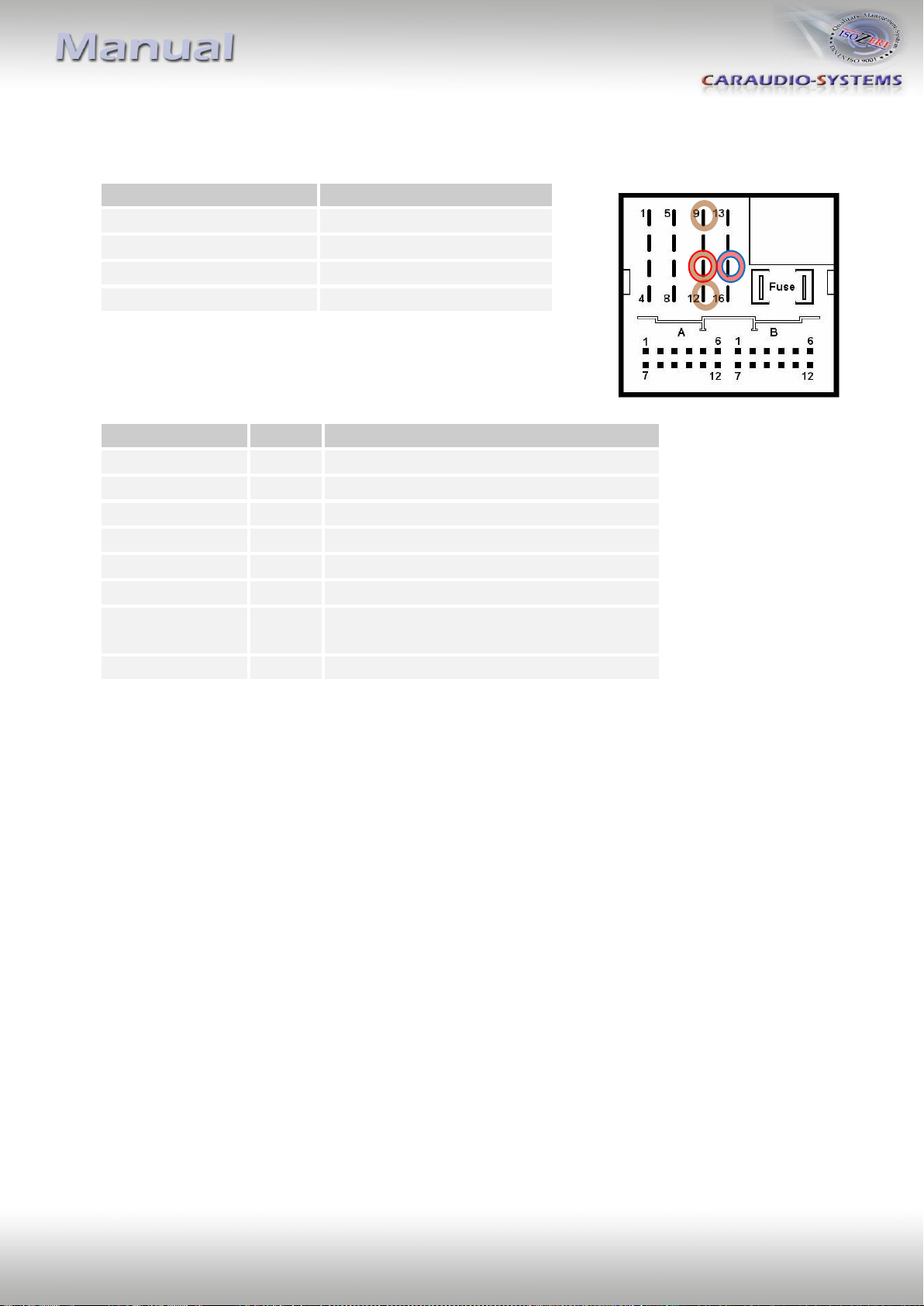

1.4. Pin-assignments
Pin-assignment vehicle connector
Pin-assignment of the CAN-Box TV-500 (Molex 8pin)
Cable colour
Pin-No.
Assignment
●Yellow
Pin 4
CAN-HIGH –connection to the head-unit
●Blue
Pin 3
CAN-LOW –connection to the head-unit
●●Yellow/Black
Pin 8
CAN-HIGH –connection to the vehicle
●●Blue/Black
Pin 7
CAN-LOW –connection to the vehicle
●Red
Pin 1
+12V permanent
●Black
Pin 5
Ground
●Green
Pin 6
Activation of the video-in-motion function
(+12V = TV-free activated)
●White
Pin 2
Trigger output (+12V DC 500mA)
Cable colour
Assignment
●●Red/Blue
+12Volt Permanent 15
●Brown
Ground Pin 12
●●Brown/Red
CAN HIGH Pin 11
●Brown
CAN LOW Pin 9

Version 30.09.2014 CI-TF-NTG2
Page5
2. Installation
Switch off ignition and disconnect the vehicle’s battery! If according to factory rules
disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle is
sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a
resistor lead.
Instruction for vehicles with NTG2:
1. Remove all covers of the navigation computer.
2. Remove the 4 screws of the navigation computer and pull it
out.
3. RemoveQuadlock connector from the navigation computer
and connect it to Harness TV-NTG2.
4. Remove the both 12pin inserts from the original Quadlock
connector and connect them together with the optical leads
to the Harness TV-NTG2. Connect the TV-NTG2 to the
navigation computer.
Instruction for vehicles with NTG2.5:
1. Remove the navigation computer from the centre console.
2. RemoveQuadlock connector from the navigation computer
and connect it to Harness TV-NTG2.
3. Remove the both 12pin inserts from the original Quadlock
connector and connect them together with the optical leads
to the Harness TV-NTG2. Connect the TV-NTG2 to the
navigation computer.
NTG2.5
NTG2

Version 30.09.2014 CI-TF-NTG2
Page6

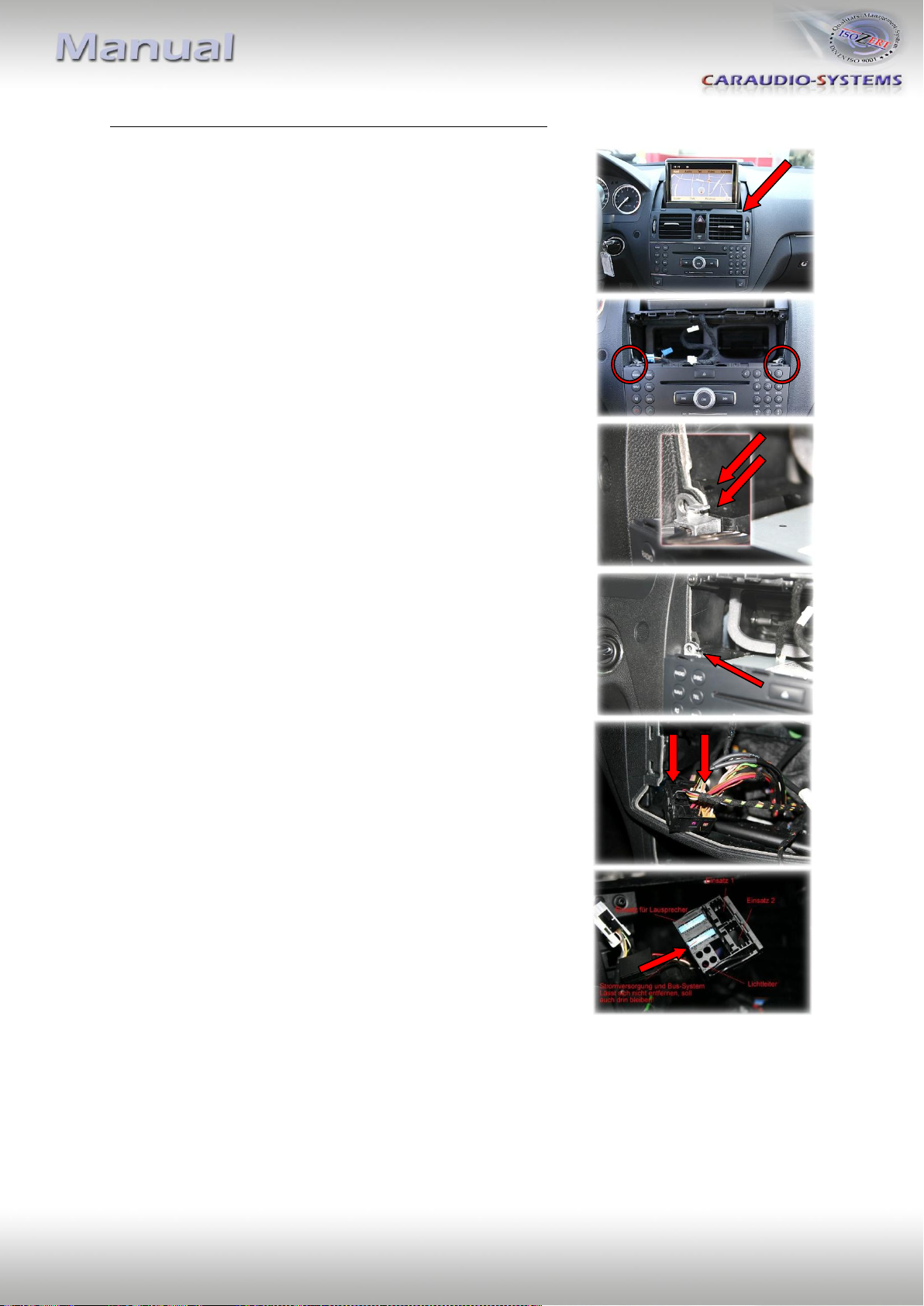

Instructions for vehicles with NTG4-2xx (NTG4.5 similar):
1. Remove the centre air nozzle unit with the accordant
tool kit.
2. Remove both TORX-screws.
3. Slide upward the interlock behind the removed TORX
screws and pull out the navigation computer.
(In the right picture the interlock is closed!)
….In this picture the interlock is open.
4. Remove Quadlock connector from the navigation computer
and connect it to Harness TV-NTG2.
5. Remove the both 12pin inserts from the original Quadlock
connector and connect them together with the optical leads
to the Harness TV-NTG2. Connect the TV-NTG2 to the
navigation computer.

Version 30.09.2014 CI-TF-NTG2
Page7

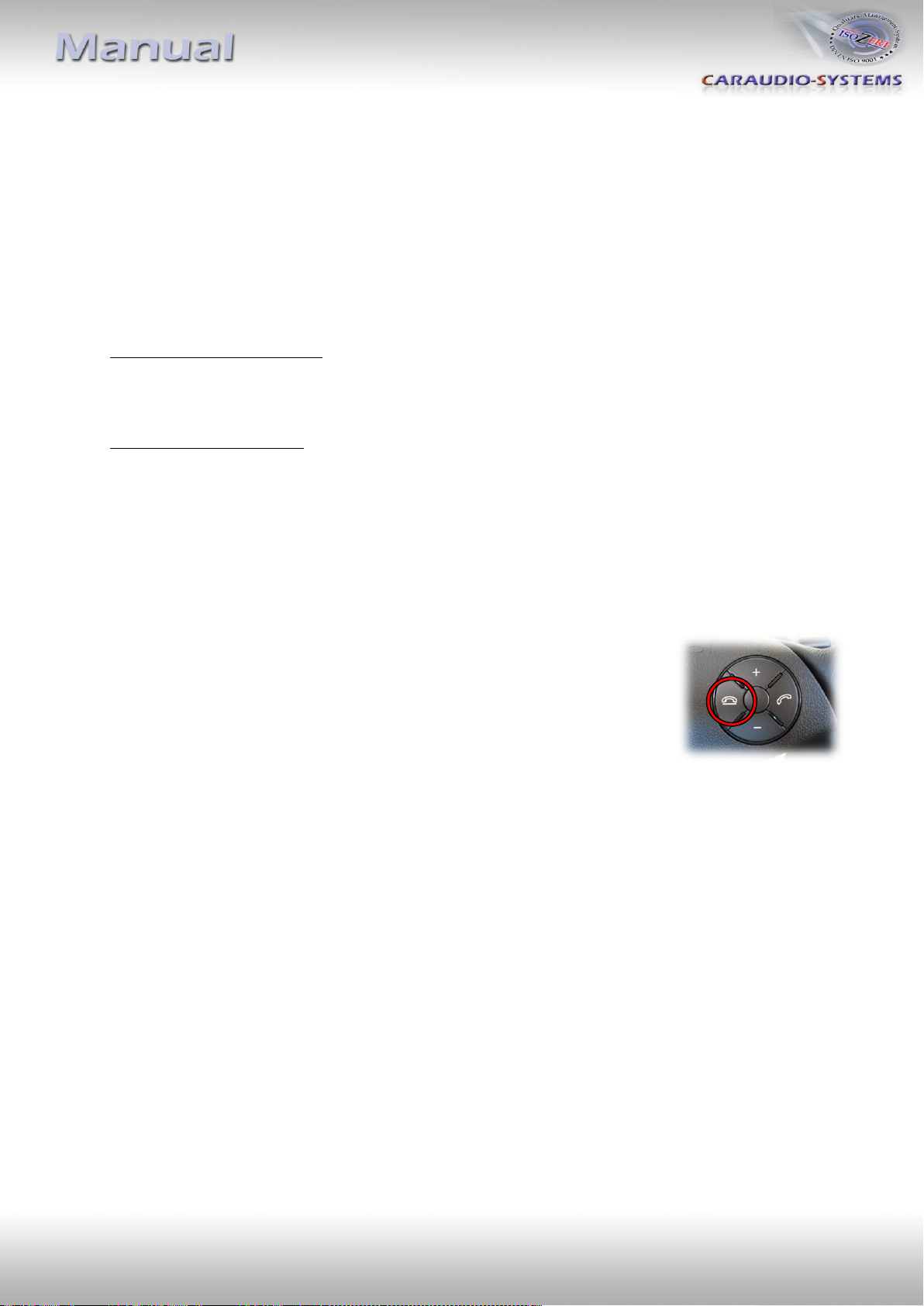

3. Activation of the video-in-motion function
On vehicles with Comand APS NTG2/NTG4-2xx and on some vehicles with Comand Online
NTG4.5 the video-in-motion function is activated permanently without disturbing the
navigation performance.
On vehicles with Comand APS NTG2/NTG4-2xx the video-in-motion can be activated and
deactivated by Dip 1 or alternatively by the included loose green cable in connection with a
switch (not included in delivery).
Video-in-motion permanent
With dip1 to ON the video-in-motion function is activated permanently without disturbing
the navigation performance.
Video-in-motion selective
With dip1 to OFF the included green cable is used to activate the video-in-motion function.
Connect a switch to the green cable and connect the green cable to +12V ACC.
●+12V = TV-Free is activated
●0V = TV-Free is not activated
Note: The loose white cable is not required and must be isolated.
On vehicles with Comand APS NTG2.5 and on some vehicles with
Comand Online NTG4.5 select the “navigation mode” on the instrument
and press the “hang-up”-button on the steering-wheel for more than 3
seconds to activate/deactivate the video-in-motion function. When the
ignition is off, the video-in-motion interface will be automatically
disabled.
Note: As long as the video-in-motion function is activated, the navigation of the command
will NOT be working! The loose white and green cable are not required and must be isolated.

Version 30.09.2014 CI-TF-NTG2
Page8
4. Specifications
Operation voltage 10.5 –14.8V
Stand-by power drain <2mA
Operation power drain ~60mA
Power consumption ~0,08W
Temperature range -30°C to +80°C
Weight 44g
Measurements (box only) W x H x D 76 x 27 x 54 mm
5. Technical support
Caraudio-Systems Vertriebs GmbH
manufacturer/distribution
Rheinhorststr. 22
D-67071 Ludwigshafen am Rhein
phone [phone]
email [email protected]
