Carbest 81410 Installation instructions

LiFePO4 - BLUETOOTH-BATTERY 12 V

81410

12 V

100Ah

UK – USER'S INSTRUCTION

2

UK

CONTENT

WARRANTY �� 03

DISPOSAL �� 03

USE PRECAUTIONS�� 04

TRANSPORTATION PRECAUTIONS�� 04

INSTALLATION �� 05

MAINTENANCE �� 05

CONFIGURATION OPTIONS �� 05

ENVIRONMENTAL REGULATIONS �� 06

CONFIGURATION AND OPERATION �� 06

TERMINOLOGY�� 06

REALATIONSHIP BETWEEN CHARGE LIMITS AND TEMPARATURE/

CHARGING RATES�� 07

INTEGRATED MODULE PROTECTIONS/OVER- /UNDER VOLTAGE �� 07

HARDWARE PROTECTION �� 07

OVER TEMPERATUR /BALANCING �� 08

TROUBLESHOOTING�� 09

CHARGER TRIPS USING CC& CV�� 09

TERMINAL VOLTAGE ABSENT OR LOW �� 09

BATTERY RAPIDLY DEPLETES ENERGY BETWEEN CHARGES�� 10

BATTERY CURRENT DISAPPEARS WHEN CHARGING �� 10

VOLTAGE DROPS ABRUPTLY�� 10

GLOSSARY/TERMINOLOGY TABLE�� 10

DEFFINITIONS AND ACRONYMS�� 11

PRODUCT SPECIFICATIONS �� 12

BLUETOOTH FUNCTION�� 13

PRODUCT OUTLINE DRAWING �� 14

SAFETY DATA SHEET LIFEPO4 12 V 100 AH�� 15

Carbest Blutooth Batterie| Battery 81410

3

WARRANTY

The warranty period is 36 months� Reimo reserves the right to rectify eventual

defaults� The guarantee is excluded for all damages caused by faulty use or improper

handling� Liability limitations: In no case Reimo will be reliable for collateral-, secon-

dary- or indirect damages, costs, expenditure, missed beneﬁts or missed earnings�

The indicated sales price of the product is representing the equivalent value of Rei-

mo’s liability limitations�

DISPOSAL

Electronic and electrical appliances, as well as batteries, contain materials, compo-

nents and substances that can be harmful to yourself and the environment in the event

that the waste materials (discarded electrical and electronic devices and batteries) are

not handled correctly�

Electrical and electronic appliances, as well as batteries, are labelled as depicted with

a crossed out dustbin� This symbol means that electrical and electronic appliances, as

well as batteries, may not be discarded with the household trash, and must be dispo-

sed of separately�

As an end consumer it is your responsibility to dispose of dead batteries at

the collection points provided� This ensures that the batteries will be recycled in accor-

dance with applicable laws, with no impact on the environment�

Cities and municipalities have set up collection points where electrical and electronic

appliances, as well as batteries are accepted at no charge for recycling; alternatively,

arrangements can be made to have them picked up� Please contact your municipal

authorities for more information�

UK Carbest Bluetooth Batterie| Battery 81410

4

UK

USE PRECAUTIONS

In order to operate and use the battery better, extend its service life, and

avoid abnormality, please read the following instructions carefully before

using the battery�

• Handle with care to avoid violent vibration�

• Do not immerse the battery and its accessories in water or other liquids�

When the battery is not in use, it should be placed in a cool and dry

environment at room temperature�

• Do not use and retain the battery near hot and high temperature sources,

such as fire, heater, etc� Do not expose the lithium battery to fire, it may

explode�

• Do not remove the battery pack housing without authorization of professional

maintenance staff�

• Please select a special LiFePO4 battery charger to charge the battery, do not

reverse the positive and negative terminal, and do not plug the battery into

the power socket directly�

• Do not use metal or wire to connect the positive and negative terminal of the

battery directly for short circuit�

• Do not knock, throw, tread the battery or pierce the battery with nails or

other sharp tools�

• In case of battery damage, deformation, electrolyte leakage, smell and other

abnormal phenomena, do not use the battery again, please contact the

manufacturer or dealer for treatment�

• Without permission of the manufacturer or dealer, do not use the battery in

series and parallel�

TRANSPORTATION PRECAUTIONS

• The battery pack is suitable for automobile, train, airplane and other modes

of transportation� But the sun, rain and severe vibration shall be avoided in

the process of transportation�

• The battery pack shall be packed with insulating and shockproof materials, to

avoid the damage of battery pack caused by bumps on the way�

• The terminal of the battery pack shall be upward, and shall not be placed

upside down or sideways�

• The battery pack must be handled carefully during transportation, loading

and unloading� Do not throw, to avoid collision�

• Do not press heavy objects on the battery pack during transportation, to

avoid damage the battery pack by extrusion

• Do not mix with inflammable, explosive and sharp metal articles for

transportation�

Carbest Blutooth Batterie| Battery 81410

5

UK

INSTALLATION

• After unpacking, visually inspect the battery appearance to see if there is

any collision damage during transportation�

• The battery installation area shall be well ventilated, away from water,

combustible gas, corrosion agent and other dangerous goods, the

installation environment shall meet the requirements of product

specifications�

• Avoid placing on the side� Do not squeeze or tread�

• When the battery charging and discharging with same line, only need

connect the charger or electrical equipment with the positive and

negative terminal� Do not charge and discharge at the same time�

MAINTENANCE

• Half electric storage, long-term power shortage will affect battery life�

When the battery power is insufficient, it should be charged in time,

which will be beneficial to prolong the battery life�

• If the battery is not used for a long time, it is recommended to charge it

every three months�

• The battery shall be installed in a dry and clean environment with

air circulation� To avoid the fire source and inflammable materials

approaching and disconnecting the load (turn off the electric equipment)

when charging�

• The best working environment temperature of the battery is 15 – 35°C�

If the temperature is outside this range, it may have an impact on the

performance of the battery� The visual representation is the change of

battery capacity, or the change of equipment operation time, which is a

normal phenomenon�

CONFIGURATION OPTIONS

We don’t recommend to connect several modules in series or parallel,

we suggest single module usage� Please do not build battery banks!

ATTENTION!

Do not connect the modules to battery modules of other chemistries

or 12 V battery modules of different capacities� For example, do not

connect a 12 V 100Ah LiFePO4 battery to a lead-acid 12 V 100Ah or a

LiFePO4 12 V 20/60 Ah�

Carbest Bluetooth Batterie| Battery 81410

6

UK

ENVIRONMENTAL REGULATIONS

The battery pack is compliant with the following environment regulations:

• EU Directive 2002/95/EC for Restriction of Hazardous Substances (RoHS)

• EU Directive 2006/66/EC on batteries and accumulators and waste batteries

and accumulators

• Management Methods for Controlling Pollution Caused by Electronic Information

Products Regulation (China RoHS)

LIFEPO4 BATTERY MODULES

The batteries leverages LiFePo4 for the following key advantages over lead-acid

alternatives:

• Longer life in applications requiring repeated discharge and recharge cycles

• Higher power capability, both during discharge and subsequent recharge

• More energy during applications requiring four hours of runtime or less

• Greater degree of safety due to the fact that the batteries are continually monito-

red by an integral microprocessor

CONFIGURATION AND OPERATION

This chapter discusses conﬁguring, charging and discharging the batteries in

the following sections:

• Terminology

• Configuration Options

• Integrated Module Protection

TERMINOLOGY

This chapter discusses conﬁguring and operating 12 V LiFePO4 battery modules

using the following terminology:

Terminology Deﬁnition

Cell Refers to an individual LiFePO4 cell that is the basis

for the TI 12 V/110 battery module�

Module or Battery Module LiFePO4 battery module

Carbest Blutooth Batterie| Battery 81410

7

UK

RELATIONSHIP BETWEEN CHARGE LIMITS AND TEMPERATURE

Due to the chemistry of lithium Ion cells, the cells cannot accept as much

charge current at lower temperatures without risking permanent loss of capaci-

ty� As the cell’s temperature rises during the charging process, they can gradu-

ally accept higher currents�

CHARGE RATE BY TEMPERATURE

Temperature (°C) Charge rate

-20~

-10 < 0,1 C

0~10 < 0,2 C

10~25 < 0,3 C

Maximum recommended continuous charge rate is 0,2 C�

INTEGRATED MODULE PROTECTION

The LiFePO4 battery module includes integrated protection circuitry to prevent

the battery module from exceeding its voltage limits� The module’s circuitry

interrupts either charging or discharging current if the battery is in danger of

exceeding upper or lower voltage or temperature limits�

Over Voltage and Under Voltage

The modules circuitry continuously monitors cell voltage and can interrupt

either charge or discharge current in the event that a cell’s voltage exceeds

safe operating limits� The over voltage and under voltage protection include

software/hardware protection�

Over voltage

MOSFET are used to control and will turn OFF and interrupt the charge current

when meet over voltage protection (The protection circuitry interrupts current if

the voltage on any single cell rises above 3�9 V�

For hardware protection: over voltage protection threshold is 3�9V, the over vol-

tage protection recovers when voltage drops to 3�6 V�

Under voltage

MOSFET are used to control and will turn OFF and interrupt the discharge cur-

rent when meet under voltage protection (The protection circuitry interrupts

current if the voltage on any single cell falls below 2�3 V or 2�0 V

Hardware protection:

During discharging, when any cell’s voltage falls below 2�0 V, the discharge

MOSFET turns OFF� Interrupt discharge current and under voltage protection

will recover when voltage reaches to 2�5V�

Carbest Bluetooth Batterie| Battery 81410

8

UK

NOTE!

Under-voltage protection creates an open circuit, removing voltage from the ter-

minals� With a lead-acid battery, ﬁnding no voltage at the terminals often indi-

cates the battery has reached the end of its life� With the LifePo4 module, low

voltage at the terminals typically means the cell protection circuitry has inter-

rupted current to protect the battery module� Simply connect the module to a

charger to restore voltage to the terminals�

OVER TEMPERATURE

A battery module has one temperature sensor to measure every cell bank’s

temperature and one PCBA to measure MOSFET temperature�

• The ideal hardware over temperature protection threshold of cell is around

+65°C

• The ideal hardware over temperature protection threshold of MOSFET is

around +85°C

During charging and discharging, when any cell banks temperature >60°C,

software over temperature protection appears, charge and discharges MOS-

FETS turn OFF� When any cell banks temperature < 55°C, over temperature

protection disappear, charge and discharges MOSFETS turn ON again�

When any cell banks temperature > 65°C, hardware over temperature protec-

tion appear, charge and discharge MOSFETS turn OFF� When the temperature

decreases to 55°C, the charge and discharge MOSFETS turn ON again�

BALANCING

Over time, the cells inside a battery pack diverge in both capacity and SOC�

An advantage of the module is the circuitry continuously monitors the capaci-

ty and SOC of each individual cell and balances the battery module to ensure

maximum capacity�

Carbest Blutooth Batterie| Battery 81410

9

UK

TROUBLESHOOTING

The LiFePO4 battery module is an extremely reliable battery module that pro-

vides greater useful life than comparable 12 V lead-acid batteries� Despite the

high reliability, you may encounter situations where the battery module does

not operate as expected� These situations are typically the result of misuse,

abuse or a non-optimal operating or storage environment� This chapter details

potential issues you may encounter with and the appropriate troubleshooting

procedures�

CHARGER TRIPS USING CC & CV

Problem

chargers trips when charging the battery module� This is due to the low impe-

dance of the module creating a current inrush�

Solution

Reset the charger and try again�

TERMINAL VOLTAGE ABSENT OR LOW

Problem

Using a multi-meter to check terminal voltage shows the terminal voltage is

low� Possible causes for this problem are:

• The voltage of a cell within the module dropped below 2�3 V, causing the

microprocessor to enable under-voltage protection�

• The module overheated, causing the microprocessor to enable over-tempera-

ture protection�

Solution

To resolve situations where terminal voltage is absent or low:

1� Allow the battery to cool and then recheck terminal voltage�

2� Connect the battery to a charger to wake the battery and recover terminal volta-

ge� Depending on the module’s voltage and state of balance it may take up to

48 hours to completely charge and balance the module�

Carbest Bluetooth Batterie| Battery 81410

10

UK

BATTERY RAPIDLY DEPLETES ENERGY BETWEEN CHARGES

Problem

The battery module rapidly depletes its energy between charging� Possible cau-

ses for this problem are:

• The battery pack is out-of-balance�

• The battery pack has reached the end of its useful service life�

Solution

To resolve situations where the battery rapidly depletes its energy between

charges:

1� Use a CC & CV charger for 48 hours to balance the battery packs cells�

2� Replace the battery pack�

BATTERY CURRENT DISAPPEARS WHEN CHARGING

Problem

Battery current disappears when charging� Possible causes for this problem

are:

• The battery overheated, enabling over-temperature protection�

• The battery pack is out-of-balance�

• Charger voltage is too high�

Solution

To resolve situations where current disappears when charging:

1� Allow the battery to cool�

2� Use a CC & CV charger for 48 hours to balance the battery packs cells�

3� Reduce charger voltage to 14�6 V or less�

VOLTAGE DROPS ABRUPTLY

Problem

Battery voltage appears constant, then drops abruptly�

Solution

This is normal for this product� Constant voltage throughout the batterys SOC

ensures maximum usable life� Once the voltage of a cell within the module

drops below 2�3V, the module‘s circuitry enables under-voltage protection,

which creates an open circuit at the terminals�

APPENDIX A

GLOSSARY

This appendix contains the following sections:

TERMINOLOGY TABLE

The following table describes the terminology used in this document�

Carbest Blutooth Batterie| Battery 81410

11

UK

DEFINITIONS AND ACRONYMS

Term/Acronym Meaning

ACR Alternating Current Resistance

Ah Amp- Hour is a unit of measure of charge that can be sto-

red or delivered to/from a battery�

Batterie / Akku One or more cells which are electrically connected toge-

ther by permanent means, including case, terminals and

markings

BCM Battery Control Module – The Battery Control Module is

necessary to aggregate information from modules and com-

municate with the system the ESS resides in�

BMS Battery Management System – The Battery Management

System refer to the collection of electronics responsible for

monitoring and controlling the ESS�

C-Rate An electrical current corresponding to that which will ﬁll or

empty a cell

in one hour�

CC Constant Current – A method to charge or discharge a bat-

tery in which the current is held constant independent of

the battery‘s terminal voltage�

CE Consultants Europe – Tests and Certiﬁes safe and compli-

ant product operation in Europe�

Cell A single encased electrochemical unit (one positive and

one negative electrode) which exhibits a voltage differential

across two terminals�

CID Current Interrupt Device – A small device integrated into a

cell designed to interrupt the ﬂow of current through its ter-

minal when too much pressure or current exists in the cell�

CV Constant Voltage – A method to charge a battery in which

the terminal voltage is held constant and the current is deter-

mined by the power path impedance or some active current

limiting

DVT Design Veriﬁcation Testing

ESS Energy Storage System

iSOC Current based SOC algorithm

OCV Open Circuit Voltage – voltage reading of a battery when

there is no current going in or out of it�

vSOC Voltage based SOC algorithm

Carbest Bluetooth Batterie| Battery 81410

12

UK

PRODUCT SPECIFICATION 81410 100 AH/12.8 V

Electrical

Characteristics

Nominal Voltage 12�8 V

Nominal Capacity 100 Ah

Energy 1200 Wh

Cycle Life 2000cycles@0�2C 100% DOD

Standard

Charge

Charge current 20 A

Charge mode 0�2C5 A constant current (CC)

charge to 14�6 V, then constant

voltage (CV) 14�6 V charge

till charge current decline to

≤0�05 C5 A

Charging cut-off voltage 14�6 ± 0�2 V

Discharge Continuous Current 80 A

Peak discharge Current 160 A

Discharge cut-off voltage 10 V

Environmental Operation Temperature

Range

Charge: 0~45°C, Discharge:

-20~60°C at 60 ± 25% R� H�

Storage Temperature Range 0~45°C at 60 ± 25% R�H

Plastic Case ABS + PC

Dimensions (mm/in) 307 x168 x 211 mm

Weight (kg/lbs) 13�5 Kg

Terminal M8

Carbest Blutooth Batterie| Battery 81410

13

UK

BLUETOOTH FUNCTION

Before using this function, please install the app provided by our com-

pany on the mobile phone� This function can be used only after the

successful installation�

Please download via app store: “SmarTEC-BMS”

• Turn on Bluetooth connection button of mobile phone

• Search for the corresponding Bluetooth number to the battery, and click

»Connect« The Bluetooth number is marked on the battery housing�

• After successful connection, you can see the battery related information

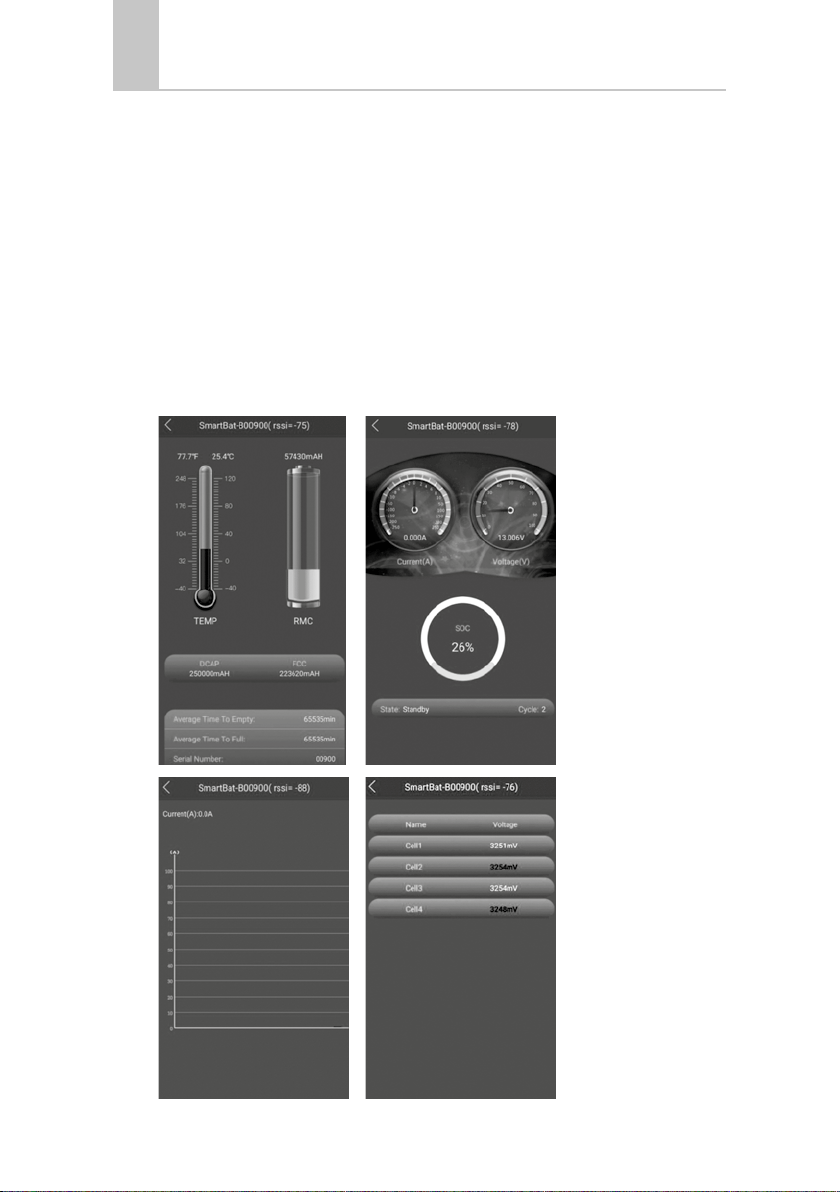

• The Bluetooth interface is as below:

Carbest Bluetooth Batterie| Battery 81410

14

UK

PRODUCT OUTLINE DRAWING

Negative Terminal Positive Terminal

Carbest Blutooth Batterie| Battery 81410

15

UK

SAFETY DATA SHEET

Safety Data Sheet according to Directive 1907/2006/EC, Article 31, Annex II, and TRGS 220 (Germany)

Product name: LiFePO4 Battery 12V/100Ah

Date of issue: 30 March, 2020

Date of last revision: Page 1/ 14

SECTION 1: Product and Company Identification

Trade name: LiFePO4 Battery 12V/100Ah

Product utilisation: Battery for living quarters in caravan trailers and mobile

homes.

Manufacturer/Supplier: Reimo Reisemobil-Center GmbH

D-63329 Egelsbach, Boschring 10, Germany

Ph.: +49 (0) 6103 4005-21 oder -22

Fax: +49 (0) 6150 8662 177

E-mail: [email protected]

Internet: www.reimo.com

Person in charge: Technical advice, ph.: +49 (0) 6103-4005-28

Fax: +49 (0) 6150 8662 177

Emergency telephone code: +49 (0) 6201 989 956 (Mr. Volker MÄller)

SECTION 2: Hazards Identification

2.1 Classification and labelling according to Regulation (EC) No 1272/2008 (Directive 1272/2008/EC)

None.

2.2 Information pertaining to particular dangers to man and the environment:

No harmful effects on human health or on the environment are to be expected, if the product is used as

specified and as long as the housing of the battery is tight.

Though, the product contains harmful ingredients, which are hermetically and impermeably sealed and

will stay sealed upon foreseeable extraneous causes.

According to the UN 38.3 Manual of Tests and Criteria ST/SG/AC.10/11/Rev. 6, Amend 1, the product

is tested for impermeability, for consistency against low pressure up to 116 hPa, for mechanical

compression up to 13 kN, for temperature stability between -42ÅC to +72ÅC, for vibration stability

between 7 Hz and 200 Hz, for shock stability up to 150 G (gavitational acceleration), for short circuit

stability (0.1 Ω at 57ÅC +/- 4ÅC), for electrical excess charge at 22V, etc. (Test Report No.

SZABB191226002-01 of Shenzhen Anbotek Compliance Laboratory Limited of 10 January, 2020).

There are considerable hazards for human health and for the environment (refer to SECTION 4, 11 and

12), if the ingredients are set free by fire, by exceptional extraneous causes, by targeted breakup of the

housing (refer also to SECTION 7) or whatsoever.

Ion batteries are hazardous waste, and are to be disposed specifically (refer to SECTION 13).

Combustible, may explode when burning or overheating.

SECTION 3: Composition / Information on Ingredients

3.1 Characterization: Lithium ion battery on the basis of phosphoric acid, iron(2+) lithium salt

(1:1:1) with copper and graphite as main components, electrolytes and

two different polymers for the housings of the cells (polypropylene) and

the battery (ABS rubber, refer also to SECTION 3.2). The battery

consists of 20 cells. The ingredients are hermetically and impermeably

sealed.

Carbest Bluetooth Batterie| Battery 81410

16

UK

SAFETY DATA SHEET

Safety Data Sheet according to Directive 1907/2006/EC, Article 31, Annex II, and TRGS 220 (Germany)

Product name: LiFePO4 Battery 12V/100Ah

Date of issue: 30 March, 2020

Date of last revision: Page 2/ 14

3.2 Ingredients:

Substance CAS No. EINECS No. Characterization Mass%

Phosphoric acid, iron(2+)

lithium salt (1:1:1)*) 15365-14-7 604-917-2 Mixed phosphate 22.1 - 31

Synonyms: Lithium iron(II) phosphate; ferrous lithium phosphate; Triphylite

Aluminium, foil 7429-90-5 231-072-3 Metal 18 - 19.5

Graphite, powder 7782-42-5 231-955-3 Crystalline Carbon 13.3 - 17.7

Phosphate(1-), hexa-

fluoro-, lithium (1:1) 21324-40-3 244-334-7 Fluorinated lithium phosphate 8.9 - 13.3

Synonyms: Lithium hexafluorophosphate(1-); Phosphate(1-), hexafluoro-, lithium

ABS rubber housing not applicable not applicable Copolymer acrylnitril/buta-

diene/styrene 11.8

Copper, foil 7440-50-8 231-159-6 Metal 6.2 - 11.5

Nickel plated sheet steel not applicable not applicable with nickel coated steel < 4.4

Polypropylene 9003-07-0 not existent Polymer of propylene < 4.4

Synonyms: 1-Propene, homopolymer; Propylene polymer

*) Not classified according to ECHA Substance Information of 7 March, 2020 (most notifiers),

https://echa.europa.eu/information-on-chemicals/cl-inventory-database/-/discli/details/91911

This product does not contain substances of very high concern according to directive 1907/2006/EC,

article 57.

3.3 Hazardous ingredients:

Classification of the pure ingredients according to Directive 1272/2008/EC (GHS), table 3

Common or chemical name:

Phosphate(1-), hexafluoro-, lithium (1:1):

Acute tox. (oral) 3 (Acute toxicity if ingested, Hazard Category 3): H301

Skin corrosion/irritation 1A, (Hazard Category 1A): H314

Eye Dam. 1, (Hazard Category 1): H318

STOT RE 1 [Specific organ toxicity (repeated exposure), Hazard

Category 1]: H372

Signal word: "Danger"

H301: Toxic if swallowed.

H314: Causes severe skin burns and eye damage.

H318: Causes serious eye damage (not necessary for labelling)

H372: Causes damage to organs (bones, teeth) through prolonged or repeated exposure.

Carbest Blutooth Batterie| Battery 81410

17

UK

SAFETY DATA SHEET

Safety Data Sheet according to Directive 1907/2006/EC, Article 31, Annex II, and TRGS 220 (Germany)

Product name: LiFePO4 Battery 12V/100Ah

Date of issue: 30 March, 2020

Date of last revision: Page 3/ 14

Classification according to ECHA Substance Information of 7 March, 2020,

https://echa.europa.eu/substance-information/-/substanceinfo/100.040.289

Nickel metall or nickel plated sheet steel are not classified.

The following classification (Directive 1272/2008/EC (GHS), table 3) is only valid for nickel

powder (e. g. if the nickel is welded or grinded, refer to SECTION 8.2, Remarks):

Carc. 2 (Carcinogenicity, Category 2)

Signal word: „Danger“

H351: Suspected of causing cancer.

STOT RE 1 [Specific target organ toxicity - (repeated exposure),

Category 1]

H372: Causes damage to organs through prolonged or repeated exposure.

Skin Sens. 1 (Skin Sensitization, Category 1)

H317: May cause an allergic skin reaction.

Aqu. chron. 3 (Chronic aquatic toxicity, Category 3)

H412: Harmful to aquatic life with long lasting effects (only if particle size < 1 mm).

SECTION 4: First Aid Measures

General information: As long as the housing of the battery is tight no first aid measures are

necessary.

If the housing of the battery is damaged and ingredients are leaking the

following first aid measures are appropriate:

Inhalation of aerosols

or vapours: Move the affected person into fresh air. If symptoms persist give oxygen or

artificial respiration and seek medical attention.

Skin: Wash skin with plenty of water and soap. Change contaminated clothing. If

symptoms persist seek medical attention.

Eyes: Rinse with plenty of water for at least 15 minutes. If symptoms persist seek

medical attention.

Ingestion: If the patient is conscious have him rinse his mouth with water, spit it out and

then have him drink water or milk. In case of persisting symptoms put him

in a recovery position and - if the patient is conscious - let him vomit. Seek

medical attention.

Information for doctor: None

SECTION 5: Fire Fighting Measures

General information: Most parts of the product are combustible including the housing (see also

„Special hazards“ below).

Carbest Bluetooth Batterie| Battery 81410

18

UK

SAFETY DATA SHEET

Safety Data Sheet according to Directive 1907/2006/EC, Article 31, Annex II, and TRGS 220 (Germany)

Product name: LiFePO4 Battery 12V/100Ah

Date of issue: 30 March, 2020

Date of last revision: Page 4/ 14

Extinguishing agents: Carbon dioxide, foam, dry chemical. Use water spray only if the housing

is tight and the battery is not loaded to prevent short circuit.

Not suitable extinguishing

agents for safety reasons: Water jet. Water in general, if the housing is damaged or the battery is

loaded and is not protected against short circuit.

Special hazards: In case of burning the battery might explode! In case of exposure above

80ÅC or in case of damage of the housing, the battery may leak or spout

vaporized electrolytes or their decomposed products, such as very toxic

fluorides and hydrofluoric acid, hydrocarbons, carbon monoxide and

phosphorous oxides. The electrolytes are partly inflammable and may

cause serious eye damage and severe skin burns by contact or by

aerosols, and severe irritation of the respiratory tract by inhaling aerosols

or by inhaling vapours specially when the product is burning.

Special protective

equipment for fire-fighters: Use self-contained breathing apparatus and protection clothes.

Further notice: In case of fire in the surroundings immediately remove battery to a safe

place or at least try to cool the battery, but take care of the possibility of

a short circuit by water.

SECTION 6: Accidental Measures after Release of Ingredients

General information: Only if the battery is damaged and ingredients are set free or after a

short circuit , accidental measures may be necessary.

Personal precaution:Leave the endangered area immediately and warn co-workers. Ventilate

the area until aerosols and vapours are gone before entering the area

with protective clothing, chemical resistant gloves (refer to SECTION

8.3) and safety goggles with side shield. Otherwise use fine dust respira-

tor (P3, identification colour: white) or a ventilated breathing hood.

Environmental precaution: Do not let the ingredients enter surface water, groundwater or soil.

Prevent large amounts of ingredients from entering the sewage system.

Methods for cleaning up: Prevent generation of aerosols. Pack solid parts into container to be

labelled. Take up liquids with liquid-adsorbent material (sand, clay, cat

litter, etc.). Fill contaminated adsorbent material into container. Finally

clean area with water and soap. Discharge contaminated material

according to SECTION 13.

SECTION 7: Handling and Storage

Handling: Under no circumstances, do not open the housing, do not throw the battery into fire,

prevent the battery from heating-up and from direct sunlight, do not cause short

circuit. If the battery becomes hot (< 80ÅC), remove it to a safe place or at least try to

cool the battery, but take care of the possibility of a short circuit by water, if the

battery is loaded. If the battery is heated above 80ÅC leave the endangered area

immediately and warn co-workers (refer to SECTION 5, „Special hazards“, and

SECTION 6, „Personal precaution“). Prevent battery from exceeding vibrations.

Carbest Blutooth Batterie| Battery 81410

19

UK

SAFETY DATA SHEET

Safety Data Sheet according to Directive 1907/2006/EC, Article 31, Annex II, and TRGS 220 (Germany)

Product name: LiFePO4 Battery 12V/100Ah

Date of issue: 30 March, 2020

Date of last revision: Page 5/ 14

Notes for pre-

vention of fire

and explosion: Prevent battery from heat above 80ÅC, and prevent short circuit.

Storage:Store the battery separated from other materials at a dry, cool and well ventilated

place between -20ÅC and 30ÅC and between 45% and 85% humidity. The higher the

temperature of storage the sooner the loading capacity will drop. Charge the battery

every 6 months to the amount specified by the manufacturer, even if the battery was

not used. Prevent short circuit by covering the electrical poles with plastics. Do not

store together with inflammable substances. Keep loaded and used batteries

separated. German VCI-class of storage: 11 (combustible solids, TRGS 510).

SECTION 8: Exposure Controls / Personal Protection

8.1 Technical protection: Opening of the housing of the battery should only be done by trained

personnel. In this case use closed plant with exhaust. Otherwise use at least

exhaust and monitor the occupational exposure limit. Avoid generation of

aerosols.

8.2 Ingredients with occupational exposure limit values, if ingredients of the battery are set free:

General Limit for Dusts

- CAS No.: Not applicable.

- Exposure limit value: 1.25 mg/m3alveolar dust or alveolar aerosols

10 mg/m3inhalable dust or aerosols

- Short term limit value: 2 (II)

- Origin: AGW

- BLV: Aluminium: 50 Ög/g Creatinine in urine after long-term exposure and

after working shift

- Remarks: C (MAK-KOMMISSION, Germany)

- Exposure limit value: 0.3 mg/m3alveolar dust or alveolar aerosols, not obligatory

- Short term limit value: 2 (II)

- Origin: Recommendation of the MAK-KOMMISSION, Germany

-Note: Employment medical examination is to be initiated, if contact of

phosphate(1-), hexafluoro-, lithium (1:1) with skin cannot be

excluded (GESTIS).

There are special exposure limit values for aerosols or dust of

metallic nickel (0.006 mg/m3, TRGS 900, refer also to SECTION 3),

and of metallic aluminium (1.5 mg/m3, MAK-Kommission of

Germany, refer to GESTIS). This is only valid, if the metallic

ingredients of nickel or aluminium are processed (e.g. welded or

grinded) in a way that aerosols are generated.

- Year: 2020

Explanations:

- AGW Exposure limit value (refer to TRGS 900, (Technical rules for

hazardous substances), Germany, last revision: GMBl 2020, p. 199-

200 [No. 9-10] of 13 March, 2020

- BLV: Biological Limit Value (refer to TRGS 903, Germany, last revision of

13 March, GMBl 2020, p. 200 [Nr. 9-10])

Carbest Bluetooth Batterie| Battery 81410

20

UK

SAFETY DATA SHEET

Safety Data Sheet according to Directive 1907/2006/EC, Article 31, Annex II, and TRGS 220 (Germany)

Product name: LiFePO4 Battery 12V/100Ah

Date of issue: 30 March, 2020

Date of last revision: Page 6/ 14

- Short term limit values: Exceeding factor X: Exposure may exceed the exposure

limit value by the factor X for not longer than 15 minutes. 4

measurements at intervals of 1 hour.

Exceeding factor =X=: Exposure must never exceed the

exposure limit value by more than the factor X (instantaneous

value).

(I): Category I: substances for which the exposure limit value

is based on local effects or sensitizing substances.

(II): Category II: substances effective by resorption.

- Remarks::H : Substances effective by resorption through skin

S = Sensitizing substance

Y, C (DFG): There is no teratogenic risk if the exposure limit value

and the BLV are maintained.

8.3 Personal Protection:

The following protection measures apply,if ingredients of the battery are set free:

Respiratory protection: Use respiratory protection apparatus or ventilated breathing hood.

Hand protection: If contact with hands cannot be avoided use protection gloves tested

according to DIN EN 374. Seek advice from manufacturers of

protection gloves. If gloves cannot be used for safety reasons (e. g.

while working at rotating machines) use skin-protective barrier

cream. Consult the company medical officer for the type of barrier

cream to be used.

Comment: In contrary to the European ordinance 1907/2006/EC

(REACH), it is not sufficient to specify only the protective glove

material. The break-through-times are dependent not only on the

material but also on the manufacturing technique. It is therefore

essential to consult the manufacturers of protective gloves. For the

ingredients of the battery the following materials should be

appropriate: for short-time contact (few minutes) rubber or plastic is

sufficient, for long-time contact use gloves of nitrile/latex rubber -

NBR (0.35 mm).

Eye protection: Safety glasses with side shield.

Skin protection: Use chemical resistant protective clothing if contamination of

clothing cannot be avoided. Change contaminated clothing

immediately.

General protective measures: Avoid contact with eyes and skin. Do not inhale aerosols or vapours.

Industrial hygiene: Wash hands or skin after contact immediately. Do not eat, drink,

smoke or take snuff at work.

SECTION 9: Physical and Chemical Properties

9.1 Appearance

Physical state: Solid.

Colour: Silver.

Odour: None.

Carbest Blutooth Batterie| Battery 81410

Carbest 81410 Installation instructions

Popular Batteries Pack manuals by other brands
