1
M8522-01 • 06/13/14 • © Casablanca Fan Company
Congratulations on purchasing
your new Casablanca® ceiling
fan! It will provide comfort
and performance in your home
or ofce for many years. This
installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity
to supply you with the best
ceiling fan available anywhere
in the world.
To register your fan, please visit:
www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.

www.CasablancaFanCo.com 1.888.227.2178
M8522-01 • 06/13/14 • © Casablanca Fan Company
www.CasablancaFanCo.com 1.888.227.21781.888.227.2178
What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip to
nearest wall or
obstruction 7 feet
from bottom
edge of blade
to the oor
Select a downrod length
Assess ceiling angle
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
1
2
3
Standard Downrod
for ceilings 8-10 feet high
Shorter Downrod
for fans installed close to ceiling
Longer Downrod
for ceilings 10 feet or higher
2
w.1 - To reduce the risk of re, electrical shock, or personal
injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,
use a qualied electrician.
c.2 - Use only Casablanca replacement parts.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.

www.CasablancaFanCo.com 1.888.227.2178
Tools Needed
Ladder
Power Drill
(optional)
9/64” Drill Bit
(optional)
Screwdrivers
Pliers Wire Strippers
If mounting to a support structure, you will also need these tools.
3
M8522-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches Wall
but NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common
If you have a at ceiling:
Hang your fan by a standard downrod (included).
Mounting Options
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
4
34OCEILING
WALL
OPTION
1
Standard
Mounting
OPTION 2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°
1.888.227.2178
4
M8522-01 • 06/13/14 • © Casablanca Fan Company

1.888.227.2178
www.CasablancaFanCo.com

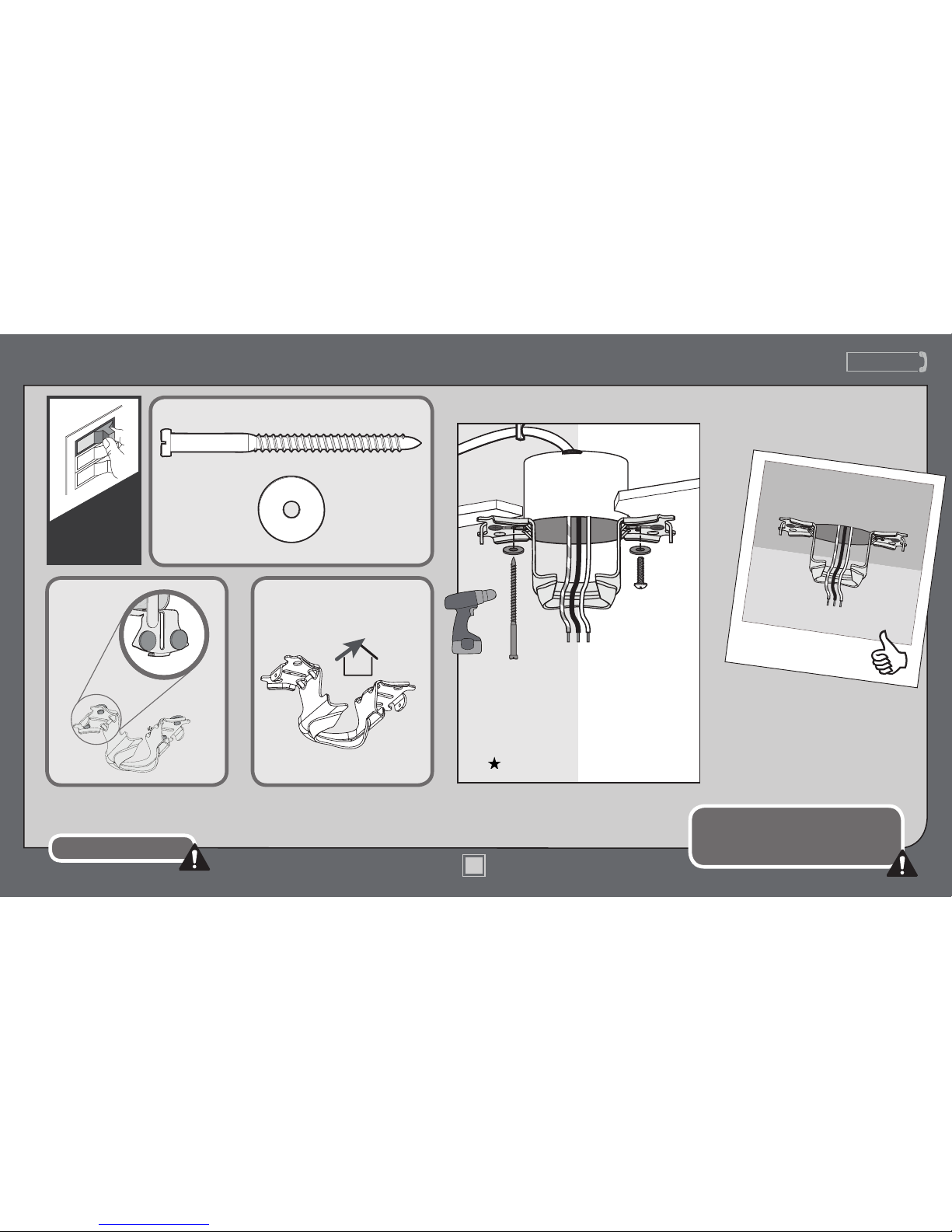

Ceiling Bracket
5
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
For angled ceilings, point
opening toward peak.
If you are unable to do this,
call Technical Support at
1-888-277-2178.
Make sure all four bumpers are
still attached.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
OFF
Turn Power
M8522-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Preparation 1.888.227.2178
D
I
S
C
A
R
D
K
E
E
P
!
Remove the shipping blocks from the
motor. Save the screws. They will be
needed for blade iron installation.
Note: Some fans will have a shipping
ring instead of shipping blocks. Please
remove the ring and save the screws.

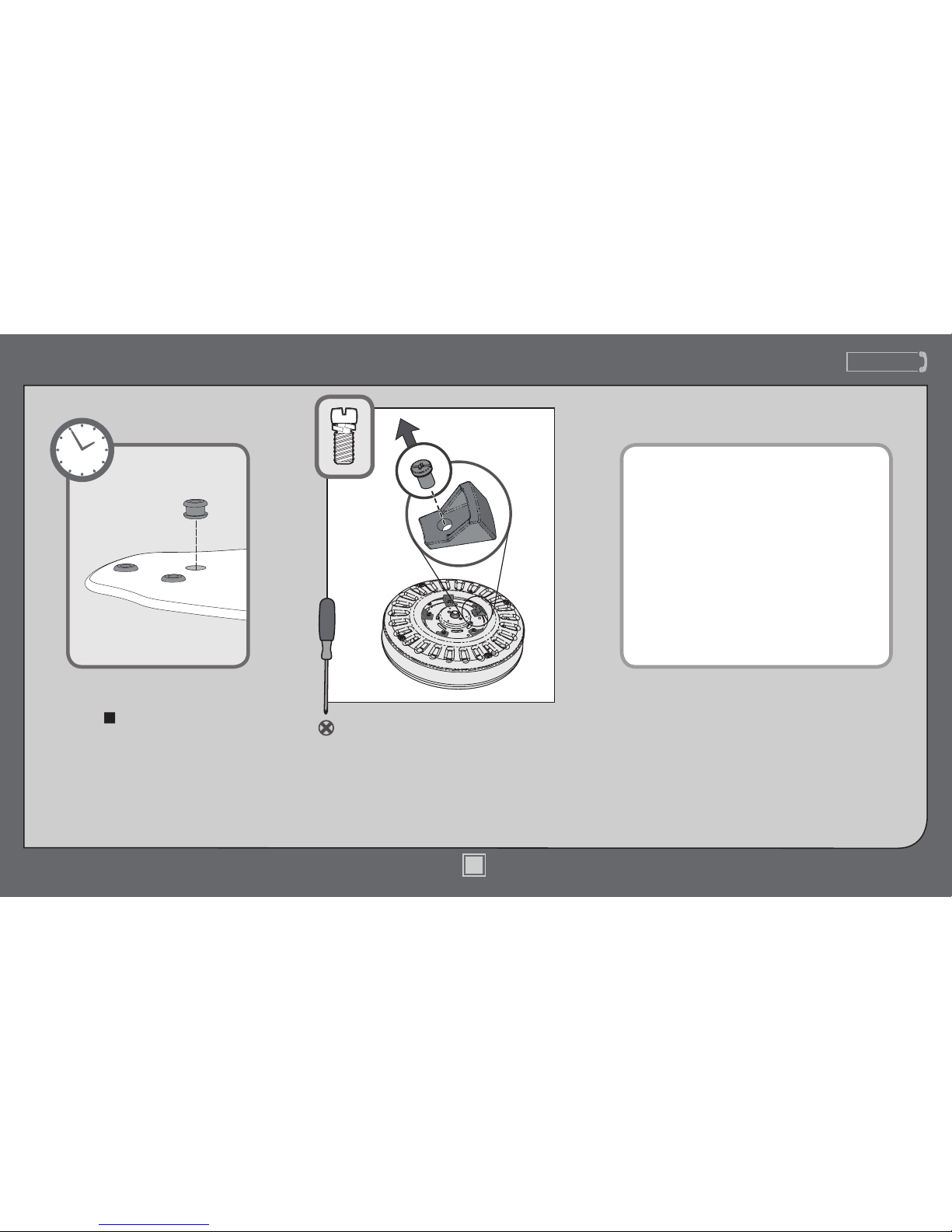

Time Saver Tip: Get a helper
to insert grommets, found in
the hardware bag, into the
blades while you’re doing the
next couple of steps.
If you are installing multiple remote-controlled
fans on the same circuit breaker,
you may need to perform a few extra steps to
prevent interference or faulty operation of your
remote controls.
Go to www.CasablancaFanCo.com/FAQs and click
“How do I properly install multiple remote-
controlled fans?” for more information.
6
M8522-01 • 06/13/14 • © Casablanca Fan Company

1.888.227.2178
Downrod
Slide
Slide
1 2 3 4 5
678910
Sold Separately
Included
Longer
Downrod
for angled
ceilings or
ceilings 10’ or
higher
Shorter
Downrod
for fans installed
close to ceiling
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Option 3
skip to next page

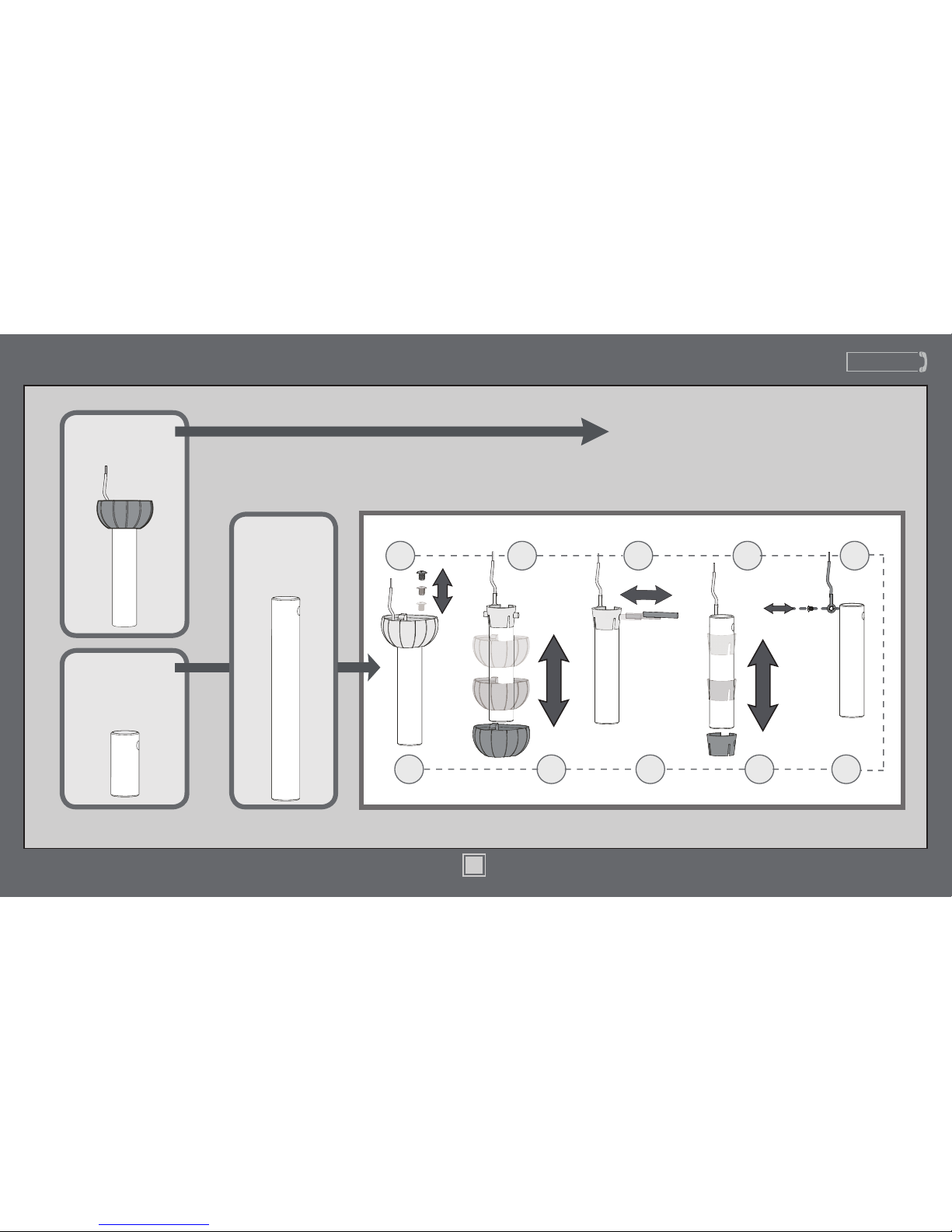

If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
Steps 6-10 to reassemble with new pipe
Included (pre-assembled)
www.CasablancaFanCo.com
M8522-01 • 06/13/14 • © Casablanca Fan Company
7

KEEP!
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)

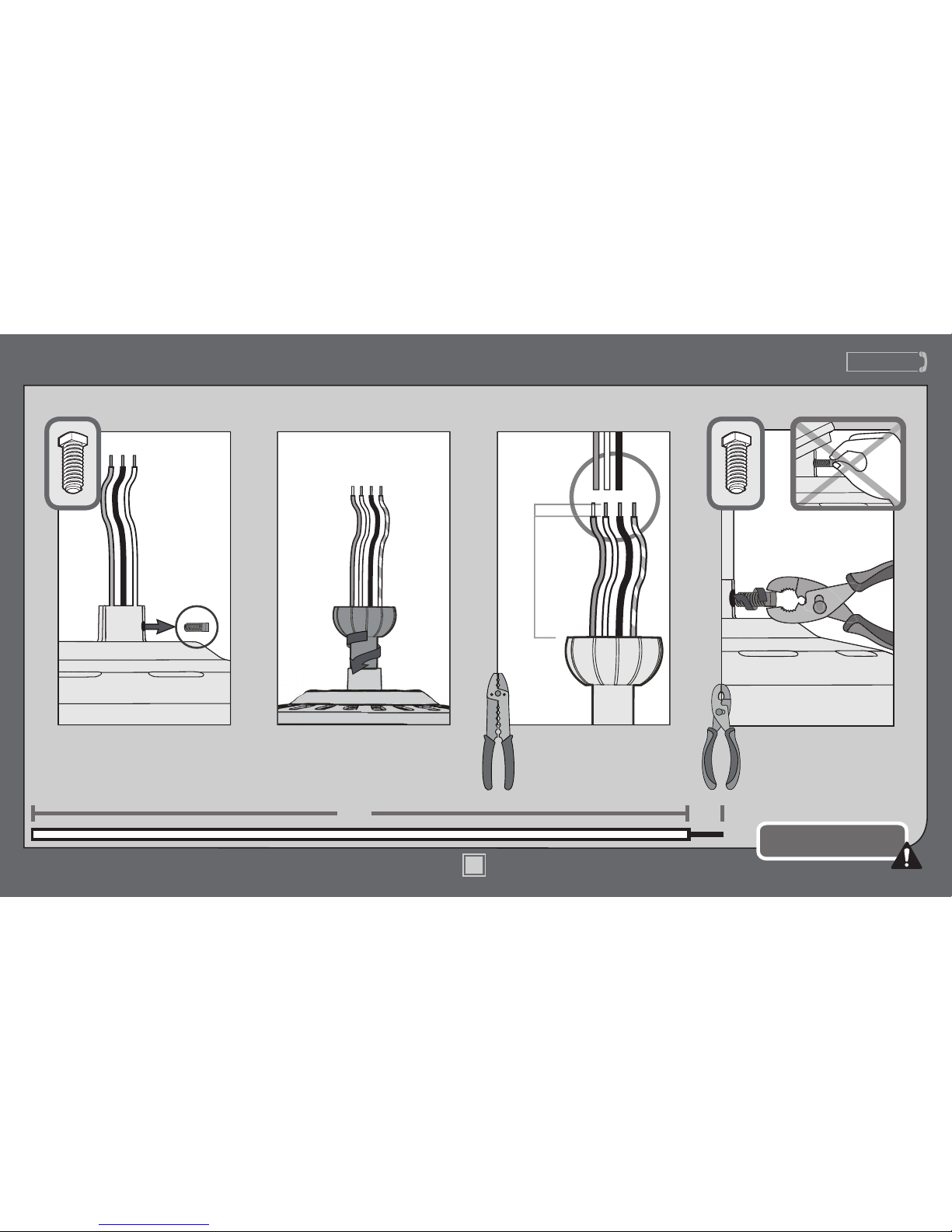

Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Downrod (continued)
8” 3/8”
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
If the setscrew is not tightened
securely, the fan may fall.
K
E
E
P
!
1.888.227.2178
www.CasablancaFanCo.com
M8522-01 • 06/13/14 • © Casablanca Fan Company
8

www.CasablancaFanCo.com 1.888.227.2178
9
M8522-01 • 06/13/14 • © Casablanca Fan Company
Downrod (continued)
Put the wires and downrod through the canopy.
Let the canopy sit loosely on top of the fan.
DO NOT PICK THE FAN UP BY THE
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.

www.CasablancaFanCo.com 1.888.227.2178
Wiring
F
R
O
M
R
E
C
E
I
V
E
R
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
Using an orange wire
connector from
the hardware bag,
connect the three
grounding wires
(green, green/yellow
stripe, or bare copper)
coming from the ceiling,
downrod, and hanging
bracket.
green/yellow stripe (grounding)
green/yellow stripe
green/yellow stripe
white black
blue
white (common out) black (fan out) blue (light out)
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Note: To connect the wires,
hold the bare metal leads
together and place a wire
connector over them, then twist
clockwise until tight.
Using the blue wire
connectors from the remote
control hardware bag,
connect the white wire
from the receiver (marked
“common out”) to the white
wire from fan. Connect the
black wire from the receiver
(marked “fan out”) to the
black wire from the fan.
Connect the blue wire from
the receiver (marked ”light
out”) to the blue wire from
the fan. The red wire from
the receiver will not be used,
it has a pre-installed wire
terminator.
F
R
O
M
F
A
N
F
R
O
M
F
A
N
Refer to CAUTION c.1 on pg. 2
F
R
O
M
R
E
C
E
I
V
E
R
Using an orange wire
connector from
the hardware bag,
connect the black wire
(ungrounded) from the
ceiling to the black wire
from the receiver (marked
“live in”). Connect the
white wire (grounded)
from the ceiling to
the white wire from
the receiver (marked
“neutral in” or
“common in”).
F
R
O
M
C
E
I
L
I
N
G
black (ungrounded) white (grounded) white (neutral in)
black (live in)
10
M8522-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

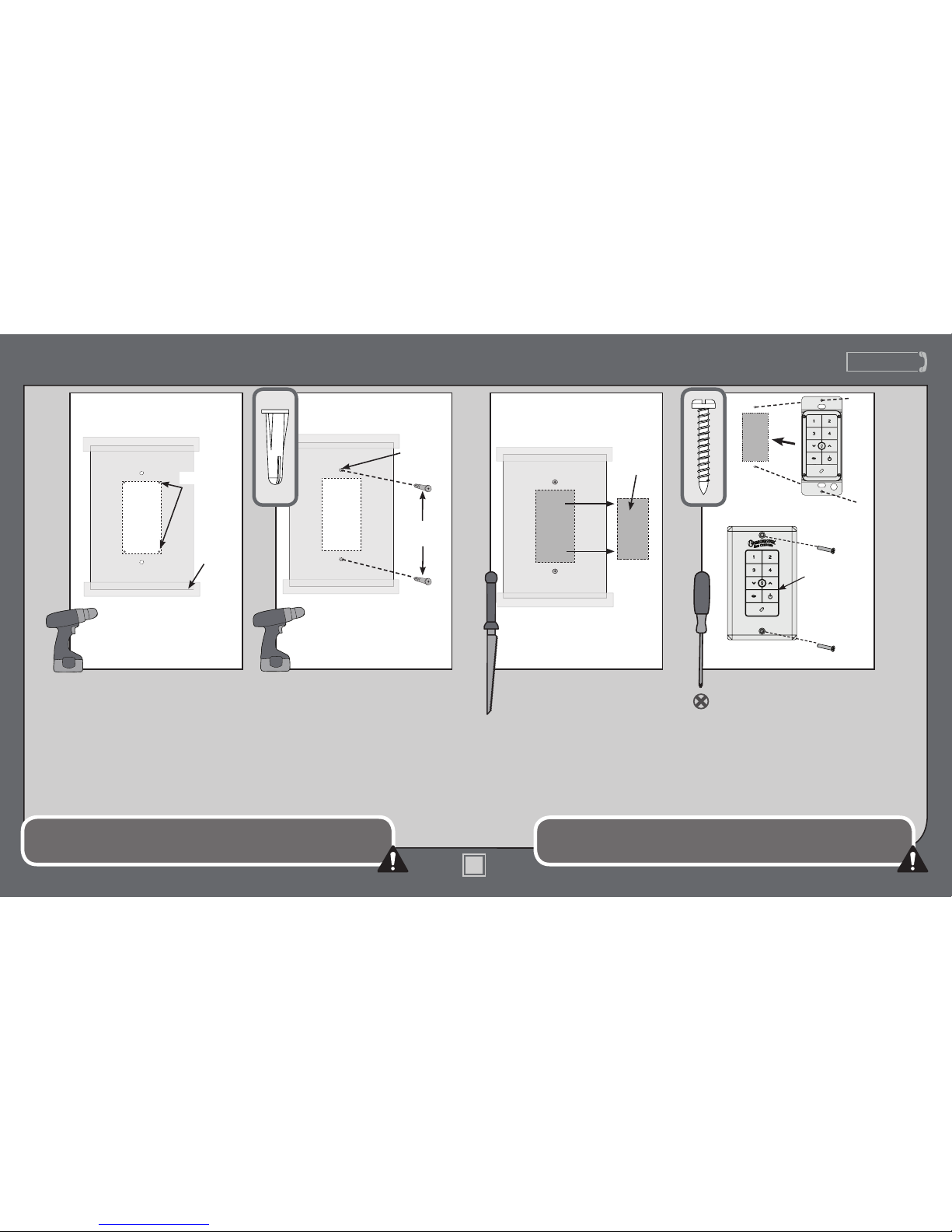

1. Using a 9/64 drill bit, drill a hole
in each screw cut-out on the wall
control template.
2. Using a hammer, tap a drywall
anchor found in the wall control
hardware bag into each hole
until the drywall anchor is ush
with the wall.
1. Using a drywall punch saw,
cut out the interior shape of
the template using one of
the four drilled corners as a
starting point.
2. Remove the template and the
cut-out section of drywall.
1. Insert the wall control into the
dry wall cut out.
2. Align the screw holes in the wall
control with the drywall anchors.
3. Install the cover plate using
a Phillips Head screwdriver
to secure the two cover plate
screws found in the wall control
hardware bag through the wall
control and into the drywall
anchors.
Wall Control
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
If you are using a outlet box for wall control installation, the wires coming from the wall
control must be grounded using the attached green wire. If not placed in an outlet box, cap
the green wire coming from the wall control with an included wire nut.
1. Tape the provided wall control
template with painter’s tape at
the desired installation area.
2. Drill holes inside the four
corners of the template.
Note: Make sure the wall
control template is level before
proceeding to the next step.
Template
Drywall
Before
After
Cover Plate
Template
Drill Holes
Painter’s
Tape Template
Drywall
Anchors
Screw
Cut-Out
11
M8522-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
12
M8522-01 • 06/13/14 • © Casablanca Fan Company
Canopy
Note: Fan style may vary.
Lift the canopy into place so that
the screw holes are aligned.
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Screw
Holes
Insert the two canopy screws
found in the hardware bag.

www.CasablancaFanCo.com 1.888.227.2178
M8522-01 • 06/13/14 • © Casablanca Fan Company

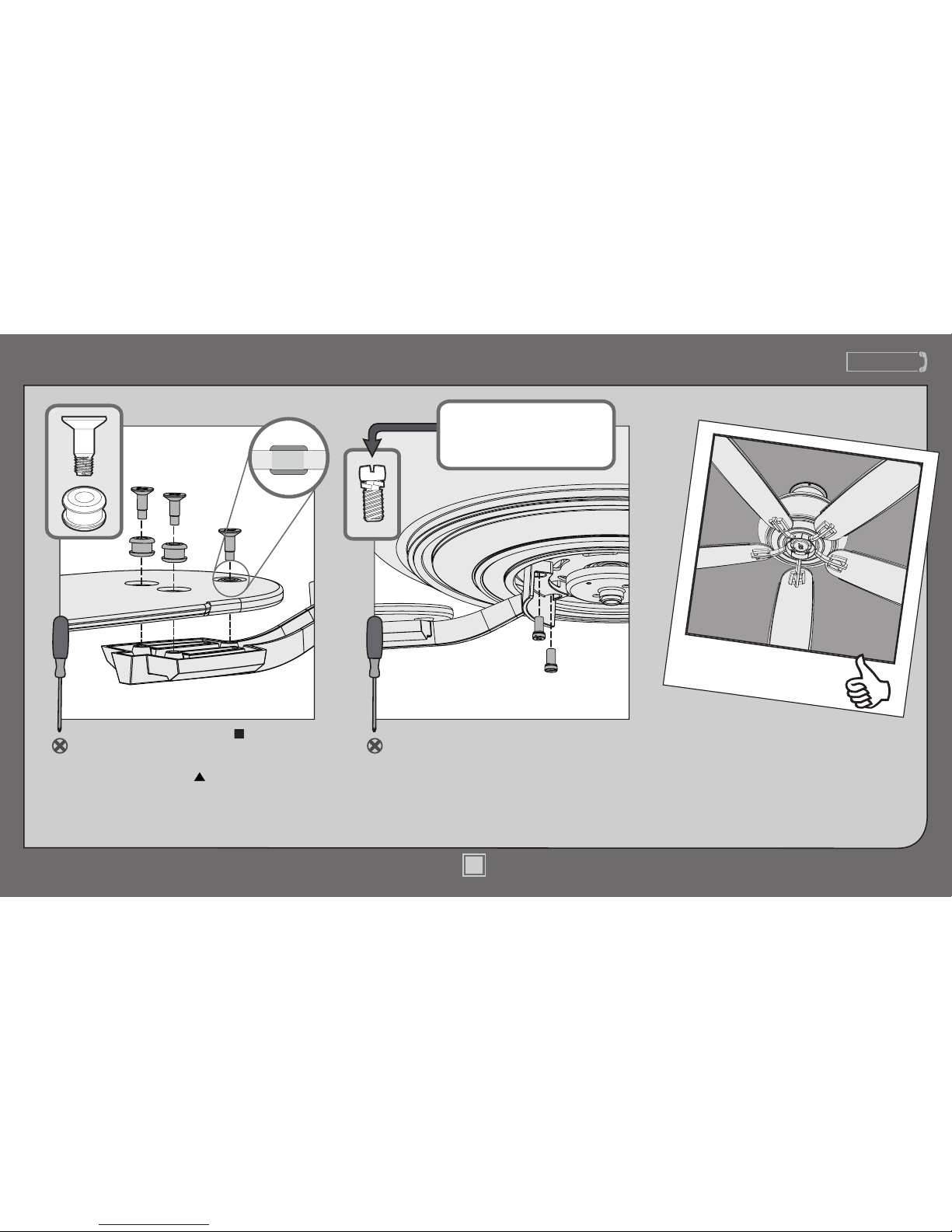

Blades
13
Insert grommets found in the hardware
bag into the holes in the blades, then
secure each blade to a blade iron with
screws found in the hardware bag.
Remember the screws that
you kept after removing the
shipping blocks (page 6)? You
need them for this step.
Lightly attach the blade irons to the
motor with the blade iron armature
screws, then securely tighten after both
screws are attached.

www.CasablancaFanCo.com 1.888.227.2178
Switch Housing
Make sure the upper switch housing is securely
attached to the mounting plate. Failure to properly
secure all 3 assembly screws could result in the switch
housing xture falling.
Feed the wire plug through the center
hole of the upper switch housing, then
wrap keyhole slots around the screws and
twist counterclockwise.
Screw two housing assembly screws
from the hardware bag halfway into
the motor housing. It does not matter
which two screw holes you choose.
Insert the third screw, found in
the hardware bag, into place and then
tighten all three screws.
14
M8522-01 • 06/13/14 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178

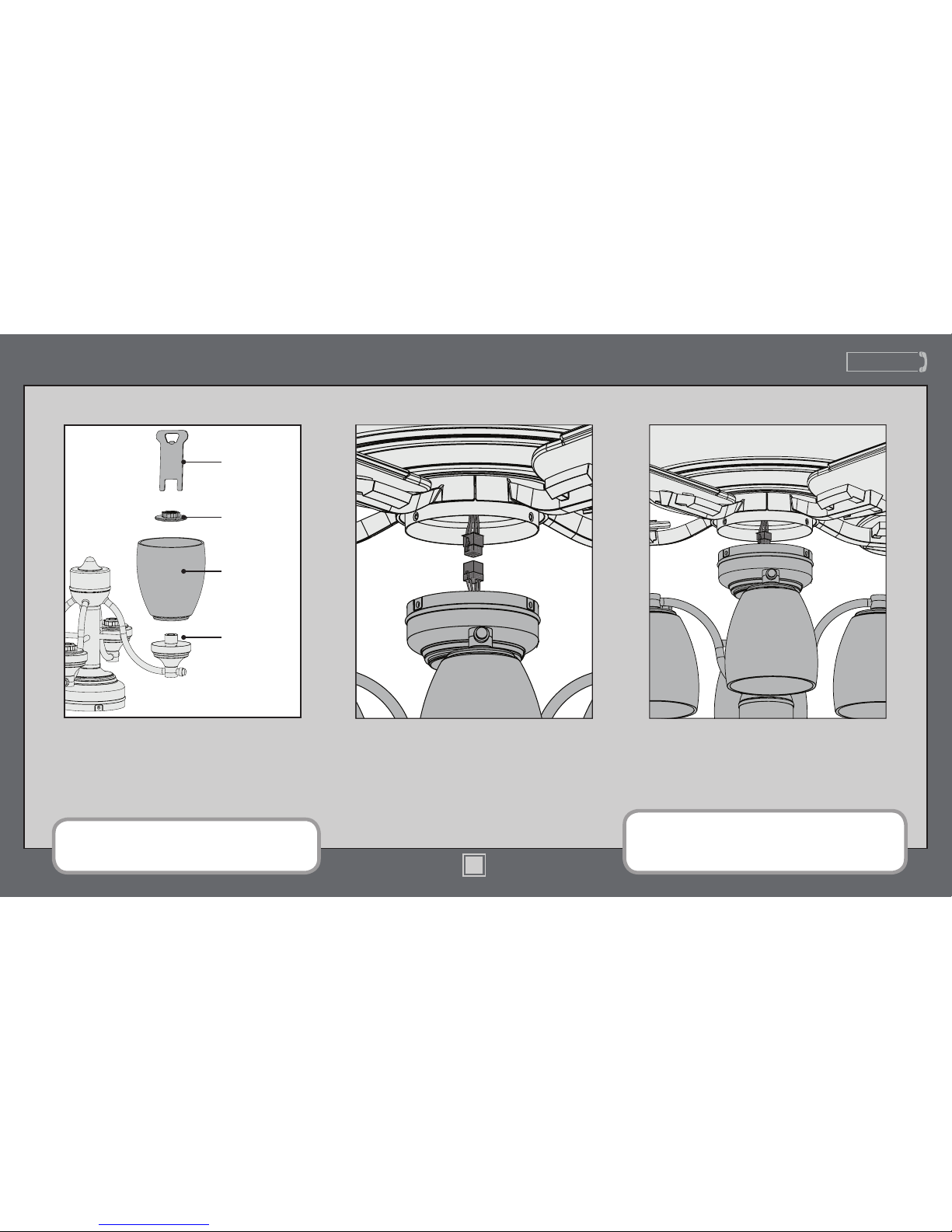

Light Kit
Connect the plugs from the upper and
lower switch housings. Make sure to line up
the colored markings on the connectors.
Lift the lower switch housing up and align
the screw holes in the upper and lower
switch housings.
To install each shade, remove the socket
ring from the socket. Insert the shade
onto the socket and install the socket
ring. Tighten each socket ring by turning
clockwise with the socket ring tool.
Shade
Socket
Socket Ring
Socket
Ring Tool
Want to install your fan without a light kit?
Go to www.CasablancaFanCo.com/FAQs and click
“How do I install my fan without the light kit?”
Note: In compliance with US federal energy regulations, this ceiling
fan contains a device that restricts its light output. Exceeding the
wattage limit marked on the MAX wattage sticker afxed to the
light socket(s) may result in re hazard or improper operation.
M8522-01 • 06/13/14 • © Casablanca Fan Company
15

www.CasablancaFanCo.com 1.888.227.2178
Light Kit (continued)
Make sure the lower switch housing is securely attached to
the upper switch housing. Failure to properly secure all 3
assembly screws could result in the light xture falling.
Install the three switch housing
screws, found in the hardware
bag. Tighten all three screws securely.
CONGRATULATIONS!
YOU’RE DONE!
Install a bulb into each of the sockets.
When necessary, replace with bulbs of
the same type and wattage. See next page for fan
operation instructions.
M8522-01 • 06/13/14 • © Casablanca Fan Company
16

www.CasablancaFanCo.com 1.888.227.2178
17
M8522-01 • 06/13/14 • © Casablanca Fan Company
17
Operation
Fan
Power
4
Before operating the wall control, press on the
battery door to eject it. Unscrew the battery
holder. Insert the battery, found in the control
hardware bag, with the positive (+) side facing
downward. Reinstall the battery holder and
reinsert the battery door into the wall control.
Battery
Battery
Holder
Battery
Door
ON
Turn Power
Note: The remote must be paired before
the fan will operate.
Within 3 minutes of restoring power to the
fan, press both the Fan Off button and the
4 button for at least four seconds. Your fan
will turn on at the lowest speed to indicate
successful syncing. If it does not, turn off
power to your fan, wait one minute then try
again. If using the transmitter with multiple
fans, repeat this process for each fan.
If you are installing multiple remote-controlled fans on
the same circuit breaker, you may need to perform a few
extra steps to prevent interference or faulty operation of
your remote controls.
Go to www.CasablancaFanCo.com/FAQs and click
“How do I properly install multiple remote-controlled fans?”
for more information.

www.CasablancaFanCo.com 1.888.227.2178
18
M8522-01 • 06/13/14 • © Casablanca Fan Company
1.888.227.2178
Operation (continued)
Quickly press the up or down arrow
to turn the lights off and on. Hold
the up or down arrow to raise or
dim the light level. The reverse
button changes the direction that
the blades turn. The power button
turns the fan off and on.
Lights
Down
Fan
Speed
Reverse
Battery
Holder
Fan
Power
Lights
Up
Fan
Speed
(Low)
(High)
The reverse button on the wall
control changes the air ow
pattern. In warm weather, use
(a) downward air ow pattern.
In cold weather, use (b) upward
air ow pattern.
(a)
(b)
Reverse
Button
• Press the fan power button
off for at least three seconds to
initiate the Safe-Exit Mode.
• The lights will ash for visual
conrmation.
• The lights will stay on 50%
brightness for 20 seconds and
then begin to dim. After a total
of 30 seconds, the lights will be
completely off.
The Safe-Exit Program gives
you about thirty seconds of
light when you turn the lights
off to exit the room before the
lights go out.To use Safe-Exit:

www.CasablancaFanCo.com 1.888.227.2178
M8522-01 • 06/13/14 • © Casablanca Fan Company
19
Maintenance & Cleaning
For cleaning the fan, use soft brushes or
cloths to prevent scratching. Cleaning
products may damage the nishes.
Be sure to turn off
power to the fan
before performing
any maintenance or
relamping.
OFF
Turn Power
For questions regarding removing a light kit, call
customer service 1-888-227-2178.

www.CasablancaFanCo.com 1.888.227.2178
20
M8522-01 • 06/13/14 • © Casablanca Fan Company
Troubleshooting
Excessive wobbling
• Tighten all of the blade and
blade iron screws until they
are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
Fan doesn’t work
• Make sure power switch is on.
• Press a fan speed button (1-4).
• Check the wall control battery.
• Make sure that you have paired
the wall control.
• Check the circuit breaker to
ensure the power is turned on.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on page 10.
• Check the plug connection in
the switch housing.
Lights dim when turned on or
do not turn on at all.
• Make sure the wattage of the
light bulbs installed matches
the specications on the light
sockets.
Remote doesn’t work
• Install a fresh battery in the wall
control.
• Make sure you have paired the
remote.
AUTHORIZED SERVICE
CENTERS
For the most updated list of
Casablanca Authorized Service
Centers, visit
www.CasablancaFanCo.com or
call toll free 1-888-227-2178.
If you have multiple remotes or
multiple remote-controlled fans
installed on the same circuit
breaker and you are experiencing
interference or faulty operation of
your remote controls, please go to
www.CasablancaFanCo.com/FAQs
and click “How do I properly install
multiple remote-controlled fans?”
for information on how to correct
this issue.
