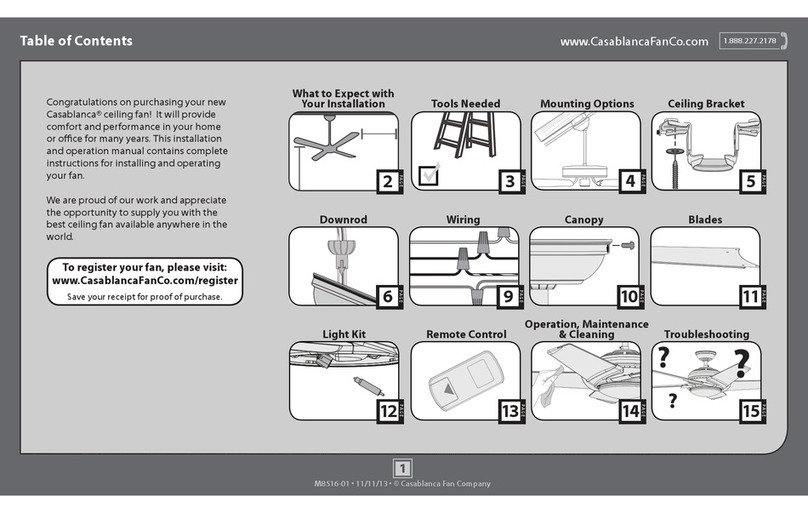

Table of Contents
PAGE
4
Mounting Options Ceiling Bracket
Congratulations on purchasing your new
Casablanca® ceiling fan! It will provide
comfort and performance in your home
or ofce for many years. This installation
and operation manual contains complete
instructions for installing and operating
your fan.
We are proud of our work and appreciate
the opportunity to supply you with the
best ceiling fan available anywhere in the
world.
To register your fan, please visit:
www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.
PAGE
11
Wall Control
1
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
www.CasablancaFanCo.com 1.888.227.2178
www.CasablancaFanCo.com 1.888.227.2178
What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip to
nearest wall or
obstruction 7 feet
from bottom
edge of blade
to the oor
Select a downrod length
w.1 - To reduce the risk of re, electrical shock, or personal
injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,
use a qualied electrician.
c.2 - Use only Casablanca replacement parts.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.
Assess ceiling angle
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
1
2
3
Standard Downrod
for ceilings 8-10 feet high
Shorter Downrod
for fans installed close to ceiling
Longer Downrod
for ceilings 10 feet or higher
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
2
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company
2

www.CasablancaFanCo.com 1.888.227.2178
3
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company
Tools Needed
Ladder Screwdrivers
Pliers Wire Strippers
Power Drill
(optional)
9/64” Drill Bit
(optional)
If mounting to a support structure, you will also need these tools.

www.CasablancaFanCo.com 1.888.227.2178
4
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches Wall
but NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common
If you have a at ceiling:
Hang your fan by a standard downrod (included).
Mounting Options
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
4
34OCEILING
WALL
OPTION
1
Standard
Mounting
OPTION 2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°
1.888.227.2178

www.CasablancaFanCo.com 1.888.227.21781.888.227.2178 www.CasablancaFanCo.com
Ceiling Bracket
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
For angled ceilings, point
opening toward peak.
If you are unable to do this,
call Technical Support at
1-888-277-2178.
Make sure all four bumpers are
still attached.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
OFF
Turn Power
5
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Downrod
Slide
Slide
1 2 3 4 5
678910
Sold Separately
Included
Longer
Downrod
for angled
ceilings or
ceilings 10’ or
higher
Shorter
Downrod
for fans installed
close to ceiling
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Option 3
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
Steps 6-10 to reassemble with new pipe
Included (pre-assembled)
6
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
KEEP!
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Downrod (continued)
8” 3/8”
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
If the setscrew is not tightened
securely, the fan may fall.
K
E
E
P
!
7
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
8
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company
Downrod (continued)
DO NOT PICK THE FAN UP BY THE
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
Put the wires and downrod through the canopy.
Let the canopy sit loosely on top of the fan.

www.CasablancaFanCo.com 1.888.227.2178
9
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company
Wiring
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Refer to CAUTION c.1 on pg. 2
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
green/yellow stripe (grounding)
green/yellow stripe
green/yellow stripe
Note: To connect the wires, hold
the bare metal leads together and
place a wire connector over them,
then twist clockwise until tight.
Using an orange wire connector
from the hardware bag:
Connect the 3 grounding wires
(green, green/yellow stripe, or bare
copper) coming from the ceiling,
downrod, and ceiling bracket.
F
R
O
M
F
A
N
Place the receiver on top of the downrod
assembly as shown.
Receiver

www.CasablancaFanCo.com 1.888.227.2178
10
M8514-01 • 04/16/15 • © 2013–2015 Casablanca Fan Company
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Refer to CAUTION c.1 on pg. 2
Wiring (continued)
Using the orange wire connectors
from the hardware bag:
• Connect the black (ungrounded)
wire from the ceiling to the black
wire from the receiver.
• Connect the white (grounded)
wire from the ceiling to both the
white wire from the receiver and
the white wire from the fan.
F
R
O
M
R
E
C
E
I
V
E
R
black blue
yellow blue
Using the orange wire connectors
from the remote control hardware bag:
• Connect the yellow wire from
the receiver to the black wire
from the fan.
• Connect the blue wire from the
receiver to the blue wire (or
possibly black with white stripe
wire) from the fan.
F
R
O
M
F
A
N
F
R
O
M
R
E
C
E
I
V
E
R
F
R
O
M
C
E
I
L
I
N
G
black (ungrounded) white (grounded)
black white
F
R
O
M
F
A
N
white
