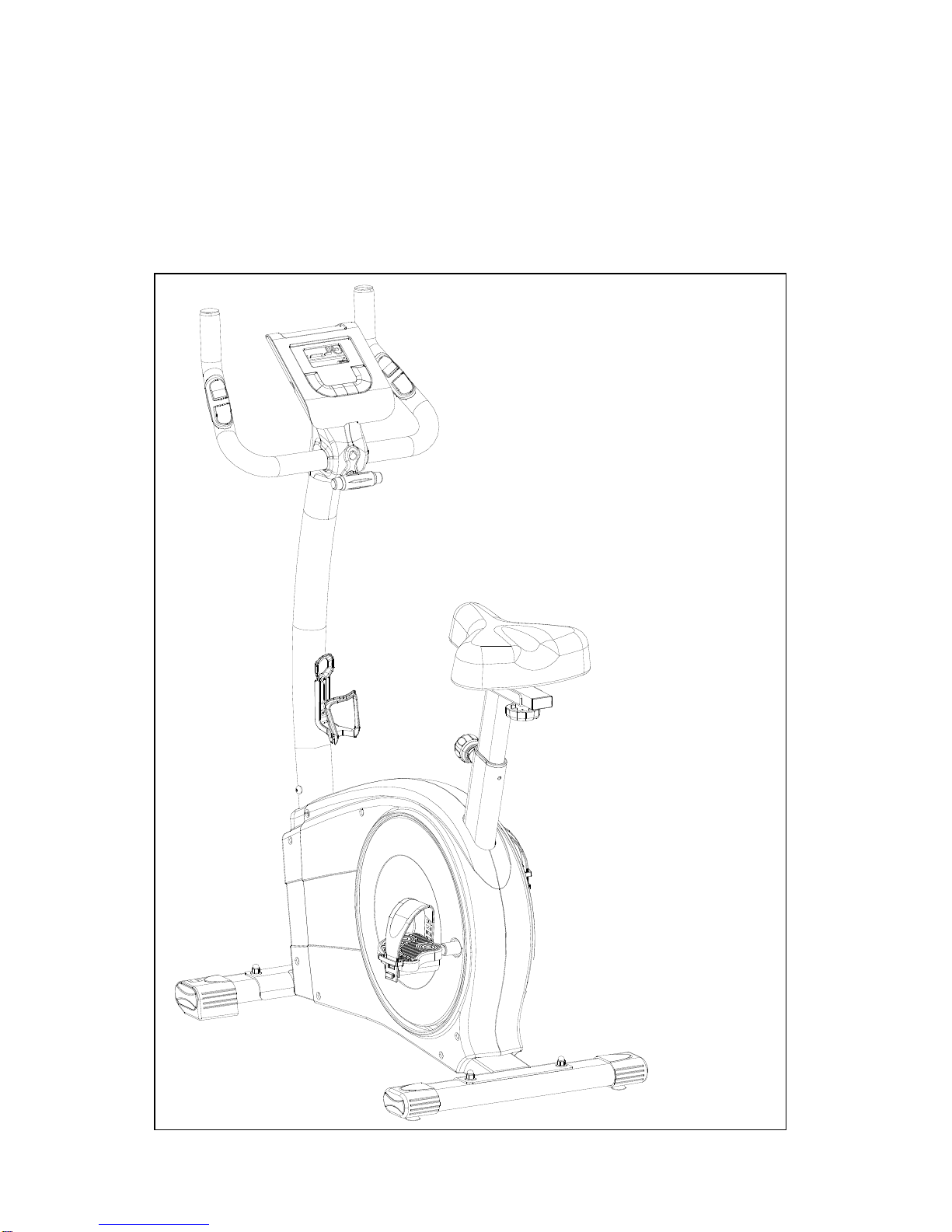

Casall EB200 User manual

Casall EB200
Bike
91001

Important: Please locate your serial number and record in the box below for service support
purposes.
Serial number here:


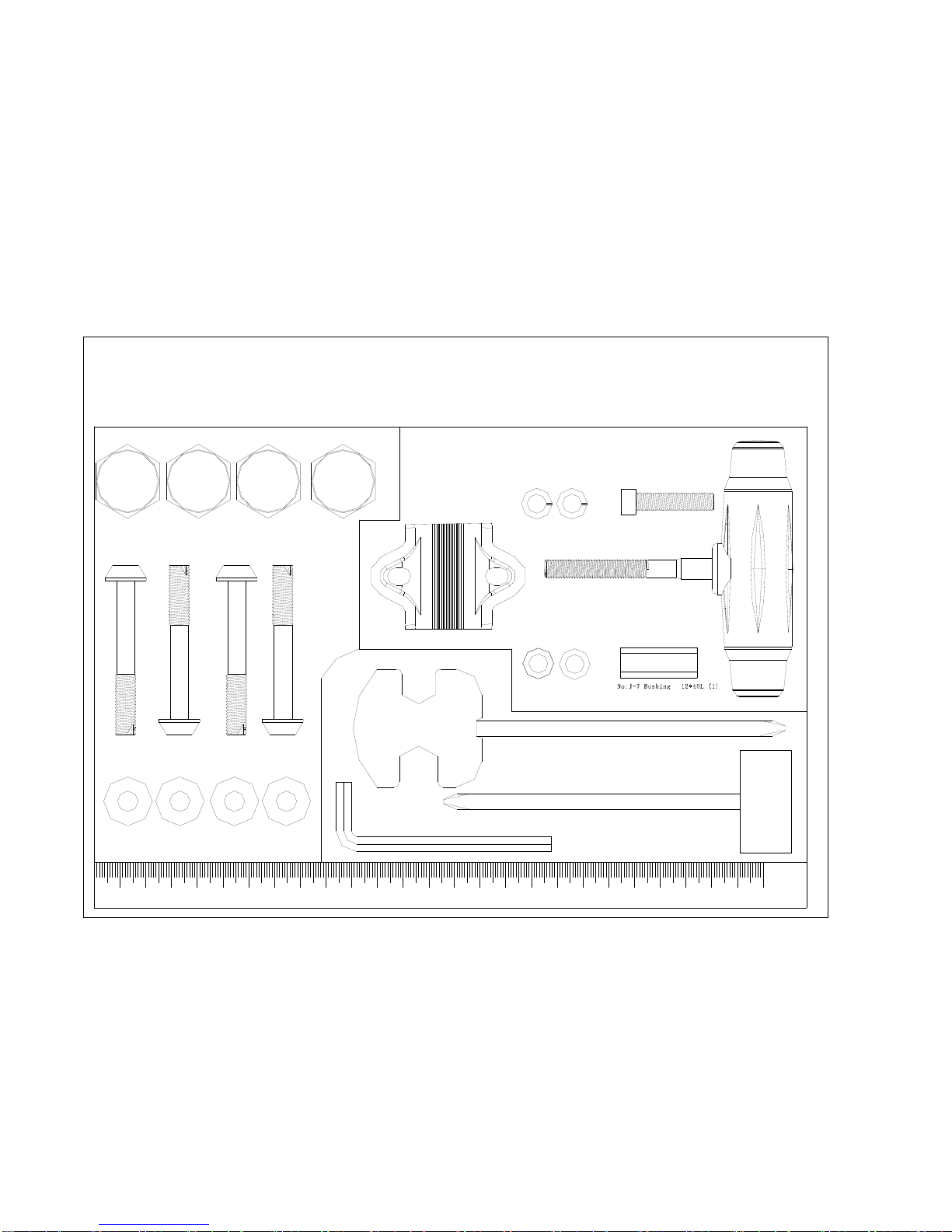

NO:J-1 Aorra Nut for M8 Bolt(4)
EB200
NO:J-2 Carriage Bolt M8*1.25*55L(4)
No:J-8 C-shape knob M7*55L(1)
No:J-6 Spring Washer
φ7*2t(2)
No:J-5 Regular Washer
φ7*1t(2)
(MM)
Allen Key(1)
No:J Metal cover (1)
No:J-4 Allen Bolt
M7*P1.0*30L (1)
No:J-4 C-shape knob M7*65L(1)
Screwdriver (1)
No:J-3 Curved Flat φ8xφ19x2t
Socket Wrench(1)
(Pedal Wrench)

Assembly Diagram

EXPLODED DIAGRAM
Socket Wrench(1)
(Pedal Wrench)
No:J-6 Sprin g Wash er
?7*2t(2)
No:J-5 Regular Washer
?7*1t(2)
Allen Key(1)
No:J Metal cover (1)
No:J-4 Alle n Bolt
M7*P1.0*30L (1)
Screwdriver (1)
No:J-3 Curve d Flat ?8* ?19 *2 t( 4)
No:J-7 Bushing φ12*40L (1)
EB200
NO:J-2 Carriage Bolt M8*1.25*55L(4)
NO:J-1 Aorra Nut for M8 Bolt(4)
No:J-8 C-shape knob M7*65L(1)

PARTS LIST
NO. Description Specifications Q'TY
A-1,A-2 COMPUTER & SCREW 1PC
B HANDLEBAR 1PC
B-1 HAND PULSE SET 1SET
B-2 FOAM GRIP 480xφ20x5.0m/m 1SET
B-3 CAP FOR HANDBLEBAR 1SET
B-4 HAND PULSE WIRE 550+550mm 1PC
C HANDLEBAR POST 1PC
C-1 COMPUTER CABLE (UPPER) 1PC
C-2 BOTTLE HOLDER 1PC
C-3 SCREW FOR R/L COVER M5xP0.8x14L 2PCS
C-4 REAR COVER FOR COMPUTER 1PC
C-5 FRONT COVER FOR COMPUTER 1PC
C-6 SCREW FOR BOTTLE HOLDER M5xP0.8x20L 2PCS
D MAIN FRAME 1PC
D-2 ALLEN BOLT FOR HAND POST M8*P1.25*16L(6m/m) 4PCS
D-3 SEMICIRCLE WASHER φ8xφ19x2t 4PCS
D-4 ADJUSTING KNOB FOR MAIN FRAME 1PC
D-5 BELT J6 1016m/m J6 1016m/m 1PC
D-6 BIG PULLEY 1PC
D-7 SHAFT 1PC
D-8 SCREW M8xP1.25x12Lx5t 3PCS
D-9 FLAT WASHER φ17.5xφ25x0.3t 2PCS
D-10 WAVE WASHER φ17.5xφ25x0.3t 1PC
D-11 C-TYPE RING φ17 1PC
D-12 BEARING 6203 (RS) 2PCS
D-13 PLASTIC BUSHING 1PC
D-14 SENSOR BOX 1PC
D-15 SCREW FOR SENSOR BOX M4x10L 1PC
D-16 SCREW FOR CHAIN COVER 3/16〃10PCS
D-17 SCREW FOR CHAIN COVER M4x50L 4PCS
D-18 CHAIN COVER (L) 1PC
D-19 CHAIN COVER ( R) 1PC
D-20 CROSS DISC (R ) 1PC
D-21 ROUND DISC 2PCS
D-22 NUT FOR DISC M10xP1.25x10T 2PCS
D-23 CAP FOR ROUND DISC 2PCS
D-24 SCREW FOR CROSS DISC M4x14L 8PCS
D-25 FLAT WASHER φ15xφ16x1t 8PCS

D-26 CROSS DISC (L) 1PC
E~E-12 FLYWHEEL SET 1SET
F-F FRONT STABILIZER SET 1SET
F-B REAR STABILIZER SET 1SET
G SEAT POST SET 1SET
G-1~G-5 SEAT SLIDER 1SET
G-6 SEAT 1PC
H-RL PEDAL 1SET
I~I-9 IDLER WHEEL SET 1SET
J~J-9 BOLTS & NUTS PACK 1SET
L ADAPTOR 1PC
M~M-13,D-1 GEAR BOX AND MAGNETIC SET 1PC

Step 1
Step 2
Pedal Assembly
1. Assemble the two Pedals (pt.H-R+L)
onto the Cross disc (pt.D-20 + D-26)
with a screw driver.
Remarks: Screw the left pedal’s spindle
counter-clockwise and the right pedal’s
spindle clockwise. Use a wrench (or
screwdriver) to screw the two spindles
completely.
4*
1Foot Tube Assembly
Attach the Front Stabilizer (pt.F-F)
to the Main Frame (pt.D) using
two M8xP1.25x55L carriage bolts
(pt.J-2),Flat washer (pt.J-3) and
nuts (pt.J-1).
Attach the Rear Stabilizer (pt.F-B)
to the Main Frame (pt.D) using
two M8xP1.25x55L carriage bolts
(pt.J-2),Flat washer (pt.J-3) and
nuts (pt.J-1).
L
R
2

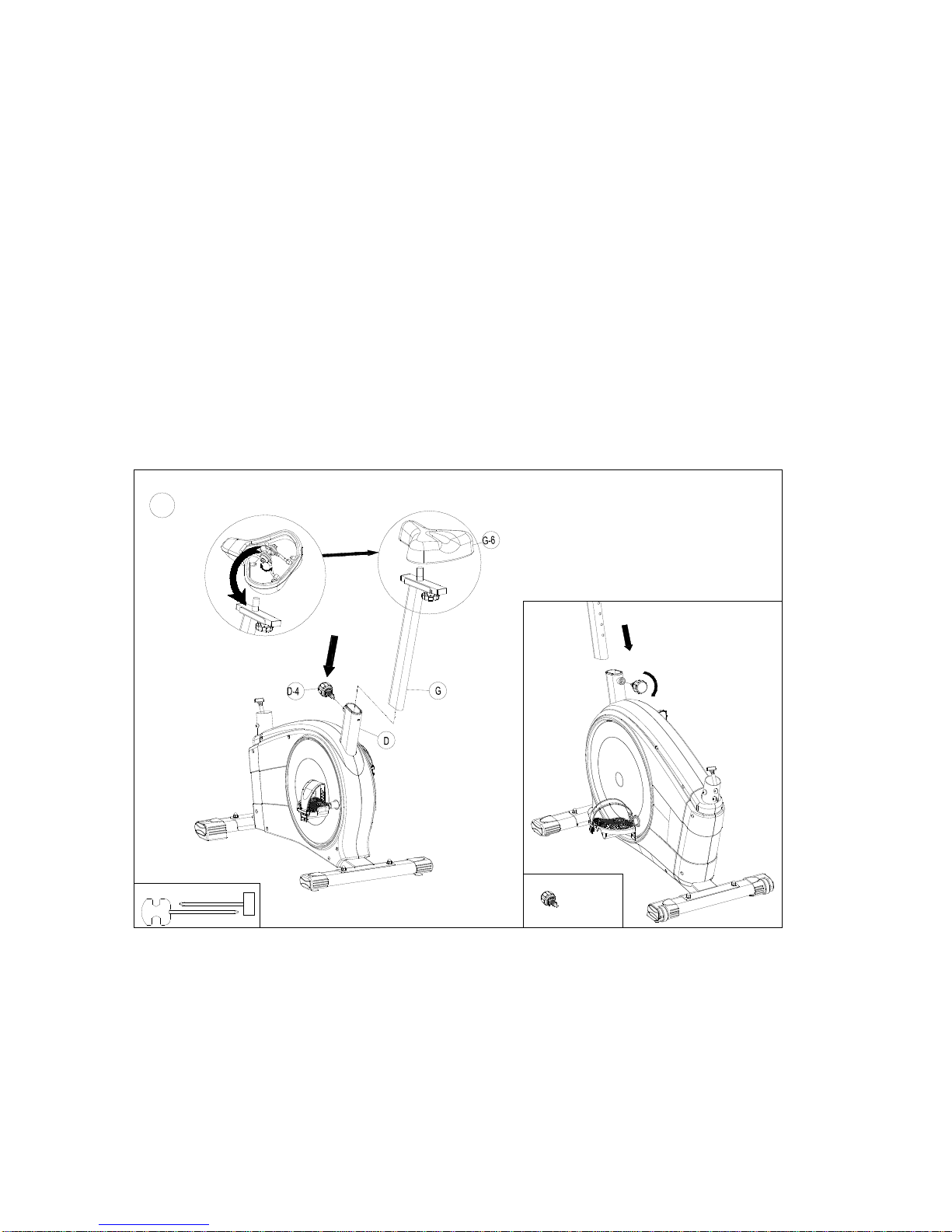

Step 3 --Seat Tube Assembly
1. Please remove the adjusting knob (pt.D-4) from the main frame (pt.D).
2. Assemble the seat (pt.G-6) to the Slider. The slider can be adjusted in different angles. Tighten
the two Nuts under the Seat using a screwdriver. In addition, the Slider can be adjusted in
horizontal level by loosing the knob.
2. Insert the seat post (pt.G) into the main frame (pt.D), then choose the desired position and
tighten the adjusting knob (pt.D-4). Be sure the knob is always tightened.
Remarks: When you have chosen a desired position, tighten the Seat Post Knob until you hear a
“click”.
M16
3

Step 4-Handlebar post Assembly
1. Please remove the M8*16L Allen bolt (pt.D-2) and Semicircle washers (pt.D-3) from the main
frame (pt.D)
2. Hold the Handlebar post (pt.C) and connect the Lower computer cable (pt.D-1) to the Upper
computer cable (pt. C-1)
3. Slide the Handlebar Post (pt.C) into the Main frame then fix it with four sets of M8*P1.25*16L
Allen screws (pt.D-2) and Semicircle washers (pt.D-3)..
Remarks: Do not screw one set of the M8*16L Allen Screws and Semicircle washers too firm at one
time. It is better to fix the four sets firmly at the same time because it helps you to change angles
and to fix easily.
4
4*

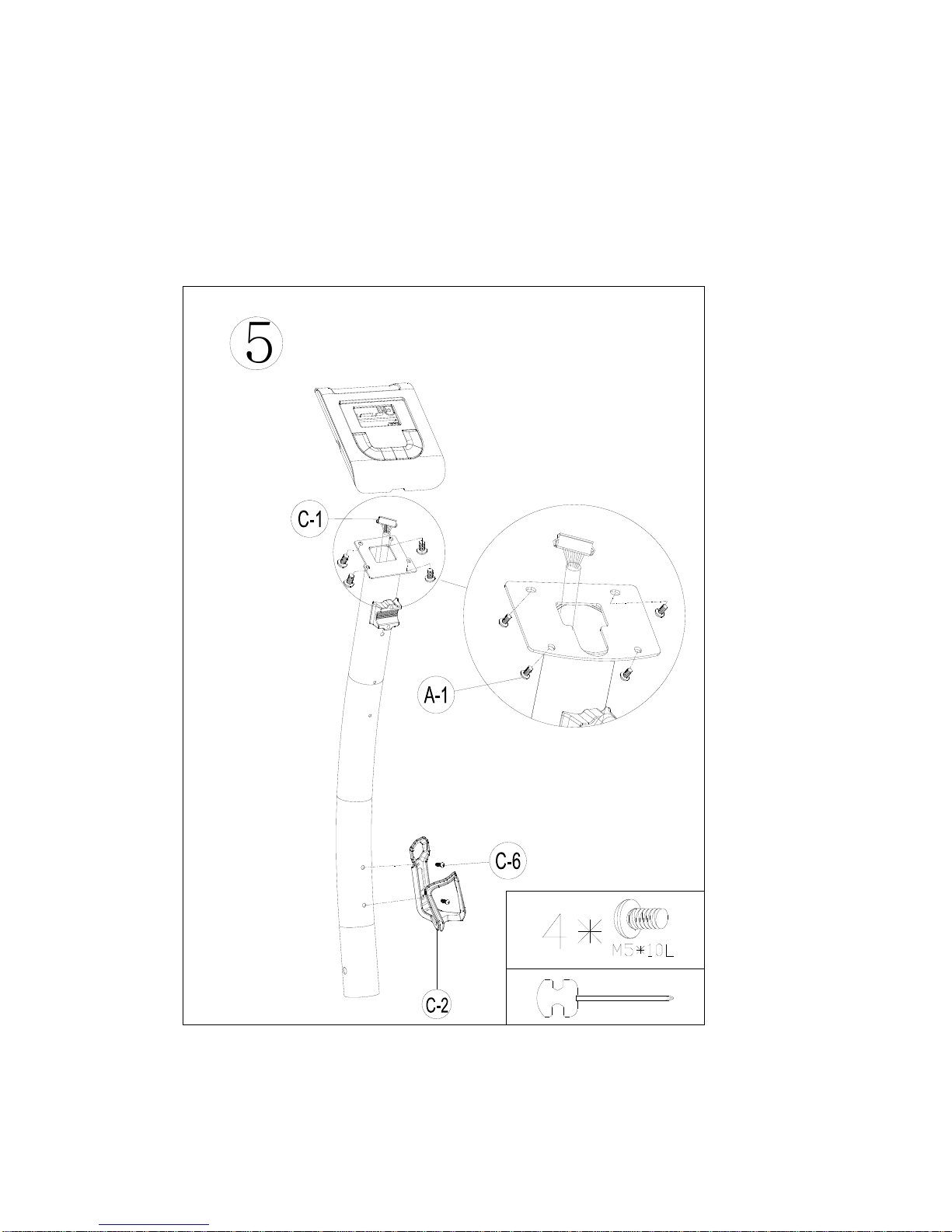

Step 5- Computer and Bottle holder Assembly
1. Connect the Computer cables (pt .C-1) to the Computer (pt.A). Then attach the Computer (pt .A)
to the Computer bracket with the enclosed Screws (pt. A-1).
2. Remove the pre-installed Screws (pt.C-6) on the handlebar post first, and then assemble the
Bottle holder (pt.C-2) using screw (pt. C-6).
5

Step 6- Handlebar Assembly
1. Attach the Handlebar (pt.B) to the Handlebar post (pt.C) using the Metal cover (pt.J). Fix firmly
with one Flat washer (pt.J-5), one Spring washer (pt.J-6) and one Fixing bolt (pt.J-4).
2. Attach the Rear cover (pt.C-4) to the Handlebar post (pt.C) using two of M3x14L Screws (pt.J-9)
and one of M5xP0.8x14L Screws (pt.C-3) .
3. Attach the Front cover (pt.C-5) to the Handlebar post (pt.C) using M5x14L Screws (pt.C-3) the
Handlebar T-Knob (pt.J-8) using one set of Flat washer (pt.J-5), Spring washer (pt.J-6) and one
Bushing (pt.J-7).
4. Connect as the Hand pulse wire (pt.B-4) to the computer (pt.A).
Step 7-
Connect the adaptor (L) to the DC hole (located on the back of the chain cover).
7*2T φ12*40L M7*55L 7*1T

INSTRUCTIONAL MANUAL FOR
CASALL EB200 CONSOLE

DISPLAY FUNCTIONS :
ITEM DESCRIPTION
TIME .Workout time displayed during exercise.
.Range 0:00 ~ 99:59
SPEED .Workout speed displayed during exercise.
.Range 0.0 ~ 99.9 KM/Hour
DISTANCE .Workout distance displayed during exercise.
.Range 0.00 ~ 99.90 KM
CALORIES .Burned calories during workout display.
.Range 0 ~ 990 Cals
* Calorie count on the display only serves as a general guideline. For detail calorie
consumption for each individual please consult a physician or a nutritionist.
PULSE .Pulse bpm displayed during exercise.
.Pulse alarm when over preset target pulse.
RPM .Rotation (of flywheel) per minute
.Range 0 ~ 999
*RPM may fluctuate up and down when workout intensity changes.
WATT .Workout power consumption
.Watt program is under Manual mode. User may preset watt value in Manual mode.
. Please note, if watt is preset in Manual mode, resistance level shall adjust
automatically according to workout power consumption.
. Setting range 0~350
MANUAL .Manual mode workout.
PROGRAM .12 PROGRAM selection.
USER .User creates resistance level profile.
Target HR .Target HR training mode.
KEY FUNCTION:
ITEM DESCRIPTION
UP ‧Increase resistance level
‧Setting selection.
DOWN ‧Decrease resistance level
‧Setting selection.
MODE ‧Confirm setting or selection.
RESET ‧Hold on pressing for 2 seconds, computer will reboot and start from user setting.
‧Reverse to main menu during presetting workout value or stop mode.
START/ STOP ‧Start or Stop workout.
RECOVERY ‧Test heart rate recovery status.

OPERATION:
POWER ON
Plug in power supply, computer will power on and display all segments on LCD for 2 seconds.
After 4 minutes without pedaling or pulse input, console will enter into power saving mode.
Press any key may wake the console up.
Manual Mode
Adjust resistance during workout manually.
Press START in main menu may start workout in manual mode.
You can also choose to into Mode function with following steps
1. Press UP or DOWN to select workout program, choose Manual and press MODE to enter.
2. Press UP or DOWN to preset TIME, DISTANCE, CALORIES, PULSE and press MODE to confirm.
3. Press START/STOP keys to start workout. Press UP or DOWN to adjust load level.
4. Press START/STOP keys to pause workout. Press RESET to reverse to main menu.
Program Mode
Choose a preset workout program.
1. Press UP or DOWN to select workout program, choose the Program and press MODE to enter. (Total
Program = 12)
2. Press UP or DOWN to preset TIME.
3. Press START/STOP key to start workout. Press UP or DOWN to adjust load level.
4. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
User Program Mode
Preset your own workout profile.
1. Press UP or DOWN to select workout program, choose User and press MODE to enter.

2. Press UP or DOWN to set load level of each column, and press MODE to next one.
3. Hold on pressing MODE to finish or quit setting.
4. Press UP or DOWN to preset workout TIME.
5. Press START/STOP key to start workout. Press UP or DOWN to adjust load level.
6. Press START/STOP key to pause workout. Press RESET to reverse to main menu.
H.R.C. mode
H.R.C. for the workout.
1. Press UP or DOWN to select workout program, choose H.R.C. and press MODE to enter.
2. Press UP or Down to select 55%.75%.90% or TAG (TARGET H.R.) (default: 100).
3. Press UP or DOWN to preset workout TIME.
4. Press START/STOP key to start or stop workout. Press RESET to reverse to main menu.
Watt program Mode (under Manual mode)
1. Preset UP or DOWN to preset WATT and press MODE to confirm.
2. During workout, resistance level will adjust according to workout power consumption.
User may not press UP or DOWN to change resistance level.
3. Press UP or DOWN to preset TIME.
4. Press START/STOP keys to start workout.
5. Press START/STOP keys to pause workout. Press RESET to reverse to main menu.

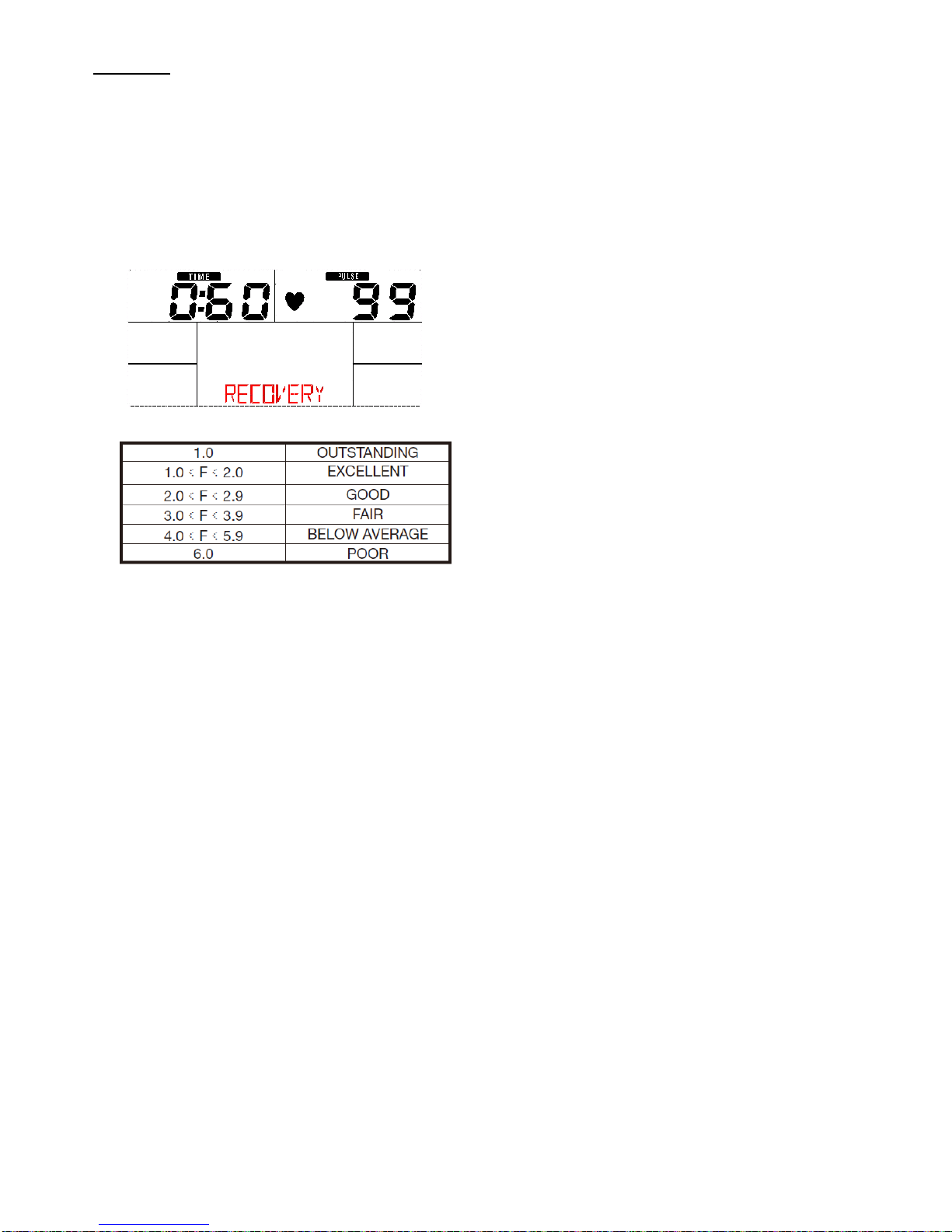

Recovery
Monitor heart rate recovery status.
1. User must be holding the handgrip. When the pulse value is displayed on the computer, press on the
RECOVERY key.
2. TIME shows "0:60" (seconds) and count down.
3. Computer will show F1 to F6 after count down to 0 to test heart rate recovery status.
<Trouble shooting>
When computer act abnormal, please plug out the adaptor and plug in again.
