Casall INFINITY 1.3B User manual

Casall INFINITY 1.3B
Bike
91021

Important: Please locate your serial number and record in the box below for service
support purposes.
Serial number here:

Serial number

I N F I N I T Y 1 . 3 B
No:J-6 C-shape knob M7*65L(1)
No:J-4 Spring Washer
7*2t(2)
No:J-2 Allen Bolt
M7*P1.0*30L (1)
No:J-8 Metal cover (1)
No:J-5 Bushing 12*40L (1)
No:J-3 Regular Washer
7*1t(2)
No:J-1 a
l l e n b o l t M 8 * 1 6 L ( 4 )
(Pedal Wrench)
Screwdriver (1)
Socket Wrench(1)
Allen Key(1)
N
o : J - 7 S c r e w M 3 * 1 4 L ( 2 )

Assembly Diagram
D-1
B-8
F-6

EXPLODED DIAGRAM

PARTS LIST
NO. Description Specifications Q'TY
A-1,A-2 COMPUTER & SCREW 1SET
A-3 CHEST BELT 1 PC
B-1 HANDLEBAR 1 PC
B-2 HAND PULSE SET 1SET
B-3 FOAM GRIP 270Lxφ23x5mm 2 PC
B-4 FOAM GRIP 360xφ23x5mm 2 PC
B-5 CAP FOR HAND PULSE WIRE 2 PC
B-6 CAP FOR HANDBLEBAR 2 PC
B-7 SCREW FOR HANDLEBAR M3x20L 2 PC
B-8 HAND PULSE WIRE 1 PC
C-1 HANDLEBAR POST 1 PC
C-2 COMPUTER CABLE (UPPER) 1 PC
C-3 BOTTLE HOLDER 1 PC
C-4 SCREW FOR F/R COVER M5xP0.8x14L 2 PC
C-5 REAR COVER FOR COMPUTER 1 PC
C-6 FRONT COVER FOR COMPUTER 1 PC
C-7 SCREW FOR BOTTLE HOLDER M5x20L 2 PC
D-1 MAIN FRAME 1 PC
D-3 ALLEN BOLT FOR HANDLEBAR POST M8x16 4 PC
D-4 FLAT WASHER φ12xφ19x1t 4 PC
D-5 ADJUSTING KNOB FOR MAIN FRAME 1 PC
D-6 BELT J6 1016m/m 1 PC
D-7 BIG PULLEY 1 PC
D-8 SHAFT 1 PC
D-9 SCREW M8xP1.25x12Lx5t 3 PC
D-10 FLAT WASHER φ17.5xφ25x0.3t 2 PC
D-11 Wave WASHER φ17.5xφ25x0.3t 1 PC
C-12 C-TYPE RING φ17 1 PC
D-13 BEARING 6203 (RS) 2 PC
D-14 PLASTIC BUSHING 1 PC
D-15 SENSOR BOX 1 PC
D-16 SCREW FOR SENSOR BOX M4x10L 1 PC
D-17 SCREW FOR CHAIN COVER M5x16L 4 PC
D-18 SCREW FOR CHAIN COVER M4x50L 5 PC
D-19 CHAIN COVER (L) 1 PC
D-20 CHAIN COVER ( R) 1 PC
D-21 CROSS DISC (R ) 1 PC

D-22 ROUND DISC 2 PC
D-23 NUT FOR DISC M10xP1.25x10T 2 PC
D-24 CAP FOR ROUND DISC 2 PC
D-25 SCREW FOR DISC M4x14L 8 PC
D-26 FLAT WASHER φ15xφ16x1t 8 PC
D-27 CROSS DISC (L) 1PC
D-28 CAP FOR CHAIN COVER SCREW HOLES OVAL 4 PC
D-29 CAP FOR CHAIN COVER SCREW HOLES ROUND 5 PC
D-30 COVER FOR HANDLEBAR POST 1 PC
D-31 SPRING RING 2 PC
D-32 BUSHING φ22xφ17x7.5mmL 1 PC
D-33 DC CABEL 1 PC
E-1~E-12 FLYWHEEL SET 1SET
F-1 FRONT STABILIZER SET 1 SET
F-6 REAR STABILIZER SET 1 SET
G-1 SEAT POST SET 1 SET
G-2~G-6 SEAT SLIDER 1SET
G-7 SEAT 1 PC
H-RL PEDAL 1SET
I-1~I-8 IDLER WHEEL.SET 1SET
J-1 ALLEN BOLT M8x16 4 PC
J-2 BOLT FOR HANDLEBAR M7xP1.0x30L 1PC
J-3 FLAT WASHER φ7xφ12x1t 2 PC
J-4 SPRING WASHER φ7x2t 2 PC
J-5 BUSHING φ7xφ12x40mmL 1 PC
J-6 T-KNOB 1 PC
J-7 SCREW FOR F/R COVER M3x14L 2 PC
J-8 METAL COVER 1 PC
K ,D-2 GEAR BOX AND MAGNETIC SET 1 PC
L ADAPTOR 1 PC

Step 1 Foot Tube Assembly
Attach the Front Stabilizer (pt.F-1) to the Main Frame (pt.D-1) using two M8x16 Allen bolt
(pt.J-1)
Attach the Rear Stabilizer (pt.F-6) to the Main Frame (pt.D-1) using two M8x16 Allen bolt
(pt.J-1).
Step 2 Pedal Assembly
1. Assemble the two Pedals (pt.H-R+L) onto the Cross disc (pt.D-21 + D-27) with a screw
driver.
Remarks: Screw the left pedal’s spindle counter-clockwise and the right pedal’s spindle
clockwise. Use a wrench (or screwdriver) to screw the two spindles completely.
M8*16L 1*
D-1
F-6
D-1
4*
1*

Step 3 --Seat Tube Assembly
1. Assemble the seat (pt.G-7) to the Slider. The Slider can be adjusted in different angles.
Tighten the two Nuts under the Seat using a screwdriver. In addition, the Slider can be
adjusted in horizontal level by loosing the Knob.
2. Insert the seat post (pt.G-1) into the main frame (pt.D-1), then choose the desired position
and tighten the knob. Be sure the knob is always tightened.
Remarks: When you have chosen a desired position, tighten the Seat Post Knob until you
hear a “click”.
M16
1*
D-1

Step 4-Handlebar post Assembly
1. Please remove the M8x16 Allen bolt (pt.D-3) and flat washers (pt.D-4) from the main frame
(pt.D-1)
2. Take the Handlebar post cover (pt.D-30) and pass it through Handlebar post (pt.C-1)
3. Hold the Handlebar post (pt.C-1) and connect the Lower computer cable (pt.D-2) to the
Upper computer cable (pt. C-2)
4. Slide the Handlebar Post (pt.C-1) into the Main frame then fix it with four sets of M8X16
Allen screws (pt.D-3) and Flat washers (pt.D-4)..
Remarks: Do not screw one set of the M8X16 Allen Screws and Flat washers too firm at one
time. It is better to fix the four sets firmly at the same time because it helps you to change
angles and to fix easily.
4* M8*16L Ø12*1T 1*
D-1

Step 5- Handlebar and Computer Assembly
1. Attach the Handlebar (pt.B-1) to the Handlebar post (pt.C-1) using the clamp (pt.J-8). Fix
firmly with one Flat washers (pt.J-3), one Spring washer (pt.J-4) and one Fixing bolt
(pt.J-2).
2. Pass the hand-pulse wire (pt.B-8) through the hole.
3. Connect the Computer cables (pt .C-2) and hand pulse wire (pt.B-8). Then attach the
Computer (pt .A-1) to the Computer bracket with the enclosed Screws (pt. A-2).
5
Ø7*2TØ7*1T M7*30L
4* M5*10L 1*
1*
B-8

Step 6- R/L Cover and Bottle holder Assembly
1. Attach the Rear cover (pt.C-5) using two of M3x14L Screws (pt.J-7) and one of
M5xP0.8x14L Screws (pt.C-4) .
2. Attach the Front cover (pt.C-6) using M5xP0.8x14L Screws (pt.C-4) the Handlebar
T-Knob (pt.J-6) using one set of Flat Washer (pt.J-3), Spring Washer (pt.J-4) and one
Bushing (pt.J-5).
3. Remove the pre-installed Screws (C-7) on the handlebar post first, and then assemble the
Bottle holder (pt.C-3) using screw (pt. C-7).
Step 7-
Connect the adaptor (L) to the DC hole (located on the back of the chain cover).
Ø7*2T
Ø7*1T
12*40L M7*55L
1*
1*
2*
M5*14L M5*20L M3*14L

I
In ns st tr ru uc ct ti io on n m ma an nu ua al l f fo or r t th he e t tr ra an ns sm mi it tt te er r b be el lt t u us sa ag ge e
1
1. . T Ti ig gh ht tl ly y W Wr ra ap p t th he e t tr ra an ns sm mi it tt te er r b be el lt t a ar ro ou un nd d t th he e c ch he es st t a ar re ea a. .
(
(T Th he e b be el lt t w wo ou ul ld d o on nl ly y w wo or rk k w wi it th h d di ir re ec ct t c co on nt ta ac ct t t to o t th he e s sk ki in n) ). .
2. Adjust the belt to the position shown on the sketch.
The distance between the belt and the monitor should be
80cm ±10 . Make sure user is directly in front of the monitor
at all times.
FithiwayAppINSTRUCTIONMANUAL

!!!Forsimpleexercise,itisnotalwaysnecessarytoselectatrainingprogramormanuallysetthe
TIME,DISTANCEorothervalues.Youcansimplystartpedaling.

















System plug connection
socket
Connection for mobile
phone or pad
Connection for hand pulse wire

Assoonasthecomputerisconnectedwithpowersupply,anacousticsignalsoundsandallofthedisplaysare
shownonLCDfor2seconds.Thenwheeldiameter(78.0)willbeshownbriefly,aswellasunitKM(K)text
woulddisplayontheright.






DISPLAYSandBUTTONFUNCTION
TrainingValuesDisplayRangeSettingRange
TIME0:00~99:59min.0:00~99:00min.
SPEED0.0~99.9KM/
DISTANCE0.0~99.9KM0.0~99.0KM
CALORIES0~999Cal.0~990Cal.
WATT0~999W10~350W
RPM(Revolution/min.)0~999/
PULSE30‐230BPM0‐30`230BBPM


AcousticSignals
Allsettingsmadewiththecomputerareconfirmedwithanacousticsignal:
1shotbeep=settingconfirmed
2shotbeeps=Itisimpossibletomakeanysettings
(forexample,atrainingprogramisrunning;pressSTART/STOPtoendtheprogram.)
TrainingData
Thecomputercalculatesanddisplaysallvaluesautomaticallyaccordingtousertrainingstatus(seetable).
Takenote:
*Ifonlya“P”isshowninsteadofpulsevalue,itisimpossibletomeasurethepulse.Gripthehandlewhere
allfourhandpulsesensorsarelocatedorwearcheststrap.Moistenyourpalmsfirstwithalittlewaterif
necessary.




BUTTONFUNCTION
Jogglewheel‐Increase/DecreaseValue
‐Confirm/Settingselection.
TotalReset‐Pressittorebootcomputerandstartfromusersetting.
Reset
‐Holdonpressingfor2seconds,computerwillrebootandstartfromuser
Setting
‐Resetallvaluestozeroduring settingworkoutvalueorStopmode.
Start/Stop‐StartorStopworkout.
Recovery‐TrackuserHeartrateinrecoveryphase.
50 %
70 %
80 %
Max
65 %
75 %









*Thedisplayinthecenterfielddependsonthetypeofexercisethathasbeenset.
Thecomputerprovidesanumberofwaystovarytheexercisesessionandmakeitmoremotivating.
Thefollowingexercisingareavailable:
‐ManualTraining(trainingwithoutprograms)
‐TrainingwithPrograms(thereare12programsbuilt‐in,P01~P12)
‐Trainingwithyourownprogram(Userprogram)
‐TrainingwiththeHeartRateprogram(H.R.C)
‐Trainingwithsetoutputvalue(WATT)
Startingexerciseimmediately
Onceapowerconnectionhasbeenestablished,thecomputerwillfulldisplay2sandshowwheeldiameter
inSPEEDwindow,thenenterintoworkoutsettingmode.
MANUALisflashinginmatrixdisplaywith1Hz.Ifyouhavepreviouslyselectedaprogramorstartedyour
workout,pressRESETtoreturntothestartingdisplay.





‐PressSTART/STOPbuttontostartworkoutimmediatelywithoutenteringfurthersettings.
‐Pressjogglewheeltoenteryourpersonalsettings:thefollowingfieldswillflashinturn
.TIME
.DISTANCE
.CALORIES
.PULSE










Rotatejogglewheelupordowntosetvaluesandconfirmyourselection.
PressSTART/STOPtostartworkout.
AssoonasoneofthesetvaluereachthepresetTarget,theiconwillflashintheappropriatedisplay
window(e.g.TIME)andseveralbeepssound.
50 %
70 %
80 %
Max
65 %
75 %
Hand sensor
for measueement

‐Youcanadjustthelevelofresistanceonthepedalswhileexercisingbyrotatingjogglewheelupordown.
ThenewlysetvaluewillbeshownundertheLOADwindow(defaultvalueisLevel1).WithoutKEYentryfor
3seconds,theLoadlevelvaluewillchangetoWATTvalue.
‐PressSTART/STOPtoendexercising.Allexercisingvaluewillremain(HRsignalwouldnoteffect).
SelectingaProgramtodotraining
Onceapowerconnectionhasbeenestablished,MANUALisflashinginthedisplay.
‐RotatejogglewheeltogobetweenM(Manual)→P(Program)→♥(H.R.C.)→W(Watt)→U(User)cyclically.
‐ChooseP(Program)andpressjogglewheeltoconfirm.Theprogramsarepresetwithprofiles.Rotatethe
joggle
wheeltoselectonefromthe12presetprofiles.Setthedesiredsessiontimewithjogglewheelpress
STATR/STOPtostartworkout.
‐Youcanadjustthelevelofresistanceonthepedalswhileexercisingbyrotatingjogglewheelupordown.
ThenewlysetvaluewillbeshownundertheLOADwindow.WithoutKEYentryfor3seconds,theLoad
levelvaluewillchangetoWATTvalue.






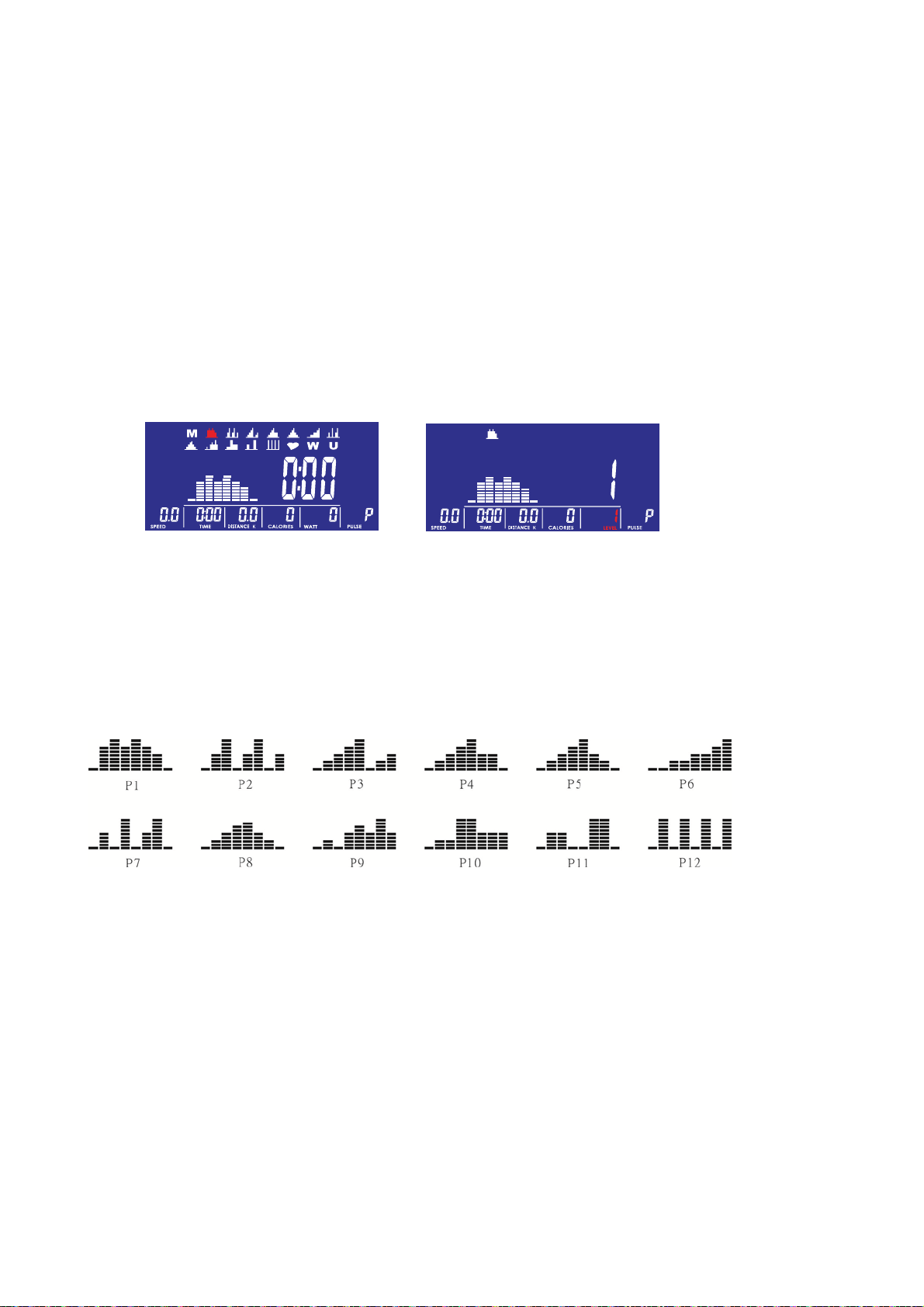

‐Programexplain:
IntervalprogramsP2‐P3‐P7‐P12
IncreasingresistancelevelprogramsP6‐P9‐P11
IncreasinganddecreasingresistancelevelprogramsP1‐P4‐P5‐P8‐P10
Thestoredtrainingprogramsaredesignedespeciallytoenhanceaerobicbasefitness.
.Asabeginneryoushouldstartwiththoseprogramsslowlyandsetalowpedalresistance.
.YoushouldonlygraduatetoIntervalprogramsonceyouhavebeentrainingforseveraltimes.






Setprogramaccordingtoheartrate(H.R.C.)
Inthisprogram,theexercisebikereactstoyourpulseasmeasuredbythehandsensorsorchestbelt.
Thisprogramsallowsyoutoexerciseefficientlyandsafelywithinyourrequiredheartratezone.
Inaddition,simplegraphicsalsoshowyouwhetheryouneedtoneedtoincreaseordecreaseyourstress
Level.Youcanchoosebetween:
HRC55Hereyouareexercisingintheveryefficientrangeof55%,idealforbeginnersandforgeneralfat
Burning.
HRC75Thisrangeof75%ofthemaximumpulserateissuitableforexperiencedusersandathletes.
HRC90Theanaerobicrangeof90%ofthemaximumpulserateisonlysuitableforcompetitiveathletes
andshortsprintexercises.
TAGThecomputerusesyourAgetocalculateatargetpulserate,whichyoucanchangeasperyour
willing.Neverselectatargetpulsethatishigherthanyourage‐determinedmaximumpulserate.













‐PressjogglewheeltoselectH.R.C.andenterbypressingit.ChooseHRC55‐‐>HRC75‐‐>HRC90‐‐>TARGET.
WithHRC55,HRC75,HRC90,themax.Heartratewillbecalculatedbythecomputerautomatically.
‐WiththeTARGETprogram,thepresetvalue100willbeshown.Rotatejogglewheeltosetavalue
between30~230andconfirm.Theprogramhasbeensaved.
‐SetthedesiredsessiontimewithjogglewheelandpressSTATR/STOPtostartworkout.
Forthisprogram,itisnecessarytokeepyourhandsonthesensorgripsorwearcheststrapwhile
exercisingsothatcomputercandetectanddisplayyourheartratevalue.
Programsequence:
Thecomputersetsapedalresistancethatkeepsyouexercisingconstantlywithinyourtargetpulserate.
.Ifyouareexercisingandgobelowyourpresetpulserate,thepedalresistancewillautomaticallyriseby
onestresslevelevery30seconds.
.Ifyouareexercisingandgoaboveyourpresetpulserate,thepedalresistancewillautomatically
decreasebyonestresslevelevery15seconds.Ifyouhavealreadyreachedthelowestlevel“1”andyour
pulserateisstillhigherthanyourpresetvalue,thenafterabout30secondsanacousticsignalwillalarm
andcomputerprogramwillendautomatically.

Exercisingwithsetoutputvalues
Hereyoucanenteraconstantoutputvalue.Thecomputerautomaticallyadjuststhepedalresistanceto
yourspeedsothatyouroutputremainsconstant.
‐PressjogglewheeltoselectWATTandenterbypressingit.Rotatejogglewheeltosetdesiredsession
outputvalue(defaultvalue:120).
‐SetthedesiredsessiontimewithjogglewheelpressSTATR/STOPtostartworkout.
‐YoucanadjustWATTlevelwhileexercisingbyrotatingjogglewheelupordown.Thenewlysetvaluewill
beshownundertheWATTwindow.WithoutKEYentryfor3seconds,theLoadlevelvaluewillchangeto
WATTvalue.





User‐definedprofile
Hereyoucandesignyourownprofilewithbarsjustlikethepresetprogramprofiles.
‐PressjogglewheeltoselectUSERPROGRAMandenterbypressingit.Thefirstbarwillbedisplayed.
‐Rotatejogglewheeltosetresistancelevelandconfirmbypressingit.Thenextbarwillbedisplayed.
‐Continuethisprocesstillsetup8bars.Themax.Resistancelevelis16.Oncefinishingyourdesired
profile,pressandholdjogglewheelfor2seconds,theprofilehasbeensaved.

‐SetthedesiredsessiontimewithjogglewheelandpressSTATR/STOPtostartworkout.
‐Youcanadjustthelevelofresistanceonthepedalswhileexercisingbyrotatingjogglewheelupordown.
ThenewlysetvaluewillbeshownundertheLOADwindow.WithoutKEYentryfor3seconds,theLoad
levelvaluewillchangetoWATTvalue.





Measuring your pulse with the hand sensors
The hand sensor are not medical products, but rather exercising tools designed for the approxl-mate
measurement and displaying of the pulse rate when exercising with the exercise bike.









Recoveryphase
Itisrecommendedtoendanintensiveexercisesessionwhitarecoveryphase.Duringthisphaseyou
shouldbeabletorelaxandpedalwithoutstrongresistanceuntilyourpulseslowsclosetoitsusualrate.
‐PressREVOCERYbuttonandgripthehandsensorsorwearcheststrapagain.ThenonlyTIMEisshowing
withcountingdownfrom60secondsto0,allotherfunctionsarenotavailable.
Oncethe60secondsrecoveryphaseisover,anevaluationoftheachievedheartratewillbeshown:





‐Ifyourheartrateisstillveryhighafter60s(Fisbetween4and6),youcouldrestarttherecoveryprogram
tograduallyslowyourheartratefurther.

Fit Hi Way APP
The console has been built-in 4.0 Bluetooth module for APP function. User can connect console to
tablet or smart phone for APP function through Bluetooth.
First, search letters [Fit Hi Way] App on APP store or Google Play or Baidu Assistant, download the
APP and install it to mobile device.
Then, turn on Bluetooth on tablet, search for console device and press connect.
Pair tablet and console thru BT. Turn on [Fit Hi Way] APP on tablet and start workout with tablet.
(APP operation refer to Fit Hi Way Instruction Manual)
Hand sensor
for measueement
You can measure your pulse with the two
hand sensor on the handle.
>> Place both hands on the hand sensor on
the handle as you exercise and wait briefly
for the pulse value to be displayed.

NOTE:
1. Once console is connected to tablet via Bluetooth, the console will power off.
2. Please exit Fit Hi Way app and turn off the Bluetooth from the smart device, then the console will
power on again.
3. If console operation or display abnormally, please Power-off and restart it.
The manual will be updated from time to time, the consumer can get the newest version by
scanning the QR code or link to the website as below.
Fit Hi Way INSTRUCTION :
Attention! All preset data will be lost when unplug the power (adaptor)
from the "machine".

