Casio TV-880C User manual

R
TV-880C(PAL B / G,H)
TV-880I(PAL B / G)
TV-880N(PAL B / G,H)
TV-880D(PAL I)
(without price)
(KX-518)
TV-880
FEB. 1999
INDEX

CONTENTS
SPECIFICATIONS ......................................................................................... 1
BLOCK DIAGRAM ....................................................................................... 2
ADJUSTMENTS ............................................................................................ 3
TV-880C/I/N ............................................................................................... 4
TV-880D..................................................................................................... 7
PRINTED CIRCUIT BOARDS ..................................................................... 10
EXPLODED VIEW ....................................................................................... 12
PARTS LIST ................................................................................................ 13
SCHEMATIC DIAGRAMS ........................................................................... 16

— 1 —
Item Specification
1. Type LCD Color Television
2. Display Element High resolution color liquid crystal display
(TI-STN Type)
3. Drive System Passive matrix system
4. Screen Size 2.3 inches
5. Backlight High luminance fluorescent material
6. Antenna Rod antenna (VHF, UHF)
7. Speaker 1 1/8ø inches (28 mm) ×1
8. Connection Terminals Earphone jack (3.5ø mini)
External power source jack (DC IN 6V)
Audio/Video input jack (3.5ø mini)
9. Power Supply 3-way power supply system
Batteries: 4 AA-size dry batteries
AC: AC adaptor AD-K64/AD-K65 (option)
Car battery: Car adaptor CA-K65 (option)
10. Power Consumption Approx. 3.1 W
11. Ambient Temperature Range 32°F (0°C) ~ 104°F (40°C)
12. Dimensions 3 1/4" (W) ×1 7/16" (D) ×5 1/16" (H) inches
83 (W) ×36 (D) ×128 (H) mm
13. Weight Approx. 6.7 oz 190 g (excluding batteries)
SPECIFICATIONS
Model Color System TV System Channel
TV-880C/N PAL B/G, H CCIR VHF: 2 ~ 12 ch UHF: 21 ~ 69 ch
TV-880D PAL –/I UK — UHF: 21 ~ 68 ch
TV-880I PAL B/G ITALY VHF: A ~ H2 ch UHF: 21 ~ 69 ch

— 2 —
BLOCK DIAGRAM
TUNER
(TEAA1) PRE
AMP
ANT
SAW
FILTER VIF/SIF
(M51348FP)
POWER SW
BAND SW
DC DC
CONVERTER
TRANS
BATTERY 1.5 V ×4
AC ADAPTOR 6V
EXTERNAL VIDEO
EXTERNALAUDIO
EAR PHONE
SP
AUDIO2 VCC1-1
VCC2
VCC2 (4.0 V)
VCC7 (40 V)
VEE1 (—5 V)
AV
JACK
AUDIO AMP
NJM2070M
VCC2
TU
VCC2-8
AFI
UV
HL
A MUTF
MODULE
VIDEO2
AVB
VCC7 BT
VCC2 (4.7 V)
VCC1-1
VEE1VCC7
CHROMA
M52042FP
TUNING
BT GEN
BA 10358 VOLTAGE
SUPLLY
FOR LCD
DRIVER
A D CONVERTER
CONTROLLER
OM6006
INVERTER
IRANS
BL-PCB
LAMP
VCC1-1 GND
CN710 CN950
LCD DRIVER 5151
BT BV BS U. V
AUDIO1 VIDEO1
A-MUTE
AFT
AUDIO1
VIDEO1
RGB HD C-SYNC
CN700
LCD
LCM
L-PCB
LCD DRIVER
051 LCD DRIVER
051
VCC2-0 GND
V1. V3. V0. V4. VO
CK1. CK2
D1~ 6
SNB STR
CNB2. CDB2. CFB2
EN1. EN2
MODULE
POWER
SUPPLY

— 3 —
VR301 : Tint adjustment
VR300 : Contrast adjustment
VR700 : VCO free run frequency adjustment
VR100 : VCC2 adjustment
T200 : LLD Coil adjustment
ADJUSTMENT
Top View Bottom View
1. VCC2 adjustment, VCC7, VEE1 voltage check
2. LLD coil adjustment
3. Free running frequency adjustment
4. Contrast adjustment
5. TINT pot adjustment
Preparations
1. Connect AVB (CP725) to GND.
2. Set SW100 on UHF mode.
Adjustment And Test Point Locations

— 4 —
L-PCB
DC IN
Oscilloscope
VCC1-1
IF signal
Stabilizer
Detector OUT
Low-Pass Filter
Adjust to minimize the DC level.
Signal
generator
Adjustment procedures (TV-880C/I/N)
1. VCC2 adjustment, VCC7, VEE1 voltage check
•Condition
Power supply: Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Apply 5.0 ±0.05 [V] on Vcc1-1 (CP101).
Adjust VR100 so that Vcc2 (CP102) voltage becomes 4.00 ±0.02 [V].
•Checking
VCC7 (CP103) = 36.0 ~ 44.0 [V]
VEE1 (CP104) = –4.5 ~ –5.5 [V]

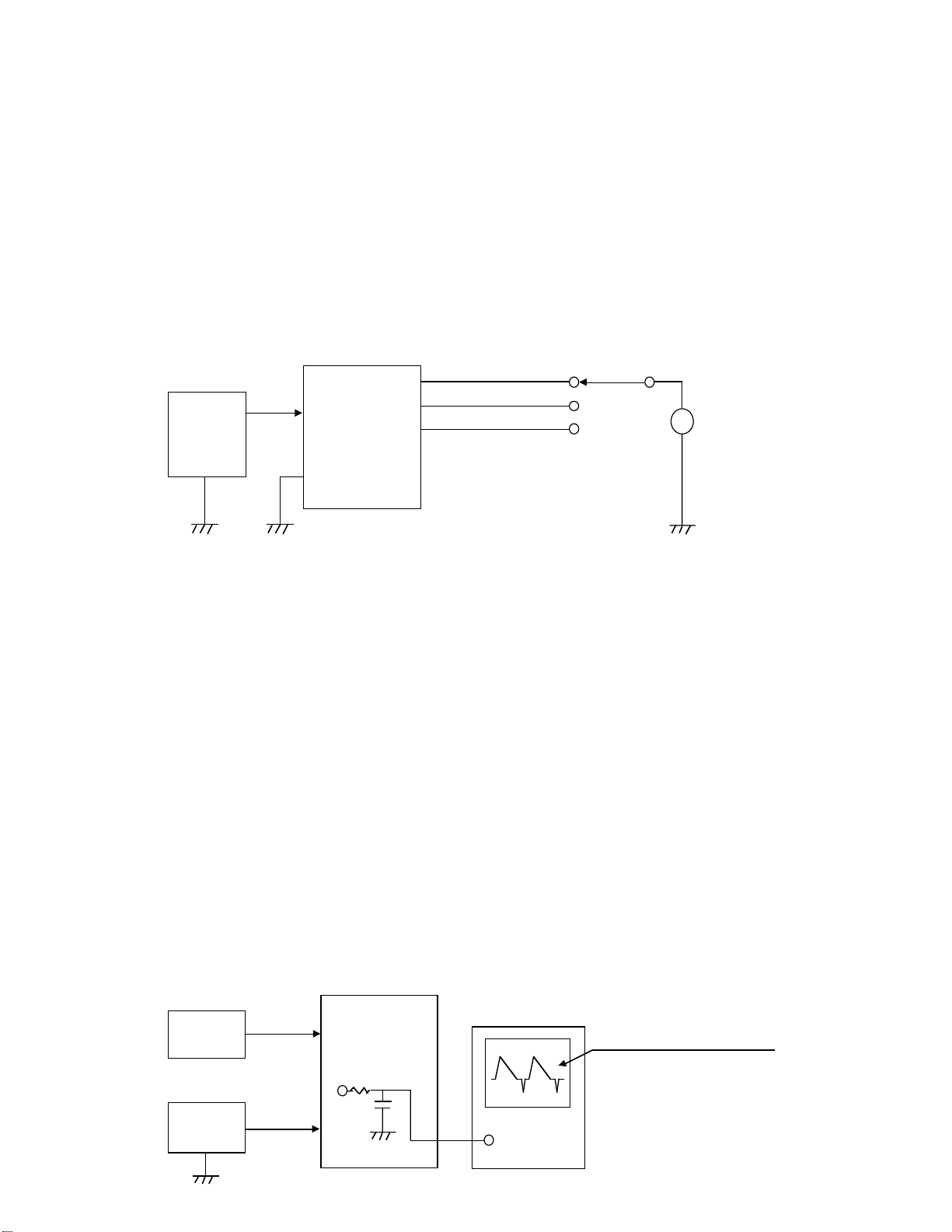

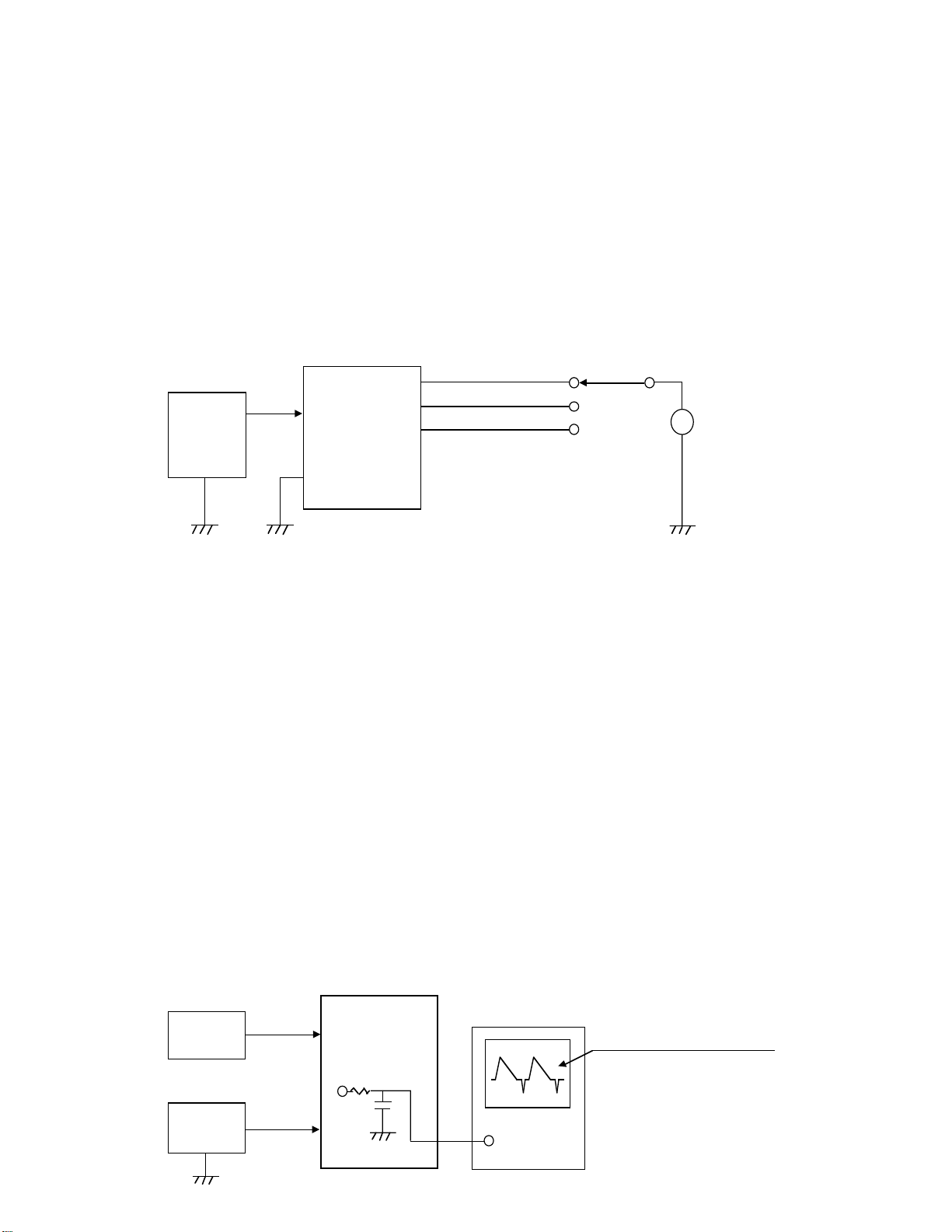

•Block diagram
2. LLD coil adjustment
•Conditions
(1) Signals
Broadcasting system: B/G,H
Color system: PAL color bar
(2) Signal level
Input electric field: 40 ±3dBµ(IF AGC full gain), P/S = 10 dB
(3) Other conditions
CCIR IF (Input electric field: terminated with 75-ohm resistance)
Power supply: Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Monitor video detection signal (CP238) via a low-pass filter of 100 kHz cutoff frequency and adjust
LLD coil T200 so that its DC level is minimum (waveform’s amplitude is maximum).
(Reference: C= 1500 pF, R = 1 Kohm)
•Confirmation
There should be no waveform distortion (erroneous synchronization, etc.), under sensitivity (video
detector output level is abnormally small, etc.).
•Block diagram
V
VCC7
VCC2
VEE1
L-PCBStabilizer VCC1-1 Digital
Voltmeter

— 5 —
3.Free running frequency adjustment
•Conditions
(1) Signal
No signal (PAL standard signal should be applied only at synchronous check)
(2) Signal level
Input electric field only at synchronous check: 70 dBµ(terminated with 75-ohm resistance),
P/S = 10 dB
(3) Other conditions
CCIR IF input only at synchronous check (input electric field with 75-ohm termination).
Connect SYF terminal (CP729) and VCC2-7.
Power supply: Vcc1-1 = 5.0 ±0.05 [V]
Room temperature: 20 ±10 [°C]
•Adjustment
Monitoring HDB (CP305) with a frequency counter, adjust VR700 so that the frequency is 15.625 ±
0.1 [kHz].
•Caution
(1) Disconnect the wire between SYF terminal and VCC2-7.
Applying IF signal make sure that synchronization is normal on the display.
(2) Use input signal pattern conforming CCIR standard.
•Block diagram
4.Contrast adjustment
•Conditions
(1) Signal
Broadcasting system: B/G,H
Color system: PAL color bar
(2) Signal level
Input electric field: 70 dBµ(terminated with 75-ohm resistance), P/S = 10 dB
(3) Other conditions
CCIR IF input (input electric field should be terminated with 75-ohm resistance).
Apply voltage of Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Connect color terminal (CP320) to GND (CP300) so that screen becomes black and white. Adjust
contrast pot VR300 so that the voltage between pedestal level and white level of B signal (CP740) is
0.80 ±0.05 [Vp-p].
L-PCB
VCC1-1
VCC2-7 SYF
HD
Stabilizer
Signal
generator
Frequency
Counter

— 6 —
•Caution
(1) Make sure that there is no distortion on the waveforms.
(2) Connect COLOR terminal of Chroma IC (M52045FP) to GND.
(3) Monitor the B output signal with an oscilloscope via a low-pass filter (C = 2700 pF, R = 100 ohm).

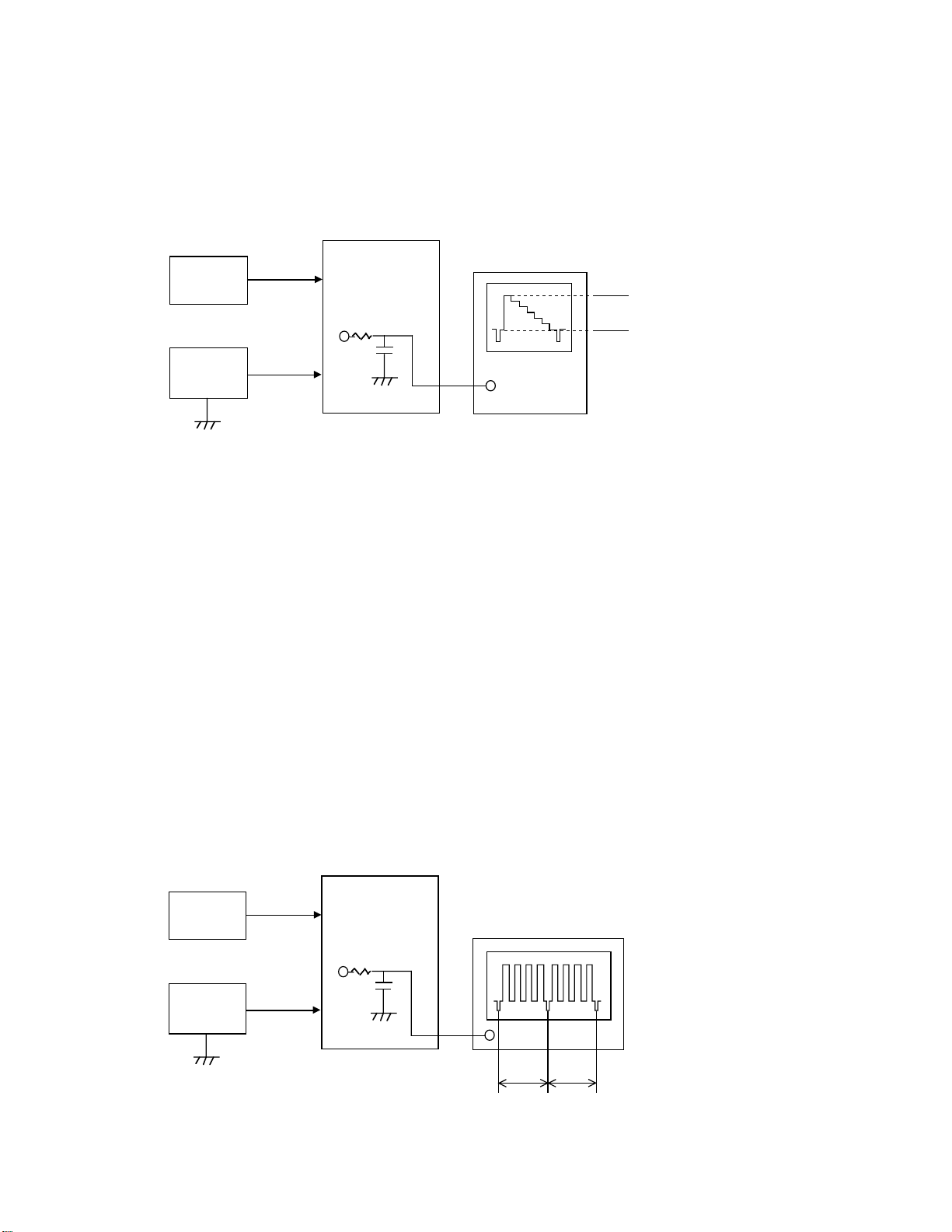

•Block diagram
5.TINT pot adjustment
•Condition
(1) Signal
Broadcasting system: B/G,H
Color system: PAL color bar
(2) Signal level
Input electric field: 70 dBµ(75-ohm termination), P/S = 10 dB
(3) Other conditions
CCIR IF input (input electric field should be terminated with 75-ohm resistance).
Apply voltage of Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Observing output signal B with an oscilloscope, adjust TINT pot VR301 so that the wave from H and
H' will be same.
•Caution
Do not connect COLOR terminal to GND.
Monitor B output signal with an oscilloscope via a low-pass filter (C = 2700 pF, R = 100 ohm).
•Block diagram
L-PCB
VCC1-1
Stabilizer
B output
Low-Pass Filter
Signal
generator
Oscilloscope
White level
Pedestal level
L-PCB
VCC1-1
Stabilizer
Low-Pass Filter
B output
Signal
generator
Oscilloscope
HH’

— 7 —
L-PCB
DC IN
Oscilloscope
VCC1-1
IF signal
Stabilizer
Detector OUT
Low-Pass Filter
Adjust to minimize the DC level.
Signal
generator
Adjustment procedures (TV-880D)
1. VCC2 adjustment, VCC7, VEE1 voltage check
•Condition
Power supply: Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Apply 5.0 ±0.05 [V] on Vcc1-1 (CP101).
Adjust VR100 so that Vcc2 (CP102) voltage becomes 4.00 ±0.02 [V].
•Checking
VCC7 (CP103) = 36.0 ~ 44.0 [V]
VEE1 (CP104) = –4.5 ~ –5.5 [V]
•Block diagram
2. LLD coil adjustment
•Conditions
(1) Signals
Broadcasting system: I
Color system: PAL color bar
(2) Signal level
Input electric field: 40 ±3dBµ(IF AGC full gain), P/S = 7 dB
(3) Other conditions
UK IF (Input electric field: terminated with 75-ohm resistance)
Power supply: Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Monitor video detection signal (CP238) via a low-pass filter of 100 kHz cutoff frequency and adjust
LLD coil T200 so that its DC level is minimum (waveform’s amplitude is maximum).
(Reference: C= 1500 pF, R = 1 Kohm)
•Confirmation
There should be no waveform distortion (erroneous synchronization, etc.), under sensitivity (video
detector output level is abnormally small, etc.).
•Block diagram
V
VCC7
VCC2
VEE1
L-PCBStabilizer VCC1-1 Digital
Voltmeter

— 8 —
3.Free running frequency adjustment
•Conditions
(1) Signal
No signal (PAL standard signal should be applied only at synchronous check)
(2) Signal level
Input electric field only at synchronous check: 70 dBµ(terminated with 75-ohm resistance),
P/S = 7 dB
(3) Other conditions
UK IF input only at synchronous check (input electric field with 75-ohm termination).
Connect SYF terminal (CP729) and VCC2-7.
Power supply: Vcc1-1 = 5.0 ±0.05 [V]
Room temperature: 20 ±10 [°C]
•Adjustment
Monitoring HDB (CP305) with a frequency counter, adjust VR700 so that the frequency is 15.625 ±
0.1 [kHz].
•Caution
(1) Disconnect the wire between SYF terminal and VCC2-7.
Applying IF signal make sure that synchronization is normal on the display.
(2) Use input signal pattern conforming UK standard.
•Block diagram
4.Contrast adjustment
•Conditions
(1) Signal
Broadcasting system: I
Color system: PAL color bar
(2) Signal level
Input electric field: 70 dBµ(terminated with 75-ohm resistance), P/S = 7 dB
(3) Other conditions
UK IF input (input electric field should be terminated with 75-ohm resistance).
Apply voltage of Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Connect color terminal (CP320) to GND (CP300) so that screen becomes black and white. Adjust
contrast pot VR300 so that the voltage between pedestal level and white level of B signal (CP740) is
0.80 ±0.05 [Vp-p].
L-PCB
VCC1-1
VCC2-7 SYF
HD
Stabilizer
Signal
generator
Frequency
Counter

— 9 —
•Caution
(1) Make sure that there is no distortion on the waveforms.
(2) Connect COLOR terminal of Chroma IC (M52045FP) to GND.
(3) Monitor the B output signal with an oscilloscope via a low-pass filter (C = 2700 pF, R = 100 ohm).
•Block diagram
5.TINT pot adjustment
•Condition
(1) Signal
Broadcasting system: I
Color system: PAL color bar
(2) Signal level
Input electric field: 70 dBµ(75-ohm termination), P/S = 7 dB
(3) Other conditions
UK IF input (input electric field should be terminated with 75-ohm resistance).
Apply voltage of Vcc1-1 = 5.0 ±0.05 [V]
•Adjustment
Observing output signal B with an oscilloscope, adjust TINT pot VR301 so that the wave from H and
H' will be same.
•Caution
Do not connect COLOR terminal to GND.
Monitor B output signal with an oscilloscope via a low-pass filter (C = 2700 pF, R = 100 ohm).
•Block diagram
L-PCB
VCC1-1
Stabilizer
B output
Low-Pass Filter
Signal
generator
Oscilloscope
White level
Pedestal level
L-PCB
VCC1-1
Stabilizer
Low-Pass Filter
B output
Signal
generator
Oscilloscope
HH’

— 10 —

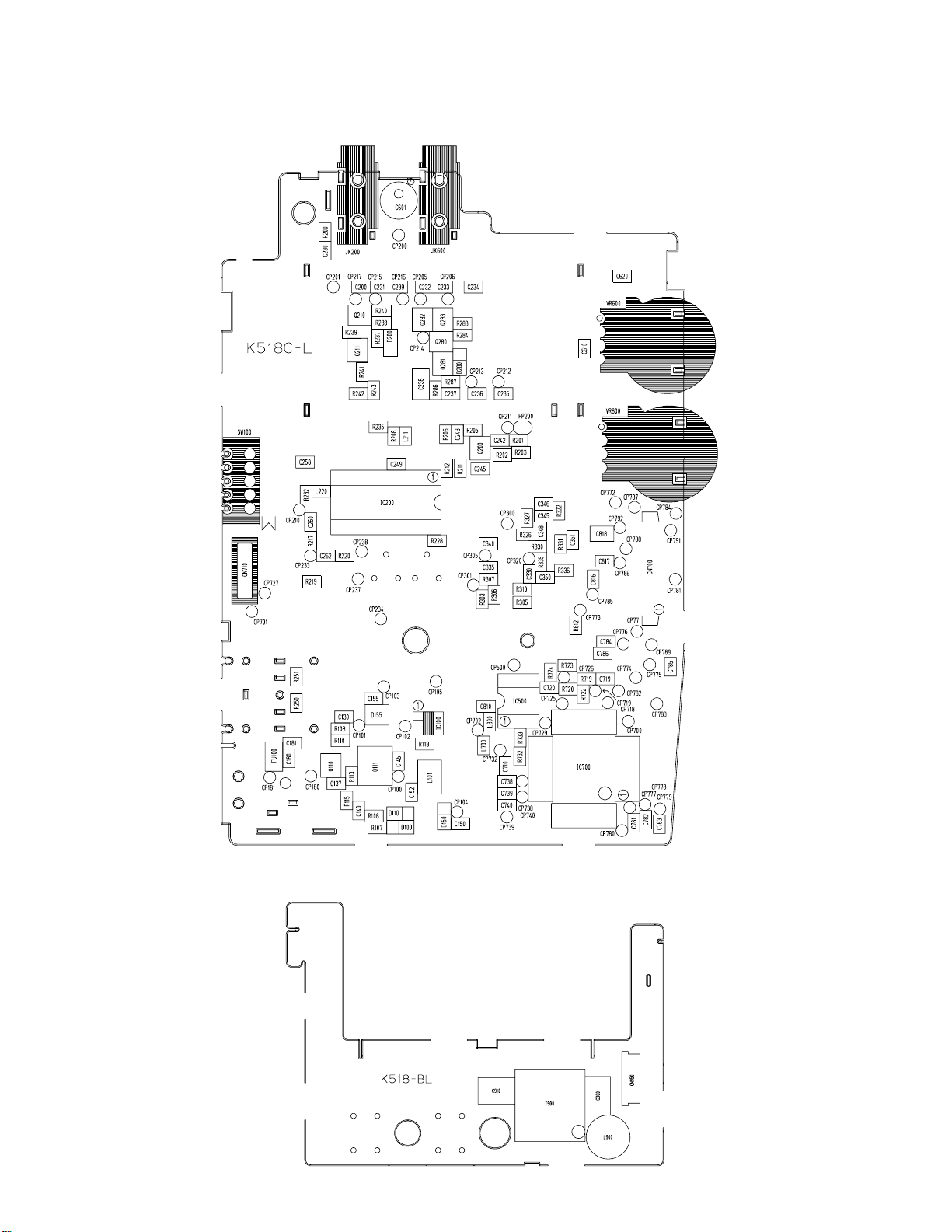

PRINTED CIRCUIT BOARDS
TOP VIEWS
Linear
Back Light

— 11 —
BOTTOM VIEWS
Linear
Back Light

— 12 —

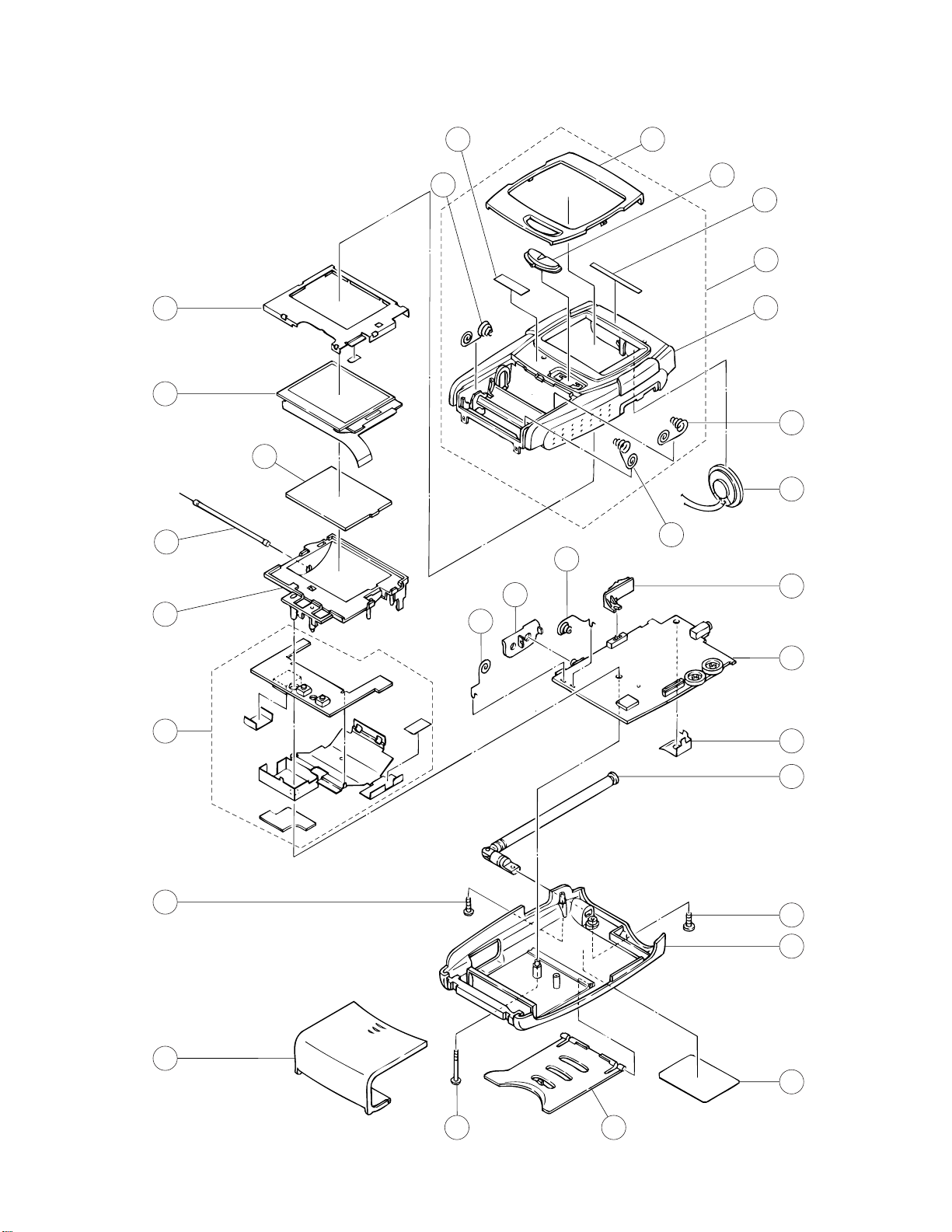

EXPLODED VIEW
14
15
10
8
12
9
16
18
6
17
19
3
27
1
21
20
22
23
29
25
24
25
26
13
428
13
11
7

PARTS PRICE LIST
TV-880C/I/N/D
N
Item
Code No.
Parts Name
Specification
Price Code
R
C
I
N
D
LINEAR PCB
Connector
N
CN700
35021718
Connector
52559-2290
1
1
1
1
AE
X
N
CN710
35022586
Connector
9210B-1-04Z604-T
1
1
1
1
AC
X
Diodes
D100
71011194
Chip diode
MA111-(TX)
1
1
1
1
AA
C
N
D110
23603092
Chip zener diode
MA8047-L(TX)
1
1
1
1
AA
C
D150
71011194
Chip diode
MA111-(TX)
1
1
1
1
AA
C
D152
23901379
Schottky diode
MA729-(TX)
1
1
1
1
AB
C
D155
23901470
Chip diode
MA143A-(TX)
1
1
1
1
AA
C
D180
23901190
Diode
ERA15-01Y
1
1
1
1
AA
C
D280
71011194
Chip diode
MA111-(TX)
1
1
1
0
AA
C
N
D500
23603079
Chip zener diode
MA8300-M(TX)
1
1
1
1
AA
C
D701
71011194
Chip diode
MA111-(TX)
1
1
1
1
AA
C
D801
23901477
Chip diode
MA142WA-(TX)
1
1
1
1
AA
C
D802
23901470
Chip diode
MA143A-(TX)
1
1
1
1
AA
C
D803
23901470
Chip diode
MA143A-(TX)
1
1
1
1
AA
C
Filter
N
F200
30251834
SAW filter
SAF38.9MZ210Z
1
1
1
0
AJ
C
N
F200
30251855
SAW filter
SAF39.5MZ210Z
0
0
0
1
AJ
C
N
F210
30251952
SIF filter
SFSH5.5MCB
1
1
1
0
AB
C
N
F210
30251955
SIF filter
SFSH6.0MCB
0
0
0
1
AB
C
N
F220
38512108
Ceramic discriminator
CDSH5.5MC30K
1
1
1
0
AB
C
N
F220
38512111
Ceramic discriminator
CDSH6.0MC30K
0
0
0
1
AE
C
F230
38501372
SIF trap
TPS5.5MB
1
1
1
0
AC
C
F230
38510553
SIF trap
TPS6.0MB
0
0
0
1
AC
C
Fuse
FU100
27975509
Chip fuse
PI-R429001
1
1
1
1
AD
A
Oscillator
H300
25902717
Crystal oscillator
HD-49-4.43M
1
1
1
1
AE
C
Ics
IC200
21141827
Linear IC
M51348FP-T1
1
1
1
1
AR
B
IC300
21143311
Linear IC
M52045FP-T1
1
1
1
1
AW
B
IC500
21160119
OP amplifier
BA10358F-T1
1
1
1
1
AC
B
IC600
21142464
Linear IC
NJM2070M-T1
1
1
1
1
AF
B
IC700
20126038
LSI
ML9661GA-6006
1
1
1
1
BB
B
N
IC710
21145866
IC
S-81230SGUP-DQB-T1
1
1
1
1
AC
B
Jacks
JK100
35018281
Power jack
HEC0811-010010
1
1
1
1
AD
C
JK250
35013773
Headphone jack
HSJ6063-01-410
1
1
1
1
AH
C
JK600
35015439
Jack
HSJ1456-01-210
1
1
1
1
AC
C
Inductors
N
L101
30132583
Chip inductor
NLCD322522-470K-TP
1
1
1
1
AA
X
N
L200
30132585
Chip inductor
NLCD322522-101K-TP
1
1
1
1
AA
X
L201
30132585
Chip inductor
NLCD322522-101K-TP
1
1
1
1
AA
X
N
L210
30132650
Chip inductor
LK1608-2R7K-TP
1
1
1
1
AB
X
N
L220
30132268
Chip inductor
LK1608-150K-TP
1
1
1
1
AA
X
L300
30132585
Chip inductor
NLCD322522-101K-TP
1
1
1
1
AA
X
L700
30450028
Chip inductor
BK1608HS601-T
1
1
1
1
AA
X
L800
30450028
Chip inductor
BK1608HS601-T
1
1
1
1
AA
X
Transistors
Q101
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q110
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q111
22530308
Chip transistor
2SD1119-R(TX)
1
1
1
1
AC
C
N
Q200
22501617
Chip transistor
2SC4417-(TX)
1
1
1
1
AB
C
Q280
22591491
Digital transistor
UN5213-(TX)
1
1
1
0
AA
C
Q300
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q800
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q801
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q803
22510189
Chip transistor
2SB1218A-R(TX)
1
1
1
1
AA
C
Q804
22510189
Chip transistor
2SB1218A-R(TX)
1
1
1
1
AA
C
N
Q810
22530716
Chip transistor
2SD1824-S(TX)
1
1
1
1
AA
C
Quantity
NOTE: Q - Quantity per unit
R - Rank
- 13 -

N
Item
Code No.
Parts Name
Specification
Price Code
R
C
I
N
D
Quantity
Q811
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q813
22510189
Chip transistor
2SB1218A-R(TX)
1
1
1
1
AA
C
Q820
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q821
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Q822
22530133
Chip transistor
2SD1819A-R(TX)
1
1
1
1
AA
C
Switch
SW100
34120938
Slide switch
ESD-11V231
1
1
1
0
AD
C
SW100
34121134
Slide switch
ESD-11V221
0
0
0
1
AD
C
Converter
N
T100
30650730
DC/DC converter
LC12U-45
1
1
1
1
AE
B
Coils
T200
38410700
Coil
5KAC-03A
1
1
1
1
AE
X
T201
38410700
Coil
5KAC-03A
1
1
1
1
AE
X
Thermistor
N
TM100
27753448
Chip thermistor
NTH5G1M31B102K04TH
1
1
1
1
AB
C
Tuners
TU200
10135315
Tuner
TEPE5-01
1
1
1
0
BT
B
TU200
10148570
Tuner
TEPB5-05
0
0
0
1
BR
B
Variable resistors
N
VR100
27752800
Chip semi-fixed resistor
EVN5ESX50B24
1
1
1
1
AA
C
VR200
27752765
Chip semi-fixed resistor
EVN5ESX50B54
1
1
1
1
AA
C
VR300
27752758
Chip semi-fixed resistor
EVN5ESX50B14
1
1
1
1
AA
C
VR301
27752765
Chip semi-fixed resistor
EVN5ESX50B54
1
1
1
1
AA
C
VR600
27650616
Volume
RK09H11T-10KB
1
1
1
1
AD
C
VR700
27752786
Chip semi-fixed resistor
EVN5ESX50B53
1
1
1
1
AA
C
VR800
27650623
Volume
RK09H11T-20KB
1
1
1
1
AD
C
BL PCB
Connector
CN950
35021550
Connector
9110S-04
1
1
1
1
AA
X
Coil
L900
30130756
Choke coil
RCH-875-101K
1
1
1
1
AD
X
Transistors
Q900
22530308
Chip transistor
2SD1119-R(TX)
1
1
1
1
AC
C
Q901
22530308
Chip transistor
2SD1119-R(TX)
1
1
1
1
AC
C
Switchs
SW700
34121029
Switch
SKHHAL
1
1
1
1
AA
C
SW701
34121029
Switch
SKHHAL
1
1
1
1
AA
C
Transformer
T900
30121588
Inverter trans
C-8123
1
1
1
1
AL
B
MAIN COMPONENT
N
1
66137030
Lower case BIM-K518
K140511-1
1
0
1
1
AF
X
N
1
66138380
Lower case IAM-K518
K140511-3
0
1
0
0
AF
X
N
2
66137060
Battery cover A-K518
K241047-1
1
1
1
1
AA
C
3
38511267
Rod antenna
YH810721
1
1
1
1
AQ
B
N
4
66137180
Stand B-K518
K241040-1
1
1
1
1
AA
C
N
5
66138350
Rating plate CIM-K518
K341435-3
1
0
0
0
AA
X
5
66138360
Rating plate NAM-K518
K341435-5
0
0
1
0
AA
X
N
5
66138920
Rating plate DAM-K518
K341435-6
0
0
0
1
AA
X
N
5
66138370
Rating plate IAM-K518
K341435-7
0
1
0
0
AA
X
N
6
66137170
Jack plate B-K518
K241058-1
1
1
1
1
AA
X
N
7
66138340
Upper case ass'y
K341446*3
1
0
0
0
AU
X
N
7
66138341
Upper case ass'y
K341446*4
0
0
1
0
AU
X
N
7
66138342
Upper case ass'y
K341446*5
0
1
0
0
AU
X
N
7
66138914
Upper case ass'y
K341446*6
0
0
0
1
AU
X
N
8
66138301
Upper case CIM-K518
K140510A-4
1
0
0
0
AG
X
N
8
66138391
Upper case NAM-K518
K140510A-6
0
0
1
0
AG
X
N
8
66138311
Upper case IAM-K518
K140510A-5
0
1
0
0
AK
X
N
8
66138291
Upper case DAM-K518
K140510A-3
0
0
0
1
AG
X
NOTE: Q - Quantity per unit
R - Rank
- 14 -

N
Item
Code No.
Parts Name
Specification
Price Code
R
C
I
N
D
Quantity
N
9
66137040
Switch knob A-K518
K341342-1
1
1
1
1
AA
X
N
10
66140900
Adhesive tape C-K518
K441586-3
1
1
1
1
AA
X
N
11
66137260
Adhesive tape B-K518
K441586-2
1
1
1
1
AA
X
12
60207658
Battery spring B-1-G513
P408A-1
1
1
1
1
AB
X
13
60207666
Battery springB-2-G513
P409A-1
2
2
2
2
AA
X
N
14
66137270
Tuning button A-K518
K241046-1
1
1
1
1
AA
X
N
15
66137280
Display plate BIM-K518
K241045-1
1
0
1
1
AK
C
N
15
66138401
Display plate IAM-K518
K241045A-2
0
1
0
0
AK
C
N
16
66138320
Linear PCB ass'y
K241113*1
1
1
1
0
DM
B
N
16
66138915
Linear PCB ass'y
K241129*1
0
0
0
1
DM
B
N
17
66137210
Battery spring A-K518
K441546-1
1
1
1
1
AA
X
N
18
66137220
Battery spring B-K518
K441547-1
1
1
1
1
AA
X
N
19
66137230
antenna terminal A-K518
K341343-1
1
1
1
1
AA
X
N
20
66137290
Reflector case A-K518
K140528-1
1
1
1
1
AJ
X
N
21
66137018
BL unit
K341437*1
1
1
1
1
EH
B
22
38512093
Fluorescent lamp
3064BB-CA48
1
1
1
1
AV
A
23
66129730
Light diffuser sheet A-K516
K340975-1
1
1
1
1
AC
X
N
24
27251363
LCD
CMG23C1-TO
1
1
1
1
CZ
C
N
25
66137300
sealed case A-K518
K241038-1
1
1
1
1
AB
X
N
26
38311095
Speaker
28-8AB-09
1
1
1
1
AS
C
27
66091290
Screw A-K610
K412031-1
1
1
1
1
AA
C
28
66099630
Screw A-K720
K410188-6
1
1
1
1
AA
C
29
58600532
Screw
BT31.7X9
1
1
1
1
AA
C
C
:TV-880C(PAL B/G,H)
I
:TV-880I(PAL B/G)
N
:TV-880N(PAL B/G,H)
D
:TV-880D(PAL I)
NOTE: Q - Quantity per unit
R - Rank
- 15 -

— 16 —
SCHEMATIC DIAGRAMS
LINEAR (TV-880C/I/N)
40 V
Tuning Voltage Generator Circuit
Power Switch
Tunner Tunner
Antenna
Jack
Antenna
External
Power Supply Circuit
4.0 V
–5 V
Audio Amplifier CircuitIF Detection Circuit
Earphone
Jack
Speaker
Display Controller Circuit
Chroma Circuit
Display Generator Voltage Circuit

— 17 —
LINEAR (TV-880D)
40 V
Tuning Voltage Generator Circuit
Power Switch
Tunner Tunner
Antenna
Jack
Antenna
External
Power Supply Circuit
4.0 V
–5 V
Audio Amplifier CircuitIF Detection Circuit
Earphone
Jack
Speaker
Display Controller Circuit
Chroma Circuit
Display Generator Voltage Circuit

— 18 —
Notes:
1. All resistance values are indicated in "ohms" (k=103ohms, M=106ohms).
2. All capacitance values are indicated in "µF" (p=10-6 µF).
3. All inductance values are indicated in "µH."
BACK LIGHT
