USER’S GUIDE 2514
1
Getting Acquainted
Congratulations upon your selection of this CASIO watch. To get the most out of your
purchase, be sure to carefully read this manual and keep it on hand for later reference
when necessary.
Expose the watch to bright light to charge its battery before using it.
You can use this watch even as its battery is being charged by exposure to bright
light.
••
••
•Be sure to read “Battery” of this manual for important
information you need to know when exposing the watch to bright light.
If the display of the watch is blank...
If the sleep indicator ( ) is on the display, the display is
blank because the watch’s Power Saving function has
shut it to conserve power. Power Saving automatically
turns off the display and puts the watch into a sleep state
whenever your watch is left in an area where it is dark for
a certain period.
•The initial factory default setting is Power Saving on.
•The watch recovers from the sleep state if you move it to
a well-lit area
*
or if you press any button.
*It can take up to five seconds for the display to turn on.
•See “Power Saving Function” for more information.
Sleep indicator
About This Manual
•Button operations are indicated using the letters shown
in the illustration.
•Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the “Reference”section.
General Guide
•Press Cto change from mode to mode.
•In any mode, press Lto illuminate the display.
Data Memory Mode
Stopwatch Mode
Timekeeping Mode
Alarm Mode
▲ ▲
▲
▲
Press C.
▲
World Time Mode
Timekeeping
Use the Timekeeping Mode to set and view the current time and date.
•Pressing Adisplays the Last Signal screen (date and time the time calibration
signal was last received) in the Timekeeping Mode.
Last Signal Screen
▲
Press A.
Seconds
Hour : Minutes
Receive date
Receive time
Month –Day Day of week
PM
indicator
▲
Current Time Setting
This watch automatically adjusts its time setting in accordance with a time calibration
signal. You can also perform a manual procedure to set the time and date, when
necessary.
•Before using the watch in the Continental United States, first use the procedure
under “Setting Up the Watch for Use in the Continental United States”to set the time
in accordance with a time calibration signal.
•Note that after you set your Home City (the city where you normally use the watch)
code, you must also turn on the watch’s time calibration signal receiver if you want to
enable auto time calibration. See “About Auto Receive”for more information.
•See “Setting the Time and Date Manually”for information about manual settings.
•Before using the watch in Japan, first specify your Home City, select the DST setting
you want to use, and then perform the procedure under “To perform manual time
calibration signal reception”.
Setting Up the Watch for Use in the Continental United States
You need to make the following three settings before using this watch in the
Continental United States. The following provides a general overview of the setting
procedure. For full details, see “Setting the Time and Date Manually”and “Time
Calibration Signal Reception”.
•Specify the city code for your Home City (the city where you will normally use the
watch).
•Select the auto summer time (DST) setting.
•Perform the manual time calibration signal receive operation to set the current time.
To set up the watch for use in the Continental United States
1. In the Timekeeping Mode, press B. This causes the
current auto receive on/off setting (the receive indicator)
to flash, which indicates the setting screen.
2. Press Ctwice to move the flashing to the city code
setting.
3. Use D(+) and A(–) to select the city code you want to
use as your Home City.
City code
Receive indicator
GMT differential
•The following are the city codes for major cities in the
Continental United States time zones.
LAX: Los Angeles, San Francisco, Las Vegas, Seattle
DEN: Denver, El Paso
CHI: Chicago, Houston, Dallas/Fort Worth, New Orleans
NYC: New York, Detroit, Miami, Boston
4. Press Cto display the summer time (DST) setting
screen.
5. Use Dto select AUTO DST.
•AUTO DST specifies auto switching between Daylight
Saving Time and Standard Time.
6. Press Bto exit the setting screen.
7. Hold down Afor about two seconds until the watch
beeps.
•Release Aand the message receiving appears to
indicate that signal reception has started.
•Time calibration signal reception takes from two to six
minutes. Take care that you do not move the watch
during this time.
•If the watch is indoors, we recommend that you place
the watch near a window to allow better signal
reception.
•After signal reception is complete, the display of the
watch changes to the Last Signal screen.
Receive indicator
Time Calibration Signal Reception
This watch is designed to pick up a time calibration signal and update its time setting
in accordance with the signal. There are two different methods you can use to receive
the signal: Auto Receive and Manual Receive. With Auto Receive, the watch
automatically receives the calibration signal three times each day and makes
appropriate adjustments. With Manual Receive, you perform a specific button
operation to receive the calibration signal.
Before performing a signal receive operation, remove the watch from you wrist and
position it as shown in the illustrations below.
•If your watch has a resin band, pass the end of the band through the band loop and
place the watch on a stable surface.
Resin band Metal band
Pass through band loop.
Note
•If you are using the time calibration signal to set the time for this watch, be sure to
correctly set your Home City. Otherwise, there is the chance that the watch will not
set the correct time. See “Setting the Time and Date Manually”for details.
•Note that signal reception is possible only when the watch is within range of a time
calibration signal transmitter, and a city code that supports signal reception is
selected as the Home City code.
•The current time setting in accordance with the time calibration signal takes priority
over any time settings you make.
•Auto receive is turned on when the watch is shipped from the factory.
•See the information under “Time Calibration Signal Reception”if you experience
problems with time calibration signal reception.
To perform manual time calibration signal reception
1. Place the watch on a stable surface so its top (12 o’clock side) is facing in the
general direction of the signal transmitter.
•Note that signal reception is poor if the watch is on its back or side.
2. In the Timekeeping Mode, hold down Afor about two
seconds until the watch beeps.
•Release Aand the message receiving appears to
indicate that signal reception has started.
•Time calibration signal reception takes from two to six
minutes. Take care that you do not move the watch
during this time.
•After signal reception is complete, the display of the
watch changes to the Last Signal screen.
•The receive indicator indicates that the calibration time
reception attempt was successful.
Receive indicator

USER’S GUIDE 2514
2
Note
•To interrupt a receive operation and return to the Timekeeping Mode, press A.
•If the receive operation is unsuccessful, the message ERROR! appears on the
display for about one or two minutes. After that, the watch returns to the
Timekeeping Mode.
•You can also change from the Last Signal or ERROR! screen to the normal
timekeeping screen by pressing A.

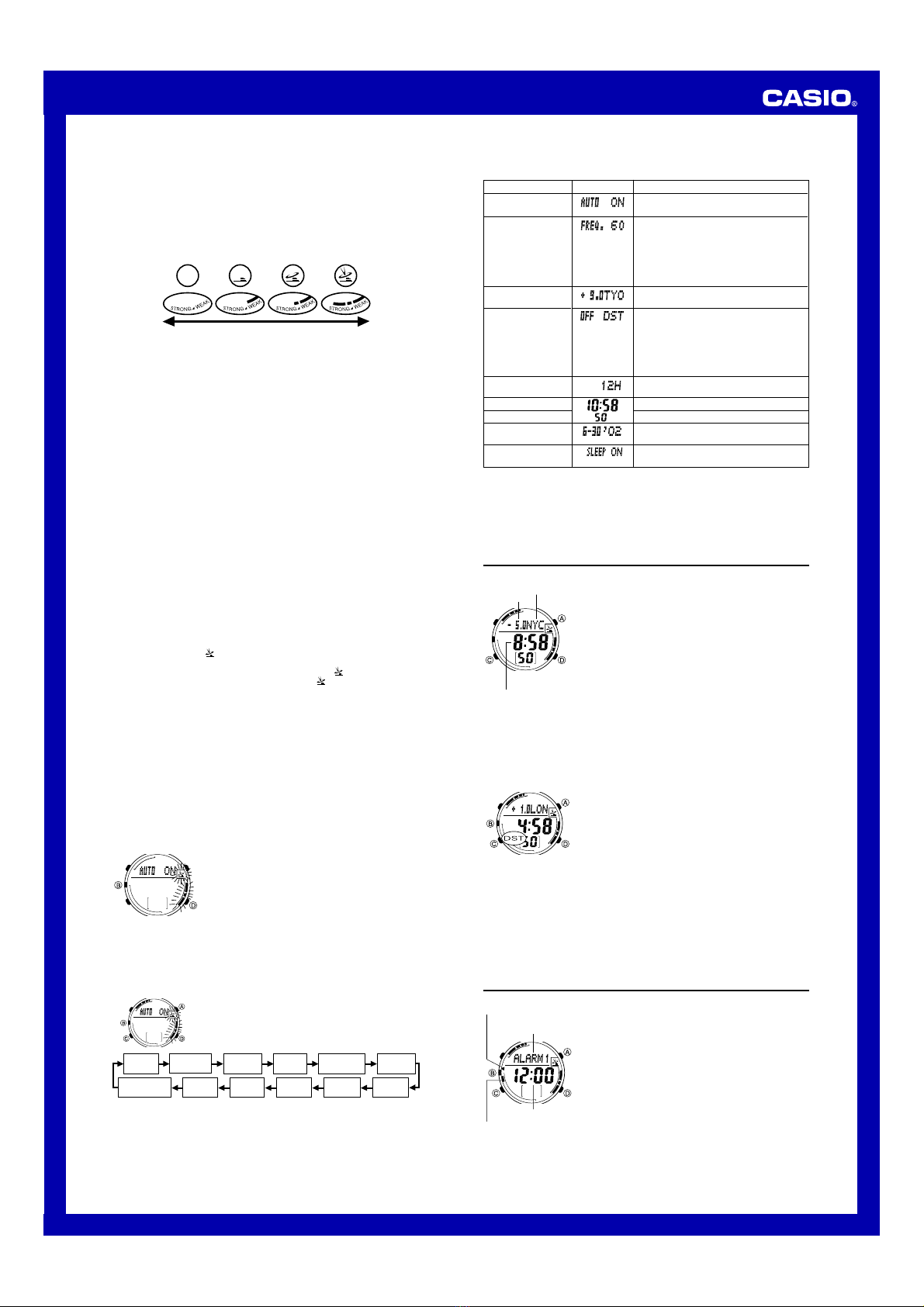

About the Receive Indicator
The receive indicator shows the strength of the calibration signal being received. For best
reception, be sure to keep the watch in a location where signal strength is strongest.
Weak Strong
•Even in an area where signal strength is strong, it takes about 10 seconds for signal
reception to stabilize enough for the receive indicator to indicate signal strength.
•Use the receive indicator as a guide for checking signal strength and for finding the
best location for the watch during signal receive operations.
•The receive indicator remains on the display in all modes following reception of the
time calibration signal and calibration of the watch’s time setting. The receive
indicator does not appear if signal reception was unsuccessful or after manual
adjustment of the current time setting.
About Auto Receive
When auto receive is turned on, the watch automatically starts to receive the time
calibration signal when the time in the Timekeeping Mode reaches 2:00 AM, 4:00 AM
and 6:00 AM each day (calibration times).
Note
•The auto receive operation is performed only if the watch is in the Timekeeping or
World Time Mode when one of the calibration times is reached.
It is not performed if a calibration time is reached while you are making settings
(while settings are flashing on the display), while an alarm is sounding, or while a
silent alert operation is being performed.
•Auto receipt of the calibration signal is designed to be performed early in the
morning, while you sleep (provided that the Timekeeping Mode time is set correctly).
Before going to bed for the night, remove the watch from your wrist, and put it in a
location where it can easily receive the signal.
•The receive indicator indicates that either the 2:00 AM, 4:00 AM, or 6:00 AM
calibration signal reception was successful. Note, however, that the receive indicator
is cleared from the display at 3:00 AM each day.
•If you do not see the receive indicator except for the above reason, it means there
was some problem with the calibration reception operation. Either perform reception
manually, or make sure the watch is set up properly to receive the time calibration
signal for the next automatic reception time.
•Though this watch is designed to receive both time data (hour, minutes, seconds)
and date data (year, month, day), certain signal conditions can limit reception to time
data only.
•The receive indicator ( ) appears only when the watch is able to successfully
receive both time and date data. It does not appear when only time data is received.
When time and date data is received: Receive indicator ( ) appears.
When time data only is received: Receive indicator ( ) does not appear.
•Normally, the signal reception date shown by the Last Signal screen is the date data
included in the received time calibration signal. When only time data is received,
however, the Last Signal screen shows date as kept in the Timekeeping Mode at the
time of signal reception.
•When auto receive is turned on, the watch receives the calibration signal for two to
six minutes each day when the Timekeeping Mode time reaches 2:00 AM, 4:00 AM
and 6:00 AM. Do not operate any of the watch’s buttons within six minutes prior to or
following the calibration times. Doing so can interfere with correct calibration.
•Remember that reception of the calibration signal depends on the time kept in the
Timekeeping Mode. The receive operation will be performed whenever the display
shows 2:00 AM, 4:00 AM and 6:00 AM, regardless of whether or not the
Timekeeping Mode time is actually the correct time.
•When two or three receptions are successful, the watch uses the data of the last
reception for calibration. When only one reception is successful, the watch uses the
data of the successful reception.
To turn auto receive on and off
1. In the Timekeeping Mode, press B. This causes the
current auto receive on/off setting (the receive indicator)
to flash, which indicates the setting screen.
2. Press Dto toggle auto receive on (ON) and off (OFF).
3. Press Bto exit the setting screen.
Auto
Receive Seconds
DST
Frequency 12/24-Hour
Format
City Code
Power Saving
on/off Hour
Month Year Minutes
Day
Setting the Time and Date Manually
Make sure you select your Home City code (the city code whose time and date you
are setting) before change the current time and date settings. World Time Mode times
are all displayed in accordance with the Timekeeping Mode settings. Because of this,
World Time Mode times will not be correct if you do not select the proper Home City
code before setting the time and date in the Timekeeping Mode.
To set the current time and date manually
1. In the Timekeeping Mode, press B. This causes the
current auto receive on/off setting (the receive indicator)
to flash, which indicates the setting screen.
2. Press Cto move the flashing in the sequence shown
below to select other settings.
ScreenSetting
Auto Receive
Frequency
City code
Button Operations
Press Dto toggle auto receive on and off.
When TYO (Tokyo) is selected as the city
code, press Dto toggle the calibration
signal reception frequency among Auto
(FREQ. AT), 40KHz (FREQ. 40) and
60KHz (FREQ. 60). Note that frequency
selection is available for the TYO city code
only.
Use D(+) and A(–) to change the
setting.
3. When the setting you want to change is flashing, use Aand/or Dto change it as
described below.
DST
12/24-Hour format
Hour, Minutes
Seconds
Month, Day, Year
Power Saving
on/off
Press Dto toggle between Daylight Saving
Time (ON) and standard time (OFF).
•Pressing Dperforms a different operation
when HKG, TYO, SEL, NYC, CHI, DEN,
LAX, ANC or HNL is selected as Home
City Code. See “Auto Summer Time (DST)
Switching”.
Press Dto toggle between 12-hour (12H)
and 24-hour (24H) timekeeping.
Use D(+) and A(–) to change the setting.
Press Dto reset the seconds to 00.
Use D(+) and A(–) to change the
setting.
Press Dto toggle the Power Saving on
(ON) and off (OFF).
4. Press Bto exit the setting screen.
•The auto receive setting is used for time calibration signal reception only. See “About
Auto Receive”for details.
•See “City Code Table”for a complete list of available city codes.
•Resetting the seconds to 00 while the current count is in the range of 30 to 59
causes the minutes to be increased by 1. In the range of 00 to 29, the seconds are
reset to 00 without changing the minutes.
World Time
World Time shows the current time in 30 cities (29 time
zones) around the world.
•For full information on city codes, see the “City Code
Ta b l e ”.
•The current time for all city codes in the World Time
Mode is calculated in accordance with the Greenwich
Mean Time (GMT) differential for each city, based on the
your Home City time setting.
•All of the operations in this section are performed in the
World Time Mode, which you enter by pressing C.
Current time in the
selected city code
City code
GMT
differential
To view the time in another city code
While in the World Time Mode, press Dto scroll through the city codes (time zones)
to the east or Ato scroll to the west.
•If the current time shown for a city is wrong, check your Timekeeping Mode time and
Home City settings and make the necessary changes.
To toggle a city code time between standard time and Daylight Saving Time
1. In the World Time Mode, use Aand Dto display the
city code (time zone) whose standard time/Daylight
Saving Time setting you want to change.
2. Press Bto toggle Daylight Saving Time (DST
displayed) and standard time (DST not displayed).
•The DST indicator is on the display whenever you
display a city code for which Daylight Saving Time is
turned on.
•Note that the DST/Standard Time setting affects only the
currently displayed city code. Other city codes are not
affected.
•Daylight Saving Time (DST) advances the time setting
by one hour from Standard Time. Remember that the
not all countries or even local areas use Daylight Saving
Time.
•The watch will perform a signal receive operation even if
it is in the World Time Mode when a calibration time is
reached. If this happens, the World Time Mode time
settings will be adjusted in accordance with the
Timekeeping Mode’s Home City code time.
Alarms
The Alarm Mode gives you a choice of four one-time
alarms and one snooze alarm. You can select either an
audible beeper or flashing silent alert to let you know
when any of the alarm times is reached.
You can also input reminder text that appears when the
alarm time is reached.
Also use the Alarm Mode to turn the Hourly Time Signal
on and off.
•All of the operations in this section are performed in the
Alarm Mode, which you enter by pressing C.
Alarm time
Alarm on indicator
Alarm screen name/
Reminder text
Alarm name
indicator

USER’S GUIDE 2514
3
To display Alarm Mode screen
In the Alarm Mode, use Dto cycle through the alarm screens as shown below.
•The following alarm screen names appear in the center
of the display to indicate the alarm whose screen is
currently displayed.
ALARM1 through ALARM4: One-time alarm screen
SNOOZE: Snooze alarm screen
SIGNAL: Hourly Time Signal screen
•The currently displayed alarm screen is also indicated
by the alarm name indicators along the bottom left of the
watch’s display.
ALARM1 ALARM2 ALARM3 ALARM4 SNOOZE SIGNAL
Alarm1
Alarm2
Alarm3
Alarm4
Snooze
To set an alarm
1. In the Alarm Mode, use Dto select the alarm whose
time you want to set.
2. Press Band the hour setting of the alarm time starts
to flash, which indicates the setting screen.
•Pressing Aand Dat the same time resets the
alarm time to 12:00 AM, and clears the reminder text
in the upper part of the display (if there is any).
3. Press Cto move the flashing in the sequence shown
below to select other settings.
•Selecting the text causes the text input cursor to appear.You can input up to eight
characters of reminder text for each alarm.
•There are eight spaces in the text, so you have to press Ceight times to move to
the Hour setting.
MinutesHour Te x t
4. When the setting you want to change is selected, use Aand Dto change it.
•While the hour or minute setting is flashing, use D(+) and A(–) to change it.
•When setting the alarm time using the 12-hour format, take care to set the time
correctly as a.m. (no indicator) or p.m. (Pindicator).
•When inputting text, use Aand Dto cycle through characters at the current
cursor location, and Cto move the cursor to the right. See “Inputting Text”for
more information.
5. Press Bto exit the setting screen.
•If you input reminder text, the text appears in place of the alarm screen name when
you exit the setting screen.
•If the reminder text has more than six characters, it will scroll from right to left
whenever it is displayed.
Alarm Operation
The following table describes the different types of alarm operations that this watch
can perform.
Alarm Operation
Type
Alarm off
Alarm on
Alert on
Description
•Nothing happens when the alarm
time is reached.
•The alarm on indicator and alarm
name indicator flash on the display
for 10 seconds.
•The watch beeps for 10 seconds.
•The alert on indicator and alarm
name indicator flash on the display
for 10 seconds.
•The watch does not beep.
Snooze
indicator
Alert on
indicator
Alarm on indicator
•Press any button to stop the alarm after it starts to sound.
•If any alarm operation (one-time alarm, silent alert, snooze) occurs while a signal
receive operation is in progress, the receive operation is canceled.
•In the case of the snooze alarm, the alarm operation repeats up to seven times
every five minutes until the alarm is turned off.
•If you input reminder text for an alarm, the text appears for one minute in place of
the date on the Timekeeping Mode screen. The text is cleared from the Timekeeping
Mode screen if you change to another mode while it is displayed.
•Alarm operations and the Hourly Time Signal operation are performed in all modes.
To test the alarm
In the Alarm Mode, hold down Dto sound the alarm.
To select the alarm operation type
1. In the Alarm Mode, use Dto select the screen for the alarm (ALARM1 to
ALARM4, or SNOOZE) whose alarm type you want to select.
2. Press Ato cycle through the available settings in the sequence shown below.
•The alarm on indicator ( ) and alarm name indicator are displayed for each alarm
(1 through 4, snooze) for which alarm on is selected. The alert on indicator
( ) and alarm name indicator are displayed for each alarm (1 through 4, snooze)
for which alert on is selected.
Alarm onAlarm off Alert on
•In other modes besides the Alarm Mode, the alarm name indicator is displayed for
each alarm for which alarm on is selected.
•In all modes, the alarm on indicator or alert on indicator is shown for any alarm
(ALARM1 through ALARM4, or SNOOZE) that is currently turned on.
To turn the Hourly Time Signal on and off
1. In the Alarm Mode, use Dto select the Hourly Time
Signal (SIGNAL).
2. Press Ato toggle it on (SIG displayed) and off (SIG
not displayed).
•The Hourly Time Signal on indicator (SIG) is shown on
the display in all modes while this function is turned on.
Data Memory
You can use the watch’s data memory to store e-mail
addresses, Web page URLs, and other text data.
•All of the operations in this section are performed in the
Data Memory Mode, which you enter by pressing C.
Data Memory Records
Each data memory record can contain up to 63
characters. Records are stored in memory in the
sequence they are created.
•The number of records you can store in data memory
depends on the number of characters that make up
each record. See “Data Memory Management”for more
information.
Remaining memory
To create a new data memory record
1. In the Data Memory Mode, press Aand Dat the
same time to display the remaining memory screen.
•You do not have to perform the above step if the
remaining memory screen is already on the display.
•If REST 0% is shown for remaining memory, it means
that memory is full. To store another record, you will
first have to delete some of the records stored in
memory.
2. Press Band the flashing cursor appears on the
display, which indicates the setting screen.
3. Use Aand Dto cycle through characters at the
current cursor location, and Cto move the cursor to
the right. See “Inputting Text”for more information.
•If memory becomes full while you are inputting text,
the cursor will jump to the first (leftmost) character of
the text when you press C, instead of advancing to
the right.
Cursor
4. Press Bto store your data and return to the data
memory record screen (without the cursor).
•The message SAVE! appears for about two seconds,
followed by a data memory record screen, which shows
the text you just input in the upper part of the display,
and a record number automatically assigned by the
watch in the lower part of the display.
•While the record number is in the lower part of the
display, you can see only six characters of the text in the
record. You can scroll through the text on the screen by
pressing D. See “To recall data memory records”for
more information.
Record number
Text
To recall data memory records
1. In the Data Memory Mode, press Ato scroll forward through data memory
records.
•Each press of Aadvances to the next record and shows its record number and
first six characters of its text.
•Pressing Awhile the last record in memory is on the display changes to the
remaining memory screen. Pressing Aagain displays the first record.
2. Press Dto scroll through the text on the screen.
•An end mark indicates the end of the text.
▲
First six characters
Pressing Dscrolls through the text.
End mark
▲
To edit a data memory record
1. In the Data Memory Mode, display the record you want to edit.
2. Press Band the flashing cursor appears on the display.
3. Press Cto move the flashing to the character you want to change.
4. Use Dand Ato change the character.
5. After making the changes you want, press Bto store them and return to the data
memory record screen.
To delete a data memory record
1. In the Data Memory Mode, display the record you want to delete.
2. Press Band the flashing cursor appears on the display.
3. Press Aand Dat the same time to delete the record.
•The message CLEAR! appears to indicate that the record is being deleted. After
the record is deleted, the cursor appears on the display, ready for input.
4. Input data or press Bto return to the remaining memory screen.
Stopwatch
The stopwatch lets you measure elapsed time, split
times, and two finishes.
•The display range of the stopwatch is 23 hours, 59
minutes, 59.99 seconds.
•The stopwatch continues to run, restarting from
zero after it reaches its limit, until you stop it.
•Exiting the Stopwatch Mode while a split time is
frozen on the display clears the split time and
returns to elapsed time measurement.
•The stopwatch measurement operation continues
even if you exit the Stopwatch Mode.
•All of the operations in this section are performed in
the Stopwatch Mode, which you enter by pressing
C.
Hours
Seconds 1/100 second
Minutes

USER’S GUIDE 2514
4
D
Start Stop
Elapsed Time
➤
Re-start Clear
D➤
Stop
D➤D➤A
Split Time
D
Start Split
➤
Split release Clear
A➤
Stop
A➤D➤A
Two Finishes
D
Start Split
➤
Stop Clear
A➤
Split release
D➤A➤A
First runner
finishes.
Display time of
first runner.
Second runner
finishes.
Display time of
second runner.
(SPL displayed)

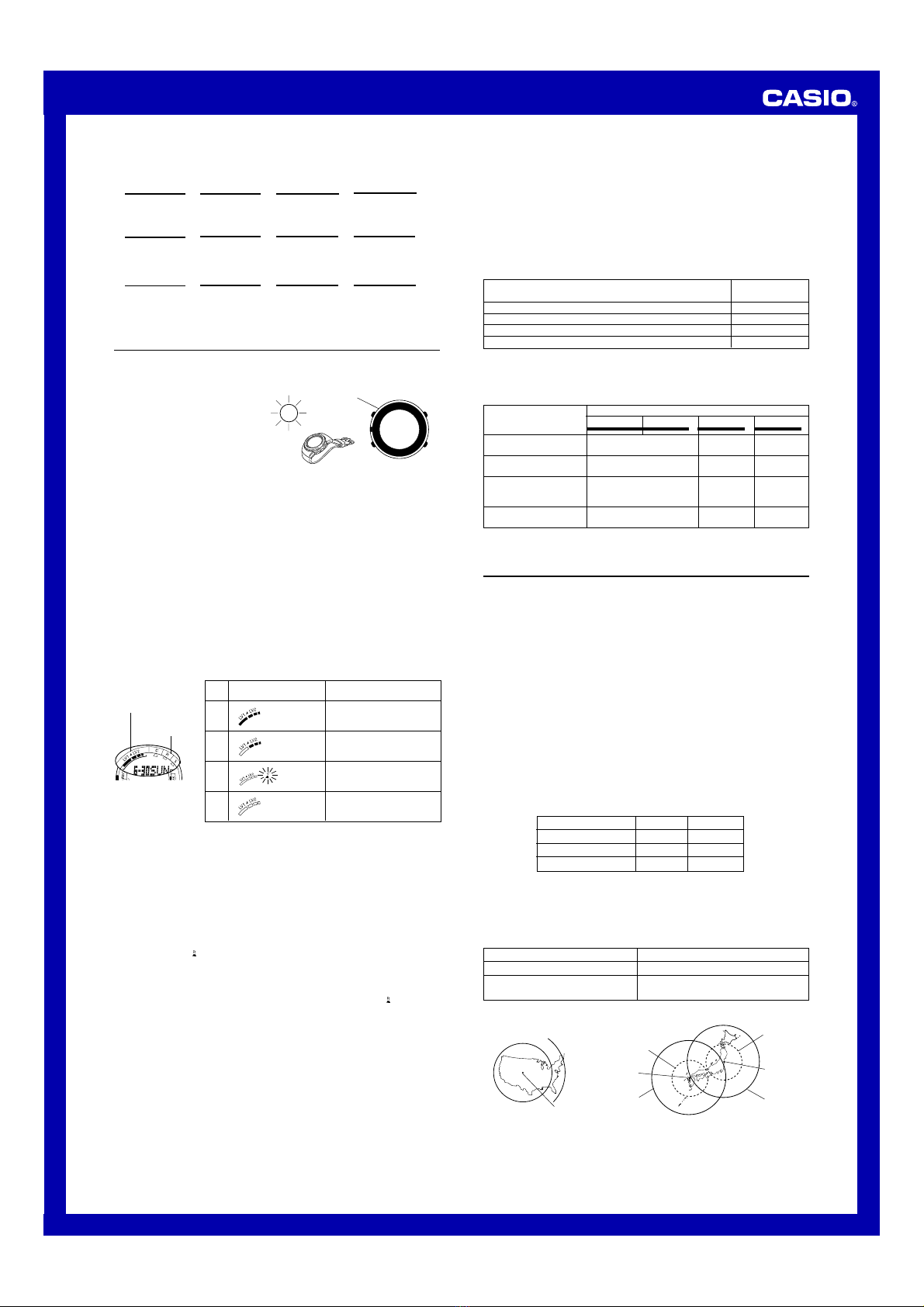

To measure times with the stopwatch
Battery
This watch is equipped with a solar cell and a rechargeable battery (secondary
battery) that is charged by the electrical power produced by the solar cell. The
illustration shown below shows how you should position the watch for charging.
Example: Orient the watch so its face
is pointing at a light source.
•Note that charging efficiency drops
when any part of the solar cell is
blocked by clothing, etc.
•The illustration shows how to position
a watch with a resin band.
Important!
•Storing the watch for long periods in an area where there is no light or wearing it in
such a way that it is blocked from exposure to light can cause rechargeable battery
power to run down. Be sure that the watch is normally exposed to bright light
whenever possible.
•This watch employs a solar cell that converts light into electricity that charges a built-
in rechargeable battery. Normally, the rechargeable battery should not need
replacement, but after very long use over a number of years, the rechargeable
battery may lose its ability to achieve a full charge. Should you notice problems with
getting the rechargeable battery to a full charge, contact your dealer or CASIO
distributor about having the rechargeable battery replaced.
•The rechargeable battery should be replaced with a CASIO-specified CTL1616
battery only. Other rechargeable batteries can cause damage to the watch.
•All data stored in memory is deleted, and the current time and all other settings
return to their initial factory defaults whenever battery power drops to Level 4 and
when you have the battery replaced.
•Turn on the watch’s Power Saving function and keep it in an area normally exposed
to bright light when storing it for long periods. This helps to keep the rechargeable
battery from going dead.
Solar cell
Battery Power Indicator
The battery power indicator on the display shows you the current status of the
rechargeable battery’s power.
Battery power indicator
Recover
indicator
Level
1
2
3
4
Battery Power
Indicator
Charge
Soon
Alert.
Function Status
All functions enabled.
All functions enabled.
Beeper tone, backlight,
display, and buttons are
disabled.
All functions, including
timekeeping, are disabled.
•The Level 3 charge warning indicator tells you that battery power is very low, and
that exposure to bright light for charging is required as soon as possible.
•At Level 4, all functions are disabled and settings return to their initial factory
defaults. Functions are enabled once again after the rechargeable battery is
charged, but you need to set the current time, date, and all other settings after the
battery is recharged to Level 2 from Level 4. Though the time appears on the display
after the battery is charged to Level 3, you will not be able to change the time setting
until the battery reaches Level 2.
•Leaving the watch in direct sunlight or some other very strong light source can
cause the battery power indicator to temporarily show a reading that is actually
higher than the battery level. The correct battery power indicator should appear after
a few minutes.
•If you use the backlight or the alarms a number of times during a short period, the
Recover indicator ( ) appears on the display and the following operations become
disabled until battery power recovers.
Backlight
Beeper tone
Calibration reception
After some time, battery power will recover and the Recover indicator ( ) will
disappear, indicating that the above functions are enabled again.
Charging Precautions
Certain charging conditions can cause the watch to become very hot. Avoid leaving
the watch in the areas described below whenever charging its rechargeable battery.
Warning!
Leaving the watch in bright light to charge its rechargeable battery can cause it
to become quite hot. Take care when handling the watch to avoid burn injury.
The watch can become particularly hot when exposed to the following
conditions for long periods.
•On the dashboard of a car parked in direct sunlight
•Too close to an incandescent lamp
•Under direct sunlight
Charging Guide
After a full charge, all functions of the watch remain enabled for up to about six
months, the watch is used under the conditions described below.
Operating Conditions
•
Watch is not exposed to light
• 1 backlight operation (1.5 seconds) per day
• 10 seconds of alarm operation per day
• 3 times calibration reception per day
Charge Times
Exposing the watch to light for the periods shown below each day restores the power
used by the above operating conditions.
•Stable operation is promoted by frequent charging.
Recovery Times
The table below shows the amount exposure that is required to take the battery from
one level to the next.
Exposure Level (Brightness) Approximate
Exposure Time
Outdoor Sunlight (50,000 lux) 5 minutes
Sunlight Through a Window (10,000 lux) 24 minutes
Daylight Through a Window on a Cloudy Day (5,000 lux) 48 minutes
Indoor Fluorescent Lighting (500 lux) 8 hours
Exposure Level
(Brightness)
Outdoor Sunlight
(50,000 lux)
Sunlight Through a
Window (10,000 lux)
Daylight Through a
Window on a Cloudy
Day (5,000 lux)
Indoor Fluorescent
Lighting (500 lux)
Approximate Exposure Time
Level 4 Level 3 Level 2 Level 1
52 minutes 15 hours 2 hours
2 hours 67 hours 13 hours
4 hours ------------ ------------
37 hours ------------ ------------
▲ ▲ ▲
•The above exposure time values are all for reference only. Actual required exposure
times depend on lighting conditions.
Reference
This section contains more detailed and technical information about watch operation.
It also contains important precautions and notes about the various features and
functions of this watch.
Auto Return Features
•If you leave the watch in the Alarm or Data Memory Mode for two or three minutes
without performing any operation, it automatically changes to the Timekeeping
Mode.
•If you leave a screen with flashing digits or a cursor on the display for two or three
minutes without performing any operation, the watch automatically saves anything
you have input up to that point and exits the setting screen.
Data and Setting Scrolling
The Aand Dbuttons are used in various modes and setting screens to scroll
through data on the display. In most cases, holding down these buttons during a scroll
operation scrolls through the data at high speed.
Initial Screens
When you enter the Alarm or World Time Mode, the data you were viewing when you
last exited the mode appears first.
Time Calibration Signal Reception
•This watch is designed to receive a time calibration signal originating from one of the
three transmitters listed below.
Location
Fort Collins, Colorado
Fukushima, Japan
Fukuoka/Saga, Japan
Frequency
60kHz
40kHz
60kHz
Call Sign
WWVB
JJY
JJY
•When you select one of the city codes shown below as your Home City code, the
watch sets up automatically to receive from the applicable transmitter. Time
calibration signal reception is not possible whenever any other city code is specified
as the Home City code.
•When you select TYO as your Home City code, the watch automatically selects
either the Fukushima signal (40kHz) or the Fukuoka/Saga signal (60kHz),
depending on which is stronger.
•Note that when TYO (Japan) is selected as the Home City code, you can specify one
of two different time signal transmitters.
Home City Code
LAX, DEN, CHI, NYC
TYO
Received Transmitter
Fort Collins, Colorado
Fukushima or Fukuoka/Saga, Japan
(selectable)
•Signal reception is possible within a radius of about 2,000 miles (3,000 kilometers)
from the Fort Collins transmitter.
•At distances further than about 500 kilometers from the Fukushima and Fukuoka/
Saga transmitter, the signal may become weak and reception may be impossible
under certain conditions.
Fort Collins
2,000 miles
1,200 miles
1,000
kilometers
1,000
kilometers
Fukuoka/Saga
500
kilometers
Fukushima
500
kilometers

USER’S GUIDE 2514
5
General Precautions
•The watch is designed to automatically update the date and day of the week for the
period January 1, 2000 to December 31, 2039. Setting of the date by the time
calibration signal cannot be performed star ting from January 1, 2040.
•This watch can receive signals that differentiate between leap years and non-leap
years.
•Even when the watch is within the reception range of the transmitter, signal
reception is impossible if the signal is blocked by mountains or other geological
formations between the watch and signal source.
•Signal reception is affected by weather, atmospheric conditions, and seasonal
changes.
•The time calibration signal is bounced off the ionosphere. Because of this, such
factors as changes in the reflectivity of the ionosphere, as well as movement of the
ionosphere to higher altitudes due to seasonal atmospheric changes or the time of
day may change the reception range of the signal and make reception temporarily
impossible.
•Reception is best when the antenna built into the 12 o’clock edge of the watch is
facing in the general direction of the signal transmitter. Note, however, that moving
the watch while the time calibration signal receive operation is taking place will make
stable reception impossible.
•Think of the watch as acting like a TV or radio when it is receiving the calibration
signal. Place the watch near a window in a location where there are no nearby
metal objects.
•Proper signal reception can be difficult or even impossible under the conditions
listed below.
Inside or
among
buildings
Inside a
vehicle
Near
household
appliances
or office
equipment
Near a
construction
site, airport,
or other sources
of electrical noise
Near high-
tension
power lines
Among or
behind
mountains
•Do not move the watch or operate any of its buttons while signal reception is being
performed.
•This watch automatically receives a time calibration signal in the middle of the night,
when reception is best.
•Radio interference can make signal reception impossible.
•Strong electrostatic charge can result in the wrong time being set.
•If you are in an area where proper time calibration signal reception is impossible, the
watch keeps time within ±15 seconds a month at normal temperature.
Troubleshooting
Check the following points whenever you experience problems with your watch.
Problem
Cannot perform
manual receive.
Auto receive is
turned on, but
the receive
indicator does
not appear on
the display.
Probable Cause
• The watch is not in the Timekeeping Mode.
•You do not select one of the following
City Codes as your Home City Code:
TYO, NYC, CHI, DEN, or LAX.
•You changed the time setting manually.
•The watch was not in the Timekeeping
or World Time Mode, or you were
perfor ming some button operation
during the auto signal receive operation
was performed.
• Even if receive is successful, the receive
indicator disappears every day at 3am.
•Time data (hour, minutes, seconds) only
was received during the last receive
operation. The receive indicator appears
only when time data and date data
(year, month, day) are both received.
What you should do
•Enter the Timekeeping Mode
and try again.
•Select the correct Home City
Code.
•Perform manual signal receive
or wait until the next auto
signal receive operation is
performed.
•Check to make sure the watch
is in a location where it can
receive the signal.
• Put the watch in a location
that is suitable for good
reception.
Time setting is
incorrect
following signal
reception.
•If the time is one hour off, the DST
setting may be incorrect.
•The Home City Code setting is not
correct for the area where you are using
the watch.
•Change the DST setting to
AUTO DST.
•Select the correct Home City
Code.
Auto Summer Time (DST) Switching
The time calibration signal transmitted from Fort Collins, Colorado includes both
standard time and summer time (Daylight Saving Time) data.When auto summer time
(DST) switching is turned on, the watch switches between standard time and summer
time (DST) automatically in accordance with the For t Collins signal.
•Daylight Saving Time (DST) advances the time setting by one hour from Standard
Time. Remember that not all countries or even local areas use Daylight Saving Time.
•The time calibration signals transmitted from the Fukushima and Fukuoka/Saga do
not include summer time data.
•When using the watch in the Continental United States or in Japan, select AUTO
DST for the auto summer time setting.
•The default auto summer time settings is AUTO DST whenever you select one of the
following city codes as your Home City code: HKG, TYO, SEL, NYC, CHI, DEN,
LAX, ANC, or HNL.
•If you experience problems receiving the time calibration signal in your area, it is
probably best to turn off auto time switching.
To select the auto summer time setting
1. In the Timekeeping Mode, press B. This causes the current auto receive on/off
setting (the receive indicator) to flash, which indicates the setting screen.
2. Press Cthree times until the summer time (DST) setting screen appears.
3. Use Dto cycle through the summer time settings in the sequence shown below.
4. When the setting you want is selected, press Bto exit the setting screen.
Timekeeping
•The day of the week is automatically displayed in accordance with the date (year,
month, and day) settings.
•The year can be set in the range of 2000 to 2039.
•The watch’s built-in full automatic calendar automatically makes allowances for
different month lengths and leap years. Once you set the date, there should be no
reason to change it except after you have the watch’s battery replaced.
•The current time for all city codes in the Timekeeping Mode is calculated in
accordance with the Greenwich Mean Time (GMT) differential for each city, based
on the your Home City time setting.
•GMT differential is calculated by this watch based on Universal Time Coordinated
(UTC*) data.
*
The letters “UTC”stands for “Universal Time Coordinated,”which is the world-wide
scientific standard of timekeeping. It is based upon carefully maintained atomic
(cesium) clocks that keep accurate to within microseconds. Leap seconds are
added or subtracted as necessary to keep UTC in sync with the Earth’s rotation.
The reference point for UTC is Greenwich, England.
12-hour/24-hour Timekeeping Formats
The 12-hour/24-hour timekeeping format you select in the Timekeeping Mode is also
applied in all other modes.
•With the 12-hour format, the P(PM) indicator appears on the display for times in the
range of noon to 11:59 p.m. and the no indicator appears for times in the range of
midnight to 11:59 a.m.
•With the 24-hour format, times are displayed in the range of 0:00 to 23:59, with 24
indicator.
(space)
*to +
(symbol)
ato z
(lower-case)
(Japanese)
0to 9
(number)
Ato Z
(upper-case)
to
Inputting Text
The following describes how to input text in the Alarm and Data Memory Modes.
To input characters
1. When the cursor is on the display, use Aand Dto
cycle through the available letters, numbers and
symbols, in the sequence shown below.
•You can input Japanese phonetic characters (katakana), alpha characters,
symbols, and numbers in the text area. For a complete list of characters you can
input, see the “Character List”.
2. When the character you want is at the cursor position, press Cto move the cursor
to the right.
Press D.Press A.
Reminder Text Input
Screen
Cursor
3. Repeat steps 1 and 2 to input the rest of the characters you want.
Data Memory Management
Data memory can hold up to 315 characters total, while each record can contain up to
63 characters. This means that 40 records can be stored in data memory when each
record contains seven characters of text or less.
Power Saving Function
When turned on, the Power Saving function automatically puts the watch into a sleep
state whenever it is left in an area where it is dark for a certain period. The table below
shows how watch functions are affected by the Power Saving function.
•Wearing watch inside the sleeve of clothing can cause it to enter the sleep state.
Elapsed Time
in Dark
3 to 4 days
7 or 8 days
Display
Blank, with Sleep indicator ( )
Blank, with Sleep indicator ( )
Operation
All functions enabled, except
for the display
All functions disabled
To recover from the sleep state
Perform any one of the following operations.
•Move the watch to a well-lit area.
It can take up to five seconds for the display to turn
on.
•Press any button.
To turn Power Saving on and off
1. In the Timekeeping Mode, press B. This causes the
curreut auto receive on/off setting (the receive indicator)
to flash, which indicates the setting screen.
2. Press C11 times until the Power Saving on/off screen
appears.
3. Press Dto toggle Power Saving on (ON) and off
(OFF).
4. After the setting is the way you want, press Bto exit
the setting screen.
Backlight Precautions
The backlight uses an EL (electro-luminescent) panel that causes the entire display to
glow for easy reading in the dark.
In any mode, press Lto illuminate the display for about one second.
•The electro-luminescent panel that provides illumination loses power after very long
use.
•The illumination provided by the backlight may be hard to see when viewed under
direct sunlight.
•The watch may emit an audible sound whenever the display is illuminated. This is
due to vibration of the EL panel used for illumination, and does not indicate
malfunction.
•The backlight automatically turns off whenever an alarm sounds.
•Frequent use of the backlight shortens the battery life.

USER’S GUIDE 2514
6
HONOLULU
ANCHORAGE
LOS ANGELES
DENVER
CHICAGO
NEW YORK
CARACAS
RIO DE JANEIRO
LONDON
PARIS
BERLIN
City City GMT Other major cities in same time zone
Code Differential
–––
HNL
ANC
LAX
DEN
CHI
NYC
CCS
RIO
–––
–––
GMT
LON
PA R
BER
–11
–10
–9
–8
–7
–6
–5
–4
–3
–2
–1
+0
+1
PAGO PAGO
PAPEETE
NOME
SAN FRANCISCO, LAS VEGAS, VANCOUVER,
SEATTLE, DAWSON CITY
EL PASO, EDMONTON
HOUSTON, DALLAS/FORT WORTH,
NEW ORLEANS, MEXICO CITY, WINNIPEG
MONTREAL, DETROIT, MIAMI, BOSTON,
PANAMA CITY, HAVANA, LIMA, BOGOTA
LA PAZ, SANTIAGO, PORT OF SPAIN
SAO PAULO, BUENOS AIRES, BRASILIA,
MONTEVIDEO
PRAIA
DUBLIN, LISBON, CASABLANCA, DAKAR,
ABIDJAN
MILAN, ROME, MADRID, AMSTERDAM, ALGIERS,
HAMBURG, FRANKFURT, VIENNA, STOCKHOLM
(space)
a
b
c
d
e
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
*
–
–
@
~
/
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
**
**
*
-
_
@
/
?
#
!
%
.
:
,
,
&
#
!
%
.
:
,
,
&
=
–
+
A
B
C
D
=
d
X
-
+
A
B
C
D
E
F
G
H
I
J
K
L
M
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
0
1
2
3
4
W
X
Y
Z
0
1
2
3
4
5
6
7
8
9
5
6
7
8
9
ATHENS
CAIRO
JERUSALEM
JEDDAH
TEHRAN
DUBAI
KABUL
KARACHI
DELHI
DHAKA
YANGON
BANGKOK
HONG KONG
TOKYO
SEOUL
ADELAIDE
SYDNEY
NOUMEA
WELLINGTON
+2
+3
+3.5
+4
+4.5
+5
+5.5
+6
+6.5
+7
+8
+9
+9.5
+10
+11
+12
HELSINKI, ISTANBUL, BEIRUT, DAMASCUS,
CAPE TOWN
KUWAIT, RIYADH, ADEN, ADDIS ABABA, NAIROBI,
MOSCOW
SHIRAZ
ABU DHABI, MUSCAT
MALE
MUMBAI, KOLKATA
COLOMBO
JAKARTA, PHNOM PENH, HANOI, VIENTIANE
SINGAPORE, KUALA LUMPUR, BEIJING, TAIPEI,
MANILA, PERTH, ULAANBAATAR
PYONGYANG
DARWIN
MELBOURNE, GUAM, RABAUL
PORT VILA
CHRISTCHURCH, NADI, NAURU ISLAND
AT H
CAI
JRS
JED
THR
DXB
KBL
KHI
DEL
DAC
RGN
BKK
HKG
TYO
SEL
ADL
SYD
NOU
WLG
•Based on data as of June 2002.
City Code Table
Character List
