Cateye COMMUTER CC-COM10W Instruction manual

CATEYE COMMUTER
CC-COM10W
Quick Start
Click the button and follow the in-
structions.
START

Thank you for purchasing our cyclocomputer CATEYE COMMUTER.
This Quick Start Manual explains how to set up the computer and how to install the unit on
your bicycle.
Please set up the unit according to the specified procedure, then it will be ready for use as a
cyclocomputer.
Before use, read the instruction manual that comes with the product thoroughly
to the end to understand the functions of this unit, and to use it safely in a
correct manner.
Next

This PDF contains a movie file.
When you click on the movie screen, a message regarding security appears. Click the
“Trust in the text” or “Play” button to close the message.
Click the screen again to play the movie.
Next

CATEYE COMMUTER
Quick Start Manual Contents
Click the item you wish to view.
Return to a Cover
Setting up the computer
How to install the speed sensor (movie)
How to install the bracket (movie)

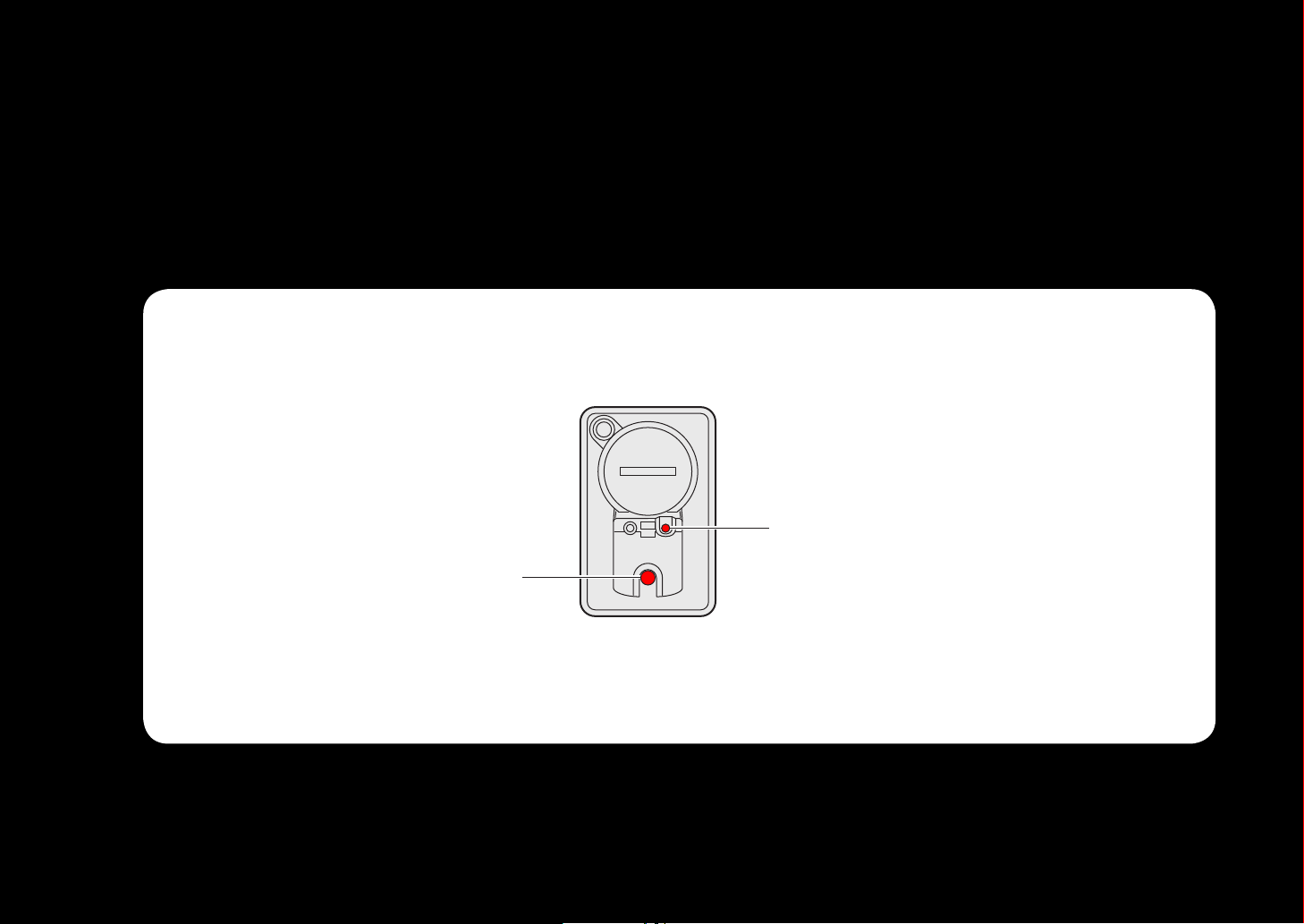

Operation of buttons
Set up the computer by operating the buttons as follows.
Check the button position before you start setting up.
MODE
MENU
Back
Press the MODE button or MENU button
on the back of the computer.
Next

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the speed unit
Setting the date display
Setting the day
Setting the month
Measuring screen
(Setup completed)
Setting the temperature unit
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Formatting operation Formatting operation
Press the MENU button on the back of the computer
and the AC button simultaneously.
Press and hold the* MENU button for 3 seconds
after you release the AC button.
After full lighting of the screen, the computer switch-
es to the speed unit setting screen to start setup.
AC
MENU
Full lighting Setting the speed unit
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the date display
Setting the day
Setting the month
Measuring screen
(Setup completed)
Setting the temperature unit
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the speed unit
Formatting operation
Setting the
speed unit

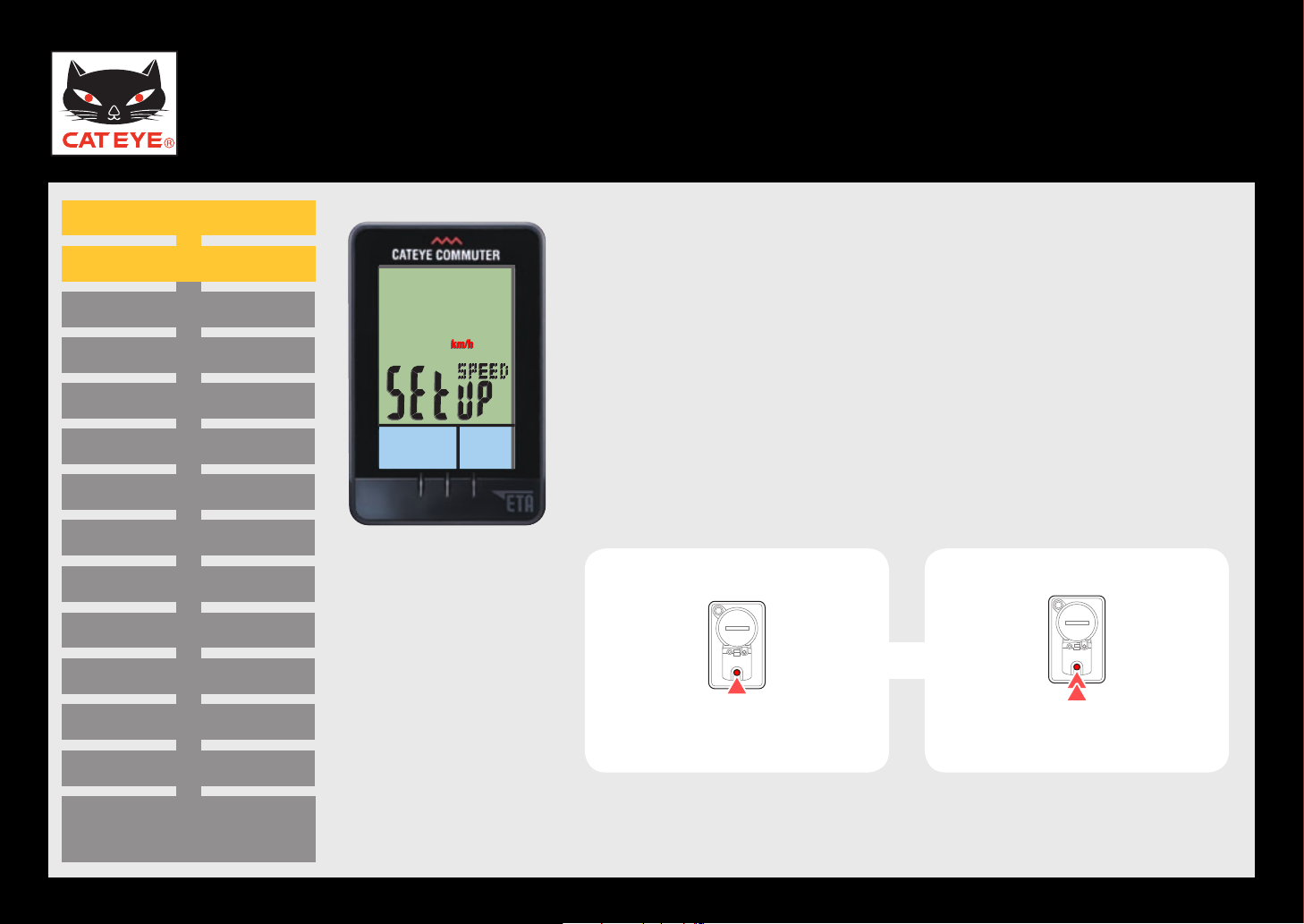

Setting the speed unit
When the MODE button is pressed, either “km/h” or “mph”
is selected for the speed unit display. Select the display of
your choice.
After selecting, press and hold the MODE button to pro-
ceed to the next step “Setting the temperature unit”.
MODE
To the next step
MODE
(Press and hold)
km/h ↔mph
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the date display
Setting the day
Setting the month
Measuring screen
(Setup completed)
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the temperature unit
Setting the speed unit

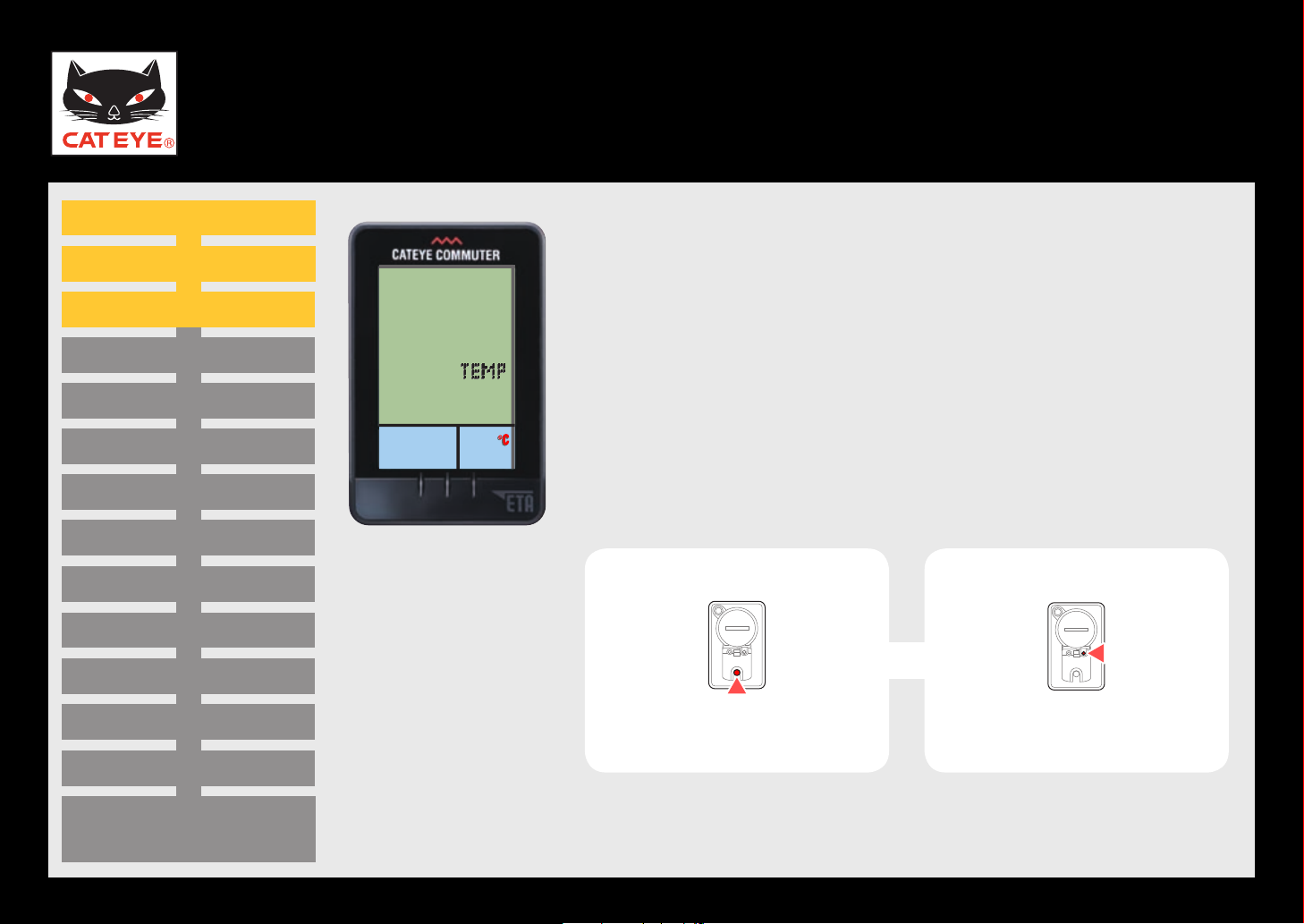

Formatting operation Setting the temperature unit
When the MODE button is pressed, either “°C” (Celsius)
or “°F” (Fahrenheit) is selected for the temperature unit
display. Select the display of your choice.
After selecting, press the MENU button to proceed to the
next step “Setting the date display”.
Setting the
temperature unit To the next step
MODE
˚C ↔˚F
MENU
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the day
Setting the month
Measuring screen
(Setup completed)
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the date display
When the MODE button is pressed, either “D(Day) / M
(Month)” or “M(Month) / D(Day)” is selected for the date
display. Select the display of your choice.
After selecting, press and hold the MODE button to pro-
ceed to the next step “Setting the day”.
Be sure to enter the correct value for the date at the time of*
setup.
The following describes the case when “* M(Month) / D(Day)”
is selected.
Date display
MODE
To the next step
MODE
(Press and hold)
D/M ↔M/D
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the month
Measuring screen
(Setup completed)
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the day
Pressing the MODE button increases the value flashing
(“Day” of the date). Enter the correct value.
After entering, press and hold the MODE button to pro-
ceed to the next step “Setting the month”.
Day
MODE
To the next step
MODE
(Press and hold)
Increase the value
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the month
Pressing the MODE button increases the value flashing
(“Month” of the date). Enter the correct value.
After entering, press and hold the MODE button to pro-
ceed to the next step “Setting the year”.
Month
MODE
To the next step
MODE
(Press and hold)
Increase the value
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the year
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the year
Pressing the MODE button increases the value flashing
(“Year” of the date). Enter the correct value.
The screen indicates the year 2010.*
After entering, press and hold the MENU button to pro-
ceed to the next step “Setting the clock display”.
Year
To the next step
MODE
Increase the value
MENU
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the clock display
Setting the year
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation
Clock display
MODE
To the next step
MODE
(Press and hold)
24h ↔12h

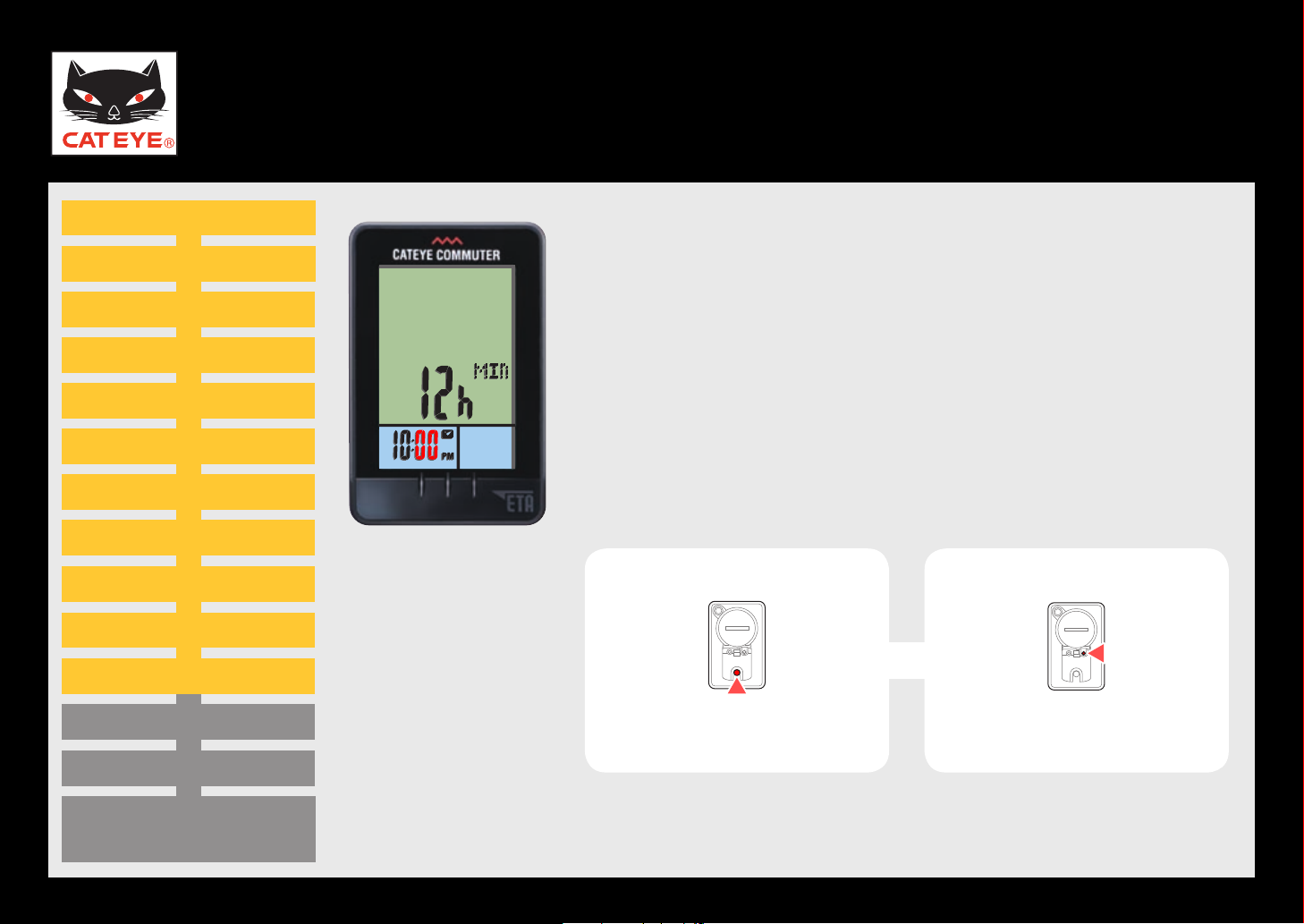

Setting the clock display
When the MODE button is pressed, either “12h” or “24h” is se-
lected for the clock display. Select the display of your choice.
After selecting, press and hold the MODE button to pro-
ceed to the next step.
When* 12h is selected, “AM/PM selection” will appear.
When 24h is selected, “Setting the hour” will appear.
Return to Contents
Return
Next (when 12h is selected)
Next (when 24h is selected)

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the AM/PM display
Setting the clock display
Setting the year
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the AM/PM display
When the MODE button is pressed, either “AM” or “PM”
is selected for the AM/PM display. Select the display of
your choice.
After selecting, press and hold the MODE button to pro-
ceed to the next step “Setting the hour”.
AM/PM display
MODE
To the next step
MODE
(Press and hold)
AM ↔PM
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the speed unit
Setting the date display
Setting the day
Setting the month
Measuring screen
(Setup completed)
Formatting operation
Setting the temperature unit
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the hour
Setting the AM/PM display
Setting the clock display
Setting the year
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the hour
Pressing the MODE button increases the value flashing
(“Hour” of the clock). Enter any value.
After entering, press and hold the MODE button to pro-
ceed to the next step “Setting the minute”.
Hour
MODE
To the next step
MODE
(Press and hold)
Increase the value
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Entering the tire circumference
Entering the total distance
Formatting operation
Setting the speed unit
Setting the temperature unit
Setting the date display
Setting the day
Setting the month
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Setting the minute
Pressing the MODE button increases the value flashing
(“Minute” of the clock). Enter any value (Pressing and
holding MODE rapidly increases the value).
After entering, press the MENU button to proceed to the
next step “Entering the tire circumference”.
Minute
To the next step
MODE
Increase the value
MENU
Return to Contents
Return
Next

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the speed unit
Setting the date display
Setting the day
Setting the month
Measuring screen
(Setup completed)
Formatting operation
Setting the temperature unit
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Setting the hour
Setting the AM/PM display
Setting the clock display
Setting the year
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation Setting the hour
Pressing the MODE button increases the value flashing
(“Hour” of the clock). Enter any value.
After entering, press and hold the MODE button to pro-
ceed to the next step “Setting the minute”.
Hour
MODE
To the next step
MODE
(Press and hold)
Increase the value
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Setting the speed unit
Setting the date display
Setting the day
Setting the month
Measuring screen
(Setup completed)
Formatting operation
Setting the temperature unit
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the total distance
Formatting operation
Setting the speed unit
Setting the temperature unit
Setting the date display
Setting the day
Setting the month
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Setting the minute
Pressing the MODE button increases the value flashing
(“Minute” of the clock). Enter any value (Pressing and
holding MODE rapidly increases the value).
After entering, press the MENU button to proceed to the
next step “Entering the tire circumference”.
Minute
To the next step
MODE
Increase the value
MENU
Return to Contents
Next
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Entering the total distance
Formatting operation
Setting the speed unit
Setting the temperature unit
Setting the date display
Setting the day
Setting the month
Setting the year
Setting the clock display
Setting the AM/PM display
Setting the hour
Setting the minute
Entering the tire circumference
Entering the tire circumference
Enter the tire circumference (mm) of your bicycle with 4
digits using the tire circumference reference table.
Pressing the MODE button increases the value flashing,
and pressing and holding the MODE button moves to the
next digit.
After entering, press the MENU button to proceed to the
next step “Entering the total distance”.
Entering the tire
circumference
MODE
Move digit
MODE
(Press and hold)
Increase the value
MENU
To the next step
Return to Contents
Next
Tire circum-
ference refer-
ence table
Return

CATEYE COMMUTER
Quick Start Manual Setting up the computer
Measuring screen
(Setup completed)
Entering the total distance
Entering the tire circumference
Setting the minute
Setting the hour
Setting the AM/PM display
Setting the clock display
Setting the year
Setting the month
Setting the day
Setting the date display
Setting the temperature unit
Setting the speed unit
Formatting operation
Total distance
MODE
Move digit
MODE
Increase the value
(Press and hold)
MENU
Setup is completed.
To the measuring screen
Entering the total (cumulative) distance
When the computer setup is complete, you can start the
total (cumulative) distance with the value you enter.
Use this function after you purchased a new computer and you*
wish to carry over the total distance from the previous one. To start
the total distance with “0”, it is not necessary to enter any value.
Pressing the MODE button increases the value flashing, and
pressing and holding the MODE button moves to the next digit.
Enter the value as a 5-digit integer number.*
After entering, press the MENU button to switch to the
measuring screen.
Return to Contents
Next
Return
