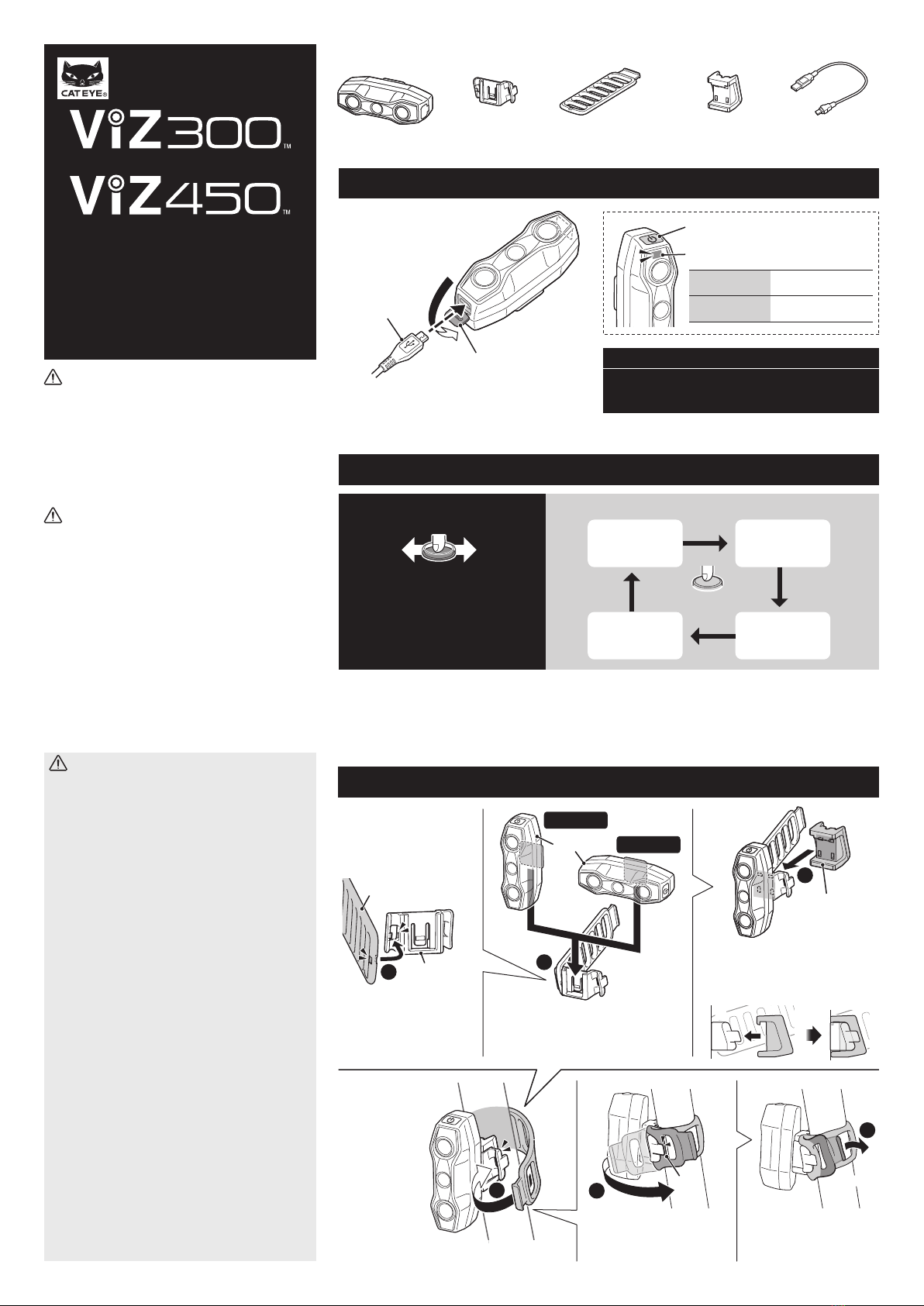

Cateye ViZ450 User manual

USBUSB
Bracket rubber pad
Light unit USB cable
(MICRO USB)
Bracket
(SP-15)
Ladder rubber band
Included Items
B
AC
Switch
CAUTION!:
• Always charge the product before use.
• Attach the charging port cover securely to ensure waterproofness.
To PC or USB battery charger
USB cable
Charging port cover Standard charging time
Off Charging is completed
Steady red light Charging
Indicator
Automatic battery-saving function:
When the remaining battery power gets low, the indicator starts flashing and the lighting mode changes to
power-save flashing mode (where the LEDs on both ends of the unit flash alternately). Charge the product as
soon as possible.
* Run time is approximately 1 hour in power-save flashing mode.
Click
Constant Flashing
Daytime
HyperFlash Group Ride
Switching the lighting mode
Press and hold
ON*OFF
* When turning the light on, it lights
up in the mode that was used last
time. (Mode memory function)
WARNING!!! (Risk of death; Prevention of accidents)
• To prevent accidents and to ensure safe riding, make
sure the light is securely attached to the bracket and it is
functioning properly before the ride. Do not use a
damaged ladder rubber band.
• Always pay attention to the remaining battery power by
checking the indicator periodically when using.
• Do not disassemble or modify the light or any of the
included items.
CAUTION! (Prevention of injury, damage, or property damage)
• Stop your bicycle to operate the switch.
• Do not place it within children’s reach.
• This device is rated IPX4 based on JIS C0920. Do not
immerse the device in water. Doing so may cause a
malfunction. Wipe off any moisture after using the device
in rainy weather.
•
Do not subject the light to strong vibrations, impacts, or
excessive force. Discontinue use if any abnormality occurs.
• Do not charge or use the battery at any voltage or polarity
other than that specified. Do not short-circuit the battery.
• Do not drop the light into a fire or heat the light.
• If the light unit or parts become dirty with mud, etc.,
clean with a soft cloth which is moistened with mild
soap. Never apply paint thinner, benzine or alcohol;
damage will result.
TL-LD810
TL-LD820
Before using the light, read this manual
thoroughly and keep it for future reference.
Do not use the product in any application or
method not described in this manual.
ENG
HOW TO CHARGE
SWITCH OPERATION
1
HOW TO MOUNT TO A BICYCLE
3
2
Manual
Design Pat. Pending
Copyright© 2022 CATEYE Co., Ltd.
TLLD810/820-220301 2
LITHIUM-ION BATTERIES
Recharge the battery for first time use or after long
period of storage:
The voltage of the battery may drop due to self-discharge
during long period of storage. Always fully charge the
battery before use.
Cautions for charging and usage:
• We recommend using 0.5 A USB battery charger.
• Please be sure that no dust or other foreign objects are
attached to the plug of the USB cable before charging.
• Do not subject the light to vibrations while charging.
• When your PC is in sleep state, the unit cannot be
charged.
• Once charging is completed, be sure to disconnect the
USB cable from the charging port.
• Charging time is approximate values, and will vary
depending on the environmental and usage conditions.
• Charging, discharging, and storing in high
temperatures will cause the rechargeable battery to
deteriorate faster. Do not place the light inside a vehicle
or near a heater. Make sure to charge only when the
ambient temperature is between 5 and 40°C.
• If the illumination time is significantly reduced even
after proper charging, the rechargeable battery may be
nearing the end of its service life.
Cautions on storage:
• If the device will not be used for a long period of time,
store it in a location that is not too hot or too humid.
•
Charge the battery for about 30 minutes every 6 months.
Cautions for dispose:
When disposing the light unit, please do so in
accordance with your local regulations.
Ladder rubber band
Attach the light securely
in the mounting position.
Attach the ladder
rubber band (B) to the
bracket (A).
Bracket
1
Mount the light unit vertically or
horizontally.
or
2
Horizontal
Vertical
Light unit
B
A
Bracket rubber
pad
Fold back
Insert
Attach the bracket rubber pad (C)
aligning it with the protrusion on
the back of the bracket (A).
Fold back any excess band
and hook it on the tab.
Insert the tip of the band
into the gap.
Tab
3
45
6
* The light can be mounted on aero seat posts with an outer
circumference of approx. 130 mm.
C
A
AC
Seat post/stay
Ø21.5 – 32 mm
Viz300 Approx. 3 hours (0.5A)
Viz450 Approx. 3.5 hours (0.5A)

USB cable
(MICRO USB)
53427305342490
5342460
Bracket
(SP-15)
Clip
(C-2)
Viz300
Battery Li-ion 3.7 V - 800 mAh
Operating time
• Constant Approx. 5 hours
• Flashing Approx. 45 hours
• Group Ride Approx. 10 hours
• Daytime HyperFlash Approx. 10 hours
Standard charging time (0.5 A) Approx. 3 hours
Charge voltage 5 V
Temperature range
• Charging 41˚F – 104˚F (5˚C – 40˚C)
• Operating 14˚F – 104˚F (-10˚C – 40˚C)
Waterproof IPX4
Recharge/discharge number of times About 300 times
(until the rated capacity drops to 70%)
Dimensions / Weight 2-31/32”x 63/64”x 1-11/32”(75.5 x 25 x
34 mm) / 1.66 oz (47 g)
* The specifications and design are subject to change without notice.
Viz450
Battery Li-ion 3.7 V - 1000 mAh
Operating time
• Constant Approx. 5 hours
• Flashing Approx. 65 hours
• Group Ride Approx. 10 hours
• Daytime HyperFlash Approx. 14 hours
Standard charging time (0.5 A) Approx. 3.5 hours
Charge voltage 5 V
Temperature range
• Charging 41˚F – 104˚F (5˚C – 40˚C)
• Operating 14˚F – 104˚F (-10˚C – 40˚C)
Waterproof IPX4
Recharge/discharge number of times About 300 times
(until the rated capacity drops to 70%)
Dimensions / Weight 2-31/32”x 63/64”x 1-11/32”(75.5 x 25 x
34 mm) / 1.59 oz (45 g)
* The specifications and design are subject to change without notice.
LIMITED WARRANTY
2-year Warranty: Light unit only
(excludes battery deterioration)
CatEye products are warranted to be free of defects from materials and
workmanship for a period of 2 years from original purchase. If the
product fails to work during normal use, CatEye will repair or replace the
defect at no charge. Service must be performed by CatEye or an
authorized retailer. To return the product, pack it carefully and enclose the
warranty certificate (proof of purchase) with instruction for repair. Please
write or type your name and address clearly on the warranty certificate.
Insurance, handling and transportation charges to CatEye shall be borne
by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place
of purchase. This does not affect your statutory rights.
Standard accessories
Optional accessories
SPECIFICATIONS
2-8-25, KUWAZU, HIGASHI SUMIYOSHI-KU, OSAKA, JAPAN 546-0041
For inquiries, please visit https://cateye.com/intl/contact/
[For US Customers]
Please visit https://www.cateyeamerica.com/contact-us/
Toll Free : 800.5.CATEYE
