CATEYE PADRONE+
CC-PA110W
Quick Start
START

Thank you for purchasing our cyclocomputer CATEYE PADRONE+.
This Quick Start Manual explains how to set up the computer and how to install the unit on
your bicycle.
Please set up the unit according to the specified procedure, then it will be ready for use as a
cyclocomputer.
Before use, read the instruction manual that comes with the product thoroughly to the
end to understand the functions of this unit, and to use it safely in a correct manner.
Next

This PDF contains a movie file.
When you click on the movie screen, a message regarding security appears. Click the
“Trust in the text” or “Play” button to close the message.
Click the screen again to play the movie.
Next

CATEYE PADRONE +
Quick Start Manual Contents
Click the item you wish to view.
Setting up the computer
How to install the speed sensor (movie)
How to install the bracket (movie)
Backlight (Night Mode)
Return to a Cover

MENU
MODE

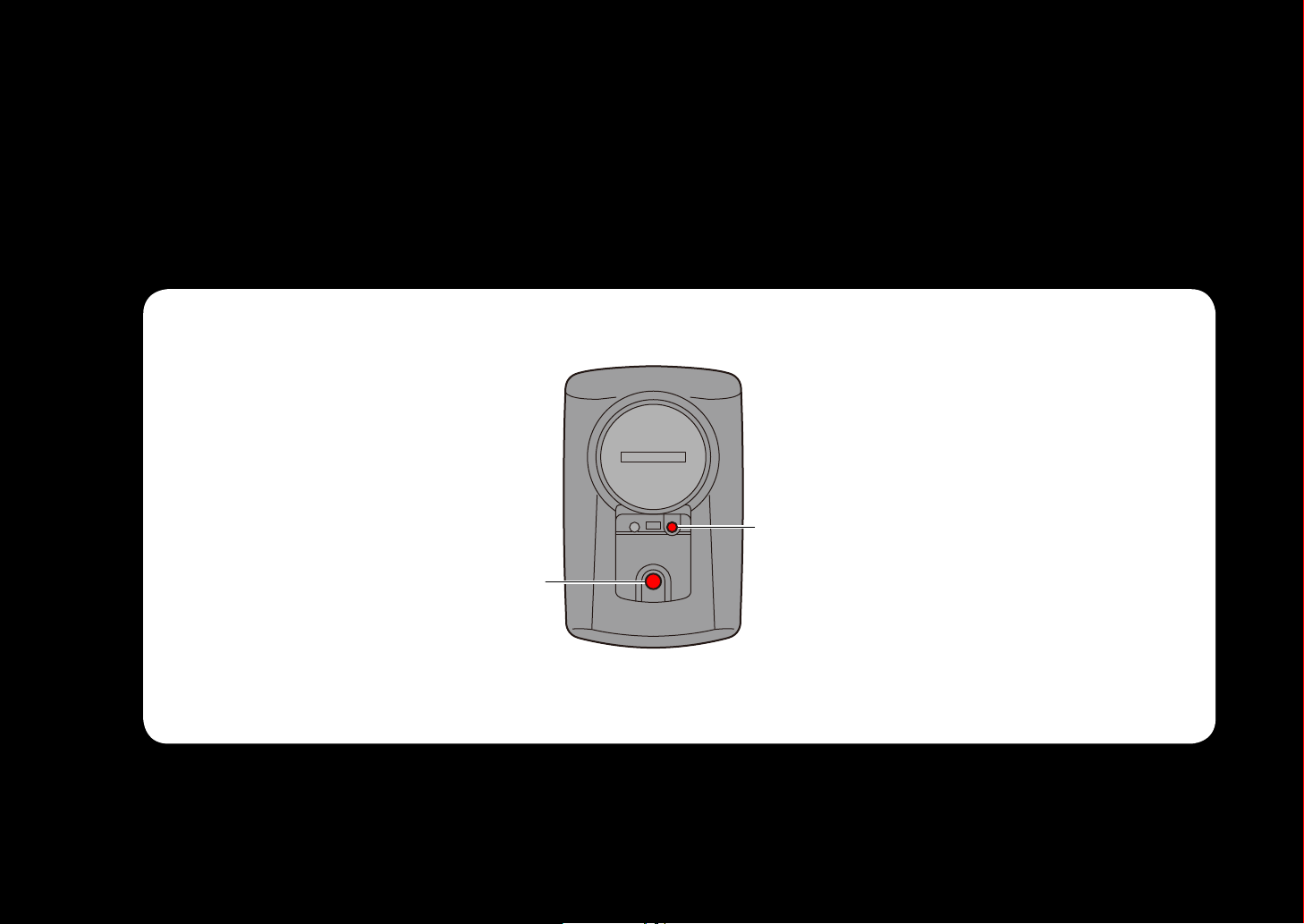

Operation of buttons
Set up the computer by operating the buttons as follows.
Check the button position before you start setting up.
Back
Press the MENU button and the MODE
button on the back of the computer.
Next

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Clear all data (initialization)
AC
Clear all data (initialization)
Press the AC button on the back of the computer.
After full lighting of the screen, the computer switch-
es to the speed unit setting screen to start setup.
Full lighting Setting the speed unit
Return to Contents
Next
Return

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the speed unit
Clear all data (initialization)
MENU
MODE
km/h ↔mph
Setting the speed unit

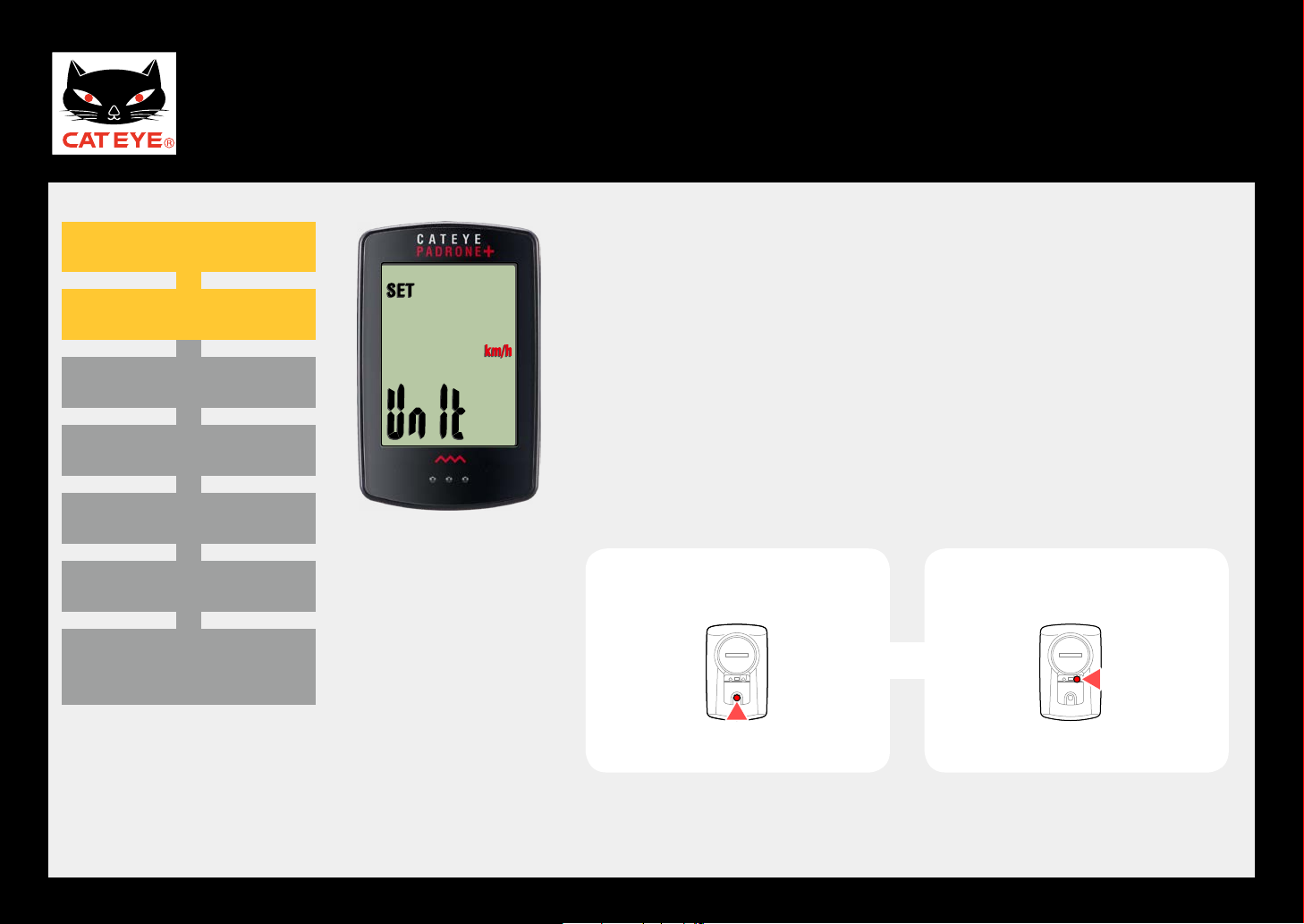

Setting the speed unit
When the MODE button is pressed, either “km/h” or
“mph” is selected for the speed unit display. Select the
unit of your choice.
After selecting, press the MENU button to proceed to the
next step “Entering the tire circumference”.
To the next step
Return
Return to Contents
Next

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Entering the tire circumference
Setting the speed unit
Clear all data (initialization)
MODE
MENU
MODE

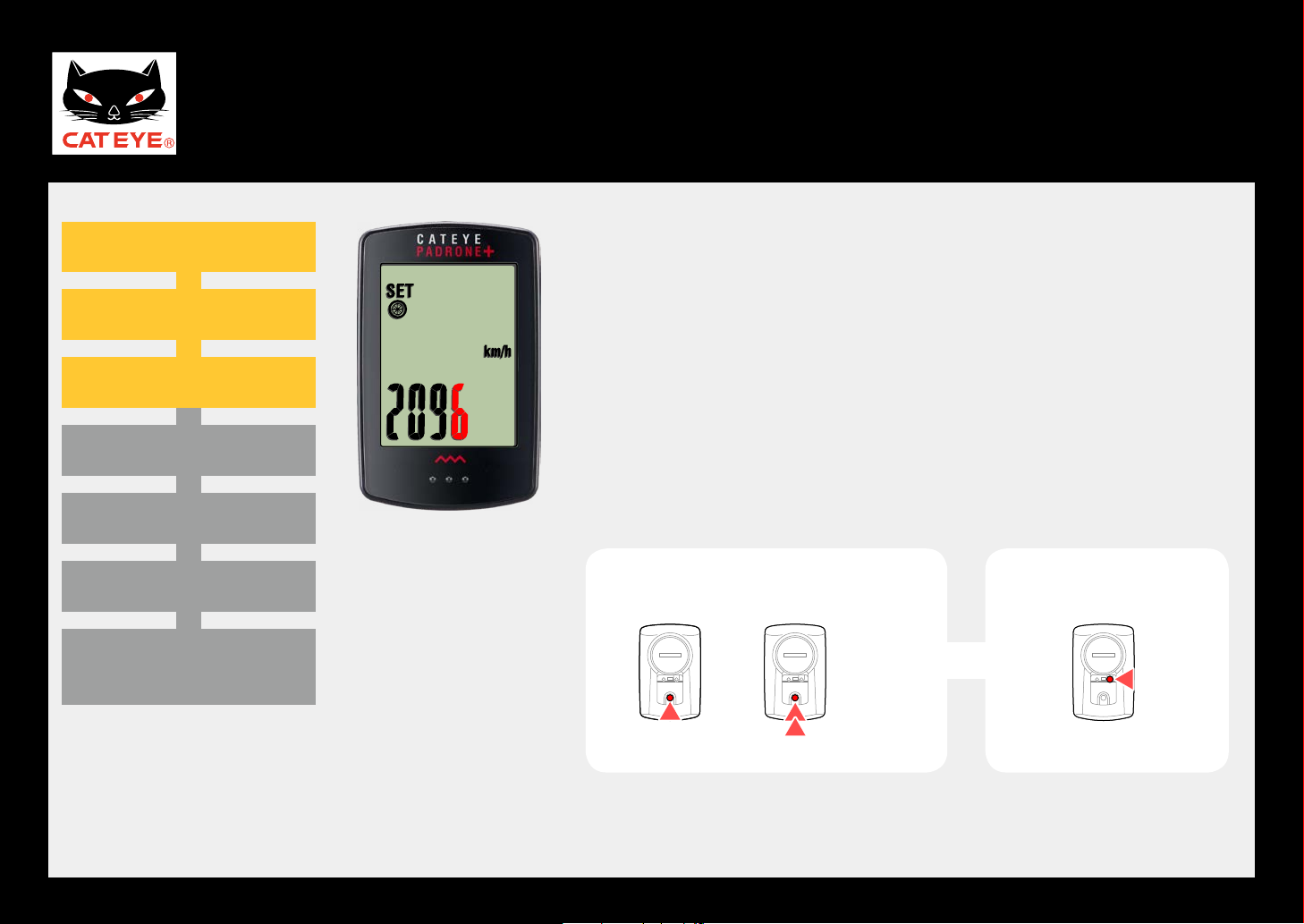

Entering the tire circumference
Enter the tire circumference (mm) of your bicycle with 4
digits using the tire circumference reference table.
(0100-3999 mm)
Pressing the MODE button increases the value flashing,
and pressing and holding the MODE button moves to the
next digit.
After entering, press the MENU button to proceed to the
next step “Setting the clock display”.
Entering the tire
circumference
Move digit
Increase
the value To the next step
(Press
and hold)
Tire circum-
ference refer-
ence table
Return
Return to Contents
Next

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the clock display
Entering the tire circumference
Setting the speed unit
Clear all data (initialization)
24h ↔12h
MODE
MODE

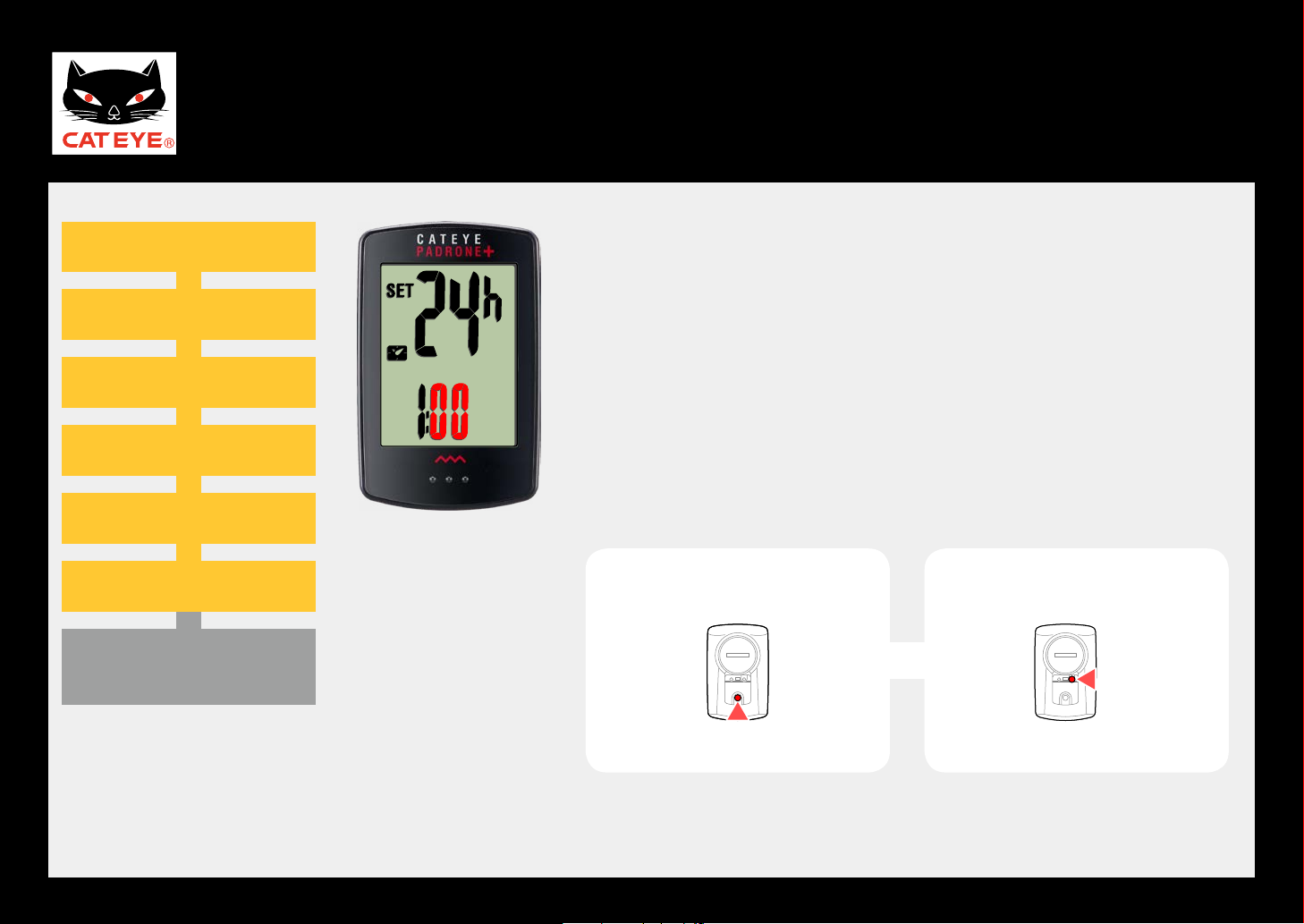

Setting the clock display
When the MODE button is pressed, either “12h” or “24h”
is selected for the clock display. Select the display of
your choice.
After selecting, press and hold the MODE button to pro-
ceed to the next step “Setting the hour”.
Clock display
To the next step
(Press
and hold)
Return
Return to Contents
Next

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the clock display
Entering the tire circumference
Setting the speed unit
Clear all data (initialization)
12h format
MODE
MODE

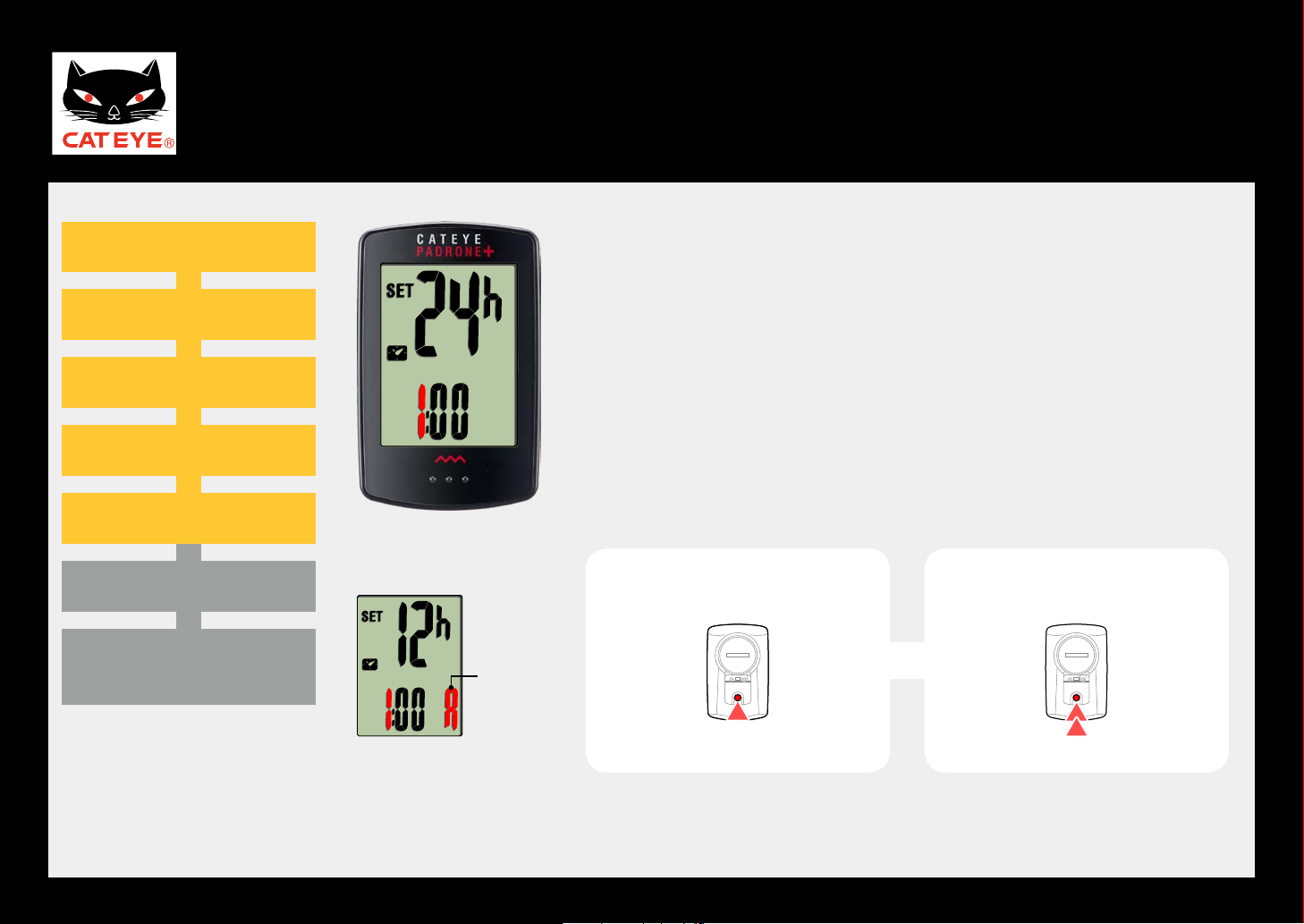

Setting the hour
A: a.m.
P: p.m.
Setting the hour
Pressing the MODE button increases the value flashing
(“Hour” of the clock). Enter any value.
*When 12h mode is selected, check whether A(a.m.) or
P(p.m.) is displayed before entering the value.
After entering, press and hold the MODE button to pro-
ceed to the next step “Setting the minute”.
Hour
To the next stepIncrease the value
(Press
and hold)
Return
Return to Contents
Next

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Setting the clock display
Entering the tire circumference
Setting the speed unit
Clear all data (initialization)
MODE
MENU
Setting the hour
Setting the minute
Setting the minute
Pressing the MODE button increases the value flashing
(“Minute” of the clock). Enter any value.
After entering, press the MENU button to switch to the
measuring screen.
Minute
Setup is completed.
To the measuring screen
Increase the value
Return
Return to Contents
Next

CATEYE PADRONE +
Quick Start Manual Setting up the computer
Setting the speed unit
Entering the tire circumference
Setting the clock display
Clear all data (initialization)
Setting the clock display
Entering the tire circumference
Setting the speed unit
Clear all data (initialization)
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Now, setup of the computer is completed.
If the bracket and speed sensor are not installed on your
bicycle, return to Contents, click the movies of how to
install the bracket and speed sensor, and install them
according to the instructions.
Measuring screen
Return
Return to Contents
Return to Contents

*If the video does not play, please click here. (YouTube movie)
CATEYE PADRONE +
Quick Start Manual How to install the bracket
Return to Contents

CATEYE PADRONE +
Quick Start Manual How to install the speed sensor
*If the video does not play, please click here. (YouTube movie)
Return to Contents

CATEYE PADRONE +
Quick Start Manual
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Backlight (Night Mode)

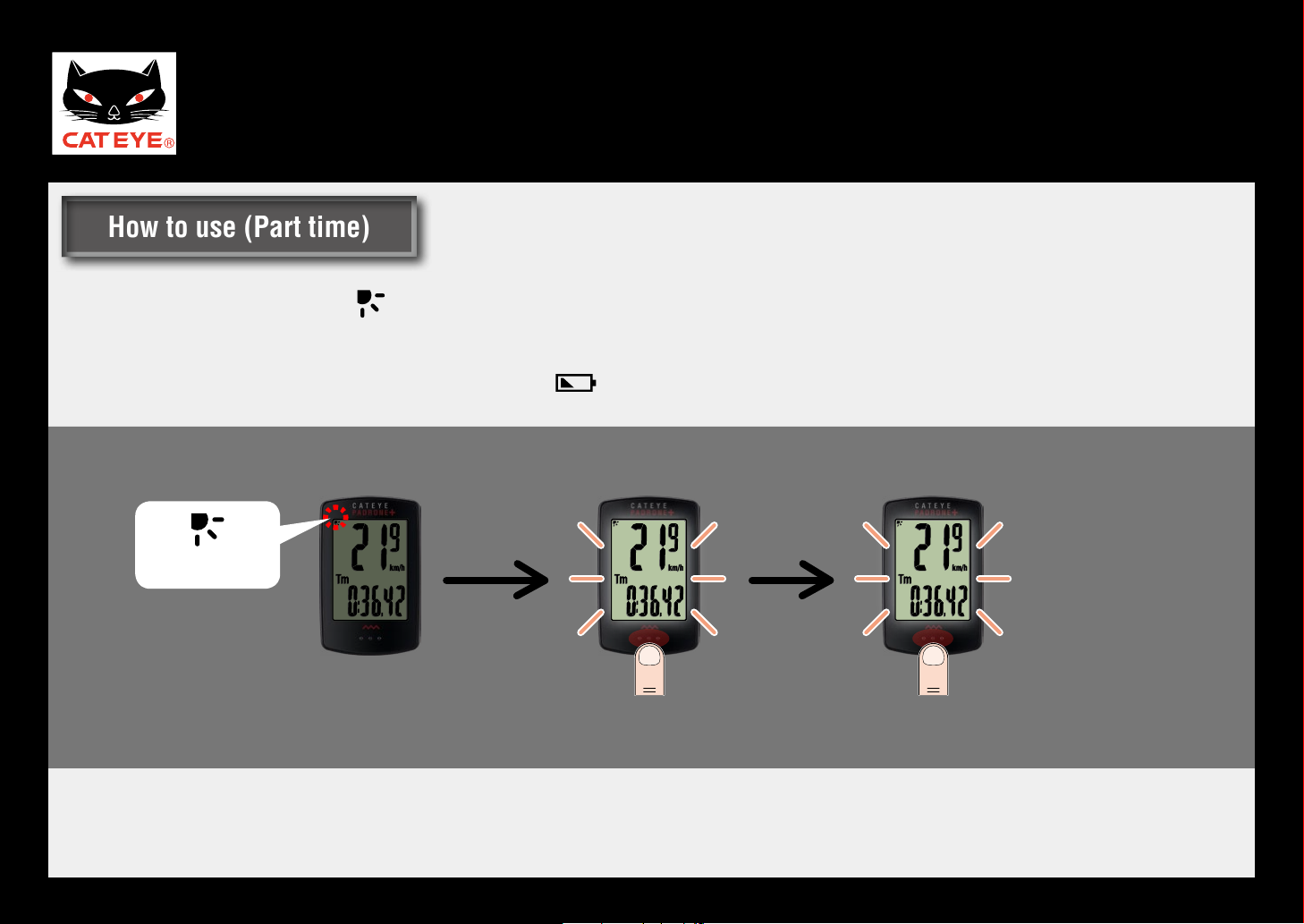

When Night Mode is ON ( turns on), the backlight will turn ON for the specified amount of time.
When Part time is selected, the backlight will come ON for 5 seconds when the MODE button is pressed.
*When the remaining battery power is low (when turns on), the backlight will not turn on.
*1 : Pressing the MODE button will turn the backlight ON, but the button function will be disabled.
*2 : Pressing the button again while the backlight is ON will enable the button function and extend the illumination time by
5 seconds.
Dot
(MODE)
Dot
(MODE)
Backlight off Backlight ON (*1) Backlight ON (*2)
Night Mode
How to use (Part time)How to use (Part time)
How to use (Full time)
Setting method
Return to Contents

CATEYE PADRONE +
Quick Start Manual
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Backlight (Night Mode)

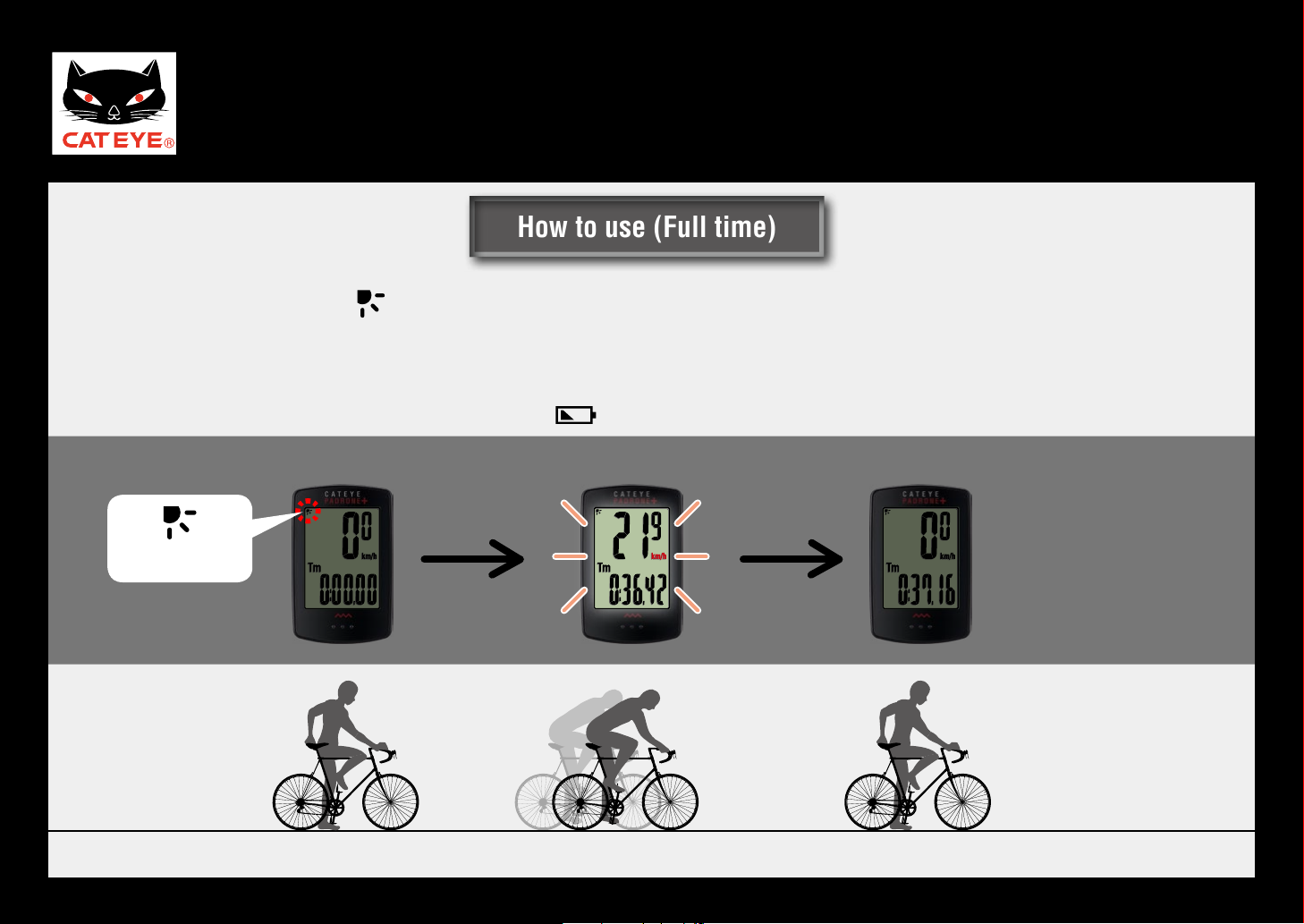

When Night Mode is ON ( turns on), the backlight will turn ON for the specified amount of time.
When Full time is selected, the backlight will come ON while the bicycle is in motion and will turn OFF
30 seconds after the bicycle has stopped.
*When the remaining battery power is low (when turns on), the backlight will not turn on.
Backlight off
Bicycle begins moving
Backlight off
30 seconds after stopping
Backlight ON
Night Mode
How to use (Full time)How to use (Full time)
How to use (Part time)
Setting method
Return to Contents

CATEYE PADRONE +
Quick Start Manual
Measuring screen
(Setup completed)
Setting the hour
Setting the minute
Backlight (Night Mode)

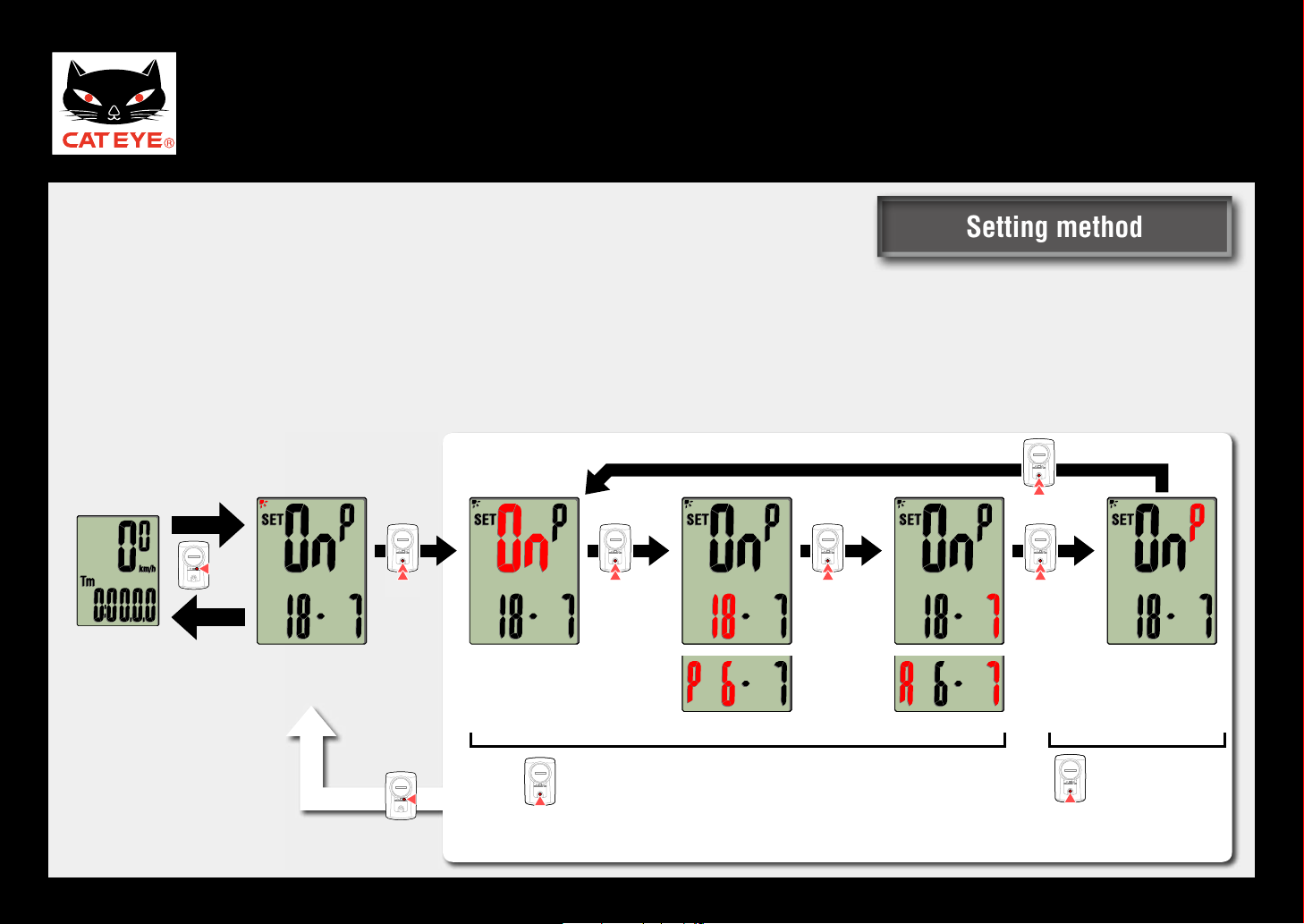

On the measuring screen, press the MENU button to display the “Night Mode setting” on the menu screen.
Press and hold the MODE button, and then turn Night Mode ON/OFF and set the start time, end time,
and the illumination method.
*After changing settings, make sure to press the MENU button to confirm changes.
*1: When the display format is set to 12h, A(a.m.) or P(p.m.) will be displayed.
MODE
MENU
MODE
Press and
hold
Press and
hold
Press and
hold
(*1) (*1)
Press and
hold
Press and hold
MODE
MODE
MODE
Measuring
screen Night Mode
setting
Menu screen
Night Mode
ON/OFF
Start time
Confirm
End time
MODE
Switch between ON/OFF or increase the value P (Part time)
↔
F (Full time)
Illumination
method
MENU
Setting methodSetting method
MODE
How to use (Part time)
How to use (Full time)
Return to Contents

CATEYE PADRONE +
Quick Start Manual 目目
CATEYE PADRONE +
Quick Start Manual Setting up the computer
ETRTO Tire size L (mm)
47-203 12x1.75 935
54-203 12x1.95 940
40-254 14x1.50 1020
47-254 14x1.75 1055
40-305 16x1.50 1185
47-305 16x1.75 1195
54-305 16x2.00 1245
28-349 16x1-1/8 1290
37-349 16x1-3/8 1300
32-369 17x1-1/4 (369) 1340
40-355 18x1.50 1340
47-355 18x1.75 1350
32-406 20x1.25 1450
35-406 20x1.35 1460
40-406 20x1.50 1490
ETRTO Tire size L (mm)
47-406 20X1.75 1515
50-406 20x1.95 1565
28-451 20x1-1/8 1545
37-451 20x1-3/8 1615
37-501 22x1-3/8 1770
40-501 22x1-1/2 1785
47-507 24x1.75 1890
50-507 24x2.00 1925
54-507 24x2.125 1965
25-520 24x1 (520) 1753
24x3/4 Tubular 1785
28-540 24x1-1/8 1795
32-540 24x1-1/4 1905
25-559 26x1 (559) 1913
32-559 26x1.25 1950
ETRTO Tire size L (mm)
37-559 26x1.40 2005
40-559 26x1.50 2010
47-559 26x1.75 2023
50-559 26x1.95 2050
54-559 26x2.10 2068
57-559 26x2.125 2070
58-559 26x2.35 2083
75-559 26x3.00 2170
28-590 26x1-1/8 1970
37-590 26x1-3/8 2068
37-584 26x1-1/2 2100
650C Tubular
26x7/8 1920
20-571 650x20C 1938
23-571 650x23C 1944
ETRTO Tire size L (mm)
25-571 650x25C 26x1
(571) 1952
40-590 650x38A 2125
40-584 650x38B 2105
25-630 27x1 (630) 2145
28-630 27x1-1/8 2155
32-630 27x1-1/4 2161
37-630 27x1-3/8 2169
40-584 27.5x1.50 2079
54-584 27.5x2.1 2148
57-584 27.5x2.25 2182
18-622 700x18C 2070
19-622 700x19C 2080
20-622 700x20C 2086
23-622 700x23C 2096
ETRTO Tire size L (mm)
25-622 700x25C 2105
28-622 700x28C 2136
30-622 700x30C 2146
32-622 700x32C 2155
700C Tubular 2130
35-622 700x35C 2168
38-622 700x38C 2180
40-622 700x40C 2200
42-622 700x42C 2224
44-622 700x44C 2235
45-622 700x45C 2242
47-622 700x47C 2268
54-622 29x2.1 2288
56-622 29x2.2 2298
60-622 29x2.3 2326
Measure the tire circumference (L) of your bicycle
Adjust the tire pressure properly. With the rider’s weight applied on the bicycle, roll
the wheel one tire revolution with reference to a marker such as the valve, and mea-
sure the travel distance on the ground.
Tire circumference reference table
*Generally, the tire size or ETRTO is indicated on the side of the tire.
L mm
表表表表表
Return
Return to Contents
