Cavecool CC201SB User manual

Wine Cooler
Instruction Manual
CC201SB
NOTE:
Thank you for your purchase and use our compressor wine cooler ！
This product is used to chill wine.
Our product will create perfect temperature and humidity
environment to store your collection of wine quietly and peacefully.
www.cavecool.com

Content
Safety instructions & warnings………………………………..…………………………….1-3
Installation………………………………..……………………………………………………………3
Description of the appliance………………………………..………………………………..4-6
Operation………………………………..…………………………………………………………….7-9
Troubleshooting………………………………..…………………………………………………..10
Maintenance and cleaning………………………………..…………………………………..11
Technical parameters………………………………..…………………………………………..12

EN-1
Safety instructions & warnings
Your safety is of the utmost importance to our company. Please make sure that
you read this instruction booklet before attempting to install or use the appliance.
If you are unsure of any of the information contained in this booklet, please
contact the Technical Department.
●This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
●Children should be supervised to ensure that they do not play with the appliance.
●This appliance is intended for HOUSEHOLD USE ONLY and not for commercial or
industrial use.
●Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
●Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
●Do not damage the refrigerant circuit.
●Do not use electrical appliances inside the storage compartments of the appliance,
unless they are of the type recommended by the manufacturer.
●Make sure that the appliance is connected to power supply in accordance with the
rating label.
●Use an independent grounded socket with 10A or higher, do not connect to
transformer or socket with multiple outlets.
●Make sure socket is grounded properly and do not modify power cord & plug.
●Connect power plug with socket firmly in case of possible risk of fire.
●Plug should be within reach for easy disconnection after the appliance positioned in
case of accidents occurred.

2
EN-
●Do not store or burn gasoline or other inflammables near the appliance in case of
possible fire.
●Do not store inflammables, explosives, acid & alkaline liquids etc.in the compartment of
the appliance.
●Do not operate other appliances in the compartment.
Child Safety
●Do not allow child play inside the appliance in case of entrapment.
●Do not allow child hang on the door to play in case of falling of the appliance.
●Do not allow child reach into compressor compartment or touch metal components at
rear of the appliance in case of possible injury.
Keep away from water
●Do not spray water on the appliance or wash the appliance by pouring or filling water in
case of invalid insulation and possible electric shock.
Be careful of freezing
●Do not touch surface of the liner inside the compartment, especially with wet hand, in
case of frozen injury while the appliance is in operation.
Do not open the door for long periods
●Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
Modification on the appliance not allowed
●Do not reconstruct the appliance by yourself which might cause damages to the
appliance.
Unplug the appliance under certain conditions
●Unplug the appliance before cleaning & maintenance.
●Unplug the appliance when power cut occurred.
Disposal of the appliance
●Please according to local regulations regarding disposal of the appliance for its
flammable refrigerant and blowing gas.
●Before you scrap the appliance, please take off the doors to prevent children trapped.
●Send the appliance to the designated disposal location.

3
EN-
Do not damage the power cord
●Do not disconnect the appliance by pulling power cord rather than pulling the plug.
●Do not set the appliance above the power cord or step on the cord intentionally.
●Put the power cord at right place when moving the appliance.
When the power cord is damaged
●Do not use damaged power cord, and get it replaced immediately by manufacturer
service agent or by qualified electrician.
●If needed, extend the power cord with cord of 0.75mm2 or bigger by qualified
electrician
Installation
Position
Do not lean the appliance over 45°when moving it to position.
Do not put the appliance in the wet place.
Do not use the appliance in the frozen place.
Do not use the appliance outdoor in case of sunlight or rain.
The appliance must be set with 10 cm wider space around for good ventilation; it is
normal for the housing of the cabinet getting heat when it’s in operation.
Wine bottles could be stored when you feel cooling inside after the appliance operates
around 1 hour.

4
EN-
Description of the appliance

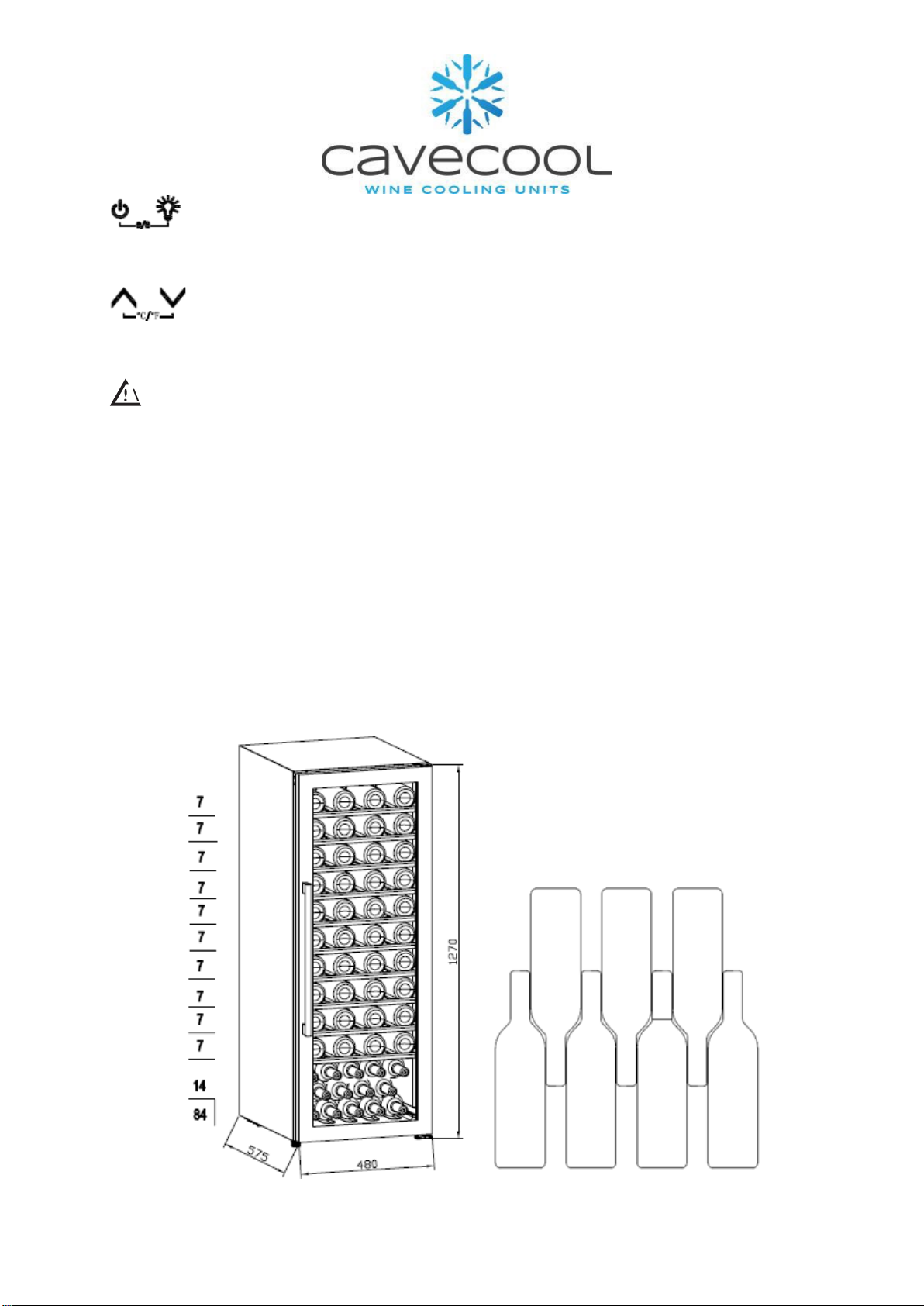

Overall image
Note:
Shelves, door frame, handle and other accessories could be different according to different
models and configuration.
All photos in this manual are for reference. The appliance you buy might not be exactly the
same as shown here.
Please refer to the actual product.
Installing handle and reversing the door
1. Install handle to the door frame of the appliance
The handle is delivered in a separated package with screws together inside the carton.
1. Housing
2. Control panel
3. Shelf
4.Evaporator
5. Sensor shield
6. Adjustable foot
7. Lower hinge
8. Door
10. Door seal
9. Handle
11. Upper hinge

5
EN-
①Reveal two small holes on the door frame from inner side by pulling out a bit the
door seal ②Aim the handle to the holes and insert the screws from inside ③Screw
them up with screwdriver ④Put back door seal to cover the screws.
2. Reversing the door
Our wine coolers are delivered with the door opening from left to right. To reverse the
opening direction:
Refer to picture 1:
1) Close the door.
2) Remove the short cabinet foot①at the bottom right corner,
Unscrew the screws②, Take off the right lower door hinge③,
Move the door down a short distance, then remove the door and
place it aside.
3) Unscrew the screws④, Take off the right upper door hinge⑤,
Take off the hinge hole cover⑥at the upper left corner, Remove
the cabinet foot⑦at the lower left corner.
Picture 1

6
EN-
Refer to picture 2:
4) Install the left upper hinge⑧(extra hinge, packed seperately)and screw the screws
④.
5) Place the door upside down by 180 degree to ensure that the handle is on the right .
Then install the door by making the hole on the upper corner of the door match with
the stopper of the left upper hinge⑧, install the lower left door hinge⑨, screw the
screws②, install the short cabinet foot①to the left bottom corner, install the longer
cabinet foot⑦to the right, and finally install the hinge hole cover⑥in turn.
Picture 2

7
EN-
Operation
Start operation
1. Cleaning the compartment
Before power on, clean inside of the appliance and check the drainage pipe in good
connection.（For details, please refer to the “Maintenance and cleaning”）
2. Put the appliance still
Before power on, level the appliance on the firm & dry floor for at least 30 minutes.
3. Power on
The appliance start operation and it will cool down inside after 1 hour, otherwise you
should check the power connection.

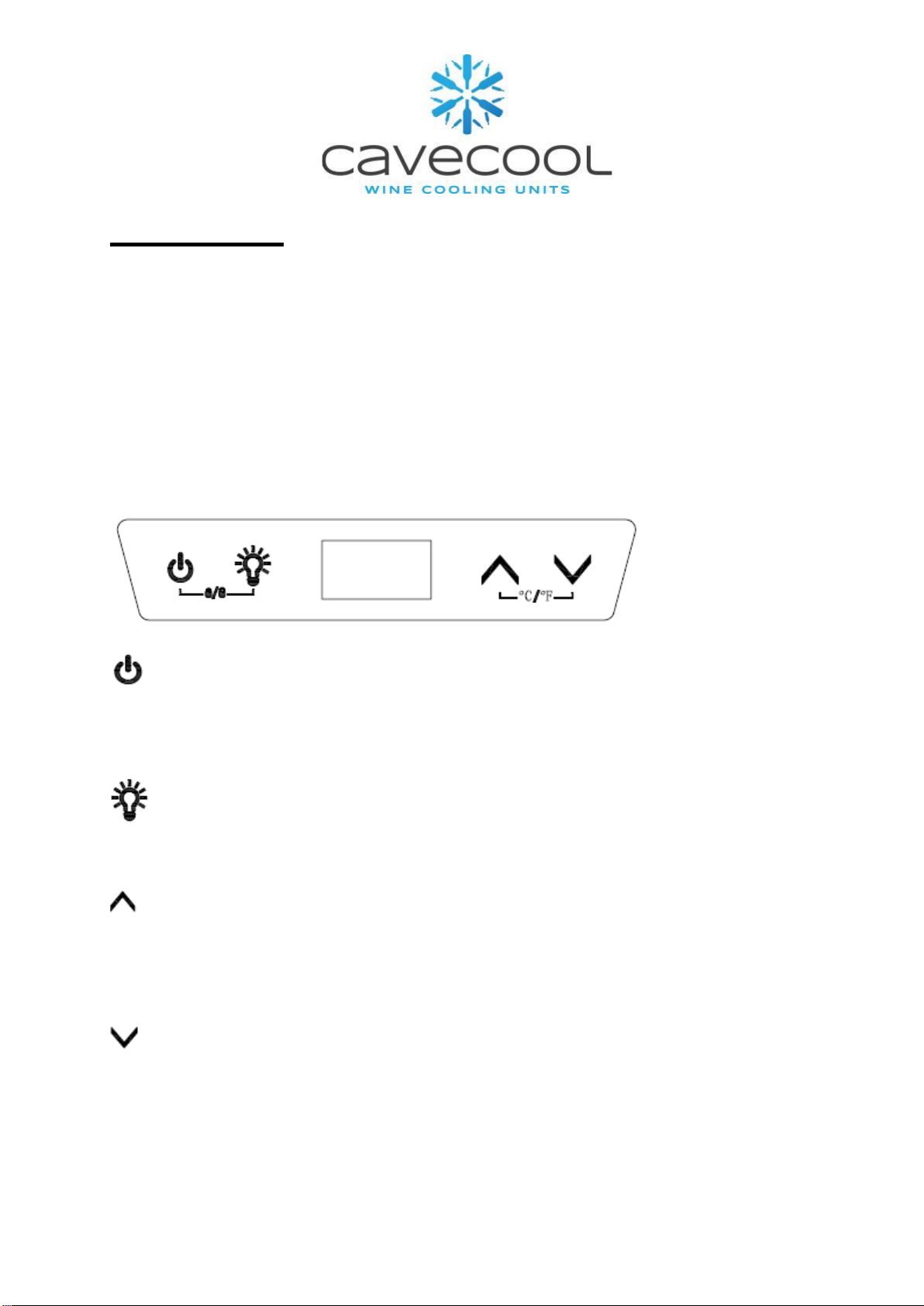

Control panel
ON/OFF
1. In the unlock state, keep pressing the key 3 seconds, power down, goes to
stand-by mode.
2. Keep pressing the key again 3 seconds, returns to normal working.
Light
Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key
is invalid.
UP
Press the key once, LED Display in regular flash showing current set
temperature. Continue pressing to adjust set temperature, one press increase
1℃. Regular flash quit after 5 seconds detecting no press and new set
temperature save. LED display return to show actual temperature inside.
Down
Press the key once, LED Display in regular flash showing current set
temperature. Continue pressing to adjust set temperature, one press reduce 1℃.
Regular flash quit after 5 seconds detecting no press and new set temperature
save. LED display return to show actual temperature inside.

8
EN-
Child Lock（Combination key）
1. Lock：Press both keys at the same time for 3 seconds to lock.
2. Unlock：Press both keys at the same time for 3 seconds to unlock.
Fahrenheit/Celsius interchange（Combination key）
Switch temperature display between Fahrenheit and Celsius by pressing both keys at
the same time for 2 seconds.
Attention
1. The ex-factory temperature of this product is 12℃, and the corresponding
temperature range need to be set according to the actual wine.
2. The cooling temperature could be set from 5℃- 20℃.
3. Alarm sound: when the system malfunction occur and alarm sound, press any
key on the control panel to cancel the alarm sound.
4. Error code:
When the temperature sensor failures occur, error code displays: E1 for open
circuit; E2 for short circuit.
Wine storage
The appliance equip with sufficient shelves to allow your collection of wine get
mature quietly and peacefully.
Full shelves loading capacity: 84 bottles. (standard Bordeaux with 750ml )

9
EN-
Loading capacity will vary in terms of different way of bottle arrangement or different
bottle sizes.
Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of
bottle arrangement on one shelf is not recommended.
Each shelf pulls out partly to store wine bottles easily.
The shelf should be avoided in front of the fan as much as possible to avoid blocking
the fan and affecting the cooling efficiency.
Open the door wide enough before pulling out shelves.
If the wine cooler would have no load for a long time, it is recommended to power it
off, clean it carefully, and open the door for ventilation.
Below table is the recommended temperature for wine storing & drinking:
Red Wine
15-18℃
White Wine
9-14℃
Rose wine
10-11℃
Champagne & sparkling wine
5- 8℃

10
EN-
Troubleshooting
The appliance makes lots
of noise?
Please adjust the front foot, keep the appliance
leveling.
Please keep the appliance a bit space from walls.
Liquid flowing sound
inside the cabinet?
It is normal because of the refrigerant working
inside.
The appliance does not
start?
Make sure the appliance is connected to the power
properly.
Make sure switch on the power.
The compressor re-
starts after 5 minutes for a
power cut.
Compressor runs
continuously?

If no cold is being produced, call the retailer’s after-
sale service.
Door does not seal
tightly?
After long time use, the door seal might get stiff &
distorted partially.
1. Heat the door seal with hot-
wind blower or hot
towel.
2. The door seal get softened and close the door.
The appliance does not
cool sufficiently?

Please adjust temperature setting.
Keep the appliance away from sunlight or heat.
Please do not open the door frequently.
Unpleasant smells inside
cabinet?
A little bit plastic smell for newly-buy appliance is
normal and will disappear after a short time.

Clean the compartment and ventilate it for a few
hours.
Condensate on the glass
door?
Please do not open the door frequently or for a long
time.
Please do not set the temperature too low.
High a
mbient temperature and humidity would
cause condensate.
The light is not working?

Check the power supply first.
Call the retailer’s after-
sale service if the light is
broken.

11
EN-
Maintenance and cleaning
Cleaning
Disconnect the appliance before cleaning.
Clean the appliance with soft cloth or sponge by water.
Do not use organic solvents, alkaline detergent, boiling water, washing powder or
acid liquid etc.
Do not flush the compartment of the appliance.
Clean regularly surfaces that can come in contact with accessible drainage
systems.
The below items will damage the surface of wine cooler:
Power cut
Most power cuts could be resolved within a short time. To protect your wines during a
power cut, avoid opening the door as much as possible. During very long power cuts,
take the necessary measures to protect your wine.
Out of service for long time
Remove all bottles from the appliance, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
If the appliance is disconnected or if there is a power cut, you must wait at
least five minutes before re-starting.
Moving the appliance
Cut off the power supply and unplug the
appliance.
Remove all bottles from the appliance.
When moving the appliance, do not lean the
appliance over 45°.

12
EN-
Technical parameters
Product model
CC201SB
Voltage/frequency
220-240V~/50Hz
Refrigerant/amount
R600a/37g
Effective volume
201L
Loading capacity
84 bottles
Net weight
44 kg
Unit dimension(WxDxH)
480×575×1270 mm
Packing dimension(WxDxH)
510×605×1315 mm
Remarks：
1.The net weight includes shelves, and the Unit dimension is without handle on the
door.
2.The manufacturer reserves all the rights to change the above parameters without
prior notice. Please refer to the nameplate of your appliance.
3.Loading capacity will vary in terms of different way of bottle arrangement or different
bottle sizes (standard Bordeaux with 750ml is applied here).

Vinkøleskab
Betjeningsvejledning
CC201SB
Tak for dit køb af dette CaveCool vinkøleskab.
www.cavecool.com

Indhold
Sikkerhed og advarsler…………………..………………………..…………………………………...1-2
Installation………………………………..…………………………………………………………………..3
Design og funktion………………………………………..…………………………………………….3-6
Betjening………………………….……………..………………………………………………………….7-9
Problemløsning……..……………………………..………………………………………………………..10
Vedligehold og rengøring….…………….…………………..…………………………………………11
Tekniske specifikationer………………………………..………………………………………………..12

DK-1
Sikkerhed og advarsler
Din sikkerhed er yderst vigtig for vores firma. Venligst læs denne vejledning inden
du tager apparatet i brug. Skulle du være tvivl om nogle informationer i denne
vejledning, venligst kontakt os.
●Dette apparat bør ikke betjenes af børn. Børn må ikke lege med apparatet, da der kan
fare forbundet.
●Dette apparater beregnet til brug i private hjem og ikke til professional eller industrielt
brug.
●Hold ventilationsåbninger frie på apparatet og udluftning fri ved indbygning.
●Af sikkerhedsmæssige årsager og for at
sikre vinkøleskabets optimale funktion
skal alle vinkøleskabe have
jordforbindelse og stå i perfekt vater på
alle ledder og kanter.
●Brug ikke mekaniske apparater eller andre redskaber for at gøre afrimning og optøning
hurtigere.
●Ødelæg ikke kølerør og lignende.
●Benyt ikke elektriske apparater inden i skabet.
●Apparatet må kun tilsluttes strøm i.h.t. til rating label på siden eller bagsiden af
apparatet.
●Tilslut apparatet til 220-240 V / 50 Hz vekselstrøm via en korrekt installeret stikkontakt
med jordforbindelse. Stikkontakten skal være sikret med en 10 -13 A sikring.
Vinkøleskabet leveres med en såkaldt Schuko stikprop som er standarden i de fleste
lande i Europa. Dette er et 2-benet stikprop med sidejord.
Mange danske hjem har en stikkontakt med dansk jord (3 ben). I de tilfælde skal du
tilkøbe en adapter hos din forhandler, som nemt klikkes på. Alternativt skal du eller en
autoriseret elinstallatør skifte stikproppen til den danske 3-benede stikprop som du
ligeledes kan købe hos din forhandler.
●Stikket bør være nemt tilgængeligt i tilfælde nødstop.
●Opbevar ikke benzin, brandbare væsker, og lignende indeni eller i nærheden af
apparatet.
Bemærk
Advarsel

2
DK-
Børnesikkerhed
●Tillad ikke børn at lege inden i skabet, da de kan blive spærret inde.
●Tillad ikke børn at lege med eller hænge på døren, da skabet kan vælte.
●Tillad ikke børn at røre ved kompressor eller andre ting under skabet pga. fare.
Vinkøleskabet tåler ikke vand
Sprøjt eller hæld ikke vand I skabet, da det kan kortslutte.
Pas på fryseskader
●Rør ikke ved de indvendige flader med våde hænder, da det kan give fryse skader.
Åben ikke døren i længere tid
●Hvis døren er åben i lang tid vil det påvirke skabet køleevne.
Modificer ikke skabet
●Lav ikke konstruktions ændringer på skabet, da det kan ødelægge apparatet.
Sluk for strømmen og træk stikket ud hvis:
●Sluk for strømmen og træk stikket ud før rengøring og vedligehold.
●Træk stikket ud i tilfælde af strømsvigt i huset eller området.
Bortskaffelse af apparatet
●Skal afleveres på den nærmeste genbrugs plads
●Før du smider apparatet ud, bør døren afmonteres, så børn ikke leger med apparatet
Lav ikke skader på ledningen
●Træk ikke stikket ud ved at hive i ledningen, men kun ved at trække stikket ud.
●Stil ikke apparatet oven på ledningen.
●Rul ledningen sammen når skabet flyttes for at undgå skader.
Hvis ledninger er skadet
●Brug ikke ledningen hvis den er skadet, få en ny monteret af autoriseret montør.
FORBUDT

3
DK-
Installation
Position
ved flytning af apparatet bør det ikke vippes over 45°.
Placer ikke apparatet I et fugtigt rum.
Placer ikke apparatet I et rum der ikke er frost frit.
Placer ikke apparatet udendørs.
Vinflasker kan opbevares i skabet, så snart du kan mærke køling I skabet, efter ca. 1
time
Design og funktion
Overblik
1. Housing
2. Cover board
3. Shelf
5. Sensor shield
6. Adjustable foot
7. Lower hinge
8. Door
10. Door seal
9. Handle
11. Upper hinge
4. Control panel

4
DK-
Note: Hylder, dør ramme, håndtag og andre dele kan være forskellige på forskellige
modeller. Alle foto og tegninger i denne manual er kun for reference.
Installation af dørhåndtag og vending af døren
1. Monter håndtaget på dør rammen.
Håndtaget følger med i en separate pakke
med skruer og ligger I skabet.
①Ved at trække et lille stykke af gummilisten
fri, kan man se 2 småskrue huller i
dørrammen ②Sæt skruerne i hullerne
indefra og monter håndtaget på ydersiden af
døren ③Stram skruerne med en
skruetrækker ④Sæt gummilisten på plads
igen.
2. Vending af døren
Vinkøleskabet er leveret med åbning fra venstre til højre. For at vende
åbningsretningen:
Figur 1
Åben døren 90 grader og hold den stille.
Løsn M5*16 skruer, Fjern det øverste hængsel, mens døren holdes, og løft døren
af.[Figur 1].
