Cavecool Affection Onyx Series User manual

- 1 -
WINE COOLER
USER MANUAL
Model:
Cavecool Affection Onyx - CC168SB
Cavecool Affection Onyx - CC168DB
WWW.CAVECOOL.COM

- 2 -
THANK YOU FOR PURCHASING A CAVECOOL WINE COOLER.
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND
OPERATING INSTRUCTIONS.
WARNING!
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE WINE COOLER.
• DANGER / WARNING •
Risk of child entrapment!
Child entrapment and suffocation are not problems of the past. Discarded or abandoned
appliances are still dangerous. Even if they will “just sit in the garage a few days”.
Before discarding your old wine cooler: remove the door completely.
Leave the shelves in place so that children may not easily climb inside. Never allow children
to operate, play with, or crawl inside the appliance. Never clean appliance parts with
flammable fluids. The fumes can create a fire hazard or explosion. Do not store or use
gasoline or any other flammable vapours and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard or explosion.
- Keep these instructions for any future use -
~
WARNING
~
To reduce the risk of fire, electrical shock, or
injury when using your appliance, follow these
basic precautions:
To prevent damaging the door gasket, make sure to have the door all the way opened
when pulling shelves out of the rail compartment. The appliance must be positioned so
that the plug is accessible. Release the electric cord. Move your cabinet to its final
location. Do not move your cabinet while loaded with wine, you might distort the cabinet.
The wine cooler should be installed in a suitable place in order to avoid hands touching
the compressor. If the power cord is damaged, it must be replaced by the
manufacturer’s service agent or a similarly qualified person in order to avoid a hazard.

- 3 -
Before using your wine cooler
Remove the exterior and interior packaging.
• Before connecting the wine cooler to power source, let it stand upright for approximately 6
hours. This will reduce risk of a malfunction in the cooling system from handling during
transportation.
• Clean interior surface with lukewarm water by using a soft cloth.
• When replacing the illuminating lamp, please select the lamp which comply with rated
power input of lamp according to the rating label. Shut off the power supply before replacing
the lamp.
• When disposing your appliance, please choose an authorized disposal site.
Installation of your wine cooler
• Place your wine cooler on a floor/surface that is strong enough to support it when it is fully
loaded. To level your wine cooler, adjust the levelling leg at the bottom of wine cooler.
• Locate the wine cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
energy consumption. Extreme cold ambient temperatures may also cause the unit not to
perform properly.
• Avoid locating the unit in moist areas.
• Plug the wine cooler into an exclusive, properly installed wall outlet. Any questions
concerning power should be directed toward a certified electrician or an authorized products
service center.
Attention
Store wine in sealed bottles. Do not overload the cabinet. Do not open door unless
necessary. Do not cover shelves with aluminium foil or any other shelf material which may
prevent air circulation. Should the wine cooler be stored unused for a longer period of time, it
is suggested, after a careful cleaning, to leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible formation of condensation, mold or odours. The carbon
filter should be cleaned and dried at least once a year.

- 4 -

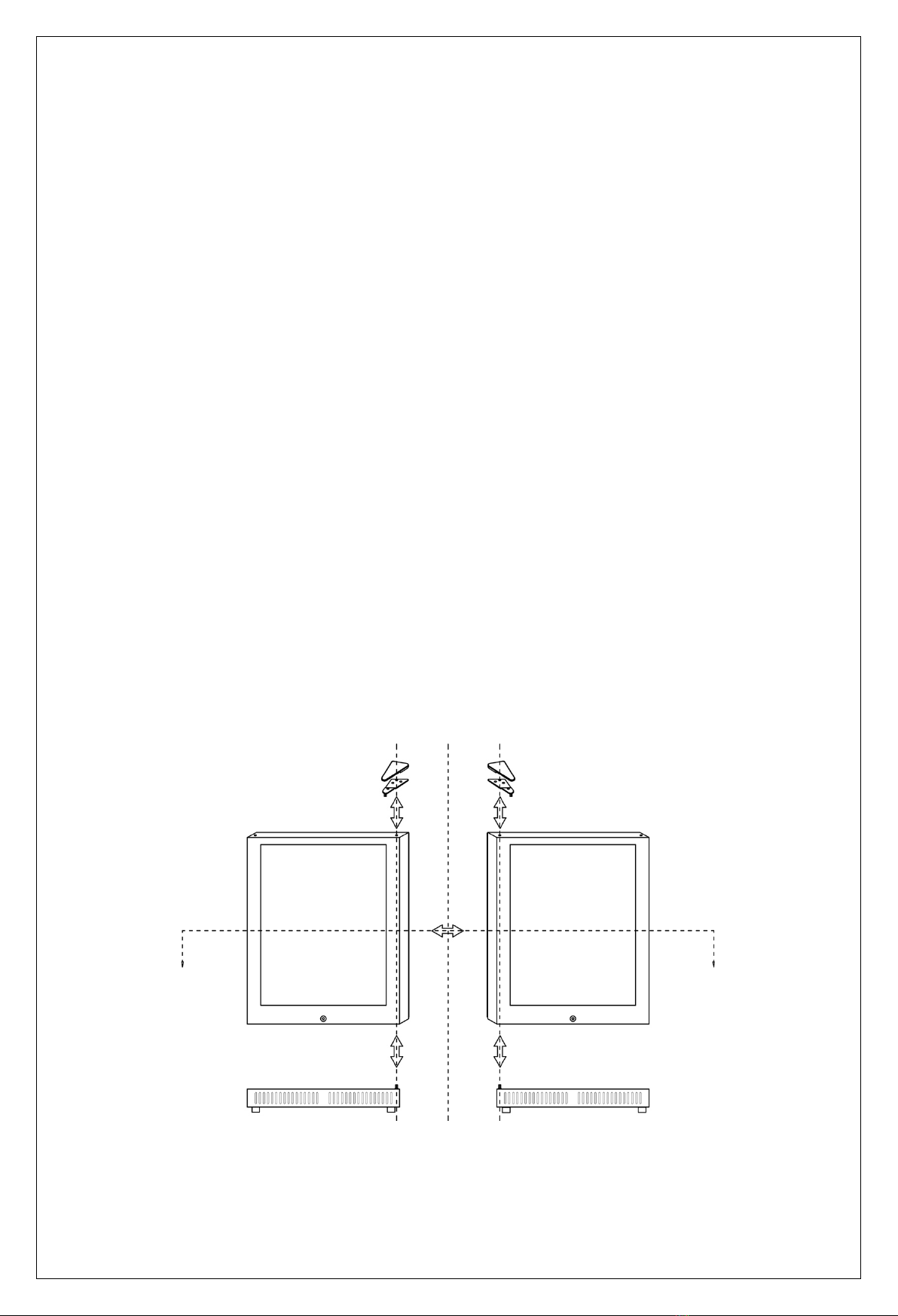

REVERSING THE DOOR OPENING OF YOUR WINE COOLER
The door of this appliance can be opened from either left or right side. The unit is delivered
to you with the door opening from left side (right-hinged).
Cavecool recommend that reversing the door is done by a professional.
If you wish to reverse the door by yourself, please follow these instructions.
Notice: All parts being removed during this process is to be reused (except the top bracket).
(1) Remove the plastic plugs and keep them. They are to be reused on the other side.
(There are spare plugs in the supplied bag.)
(2) Remove the screws from the top hinge and lift the door from the bottom hinge. (carefully
put the door on a cloth to avoid scratching the glass).
(3) Remove the screw from the lower hinge and bring it to the opposite side.
(4) Now mount the door on the opposite side, using the EXTRA supplied bracket.
(5) After mounting the door, the top bracket must be adjusted back and forth in its clearance
to fit the door. The door must sit perfectly in level and flush with the cabinet. There must
be the same space in the top, bottom and sides.
(6) If the door's rubber gasket is not fitted tightly to the cabinet all around, the entire rubber
gasket can be completely removed, turned over and put back again.
(7) In rare cases, the rubber gasket may be so rigid that it needs to be massaged a little in
order to fit. Massage the rubber gasket outward while gently pulling the rubber gasket a
few millimetres. A hair dryer can be used to soften the rubber for increased flexibility.

- 5 -
ADJUSTMENT OF WINE CABINET FEET
NOTICE!
The wine cooler must be perfectly plumb and level.

- 6 -
ACTIVATED CARBON FILTER
1. Appearance:
2. Function:
This item is intended for cleaning the air and getting rid of odours inside the
cabinet.
3. Maintenance:
Take it out of the cabinet in every three months and expose it to the sun for a
few hours before putting it back. It can be used repeatedly.
4. How to place it:
The filter can be put on any position between two shelves.



- 7 -

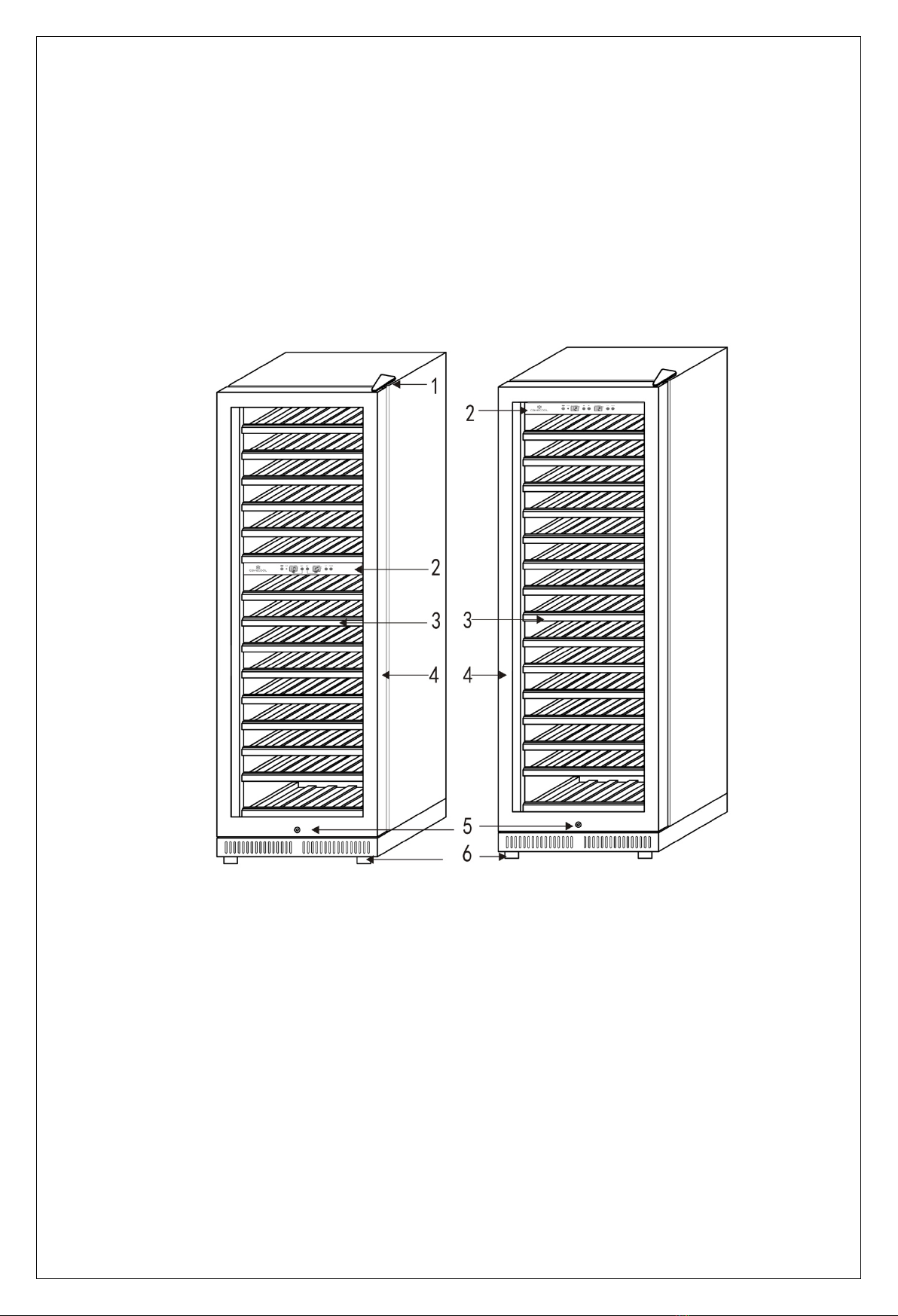

STRUCTURE AND FUNCTIONS
1. Door hinge
2. Key press control panel
3. Shelf for wine storage
4. Door frame
5. Safety lock
6. Supporting feet

- 8 -
OPERATING INSTRUCTIONS
You are recommended to place the cabinet in a space with a surrounding temperature
ranging from 0-35°C!(32-95°F). Please notice that the working conditions of the wine cooler
is affected by surrounding room temperatures and ventilation conditions around the cabinet.
Recommended temperature inside the wine cooler: All types of wine are best stored at
12-16°C (53-61°F).

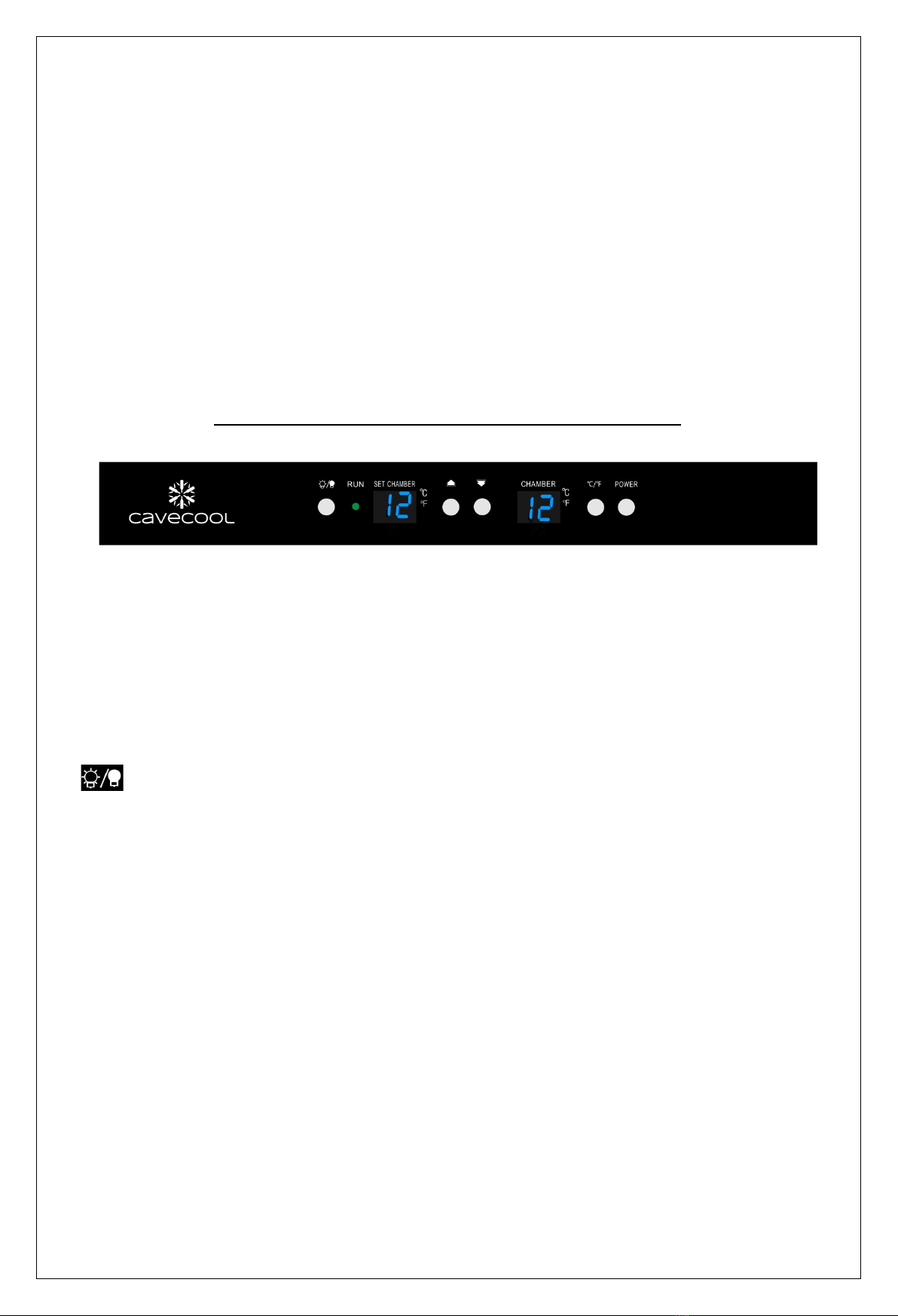

CONTROL PANEL FOR SINGLE ZONE WINE COOLER:
POWER:
This button controls starting and stopping of the whole cooling system. (indicates the
situation of power supply).
°C/°F:
Switch from Fahrenheit to Celsius and vice versa. (Push button for 3 seconds).
:
Operate this button to control turn on/off LED lighting inside the cabinet.
RUN:
Only when the compressor is working, this LED indicator will be lit.
SET CHAMBER:
Display of temperature setting from 5-22°C!(40-72°F). When the temperature has been
selected, the indicator will blink.
CHAMBER:
Display of actual temperature inside the cabinet from 0-37°C (32-99°F).
▲/▼(+/-):
Increase or decrease of temperature setting.

- 9 -
The cooling system will keep on refrigerating until set temperature is reached. The system
will work around the pre-set temperature within a range of ± 2°C.
Under circumstances such as power stop or cutting off in the process of normal operation,
the last set temperature is automatically memorized by the system.
Control requirement for cooling circulation system:
When cooling system inside the cabinet meet the setting of the temperature, the compressor
will stop working. When temperature inside the cabinet rises up to the level which requires
compressor to start, it will enter the process of re-starting. ≥ 5 minutes is required each time
for stopping of the compressor. If operating the button POWER to control cooling system of
the whole cabinet, a 5 minutes delay as protection is required to re-start the compressor.


CONTROL PANEL FOR DUAL ZONE WINE COOLER:
Dual-zone temperature control system is characterized by dividing the cabinet into two
temperature-controlled compartments (upper chamber and lower chamber).
Operate this button to control turn on/off LED lighting inside the cabinet.
RUN:
Only when the compressor is working, this LED indicator will be lit.
POWER:
This button controls starting and stopping of the whole cooling system. (indicates the
situation of power supply).

°C/°F:
Switch from Fahrenheit to Celsius and vice versa. (Push button for 3 seconds).
SET (+/-)
Button for temperature setting in each chamber.

- 10 -
UPPER CHAMBER
Temperature control ranges from 5-12°C (40-54°F).
LOWER CHAMBER
Temperature control ranges from 12-22°C (54-72°F).
NOTICE: It is strongly advised to maintain a difference of 7-8°C between the two
temperature zones in order to allow the temperature sensors to operate properly.
After the wine cooler is plugged in, the temperature will be set automatically as 5°C (40°F)
for upper chamber and 12°C (54°F) for lower chamber.
The last set temperature will be memorized automatically by the system in the process of
normal operation in the event of power supply cutting.
After set temperature is locked, it will flash for 3 seconds, indicating the actual temperature
inside the cabinet. Afterwards, temperature inside the cabinet will reach the set temperature,
fluctuating around ± 2,5°C of set temperature which is regarded as normal.
Alarm system:
When faults of cooling system occur and temperature inside the cabinet elevates to ≥ 30°C
(86°F) for more than 2 hours, the alarm system will start, the cooling system will be
automatically shut off with the buzzer buzzing intermittently.
INSTALLATION INSTRUCTIONS
Notes before installation.
• Remove all the packing materials inside and outside the wine cooler.
• The cabinet must be stand in vertical position for at least 6 hours prior power
connection, in order to avoid and prevent harm to the cooling system.
• Clean the exterior of the cabinet with soft cloth soaked in warm water.
Attention points for installation.
• This wine cooler is designed for free-standing or as built-in.
• Please place the cabinet on a solid ground suitable to support full load of wines.
• Adjust the two supporting feet on the front of the cabinet to make the cabinet at
perfect plumb and level.
• Please do not place your cabinet close to heating appliances such as furnace, stove
and radiator. These items will increase power consumption of the cabinet.
• Avoid installing the cabinet in a damp and humid environment.
• The more ventilation available around the wine cooler, the better the performance.

- 11 -

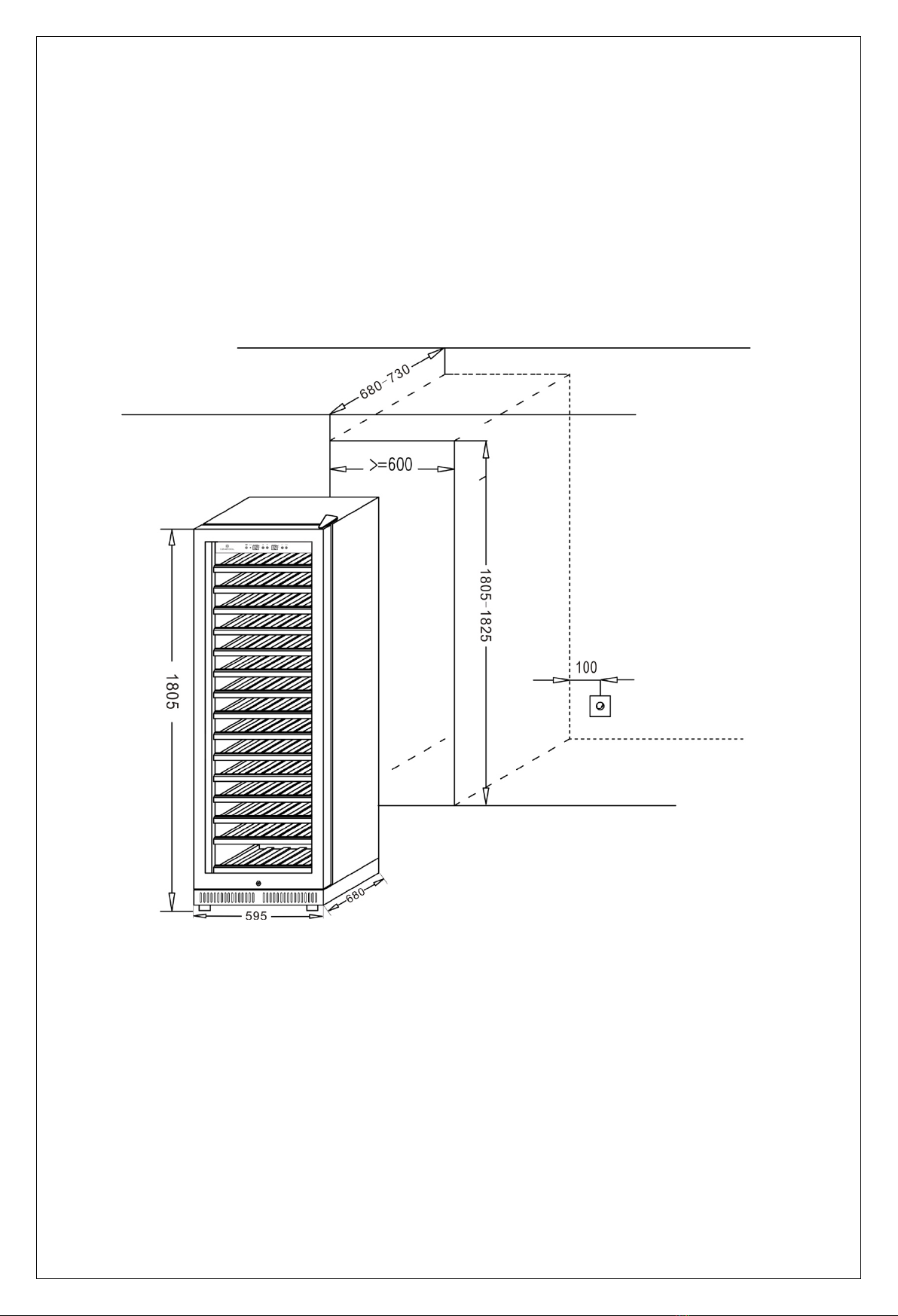

BUILT-IN DIAGRAM
Please follow this diagram if you want to insert the wine cooler into any solid structure.
It is important that the ventilation grille at the bottom front of the wine cooler is never covered.
If a plinth is to be mounted in front of the cabinet, make sure to drill holes or install a
ventilation grille to ensure proper ventilation. Ensure a minimum of 2 cm. of free air from the
top of the wine cabinet to the underside of any item on top.
It is very important that the wine cooler can get away the heat, it produces. It is therefore
recommended to ensure additional space behind the cabinet than the approx. 2 cm from the
mounted grille on the backside of the cabinet. It is advised to allow min. 5 - 7 cm. of free
space between wine cabinet and back wall.
Keep in mind that the door must be able to open and close after installation. Make a space
of at least 1 cm. in the side for the opening door.

- 12 -
CLEANING AND MAINTENANCE
EXTERIOR CLEANING: Please cleanse the exterior and the door sealing of your cabinet
with soapy water before drying off with a soft cloth. Do not use concentrated or abrasive
detergents and scratching tools.
INTERIOR CLEANSING: Un-plug before removing all wines from the cabinet. Then cleanse
the interior with water and wipe dry with a soft cloth.
STANDBY TIME: For short term, specifically, within less than three weeks, you can keep the
cabinet in working conditions.
For long term, more than a few months, unplug the unit. Keep the interiour of the cabinet
clean to avoid generating odour and mold. Please keep the door of cabinet slightly open.
TIPS FOR ENERGY-SAVING: Place the cabinet in an area with the lowest temperature in
the room and keep clear from electric heating appliances and avoid exposure to sunshine.
INSTRUCTIONS FOR MINOR PROBLEMS
Problem
Cause
No power
Socket unconnected.
Short circuit or fuse burnt out.
When temperature inside the
cabinet is not low enough
Check up the set temperature.
Too frequent opening of the door.
Door not closed tightly.
Improper sealing.
Lamp not illuminated
Is the light switched on?
Socket unconnected.
Short circuit or fuse burnt out.
Lamp broken.
Vibrating
Check if the cabinet is in level.
Door cannot be closed tightly
Cabinet not in level.
Door not correctly installed.
Sealing broken.
Wooden shelf too close to the door.
Odour inside the cabinet
Remove the articles sending off odour.
