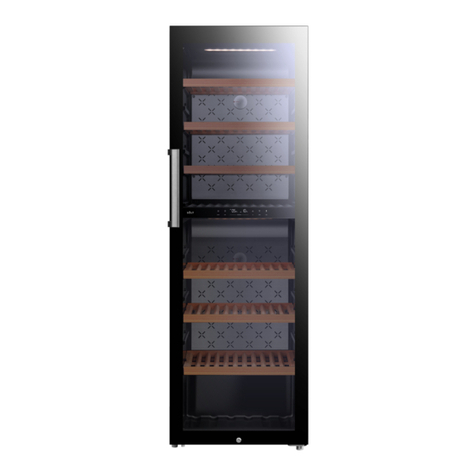

Cavecool CCI145DB User manual

Wine Cooler
Instruction Manual
CCI145DB
NOTE: Thank you for your purchase and use our compressor
wine cooler
！
Our product will create perfect temperature and humidity
environment to store your collection of wine quietly and
peacefully.
JC-201

Content
Safety instructions & warnings………………………………..…………………………….1-2
Installation………………………………..……………………………………………………………3
Description of the appliance………………………………..………………………………..4-5
Operation………………………………..…………………………………………………………….6-8
Troubleshooting………………………………..…………………………………………………..9
Maintenance and cleaning………………………………..……………………………………10
Technical parameters………………………………..…………………………………………..11

1
Safety instructions & warnings
Your safety is of the utmost importance to our company. Please make sure that
you read this instruction booklet before attempting to install or use the
appliance. If you are unsure of any of the information contained in this booklet,
please contact the Technical Department.
● This appliance can be used by children
aged from 8 years and above and
persons with reduced physical,sensory
or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
● Children aged from 3 to 8 years are
allowed to load and unload refrigerating
appliances.Children should be
supervised to ensure that they do not
play with the appliance.
●This appliance is intended for
HOUSEHOLD USE ONLY and not for
commercial or industrial use.
●Keep ventilation openings, in the
appliance enclosure or in the built-in
structure, clear of obstruction.
●Do not use mechanical devices or other
means to accelerate the defrosting
process, other than those
recommended by the manufacturer.
●Do not damage the refrigerant circuit.
●Do not use electrical appliances inside
the storage compartments of the
appliance, unless they are of the type
recommended by the manufacturer.
●Make sure that the appliance is
connected to power supplyin
accordance with the rating label.
●Use an independent grounded socket
with 10A or higher,do not connect to
transformer or socket with multiple
outlets.
●Make sure socket is grounded properly
and do not modify power cord & plug.
●Connect power plug with socket firmly in
case of possible risk of fire.
●Plug should be within reach for easy
disconnection after the appliance
positioned in case of accidents
occurred.
●Do not store or burn gasoline or other
inflammbales near the appliance in
case of possible fire.
●Do not store inflammbales, explosives,
acid & alkaline liquids etc.in the
compartment of the appliance.
●Do not operate other appliances in the
compartment.

2
Child Safety
●Do not allow child play inside the
appliance in case of entrapment.
●Do not allow child hang on the door to
play in case of falling of the appliance.
●Do not allow child reach into
compressor compartment or touch
metal components at rear of the
appliance in case of possible injury.
Keep away from water
●Do not spray water on the appliance or
wash the appliance by pouring or filling
water in case of invalid insulation and
possible electric shock.
Be careful of freezing
●Do not touch surface of the liner inside
the compartment, especially with wet
hand, in case of frozen injury while the
appliance is in operation.
Do not open the door for long
periods
●Opening the door for long periods can
cause a significant increase of
the temperature in the compartments
of the appliance.
Modification on the appliance
not allowed
●Do not reconstruct the appliance by
yourself which might cause damages to
the appliance.
Unplug the appliance under
certain conditions
●Unplug the appliance before cleaning &
maintenance.
●Unplug the appliance when power cut
occurred.
Disposal of the appliacne
●Please according to local regulations
regarding disposal of the appliance for
its flammable refrigerant and blowing
gas.
●Before you scrap the appliance, please
take off the doors to prevent children
trapped.
●Send the appliance to the designated
disposal location.
Do not damage the power cord
●Do not disconnect the appliance by
pulling power cord rather than pulling
the plug.
●Do not set the appliance above the
power cord or step on the cord
intentionally.
●Put the power cord at right place when
moving the appliance.
When the power cord is damaged
●Do not use damaged power cord, and
get it replaced immediately by
manufacturer service agent or by
qualified electrician.
●If needed, extend the power cord with
cord of 0.75mm2 or bigger by qualified
electrician.

3
Installation
Position
Do not lean the appliance over 45°when moving it to position.
The appliance must be put on flat,firm & dry floor or similar noncombustible pad;
do not use the package foam pad.
酒柜结构及安装示意图
Do not put the appliance in the wet place.
Do not use the appliance in the frozen place.
Do not use the appliance outdoor in case of sunlight or rain.
The appliance is designed to either build under the counter
or stand alone on the floor.
Demonstration for building under the counter:
Wine bottles could be stored when you feel cooling inside after the appliance operates
around 1 hour.

4
Description of the appliance
Accessories& name
Note: Shelves, door frame, handle and other accessories could be different according
to different models and configuration.All photos in this manual are for reference. The
appliance you buy might not be exactly the same as shown here. Please refer to the
actual product.
Installing the handle and reversing the door of wine cooler
1. Install handle to the door frame of the appliance.
The handle is delivered in a separated package with
screws together inside the carton.
① Reveal two small holes on the door frame from inner
side by pulling out a bit the door seal ② Aim the handle
to the holes and insert the screws from inside
③ Screw them up with screw-driver ④ Put back door
seal to cover the screws.
7. Lower hinge
8. Door
9. Handle
10. Door seal
11. Upper hinge
1. Housing
3. Control panel
4. Cover board
5. Grill
6. Adjustable foot
2.Shelf

5
2. Reversing the door
Our wine cooler is delivered with the door opening from left to right. To reverse the
opening direction:
² Open the door at 90 degrees and keep it steady.
² Unscrew the two screws①from the right lower hinge②[Figure 1].
² Pull the door⑤ outwards slowly [follow the arrow direction in Figure 2] to get off the
lower hinge② and continue to pull the door⑤ downwards slowly until getting off
from the top right hinge④, and take off the lower hinge plate③ from the door axis
hole[Figure 2].
² Screw top right hinge④& right lower hinge② off from the cabinet⑥and keep them
in the polybag for needs if you want to change back left opening door in the
future.[Figure 3]
² Install the top left hinge⑦& left lower hinge⑧ to the left side of the cabinet.(⑦&⑧
delivered in a separated polybag inside the packing carton).[Figure 4]
² Turn the door⑤ 180 degrees upside down and insert the lower hinge plate③ to
the bottom door axis hole. Fit the top door axis hole to the top left hinge⑦ and put
lower hinge plate③ slowly on the left lower hinge⑧ and keep the door steady.
Screw up the left lower hinge with the plate. Door reversing is finished.

6
Operation
Start operation
1. Cleaning the compartment
Before power on, clean inside of the appliance and check the drainage pipe in good
connection.（For details, please refer to the “Maintenance and cleaning”）
2. Put the appliance still
Before power on, level the appliance on the firm & dry floor for at least 30 minutes.
3. Power on
The appliance start operation and it will cool down inside after 1 hour, otherwise you
should check the power connection.
Control panel
All keys would be invalid in lock mode. Please unlock first.
ON/OFF
1. Keep pressing the key 3 seconds, power down, goes to stand-by mode.
2.Keep pressing the key again 3 seconds to return back to normal working.
Light
Press the key, turn on or turn off the LED lights inside. In stand-by mode, the key
is invalid.
Zone switch
Press the key to switch between upper zone and lower zone for choosing which
zone to set temperature. Press the key once, the LED display in chosen zone
flash regularly. Press up and down key to set temperature. Press the key again;
switch the zone to set temperature.
UP
Press the key once, LED Display in regular flash showing current set
temperature. Continue pressing to adjust set temperature, one press increase
1℃. Regular flash quit after 5 seconds detecting no press and new set
temperature save. LED display return to show actual temperature inside.

7
Down
Press the key once, LED Display in regular flash showing current set
temperature. Continue pressing to adjust set temperature, one press reduce 1℃.
Regular flash quit after 5 seconds detecting no press and new set temperature
save. LED display return to show actual temperature inside.
Child Lock
（
Combination key
）
1. Lock：Press both keys at the same time for 3 seconds to lock.
2. Unlock：Press both keys at the same time for 3 seconds to unlock.
Fahrenheit/Celsius display interchange
Switch temperature display between Fahrenheit and Celsius by pressing the key.
Attention
1. For both upper and lower zone, the cooling temperature could be set from 5-
22
℃
. And temperature of lower zone could only be set equal to or higher than
that of upper zone.
2. Alarm sound: when the system malfunctionoccur and alarm sound, press any
key on the control panel to cancel the alarm sound.
3. Error code:
When the temperature sensor of upper zone failure occur, error code displays:
E1 for open circuit; E2 for short circuit.
When the temperature sensor of Lower zone failure occur, error code displays:
E5 for open circuit; E6 for short circuit.
When the defrost sensor failure occur, error code displays: E3 for open circuit;
E4 for short circuit.

8
Wine storage
² The appliance equip with sufficient independent shelf to allow your collection of
wine get mature quietly and peacefully.
² 5 beech wooden shelves loading capacity: 46 bottles. (standard Bordeaux with
750ml )
² Loading capacity will vary in terms of different way of bottle arrangement or
different bottle sizes.
² Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of
bottle arrangement on one shelf are not recommended.
² Each shelf with sliding roller could pull out partly to store wine bottles easily.
² Open the door straight enough before pulling out shelves.
² If the wine coolerwould have no load for a long time, it is recommended to power it
off, clean it carefully,andopen the door for ventilation.
² Below table is the recommended temperature for wine storing & drinking:
Red Wine
15-18℃
White Wine
9-14℃
Rose wine
10-11℃
Champagne & sparkling wine
5- 8℃

9
Troubleshooting
The appliance makes lots
of noise?
l Please adjust the front foot, keep the appliance
leveling.
l Please keep the appliance a bit space from walls.
Liquid flowing sound
inside the cabinet?
l It is normal because of the refrigerant working
inside.
The appliance does not
start?
l Make sure the appliance is connected to the power
properly.
l Make sure switch on the power.
l The compressor re-starts after 5 minutes for a
power cut.
Compressor runs
continuously?
l If no cold is being produced, call theafter-sale
service.
Door does not seal
tightly?
l After long time use, the door seal might get stiff &
distorted partially.
1. Heat the door seal with hot-wind blower or hot
towel.
2. The door seal get softened and close the door.
The appliance does not
cool sufficiently?
l Please adjust temperature setting.
l Keep the appliance away from sunlight or heat.
l Please do not open the door frequently.
Unpleasant smells inside
cabinet?
l A little bit plastic smell for newly-buy appliance is
normal and will disappear after a short time.
l Clean the compartment and ventilate it for a few
hours.
Condensate on the glass
door?
l Please do not open the door frequently or for a
long time.
l Please do not set the temperature too low.
l High ambient temperature and humidity would
cause condensate.
The light is not working?
l Check the power supply first.
l Call the retailer’s after-sale service if the light is
broken.

10
Maintenance and cleaning
Cleaning
Ø Disconnect the appliance before cleaning.
Ø Clean the appliance with soft cloth or sponge by water.
Ø Do not use organic solvents, alkaline detergent, boiling water, washing powder or
acid liquid etc.
Ø Do not flush the compartment of the appliance.
Ø Clean regularly surfaces that can come in contact with accessible drainage
systems.
The below items will damage the surface of wine cooler:
Power cut
Most power cuts could be resolved within a short time. To protect your wines during a
power cut, avoid opening the door as much as possible. During very long power cuts,
take the necessary measures to protect your wine.
Out of service for long time
Remove all bottles from the appliance, switch off, defrost, clean, dry, and leave the
door open to prevent mould developing within the appliance.
If the appliance is disconnected or if there is a power cut, you must wait at
least five minutes before re-starting.
Moving the appliance
Ø Cut off the power supply and unplug the
appliance.
Ø Remove all bottles from the appliance.
Ø When moving the appliance, do not lean the
appliance over 45°.

11
Technical parameters
Product model
CC145DB
Voltage/frequency
220-240V～/50Hz
Refrigerant/weight
R600a/35g
Effective volume
129L
Loading capacity
46 bottles
Net weight
45.5 kg
Unit dimension
(WxDxH)
595×570×865mm
Packing dimension
(WxDxH)
660×625 x 925mm
Remarks：
1. The Net weight includes shelves and the Unit dimension is without handle on the
door.
2. The manufacturer reserves all the rights to change the above parameters without
prior notice. Please refer to the nameplate of your appliance.
3. Loading capacity will vary in terms of different way of bottle arrangement or
different bottle sizes (standard Bordeaux with 750ml is applied here).
