CBS ArcSafe RSA-184D Owner's manual

Published and distributed by:
CBS ArcSafe®
2616 Sirius Road
Denton, Texas 76208
A division of:
GroupCBS, Inc.®
P.O. Box 1557
Gainesville, Texas 76241
Copyright CBS ArcSafe®2019
Printed in the United States of America
Reproduction, adaptation, or translation without prior written permission is prohibited except as is allowed by law.
RSA-184D
Installation and Operation
2616 Sirius Road |Denton, TX 76208 |(877) 4-SAFETY |www.cbsarcsafe.com
For Cutler Hammer/Westinghouse
Horizontal FDPW 400A Single
Rev. 4/26/2019
Distance is Safety
®
WE
DO.
WHAT STANDS
BETWEEN YOU AND
ARC-FLASH DANGER?

Published and distributed by:
CBS ArcSafe®
2616 Sirius Road
Denton, Texas 76208
A division of:
GroupCBS, Inc.®
P.O. Box 1557
Gainesville, Texas 76241
Copyright CBS ArcSafe®2019
Printed in the United States of America
Reproduction, adaptation, or translation without prior written permission is prohibited except as is allowed by law.
More Products by CBS ArcSafe®
RRS-1 –Universal Remote Racking System (Rotary)
The CBS ArcSafe® RRS-1 is a universal remote racking system capable of remotely installing and removing rotary style draw
out circuit breakers without requiring any modification to the existing switchgear. Operation of the simple to use RRS-1 is
quite intuitive and requires only minimal setup. When used properly, the RRS-1 allows technicians to remain outside of the
arc flash boundary during the potentially dangerous racking operation.
RRS-2 –Universal Remote Racking System (Non-Rotary)
The CBS ArcSafe® RRS-2 is a universal remote racking system capable of remotely installing and removing non-rotary style
draw out circuit breakers without requiring any modification to the existing switchgear. Operation of the simple to use
RRS-2 is quite intuitive and requires only minimal setup. When used properly, the RRS-2 allows technicians to remain
outside of the arc flash boundary during the potentially hazardous racking operation.
RRS-3 –Application Specific Remote Racking System (Rotary And Non-Rotary)
The CBS ArcSafe® RRS-3 product line is made up of various application specific remote breaker racking devices. Each
standalone system allows service personnel to remotely install and remove a particular type of circuit breaker safely while
stationed safely outside of the arc flash boundary during the potentially dangerous operation. The lightweight and compact
design of the RRS-3 systems makes them ideal for hard to access areas where space is at a premium.
RRS-4 –PLC Based Universal Remote Racking System (Rotary)
The CBS ArcSafe® RRS-4 universal remote racking system is an updated PLC based version of the best selling RRS-1. The
dual mode, source programmable, PLC based control system offers two different operating modes to choose from based on
user preference or the application. The RRS-4 is capable of remotely installing and removing rotary style draw out circuit
breakers without requiring any modification to the existing switchgear, allowing users to remain outside of the arc flash
boundary during the potentially hazardous racking operation.
RSA –Remote Switch Actuator
The CBS ArcSafe® Remote Switch Actuator (RSA) product line is made up of various application specific remote operating
devices. These products allow service personnel to remotely perform all aspects of an operation for a particular type of
electrical equipment from outside the arc flash boundary – reducing or eliminating the possibility of serious injury or death
resulting from an arc flash.
RSO –Remote Switch Operator
During a remote operation, the CBS ArcSafe® RSO functions as both the power supply and user interface for the device
being remotely operated by the user. When paired with an applicable CBS ArcSafe® device, this portable standalone
system allows service personnel to remotely perform a racking or switching procedure from outside the arc flash boundary
– reducing or eliminating the possibility of injury or death resulting from an arc flash.

RSA-184D
Installation and Operation 3
1Installation
DANGER!
Before servicing any breaker, make sure that it matches the breaker discussed. If the breaker
does not match the breaker described above, please call CBS ArcSafe® for more information.
ATTENTION!
The location of certain items such as mimic bus, stickers, and/or placards may interfere with
the proper installation of the RSA. Please remove or reposition these items before installing
the RSA.

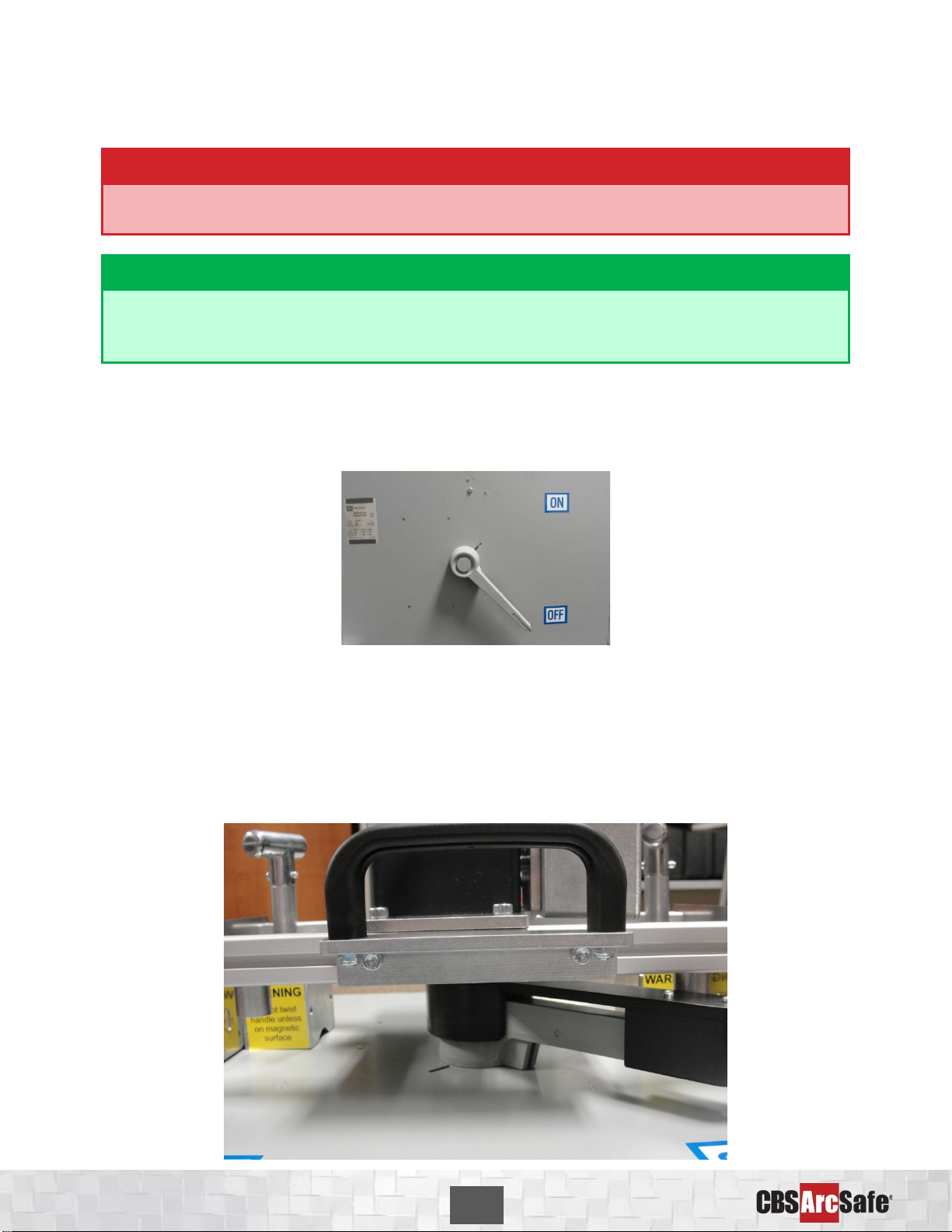

1. Ensure that the switch is free from any obstruction that may interfere with the proper installation of
the RSA-184F.
2. Note the position of the switch handle and manually position the motor arm of the RSA-184F to
match.
3. Place the RSA-184F on the face of the switch ensuring that the motor arm properly fits over the
switch arm and that the magnets are flush with the face of the switch.

RSA-184D
Installation and Operation 4

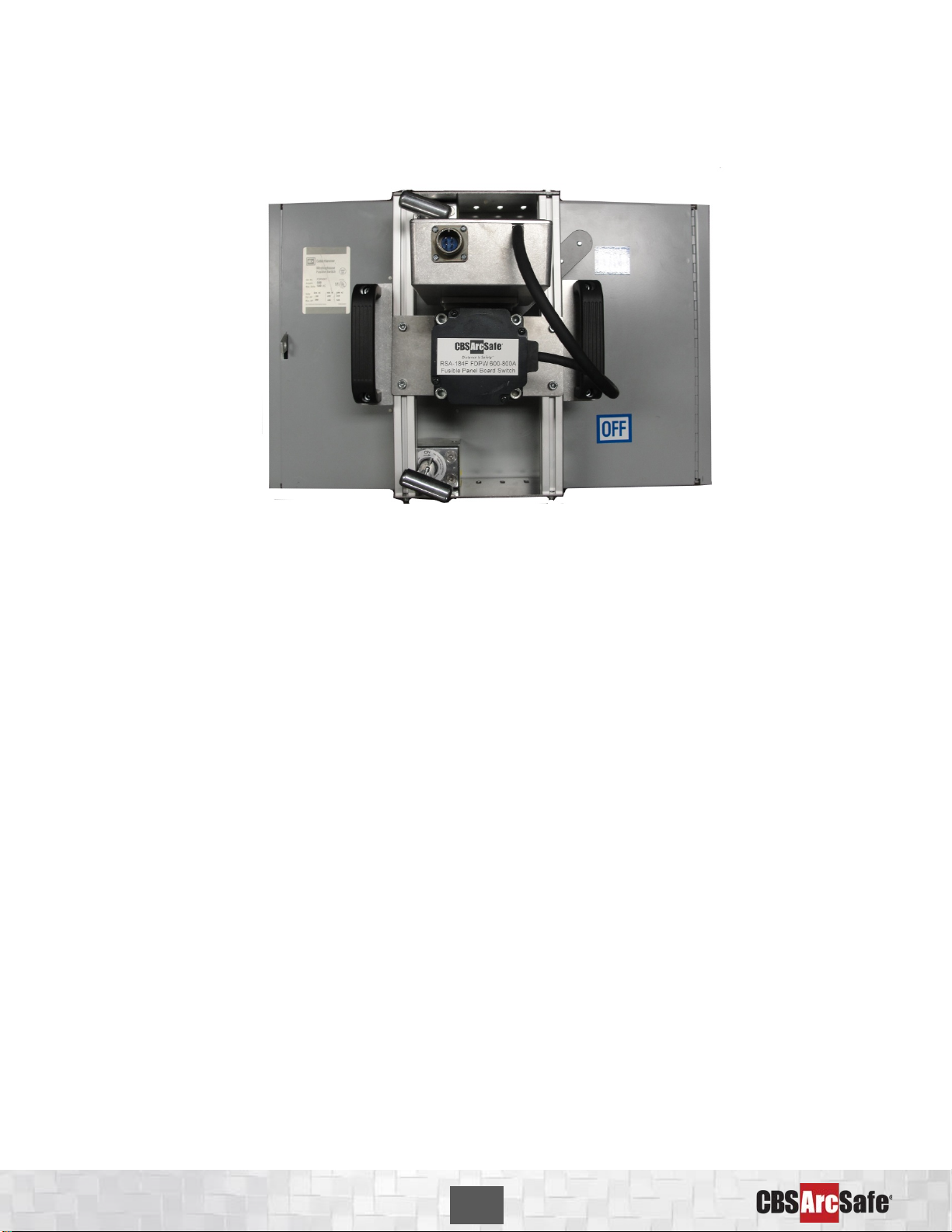

4. Secure the RSA-184F to the switch by turning the handles of the two magnets 180 degrees clockwise.
5. The RSA-184F is ready for remote operations.

RSA-184D
Installation and Operation 5
2Operation
ATTENTION!
Please ensure that all cables are clear of moving parts. Failure to do so may result in damage
to cables and/or actuator.
ATTENTION!
Please ensure that the batteries to the RSO-I AR are fully charged or that the unit is plugged
into AC power.
For detailed instructions on the operation of the RSO-I AR please see the RSO-I AR Manual.
1. Ensure that the RSA is properly installed. See
the Installation section for detailed instruc-
tions.
2. Plug the RSO-I AR into the motor control box.
3. Exit the arc flash boundary
4. Turn the power switch on the RSO-I AR to the
ON position.
5. Ensure that the Auto Retract (AR) function is
set according to the placard on the RSA. If not
specified, leave AR turned OFF.
6. Press and hold CLOSE to turn ON the breaker.
7. Press and hold TRIP to turn OFF the breaker.

RSA-184D
Installation and Operation 6
3Adjustments
The RSA comes adjusted from the factory to fit most common configurations, and should not need to be
adjusted in most cases. However, if adjustments do need to be performed, it is recommended that they be
done on de-energized and isolated equipment to prevent possible damage or injury.
3.1 Motor Adjustment
The motor can be repositioned vertically to ensure a proper fit over the switch arm.
1. Loosen the four bolts securing the motor bracket to the frame.
2. Slide the motor bracket up or down to position the motor arm.
3. Re-tighten the four bolts.

RSA-184D
Installation and Operation 7
3.2 Magnet Adjustment
The magnets on the RSA-184F can be moved laterally and vertically to avoid any obstacles on the switch.
1. Loosen or remove the bolts on the magnet to be adjusted.
2. Reposition the magnet as necessary.
3. Re-insert and re-tighten the bolts to secure the magnet.
3.3 Hard Stop Adjustment
The hard stops on the RSA-184F may need adjustment to ensure that the motor does not over-rotate and
damage the switch.
6. Loosen the bolts holding the hard stops to the frame.

RSA-184D
Installation and Operation 8
7. Place the arm of the spare switch in the ON position.
8. Rotate the motor arm by hand to match the switch arm.
9. Slide the upper hard stop to contact the arm at that position.
10. Tighten the hard stop bolt.
11. Repeat with the switch in the off position using the lower hard stop.

RSA-184D
Installation and Operation 9
Notes

RSA-184D
Installation and Operation 10
Notes

RSA-184D
Installation and Operation
DANGER!
Ensure that personnel using this equipment are adequately trained in the operation of the
switchgear they are planning to work with; that they are correctly stationed outside the arc
flash boundary; and that they comply with all applicable Federal, State, Local, and In-house
safety regulations and procedures. Attention should be given to distance, angle, and person-
al protective equipment (PPE).
