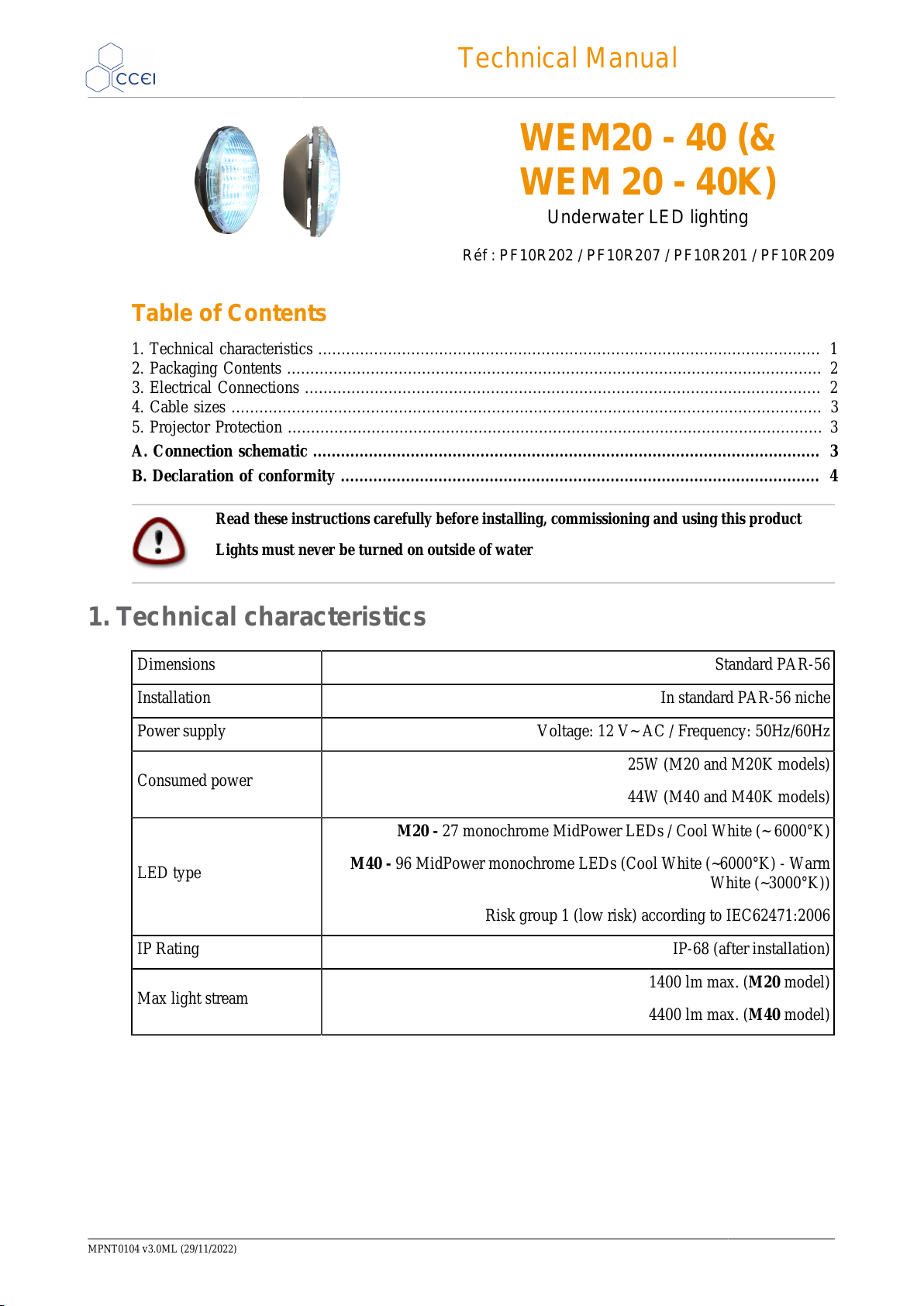

ccei WEM20 User manual

Technical Manual
WEM20 - 40 (&
WEM 20 - 40K)
Underwater LED lighting
Réf : PF10R202 / PF10R207 / PF10R201 / PF10R209
Table of Contents
1. Technical characteristics ............................................................................................................ 1
2. Packaging Contents ................................................................................................................... 2
3. Electrical Connections ............................................................................................................... 2
4. Cable sizes ............................................................................................................................... 3
5. Projector Protection ................................................................................................................... 3
A. Connection schematic ............................................................................................................. 3
B. Declaration of conformity ....................................................................................................... 4
Read these instructions carefully before installing, commissioning and using this product
Lights must never be turned on outside of water
1. Technical characteristics
Dimensions Standard PAR-56
Installation In standard PAR-56 niche
Power supply Voltage: 12 V~ AC / Frequency: 50Hz/60Hz
Consumed power 25W (M20 and M20K models)
44W (M40 and M40K models)
LED type
M20 - 27 monochrome MidPower LEDs / Cool White (~ 6000°K)
M40 - 96 MidPower monochrome LEDs (Cool White (~6000°K) - Warm
White (~3000°K))
Risk group 1 (low risk) according to IEC62471:2006
IP Rating IP-68 (after installation)
Max light stream 1400 lm max. (M20 model)
4400 lm max. (M40 model)
MPNT0104 v3.0ML (29/11/2022)

Technical Manual WEM20 - 40 (& WEM 20 - 40K) v3.0ML
2. Packaging Contents
1 BRIO WEM20 - 40 (& WEM 20 - 40K) with
• 2 stainless steel screws + washers for connection
• Technical manual (this document)
3. Electrical Connections
A. standard PAR56 niche
B. PAR56 bulb support
C. Seal to crush during light installation. This guarantees the tightness of the electrical connection.
D. 12V AC Power supply. The cable must be equipped with "eye" or "fork" terminal plugs for a proper
connection (Ø 4 mm)
Refer to the user guide of the niche to replace the bulb.
The arrow in front of the bulb must be placed on top during installation.
2

Technical Manual WEM20 - 40 (& WEM 20 - 40K) v3.0ML
4. Cable sizes
Cable cross-section (mm2)
1.5 mm² 2.5 mm² 4 mm² 6 mm² 10 mm²
Voltage drops in the WEM20 -
40 (& WEM 20 - 40K) power
cable must be limited to com-
ply with applicable standards
and guarantee optimum light-
ing.
Use the information in the table
opposite (one light per cable)
Max.
length
(m) 10,9 (M20) 18,2 (M20)
10,0 (M40)
29,1 (M20)
17,0 (M40)
43,6 (M20)
25,6 (M40) 42,6 (M40)
5. Projector Protection
Independent protection is necessary for each WEM20 - 40 (& WEM 20 - 40K) (even if several projectors are
connectedtothesametransformer).Protectionmustbeensuredinthesecondaryofthetransformerusingfuses
or breakers at 3A (M20 / 20K) , 5A (M40 & M40K) . The cable cross-section must be adapted accordingly.
A. Connection schematic
3

Technical Manual WEM20 - 40 (& WEM 20 - 40K) v3.0ML
B. Declaration of conformity
CCEI S.A.S (FR 47 40 35 21 693) declares that the WEM20 - 40 (&
WEM 20 - 40K) product meets the safety and electromagnetic compati-
bility requirements of European directives 2014/35/EU and 2014/30/EU.
Emmanuel Baret
Marseilles, on 29/11/2022
Distributor's stamp
Date of sale: . . . . . . . . . . . . . . . . . . . . . . . Batch N°: . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
