CDA VK703 User guide

VK703
Compact steam oven and grill
Use and maintenance

2| Instruction Manual
Contents
3 Important information
6 Before first use
7 Filling the water tank
8 Control panel
9 Using the touch controls
9 Switching the appliance on and o
10 Setting the clock
10 Setting the minute minder
11 Functions
12 Selecting a function
12 Pausing and altering functions
12 Stopping functions
13 Auxiliary functions and settings
13 Safety key lock
14 Interior lighting
14 Operating time limiter
15 Semi-automatic cooking
16 Automatic cooking
17 Care and maintenance
21 Cleaning
23 Installation
25 Mains electrical connection

Instruction Manual | 3
Important information
This appliance must only be used for the purpose for which it is
intended, i.e. domestic cooking. Any other use could be dangerous
and may lead to premature failure of the appliance.
The CDA Group Ltd. cannot be held responsible for injuries or
losses caused by incorrect use or installation of this product.
Please note that CDA reserve the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse
of the appliance.
Under no circumstances should any external covers be removed
for servicing or maintenance except by suitably qualified personnel.
User information:
•Ovens become hot during and immediately after use.
• The oven door can become very hot during operation.
• After use, please ensure that the oven is switched ‘O’.
• Keep children away from the appliance when in use, and
immediately after use.
• Keep the oven door closed whilst grilling.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee
purposes.
Appliance Model
Serial Number

4| Instruction Manual
Important information
EU Declarations of Conformity:
This oven has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU
(LVD) and requirements of EU Directive 2014/30/EU (EMC).
Parts intended to come into contact with food conform to
1935/2004/EC.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must not be disposed
of as urban waste. It must be taken to a special local authority
dierentiated waste collection centre or to a dealer providing this
service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving
from inappropriate disposal and enables the constituent materials
to be recovered to obtain significant savings in energy and
resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

Instruction Manual | 5
Important information
•Read the user instructions carefully before using the
oven for the first time.
•Follow the instructions for first use of the oven.
•Clean the oven regularly.
•Remove spills as soon as they occur.
•Always use oven gloves when removing shelves and
trays from the oven.
•Do not allow children near the oven when in use.
•Do not allow fat or oils to build up on the oven
shelves, grill pan or oven base.
•Do not place any cooking utensils or plates directly on
the oven base.
•Always grill with the oven door closed.
•Do not grill food containing fat without using the grill
pan grid.
•Do not cover the pans, grids or the oven walls with
aluminium foil.
•Do not use the oven tray for roasting.
•Do not perform maintenance or cleaning of the oven
without first switching o the electricity supply. If the
oven has recently been used, allow to cool.
•Do not place hot enamel parts in water. Leave them to
cool first.
•Do not allow vinegar, coee, milk, saltwater, lemon or
tomato juice to remain in contact with enamel parts.
•Do not use abrasive cleaners or powders that will
scratch the surface of the enamel or stainless steel.
•Do not attempt to repair the internal workings of your
oven.
•Do not cover the oven floor with aluminium foil.

6| Instruction Manual
Before first use
First use
Before using the oven for the first time we recommend that, with
the power supply o, you clean the oven with soapy water. Once
done, rinse carefully, remove all accessories from the appliance
and then heat on the below programme at maximum temperature
for the specified time. A slightly unpleasant smell may be
produced, caused by grease remaining on the oven element from
the production process.
Please note:
This oven has been fitted with a cooling fan to achieve maximum
eciency and to maintain low surface temperatures. The cooling
fan will switch on automatically when the oven switches on. It is
normal for the cooling fan to run for an hour or more after use,
depending on the duration, temperature and type of cooking
programme used.
• The oven light remains on for every cooking function for 1
minute then will go out. The oven light can be switched on or
o at any time.
• Switching the oven o will result in any semi-automatic or
automatic cooking to be cancelled
• We recommend preheating the grill for 5 minutes before each
use.
30 minutes full grill

Instruction Manual | 7
Filling the water tank
Before using the steam functions for the first time we recommend
that you remove and clean, thoroughly, the water tank in the
appliance. The water tank can be found on the right hand side of
the appliance when the door is open (circled below).
Fill the tank up to the maximum capacity line and carefully re-insert
the tank. The appliance will warn you when the system is out of
water by displaying ‘Lo’ on the timer section of the display.
If you are leaving the appliance and/or the steam functions to go
unused for some time (i.e. whilst on holiday) we recommend
emptying and drying the water tank so as to prevent the water from
stagnating.
Fig. 1

8| Instruction Manual
Control panel
On/O sensor Plus sensor
Time sensor Minus sensor
Interior light sensor Confirm sensor
Start/Pause sensor Minute minder indicator
Temperature sensor Duration indicator
Rapid preheating
sensor
End of cooking indicator
Safety key lock indicator
Function active
indicator
Function Sensors Time/Temperature display Auxiliary Functions
Adjustment Sensors
Function Indicators

Instruction Manual | 9
Using the touch controls
The touch controls should be used with the flat of your finger,
rather than the fingertip.
Switching the appliance on and o
To switch the appliance on
Touch and hold the ‘On/O’ sensor for approximately 3 seconds
and until the appliance beeps.
To switch the appliance o
Touch and hold the “On/O” sensor for approximately 3
seconds and until the oven beeps. All displays except for the time
display should extinguish.
Please note: To switch the appliance o completely, i.e. before
cleaning it, you will need to switch it o at the mains isolation
switch.

10 | Instruction Manual
Setting the clock
• In standby mode, press and hold the timer sensor until the
minutes of the display flash.
• Use and to set the minutes. Touch the sensor to
confirm the setting.
• The hours of the display will now be flashing. Use and to
set the hours. Touch the sensor to confirm the setting.
Note: The clock can only be set in 24 hour format
Setting the minute minder
Select a function and touch the sensor until the minute minder
indicator flashes. Then, use the and sensors to set the
desired time. Touch the sensor to confirm the setting or wait 5
seconds and the setting will save automatically and the indicator
will be illuminated on the display.
The minute minder can be set between 1 minute and 24 hours.
Once the duration time has elapsed you will hear beeping and the
display will flash 0:00. Touch the sensor to mute the beeping
and return to standby mode. If no sensor is pressed, the beeping
will stop after 60 seconds but the display will continue to flash.

Instruction Manual | 11
Selecting a function and beginning
cooking (steam functions)
• Touch a sensor on the control panel to enter that function’s
settings. The display will show the function’s default time setting
• Pressing the sensor will allow you to change the operating
time for the function. Use the and to adjust the time.
Touch the sensor to confirm the setting
• Pressing the sensor will allow you to change the temperature,
if applicable. Use the and to adjust the power. Touch
to confirm the setting
• Once you are happy with the settings, press the sensor
to begin cooking. The display will show the duration left on
the cooking function and the Duration indicator and the
Function active indicator will both be illuminated
100 40
/
Top grill
Pizza
Slow cooking 80
Defrost 50 30
Steam -
Vegetables
YES
YES
Icon Function
Preset
（ ℃）
Time
（min）
Adjustable
temperature range
Steam 100 50 -100°C
Steam -
1190 W
100 45 85
100 30
Power temperature
Preset
Meat
Steam -
Fish
Minute minder
YES
-100°C
85 -100°C
85 -100°C
50 -250°C
50 -250°C
50 -100°C
50 -80 °C
1190 W
1190 W
1190 W
900 W
900 W
1190 W
1190 W
180
180
200
/
5
/
45
50 -230 °C
YES
YES
YES
YES
YES
YES
Bread 1030 W
Functions
Below is a table of functions for the appliance including any
adjustable settings

12 | Instruction Manual
Selecting a function
• Touch a sensor on the control panel to enter that function’s
settings. The display will show the default temperature setting
if a cooking function is selected. If a defrost function is selected
the display will show the default time.
• Pressing the sensor will allow you to set the minute minder.
Use the and to adjust the time and touch the sensor to
confirm the setting
• Pressing the sensor will allow you to change the temperature
of the setting. Use the and to adjust the temperature and
touch the sensor to confirm the setting
• Once you are happy with the settings, press the sensor to
begin the function. For a cooking function, the display will show
the current temperature and the Function active indicator
will be lluminated. For a defrost function, the display will show
the current time or the time left on the function, if applicable.
Pausing and altering functions
Simply press the Start/Pause sensor whilst the appliance is
in use. This will allow you to suspend operation temporarily. To
resume the function, simply press the sensor once more. Whilst
the appliance is paused you can adjust the temperature, where
available, without aecting the running time of the function.
Note: Opening the appliance door will also temporarily pause the
function. Closing the door will resume the function automatically.
Stopping a function
Simply press and hold the on/o sensor for approximately 1
seconds.

Instruction Manual | 13
Auxiliary functions
This appliance features a number of preset functions which create
the ideal cooking environment (time, temperature etc.) for certain
dishes. Below is a table of these functions and their adjustable
settings.
Auxiliary function settings
It is possible to alter the settings of the auxiliary functions to suit
your preferences. To do this simply select the function you require
and any applicable settings such as temperature, duration and
minute minder can be altered by pressing the appropriate sensor
and using the and sensors. When you are ready to start the
function the function simply press .
Safety key lock
This appliance is equipped with a safety key lock to prevent
accidental use. The safety key lock can be activated when the
appliance is in standby mode (i.e. just the clock displayed) or whilst
a function is running. To activate the safety key lock, simultaneously
press and hold both the and sensors until the indicator
illuiminates. To deactivate the safety lock simply press and hold
both sensors again and the indicator will go out.
Icon Function Preset temperature
(°C)
Preset
time
(min)
Adjustable temperature
range (°C)
Minute
minder
Quick
steam 100 - - Ye s
Cake 160 - 150 - 180 Ye s
Dough
proving 40 - 30 - 50 Ye s

14 | Instruction Manual
Interior lighting
The interior lighting will come on automatically when the oven is in
use and will turn itself o automatically after 1 minute but can be
turned on and o as you wish. The light will also turn on after
opening the oven door. The light can be turned on when the oven
is in standby without a function in operation. Simply press the light
sensor to operate the light as necessary.
Operating time limiter
Each temperature, when used outside of semi and automatic
cooking, has an operating time limiter to help to prevent damage to
the internal components of this appliance. After a certain working
time at given temperatures the appliance will switch the function
o automatically. The temperatures and associated maximum
operating times are listed in the table below.
Temperature Maximum operating
hours
20 - 120°C 24
121 - 200°C 6
201 - 230°C 4
Please note: The cooking time can be set between 0 and 10 hours.
The end of cooking time can be set to 10 hours ahead of the cur-
rent time. If an end of cooking time is set, then this will take priority,
for example over the current time, on the time display.

Instruction Manual | 15
Semi automatic cooking
This function allows for a cooking time to be set. When the set time
elapses the oven will switch the set function o and an acoustic
signal will sound to alert the user. The cooking time available
ranges from between 1 minute and 10 hours.
To switch on semi automatic cooking
• First select a heating function and the temperature required
• Press the sensor twice and the indicator will flash on the
display
• Use the and sensors to adjust the duration as needed and
touch to confirm the setting or alternatively wait 5 seconds
and the duration will automatically set
• To clear the duration setting, either cycle down the minutes
using the and sensors until the display shows 0:00 or
touch the sensor and you will return to standby mode and
you can begin the function again
During the cooking process the indicator will be illuminated.
Once the duration time has elapsed you will hear beeping and the
display will flash 0:00. Touch the sensor to mute the beeping
and return to standby mode. If no sensor is pressed, the beeping
will stop after 60 seconds but the display will continue to flash.

16 | Instruction Manual
Automatic cooking
This function allows for a delay to be set for cooking and an
automatic end time. For example, if you set the cooking duration
to 1 hour, and the end time to 15:00, then the oven will activate the
function at 14:00.
To switch on automatic cooking
• First select a heating function and the temperature required
• Press the sensor twice and the indicator will flash on the
display
• Use the and sensors to adjust the duration as needed.
• Press the sensor again and the indicator will flash on the
display and the end time will also be shown
• Use the and sensors to adjust the end time and touch
to confirm the setting
• To clear the duration setting, either cycle down the minutes
using the and sensors until the display shows 0:00 or
touch the sensor and you will return to standby mode and
you can begin the function again.
During the cooking process the indicator will be illuminated.
Once the duration time has elapsed you will hear beeping and the
display will flash 0:00. Touch the sensor to mute the beeping
and return to standby mode. If no sensor is pressed, the beeping
will stop after 60 seconds but the display will continue to flash.

Instruction Manual | 17
Care and maintenance
It is important, before carrying out any cleaning or maintenance,
that you disconnect or switch o the appliance at the power
supply. If the oven has been in use, let the cavity and any
elements cool down suciently before attempting any cleaning
or maintenance.
Changing the interior light
• If the light has been on recently, allow it to cool before
removing it
• Wearing suitable hand protection, such as gloves, remove the
screws around the protective glass cover (Fig. 2). Carefully
remove the cover. It is advisable to wash and dry the cover
and store it somewhere safe where it won’t cause nor receive
damage
• Carefully remove the old bulb
and dispose of it safely. Insert
the new bulb, ensuring that your
hands are still protected. This
will also preserve the lifespan
of the replacement bulb. The
new bulb must be able to
withstand high temperature
(300°C) and match the following
specifications: 230-240V, 50Hz,
25W, G9 fitting.
• Refit the protective cover, taking
care not to pinch or crimp the
cover gasket, and re-attach the
four screws (Fig. 2). Fig. 2

18 | Instruction Manual
Removing the appliance door
In order to allow for easier access into the oven cavity for cleaning,
it is possible to remove the door. Before removing the door,
ensure that you have an area prepared in which you can place the
removed door. This area should ideally be protected by something
like a folded, dirt-free, towel to help prevent damage to surfaces
and the door.
• Open the door fully

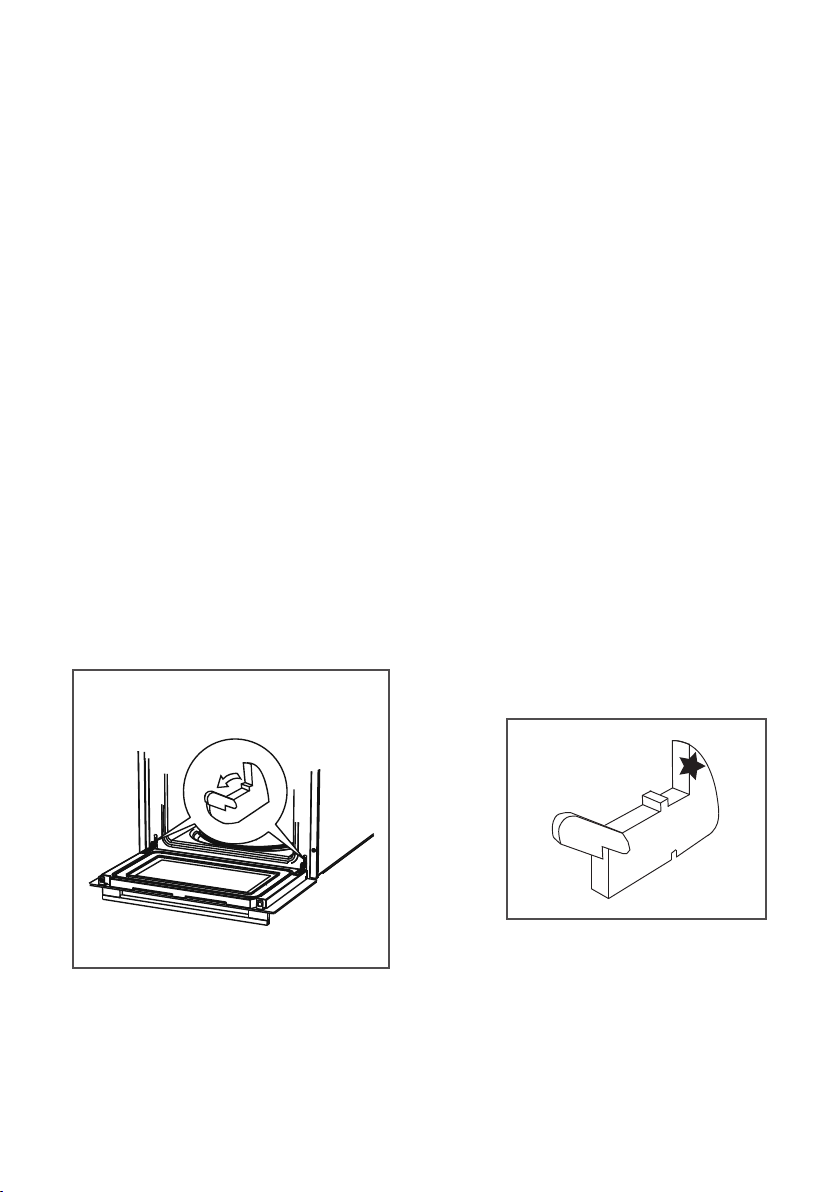

• Lift and tilt the safety catch part of the hinge (Fig .3) so that it is
fully extended and points towards the door.
• Close the door most of the way, lift it slightly and then pull it,
safely but firmly, towards you
Fig. 3
Fig. 4
Important
Do not use any other tool, except for a screwdriver, to remove the
protective cover as this may damage the lamp assembly or the
oven.

Instruction Manual | 19
Replacing the appliance door
• Hold the door to the appliance in the closed position and
manoeuvre the hinges so that the part of the hinge, highlighted
by the star in Fig. 4, inserts into the hinge slot in the cavity
frame.
• Next, ensure the notch on the underside of the hinge sits on
the lip of the hinge slot. Open
the door fully. Each hinge should
be seated in the same way as
the hinge in Fig. 5. If it is not,
follow the steps for removing the
door and try replacing it again.
• Finally, lift the safety catch part
of the hinges back into place so
that they are lying flat against
the hinges. Fig. 5
Please note: If the hinge safety catches are not in the correct
place then the door and/or appliance may receive damage when
attempting to close the door.

20 | Instruction Manual
Removing the inner door glass
On the upper edges of the door assembly there are two plastic
clips (C in Fig. 6). These must be removed by pressing the arrow
symbol inwards and then pulling them firmly away from the door
assembly in the same direction as the arrows.
Once these clips have been removed, you can lift and remove the
inner glass. The glass will be seated in two black rubber grooves
and it is important that the glass is placed back into these when
reinserting the glass. Take note of which way around the glass was
when removed, and reinsert it in the same way. Then, reinsert the
clips (C).
C
Fig. 6
