CDA EIN60 Quick start guide

www.cda.eu
EIN60
Extractors
Installation, use and maintenance
Cod:0103086436-00.03

2
Important
The manufacturer cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that the manufacturer reserves the right to invalidate the guarantee
supplied with this product following incorrect installation or misuse of
the appliance or use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with your
appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
Serial number

3
Declarations of Conformity:
This appliance has been manufactured to comply with all EU & UK
statutory requirements and complies with all applicable legislation and
the following European Directives:
• The Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU
The product has been marked with the UKCA and CE symbols.
This appliance is marked according to the European directive
2004/104/EC on Waste Electrical and Electronic equipment (WEEE).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing appliance
recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.
Please note:
•Under no circumstances should the extractor be connected to any
gas ventilation system, flue system or hot air ducting system.
•Do not vent the extractor into an attic or loft space.
•Only house the extractor in rooms with adequate ventilation.
Remember that the extractor is powerful and whatever air is
extracted needs to be replaced.

4
•Do not tile the extractor in. It should be removable for service or
maintenance.
•Do not use silicone sealant to secure the hood to the wall.
•You must be able to isolate the extractor from the mains electrical
supply after installation.
•This extractor has been designed to be used in a room with a volume
of less than 36 m3.
•Steam cleaners must not be used when cleaning this appliance.
•The performance of your extractor will vary depending on a number
of factors. These include: type of extraction, length of ducting (see
page 14), room volume, ventilation available and cleanliness of the
filters.

5
Using your extractor
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15
minutes after the end of cooking.
Control Panel
A – Light switch
B – Power indicator light
C – Power switch
To switch the extractor light on or o
• Slide the light switch to position A1 for o, or A2 for on.
To switch on the extractor, or change the motor speed
• Slide the power switch to the position required dependent on the
speed you require.
To switch the extractor o
• Slide the power switch to position C1 for o.
Fig. 1 C2 C4
A B C
A1 C1A2 C3

6
Care and maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR CLEAN-
ING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
Cleaning
You should use a nonabrasive cleaner. Any abrasive cleaner (including
Cif) will scratch the surface and could erase the
control panel markings.
You can clean your extractor eectively by simply using a dilute
solution of water and mild detergent and drying to a shine with a
clean microfibre cloth.
Cleaning the (rectangular) grease filter
The grease filter captures grease particles in the air, so is therefore
subject to clogging depending on the frequency of use of the
appliance.
In order to prevent fire hazard it is recommended to clean the
grease filter at a maximum of 2 month intervals by carrying out these
instructions:
Depending on model, you may have either acrylic or aluminium
grease filter(s).

7
Acrylic grease filter:
1. Remove the cover panel by pushing the fixing clips up and then
lifting the panel forwards.
2. Remove the filter retaining wires from the cover panel.
3. Remove the grease filter and wash by hand in a lukewarm
solution of water and mild detergent. Once clean squeeze the
grease filter but DO NOT wring it out. Clean the filter holder using
a dilute solution of water and mild detergent or with a damp cloth.
Allow the grease filter to dry completely before reassembling the
extractor.
4. Replace the grease filter in the cover panel and reattach the filter
retaining wires.
5. Replace the cover panel by inserting the lugs on the upper side
in the extractor, and then refasten the fixing clips on the lower
side.
Aluminium grease filters:
1. Remove the filters from the cooker hood and wash in a solution of
warm water and neutral liquid detergent, leaving to soak.
2. Rinse thoroughly with warm water and leave to dry.
3. The filters may alternatively be washed in the dishwasher. The
aluminium panels may alter in colour after several washes in a
dishwasher. This is not a fault and is not cause for replacing the
panels.

8
Changing the (circular) charcoal filter (re-circulating only):
To ensure best performance of your extractor, you should replace the
charcoal filtersevery four to six months,
depending on use.
Please note the charcoal filter cannot be washed.
To attach a new charcoal filter, follow the steps below:
1. Remove the cover panel (acrylic filter model) or grease filter
(aluminium filter model) as described above.
2. Place the charcoal filter on the centre of the motor support, and
once firmly located turn the charcoal filter clockwise 90º until the
charcoal filter locks into position.
3. Replace the cover panel or grease filter that has been removed.
Changing the light
ENSURE THAT THE POWER TO
THE EXTRACTOR IS SWITCHED
OFF AT THE MAINS. DO NOT
CHANGE THE LIGHT BULB
IMMEDIATELY AFTER USE AS
THE BULB WILL BE HOT.
ALLOW IT TO COOL BEFORE
REMOVING IT.
Replaceable (LED only) light
source by an end-user
LED LED
Fig.1-I
Fig.1-II
Fig.1-III
E14 LED 4Wx1
DR-4-H-E14-37

9
•Do not touch bulbs or adjacent areas during or straight after pro-
longed use of the lights.
•The light is designed for use during cooking and not for general
room illumination. Extended use of the light can reduce the life
span of the bulb.
•Bulb replacement is not covered by the guarantee.
•Only use bulbs recommended for your extractor. Do not fit bulbs of
a higher power rating. Bulbs of a lower power rating may be ad-
equate for use, generally last longer and use less energy.
•Spare bulbs are available from CDA Customer Care or from your
local DIY shop.
Mains electricity connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE
POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A
3A FUSE.
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.T. and local regulations.
The wires in the mains lead of this appliance are coloured in
accordance with the following code:
BLUE = NEUTRAL, BROWN = LIVE.
Remove the cover panel as described on page 7. Unscrew the light
bulb and replace the light with the required light bulb (4W max LED,
SES). Finally, replace the cover panel.

10
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fused spur, proceed as follows:
•The wire which is coloured blue must be connected to the terminal
marked N (Neutral), or coloured black.
•The wire which is coloured brown must be connected to the
terminal marked L (Live), or coloured red.
NOTE: USE A 3A FUSE
Assembly and electrical connection should be carried out by
competent personnel.
When installing this product we recommend you seek the help of
another individual.
IMPORTANT: THIS APPLIANCE IS A CLASS II APPLIANCE
(DOUBLE INSULATED) AND IS NOT INTENDED TO BE EARTHED.
DO NOT FIT AN EARTH LEAD TO THIS EXTRACTOR.
Do not mount the isolation switch behind the chimney section. It is a
requirement that you must be able to isolate the extractor from the
mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical
supply by means of an isolation switch and fused spur and is intended
to be protected by a 3A fuse. The use of a 13A fuse can cause
damage to the internal wiring in the event of a fault, and may also
invalidate the warranty.

11

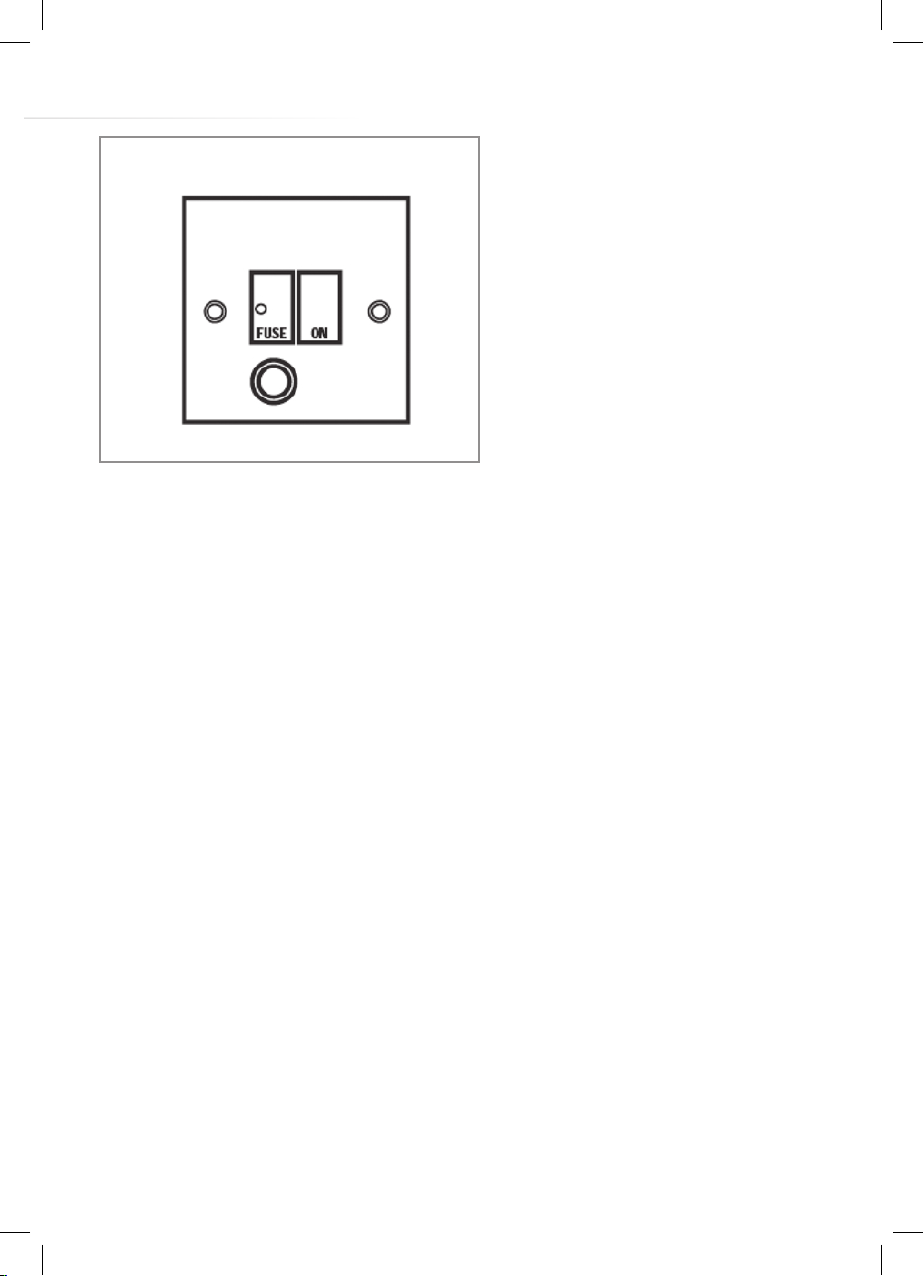

DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
Electrical information
Mains electrical voltage: 230 – 240Vac.
Total rated power consumption: 49W
Troubleshooting
If your extractor is not working:
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.
Contact CDA Customer Care
A : Customer Care Department, The CDA Group Ltd, Harby Road,
Langar, Nottinghamshire, NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.[email protected]
W : www.cda.eu

12
Installation - preparation
If the instructions provided with your gas hob state that the required
distance betweenthe hob and extractor must be greater than 650mm,
then that is the distance that should be observed; this is a legal
requirement and may lead to your hob being disconnected from the gas
supply and the installation being reported to RIDDOR(The height should
be measured from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM
DISTANCE BETWEEN THE HOB
AND EXTRACTOR MUST BE AT
LEAST 650mm.
The width of any hob must not
be greater than the width of the
extractor installed above it. Fig. 2
Gas: 650mm recommended
Electric: 600/550mm recommended
When the extractor is to be installed above an electric hob, the
minimum distance between the hob and extractor must exceed 600mm
for ceramic and solid plate hobs and 550mm for induction Hobs.
When the extractor is to be installed above a gas hob, the minimum
distance between the hob and extractor must exceed 650mm.

13
The metal casing of this appliance has been coated with a
preservative to protect it during transport and storage. This should
be removed during installation by using a non-abrasive stainless
steel cleaner. Always follow the instructions given with the cleaner
being used.

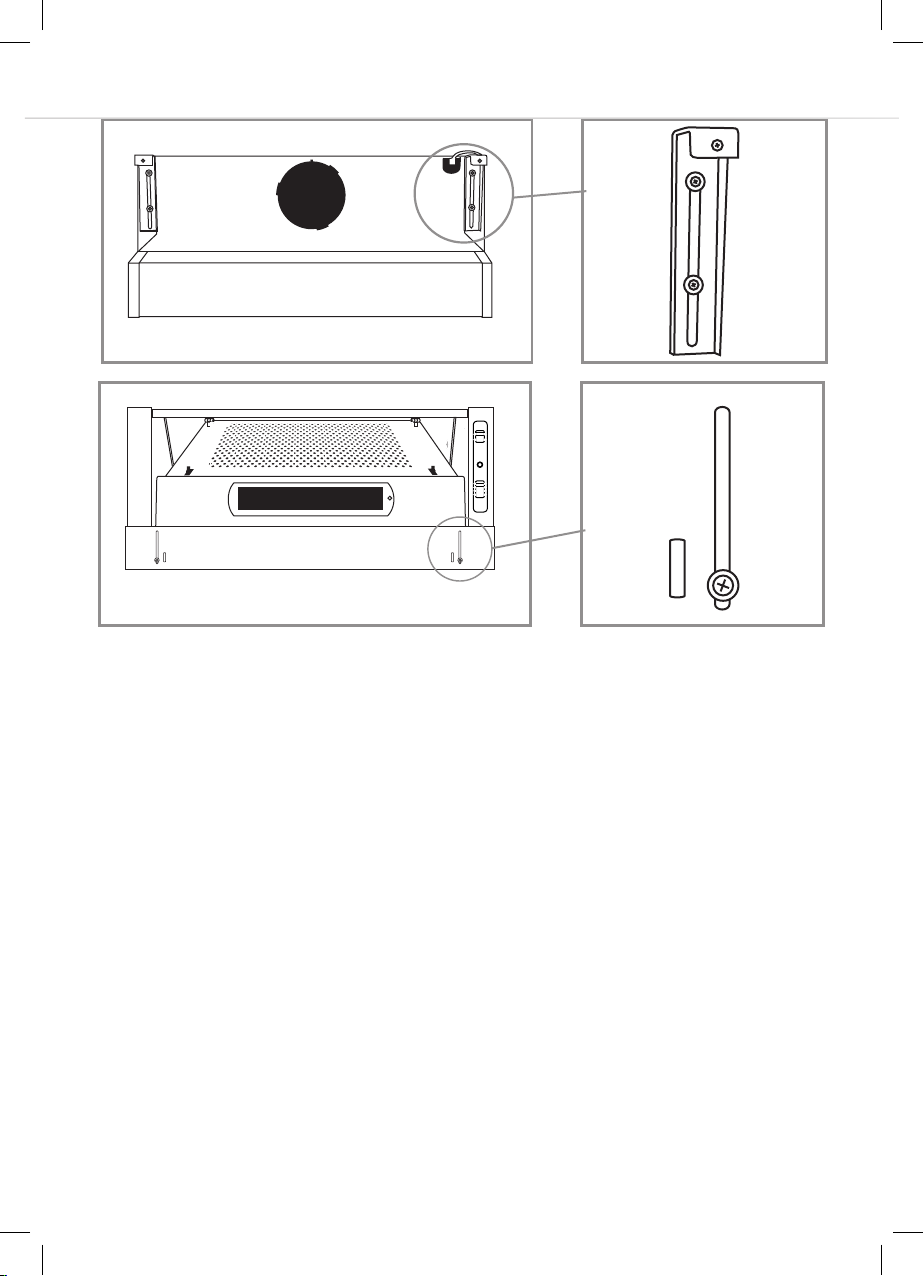

Installation - mounting

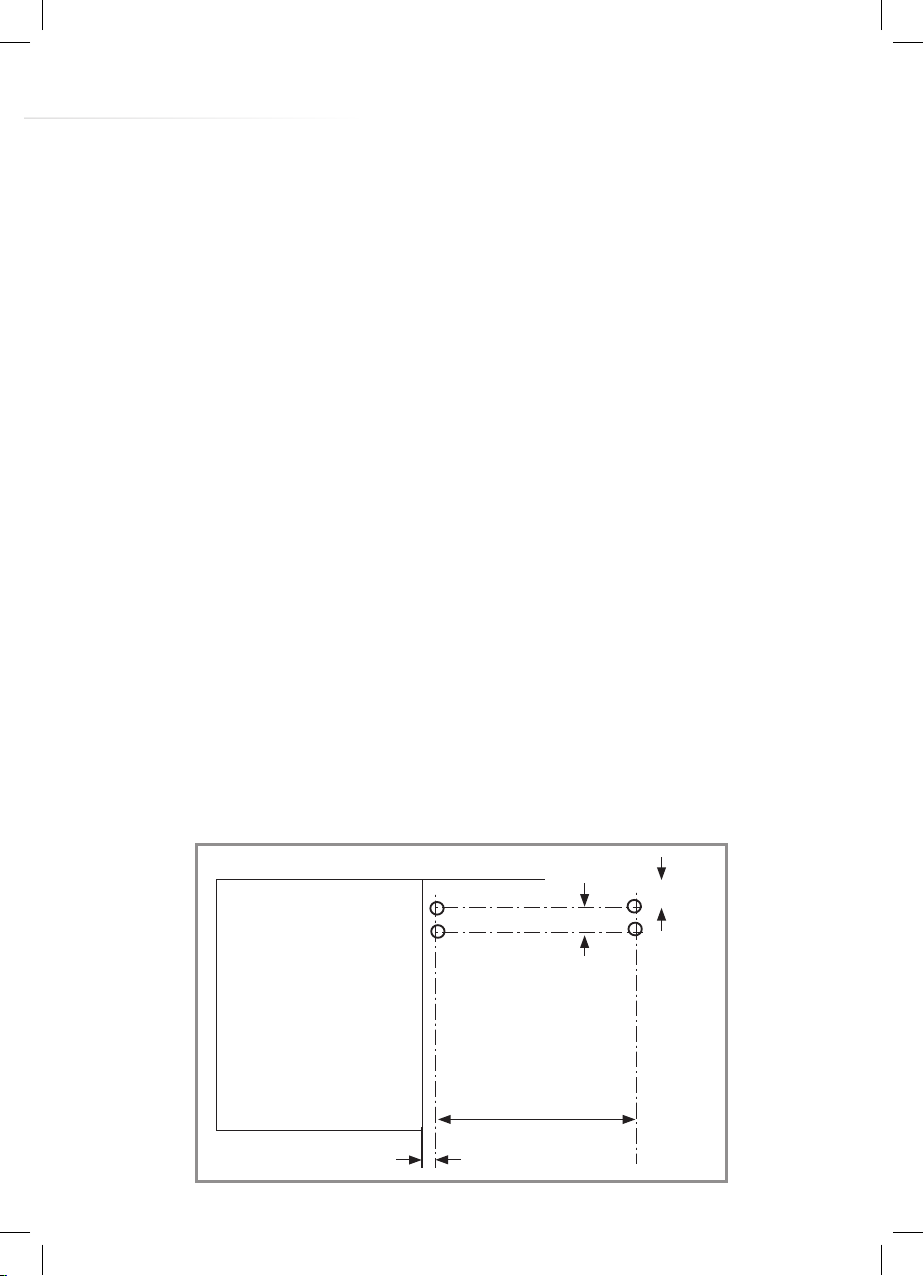

1. Mark the positions of the fixing holes on the wall using the dimensions
shown in Fig. 3.
2.Drill and plug the wall with appropriate fixings, suitable for the wall type
you are fixing the extractor on.
3.Mount the brackets and securely tighten.
4.Hang the hood on the brackets and adjust the brackets and height to
suit. The adjustment mechanism is shown on page 14, Fig 4.
5.Once the hood is levelled and square against the wall, adjust the
bottom panel as required (Fig. 5, page 14).
6.Secure the extractor to the adjacent units through the holes in the side
of the product, to ensure that it cannot be accidentally knocked o the
hanging brackets.
55
553
23.5
Adjacent Cabinet
Fig. 3
55

14
Fig4
Fig. 5
Ducting
The ducting used should be rigid circular pipe and must be
manufactured from fire retardant material, produced to BS 476 or DIN
4102-B1.
Wherever possible utilise rigid circular pipe which has a smooth
interior, rather than the expanding concertina type ducting. The
lengths of ducting with minimal eect on performance are as follows:
• 4 metres with 1 x 90° bend.
• 3 metres with 2 x 90° bends.
• 2 metres with 3 x 90° bends.
Longer ducting can be used but the performance of the extractor will
likely be reduced. Noise may also be aected by the type of ducting.

15
Attribute Symbol Units
2/ISF06NIE2/IS06NIEnoitacfiitnedI ledoM
Annual Energy Consumption AECHood 26.6
7.1frotcaf esaercni emiT
FDEHood 8.6
EEIHood 69.1
Point
QBEP 99.2 m3/h
Point
PBEP 120 Pa
Qwoflria mumixaM MAX 193.2 m3/h
Measured electric power at Best WBEP 38.2 W
W4LWrewop gnithgil lanimoN
Average illumination of the lighting
system on the cooking surface
EMiddle 55 Lux
Measured power consumption in
standby
PSNA W
mode
PO0 W
Sound power level LWA 62 dBA
GFEHood 46.2 (F ) %
LEHood 14 (D)
26.6
1.7
8.6
69.1
99.2
120
193.2
38.2
4
55
NA
0
62
70 (D)
14 (D) %
Energy Efficiency Information
Value
kWh
E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the
right to change specifications without prior notice.

www.cda.eu
Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: customer[email protected]
For service or queries relating to your product please contact:
The Customer Care Department on 01949 862 012 or email customer[email protected]
For more information please contact:
The Sales Department on 01949 862 010 or email [email protected]
