CDA EGA60BL Installation and operating instructions

PLEASE CAREFULLY READ THESE OPERATING
INSTRUCTIONS BEFORE USING THE APPLIANCE!
IO-HOO-0969/2
(05.2023)
EGA60BL
Extractors

- 3 -
TABLE OF CONTENTS
NOTES ON SAFETY 5
UNPACKING 8
DISPOSAL OF OLD APPLIANCE 8
OPERATION 9
COOKER HOOD CONTROLS 9
CONTROL PANEL 9
OFF-TIMER 9
GESTURE CONTROL 9
ADJUST BRIGHTNESS 10
ADJUST LIGHTING COLOUR 10
CHANGE INDICATOR COLOUR. 10
OTHER IMPORTANT INFORMATION CONCERNING THE OPERATION OF THE HOOD 11
CLEANING AND MAINTENANCE 12
MAINTENANCE 12
GREASE FILTER 12
ACTIVATED CHARCOAL FILTER 12
LIGHT 12
WARRANTY AND AFTER SALES SERVICE 13
WARRANTY 13

- 4 -
Dear customer,
From now on, your daily housework will be easier
than ever before. Your appliance is exceponal-
ly easy to use and extremely ecient. Aer reading
these Operang Instrucons, operang the appliance
will be easy.
Before being packaged and leaving the manufacturer,
the appliance was thoroughly checked with regard to
safety and funconality.
Before using the appliance, please carefully read
these Operang Instrucons. By following these
instrucons carefully you will be able to avoid any
problems in using the appliance. It is important to
keep these Operang Instrucons and store them in a
safe place so that they can be consulted at any me.
Follow these instrucons carefully in order to avoid
possible accidents.
Sincerely,

- 5 -
NOTES ON SAFETY
• Before using the appliance, please carefully read
this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce
changes, which do not aect operation of the ap-
pliance.
• The manufacturer shall not be liable for any dam-
age or re caused by the appliance resulting from
failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking
odours. Do not use cooker hood for other pur-
poses.
• Connect the cooker hood operating in extraction
mode to a suitable ventilation duct (do NOT con-
nect the cooker to smoke or ue gas ducts, which
are in use). It requires installation of the air ex-
traction duct to the outside. The length of the
duct (usually a pipe of Ø 120 or 150 mm) should
not be longer than 4-5 m. An air extraction duct
is also required for telescopic and furniture hoods
in absorption mode.
• Cooker hood operating in air recirculation mode
requires the installation of an activated charcoal
lter. In this case, installing an extractor duct is
not required, however it is recommended to in-
stall an air guide vane (Mainly in chimney cooker
hoods).
• The cooker hood features independent lighting
and exhaust fan that can be operated at one of
several speeds.
• Depending on the type, the hood is designed to
be permanently attached to a vertical wall over
a gas or electric stove (chimney and universal
hoods); on the ceiling over a gas or electric stove
(island hoods); on the vertical built in furniture
over a gas or electric stove (telescopic and built-
in hoods). Before installing, make sure that the
wall/ceiling structure is strong enough to suspend
the hood. Some hoods are very heavy.

- 6 -
• For details of the installation distance above an
electric hob please refer to product technical
sheet If the installation instructions of the gas
cooker specify a greater distance, this must be

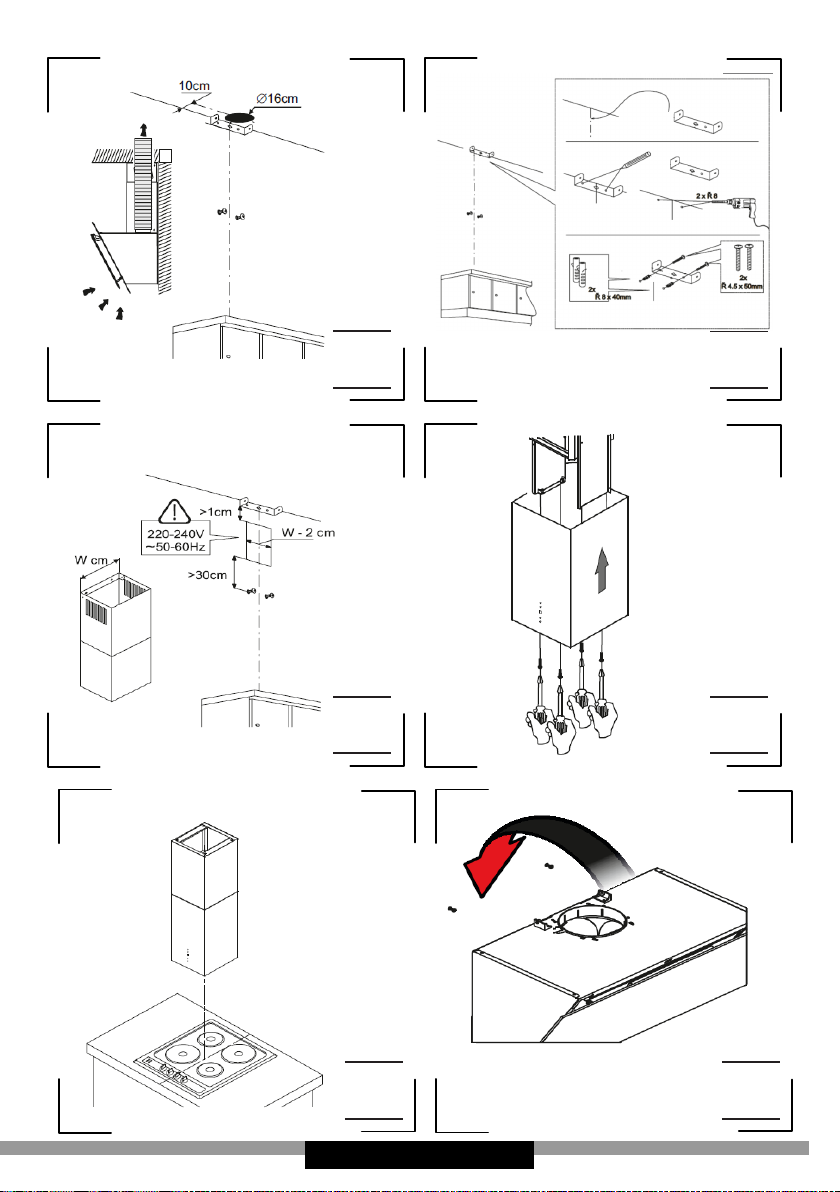

taken into account (Fig. 1).
• Do not leave an open ame under the hood.
When the pots are removed from the burner, set
the minimum ame. Always make sure that the
ame does not extend outside the pot, because it
causes unwanted loss of energy and a dangerous
concentration of heat.
• When cooking on fat, supervise the pans con-
stantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replac-
ing the lter or repair work.
• Cooker hood grease lter should be cleaned at
least once a month, because the lter saturated
with fat is ammable.
• Ensure adequate ventilation (air ow) if other
equipment such as liquid fuel stoves or heaters
are operated in the room in addition the cooker
hood. When the cooker hood is simultaneously
operated with burning appliances requiring ade-
quate fresh air from the room to work properly,
their safe operation is possible if under pressure
around these appliances is a maximum of 0.004
mbar (this does not apply when the cooker hood
is used as an odour lter)
• Do not lean on the hood.
• The hood should be cleaned regularly both inside
and out (AT LEAST ONCE A MONTH, following the
indications concerning maintenance provided in
this manual)..Failure to adhere to the rules con-
cerning cleaning the hood and replacing lters
results in a re risk.
• If the power cord is damaged it should be re-
placed by a specialised service centre.
• Ensure that it is possible to disconnect the ap-
pliance from the mains by removing the plug or
switching o the bi-polar switch.
• This appliance is not intended for use by persons
(including children) with physical, mental or sen-
sory handicaps, or by persons inexperienced or

- 7 -
unfamiliar with the appliance, unless under su-
pervision or in accordance with the instructions
as communicated to them by persons responsible
for their safety.
• Particular attention should be paid not to allow
unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate
corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, poly-
styrene, etc.) should be kept away from children
during unpacking.
• Before connecting the hood to the mains power
supply always check that the power cord is prop-
erly installed and is not trapped by the appliance.
Do not connect the appliance to the mains until
assembly is complete.
• Do not operate your kitchen hood without the al-
uminium grease lters.
• It is strictly forbidden to cook dishes under on an
open ame (ambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the
competent local authorities regarding the techni-
cal and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accord-
ance with these instructions may endanger life
and health.
• Hanging kitchen hoods operate only in air circu-
lation / odour absorber mode
• WARNING! Failure to install the screws or xing
device in accordance with these instructions may
result in electrical hazards.
• This appliance can be used by children aged 8 years
and older or by persons with physical, mental or sen-
sory handicaps, or by those who are inexperienced
or unfamiliar with the appliance, provided they are
supervised or have been instructed how to safely use
the appliance and are familiar with risks associated
with the use of the appliance. Ensure that children
do not play with the appliance. Cleaning and main-
tenance of the appliance should not be performed by
children unless they are 8 years or older and are su-
pervised by a competent person.

- 8 -
UNPACKING
During transportation, protective
packaging was used to protect the
appliance against any damage. Af-
ter unpacking, please dispose of all
elements of packaging in a way that
will not cause damage to the environ-
ment.
All materials used for packaging the
appliance are environmentally friendly; they are
100% recyclable and are marked with the appropri-
ate symbol.
Important! Packaging materials (bags, polyethyl-
ene, polystyrene, etc.) should be kept away from
children during unpacking.
DISPOSAL OF OLD APPLIANCE
In accordance with European Directive
2012/19/EU and local legislation re-
garding used electrical and electronic
goods, this appliance is marked with
the symbol of the crossed-out waste
container. This marking indicates that
the appliance must not be disposed of
together with other household waste
after it has been used.
The user is obliged to hand it over to waste collec-
tion centre collecting used electrical and electron-
ic goods. The collectors, including local collection
points, shops and local authority departments pro-
vide recycling schemes.
Proper handling of used electrical and electronic
goods helps avoid environmental and health haz-
ards resulting from the presence of dangerous com-
ponents and the inappropriate storage and process-
ing of such goods.

- 9 -
OPERATION
Cooker hood controls
Control Panel is shown in Figure 4, for reference it is also shown below:
Control Panel
The control panel is equipped with touch controls. Touch one of the
sensors to enable the desired function:
• Low speed (1). Use this speed when cooking a little food with hardly
any fumes.
• Medium speeds (2 - 3). Use this speed when cooking multiple dish-
es at the same time with moderate amount of fumes.
• High speed (4). Use this speed when frying or grilling, with large
amount of fumes.
• Lighting on/o The lighting operates independently of hood fan.
Touch sensor corresponding to the selected speed to turn o the
kitchen hood.
O-Timer
Use O-Timer to turn o the hood after a specied time. Use O-Timer
to lter the fumes out of the air after cooking. The delay time is about
30 minutes. To enable O-Timer at any fan speed touch the active
speed sensor for at least 3 seconds. Sensor ashes. Flashing indicates
that the O-Timer has been enabled. To cancel the O-Timer touch
the active speed sensor for at least 3 seconds. Cancelling the o-timer
does not turn o the lighting.
Gesture control
Using gestures, you can control the fan speed and turn the lights on
and o.
Gesture control works correctly when you move your open hand about
3 to 10 cm from the surface of the control panel (near the LED indica-
tor)
Note! When controlling the fan speed, move your hand along the cen-
tral part of the hood, near the RGB LED fan speed indicator.

- 10 -
If activating a certain function (such as fan speed 3) requires multiple
hand gestures, reposition your hand for another gesture away from the
control panel to avoid triggering the motion sensors). Hand movements
must not be too fast. Preferably, a single gesture should take about 1
second.

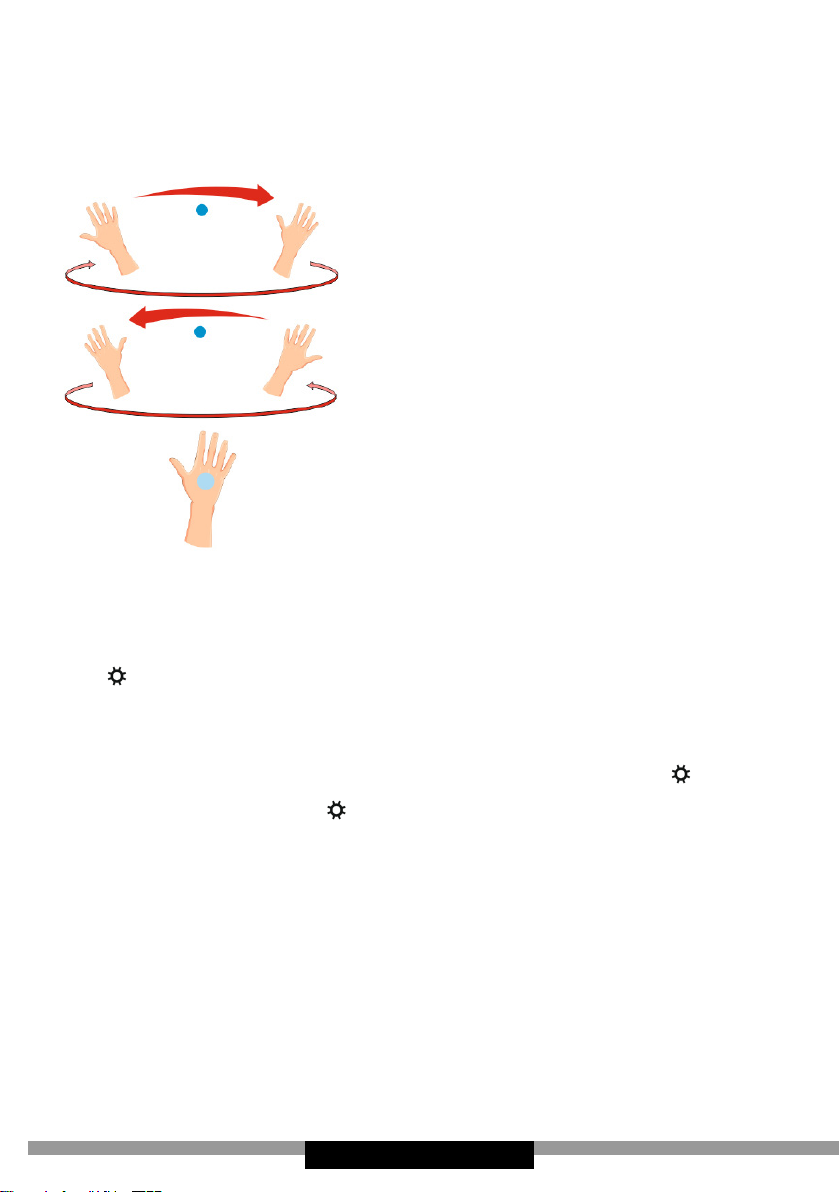

To turn on the fan or increase fan speed,
move your hand from left to right several
times. With hand movement, current fan
speed sensor will light up.
To turn o the fan or reduce fan speed,
move your hand from right to left several
times until sensor 1 lights up. Move your
hand one more time, the hood fan will
shut down completely.
To turn the lighting on or o, position your
hand for about 2 seconds near the centre
of the control panel (above the fan speed
indicator).
Note! It is not possible to disable the gesture control function.
Adjust brightness
Use this function to adjust brightness. When lighting is on touch and
hold for about 2 second to adjust brightness. The lighting brightness
will change
Adjust lighting colour
Simultaneously touch and hold for a few seconds the sensor and 4
and the symbol 1 will light up. Then use the symbols 1 and 4 to set the
desired light colour. Touch to conrm the selected colour or simply
wait about 20 seconds and the selected colour will be conrmed auto-
matically.
Change indicator colour.
When you change the fan speed using touch sensors or gesture control
the indicator colour will change according to the speed set:
1. Green
2. Blue
3. Purple
4. Red

- 11 -
Other important information concerning the operation of
the hood
Operation in air circulation / odour lter mode. In this mode, the ltered
air returns to the room through the outlets. Install activated charcoal
lter in this setting. It is recommended to install the air guide (available
depending on the model, mainly in chimney cooker hoods).
Air extraction operation: When cooker hood operates in extraction mode,
air is discharged outside through an extraction duct. Remove activated
charcoal lter in this setting. The cooker hood is connected to the air
outlet opening using a rigid or exible extraction duct with a diameter of
150 or 120 mm, and the appropriate clamps, which must be purchased
at a hardware store. The appliance should be installed by a qualied
installer.
Fan speed: Lowest and medium fan speed is used in normal conditions
and less intense odours, while the highest speed is used only when cook-
ing odours are very intense, such as during frying or grilling.
Note (applies to universal hoods only): Due to the design of universal
hoods you need to manually change the mode of operation. See Figure
8 for instructions on how to change the mode.
Note (only applies to telescopic and in-built kitchen hoods): Furniture
and telescopic cooker hoods operating in air recirculation mode require
installation of the exhaust duct. The other end of the duct should be di-
rected to the room as it will discharge ltered air.
Note: Hanging kitchen hoods operate only in air circulation / odour ab-
sorber mode

- 12 -
CLEANING AND
MAINTENANCE
Maintenance
Regular maintenance and cleaning of the appliance will ensure trou-
ble-free operation of the cooker hood and extend its life. Especially make
sure that the grease lter and activated charcoal lter are replaced ac-
cording to manufacturer's recommendations.
• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered sur-
faces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.
Note: After several washes in the dishwasher, the colour of the alumini-
um lter may change. The change of colour does not indicate improprie-
ties or the necessity to change it.
Grease lter
For normal hood operation, grease lter should be cleaned every month
in the dishwasher or by hand using a mild detergent or liquid soap.
Dismantling of grease lter is shown on Figure 5.
Acrylic lter is used in some models. This lter should be replaced at
least once every 2 months or more frequently if the appliance is used
intensively.
Activated charcoal lter
Charcoal lter is used only when the cooker hood is not connected to
the ventilation duct. Activated charcoal lter can absorb odours until
saturated. Charcoal lter is not suitable for washing or regeneration and
should be replaced at least once every 3-4 months or more frequently if
the appliance is used intensively.
Dismantling of charcoal lter is shown on Figure 6.
Light
Use incandescent / halogen / LED modules of the same specication as
those factory-installed in the appliance. See Figure 7 for details how to
replace lights. If there is no such gure in this manual, please contact
authorised service to replace the lighting module.

- 13 -
WARRANTY AND AFTER
SALES SERVICE
Warranty
The manufacturer shall not be held liable for any damage caused by im-
proper use of the product.
Service
• The manufacturer recommends that all repairs and adjustments be
carried out by the Factory Service Technician or the Manufacturer’s
Authorized Service Point. For safety reasons, repairs should be re-
ferred to professionals.
• Repairs carried out by unqualied persons may seriously endanger
the appliance user.
• The minimum warranty period for the appliance oered by the man-
ufacturer, importer or authorized representative is given in the war-
ranty card.
• The warranty shall be void if you make any independent adaptations
or alterations, tamper with seals or other appliance safety devices
or its parts or interfere with the appliance contrary to operating in-
structions.
In the event of appliance malfunction, request assistance or repair.
If your appliance needs repair, please contact the service centre. Please
see website for address and contact details of our service centre. Before
contacting us, please have ready the appliance serial number, which can
be found on the identication sticker: For your convenience, please write
it down below:
Certifi cate of compliance CE and UKCA
The Manufacturer hereby declares that this product complies with the general require-
ments pursuant to the following European Directives and analogous UK requirements:
• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations
2016.
• Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility
Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regula-
tions 2010 (as amended) for the applicable implementing measures which apply
in Great Britain and Northern Ireland, respectively.
and therefore the product has been marked with and symbols and the Decla-
ration of Conformity, the Manufacturer has drawn up the declaration and is available to
the competent authorities regulating the market.

- 14 -
h
h
h = min 650mm h = min 650mm
h
h
h = min 450mm h = 450mm
1

- 15 -
3a 3b

- 16 -
3c 3d
3e 3f
3g 3h

- 17 -
3i 3j
3k 3l
3m 3n

- 18 -
3c 3d
3e 4
5 6

The CDA Group
Harby Road
Langar
Nottinghamshire
NG13 9HY
Sales Department
Phone: [phone]
Email: [email protected]
CDA Customer Care
Phone: [phone]
Email: customer[email protected]
©2022 CDA Group Ltd
