DIGIWAY plus
Single or double door, inward and outward, automation door
The installer’s choice
INSTALLATION, USE
AND MAINTENANCE MANUAL

General safety precautions................................................................................................................................. 2
Machinery Directive............................................................................................................................................ 3
Instructions of use .............................................................................................................................................. 3
Declaration of the Manufacturer ......................................................................................................................... 3
Identifying product and parts .............................................................................................................................. 4
Accessories ....................................................................................................................................................... 5
Overall dimensions and mounting guide ............................................................................................................ 6
Technical specications...................................................................................................................................... 7
Mechanic installation - Sliding arm version ........................................................................................................ 8
Mechanic installation - Articulated arm version .................................................................................................. 9
Wiring diagram and connections ........................................................................................................................ 11
Wiring diagram of monitored safety photocells................................................................................................... 12
LED messages ................................................................................................................................................... 13
Battery ................................................................................................................................................................ 13
Getting started.................................................................................................................................................... 13
• Step I : Set-up ............................................................................................................................................. 14
• Step II : Conguration .................................................................................................................................. 15
• Step III : Door calibration ............................................................................................................................. 16

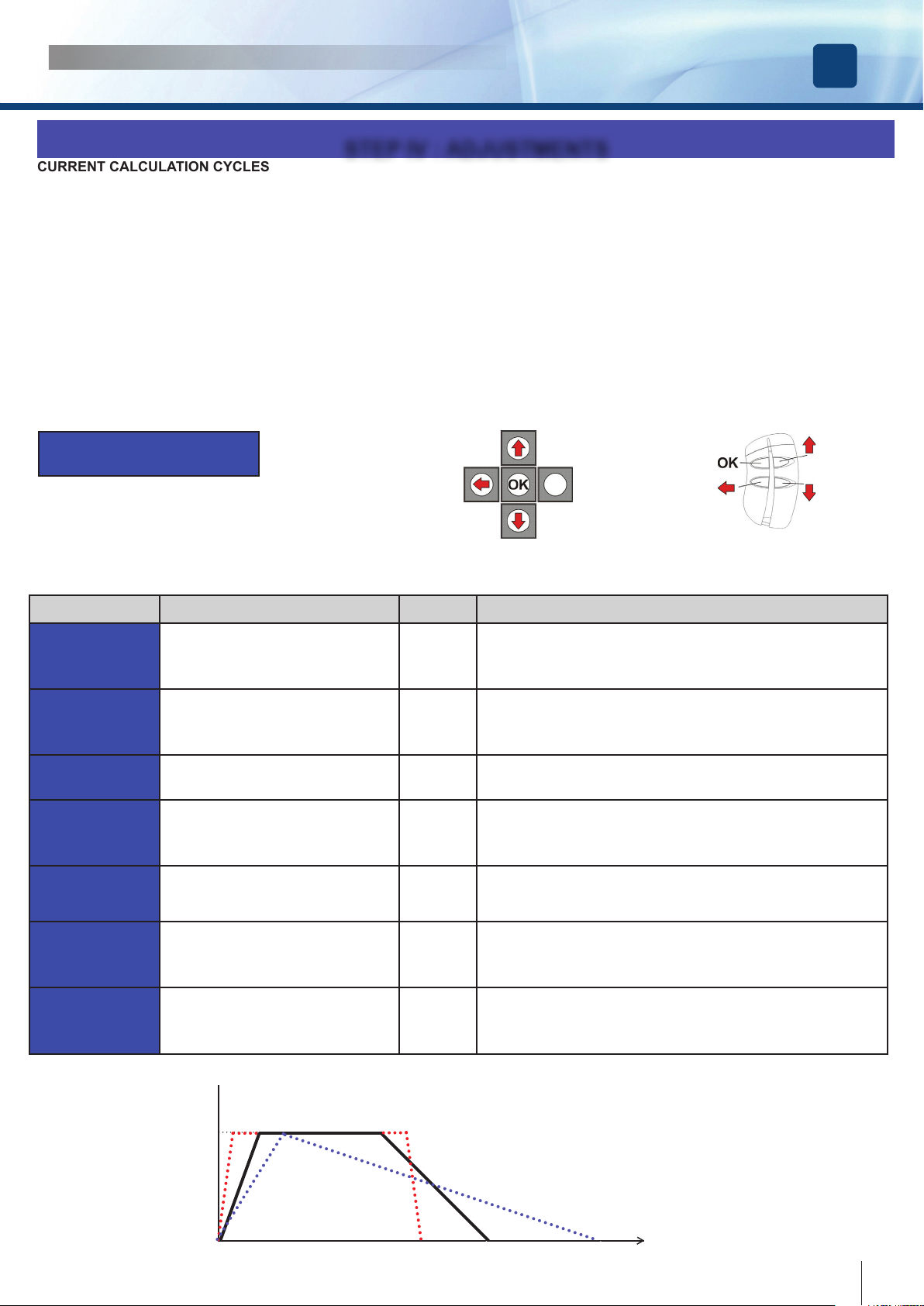

• Step IV : Adjusting........................................................................................................................................ 17
• Step V : Advanced adjusting ........................................................................................................................ 18
Disabled persons access settings ...................................................................................................................... 21
Remote controls management .......................................................................................................................... 21
Menu Service...................................................................................................................................................... 22
Reset to factory default & system reset.............................................................................................................. 23
Double door installing......................................................................................................................................... 24
Maintenance....................................................................................................................................................... 28
Use instructions ................................................................................................................................................. 28
Summary page
2cdvi.com cdvigroup.com
DIGIWAY PLUS
INSTALLATION MANUAL EN

3
cdvi.com
cdvigroup.com
This manual is intended for professional installers, adequately trained.
Installation and connections must be carried out in accordance with Good Working Practice and in compliance
with the current Regulations. Poor installation could be source of a health & safety hazard.
First check all of the existing door and frame structure - verify its integrity, stability and strength.
If necessary modify the structure in order to make it standard, being aware of all the possible problems which
could occur during normal use.
Verify that all the zones where there is a risk of crushing, dragging, shearing and other dangers, are protected by
electronic safety, safety freeboards or barriers.
This can be achieved if the distance does not exceed 8 mm. However, to avoid entrapment for the various parts
of the body, the following distances are considered sufcient:
Hand ngers> 25 mm
Foot> 50 mm
Head> 300 mm
Body> 500 mm
The forces developed by the complete system must comply with the current standards and, where this is not
possible,protect the zones with electronic safety devices.
Apply hazardous area notices required by the applicable regulations.
Before the actuator is connected, make sure that the plate details corresponds to those of the mains power and
that there is a differential circuit-breaker and an adequate protection against overcurrents on the supply side of
the system.
Fit a Dual Pole disconnection switch with contact opening gap of at least of 3 mm.
Interrupt the power supply before opening the cover of the actuator for any maintenance or repairing intervention.
Handling of electronic parts must be carried out wearing grounded antistatic bracelets to avoid any static
damage.
Servicing the actuator is of fundamental importance if the system is to operate correctly and safely.
Comply with the manufacturer’s instructions described in this manual.
Only use genuine spare parts if replacements or repairs are required.
The motor manufacturer declines any responsability in the event of component parts tted that are not
compatible with the safe and correct operation. The actuator must be installed only inside buildings
The manufacturer declines all liability for damage caused by assembly on the outside, without adequate
protection.
This product cannot be installed in places with an explosive atmosphere or in the presence of inammable fumes
or gases.
INSTALLATION MANUAL EN
DIGIWAY PLUS
IMPORTANT PRECAUTIONS FOR THE SAFETY
The present document contains important precautions for the use and the operating
safety. Read carefully the instructions before commencing the installation
Keep this document even after installation.
!

DIGIWAY PLUS
INSTALLATION MANUAL EN
4cdvi.com cdvigroup.com
IMPORTANT PRECAUTIONS FOR THE SAFETY ( Follows)
Only use genuine spare parts if replacements or repairs are required.
The motor manufacturer declines any responsability in the event of component parts tted that are not
compatible with the safe and correct operation. The actuator must be installed only inside buildings
The manufacturer declines all liability for damage caused by assembly on the outside, without adequate
protection.
This product cannot be installed in places with an explosive atmosphere or in the presence of inammable fumes
or gases.
The appliance can be used by children aged 8 or less and by persons with reduced physical, sensory or mental
abilities, or without experience or necessary knowledge, provided they are under surveillance or after they have
received instructions concerning safe use of the appliance and an understanding of the dangers inherent to it.
Children must not play with the appliance. Cleaning and maintenance intended for use by the user must not be
carried out by children without supervision.
The sound pressure level, weighted A, of the noise emitted by the device is less than 70 dB (A).
If a passive emergency button is installed, it must be installed in view of the door but away from moving parts.
Unless this is protected by a security key, it must be installed at a minimum height of 1.5 m and not accessible to
the public

INSTALLATION MANUAL EN
DIGIWAY PLUS
5
cdvi.com
cdvigroup.com
Machinery Directive
Automatic pedestrian doors fall into the application eld of the Machinery Directive (2006/42/CE).
This provides that the installer who motorizes a door becomes the manufacturer of a machinery and so he must:
1. Prepare the Technical Construction File (which must contain the documents indicated in Annex V of the Machinery Directive) and must
be kept and placed at the disposal of competent national authorities for at least ten years from the date of manufacture of the motorised
door.
2. Draft the EC Declaration of Conformity in accordance with Annex II-A of the Machinery Directive
3. Afx the CE marking on the power operated door in accordance with point 1.7.3 of Annex I of the Machinery Directive.
The installer must consign to the customer the following documents :
1. Instructions on how to operate and safely use the system.
2. Routine maintenance instructions.
3. Declaration of conformity.
4. Maintenance register.
Instructions for use
The operator DIGIWAY type DWPS102XX, DWPD102XX belongs to the Service Class 5 ( 600 cycles a day for 5 years min).
Applications : HEAVY DUTY, for pedestrian accesses to institutional complexes with very intense use.
Declaration of the Manufacturer
( according to Directive 2006/42/CE, Annex II part B )
The Manufacturer
CDVI WIRELESS SPA - CDVI Group
Via Piave,23
31020 S.Pietro di Feletto (TV)
ITALY
Herewith declares that the automatic operator for swing doors
Brand : DIGIWAY
Model : DIGIWAY PLUS
Types : DWPS102XX, DWDP102XX
- constitutes a “partly completed machinery” and it is intended to be incorpored into machinery or to be
assembled with other machinery to constitute a machinery covered by Directive 2006/42/CE;
- complies with the following Directives :
2006/95/CE ( Low Voltage Directive )
2004/108/CE ( Electromagnetic Compatibility Directive )
2014/53/UE ( RED )
European Standard EN16005 : Power Operated doorsets - Safety in Use
- it is not allowed to put the machinery into service until the machinery into which it has to be incorporated or
of which it has to be a component has been found and declarated to be in compliance with the provisions of the
Directive 2006/42/CE.
S.Pietro di Feletto, 01/11/2017
G. Massimo Dalle Carbonare
( Product manager )

Identifying the product and its parts
Digiway type DWPx102xx is a indoor operator for swing doors, with integrated electronic controller and radio receiver.
The opening and closing motion is electromechanical with backup battery which assures the operation in cases of power
failure. The following versions are available:
Legend
1 - Anodized aluminium cover 8 - Motoriductor
2 - Motor shaft 9 - Encoder
3 - Status led LP 10 - Slot for cover opening
4 - Receiver Card 11 - Toroidal transformer
5 - Display LCD 12 - Backup battery
6 - 5-buttons keyboard 13 - Battery cable with protection fuse
7 - Gear box 14 - Jumper for external selector exclusion
15 - Operating mode selector
P/N Reference Description
F0543000093 DWPS102SCD Single door operator for inswing doors with sliding arm
F0543000094 DWPS102ACD Single door operator for outswing doors with articulated arm
F0543000095 DWPS102UCD Single door operator for inswing or outswing doors with universal arm
78 95 6 3
12
4
The operator is suitable for swing doors with max width of 1,2 m or max weight of 120 Kg ( refer to diagram on page 7).
At the max speed the door can open and close within 3 sec. ( 90°), depending on door weight and dimensions .
See the technical specications in the following pages of this manual.
6cdvi.com cdvigroup.com
Warning : the operator is suitable only for top-jamb xing. Door leaf xing is not allowed.
11
10
12 13 15
14
DIGIWAY PLUS
INSTALLATION MANUAL EN

7
cdvi.com
cdvigroup.com
Accessories
Mounting kit
Article
Description
Screw for
wallplugs
SX 8
Wallplugs
SX 8
Self
tapping
screws
Screw
M6x14
Mounting
plate
Mounting
template
Q.ty 6 6 4 7 1 1
INSTALLATION MANUAL EN
DIGIWAY PLUS
Description P/N F-code
Kit articulated arm DWKBA F0543000030
Kit sliding arm DWKBS F0543000031
Kit universal arm DWKBU F0543000122
Extension 55 mm DWSE F0543000033
Extension 30 mm DWSE30 F0543000123
Extension 80 mm DWSE80 F0543000136
Double door cable DWPCS F0543000124
Mounting tools kit DWTK F0543000156

Mounting diagram
Cover lift point
8cdvi.com cdvigroup.com
Accessories
Sliding arm
Articulated arm
Universal arm
The Universal arm kit allows to realize both the arms. The kit is composed by a complete sliding arm, with the
guide and by an adjustable forearm with the door bracket. To transform the sliding arm into the articulated arm
unscrew the sliding block making use of a monkey spanner dim 13 (not provided ) and screw on the hole M10X1 of
the sliding arm the screw of the articulation located on the adjustable forearm.
Turn clockwise
Turn anti-clockwise
Screw M6x14
provided
Screw M6x14
provided
Screw M6x14
provided
DIGIWAY PLUS
INSTALLATION MANUAL EN
M6x14
M6x14
M6x14 Plugs SX8
Screws for plugs SX8
Washer

9
cdvi.com
cdvigroup.com
Technical specications
• General specications
Power supply: ......................................................... 230 Vac - 50 Hz
Motor torque: ........................................................... 15 Nm
Max power:.............................................................. 50 W
Operating class:....................................................... 5 ( heavy duty )
Battery: .................................................................... 12 Vdc 1,3 Ah
Overall dimensions :................................................ 511 x 90 x 110 mm
Weight: .................................................................... 5 Kg
Operating temperature: ........................................... -10°C ÷ +55°C
IP Grade: ................................................................. IP40
Opening / closing time:............................................ 3 ÷ 15 sec.
Pause time:.............................................................. 3 ÷ 90 sec.
Power for auxiliary devices:..................................... 13,5 Vdc / 500 mA [ max ]
Power for electrolock: ............................................. 12 Vdc / 1A [ max ]
Electrolock output relay: .......................................... ( C-NO-NC) 10A / 12V
Open door output relay............................................ ( C-NO ) - 24 VA
Electrolock hold time: .............................................. Adjustable [ 0,1 ÷ 5 min ]
Power failure autonomy:.......................................... 270 cycles / 16 hours
Transmitters security protocol: ................................ Keeloq® Hopping Code
RX memory:............................................................. 50 transmitters
Integrated receiver main specications: .................. 433,92 MHz ASK / -107 dBm
Fire voltage input:.................................................... 24 ÷ 48 Vac/dc
• Use conditions
• Electronic card specications
• Main features
Zone A : Very intense use : 600 cycles / day
Zone B : Intense use : 200-300 cycles / day
Zone C : Use at reduced speed
Zone D : Not allowed
Operating modes: Automatic ( I ) - Door free ( 0 ) - Door always open (II)
Inputs: Re-open photocells ( NC)
Stop photocells ( NC )
Door Alway open ( NO )
Door free ( NO )
External Radar ( NO )
Internal Radar ( NO )
Day / Night selection ( NO )
Open / Close command ( NO )
Fire alarm voltage ( +V, -V) [optoisolated ]
Operating modes: Fully automatic, Always open, Door free;
Operating with single door, double door, with or without leaf overlapping;
Guided procedure for door travel limits characterization;
Motor torque in opening and closing adjustable;
Remote controls memorization and management;
Slow motion approaching the limits;
Push & Go / Pull & Go function;
Pause Time, Max Speed, Torque, Velocity adjustable;
Opening Jolt fully adjustable;
Status bicolor LED;
Electrolock hold time and torque adjustable;
Opening Jolt parameters adjustable;
Spring mode ( door always free, automatic closing );
Stop photocells range adjustable;
“Fire mode”;
Night / day mode;
Door open output relay.
Leaf width
Leaf weight
Max Door opening angle
Outputs: Door open contact ( C-NO )
External devices power 13,5 Vdc / 500 mA
Electrolock output contacts ( C-NO-NC )
Electrolock power 12 Vdc / 1 A
Test for safety devices ( FTC- FTC-S)
INSTALLATION MANUAL EN
DIGIWAY PLUS

Installation
Sliding arm version
First of all, check the stability of the door which has to be motorized, verifying that regularity of the motion in both
directions ( open and close ) is without any friction from the complete close to the complete open status. If this is
not the case, make necessary improvements to the structure. Remove any manually operated lock (eg. requiring a
physical lowering of the handle to open the door).
Digiway plus does not need a door-stop tted to complete the open cycle. Make sure any closing device is completely
removed including hydraulic devices, turn to free or minimum is not sufcient.
This type of installation is addressed to inswing doors.
1) Identify the dimensions of the motor, locate the xing position, the holes for the cables and the 6 xing holes making use
of the mounting template provided;
2) Check the feasibility of the guide xing, respecting the distance to the motor;
3) Make 6 holes diameter Ø 8 mm and insert the 6 special plugs provided ;
4) Fix the plate to the wall using the special screws provided;
5) Fix the motor to the mounting plate with the screws M6x14 provided;
6) Plug-in the sliding arm on the motor shaft and screw the xing screw M6;
7) Slide-in the sliding block into the guide;
8) Offer the guide to the door and mark the 4 xing holes;
9) Remove the sliding block and x the guide to the door by using the 4 special screws provided;
10) Slide-in completely the white strip on the guide;
11) Slide-in the sliding block into the guide and insert the two lateral plugs;
12) Check full free movement whilst in free mode.
13) Make all the electrical connections;
14) Apply power;
15) Follow the procedure : «Getting started»;
16) Connect the Ground wire to the cover terminal and x the cover.
Parameter Value
(mm) Description
A240 Door hinge – motor axis
distance
B35 Backplate – guide distance
C100 Motor axis - guide edge
D500 Guide width
E18,5 Distance hinges - back-
plate hole
F70,5 Motor axis - vertical plane
distance
10 cdvi.com cdvigroup.com
DIGIWAY PLUS
INSTALLATION MANUAL EN

11
cdvi.com
cdvigroup.com
Articulated arm version
This part is addressed to outward door installations
1) Identify the dimensions of the motor, locate the xing position, the holes for the cables and the 6 xing holes making
use of the mounting template provided;
2) Make sure that the bracket of the articulated arm falls in the right position;
3) Make 6 holes diameter Ø 8 mm and insert the 6 special plugs provided ;
4) Fix the plate to the wall using the special screws provided;
5) Fix the motor to the mounting plate with the screws M6x14 provided;
6) Fix the bracket to the door referring to the distance A of the table below;
7) Plug in the articulated arm on the motor shaft and screw the xing screw M6;
8) If the distance between the motor and the door is higher than that allowed, use the extension ( optional );
9) Fix the arm to the motor by using the screw M6x14 or M6x70 provided;
10) Check full free movement whilst in free mode;
11) Make all the electrical connections;
12) Apply power;
13) Follow the procedure : «Getting started»;
14) Connect the Ground wire to the cover terminal and x the cover.
INSTALLATION MANUAL EN
DIGIWAY PLUS
A
B
Parameter Speed Power Description
(mm) (mm)
A410 430 Door hinge – door bracket distance
B270 360 Door hinge – motor axis distance
A - B 140 70 Motor axis – door bracket distance
C40 Bracket holes distance
L1 55 - 195 Door jamb width
L2 371 Distance wall - articulation
L3 43 Distance motor shaft-door bracket

12 cdvi.com cdvigroup.com
Electronic card layout and programming buttons
Display LCD
Battery
connector Fuse
3,15A
PE
Connection
Monitor LED’s
19-way
terminal block
7-way
terminal block
Serial
connector
Fuse
1A
ESC - back to upper level
scroll UP / increases value
scroll DOWN / decreases value
OK
Not Used
External switch
I 0 II
DOOR ALWAYS
OPEN
DOOR FREE
FULLY AUTOMATIC
Jumper for external switch exclusion
It’s possible to exclude the external switch using the jumper located on the internal
card of the left cap
Switch
excluded
JUMPER OFF
Switch
enabled
JUMPER ON
DIGIWAY PLUS
INSTALLATION MANUAL EN
Wiring diagram
RCD residual- current circuit breaker
3 pos. switch autom / door free / always open
NIght / Day
Start/Stop
Door open relay
Fire-alarm Voltage
Electrolock
FTC-S [ Stop ]
FTC [ Re-open ]
Internal
Radar
External
Radar
3 x 1,5 mm2
3 x 0.8 mm2
2 x 0.8 mm2
2 x 0.8 mm2 2 x 0.8 mm2 2 x 0.8 mm2
2 x 0.8 mm2
4 x 0.25 mm2
4 x 0.25 mm2
6 x 0.8 mm2
6 x 0.8 mm2
Connect the equipment to the Mains power using the appropriate cable ( 3 x 1,5mm2 ), passing it through the rear opening of
the prole and the backplate and avoiding being too tense and touching sharp edges. At the end of the installation, connect to
the ground cable provided with the electronic card ( yellow-green ) to the corrispondent faston of the cover.

13
cdvi.com
cdvigroup.com
Connections detail
Electrical connections
19-way terminal block
1Output C Open door relay
2Output NO Open door relay
3Input V- Fire alarm voltage
4Input V+ Fire alarm voltage
5Safety Input NC Stop Photocells [FTC-S]
6Safety Input C Photocells
7Safety Input NC Re-open Photocells [FTC]
8Input NO switch pos. I
9Input C switch pos. 0
10 Input NO switch pos. II
11 Input NA Radar external
12 Input C Radar
13 Input NO Radar internal
14 Input NO Day/Night switch
15 Input common
16 Input NO push-button open/close/stop
T1 Output (+12) Test FTC-S
CCommon test photocells ( GND)
T2 Output (+12) Test FTC
7-way terminal block
17 Output NO relay electrolock
18 Output C relay electrolock
19 Output NC relay electrolock
20 Output 0V external devices power
21 Output 13,5 Vdc external devices power
22 Output 0V electrolock power
23 Output 12 Vdc electrolock power
2-way terminal block
24 Input Line 230 Vac
25 Input Neutral 230 Vac
2-way terminal block
26 Output 230 Vac to internal toroidal transformer
27 Output 230 Vac to internal toroidal transformer
2-way terminal block
28 Input Motor BLACK cable
29 Input Motor RED cable
2-way terminal block
30 Input from internal toroidal transformer
31 Input from internal toroidal transformer
Battery
+-
FUSE 5A
to toroidal
transformer
to the motor
Door Open
Relay Output
INPUT Fire
voltage
FTC-S (*)
FTC (*)
Automatic
Door free
Door open
RADAR Int.
RADAR Ext.
Day/Night
Open/Close
Magnet
External
magnet
supply
Supply radars
& photocells
Electrolock
Supply
Electrolock relay
from toroidal transformer
Door open relay
Door Status Closed Opening/Open/Closing
Relay OFF ON
(*) See next page for the
connection
N
L
PE
230 Vac
INSTALLATION MANUAL EN
DIGIWAY PLUS

14
DIGIWAY PLUS
INSTALLATION MANUAL EN
Monitored photocells wiring
The Standard EN16005 indicates that the parts of the system which have a direct effect on the safety must comply with
EN12978 and be designed to comply with EN ISO 13849-1 Performance Level “c”. Safety related parts of the control system
used for escape route functionality shall comply with EN ISO 13849-1 Performance Level “d”.
If devices type ESPE ( photocells ) are used, they must be monitored by the drive system.
Digiway Plus is equipped with output test signals ( Test1, C, Test2 ) that check the photocells status before any motion. The
system switches off for few mS the photocell through the test signal and checks the changement of the signals on the terminals
5-6 or 6-7. If the signals change regularly the door motion is enabled otherwise the motion is stopped or enabled in Low energy
( see menu Advanced options)
5 6 7 T1 C T2 20 21
Power (+)
Power (-)
Relay C
Relay NC
Test Input (-)
Test Input (+)
STOP Photocells (FTC-S)
REOPEN photocells (FTC)
LOW ENERGY mode
The Standard EN 16005 (Annex F ) indicates the parameters for the Low Energy mode : the minimum open / close time from
10° to 90° is indicated in the following table:
Width of
doorset
leaf ( m )
Mass ( Kg )
50 60 70 80 90
Time ( sec. )
0,75 3,0 3,2 3,2 3,3 3,5
0,85 3,1 3,1 3,2 3,4 3,6
1.00 3,2 3,4 3,7 4,0 4,2
1.2 3,8 4,2 4,5 4,8 5,1
for other widths and/or masses the times can be calculated
using the formula:
where t = time in sec., D = diameter doorset leaf in meters, m = mass in kg.
See on the menu ADVANCED SETTINGS how to set the doorset leaf dimensions and the operating mode in case of photocells
malfunction.
5 6 7 T1 C T2 20 21
Power (+)
Power (-)
Relay C
Relay NC
Test Input (-)
Test Input (+)

15
cdvi.com
cdvigroup.com
Meaning of LP LED messages
Function LED GREEN LED ORANGE LED RED
ON blinking ON blinking ON blinking fast blinking
Everything OK O
Battery operated O
Fire alarm O (fast)
Night Mode O
Night Mode & battery
operated O
Door free - - - - - - -
Current calculation in
progress O
Selearning red/green
Battery test O
Battery unleaded O
Safety photocells malfunction O
Service required O (slow )
GETTING STARTED
Digiway Plus is equipped with a 2x16 characters LCD Display and by a 5-keys keyboard. The operating conguration can be set navigating
through several menus. The menu has a tree structure with a main menu and different sub-menus.
ACCESS to the MAIN MENU
Electronic card LED’s
LED ON LED OFF
L1 Fire voltage OK Fire voltage ABSENT
L2 NC contact stop photocells
closed
NC contact stop photocells
open
L3 NC contact re-open photo-
cells closed
NC contact re-open photo-
cells open
L4 Automatic mode -
L5 Door always open -
L6 External radar active -
L7 Internal radar active -
L8 Night mode Day mode
L9 Open/close command
active
-
C + D
OK for 4 sec
AB
CD
OR
Battery
Main features: Voltage : 12V
Rated charge : 1,3Ah
Authonomy in battery operating mode(*) : 270 cycles / 16 hours
Average charge and discharge cycles : 800
Average battery life : 2-3 years [in rated operating temperature ]
Cycles with battery at end-of-life : 100
(*): In case of main power failure ( 230 Vac ) the operator works in battery mode. The authonomy declared depends even by the number of
external devices connected ( radars, photocells, etc ).
The internal software executes periodically a test on the battery charge. ( Led LP blinks RED QUICKLY). If, at the end of the test, the battery
results unloaded, LP doesn’t stop blinking RED. If this happens, replace the battery with an equivalent one.
INSTALLATION MANUAL EN
DIGIWAY PLUS
Main Menu
Door Calibration
Main Menu
TX management
Main Menu
Service Main Menu Information
Main Menu
Advanced Settings
Main Menu
Languages Main Menu
Main Functions
Main Menu
Configuration
Main Menu
Exit
Main Menu
System Reset
Main Menu
Factory Defaults

16 cdvi.com cdvigroup.com
DIGIWAY PLUS
INSTALLATION MANUAL EN
Guided conguration
The operator is supplied with a 4-button transmitter included. On completion of the mechanical xing and the electric connections, proceed
with the memorization of the transmitter into the internal memory inside Digiway. This transmitter can then set-up of all parameters, without
accessing the 5 buttons onboard.
The transmitter keys corresponds to the onboard push-button according to the next diagram:
The set-up of the operator can be divided into 5 steps:
• STEP I : INITIAL SETUP ( preliminary actions )
• STEP II : CONFIGURATION ( set-up of the basic operating mode )
• STEP III : DOOR CALIBRATION ( automatic detection of the door characteristics )
• STEP IV : ADJUSTMENTS ( further adjustments and personalization )
• STEP V : SPECIAL PARAMETERS ( set-up of the advanced parameters )
Press the OK button of the keyboard for 4 sec until the display enters the main menu ;
Select the language by scolling the possibile choices with the UP and DOWN buttons
Press OK to conrm: the display shows the message OK and then displays all messages in the new language;
Exit from the menu with the button ESC.
Scroll through the main menu, select TX MANAGEMENT submenu and press OK
Select the option ADD TX and press OK
Press the transmitter key OK (top-left button): the display will show the S/N, conrming the memorization
Exit from the menu by pressing the ESC button.
Exit from the main menu selecting EXIT MENU.
From this time on the remote control is enabled to access the main menu. Enter simply by pressing simultaneously keys ESC + DOWN.
NOTE : ONLY THE FIRST TRANSMITTER MEMORIZED CAN ACCESS THE MAIN MENU! All the next added transmitters can only
open the door!
The key OK of the transmitter can do multiple functions: OK if you are in the menu, START / STOP in normal operating.
ESC
DOWN
UP UP
DOWN
ESC
STEP I: INITIAL SETUP
2
1
3
4
5
6
7
8
9

17
cdvi.com
cdvigroup.com
Parameter Description Option Default
Num. Doors Sets the number of Doors ONE DOOR / TWO DOORS ONE DOOR
Electrolock Enables electrolock and specify the type NO LOCK / STRIKE / MAGNET NO LOCK
Opening Jolt Enables the opening Jolt : SHORT PULSE OF CLOSING BEFORE
OPENING. Usefull to unlock the electrolock in windy situations ENABLE / DISABLE DISABLE
Push & Open Opens automatically the door with a short push. ENABLE / DISABLE ENABLE
Push & Close Closes the door with a short push even in pause status. ENABLE / DISABLE ENABLE
Wind Stop Keeps the door closed in presence of wind which pushes the door. See
ADVANCED SETTINGS to set the level of the closing force used. ENABLE / DISABLE DISABLE
Autoreclosing Enables the automatic reclosing of the door ENABLE / DISABLE ENABLE
Radar ‘I’ Mode
INTERNAL radar operating mode. If it’s selected the option CLOSING the
radar is excluded during the closing. This avoids the door to reopen for the
arm detection
NEVER / CLOSING / ALWAYS NEVER
Radar ‘E’ Mode
EXTERNAL radar operating mode. If it’s selected the option CLOSING the
radar is excluded during the closing. This avoids the door to reopen for the
arm detection
NEVER / CLOSING / ALWAYS NEVER
Day / Night Set the Night / Day mode. In Night mode the External radar is disabled. DAY & NIGHT / NIGHT NIGHT
Disabled Mode Disabled access mode ( See paragraph Disabled
access settings) ENABLE / DISABLE DISABLE
Open Command
Functions of the main command which can open, close and stop ( this will
be the function assigned to the open button ( terminals 15-16 ) and to the
radio transmitter
OPEN - OPEN/CLOSE -
OPEN-CLOSE/STOP OPEN/CLOSE
Mode Spring
Spring function: if the door is closed, it remains free and can be pushed
manually; once opened, the door will reclose after the pause time set.
NOTE : In Spring mode the pause time is 1 sec. if the door is partly
opened and equal to the set value if the door is opened completely .
ENABLE / DISABLE DISABLE
2 Doors Overlap
Overlap of the leaves ( in case of double doors ). In this case starts rst
the MASTER leaf in opening and rst the SLAVE leaf in closing. If the
parameter is DISABLED the leaves open and close simultaneously
ENABLE / DISABLE DISABLE
Door Type Leaf MASTER or leaf SLAVE ( in case of double doors ) MASTER / SLAVE MASTER
Arm Type
Articulated or sliding arm. This parameter set the VELOCITY of the door
according to the arm type selected. (See Adjustments)
50% ARTICULATED ARM, 70% SLIDING ARM
SLIDING / ARTICULATED SLIDING
Fire Signal
Fire signal management. When this option is enabled the door operates
regularly only if the re power V-/V+ is present. If the re power falls down
( for a re alarm in progress) the door reacts according to the choice set in
the advanced sets options )
ENABLE / DISABLE DISABLE
Step II allows you to set all the basic parameters of the operator, according to the type of door to automate
The submenu CONFIGURATION consists of 18 parameters.
Each parameter can have 2 or more values.
For each parameter there is a preset factory value. If the function FACTORY DEFAULT of the main menu is used, all the parameters
are reset to those values.
See the description of each parameter in the following table:
STEP II: CONFIGURATION
ATTENTION : Any change carried out needs a complete cycle ( open, pause, close ) or a system reset to be
implemented.
INSTALLATION MANUAL EN
DIGIWAY PLUS

18 cdvi.com cdvigroup.com
DIGIWAY PLUS
INSTALLATION MANUAL EN
DIGIWAY PLUS is equipped with an innovative software which ts the internal parameters to the door characteristics. The calibration sets
the door travel limits and launches a special 5 cycles routine for the automatic detection of the door characteristics.
For the calibration follow the next steps:
Set the EXTERNAL SWITCH in position ‘0’
‘0’ = DOOR FREE (*)
1
Action Display
Select Door Calibration from the Main
Manu and press OK
2
CLOSE THE DOOR COMPLETELY and
press OK
OPEN THE DOOR COMPLETELY and
press OK (*)
4
Select Autocalibration from the Door Cali-
bration Menu and press OK
5
6
Press OK: the door begins 5 cycles of
opening and closing until asking for
SAVE
7
Press OK. The calibration cycle is over.
The door remains open
Set the EXTERNAL SWITCH in position ‘I’
= AUTOMATIC. The door closes and the
calibration is completed.
8
Door Calibration
Door Limits
Close Door
Then Press OK
Open Door
Then Press OK
Thank You
Door Calibration
Autocalibration
Autocalibration
Wizard
Proceed with
Autocalibration?
Closing ...
Measure 1/5...
Tm= XX,X V= XX
Save ?
....C...........................
P=000,0 V=00,0
Door Calibration
Select Door Limits from the submenu of
Door Calibration and press OK
3
9
Door Calibration
Door Limits
Set Door Limits
Wizard
STEP III: DOOR CALIBRATION [ SINGLE LEAF ]
(*) If this set is not followed, the software will give a warning.
NOTE : Before proceeding with the calibration check the connection of the battery red/black cable to the main board and disconnect tem-
porarily the magnetic lock ( when used ).
Warning : whilst the Digiway is
going trough its 5 learning cycles,
as it opens very quickly, it is
dangerous the passage across the
door.

19
cdvi.com
cdvigroup.com
ADJUSTMENTS
The maximum speed, the torque and the pause time are automatically calculated by the system during the door calibration.
If you prefer to adjust the parameters manually to tailor the door travel, then it is necessary to access the submenu MAIN FUNCTIONS
from the main menu. See following table for the explanation of the parameters.
Each parameter can be adjusted using the keyboard buttons or transmitter keys.
Main Functions Description Values NOTES
Open Speed Sets the maximum speed reached by the
door during opening. 0 - 100%
At the end of the door calibration the systems sets automatically the
max open speed at a special value. By increasing this value, the total
open time can reduce - be aware that in order to respect the end
opening point, the door may slow down before reaching the max speed.
Close Speed Sets the maximum speed reached by the
door during closing. 0 - 100%
At the end of the door calibration the systems sets automatically the
max close speed at a special value. By increasing this value, the total
close time can reduce - be aware that in order to respect the end closing
point, the door may slow down before reaching the max speed.
Pause Time Pause time - this is the time remains
open before automatically closing again 1 - 99 SEC. The preset factory value is 10 sec.
Pause Time ext Extended Pause time 1 - 99 SEC.
When the Disabled mode is enabled, if the door is opened through a
command at the inputs 15-16, it will re-close after the Ext Pause time.
The Pause time for the remaining commands ( radar, push&go, remote
controls) the pause time remains the regular one.
Open Torque Max torque of the door during opening. 0 - 100%
The max opening torque is set automatically by the system at the end of
the door calibration to the max value (100 %). In the case of very light or
sensitive doors, it may be necessary to decrease this value.
Close Torque Max torque of the door during closing 0 - 100%
The max closing torque is set automatically by the system, at the end
of the door calibration, to the max value ( 100 %). Decrease this value
in case of very light or sensitive doors, or to respect the regulations for
disabled access.
Velocity
Velocity of the door: rapidity of the door
to reach the max speed set, and to
mantain this value along all its travel.
0 - 100%
The default value for this parameter is 70%. The more this value, the
less is the total travel time, because the door maintains a high value of
speed for a longer time. Values too high for this parameter can cause
“door bounce”, especially for heavy doors (see motion diagram).
Open Speed
|||||||||||||||||.................... 45%
To increase the value press the key UP
To decrease the value press the key DOWN
Press OK to conrm.
Press ESC to exit without saving.
A bar will appear on the display, proportional to the value and the numeric value of the parameter .
DOWN
CURRENT CALCULATION CYCLES
At the end of the door calibration, the door will operate normally.
However, to complete the calibration the system needs 2 more complete cycles to calculate the 2 currents ( called “i” and “I”) necessary for
obstacle management. Until the 2 cycles are completed, the external LED LP will blink RED. During the 2 cycles, before the completion of
this calculation, if the door knocks meets an obstacle, the obstacle sensitivity used will be the factory value, which may not t perfectly with
the door characteristics, therefore:
“It is highly recommended to ensure the door completes these 2 cycles without any interruption. When completed,
the external LED will illuminate Green, and the door calibration is completed.”
Motion
diagram
STEP IV : ADJUSTMENTS
Velocity = 0%
Velocity = 100%
t1
v
t
Vmax
t2t3
ESC
DOWN
UP UP
DOWN
ESC
INSTALLATION MANUAL EN
DIGIWAY PLUS

20 cdvi.com cdvigroup.com
DIGIWAY PLUS
INSTALLATION MANUAL EN
DIGIWAY PLUS is equipped with many further parameters (all adjustable) to t better to any type of installation. From the main menu select
ADVANCED SET to enter this submenu, which allows more adjustments.
Advanced Setting
Electrolock Time
Electrolock Time
|||||||||||||||||......0,5 SEC.
It is possible to pause the electrolock release time from 0,1 to 40 sec. depending on the
lock/door type . Press the UP or DOWN buttons to increase or decrease the pause time
and conrm with OK.
Default value = 0,5 Sec
Advanced Setting
Opening Jolt Time
Opening Jolt Time
|||||||||||||..........0,5 SEC.
The opening jolt, when enabled, is a short closing motion before the operator begins
opening - this relieves pressure of “side-load” for some locking devices. It’s possible to
adjust this time from 0,1 to 40 sec. depending on the type of electrolock and door. Press
the UP or DOWN buttons to increase or decrease the time and conrm with OK.
Default value = 0,5 Sec
1)
2)
Advanced Setting
Open Delay Open Delay Time
|||||||||||||||||............0,5 SEC.
It is possible to add a short delay to the door motion to allow the electrolock bolt to
exit completely from its keeper, ensuring the door is fully unlocked. This can be useful
when using motorised locks. The open delay is set by pressing UP or DOWN buttons to
increase or decrease from 0,1 to 40 sec and conrm with OK.
Default value = 0,5 Sec
4)
LOCK
MOTOR
START
Delay
Advanced Setting
Open Jolt Torque Open Jolt Torque
|||||||||||||||||............20%
It is possible to adjust the torque of the motor during the opening jolt pulse.
This is adjusted depending on the mechanical resistance of the door. Press the UP or
DOWN buttons to increase or decrease the value and conrm with OK.
Default value = 20%.
3)
Advanced Setting
Wind Stop Torque Wind Stop Torque
|||||||||||||||||............10%
It is possible to adjust the torque of the motor when the wind stop utility is enabled. This
allows changing the value of the force applied by the door related to the wind pressure.
Press the UP or DOWN buttons to increase or decrease the torque and conrm with
OK.
Default value = 50%.
5)
Main Functions Description Value NOTES
O.D. Type Sets the obstacles detection criteria
B1 & B2 B1 and B2 sono are basic criteria always active
B3
B4
B5
B3+B4
B3+B4+B5
B3 = intervenes after the speed decreases under 2/3 of the max speed,
calculated during the calibration.
B4 = intervenes if the current consumed exceeds 175% of the current
consumed during the preset.
B5 = intervenes if the door is manually pushed during the closing
Bf Bf = obstacle detected by the slave leaf in double door conguration
O.D. Reactivity Sets the reaction time against an
obstacle 0,1 - 5 sec.
Use the UP or DOWN keys to adjust this time : the higher the value,
the longer will be the contact of the door against the obstacle (less sen-
sitive). Default value = 0,1 Sec.
STEP IV: ADJUSTMENTS (continued...)
STEP V: ADVANCED SETTINGS
Once installed the operator, check that frictions or unbalancing don’t cause the systematic obstacle detection. Select the obstacle detection
criteria which best ts to the type of installation.
The closing cycle next to an obstacle detection is executed at low speed.
ATTENTION: Reactivity values higher than 0,1 Sec, allow to overcome to possible frictions but extend the reaction time and so can
generate higher impact of the door on the obstacle.
