CONGRATULATIONS!
ThankyouforpurchasinganewCellarProcoolingsystem.
PleasetakeaminutetoreadthroughthisOwner’sManualbeforeyouunpack,installandturn
onyourCoolingUnit.
Ifyouhaveanyquestionsaboutyournewcoolingunit,itislikelythatyouwillfindtheanswersin
thisOwner’sManual.Wealsohavemoreinformationonourwebsite,includingthelatestversion
oftheOwner’sManual,www.cellarpro.com.
Ifyoustillhavequestions,pleasedon’thesitatetocontactyourdealerorCellarProdirectly.We
canbereachedduringnormalbusinesshoursat1.877.726.8496.Youalsomaycontactusanytime
viaemailat[email protected].
ContactInformation:
CellarProCoolingSystems
1445N.McDowellBlvd
Petaluma,CA94954
877.726.8496
Email:[email protected]
Website:www.cellarpro.com
SerialNumber*_________________________________________________________
*Werecommendthatyoutakeaminutetofill‐inyourCellarProserialnumberabove.Theserial
numbercan befoundon the printedlabel on the sideofyourcooling unit, which may notbe
accessibleafteryouinstallyourcoolingunit.Youmayneedthisserialnumberintheeventyour
coolingunitneedsservice.
Don’tforgettoregisteryourcoolingunitwarrantyatwww.cellarpro.com/register,
orscanthefollowingQRcode:
4V3.15.22
TableofContents
I. Specifications 5
II. InstallationInstructions 11
III. OperatingInstructions 20
IV. Troubleshooting 34
V. LimitedWarranty 36
5
V3.15.22
I.Specifications
SpecsandCutSheets
Model
Dimensions(inches)
WxDxH
Weight
RunningCompressorAmps
3200/4200VSi‐ECX 14.1x25.1x19.6
(incl.drain) 115
3200/4200VSi‐ECX* 14.5x29.3x19.7
(incl.ducthood&drain) 123 8.9–3200
10.5–4200
3200/4200VSx‐ECX 14.5x27.6x19.7
(incl.exteriorcase&drain) 123
*Withoptionalducthood
3200VSi‐ECX/4200VSi‐ECXCutSheet
6
V3.15.22
3200VSi‐ECX/4200VSi‐ECX(withRearDuctHood)‐CutSheet
3200VSx‐ECX/4200VSx‐ECXCutSheet
7V3.15.22
Placement
CellarPro3200and4200SeriescoolingunitsaredesignedtobeinstalledTHROUGHTHEWALL,so
thattherearandthefrontofthecoolingunitDONOTSHARETHESAMEAIRSPACE.
Therearofthecoolingunitmustbeinstalledinaspacethatisatleastaslargeasthewinecellar
unless the rear intake and exhaust are ducted. Both thefront and the rear of the cooling unit
requireaminimumclearanceof8inches.
TheseunitsalsocanbeplacedcompletelyINSIDEorOUTSIDEthecellarwhenusedincombination
withourductkits.
AmbientEnvironment
3200VSi‐ECX/4200VSi‐ECX‐designedforinternaluseonly(ieshelteredfromoutdoorweather),
therearoftheunitcanbeexposedtotemperatureconditionsrangingfrom40to110°F.
3200VSx‐ECX / 4200VSx‐ECX–designedforshadedexternaluse,therearoftheunitcanbe
exposedtotemperatureconditionsrangingfrom40to110°F.
PLEASENOTE:
Ourunitswerenotdesignedfor,andourwarrantydoesnotcoverdamagefrom,marineexposure
(within5milesoftheocean).Inthese environments, youwill need anappliedcoating,such as
Insitu®,toprotectagainstcorrosionthatiscommonincoastalregions.
Withour(optional)compressorheater,allofourcoolingunitscanbeusedinenvironmentsdown
to 20°F, and with our (optional) fan cycling switch, all of our cooling units can be used in
environmentsdownto‐20°F.
Heat
CellarProcoolingunitsarenotdesignedtoheatthecellarspace,soiftemperaturesinsidethecellar
dropbelowproperwinestoragetemperatures,thecoolingunitcannotcreateheatinsidethecellar.
8V3.15.22
Insulation
CellarProcoolingunitsaredesignedto
be installed inside wine cellars that
have proper insulation, moisture
barriers and an airtight seal from the
environment outside the cellar.
Interior walls and floor should have a
minimum of R‐11 insulation, and a
vaporbarrieronthewarmsideofthe
insulation. The ceiling should have a
minimumofR‐19insulationanda
vaporbarrieronthewarmsideofthe
insulation. Doors also should be
insulated and tightly sealed with
weather stripping around the
perimeter of the door. Surface‐
mounted fixtures are recommended
overrecessedlighting,whichcanallow
airtoleakintothecellar.
Itisimportantthatallwalls,joints,doorsandwindows,electricaloutletsand/orswitches,pipes,
ventsandlightfixturesbesealedtopreventairandmoisturefromenteringthecellar.Ifthereisa
leakinthecellar,thecoolingunitwillbuildupexcesscondensation.
CellarPro3200VSand4200VSSeriescoolingunitsareequippedwithacondensatemanagement
system,whichincludesastainlesssteelpan,athermostatically‐controlledelectricheatingelement,
andanoverflowdrainattherearofthecoolingunit.
We strongly recommend that the overflow drain line (shipped loose with the cooling unit) be
connectedtotheoverflowdrain(asshownintheinstallationsection),andthatthecoolingunitbe
mountedlevelorwithaslighttiltbackwards(1/8”max),sothat any overflow condensate is
channeledsafelytotheoverflowdrainline.Inaddition,werecommend turningontheelectric
heatingelementtoburnoffexcesscondensatethataccumulatesinthestainlesssteelpanduring
theinitialcoolingofthecellarandduringhighrun‐times,aswellasinhigh‐humidityenvironments.
FanSpeeds
Yourfanspeedsettingmustbesetto“High”underthefollowingconditions:
- Asthethermalloadofthewinecellarincreases
- Asambienttemperaturesincrease
- Anyapplicationwithducting(frontorrear)
9V3.15.22
FanSpeedGuidelines
Non‐Ducted
VSiUnits VSxUnits
Minimum
FanSpeed
Temperatureoffreshairintake <=95F <=90F
Low
Temperatureoffreshairintake <=100 <=95 Medium
Temperatureoffreshairintake <=105 <=100 High
Notes: 1.Thetableassumesthatproperspaceandairflowexistonthehotsideofthecoolingunit
2.Ductedunitsmustalwaysusethehighfanspeed.
3.Werecommendusingthehighfanspeedduringthefirstweekafterinstallation.
Ventilation
AdequateventilationiscriticallyimportantfortheproperoperationofyourCellarProcoolingunit.
OUTSIDETHECELLAR
(TheHotSide‐attherearofthecoolingunit)
CondenserAirExhaust.CellarPro3200VSand4200VSSeriescoolingunitscreatesignificanthotair
whichmustbeexhaustedintoanappropriately‐sizedspacesothatthehotairexhaustcandissipate.
Ifthespaceisconstrainedand/ortoosmall,theheatwillnotdissipate.Inthisevent,thecooling
unitwillbeforcedtore‐circulateitshotairexhaustand/orthestaticpressurewillbackupthe
cooling unit. If this happens, the cooling unit’s ability to create cold air inside the cellar will be
compromised.
CondenserAirIntake.Thecondensercoilsrequireaccesstocoolairsothatthecoolingunitcan
producecoldair.Inaddition,thecoolingunitmustbeinstalledsothat,afteritsinstallation,the
condensercoilsareaccessibleforperiodiccleaningorreplacingofthefilter.
Therearofthecoolingunitmustbeinstalledinaspacethatisatleastaslargeasthewinecellar
unlesstherearintakeandexhaustareducted.Boththefrontandtherearofthecoolingunit
requireaminimumclearanceof8inches.

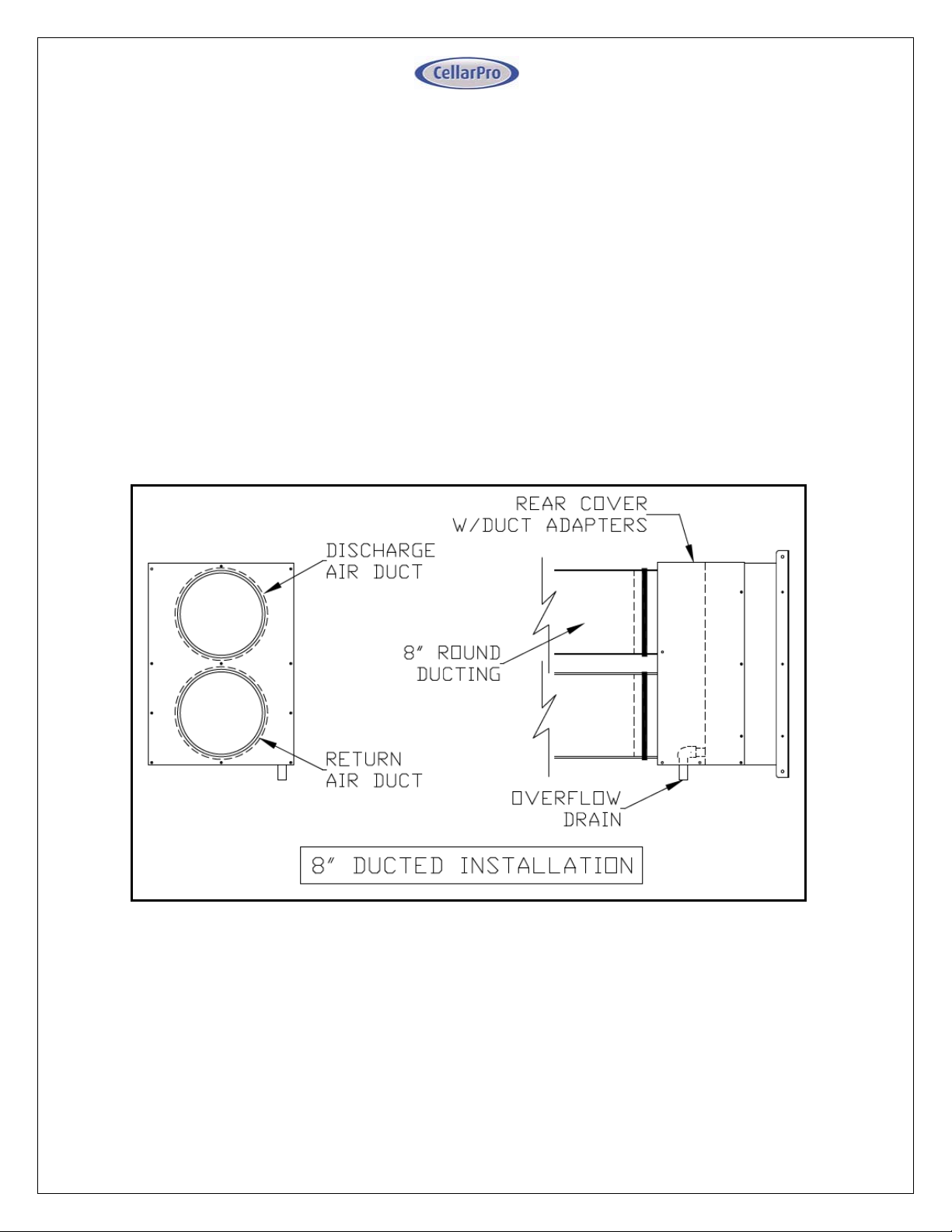

Ducting.Weofferductkitsthatallowthecondenserairintakeand/orexhausttobeductedupto
50 equivalent feet each with a minimum of 8” diameter ducting from start to finish, or 100
equivalentfeeteachwithourauxiliaryfanand8”diameterductingfromstarttofinish.Ourhot‐
sideductkits(soldseparately)attachtotherearofthecoolingunitandMUSTbeusedwhenducting
ourcoolingunits.TheHIGHfanspeedmustalwaysbeusedwhenductingthecoolingunit.Using
customductadaptersinsteadoftheCellarProductkits,reducingductingbelow8”diameter,using
fansatlowormediumfanspeed,and/orexceedingthe equivalent length limits will impair the
performanceandlongevityoftheunitandvoidthemanufacturer’swarranty.
10V3.15.22
INSIDETHECELLAR
(TheColdSide‐atthefrontofthecoolingunit)
EvaporatorAirIntake
.
CellarProcoolingunitsshouldbemountedatthehighestpointinsidewine
cellars,sothatwarmair–whichrises–willbethefirsttopassovertheevaporatorcoils,whichare
located behind the grill on the face of the cooling unit. When the warm air passes across the
evaporatorcoils,heatisremovedtheair,andtheresultingcoldairisexhaustedintothecellar.To
ensureproperairflow,minimumclearanceof12”isrequiredinfrontofthecoolingunit.
EvaporatorAirExhaust.
Coldairisexhaustedatthetopfrontofthecoolingunit.BecauseCellarPro
coolingunitsarelocatedatthehighestpointinsidewinecellars,thecoldairexhausteventuallywill
droptothebottomofthecellar.Toensureproperairflowandreducetemperaturestratification
insidethecellar,thespaceinfrontofthecoldairdischargeshouldbeclearofanyobstructions,
includingwinebottles,wineracks,etc.
Ducting.Weofferductkitsthatallowtheevaporatorairintakeandexhausttobeductedupto50
equivalentfeeteachwithaminimumof8”diameterinsulatedductingfromstarttofinish.Our
cold‐sideductkits(soldseparately)attachtothefrontofthecoolingunitandMUSTbeusedwhen
ductingourcoolingunits.TheHIGHfanspeedmustalwaysbeusedwhenductingthecoolingunit.
UsingcustomductadaptersinsteadoftheCellarProductkits,reducingductingbelow8”diameter,
usingfansatlowormediumfanspeed,and/orexceedingtheequivalentlengthlimitswillimpair
theperformanceandlongevityoftheunitandvoidthemanufacturer’swarranty.
PowerRequirements
CellarProcoolingsystemsshouldbepluggedintoadedicatednon‐GFIoutletconnectedtoa15‐
ampcircuit.Thecoolingunitusesapproximately8.9(3200VS)and10.5(4200VS)ampsduringits
“on”cycle.
A number of variables, including the minimum set point, the temperature in the ambient
environment,theinsulationofthecellar,andthethermalmassinsidethecellar,willaffectthe
cooling unit’s runtime. It is normal for the cooling unit to run up to 75 percent of the time to
maintainproperconditionsinsidethecellar.
Selectapowerreceptacle(FrontorRear)andplugtheprovidedpowercordintothatreceptacle.
Plugtheotherendofthepowercordintoadedicated15ampcircuit.Asurge‐protectedcircuitis
recommended.Setthepowerselectorswitchtoenergizetheappropriatereceptacleused(Front
orRear).
ThepowercordprovidedfortheindoorVSiunitsisapprovedforindooruseonly,whilethepower
cordfortheoutdoorVSxunitsmaybeusedbothforindoororoutdoorapplications.
11
V3.15.22
II.InstallationInstructions
TESTTHEUNITBEFOREINSTALLINGIT
1.
Removetheunitfromthebox.SAVETHEBOXANDPACKINGMATERIALS.
2.
Plug in the power cord andlet the unit run ona hard, flat surfacefornomorethan 5
minutes.
3.
Checktomakesurethatbothfans(oneinthefrontandoneattherearofthecoolingunit)
areblowing.
4.
Checkthatthecoolingunitisdischargingcoldairfromthefront (it should be
approximately10‐12°Fcolderthanthetemperatureonthedigitaldisplay)
5.
Please note: The cooling system is programmed with a 3‐Minute Delayat Startupto
protectitsinternalcomponents
Cutaholeinthewallthatis1/4inchlargerthanthedimensions(WxH)ofthecoolingunit,
andcreateaframetosupporttherearofthecoolingunit.Therearofthecoolingunitshould
besupportedbythewallthroughwhichitisinstalled.Horizontal2x4inchbracesshouldbe
installedbetweenthestudsbelowandabovethecoolingunit.Ifthestudsinthewallmustbe
cuttoaccommodatethewidthofthecoolingunit,verticalbracesalsoshouldbeinstalledon
eithersideofthecoolingunit.

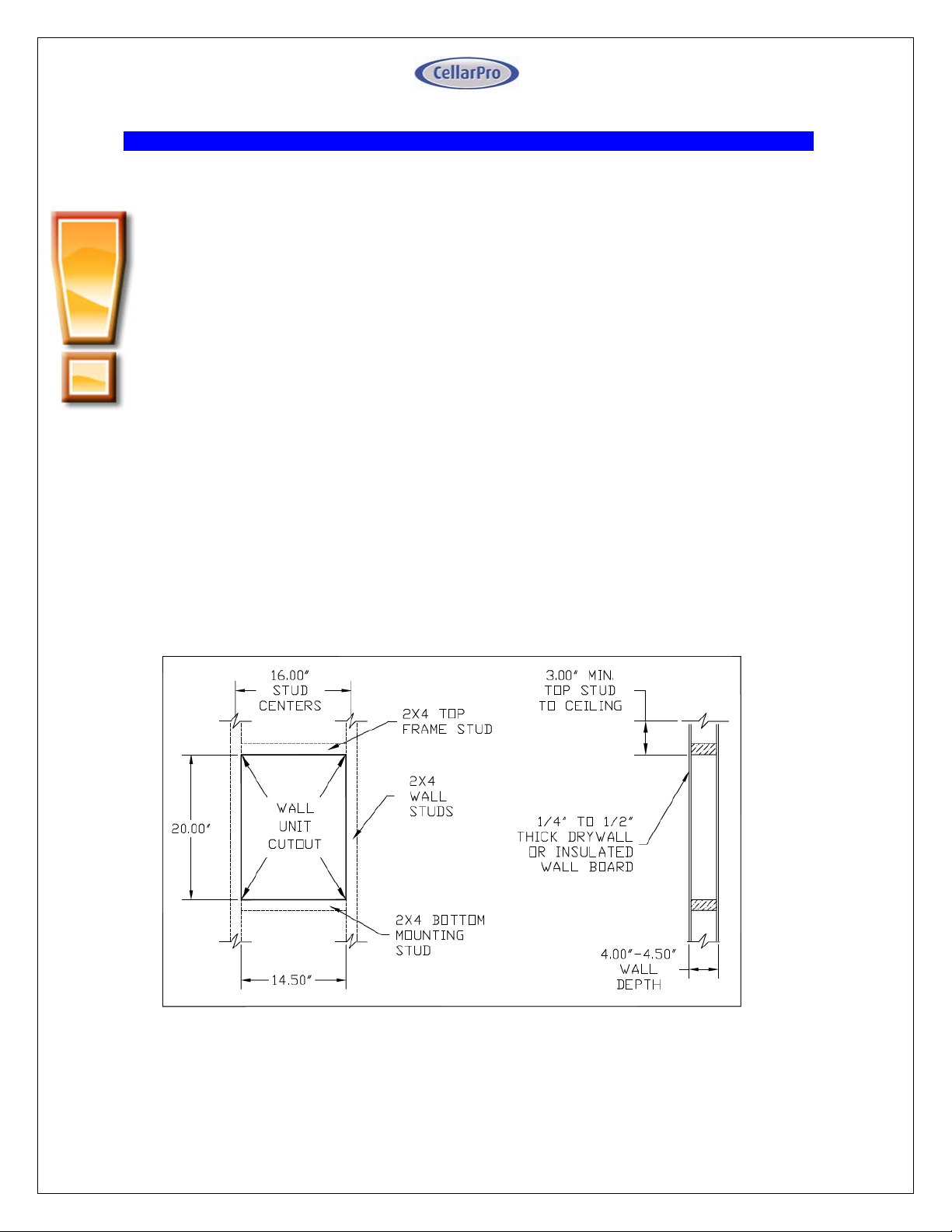

3200VS/4200VSSeriesFrameandCut‐OutDiagram
12V3.15.22
Mounttheunitintheuprightpositionclosetotheceilinginsidethecellar.Aswarmairrises
tothetopofthecellar,thecoolingunitpullsthewarmairthrough the evaporator coiland
removestheheatfromthewarmair.Oncecooled,thecoldairisdischargedfromthefrontof
thecoolingunitandcirculatesthroughthecellar.
Slidetheunitthroughfromtheoutsideofthecellar.CAUTION:Twopeoplearerequiredto
movethecoolingunit,whichisveryheavy.Donotplacethecoolingunitonunprotectedbottle
racks.
Mountlevel,ortiltthecoolingunitslightlybackwards.Therearofthecoolingunitshouldbe
levelorslightlylower(1/8”max.)thanthefrontofthecoolingunittofacilitatetheflowof
excesscondensatetothedrainline.
Useouradjustablemountingbracketstosupportandanchorthecoolingunittotheframing
inthewall.Usethe(16)#10x1‐1/2” flatPhillipsheadwoodscrewsprovidedtoanchorthe
screwsintothestudsandbraces.Themountingbracketscanbeusedeitherinsideoroutside
thecellarandcanbeusedinthreedifferentlocations,asshownbelow.
13
V3.15.22
3200VSi‐ECX/4200VSi‐ECX–MountingDiagrams
14
V3.15.22

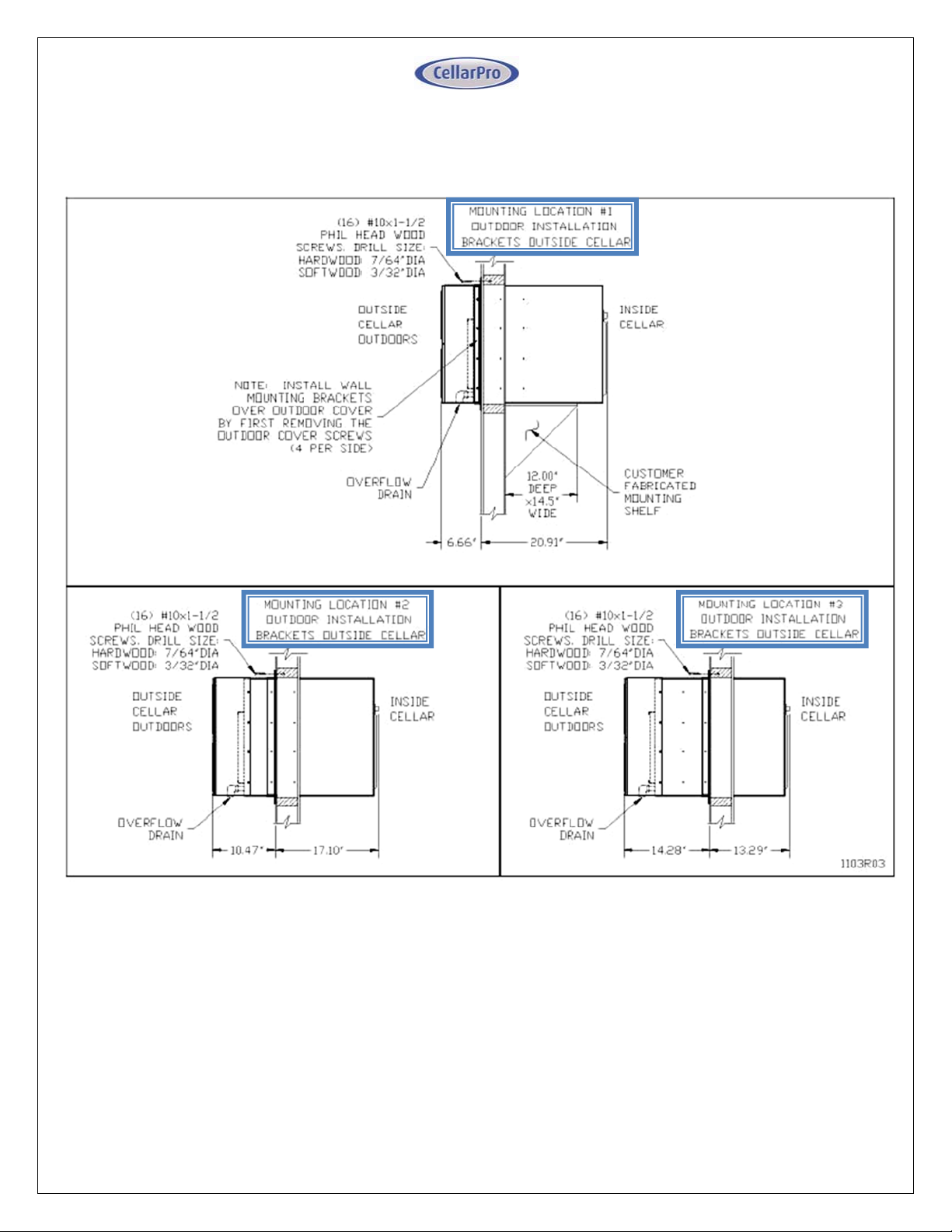

3200VSx‐ECX/4200VSx‐ECX–MountingDiagrams
15V3.15.22
InstallationNotes:
1. Theunitisshippedwith(4)wallmountingbrackets,a90°drainelbow,anda10’lengthof½”
I.D.condensatedrainline.Therequiredhardwareisshippedloosewiththeunit.
a. Model3200VSi/4200VSi(indoorinstallations):Selectthedesiredsetofmountingholes,
location#1,#2,or#3(shownabove).Themountingbracketscanbeusedoneithersideof
thewall.
b. Model3200VSx/4200VSx(outdoorinstallations):Therearcoverusesholelocation#1.If
thisisalsothedesiredlocationforthemountingbrackets,firstmakecertaintherearcover
isinplace,andtheninstallthemountingbracketsovertherearcover.
2. If the mounting brackets are used on the outside of the cellar in Location 1, a shelf will be
neededtosupporttheweightofthecoolingunit.
3. Toattachthemountingbrackets,attachthesideandtopbracketstotheunitusing(8)#8x5/8”
sheetmetalscrews.Thebottombracketonlyattachestotheside brackets – there are no
mountingholesforthebottommountingbracketinthecaseofthecoolingunit.Securethe
top and bottom brackets to the side brackets with (4) 1/4‐20x5/8”boltsandlockwashers
(included).
4. Attachinsulatedfoamtapetothemountingbracketsonthesidethatwillfacethewalltocreate
aninsulatedandairtightsealbetweenthewallandthebrackets.
5. Oncethecoolingunitisinstalled,allcracksandgapsbetweenthecoolingunitandthecellar
shouldbesealed.Acompleteandpropersealmustbemadebetweenthecellarandthecooling
unittoensurethatoutsideairdoesnotenterthecellar.Usesealanttapeorcaulkingtosealthe
perimeterwherethecoolingunittouchesthecellar.Checkthesealbyhavingahelperstandin
frontofthecabinetwhileyoushineaflashlightaroundthecoolingunitedgestodiscoverany
gapsinsealant.
6. Threadthedrainelbowtightlytothecondensateoverflowdrainline.Threadtapeisnot
required.Runtheoverflowdraintubetoagravitydrain,routingsothatthetubeformsawater
trapneartheunit.Chargethetubetrapwithwater,thenslidethe1/2”IDvinyltubingoverthe
hosebarb.
16V3.15.22
Asshownabove,thedrainlineshoulddrop,thenrise(butstaybelowtheheightofthefitting),and
thendropagainintoadrainorbucket.Then,fillthetrapwithwater.Thecondensatetrapwillallow
anyexcessmoistureinsidethecoolingunittoovercomethestaticpressureandflowoutofthe
drainline.
17V3.15.22
DuctedInstallations–HotSideDucting
1. Ductworkmaybeattachedtotheexhaust,tothefreshairreturn,ortoboththeexhaustand
returnductadapters(recommended).Ifductingisattachedonlytooneadapter,thespace
must be able to provide 300CFM of exhaustor supply ventilation.Ifthatventilationisnot
provided,itwillputtheperformanceandlongevityoftheunitatrisk.
2. Theunitiscapableofoperatingwith100equivalentfeetoftotalductwork,or50equivalent
feetforboththeexhaustandreturnducting.Thesespecificationsarebasedon8”diameter
flexductingthatisfullyextendedtoensureasmoothinnerductwall.Elbowsorbendsmust
haveaminimumradiusof8”.Allelbows,bends,grills,andadapterswilladdtotheequivalent
length,reducingtheactuallengthavailable..Useaductsizingprogramtodeterminethetotal
equivalent feet of a specific duct routing design, or consult the manufacturer for
recommendations.
3. The“High”fanspeedsettingisrequiredwhenevertheunitisducted.
18
V3.15.22
DuctedInstallations–ColdSideDucting
1. Removethefrontgrill(ifpresent)fromthefrontofcoolingunitbeforeattachingthefrontduct
hoods.
2. DuctworkmustbeattachedtoBOTHtheintakeandexhaustopenings,connectingthecooling
unitandthewinecellar.
3. Thecoldductkitconsistsof2ducthoods.Onehoodisdesignedforintakeandwillcoverthe
lowerportionofthecoolingunit.Thishoodiscompletelyopenontherear.Thesecondhood
isdesignedfortheexhaustandwillcoverthetopportionofthe cooling unit. This hood is
partiallyclosedontherear.Bothhoodsaredesignedtoattachtothecoolingunitwith3/8”
self‐tappingscrews(included).DONOTUSESCREWSLONGERTHAN3/8”.
4. Aremotethermostatisincludedandisrequiredforusewiththefrontductkit.Theremote
thermostatisdesignedtoplugintothefaceofthecoolingunitandterminateinsidethecellar.
Theremotethermostatmaybeusedtomeasureairorliquidtemperaturesinsidethecellar.
Ifmeasuringair,placethethermostatinthecellarinalocationwithgoodairflow.Ifmeasuring
liquid, fill a bottle with mixture of water (80‐90%) and rubbing alcohol (10‐20%), insert the
probeintothebottleandusetherubberstopperonthethermostattosealthebottle,andplace
thebottleinsidethecellarinalocationwithgoodairflow.If the bottle probe is used to
measureairtemperatures,thedifferential(HY)onthecoolingunitshouldbesetto“4”.If
thebottleprobeisusedtomeasureliquidtemperature,thedifferentialshouldbesetto“1”.
Tochangethedifferential,pleaserefertoour“AdvancedOperation”instructionsinSectionIII.
5. Theunitcanbeductedupto100equivalentfeet,or50equivalentfeetforeachofthesupply
andreturnducting.Thesespecificationsarebasedon8”diameterflexductingfullyextended
toensureasmoothinnerductwall.Elbowsorbendsmusthaveaminimumradiusof8”.All
elbows,bends,grills,andadapterswilladdtotheequivalentlength,reducingtheactuallength
available.Useaductsizingprogramtodeterminethetotalequivalentfeetofaspecificduct
routingdesign,orconsultthemanufacturerforrecommendations.
6. The“High”fanspeedsettingisrequiredforallductedinstallations.Condensationonthehood
canoccurinwarmandhumidenvironments,eventhoughtheinsideofthehoodisinsulated.If
leftunattended,thiscondensationmaycausedamagetotheelectricalcomponentsinsidethe
coolingunit.Thisdamageisnotcoveredbythecoolingunit’swarranty.
Ifcondensationoccursonthefrontducthood,youshoulddothefollowingASAPtomitigate
thecondensation:
- Insulatetheducthoodbyadheringinsulationtotheoutsideofthehood.
- Applysiliconecaulkingtotheseamwherethehoodmeetsthecoolingunit
19V3.15.22
FrontDuctKit‐CutSheet
Summary
KeepinmindthefollowingguidelinesbeforepurchasingawinecoolingunitfromCellarPro:
Ifthecellarittoolargeforthecoolingunit,thecoolingunitwillbeunabletomaintain
proper,eventemperaturesthroughoutthecellar.
Withoutproperinsulationandanairtightenvironment,thecoolinguniteffectivelywill
becomeade‐humidifierandpotentiallywillproducebucketsofwater.
Therearofthecoolingunitmustbeinstalledinaspacethatisatleastaslargeasthewine
cellarunlesstherearintakeandexhaustareducted.Boththefrontandtherearofthe
coolingunitrequireaminimumclearanceof8inches.
Withoutaccesstocoolair,eitherbecauseofimproperventilationorenvironmentsthat
aretoohot,thecoolingunitwillbeunabletomaintainpropertemperaturesinsidethe
cellar.
Undertheseconditions,theunit’sinternalcomponentsmaybecomedamaged,theexpecteduseful
lifeofthewinecoolingunitmaybeadverselyaffected,andtheproduct’swarrantymaybecome
nullandvoid.
20V3.15.22
III.OperatingInstructions
Overview
Testthecoolingunittomakesureitisworkingproperlybeforeinstallingthecoolingunit(referto
theinstructionsatthebeginningofthepreviouschapter.)
CellarPro cooling units are designed to maintain optimal conditions for wine storage and aging.
Theseconditionsincludesteady,cooltemperatures,highhumidity,minimalvibrationandlight,and
cleanair.
ThesettingsonyourCellarProcoolingunithavebeenpresetandoptimizedbythefactory.Before
changinganysettingsbelow,werecommendwaiting14daystoallowthecoolingunitto“breakin.”
Thecoolingunitisdesignedtocoolthecellargentlywithoutstrippingmoistureoutofthecellar
environment.Therefore,itisnotuncommonforthecoolingunittorunnonstopforuptoaweek
initially,dependingonthetemperatureinsidethecellar,thesizeofthecellar,andthetemperature
oftheambientenvironment.Oncethecellarhasreachedequilibrium,itisnormalforthecooling
unittorunasmuchas75percentofthetime.
CellarProcoolingunitsaredesignedtomaintainoptimaltemperaturesforstoringandagingfine
wine.CellarProcoolingunitsarenotdesignedtomaintaintemperaturesforservingwine,which
tendtobemuchcolderthanstoragetemperatures,especiallyservingtemperaturesforwhiteand
sparklingwines.
CellarProcoolingunitsmustbeused,stored,movedand/orshippedintheuprightposition.Be
carefulwhenturningtheunitonitsside.TheunitNEVERshouldbeturnedupsidedown.
The cooling system is programmed with a 3‐Minute Delayat Startup to protect its internal
components.
TemperatureControl
CellarPro cooling units are designed to turn “on” when the air temperature passing over the
evaporator coils inside the cellar exceeds the Minimum Set Point plus the Temperature
Differential, and turn “off” when the temperature drops below the Minimum Set Point. For
example,iftheMinimumSetPointis58
°
FandtheTemperatureDifferentialis4
°
F,thecoolingunit
willturnonwhenthetemperaturerisesabove62
°
Finsidethecellar,anditwillturnoffwhenthe
temperaturefallsbelow58
°
F.Inthisexample,theaveragetemperatureinsidethecellarwillbe
60
°
F.
BasicOperation
ThetemperatureinsidethecellarcanbeincreasedordecreasedbychangingtheMinimumSet
Pointassummarizedbelow,anddetailedlaterinthischapter.
• Pressthe“Set”buttonforthreesecondsuntilthesnowflakeor°Fblinks
• Press“Up”or“Down”button
This manual suits for next models
3
Table of contents
Other CellarPro Wine Cooler manuals
Popular Wine Cooler manuals by other brands
Danby
Danby Silhouette Select DPC6012BLS Owner's use and care guide
Norcool
Norcool CAVE 45 BI DZ Operating & installation instructions
U-Line
U-Line UHWC115 User guide & service manual
KitchenAid
KitchenAid KUWO24RSBX01 cabinet parts
Thermador
Thermador T18IW Series Use & care guide
Cellartec
Cellartec CT1500ZD Installation, use & care manual
