CentoLight Scenic COB-200W User manual

Carefully read this manual and properly take care of it
Leggete questo manuale e conservatelo per future consultazioni
User Manual
Manuale Utente
200W Warm-Cold White COB Led Par Light
Par con Led Bianco Caldo-Freddo da 200W COB
ENG
ITA
Scenic cOB-200WScenic cOB-200W

22
Dear customer,
First of all thanks for purchasing a CENTOLIGHT® product. Our mission is to satisfy
all possible needs of light designers and professionals of entertainment lighting, by
offering a wide range of products based on the latest technologies.
We hope you will be satisfied with this fixture and, if you want to collaborate, we
are looking for a feedback from you about product operation and possible im-
provements to be introduced in the next future. Go to our website www.centolight.
com and send an e-mail with your opinion; this will help us to build equipment ever
closer to professional’s real requirements.
The CENTOLIGHT Team
Gentile Cliente,
Grazie per aver scelto un prodotto CENTOLIGHT®. La nostra missione è quella di
soddisfare ogni possibile richiesta da parte di light designers e professionisti dell’il-
luminotecnica per l’intrattenimento, offrendo una vasta gamma di apparecchiature
basate su tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al fine di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.centolight.com ed
inviateci una mail con la vostra opinione; questo ci aiuterà a sviluppare nuovi pro-
dotti quanto più vicini alle vostre esigenze.
Il Team CENTOLIGHT

33
Eng
Table of ConTenTs
1 - Before you Begin 4
1.1. What is included- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.2. Unpacking Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.3. Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.4. Disclaimer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
2 - Safety Instructions 5
2.1. Symbols Meaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3 - Mounting and Rigging 5
3.1. Rigging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.2. Water / Moisture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.3. Heat - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.4. Servicing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4 - Introduction 7
4.1. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4.2. Product Dimensions- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
5 - Product Setup 8
5.1. Rear Panel Description- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
5.2. About Power Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10

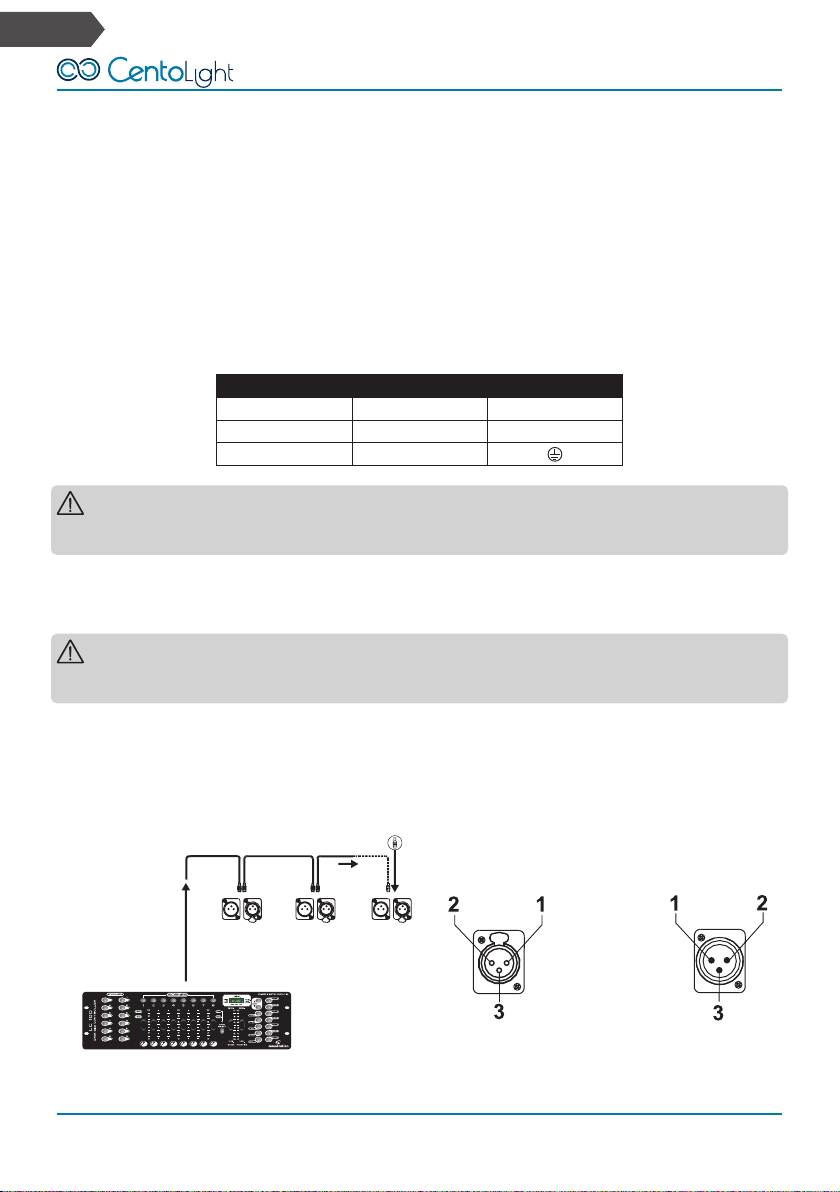

5.3. About Dmx Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
5.4. DMX Terminator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
5.5. 3-Pin vs 5-Pin DMX cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
6 - Menu Operation 12
6.1. Setting the DMX Address - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
6.2. DMX Channel Assignments and Values - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 13
7 - Lux Charts 14
8 - Troubleshooting 15
9 - Specication 16
10 - Warranty And Service 17
11 - Warning 18

44
SCENIC COB-200W User Manual
Eng
1 - before you begin
Thank you for purchasing SCENIC COB-200W. Enjoy your new equipment and make
sure to read this manual carefully before operation! This user manual is made to
provide both an overview of controls, as well as information on how to use them.
1.1. What is included
Package include:
y1x CENTOLIGHT SCENIC COB-200W Par Light
y1x 1.2m (47in ca.) Powercon to Europlug power cable
y1X 1.5m (59in ca.) DMX Cable 3-pin XLR-M to 3-pin XLR-F
yThis User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. Unpacking Instructions
Carefully unpack the product immediately and check the content to make sure all
the parts are in the package and are in good condition. If the box or the contents
(the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier or dealer/seller immediately. In addition, keep
the box and contents for inspection.
If the fixture must be returned to the manufacturer, it is important that it is returned
in the original manufacturer box and packing. Please do not take any action without
first contacting your dealer or getting in touch with our after-sales support service
(visit www.centolight.com for details).
1.3. Accessories
CENTOLIGHT can supply a wide range of quality accessories that you can use with
your SCENIC Series equipment, like Cables, Splitters, DMX controllers, and a wide
range of other fixtures. Ask your CENTOLIGHT dealer or check out our website www.
centolight.com. All products in our catalogue has been long tested with this device,
so we recommend you to use Genuine CENTOLIGHT Accessories and Parts.
1.4. Disclaimer
The information and specifications contained in this Manual are subject to change
without notice. CENTOLIGHT assumes no responsibility or liability for any errors or
omissions and reserves the right to revise or to create this manual at any time.
Copyright© 2021 CENTOLIGHT. All rights reserved.

55
SCENIC COB-200W User Manual
Eng
2 - safeTy insTruCTions
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions

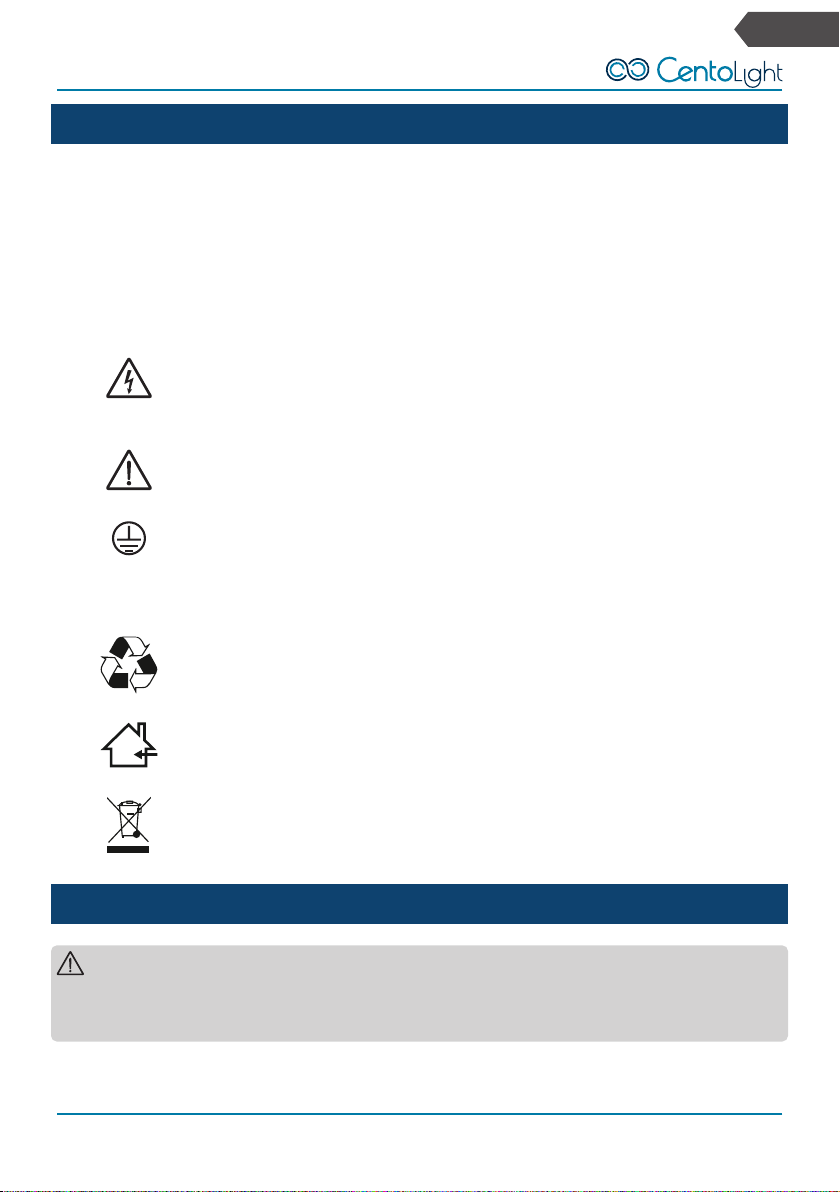

2.1. Symbols Meaning
The symbol is used to indicate that some hazardous live termi-
nals are involved within this apparatus, even under the normal
operating conditions, which may be sufficient to constitute the
risk of electric shock or death.
The symbol is used to describe important installation or config-
uration problems. Not following advice and information on how
to avoid such problems may lead to product malfunction.
This symbol indicates a protective grounding terminal.
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
To protect the environment, please try to recycle packing materi-
al and exhausted consumables as much as possible.
This symbol indicates that the fixture is intended to indoor use
only. Keep the machine dry and do not expose to rain and mois-
ture.
Don’t throw this product away just as general trash, please deal
with the product follow the abandon electronic product regula-
tion in your country.
3 - MounTing and rigging
Pay attention to safety! Please respectively consider the EN 60598-2-17 and the
national standard during the installation. Only authorized technicians can carry
out the installation.

66
SCENIC COB-200W User Manual
Eng
3.1. Rigging
yThe installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming demolition. The
installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in
a way that no part of the installation can fall down if the main attachment fails.
yWhen rigging, de-rigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered
areas is forbidden. The operator has to make sure that the safety measure and
the machine’s technical installation is approved by an expert before taking into
operation for the first time and after changes before taking into operation an-
ther time. He has also to make sure that an expert approves safety measure and
the machine’s technical installation once a years.
IMPORTANT: Overhead rigging requires extensive experience, including (but not
limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you
lack these qualications, do not attempt the installation yourself, but instead
use a professional structural rigger. Improper installation can result in bodily
injury or property loss.
yIf the fixture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The fixture must never be fixed swinging freely in the
room.
CAUTION: Use appropriate clamps to rig the xture on the truss. Make sure that
the device is xed properly! Ensure that the structure (truss) to which you are
attaching the xtures is secure.
3.2. Water / Moisture
yThe product is for indoor use. In order to prevent risk of fire or electric shock, do
not expose to rain or moisture
yThe unit can not be used near water; for example near a bathtub, a kitchen sink,
a swimming pool, etc.
3.3. Heat
yDo not use in a confined space. Always install the product in a location with
adequate ventilation, at least 20in (50 cm) from adjacent surfaces. Be sure that
no ventilation slots on the product’s housing are blocked.

77
SCENIC COB-200W User Manual
Eng
yThe apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat.
Do not use it when maximum ambient temperature is higher than 50°C. Work
temperature ranges from -30°C to 55°C (-22°F to 131°F).
3.4.Servicing
yDo not implement any servicing other than those means described in the man-
ual. Refer all servicing to qualified service personnel only. The internal compo-
nents of the equipment must be purchased from the manufacturer. Only use
accessories/attachments or parts recommended by the manufacturer.
4 - inTroduCTion
Centolight Scenic COB-200W is a 200W COB Led Par with 60° beam angle. The
light source combines Warm-White at 3200K and Cold-White at 6500K, both con-
trollable separately in manual or DMX mode. It is designed for all those applications
that could need variable white color temperature, as live shows, discos, showrooms,
etc.
The silence is guaranteed by the quality of cooling fan controlled by the internal
processor, which maintains the overall noise within 20dB @ 1m. The structure of the
light is in die-cast aluminum, for maximum lightness and robustness. The fixture is
also equipped with bran-door.
4.1. Features
yCOB Led Par Light with 60° Beam Angle
y200W COB LED with over 50,000h lifetime
yColor Temperature: 3200K + 6400K
yLuminous Flux: 888lux @ 3m, 347lux @ 5m
yCRI: Ra≥90
ySmooth 16-bit Dimmer
yFlicker-Free Operation
yLow-Noise Cooling System
yBarndoor Included

88
SCENIC COB-200W User Manual
Eng

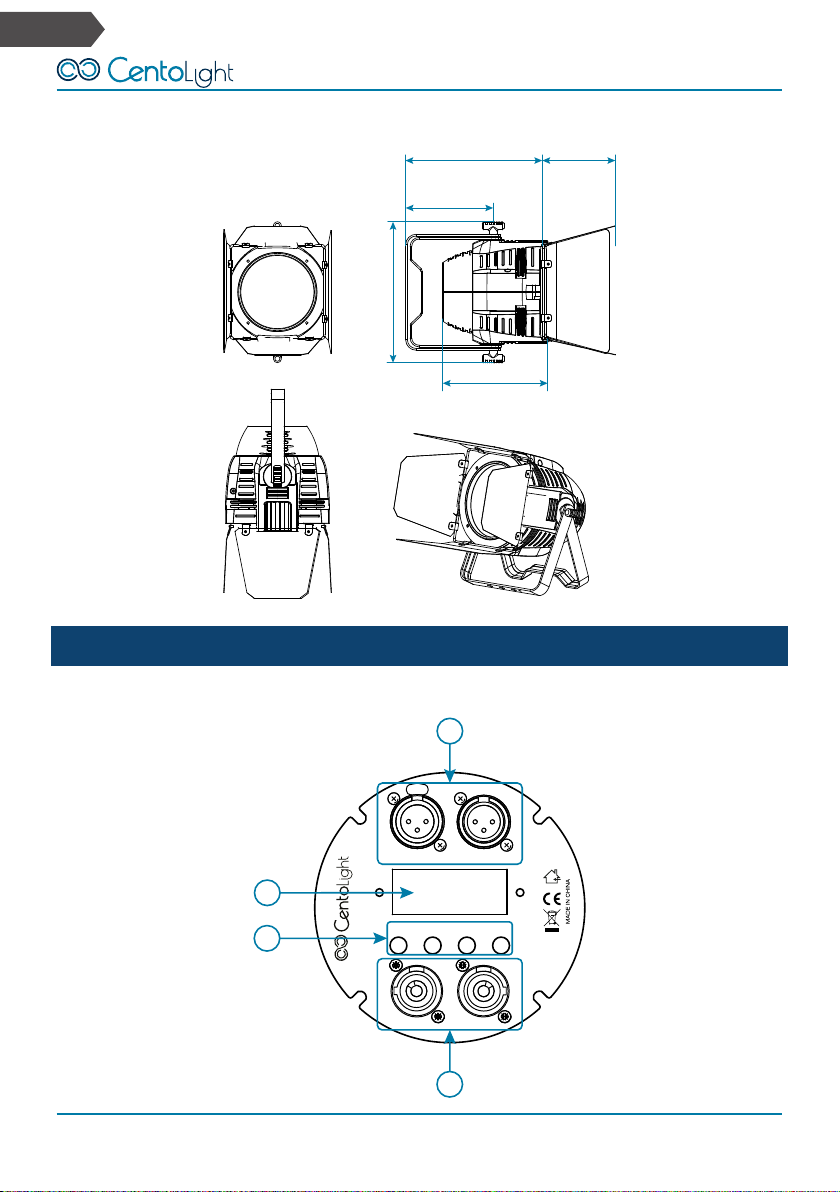

4.2.Product Dimensions
194mm
(7.64”)
310mm (12.04”)
max.
175mm
(6.9”)
234mm (9.21”)
313mm (12.32”)
5 - ProduCT seTuP
5.1. Rear Panel Description
SCENIC COB-200W
POWER IN
POWER OUT
DMX IN DMX OUT
DOWN ENTERUPMENU
Imported by:
FRENEXPORT SPA
www.frenexport.com
AC100~240V
50/60Hz
2
1
4
3

99
SCENIC COB-200W User Manual
Eng
The operation panel includes 2x8 characters LCD display and control button opera-
tion area.
1) LED Display
It shows the operating mode and all system information. Read “6 - Menu Operation”
on page 12 for details on all menus.
2) Control Buttons
MENU Button - Short-press it to switch the setting pages.
UP Button - It scrolls up individual items in the selection menu and sub-menus for
system settings (DMX address, Operation Mode, etc.), and increases values/settings
of parameters.
DOWN Button - It scrolls down individual items in the selection menu and sub-
menus for system settings (DMX address, Operation Mode, etc.), and increases
values/settings of parameters.
ENTER Button - Press ENTER to access menu levels and confirm parameter value
changes.

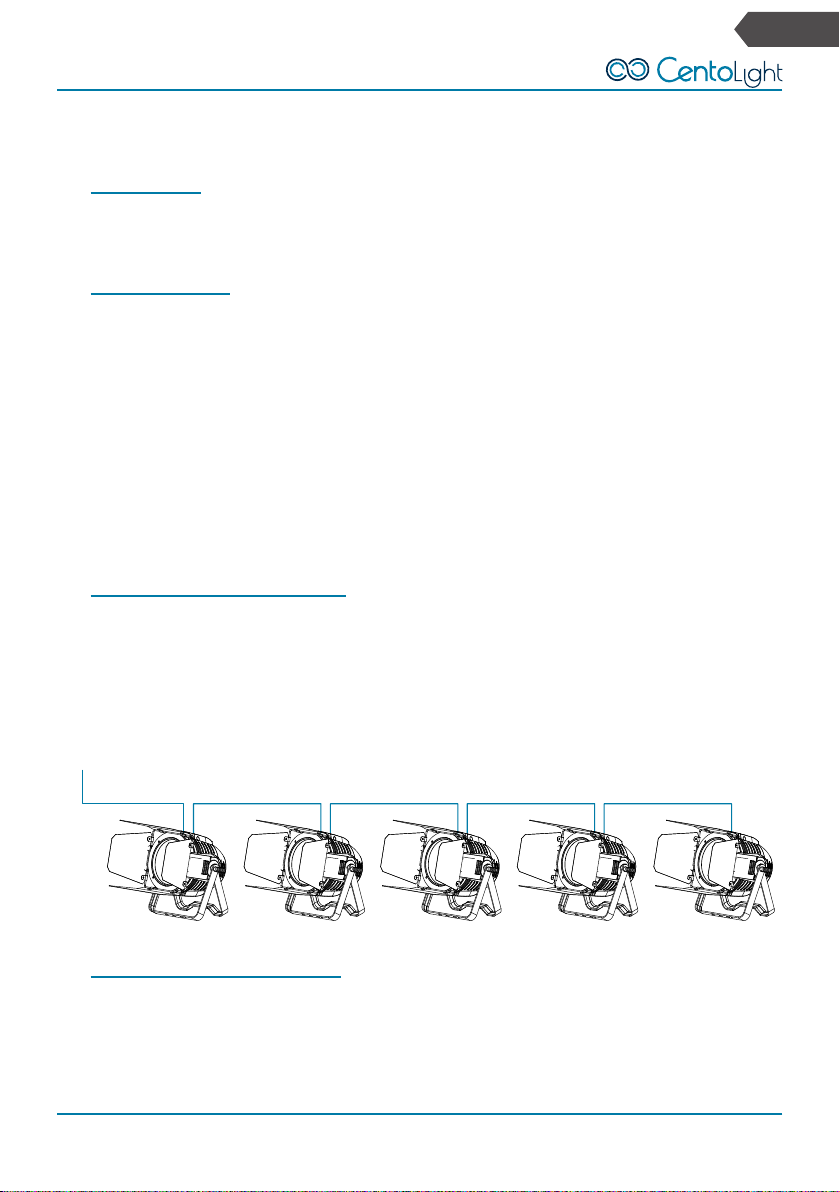

3) Power Input/Output Sockets
Plug the power-cord included with SCENIC COB-200W into an AC socket proper-
ly configured for this fixture. Please read “5.2. About Power Connection” on page
10 for details. This fixture is also equipped with an output power connector to be
used as power mains source in case of cascade connection up to a maximum of 5
fixtures.
1st Unit 5th Unit 4th Unit3rd Unit2nd Unit
Power Input
100-240Vac - 50/60Hz
4) DMX Input/Output Sockets
DMX Input is a 3-pin male XLR socket for connection to a DMX control device. DMX
output is a3-pin female socket for sending the DMX control signal to other units.
Please read “5.3. About Dmx Connection” on page 10 for details on how to man-
age DMX connections.

1010
SCENIC COB-200W User Manual
Eng
5.2. About Power Connection
yAlways make sure that the voltage of the outlet you are connecting the product
to is within the range stated in paragraph “9 - Specification” on page 16 or
rear panel of the product (AC110V-240V 50/60Hz).
yMake sure the power cord is not crimped or damaged. Never connect this prod-
uct to a dimmer pack or rheostat.
yNever disconnect the product from power cord by pulling or tugging on the cord.
yTo avoid electric shock, all fixtures must be connected to circuits with a suitable
ground and circuit breaker.
yWire correspondence is as follows:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
Earth must be connected! Always pay attention to safety! Before taking into
operation for the rst time, the installation has to be approved by an expert.
5.3. About Dmx Connection
When use a DMX controller, please make sure that there is no interference
sources (e.g. intercom, high frequency radio waves and radiation source).
DMX machines are designed to receive data through a serial Daisy Chain. A Daisy
Chain connection is where the DATA OUT of one fixture connects to the DATA IN of
the next fixture. The order in which the machines are connected is not important
and has no effect on how a controller communicates to each of them. Use an order
that provides for the easiest and most direct cabling.
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect machines using shielded 2-conductor twisted pair cable with 3-pin XLR

1111
SCENIC COB-200W User Manual
Eng
male to female connectors. The shield connection is pin 1, while pin 2 is Data Nega-
tive (S-), and pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the x-
tures will not work at all, or will not work properly.

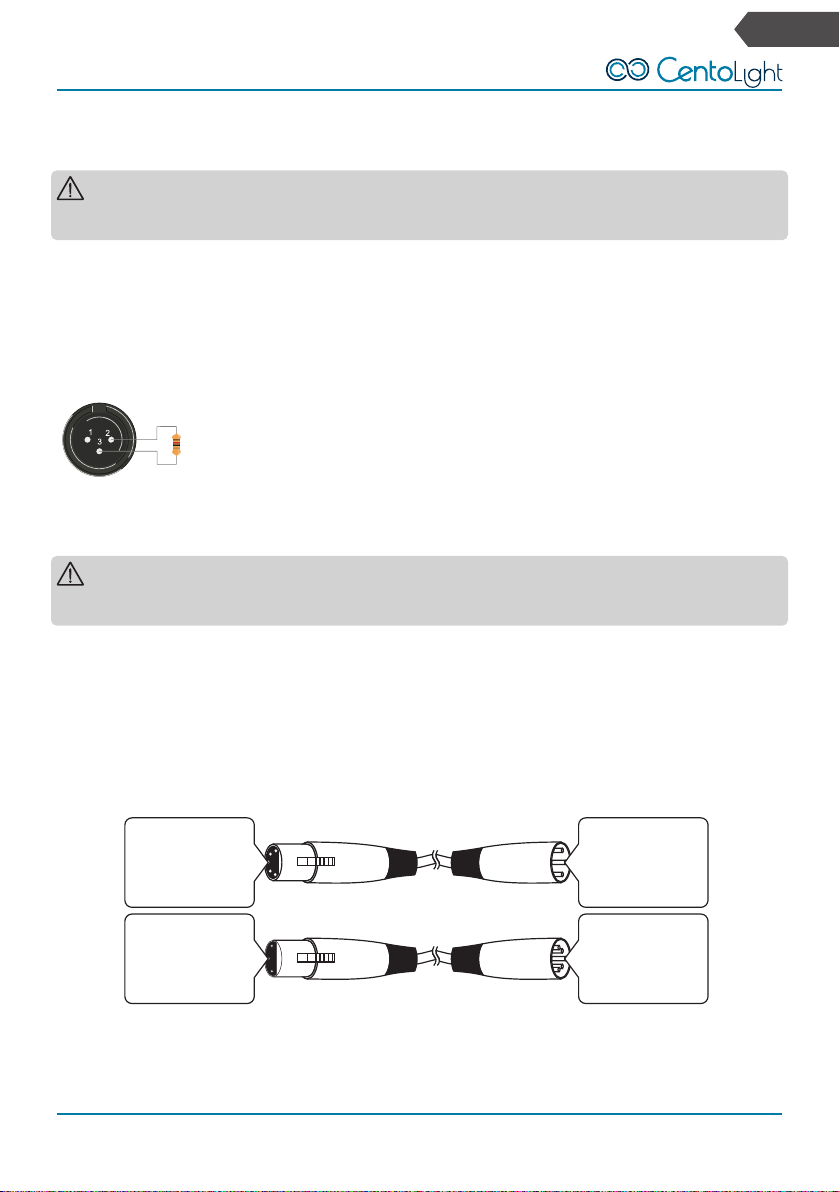

5.4.DMX Terminator
120ohm, 1/4W
Resistor
DMX Terminator
DMX is a resilient communication protocol, however errors still
occasionally occur. In order to prevent electrical noise from dis-
turbing and corrupting the DMX control signals, a good habit is to
connect DMX output of last fixture in the chain to a DMX termina-
tor, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω
(ohm), 1/4 Watt resistor connected across Signal (-) and Signal (+),
respectively, pins 2 and 3, which is then plugged into the output
socket on last projector in the chain. The connections are illustrat-
ed below.
Complimentary signal cable can transmit signals to 20-unit xtures at most.
Signal amplier is a must to connect more xtures.
5.5. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and fixtures manufacturers are not
standardized around the world. However, two are the most common standards:
5-Pin XLR and 3-Pin XLR system. If you wish to connect this fixture to a 5-Pin XLR in-
put fixture, you need to use an adapter-cable or make it by yourself. Below you can
see the wiring correspondence between 3-Pin and 5-Pin plug and socket standards
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)

1212
SCENIC COB-200W User Manual
Eng
6 - Menu oPeraTion
By pressing MENU button, the display will cycle through 11 menus. Press ENTER but-
ton to enter the corresponding menu, press UP or DOWN to modify current parame-
ter value. Then, press ENTER button again to save current value.
No. MENU Function Description
1 H001 – H512 DMX512 address
setting (6CH Mode)
It ranges from 1 to 512. Press UP and DOWN keys
to adjust address; press ENTER to confirm.
2A001 – A512 DMX512 address
setting (4CH Mode)
It ranges from 1 to 255. Press UP and DOWN keys
to adjust brightness; press ENTER to confirm.
3 d001 – d512 DMX512 address
setting (2CH Mode)
It ranges from 1 to 512. Press UP and DOWN keys
to adjust address; press ENTER to confirm.
4 CL01-CL03
White Color Com-
bination (100%
dimmer)
CL01=Warm White; CL02= Cool White; CL03=W-
W+CW
5 CC00-CC15
WW - CW – WW+CW
alternate Jump
Effects
It ranges from 00 to 15 with different jump speed.
Press UP and DOWN keys to choose preset; press
ENTER to confirm.
6 dE00-dE15
WW - CW – WW+CW
alternate Fade
Effects
It ranges from 00 to 15 with different fade speed.
Press UP and DOWN keys to choose preset; press
ENTER to confirm.
7 CP00-CP15
WW - CW – WW+CW
alternate Jump/Fade
Effects
It ranges from 00 to 15 with different jump/fade
speed. Press UP and DOWN keys to choose pre-
set; press ENTER to confirm.
8 u000 – u255 WW brightness man-
ual control
It ranges from 0 to 255. Press UP and DOWN
keys to adjust brightness; press ENTER to con-
firm.
9 C000 – C255 CW brightness manu-
al control
It ranges from 0 to 255. Press UP and DOWN
keys to adjust brightness; press ENTER to con-
firm.
10 F000 – F255 Strobe Speed manual
control
It ranges from 1Hz to 20Hz. Values range from
0 to 255. Press UP and DOWN keys to adjust
speed, then press ENTER to confirm.
11 SoUd Sound Mode
It activates sound mode. The fixture changes
between CW, WW and CW+WW modes accord-
ing to sound level.
6.1. Setting the DMX Address
When selecting a starting DMX address, always consider the number of DMX chan-
nels. If you choose a starting address that is too high, you could restrict the access
to some of the product channels. SCENIC COB-200W uses 6, 4 and 2 DMX channel
modes, which defines the highest configurable address, respectively, to 505, 509
and 511 to have all channels controllable. This allows you to control of up to 84 units
in the 6-ch, 128 units in the 4-ch, and 256 units in the 2-channel mode.

1313
SCENIC COB-200W User Manual
Eng
6.2. DMX Channel Assignments and Values
When use DMX control, the system can take 2, 4 or 6 channels. Below you can see
the channel assignments for each mode.
1) 6 Channel Chart (H001-H512)
CHANNEL FUNCTION DESCRIPTION
Channel 1 Global Dimmer 0-255: Warm/Cool White dimming, from Dark to Bright.
Channel 2 Warm-White Dimmer 0-255: Warm White dimming, from Dark to Bright.
Channel 3 Cool-White Dimmer 0-255: Cool White dimming, from Dark to Bright.
Channel 4 WW+CW Strobe 0-255: Strobo speed adjustment
Channel 5 Effects
0-50: Blank
51-100: Jump change;
101-150: Gradual change;
151-200: Pulse change;
201-255: Sound
Channel 6 Effect Speed 0-255: Speed 0% - 100%
2) 4 Channel Chart (A001-A512)
CHANNEL FUNCTION DESCRIPTION
Channel 1 Global Dimmer 0-255: Warm/Cool White dimming, from Dark to Bright.
Channel 2 Warm-White Dimmer 0-255: Warm White dimming, from Dark to Bright.
Channel 3 Cool-White Dimmer 0-255: Cool White dimming, from Dark to Bright.
Channel 4 WW+CW Strobe 0-255: Strobo speed adjustment
3) 2 Channel Chart (d001-d512)
CHANNEL FUNCTION DESCRIPTION
Channel 1 Warm-White Dimmer 0-255: Warm White dimming, from Dark to Bright.
Channel 2 Cool-White Dimmer 0-255: Cool White dimming, from Dark to Bright.
NOTE: Under DMX condition, without a DMX controller and in daisy-chain
connection of multiple units (read paragraph “5.2. About Power Connection” on
page 10 to see how to make), you can achieve the Master-Slave mode. It
means that the rst machine of the chain controls all the other xtures, and
they follow the master one. Of course, both master and slaves must be set on
same DMX address.

1414
SCENIC COB-200W User Manual
Eng
7 - lux CharTs
1) Lux Chart (3200K)
CCT: 3200K
Distance 5m3m 10m
395 184 51Lux
60°
2) Lux Chart (6400K)
CCT: 6400K
Distance 5m3m 10m
492 221 55Lux
60°
3) Lux Chart (3200+6400K)
CCT: 3200+6400K
Distance 5m3m 10m
890 348 105Lux
60°

1515
SCENIC COB-200W User Manual
Eng
8 - TroubleshooTing
Problem Probable Cause(s) Remedy
No response from fixture
when power is applied No power to fixture Check power cables
Check mains plug
Fixture does not reset
correctly Electronic failure Contact service technician*
No light, LED cuts out
intermittently, or burns out
too quickly
LED missing or blown Disconnect fixture and replace
the LED
Fixture or LED is too hot
Allow fixture to cool. If prob-
lem persists, contact service
technician*
Fixture resets but does
not respond correctly to
controller (DMX mode
operation)
Controller not connected Connect controller
Incorrect addressing of the
fixtures
Check address setting on fixture
and controller
Bad data link connection
Inspect cables and correct poor
connections and/or broken
cables.
Conflict between tracking
and vector control
Eliminate scene cross-fade on
controller
Data link not terminated Insert termination plug in output
of last fixture**
Defective fixture on 2 devices
transmitting on link
Bypass fixtures one at a time
until normal operation is
regained: unplug both connec-
tors and connect them directly
together
* To contact CentoLight service, see “10 - Warranty And Service” on page 17 or visit www.centolight.com
** For instruction on how to install a DMX terminator, see “5.4. DMX Terminator” on page 11.

1616
SCENIC COB-200W User Manual
Eng
9 - sPeCifiCaTion
Light Source 200W Warm-Cool White COB LED (100W+100W)
Chip Life over 50,000h
CCT (Color Temperature) 3200K + 6400K
Luminous Flux (3200K+6400K 2in1) 888lux @ 3m, 347lux @ 5m, 104lux @ 10m
CRI Ra≥90
Dimmer Control Freq. over 15kHz (Flicker-Free)
Beam Angle 60°
Dimmer 16-Bit Smooth Linear Dimming
Strobe effect Yes
Cooling System Quite Fan (under 25dB @1m)
DMX Channel Modes 2/4/6 Channels (RDM Included)
Control Modes DMX, Master-Slave, Sound, Auto Run, Manual Dimming
Control Panel 4 Buttons and LED Display
IP Rate IP22
DMX In/Out 3-pin XLR
Power Socket Powercon In/Out
Voltage: 100~240V 50/60Hz
Max Power Consump-
tion 230W
Working Temperature -30÷55°C
Barndoor Included
Fixture Size (WxDxH) 234x313x290mm – 9.21x12.32x11.42in (C-Bracket and barndoor not
included)
Net Weight 4kg – 8.81 lbs.
Packing Size (WxDxH) 250x250x370mm – 9.84x9.84x14.57in
Packing Weight 4,6kg – 10.14 lbs.
Note: Our products are subject to a process of continual further development. Therefore modifications to
the technical features remain subject to change without further notice.

1717
SCENIC COB-200W User Manual
Eng
10 - WarranTy and serviCe
All CENTOLIGHT products feature a limited two-year warranty. This two-year
warranty starts from the date of purchase, as shown on your purchase receipt. The
following cases/components are not covered by this warranty:
Any accessories supplied with the product
yImproper use
yFault due to wear and tear
yAny modification of the product effected by the user or a third party
CENTOLIGHT shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at CENTOLIGHT’s discretion either by repairing
or exchanging individual parts or the entire appliance. Any defective parts removed
from a product during the course of a warranty claim shall become the property of
CENTOLIGHT.
While under warranty, defective products may be returned to your local CENTOLI-
GHT dealer together with the original proof of purchase. To avoid any damages in
transit, please use the original packaging if available. Alternatively, you can send
the product to CENTOLIGHT SERVICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto
Recanati - Italy. In order to send a product to service center, you need an RMA num-
ber. Shipping charges have to be covered by the owner of the product.
For further information please visit www.centolight.com

1818
SCENIC COB-200W User Manual
Eng
11 - Warning
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste,
according to the WEEE Directive (2012/19/UE) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized
one-for-one basis when you buy a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environ-
ment and human health due to potentially hazardous substances that are generally associ-
ated with EEE. At the same time, your cooperation in the correct disposal of this product will
contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city office, waste authority, approved WEEE scheme or your household
waste disposal service.

1919
Manuale Utente SCENIC COB-200W
Ita
soMMario
1 - Prima Di Iniziare 20
1.1. Cosa è Incluso - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
1.2. Istruzioni per il Disimballaggio - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
1.3. Accessori - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
1.4. Limiti di Responsabilità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
2 - Istruzioni di Sicurezza 21
2.1. Significato dei simboli - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
3 - Installazione Sospesa 21
3.1. Installazione Sospesa - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
3.2. Acqua / Umidità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
3.3. Calore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
3.4. Manutenzione - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
4 - Introduzione 23
4.1. Caratteristiche - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 23
4.2. Dimensioni del Prodotto- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
5 - Setup del prodotto 24
5.1. Descrizione del Pannello Posteriore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
5.2. Connessioni di Rete- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
5.3. Connessioni DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
5.4. Terminatore DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
5.5. Cavi DMX 3-Poli/5-Poli- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
6 - Funzionamento dei Menu 27
6.1. Impostazione dell’indirizzo DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
6.2. Assegnazioni e valori dei canali DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 28
7 - Graco Dei Lux 30
8 - Risoluzione dei Problemi 31
9 - Speciche Tecniche 32
10 - Garanzia e Assistenza 33
11 - Avviso UE e SEE (Norvegia, Islanda, Liechtenstein) 34

2020
Manuale Utente SCENIC COB-200W
Ita
1 - PriMa diiniziare
Grazie per aver acquistato SCENIC COB-200W. Prima di iniziare, assicuratevi di leg-
gere attentamente questo manuale! Il presente manuale fornisce una panoramica
dei controlli e informazioni sul loro utilizzo.
1.1. Cosa è Incluso
La confezione include:
y1x Par CENTOLIGHT SCENIC COB-200W
y1X Cavo di Rete da 1.2m (47in circa) con connettore Powercon e Europlug
y1x Cavo da 1,5m (59in circa) DMX XLR 3pin Maschio - XLR 3-pin Femmina
yQuesto Manuale d’uso
ATTENZIONE: La confezione non è un giocattolo! Tenere fuori dalla portata dei
bambini! Conservare in un luogo sicuro il materiale di imballaggio originale.
1.2. Istruzioni per il Disimballaggio
Tirare fuori dall’imballo il prodotto con attenzione e controllare il cartone per assi-
curarsi che tutte le parti siano nella confezione e siano in buone condizioni. Se la
confezione o il contenuto (il prodotto e gli accessori inclusi) risultano danneggiati
dalla spedizione o mostrano segni di maltrattamento, avvisare immediatamente il
vettore o il rivenditore. Inoltre, conservare la scatola e il contenuto per una eventua-
le ispezione.
Se l’apparecchiatura dovesse essere restituita al produttore, è importante che
venga riportata o spedita nell’imballo originale del produttore. Si prega di non
intraprendere alcuna azione senza prima contattare il proprio rivenditore o aver
contattato il nostro servizio di assistenza post-vendita (visitare www.centolight.com
per i dettagli).
1.3. Accessori
CENTOLIGHT offre un’ampia gamma di accessori di qualità che è possibile utiliz-
zare con la serie SCENIC, come cavi, splitter, controller DMX, materiali di consumo e
un’ampia gamma di altri fari. Chiedete al vostro rivenditore CENTOLIGHT o visitate il
sito www.centolight.com. Tutti i prodotti sono stati testati a lungo con questo dispo-
sitivo, quindi ti consigliamo di utilizzare accessori e ricambi originali CENTOLIGHT.
1.4. Limiti di Responsabilità
Le informazioni e le specifiche in questo manuale sono soggette a modifiche senza
preavviso. CENTOLIGHT non si assume alcuna responsabilità per eventuali errori od
omissioni e si riserva il diritto di rivedere questo manuale in qualsiasi momento.
Copyright© 2021 CENTOLIGHT. Tutti i diritti riservati.
