CentoLight Plot 200FZ User manual

Carefully read this manual and properly take care of it
Leggete questo manuale e conservatelo per future consultazioni
User Manual
Manuale Utente
Fresnel Light with 200W COB LED and Motorized Zoom
Faro Fresnel con LED COB da 200W e Zoom Motorizzato
ENG
ITA
Plot 200FZPlot 200FZ

22
Dear customer,
First of all thanks for purchasing a CENTOLIGHT® product. Our mission is to satisfy
all possible needs of light designers and professionals of entertainment lighting, by
offering a wide range of products based on the latest technologies.
We hope you will be satisfied with this fixture and, if you want to collaborate, we
are looking for a feedback from you about product operation and possible im-
provements to be introduced in the next future. Go to our website www.centolight.
com and send an e-mail with your opinion; this will help us to build equipment ever
closer to professional’s real requirements.
The CENTOLIGHT Team
Gentile Cliente,
Grazie per aver scelto un prodotto CENTOLIGHT®. La nostra missione è quella di
soddisfare ogni possibile richiesta da parte di light designers e professionisti dell’il-
luminotecnica per l’intrattenimento, offrendo una vasta gamma di apparecchiature
basate su tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collaborare, sarem-
mo lieti di ricevere un vostro feedback sulla qualità del prodotto al fine di migliorare
costantemente la nostra produzione. Visitate il nostro sito www.centolight.com ed
inviateci una mail con la vostra opinione; questo ci aiuterà a sviluppare nuovi pro-
dotti quanto più vicini alle vostre esigenze.
Il Team CENTOLIGHT

33
Eng
Table of ConTenTs
1 - Before you Begin 4
1.1. What is included- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.2. Unpacking Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.3. Accessories - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
1.4. Disclaimer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4
2 - Safety Instructions 5
2.1. Symbols Meaning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5
3 - Mounting and Rigging 5
3.1. Rigging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.2. Water / Moisture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.3. Heat - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
3.4. Servicing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4 - Introduction 7
4.1. Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7
4.2. Product Dimensions and Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
5 - Product Setup 8
5.1. Rear Panel Description- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 8
5.2. About Power Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
5.3. About Dmx Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 10
5.4. DMX Terminator - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
5.5. 3-Pin vs 5-Pin DMX cables - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11
6 - Menu Operation 12
6.1. Setting the DMX Address - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12
6.2. DMX Channel Assignments and Values - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 12

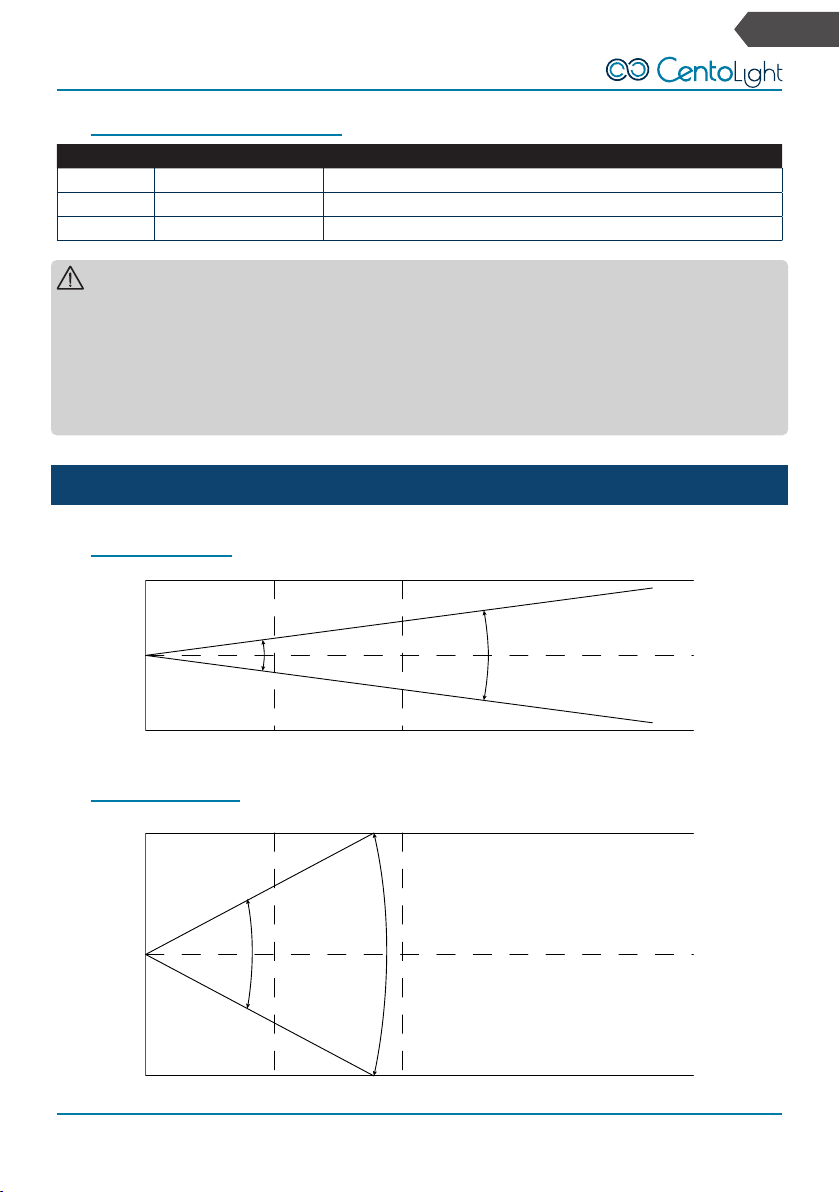

7 - Lux Chart 13
8 - Troubleshooting 14
9 - Specication 15
10 - Warranty And Service 16
11 - Warning 16

44
PLOT 200FZ User Manual
Eng
1 - before you begin
Thank you for purchasing PLOT 200FZ. Enjoy your new equipment and make sure
to read this manual carefully before operation! This user manual is made to provide
both an overview of controls, as well as information on how to use them.
1.1. What is included
Package include:
y1x CENTOLIGHT PLOT 200FZ Fresnel Light
y1x 1.5m (59in ca.) Powercon to Europlug power cable
y1x Powercon Connector (Grey, for mains link)
y1X 1.5m (59in ca.) DMX Cable 3-pin XLR-M to 3-pin XLR-F
yThis User Manual
ATTENTION: Packaging bag is not a toy! Keep out of reach of children!!! Keep in
a safe place the original packaging material for future use.
1.2. Unpacking Instructions
Carefully unpack the product immediately and check the content to make sure all
the parts are in the package and are in good condition. If the box or the contents
(the product and included accessories) appear damaged from shipping, or show
signs of mishandling, notify the carrier or dealer/seller immediately. In addition, keep
the box and contents for inspection. If the fixture must be returned to the manufac-
turer, it is important that it is returned in the original manufacturer box and packing.
Please do not take any action without first contacting your dealer or getting in
touch with our after-sales support service (visit www.centolight.com for details).
1.3. Accessories
CENTOLIGHT can supply a wide range of quality accessories that you can use with
your PLOT Series equipment, like Cables, Splitters, DMX controllers, and a wide
range of other fixtures. Ask your CENTOLIGHT dealer or check out our website www.
centolight.com. All products in our catalogue has been long tested with this device,
so we recommend you to use Genuine CENTOLIGHT Accessories and Parts.
1.4. Disclaimer
The information and specifications contained in this Manual are subject to change
without notice. CENTOLIGHT assumes no responsibility or liability for any errors or
omissions and reserves the right to revise or to create this manual at any time.
Copyright© 2021 CENTOLIGHT. All rights reserved.

55
PLOT 200FZ User Manual
Eng
2 - safeTy insTruCTions
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions

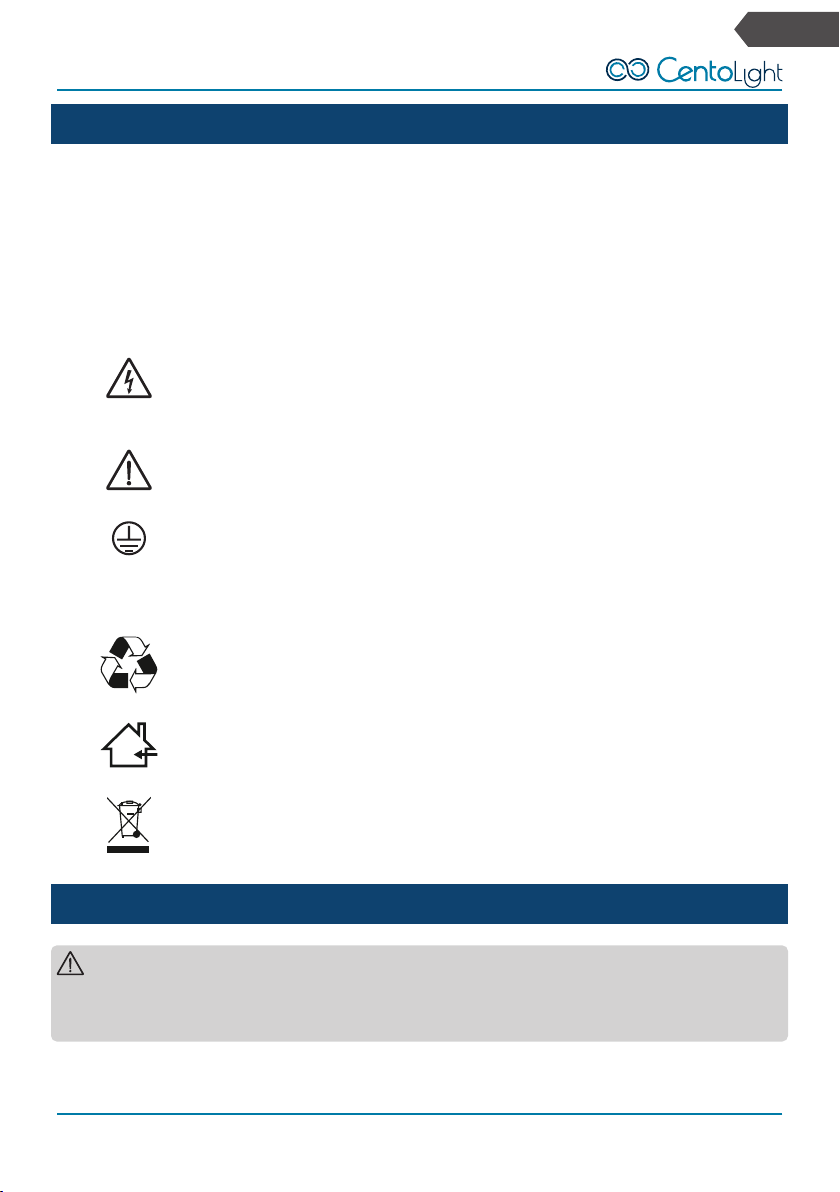

2.1. Symbols Meaning
The symbol is used to indicate that some hazardous live termi-
nals are involved within this apparatus, even under the normal
operating conditions, which may be sufficient to constitute the
risk of electric shock or death.
The symbol is used to describe important installation or config-
uration problems. Not following advice and information on how
to avoid such problems may lead to product malfunction.
This symbol indicates a protective grounding terminal.
WARNING: Describes precautions that should be observed to prevent the
danger of injury or death to the operator.
To protect the environment, please try to recycle packing materi-
al and exhausted consumables as much as possible.
This symbol indicates that the fixture is intended to indoor use
only. Keep the machine dry and do not expose to rain and mois-
ture.
Don’t throw this product away just as general trash, please deal
with the product follow the abandon electronic product regula-
tion in your country.
3 - MounTing and rigging
Pay attention to safety! Please respectively consider the EN 60598-2-17 and the
national standard during the installation. Only authorized technicians can carry
out the installation.

66
PLOT 200FZ User Manual
Eng
3.1. Rigging
yThe installation of the fixture has to be built and constructed in a way that it
can hold 10 times the weight for 1 hour without any harming demolition. The
installation must always be secured with a secondary safety attachment, e.g. an
appropriate catch net. This secondary safety attachment must be constructed in
a way that no part of the installation can fall down if the main attachment fails.
yWhen rigging, de-rigging or servicing the fixture staying in the area below the
installation place, on bridges, under high working places and other endangered
areas is forbidden. The operator has to make sure that the safety measure and
the machine’s technical installation is approved by an expert before taking into
operation for the first time and after changes before taking into operation an-
ther time. He has also to make sure that an expert approves safety measure and
the machine’s technical installation once a years.
IMPORTANT: Overhead rigging requires extensive experience, including (but not
limited to) calculating working load limits, installation material being used, and
periodic safety inspection of all installation material and the projector. If you
lack these qualications, do not attempt the installation yourself, but instead
use a professional structural rigger. Improper installation can result in bodily
injury or property loss.
yIf the fixture shall be lowered from the ceiling or high joists, professional trussing
systems have to be used. The fixture must never be fixed swinging freely in the
room.
CAUTION: Use appropriate clamps to rig the xture on the truss. Make sure that
the device is xed properly! Ensure that the structure (truss) to which you are
attaching the xtures is secure.
3.2. Water / Moisture
yThe product is for indoor use. In order to prevent risk of fire or electric shock, do
not expose to rain or moisture
yThe unit can not be used near water; for example near a bathtub, a kitchen sink,
a swimming pool, etc.
3.3. Heat
yDo not use in a confined space. Always install the product in a location with
adequate ventilation, at least 20in (50 cm) from adjacent surfaces. Be sure that
no ventilation slots on the product’s housing are blocked.

77
PLOT 200FZ User Manual
Eng
yThe apparatus should be located away from heat sources such as radiators,
stoves or other appliances that produce heat.
Do not use it when maximum ambient temperature is higher than 50°C. Work
temperature ranges from -30÷55 °C (-22÷171 °F).
3.4.Servicing
yDo not implement any servicing other than those means described in the man-
ual. Refer all servicing to qualified service personnel only. The internal compo-
nents of the equipment must be purchased from the manufacturer. Only use
accessories/attachments or parts recommended by the manufacturer.
4 - inTroduCTion
Centolight PLOT 200FZ is a COB LED Fresnel Light with adjustable light beam from
15° and 50° via motorized zoom. It is designed to satisfy all those applications
where warm-white light (3,200K) and excellent color rendering are required, espe-
cially in indoor venues like TV studios (flicker-free operation), theaters and others.
Low noise is guaranteed by the quality of cooling fan and as well as the internal
processor that allows the best balance between LED temperature and fan noise,
always within 20dB @ 1m. The fixture is equipped with rotatable barndoor.
4.1. Features
yLED Fresnel Light with 15°-50° Motorized Zoom
y200W Warm-White COB LED with over 50,000h lifetime
y3200K Color Temperature
yØ130mm (5.1in) Fresnel Lens
yZoom Range from 15° to 50°
y2430-832lux/5m (15°-50°) Luminous Flux
yCRI 90
ySmooth 16-bit Dimmer
yFlicker-Free Operation
yLow-Noise Cooling System
yRotatable Barndoor Included

88
PLOT 200FZ User Manual
Eng

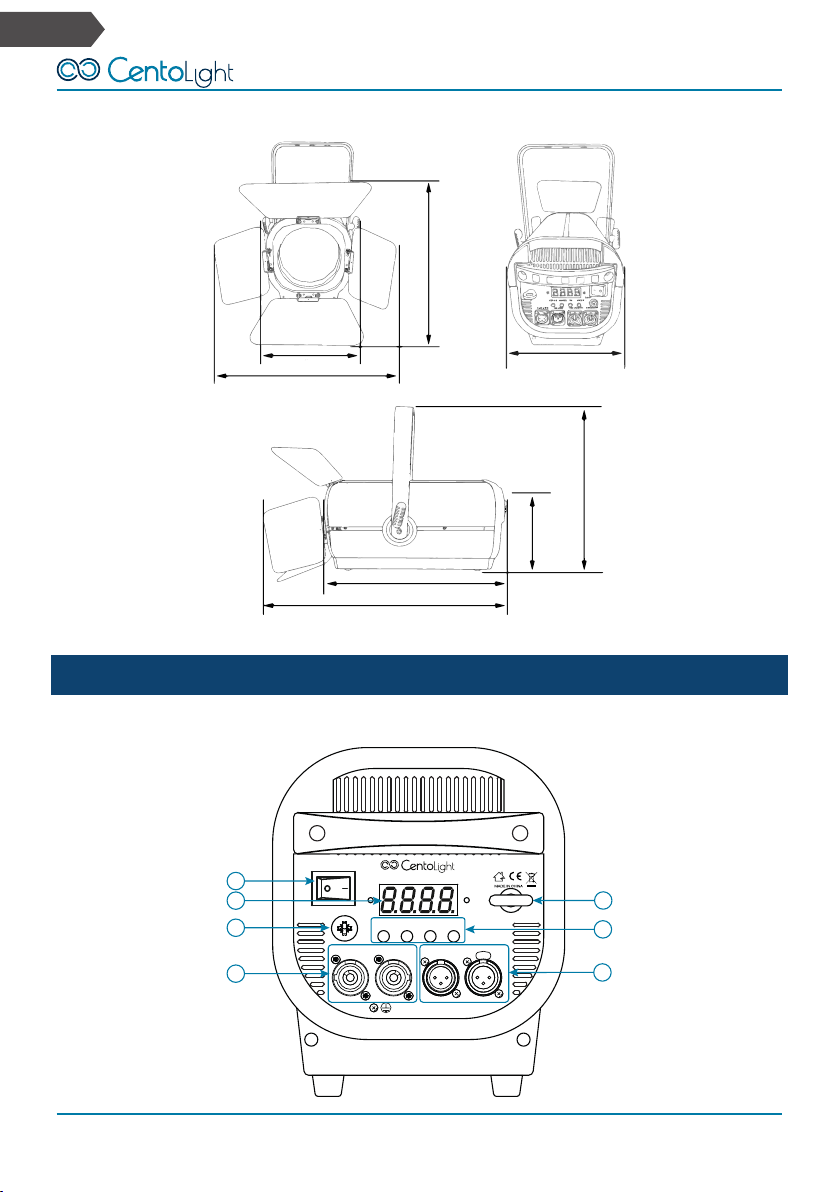

4.2.Product Dimensions and Overview
187mm (7.36”)
280mm (11.02”)
Max. 400mm (15.75”)
400mm (15.75”)
540mm (21.26”)
Max. 420mm (16.53”)
390mm (15.35”)
220mm
(8.66”)
5 - ProduCT seTuP
5.1. Rear Panel Description
PLOT 200FZ
POWER IN POWER OUT DMX IN DMX OUT
DOWN ENTERUP
MENU
OFF ON
Imported by:
FRENEXPORT SPA
Porto Recanati (Italy)
www.frenexport.com
AC100~240V
50/60Hz
3
45
6
7
1
2

99
PLOT 200FZ User Manual
Eng
The operation panel includes Connectors, security eye-bolt, 4-digit LED display and
control buttons.
1) Power On/O
It switches on and off the unit.
2) LED Display
It shows the operating mode and all system information. Read “6 - Menu Operation”
on page 12 for details on all menus.
3) Fuse Holder
Fuse holder with F5AL/250 V fuse (5x20mm). In case of fuse burn, to prevent the risk
of fire and damaging the unit, please replace only with fuse of same value.
4) Power Input/Output Sockets
Plug the power-cord included with PLOT 200FZ into an AC socket properly config-
ured for this fixture. Please read “5.2. About Power Connection” on page 10 for
details. This fixture is also equipped with an output power connector to be used as
power mains source in case of cascade connection up to a maximum of 5 fix-
tures.
5) DMX Input/Output Sockets
DMX Input is a 3-pin male XLR socket for connection to a DMX control device. DMX
output is a3-pin female socket for sending the DMX control signal to other units.
Please read “5.3. About Dmx Connection” on page 10 for details on how to man-
age DMX connections.
6) Control Buttons
MENU Button - Short-press it to switch the setting pages.
UP Button - It scrolls up individual items in the selection menu and sub-menus for
system settings (DMX address, Operation Mode, etc.), and increases values/settings
of parameters.
DOWN Button - It scrolls down individual items in the selection menu and sub-
menus for system settings (DMX address, Operation Mode, etc.), and increases
values/settings of parameters.
ENTER Button - Press ENTER to access menu levels and confirm parameter value
changes.

1010
PLOT 200FZ User Manual
Eng
7) Security Eye-Bolt
In case of rigging, hook a safety cable here. This eye-bolt is intended as a second-
ary safety attachment, to prevent damages in the event of fall down if the main
attachment (C-Bracket) fails.
5.2. About Power Connection
yAlways make sure that the voltage of the outlet you are connecting the product
to is within the range stated in paragraph “9 - Specification” on page 15 or
rear panel of the product (AC110V-240V 50/60Hz).
yMake sure the power cord is not crimped or damaged. Never connect this prod-
uct to a dimmer pack or rheostat.
yNever disconnect the product from power cord by pulling or tugging on the cord.
yTo avoid electric shock, all fixtures must be connected to circuits with a suitable
ground and circuit breaker.
yWire correspondence is as follows:
Cable (EU) Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
Earth must be connected! Always pay attention to safety! Before taking into
operation for the rst time, the installation has to be approved by an expert.
5.3. About Dmx Connection
When use a DMX controller, please make sure that there is no interference
sources (e.g. intercom, high frequency radio waves and radiation source).
DMX machines are designed to receive data through a serial Daisy Chain. A Daisy
Chain connection is where the DATA OUT of one fixture connects to the DATA IN of
the next fixture. The order in which the machines are connected is not important
and has no effect on how a controller communicates to each of them. Use an order
that provides for the easiest and most direct cabling.

1111
PLOT 200FZ User Manual
Eng
3-Pin XLR
Pin 1: GND
Pin 2: DMX -
Pin 3: DMX +
OUTPUTINPUT
DMX use of 3-Pin XLR Connectors
DMX Termonator
Unit 1 Unit 2 Last Unit
DMX 512
Connect machines using shielded 2-conductor twisted pair cable with 3-pin XLR
male to female connectors. The shield connection is pin 1, while pin 2 is Data Nega-
tive (S-), and pin 3 is Data positive (S+).
CAUTION: Wires must not come into contact with each other; otherwise the x-
tures will not work at all, or will not work properly.
5.4.DMX Terminator
120ohm, 1/4W
Resistor
DMX Terminator
DMX is a resilient communication protocol, however errors still
occasionally occur. In order to prevent electrical noise from dis-
turbing and corrupting the DMX control signals, a good habit is to
connect DMX output of last fixture in the chain to a DMX termina-
tor, especially over long signal cable runs.
The DMX terminator is simply an XLR connector with a 120Ω
(ohm), 1/4 Watt resistor connected across Signal (-) and Signal (+),
respectively, pins 2 and 3, which is then plugged into the output
socket on last projector in the chain. The connections are illustrat-
ed below.
Complimentary signal cable can transmit signals to 20 unit xtures at most.
Signal amplier is a must to connect more xtures.
5.5. 3-Pin vs 5-Pin DMX cables
DMX connection protocols used by controllers and fixtures manufacturers are not
standardized around the world. However, two are the most common standards:
5-Pin XLR and 3-Pin XLR system. If you wish to connect this fixture to a 5-Pin XLR in-
put fixture, you need to use an adapter-cable or make it by yourself. Below you can
see the wiring correspondence between 3-Pin and 5-Pin plug and socket standards

1212
PLOT 200FZ User Manual
Eng
5-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-Pins XLR (socket)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-Pins XLR (plug)
Pin 1: GND (Screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
6 - Menu oPeraTion
By pressing MENU button, the display will cycle through 8 menus. Press ENTER but-
ton to enter the corresponding menu, press UP or DOWN to modify current parame-
ter value. Then, press ENTER button again to save current value.
No. MENU Function Description
1A001 – A512 DMX512 address set-
ting (3-Ch Mode)
It ranges from 1 to 512. Press UP and DOWN
keys to adjust address; press ENTER to confirm.
2 3CH-2CH DMX512 Channel
Mode Selection
You can choose between 2CH and 3CH mode.
Press UP and DOWN keys to adjust address;
press ENTER to confirm.
3 o000 – o255 Manual Dimmer It ranges from 0 to 255. Press UP and DOWN
keys to adjust address; press ENTER to confirm.
4 t000-t255 Manual Zoom It ranges from 0 to 255. Press UP and DOWN
keys to adjust address; press ENTER to confirm.
6.1. Setting the DMX Address
When selecting a starting DMX address, always consider the number of DMX chan-
nels. If you choose a starting address that is too high, you could restrict the access
to some of the product channels. PLOT 200FZ uses 2 or 3 DMX channels, which
defines the highest configurable address, respectively, to 511 or 508 to have all
channels controllable. This allows you to control of up to 256 units in the 2-channel
control mode, or 170 units in the 3-channel mode.
6.2. DMX Channel Assignments and Values
Below you can see both the 2-channel and 3-channel DMX assignments.
1) 2-ch DMX512 Channel Chart
CHANNEL FUNCTION DESCRIPTION
Channel 1 Dimmer 0-255: Total dimming linear dimming , from Dark to Bright.
Channel 2 Zoom 0-255: Zoom adjustment

1313
PLOT 200FZ User Manual
Eng
2) 3-ch DMX512 Channel Chart
CHANNEL FUNCTION DESCRIPTION
Channel 1 Dimmer 0-255: Total dimming linear dimming , from Dark to Bright.
Channel 2 Strobo 0-255: Strobo speed adjustment
Channel 3 Zoom 0-255: Zoom adjustment
NOTE: Under DMX condition, without a DMX controller and in daisy-chain
connection of multiple Proles (read paragraph “5.2. About Power Connection”
on page 10 to see how to make), you can achieve the Master-Slave mode.
It means that the rst machine of the chain controls all the other xtures, and
they follow the master one. Of course, both master and slaves must be set on
same DMX address.
7 - lux CharT
1) Lux Chart at 15°
Distance 5m 10m
2430 585Lux
15° 15°
2) Lux Chart at 50°
Distance 5m 10m
832 218Lux
50° 50°

1414
PLOT 200FZ User Manual
Eng
8 - TroubleshooTing
Problem Probable Cause(s) Remedy
No response from fixture
when power is applied No power to fixture Check power cables
Check mains plug
Fixture does not reset
correctly Electronic failure Contact service technician*
No light, LED cuts out
intermittently, or burns out
too quickly
LED missing or blown Disconnect fixture and replace
the LED
Fixture or LED is too hot
Allow fixture to cool. If prob-
lem persists, contact service
technician*
Fixture resets but does
not respond correctly to
controller (DMX mode
operation)
Controller not connected Connect controller
Incorrect addressing of the
fixtures
Check address setting on fixture
and controller
Bad data link connection
Inspect cables and correct poor
connections and/or broken
cables.
Conflict between tracking
and vector control
Eliminate scene cross-fade on
controller
Data link not terminated Insert termination plug in output
of last fixture**
Defective fixture on 2 devices
transmitting on link
Bypass fixtures one at a time
until normal operation is
regained: unplug both connec-
tors and connect them directly
together
* To contact CentoLight service, see “10 - Warranty And Service” on page 16 or visit www.centolight.com
** For instruction on how to install a DMX terminator, see “5.4. DMX Terminator” on page 11.

1515
PLOT 200FZ User Manual
Eng
9 - sPeCifiCaTion
Light Source 1x200W Warm-White COB LED
Zoom Motorized from 15° to 50° (DMX or Manually Controlled)
Chip Life Over 50,000h
Fresnel Lens Ø130mm (5.1in)
CCT (Color Temperature) 3100±150K
Luminous Flux 2430 (15°) / 832 (50°) lux @ 5m, 585 (15°) / 218 (50°) lux @ 10m
CRI Ra≥90
Flicker-Free LED frequency over 15.000Hz
Beam Angle 15°-50°
Lens Material High-Quality Glass Fresnel Lens
Dimmer 16-Bit Smooth Linear Dimming
Strobe effect Yes
Cooling System Quite Fan (under 25dB @1m) + Copper Tube
DMX Channel Modes 2/3 Channels (RDM Included)
Control Modes DMX, Strobo, Master-Slave, Manual Dimming
Control Panel 4 Buttons and LED Display
IP rate IP20
DMX In/Out 3-pin XLR
Power Socket Powercon In/Out
Voltage 100~240V 50/60Hz
Fuse F5AL/250V (5x20mm)
Max Power Consumption 220W
Working Temperature -30÷55 °C (-22÷171 °F)
Barndoor Rotatable Barndoor (Included)
Fixture Size (WxDxH) 400x187x220 mm – 17.75x7.36x8.66 in (only fixture, without barn-
door and C-Bracket)
Net Weight 6,6kg – 14.55 lbs.
Packing Size (WxDxH) 540x280x280 mm – 21.26x11.02x11.02 in
Packing Weight 7,6kg – 16.75 lbs.
Note: Our products are subject to a process of continual further development. Therefore modifications to
the technical features remain subject to change without further notice.

1616
PLOT 200FZ User Manual
Eng
10 - WarranTy and serviCe
All CENTOLIGHT products feature a limited two-year warranty. This two-year warranty starts
from the date of purchase, as shown on your purchase receipt. The following cases/compo-
nents are not covered by this warranty:
yAny accessories supplied with the product
yImproper use
yFault due to wear and tear
yAny modification of the product effected by the user or a third party
CENTOLIGHT shall satisfy the warranty obligations by remedying any material or manufac-
turing faults free of charge at CENTOLIGHT’s discretion either by repairing or exchanging
individual parts or the entire appliance. Any defective parts removed from a product during
the course of a warranty claim shall become the property of CENTOLIGHT.
While under warranty, defective products may be returned to your local CENTOLIGHT dealer
together with the original proof of purchase. To avoid any damages in transit, please use the
original packaging if available. Alternatively, you can send the product to CENTOLIGHT SER-
VICE CENTER – Via Enzo Ferrari, 10 – 62017 Porto Recanati - Italy. In order to send a product to
service center, you need an RMA number. Shipping charges have to be covered by the owner
of the product.
For further information please visit www.centolight.com
11 - Warning
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liechtenstein) only
This symbol indicates that this product is not to be disposed of with your household waste,
according to the WEEE Directive (2012/19/UE) and your national law.
This product should be handed over to a designated collection point, e.g., on an authorized
one-for-one basis when you buy a new similar product or to an authorized collection site for
recycling waste electrical and electronic equipment (WEEE).
Improper handling of this type of waste could have a possible negative impact on the environ-
ment and human health due to potentially hazardous substances that are generally associ-
ated with EEE. At the same time, your cooperation in the correct disposal of this product will
contribute to the effective usage of natural resources.
For more information about where you can drop off your waste equipment for recycling, please
contact your local city office, waste authority, approved WEEE scheme or your household
waste disposal service.

1717
Manuale Utente PLOT 200FZ
Ita
soMMario
1 - Prima Di Iniziare 18
1.1. Cosa è Incluso - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
1.2. Istruzioni per il Disimballaggio - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
1.3. Accessori - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
1.4. Limiti di Responsabilità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
2 - Istruzioni di Sicurezza 19
2.1. Significato dei simboli - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 19
3 - Installazione Sospesa 19
3.1. Installazione Sospesa - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.2. Acqua / Umidità - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.3. Calore - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 20
3.4. Manutenzione - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
4 - Introduzione 21
4.1. Caratteristiche - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
4.2. Dimensioni e Panoramica del Prodotto- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
5 - Setup del prodotto 22
5.1. Descrizione del pannello posteriore- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
5.2. Connessioni di Rete- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
5.3. Connessioni DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 24
5.4. Terminatore DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
5.5. Cavi DMX 3-Poli/5-Poli- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
6 - Funzionamento dei Menu 26
6.1. Impostazione dell’indirizzo DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
6.2. Assegnazioni e valori dei canali DMX - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
7 - Graco Dei Lux 27
8 - Risoluzione dei Problemi 28
9 - Speciche Tecniche 29
10 - Garanzia e Assistenza 30
11 - Avviso UE e SEE (Norvegia, Islanda, Liechtenstein) 30

1818
Manuale Utente PLOT 200FZ
Ita
1 - PriMa diiniziare
Grazie per aver acquistato PLOT 200FZ. Prima di iniziare, assicuratevi di leggere
attentamente questo manuale! Il presente manuale fornisce una panoramica dei
controlli e informazioni sul loro utilizzo.
1.1. Cosa è Incluso
La confezione include:
y1x Faro CENTOLIGHT PLOT 200FZ
y1X Cavo di Rete da 1.5m (59in circa) con connettore Powercon e Europlug
y1X Connettore di Rete Powercon (Grigio)
y1x Cavo da 1,5m (59in circa) DMX XLR 3pin Maschio - XLR 3-pin Femmina
yQuesto Manuale d’uso
ATTENZIONE: La confezione non è un giocattolo! Tenere fuori dalla portata dei
bambini! Conservare in un luogo sicuro il materiale di imballaggio originale.
1.2. Istruzioni per il Disimballaggio
Tirare fuori dall’imballo il prodotto con attenzione, controllare il cartone per assi-
curarsi che tutte le parti siano nella confezione e siano in buone condizioni. Se la
confezione o il contenuto (il prodotto e gli accessori inclusi) risultano danneggiati
dalla spedizione o mostrano segni di maltrattamento, avvisare immediatamente il
vettore o il rivenditore. Inoltre, conservare la scatola e il contenuto per una even-
tuale ispezione. Se il prodotto dovesse essere restituito al produttore, è importante
farlo nell’imballo originale. Si prega di non intraprendere alcuna azione senza prima
contattare il rivenditore o il nostro servizio di assistenza (visitare www.centolight.
com per i dettagli).
1.3. Accessori
CENTOLIGHT fornisce un’ampia gamma di accessori di qualità che è possibile uti-
lizzare con le apparecchiature della serie PLOT, come cavi, splitter, controller DMX,
materiali di consumo e un’ampia gamma di altri fari. Chiedete al vostro rivenditore
CENTOLIGHT o visitate il nostro sito web www.centolight.com. Tutti i prodotti nel no-
stro catalogo sono stati testati a lungo con questo dispositivo, quindi ti consigliamo
di utilizzare accessori e ricambi originali CENTOLIGHT.
1.4. Limiti di Responsabilità
Le informazioni e le specifiche contenute in questo manuale utente sono soggette
a modifiche senza preavviso. CENTOLIGHT non si assume alcuna responsabilità per
eventuali errori od omissioni e si riserva il diritto di rivedere o creare questo manua-
le in qualsiasi momento.

1919
Manuale Utente PLOT 200FZ
Ita
Copyright© 2021 CENTOLIGHT. Tutti i diritti riservati.
2 - isTruzioni di siCurezza
yLeggete queste istruzioni
yConservate queste istruzioni
yPrestate attenzione a tutti gli avvertimenti
ySeguite tutte le istruzioni
2.1. Signicato dei simboli
Questo simbolo viene utilizzato per indicare che all’interno di
questo apparecchio sono presenti terminali sotto tensione, anche
in condizioni operative normali, che possono essere sufficienti a
costituire il rischio di scosse elettriche o morte.
Questo simbolo è usato per descrivere importanti problemi di
installazione o configurazione. Il mancato rispetto dei consigli e
delle informazioni su come evitare tali problemi può portare al
malfunzionamento del prodotto.
Questo simbolo indica un terminale di messa a terra.
ATTENZIONE Descrive precauzioni da osservare per prevenire lesioni o morte
dell’operatore.
Per proteggere l’ambiente, cercare di riciclare il più possibile il ma-
teriale di imballaggio e i materiali di consumo esauriti
Questo simbolo indica che il dispositivo può essere usato solo
all’interno. Tenere asciutto il faro e non esporre a pioggia e umidi-
tà
Non gettare questo prodotto come spazzatura generica, conferire
il prodotto seguendo le normative sui rifiuti elettronici in vigore nel
vostro paese.
3 - insTallazione sosPesa
Prestare attenzione alla sicurezza! Si prega di fare sempre riferimento alla
direttiva EN 60598-2-17 e agli standard nazionali in fase di installazione. Solo
personale autorizzato può eseguire l’installazione.

2020
Manuale Utente PLOT 200FZ
Ita
3.1. Installazione Sospesa
yL’installazione del dispositivo deve essere progettata e costruita in un modo che
possa sopportare 10 volte il peso per 1 ora, senza alcun cedimento o danneg-
giamento della struttura. L’installazione deve essere sempre protetta con un
dispositivo di sicurezza secondario, ad esempio un cavo di sicurezza. Questo di-
spositivo deve essere realizzato in un modo tale che nessuna parte del prodotto
possa cadere se il fissaggio principale cedesse.
yDurante le operazioni di montaggio, smontaggio o manutenzione del faro è
vietato consentire lo stazionamento o anche solo il passaggio nell’area sotto-
stante l’installazione. L’operatore deve assicurarsi che l’installazione e i sistemi
di sicurezza siano approvati da un esperto prima di avviare per la prima volta il
funzionamento dopo aver apportato qualsiasi modifica. Deve inoltre assicurarsi
che un esperto approvi nuovamente l’installazione e i dispositivi di sicurezza
ogni anno.
IMPORTANTE: il montaggio su strutture sospese richiede un’esperienza specica;
tra cui (ma non soltanto) il calcolo dei limiti di carico di lavoro, la scelta del
materiale di installazione e l’ispezione periodica del proiettore e dei dispositivi
di sicurezza. Se non si dispone di tali qualiche, è bene non procedere con l’in-
stallazione da soli, ma si consiglia di rivolgersi a professionisti specializzati.
L’installazione impropria può provocare lesioni personali anche molto gravi.
ySe il faro deve essere alzato verso/o abbassato dal soffitto o da travi sospese,
è consigliabile usare sistemi di tralicci professionali. L’apparecchio non deve mai
essere lasciato oscillare liberamente.
ATTENZIONE: utilizzare i morsetti appropriati per montare l’apparecchio sul
traliccio. Assicurarsi che il dispositivo sia ssato correttamente e che il traliccio
stesso sia sicuro.
3.2. Acqua / Umidità
yIl prodotto è per uso interno. Al fine di prevenire il rischio di incendio o scosse
elettriche, non esporre a pioggia o umidità
yL’unità non può essere utilizzata vicino all’acqua; ad esempio vicino a una vasca
da bagno, un lavello da cucina, una piscina, ecc.
3.3. Calore
yNon usare in uno spazio ristretto. Installare sempre in una posizione con un’a-
deguata ventilazione, almeno 20” (50 cm) da superfici adiacenti. Assicurarsi che
nessuna fessura di ventilazione sull’alloggiamento del prodotto sia bloccato.
