PORTABLE SODA BLASTER
65902 66742
SET UP AND OPERATING INSTRUCTIONS
Distributed exclusively by Harbor Freight Tools®.
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor
FreightTools. Diagramswithinthismanualmaynotbe drawnproportionally. Duetocontinuingimprovements,
actual product may differ slightly from the product described herein. Soda Blasters required for assembly
and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 2
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
Safety Alert Symbol and
Signal Words
In this manual, on the labeling,
and all other information provid-
ed with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using Soda Blasters,
basic precautions should always be
followed, including the following:
General
To reduce the risks of electric shock,
re, and injury to persons, read all the
instructions before using the Soda
Blaster.
Work Area
Keep the work area clean and wella. lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.
Do not operate the Soda Blaster inb. explosive atmospheres, such as in
the presence of ammable liquids,
gases, or dust. The Soda Blaster is
able to create sparks resulting in the
ignition of the dust or fumes.
Keep bystanders, children, andc. visitors away while operating the

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 3
Soda Blaster. Distractions are able
to result in the loss of control of the
Soda Blaster.
Personal Safety
Stay alert. Watch what you are do-a. ing and use common sense when
operating the Soda Blaster. Do not
use the Soda Blaster while tired or
under the inuence of drugs, al-
cohol, or medication. A moment of
inattention while operating the Soda
Blaster increases the risk of injury to
persons.
Dress properly. Do not wear looseb. clothing or jewelry. Contain long
hair. Keep hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
increases the risk of injury to persons
as a result of being caught in moving
parts.
Avoid unintentional starting. Bec. sure the switch is off before con-
necting to the air supply. Do not
carry the Soda Blaster with your
nger on the switch or connect the
Soda Blaster to the air supply with
the switch on.
Do not overreach. Keep properd. footing and balance at all times.
Proper footing and balance enables
better control of the Soda Blaster in
unexpected situations.
e. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable
conditions. Wear heavy-
duty work gloves during use.
f. Always wear eye protec-
tion. Wear ANSI-ap-
proved safety goggles.
g. Always wear hearing
protection when using
the Soda Blaster. Pro-
longed exposure to high
intensity noise is able to
cause hearing loss.
Soda Blaster Use and Care
Use clamps or another practicala. way to secure and support the
work piece to a stable platform.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
Do not force the Soda Blaster.b. Use
the correct Soda Blaster for the ap-
plication. The correct Soda Blaster
will do the job better and safer at the
rate for which the Soda Blaster is
designed.
Do not use the Soda Blaster if thec. switch does not turn the Soda
Blaster on or off. Any Soda Blaster
that cannot be controlled with the
switch is dangerous and must be
repaired.
Disconnect the Soda Blaster fromd. the air source before making any
adjustments, changing accesso-
ries, or storing the Soda Blaster.
Such preventive safety measures
reduce the risk of starting the Soda
Blaster unintentionally. Turn off and
detach the air supply, safely dis-
charge any residual air pressure, and
release the throttle and/or turn the
switch to its off position before leav-
ing the work area.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 4
Store the Soda Blaster when it ise.
idle out of reach of children and
other untrained persons. A Soda
Blaster is dangerous in the hands of
untrained users.
Maintain the Soda Blaster withf. care. A properly maintained tool re-
duces the risk of binding and is easier
to control.
Check for misalignment or bind-g. ing of moving parts, breakage of
parts, and any other condition
that affects the Soda Blaster’s
operation. If damaged, have the
Soda Blaster serviced before using.
Many accidents are caused by poorly
maintained Soda Blasters. There is a
risk of bursting if the Soda Blaster is
damaged.
Use only accessories that areh.
identied by the manufacturer for
the specic Soda Blaster model.
Use of an accessory not intended for
use with the specic Soda Blaster
model, increases the risk of injury to
persons.
Service
Soda Blaster service must bea.
performed only by qualied repair
personnel.
When servicing a Soda Blaster,b. use only identical replacement
parts. Use only authorized parts.
Air Source
a. Never connect to an air
source that is capable of
exceeding 100 psi. Over
pressurizing the Soda
Blaster may cause burst-
ing, abnormal operation, breakage of
the Soda Blaster or serious injury to
persons. Use only clean, dry, regu-
lated compressed air at the rated
pressure or within the rated pressure
range as marked on the Soda Blast-
er. Always verify prior to using the
Soda Blaster that the air source has
been adjusted to the rated air pres-
sure or within the rated air-pressure
range.
Never use oxygen, carbon dioxide,b. combustible gases or any bottled
gas as an air source for the Soda
Blaster. Such gases are capable of
explosion and serious injury to per-
sons.
The warnings and precautions dis-
cussed in this manual cannot cover
all possible conditions and situations
that may occur. It must be under-
stood by the operator that common
sense and caution are factors which
cannot be built into this product, but
must be supplied by the operator.
SAVE THESE
INSTRUCTIONS.
SYMBOLS AND
SPECIFIC SAFETY
INSTRUCTIONS
Symbol Denitions
Symbol Property or Statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
Chart continued in next column.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 5
Symbol Denitions
Symbol Property or Statement
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
eye protection.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Specic Safety Instructions
Do not use sand (crystalline silica) as1. a blasting media. See information on
following page regarding the hazards
of silica inhalation.
WARNING: This product, when used2. for abrasive blasting and similar ap-
plications, produces chemicals known
to the State of California to cause
cancer and birth defects (or other re-
productive harm). (California Health
& Safety Code § 25249.5, et seq.)
WARNING: The brass components
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-
ductive harm). (California Health &
Safety code § 25249.5, et seq.)
Only use with accessories rated to3. handle the forces exerted by this
Soda Blaster during operation. Other
accessories not designed for the
forces generated may break and
forcefully launch pieces.
Attach all accessories properly to the4. Soda Blaster before connecting the
air supply. A loose accessory may
detach or break during operation.
Obey the manual for the air compres-5. sor used to power this Soda Blaster.
Install an in-line shutoff valve to allow6. immediate control over the air supply
in an emergency, even if a hose is
ruptured.
Never point the Media Discharge7. Hose (19) and Ceramic Nozzle (21)
toward yourself or any person or
animal. Severe injury may result from
the abrasive spray.
Stand back from the item being blast-8. ed. Deected spray from the abrasive
blaster may cause injury.
Prevent overow or deected abra-9. sive spray from damaging nearby
items. Keep workplace cleared of
items which may be damaged by this
Soda Blaster.
All industrial applications of this Soda10. Blaster must meet OSHA require-
ments.
Whenever possible, test the abrasive11. blaster on a sample or inconspicu-
ous part of the work piece to prevent
damage during operation.
REV 09f

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 6
12. WARNING! Abrasive
blasting with media con-
taining crystalline silica
can cause serious or
fatal respiratory disease. Exposure
to crystalline silica may cause silico-
sis (a serious lung disease), cancer,
and death. Exposure to aluminum
oxide (a dust generated from material
removing processes) can result in
eye, skin, and breathing irritation.
Always use a NIOSH-approved
respirator, safety impact eye glasses,
and a full face shield. Avoid skin
exposure. Proper ventilation in the
work area is required.
Prohibit silica sand (or other sub-13. stances containing more than 1%
crystalline silica) as an abrasive
blasting material and substitute less
hazardous materials.
Conduct air monitoring to measure14. worker exposures.
Use containment methods such as15. blast-cleaning machines and cabinets
to control the hazard and protect ad-
jacent workers from exposure.
Practice good personal hygiene to avoid16. unnecessary exposure to silica dust.
Wear washable or disposable protec-17. tive clothes at the work site. Shower,
and change into clean clothes before
leaving the work site to prevent con-
tamination of cars, homes, and other
work areas.
Use respiratory protection when source18. controls cannot keep silica exposures
below the recommended levels.
Provide periodic medical examina-19. tions for all workers who may be
exposed to crystalline silica.
Post signs to warn workers about20. the hazard and to inform them about
required protective equipment.
Provide workers with training that21. includes information about health ef-
fects, work practices, and protective
equipment for crystalline silica.
Report all cases of silicosis to State22. health departments and to OSHA or
the Mine Safety and Health Adminis-
tration (MSHA).
SAVE THESE
INSTRUCTIONS.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 7
FUNCTIONAL DESCRIPTION
Specications
Model
65902 Model 66742
Recommended Air
Pressure Range 35-90 PSI
Maximum Air Pressure 100 PSI
Air Inlet 1/4” -18 NPT
Air Consumption @ 90 PSI 12.5
SCFM 7 SCFM
Media Capacity 10 lbs. 15 lbs.
Media Type Sodium Bicarbonate
(Baking Soda)
INITIAL SODA BLASTER
SET UP AND ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown throughout the manual as soon as
possible.
This air Soda Blaster may be• shipped with a protective plug cov-
ering the air inlet. Remove this plug
before set up.
Components and Controls
Please refer to illustrations and parts
list on pages 14-15 to identify important
components and controls of this tool.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
Soda Blaster. Do not use
oxygen, carbon dioxide,
combustible gases, or any
other bottled gas as a power
source for this Soda Blaster.

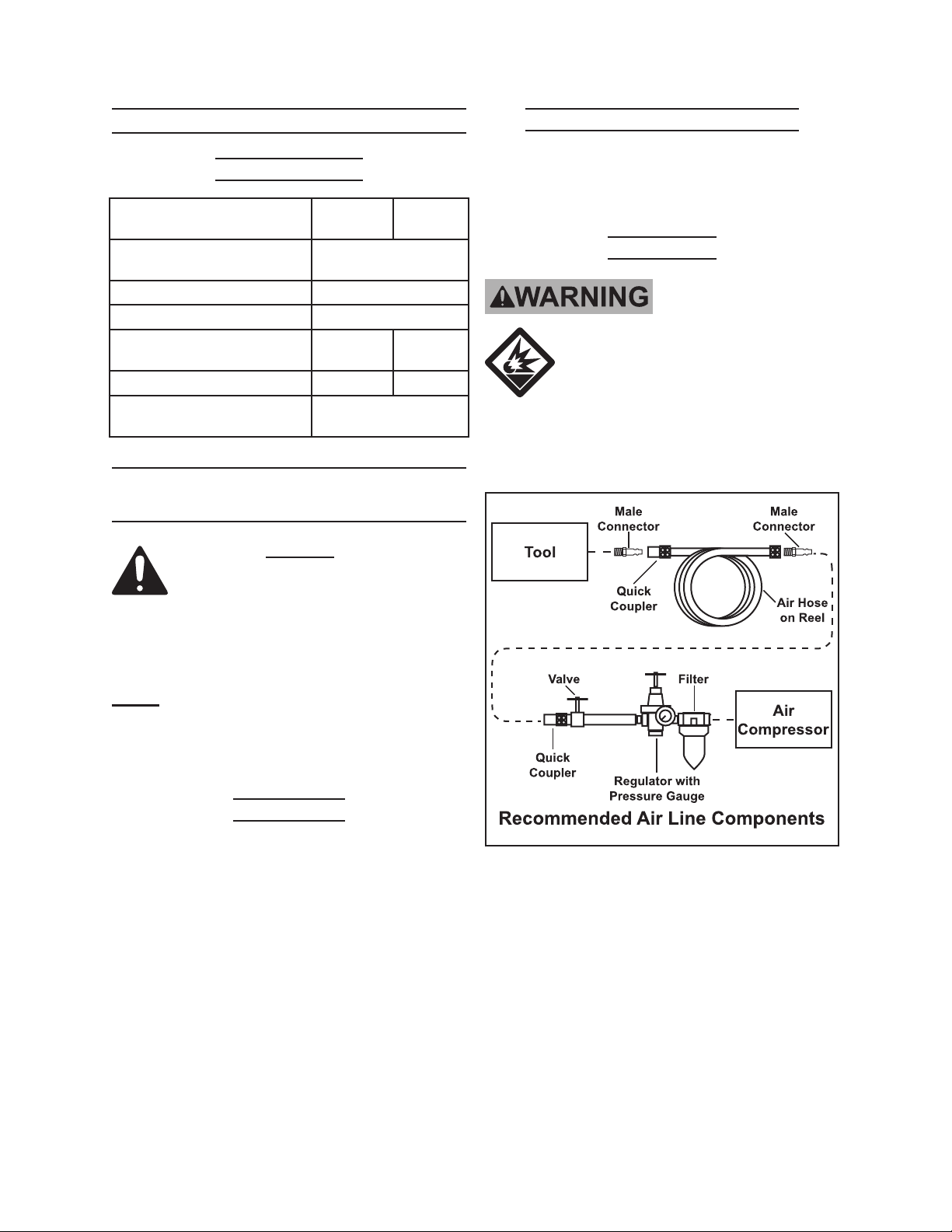

1. Incorporate an in-line lter, shut-off
valve and regulator with pressure
gauge for best service, as shown in
the diagram above. An in-line shut-
off valve is an important safety
device because it controls the air
supply even if the air hose is rup-
tured.
Attach an air hose to the compres-2. sor’s air outlet. Connect the air hose
to the Male Coupler of the Soda
REV 09e

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 8
Blaster. Note: Use of quick coupler
is recommended, but not mandatory.
Note: Air ow, and therefore Soda Blaster
performance, can be hindered by
undersized air supply components.
The air hose must be long enough3. to reach the work area with enough
extra length to allow free movement
while working.
Close the in-line safety valve be-4. tween the compressor and the Soda
Blaster.
Turn on the air compressor according5. to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
Adjust the air compressor’s output 6. regulator so that the air output is
enough to properly power the Soda
Blaster, but the output will not exceed
the Soda Blaster’s maximum air pres-
sure at any time. Adjust the pres-
sure gradually, while checking the air
output gauge to set the right pressure
range. To do so, close Air Input ON/
OFF Valve (4). Pull out on the Quick
Disconnect Safety Valve (7) to stabi-
lize air pressure in the Storage Tank
(1).
If the Soda Blaster will not be used at7. this time, turn off and detach the air
supply, safely discharge any residual
air pressure, and release the throttle
and/or turn the switch to its off posi-
tion to prevent accidental operation.
Note: Residual air pressure should not be
present after the Soda Blaster is dis-
connected from the air supply. How-
ever, it is a good safety measure to
attempt to discharge the Soda Blaster
in a safe fashion after disconnecting
to ensure that the Soda Blaster is
disconnected and unpowered.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 9
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect Soda Blaster before
use, looking for damaged,
loose, and missing parts. If any
problems are found, do not use
Soda Blaster until repaired.
Soda Blaster Set Up
Note: When setting up this
product always use thread
sealer tape at every tting to
assure leak free operation.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn off the Soda Blaster,
detach the air supply, safely
discharge any residual air
pressure in the Soda Blaster,
and release the throttle and/or
turn the switch to its off
position before performing
any inspection, maintenance,
or cleaning procedures.
TO PREVENT SERIOUS
INJURY:
Do not adjust or tamper with
any control or component in a
way not specically explained
within this manual. Improper
adjustment can result in
Soda Blaster failure or other
serious hazards.
Loading Media Into The Tank:
WARNING!1. Never service or disas-
semble the Soda Blaster with the air
hose attached. Always release any
built-up air even after disconnecting
the hose.
This portable Soda Blaster is de-2. signed to be used with Bicarbon-
ate of Soda (Baking Soda) as the
only media. Use of other media
may damage this tool.
Make sure the media used is dry to3. avoid clogging the Media Outlet Hose
(19) or Media Regulator Assembly
(15).
For SKU # 65902 pour up to 104. pounds of media into the Storage
Tank (1). For SKU # 66742 pour up
to 15 pounds of media into the Stor-
age Tank (1). You may need to use a
funnel (not included). Be sure to pour
enough into the Tank to do the job at
hand. NOTE: If this is a large job, ll
the Tank only 3/4 full and reload as
needed to nish the job.
IMPORTANT TIP:5. If the humidity
is 90 to 100%, it is recommended
to reduce the amount of media and
load more frequently. This will reduce
the possibility of clogging the bottom
of the Storage Tank (1), the Media
Outlet Hose (19), or Ceramic Nozzle
(21).
Insert the Pickup Tube (11) into the6. Storage Tank (1).
Place the O-Ring (12) onto the top of7. the Pickup Tube (11) and position the
Media Regulator Assembly (15) on
top of it.
REV 09d

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 10
Attaching the
Air Pressure Regulator Assembly
Wrap the threads of the Pressure1. Gauge (6) with thread sealer tape.
Screw the Pressure Gauge into the
opening in the face of the Air Pres-
sure Regulator (5). Tighten snugly but
do not over tighten.
Insert the stem of the Air Pressure2. Regulator (5) through the opening in
the Bracket (9). Attach the Air Pres-
sure Regulator by tightening the
Compression Nut (22). Press the Air
Pressure Regulator Control Knob
onto the stem.
Attach the Air Pressure Regulator3. Assembly to the Storage Tank (1).
Place the assembly against the Tank
Bracket (23) and x in place using
two Socket Head Cap Screws (8).
Tighten rmly.
Attaching to Air Compressor
Be sure that the Media Release ON1. OFF Valve (18) on top of the Media
Regulator Assembly (15) is in the
OFF position.
Air Hose (10) should be attached to2. Air Pressure Regulator (5) outlet and
Media Regulator Assembly (15).
Turn the Bushing (13) that is on the3. bottom of the Media Flow Control
Knob (16) onto the Hex Nut (2) that is
on top of the Storage Tank (1). Be-
ing careful to keep the O-Ring (12) in
position, tighten the Bushing (13) until
tight.
Attach the pressure line from the4. air compressor (not included) to the
Male Coupler (3).
Open the Air Input ON OFF Valve (4)5. at the air pressure inlet.
Adjust the Air Pressure Regulator (5) 6. to no more than 100 PSI. Read the
pressure on the Pressure Gauge (6),
and adjust by turning the Air Pressure
Regulator Knob (24).
Check to be sure all connections are7. tight with no leaks. Disconnect the
air supply and discharge air from
the tank before making any needed
repairs.
Direct the Ceramic Nozzle (21) on8. a piece of test material. Open the
Media Release ON OFF Valve (18) of
the Media Regulator Assembly (15).
Adjust the media ow as needed by
turning the Media Flow Control Knob
(16). Turning this knob clockwise in-
creases media ow, counterclockwise
reduces ow.
You can also adjust the impact power 9.
of the media by adjusting the air
pressure. Do this by adjusting the Air
Pressure Regulator Knob (24). Do
not exceed 100 PSI.
Work Piece and Work Area Set Up
Designate a work area that is clean1. and well-lit. The work area must not
allow access by children or pets to
prevent injury and distraction.
Route the air hose along a safe route2. to reach the work area without creat-
ing a tripping hazard or exposing the
air hose to possible damage. The air
hose must be long enough to reach
the work area with enough extra
length to allow free movement while
working.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 11
Secure loose work pieces using a3. vise or clamps (not included) to pre-
vent movement while working.
There must not be hazardous ob-4.
jects (such as utility lines or foreign
objects) nearby that will present a
hazard while working.
There will be considerable excess5. blasting medium left in the work area.
Contain it and clean it up.
General Operating Instructions
WARNING: Do not hold the work1. piece in hand while blasting it. You
may seriously injure yourself.
If possible, place the work piece2. inside a sandblast cabinet. Other-
wise, isolate the work piece to make
sure no damage can occur to nearby
walls, tools, personal property, etc.
CAUTION: Make sure spectators are
completely clear of the work area
before beginning work.
Turn the Air Input ON OFF Valve (4)3. at the Air Pressure Regulator (5) to
the ON position.
Grip the Media Outlet Hose (19) and4.
Ceramic Nozzle (21) rmly. Turn the
Media Release ON OFF Valve (18) of
the Media Regulator Assembly (15) to
the ON position to release the media.
NOTE: The ow rate of the media
may be irregular when rst started.
Provided the media is dry, the ow
rate will become normal in approxi-
mately one minute.
Spray the abrasive media onto the5. work material, moving the gun from
side to side.
Adjust Media Flow Control Knob (16) 6. to increase or decrease the media
ow rate.
Adjust the Air Pressure Regulator (5) 7.
to trim the total air ow and pressure
at the Ceramic Nozzle (21). Do not
set the pressure higher than 100 PSI.
If the Soda Blaster requires more8. force to accomplish the task, verify
that the Soda Blaster receives
sufcient, unobstructed airow (CFM)
and increase the pressure (PSI)
output of the regulator up to the
maximum air pressure rating of this
Soda Blaster.
CAUTION! TO PREVENT SODA
BLASTER AND ACCESSORY
FAILURE, RESULTING IN INJURY:
Do not exceed the Soda Blaster’s
maximum air pressure rating.
If the Soda Blaster still does not have
sufcient force at maximum pressure
and sufcient airow, then a larger
Soda Blaster may be required.
If excessive air pressure is used,9. or the Media Regulator Assembly
(15) becomes clogged, the Safety
Valve (17) may open, releasing air
pressure. Shut OFF the Air Input
ON OFF Valve (4). Adjust the Air
Pressure Regulator (5) to below
100 PSI. Press the stem of the
Safety Valve (17) back in to reset
the valve. Turn the Air Input ON OFF
Valve (4) back on. If the problem
happens again, detach the air supply
and clean out the Media Regulator
Assembly (15) and Media Outlet
Hose (19).
To prevent accidents, turn off the10. Soda Blaster, detach the air sup-
ply, safely discharge any residual air

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 12
pressure in the Soda Blaster, and
release the throttle and/or turn the
switch to its off position after use.
Clean external surfaces of the Soda
Blaster with clean, dry cloth, and
apply a thin coat of Soda Blaster oil.
Then store the Soda Blaster indoors
out of children’s reach.
When work is completed, release the11. trigger to stop blasting. Turn off the air
pressure supply. Clean up all materi-
als and store your Soda Blaster safely
and securely.
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM
ACCIDENTAL OPERATION:
Turn off the Soda Blaster,
detach the air supply, safely
discharge any residual air
pressure in the Soda Blaster,
and release the throttle and/or
turn the switch to its off
position before performing
any inspection, maintenance,
or cleaning procedures.
TO PREVENT SERIOUS
INJURY FROM SODA
BLASTER FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
Cleaning and Maintenance
Note: These procedures are in addition to
the regular checks and maintenance
explained as part of the regular
operation of the air-operated Soda
Blaster.
Daily - Air Supply Maintenance:1. Every day, perform maintenance on
the air supply according to the com-
ponent manufacturers’ instructions.
Performing routine maintenance on
the air supply will allow the Soda
Blaster to operate more safely and
will also reduce wear on the Soda
Blaster.
Separated moisture from supplied2. air will automatically drip from bot-
tom of the lter. At the end of each
project/daily, pull down on the bibbed
outlet underneath the lter. This will
allow discharge of possibility trapped
small particles. If the valve gets
stuck or debris and moisture remain
trapped in the cup, noting orienta-
tion of the cup, push in the red lock
release and twist and remove the
lter. Clean the cup and valve and
re-attach.
Quarterly (every 3 months) - Soda3. Blaster Disassembly, Cleaning,
and Inspection:
Have the internal mechanism cleaned
and inspected, by a qualied techni-
cian.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 13
Troubleshooting
Problem Possible Causes Likely Solutions
Decreased output. Not enough air pressure and/1.
or air ow.
Loose air ttings.2.
Mechanism contaminated.3.
Check for loose connections and make1. sure that air supply is providing enough air
ow (CFM) at required pressure (PSI) to
the Soda Blaster’s air inlet. Do not exceed
maximum air pressure.
Tighten the ttings.2.
Have qualied technician clean and lubricate 3.
mechanism and clean the air lter.
Severe air
leakage.
(Slight air leakage
is normal,
especially on
older Soda
Blasters.)
Cross-threaded housing1. components.
Loose housing.2.
Damaged valve or housing.3.
Dirty, worn or damaged valve.4.
Check for incorrect alignment and uneven1. gaps. If cross-threaded, disassemble and
replace damaged parts before use.
Tighten housing assembly. If housing cannot2. tighten properly, internal parts may be
misaligned.
Replace damaged components.3.
Clean or replace valve assembly.4.
Follow all safety precautions whenever diagnosing or servicing the
Soda Blaster. Disconnect air supply before service.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 14
PARTS LIST
Part Description Qty
1 Storage Tank 1
2 Hex Nut 1
3 Male Coupler 1/4” 1
4 Air Input ON OFF Valve M/F 1/4”
x 3/8” 1
5 Air Pressure Regulator 1
6 Pressure Gauge 1MPa-1/4” 1
7 Quick Disconnect Safety Valve
SPC 10-03 1
8 Socket Head Cap Screws
M6 x 10 2
9 Bracket 1
10 Air Hose 350mm 1
11 Pickup Tube 1
PARTS LIST
Part Description Qty
12 O-Ring M16 x 2 1
13 Bushing 1
14 Quick Release Fitting SPC 10-02 1
15 Media Regulator Assembly 1
16 Media Flow Control Knob 1
17 Safety Valve DZB062 1/4 inch 1
18 Media Release ON OFF Valve
M/F 1/4 1
19 Media Outlet Hose 1
20 Nozzle Coupler 1
21 Ceramic Nozzle 1
22 Compression Nut 1
23 Tank Bracket 1
24 Air Pressure Regulator Knob 1
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND
ASSEMBLY DIAGRAM IN THIS MANUALAS A REFERENCE SODA BLASTER ONLY. NEITHER THE
MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY
KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT,
OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS
REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND
NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR
HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING
OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 15
Air Input ON OFF Valve (4)
Pressure Gauge (6)
Media Regulator Assembly (15)
Media Flow Control Knob (16)
Safety Valve (17)
Ceramic Nozzle (21)
Bushing (13)
Air Pressure Regulator (5)
COMPONENTS AND CONTROLS
OF THE PORTABLE SODA BLASTER
Hex Nut (2)
Nozzle Coupler (20)
Storage Tank (1)
O-Ring (12)
Media Outlet Hose (19) Media Release
ON OFF Valve (18)
Air Hose (10)
Compression Nut (22)
Quick Disconnect
Safety Valve(7)
Male Coupler (3)
Tank Bracket (23)
Socket Head Cap
Screw (8)
Bracket (9)
Air Pressure Regulator
Knob (24)
Pickup Tube (11)
not shown
ASSEMBLY DIAGRAM
Quick Release (14)

SKU 65902/66742 For technical questions, please call 1-800-444-3353. Page 16
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
LIMITED 1 YEAR WARRANTY
Harbor Freight Tools Co. makes every effort to assure that its products meet high
quality and durability standards, and warrants to the original purchaser that this product
is free from defects in materials and workmanship for the period of one year from the
date of purchase (90 days if used by a professional contractor or if used as rental equip-
ment). This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, normal wear
and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages
arising from the use of our product. Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation of exclusion may not ap-
ply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection veries the defect, we will ei-
ther repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return re-
paired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights
which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
