Charder Ms 5900 User manual

Manufacturer’s Declaration of Conformity

This product has been manufactured in accordance with

the harmonized European standards, following the

provisions of the below stated directives:

93/42/EEC as amended by 2007/47/EC

Medical Device Directive

2014/31/EU

Non-

automatic Weighing Instruments

Directive

Please see separate document showing on sticker of device for

above CE marking.

Authorized EU Representative:

Manufactured by:

Charder Electronic Co., Ltd.

No.103, Guozhong Rd., Dali Dist.,

Taichung City 412 ,Taiwan (R.O.C.)

FDA no.: D072479

IN-1002 [10110I] 06/2016

MS 5900

Medical Scale

USER MANUAL

Please keep the instruction manual at hand all the time for future reference.

TABLE OF CONTENTS

TABLE OF CONTENTS .......................................................................... 1

PREFACE................................................................................................. 2

GENERAL INFORMATION .................................................................... 2

SAFETY INSTRUCTION ........................................................................ 2

ENVIROMENTAL ................................................................................... 3

CLEANING.............................................................................................. 3

MAINTENANCE ..................................................................................... 3

WEIGHING OPERATION ....................................................................... 3

WARRANTY-LIABILITY........................................................................ 4

DISPOSING OF THE SCALE.................................................................. 4

EXPLANATION OF THE GRAPHIC SYMBOLS.................................... 5

EMC GUIDANCE AND MANUFACTURER’S DECLARATION ........... 7

SPECIFICATIONS ................................................................................. 12

POWER ADAPTOR STANDARDS ....................................................... 13

POWER SUPPLY & LOW BATTERY.................................................... 14

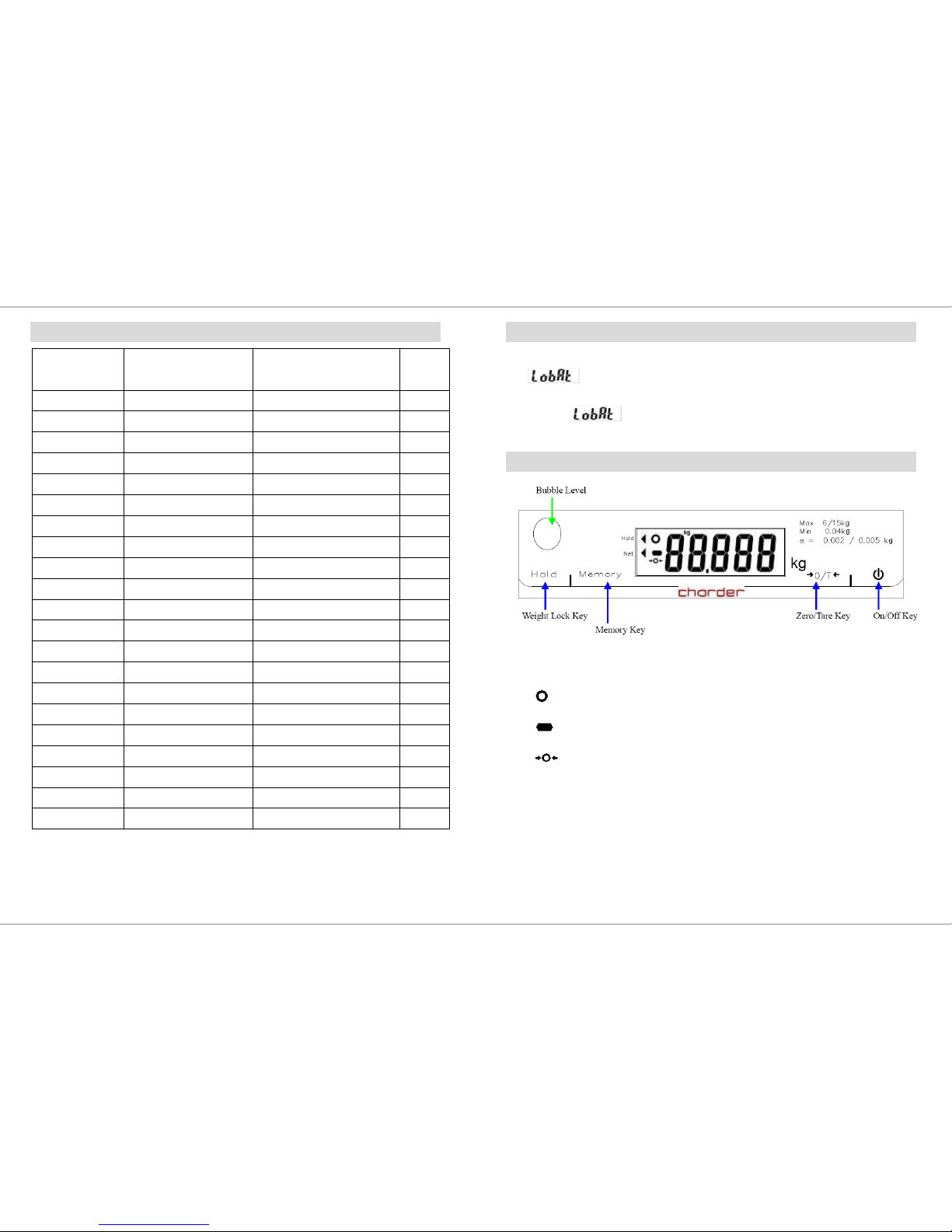

PANELAND LCD DISPLAY................................................................. 14

LCD DISPLAY....................................................................................... 14

KEY FUNCTION DESCRIPTION:........................................................ 14

USING YOUR HOLD FUNCTION........................................................ 15

USING YOUR MEMORY FUNCTION.................................................. 15

SETTING UPAUTO-OFF TIME............................................................ 16

SETTING DIAGRAM............................................................................ 16

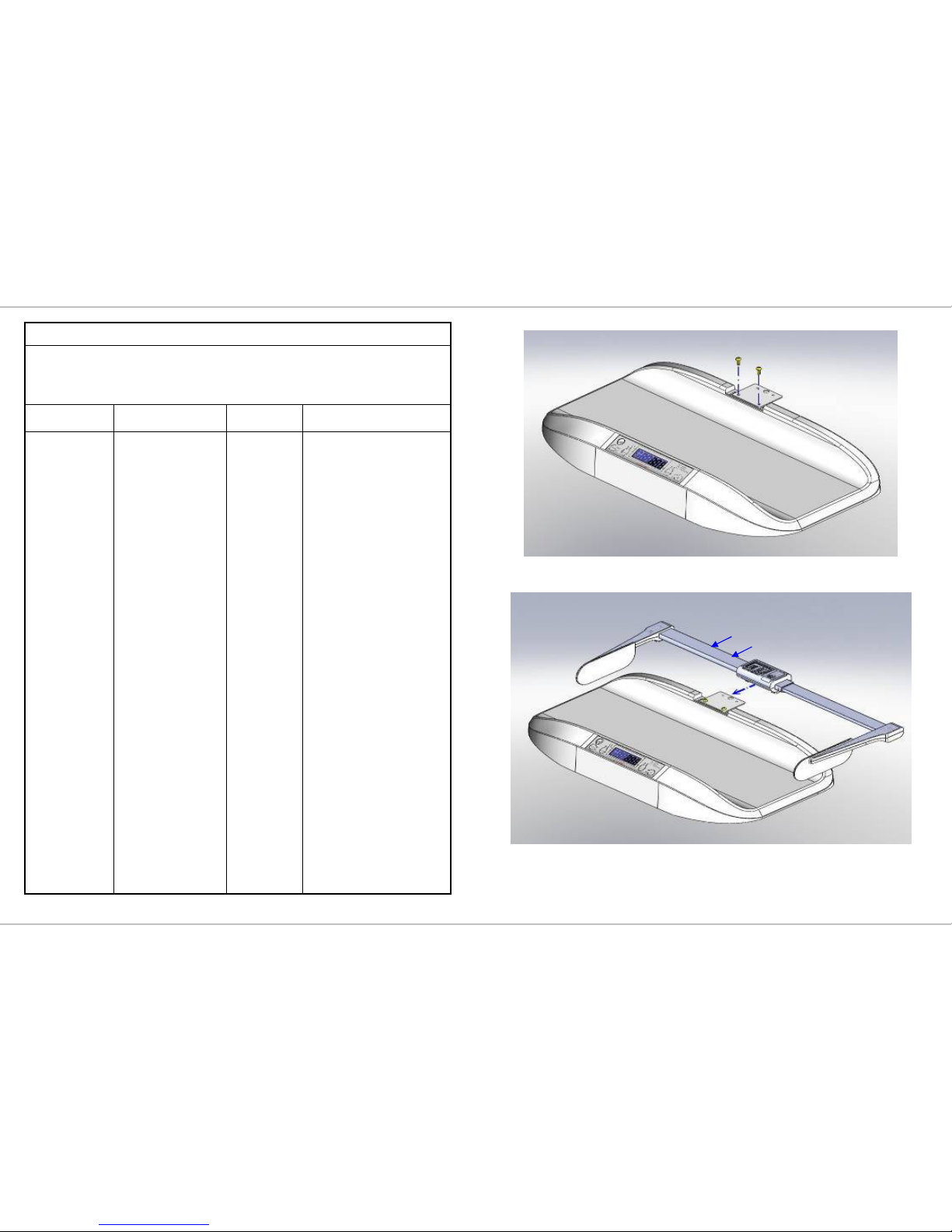

ASSEMBLING BABY HEIGHT MEAS. - HM 80D/M.......................... 17

DISASSEMBLE BABY HEIGHT MEAS............................................... 20

POWER SUPPLY................................................................................... 21

INSTALLING THE BATTERY .............................................................. 21

ERROR MESSAGE................................................................................ 22

TROUBLESHOOTING.......................................................................... 23

NOTE

___________________________________

NOTE

___________________________________

PREFACE

Thank you for choosing CHARDER MEDICAL product. All features of this

product were designed to state of the art and are optimized for simple and

straightforward use. If you have any queries or experience any problems

not addressed in the operating instructions, please contact your

CHARDER MEDICAL service partner, or visit us on the Internet at

www.chardermedical.com

GENERAL INFORMATION

We strongly recommend you use the scales on flat and hard surface. Any

soft surface, like carpet will cause inaccuracy.

SAFETY INSTRUCTION

Before putting the device into use, please read with care the

information given in the Operating Instructions. They contain

important instructions for installation, proper use and maintenance of the

device.

The manufacturer shall not be liable for damages arising out of failure to

heed the following instructions:

These batteries should be kept away from small children. If swallowed,

promptly seek medical assistance.

Expected Service Life: 5 years

Don’t leave the baby unattended on scale.

When using electrical components under increased safety requirements,

always comply with the appropriate regulations.

Improper installation will render the warranty null and void.

Ensure the voltage marked on the power supply unit matches your mains

power supply.

This device is designed for use indoors.

Observe the permissible ambient temperatures for use

The device meets the requirements for electromagnetic compatibility. Do

not exceed the maximum values specified in the applicable standards.

If you have any problem, contact your local CHARDER MEDICAL service

partner.

ENVIROMENTAL

All batteries contain toxic compounds; disposal of batteries should be

delegated to a competent organization, complying with the deposit of

Poisonous Waste Regulation 1972.

Please do not incinerate batteries.

The optimum operating temperature for the scale is 5℃to +35℃; although

it will operate at higher and lower temperatures the scales battery life will be

adversely effected.

CLEANING

We would recommend using alcohol based wipes or similar when cleaning

the scales.

Please do not use large amounts of water when cleaning the scales as this

will cause damage to the scales electronics, you should also refrain from

using corrosive liquids or high pressure washers.

Always disconnect the scales from the mains power supply before cleaning.

MAINTENANCE

The scale does not require any routine maintenance. However, we

recommend checking the scale’s accuracy at regular intervals. The

regularity of these checks is dependent on the level of use and the state of

the scale. If any inaccuracies occur, please contact your local dealer or

CHARDER MEDICAL service partner

WEIGHING OPERATION

Before reading detailed instructions on how to use all the weighing

functions that are built into your scale, please read the following important

guidelines:

Always be sure that the display shows `Zero` before use, if it does not then

please press the ZERO key.







Incorrect position or other external objects within weighing

area







The weighing-scale is not put in a solid & firm ground area, such

as carpet floor or lawn.

3. Connection failure for data transmission to PC or printer

Wrong connection wires or faulty wires for transmission between

the digital indicator & load cells.

Wrong indicator models

Wrong internal wiring or wire broken

In case of the following defective mode occurs, it is suggested to contact

your nearest Authorized Dealer for further technician service & repair

1. POWER switch-on failure

ush-button faulty

Short circuit wires - Wire broken

Safety fuse burnt out

Wire connection problem

Main power adaptor faulty – arts Replacement

2. LCD display faulty

ossible hardware defects include: Uneven brightness in the LCD

display screen & texts color blurred, smeared rainbow screen,

incorrect decimal display

LCD IN broken or short circuit

CB cooper foil broken & loosed welding

Unable to save or read data – IC or transistor faulty, internal parts

broken.

LCD showing “ERRL” after switch on - Load cell damaged

Overload may cause the weigh to malfunction.

Software system crash

Resonator faulty

Load cells with faulty grinding standard.

Key buttons failure - Front key panel damaged or disconnected

3. Buzzer malfunction

Wrong welding of VC wire

Key buttons & control panel damaged or disconnected.

TROUBLESHOOTING

Troubleshooting for defective modes

Original purchaser can enjoy the benefits under the effective Warranty

against functional defects in material and workmanship subject to the

terms and conditions listed in the yearly Warranty rogram & Return

olicy.

Our warranty service program includes the following:

1. Technician repair service under warranty or at a service

maintenance charge depending on the workmanship for the

defective functionality or cause of damage covered by the

warranty.

2. arts replacement from the manufacturing factory under the

warranty or at a certain cost for the replaced parts plus the

workmanship charge if not covered under the warranty.

Before you contact our Authorized Dealer in your country for technician

repair service, please read through the following section carefully:

Self-checking Tips

Some functional defects can be identified and maintained by

users as listed below:

1. Power-on failure

Check if the main power adaptor has not plugged onto the scale

properly

Check if the battery power is running low - Replace with new

batteries

2. Indicator showing “0000” ZERO SPAN out of range







Incorrect weighing result - Avoid damages by external

environment force such as free-drop to the ground, collision by

external objects, etc.







roper re-calibration procedure required to correct the setting

of weighing accuracy.







Interference due to RF disturbance, ground vibration…etc.







Unstable platform feet adjustments according to bubble level

indication

The Professional Medical scale is designed to detect when a stable weight

is achieved, the indicator will `bleep` twice to indicate a stable weight value,

your reading should be taken at this point.

WARRANTY-LIABILITY

If a fault or defect is present on receipt of the unit whichis within CHARDER

MEDICAL’s scope of responsibility, CHARDER shall have the right to either

repair the fault or supply a replacement unit. Replaced parts shall be the

property of CHARDER. Should the fault repairs or replacement delivery not

be successful, the statutory provisions shall be valid. The period of warranty

shall be two years, beginning on the date of purchase. Please retain your

receipt as proof of purchase. Should your scale require servicing, please

contact your dealer or CHARDER MEDICALCustomer Service.

No responsibility shall be accepted for damage caused through any of the

following reasons: Unsuitable or improper storage or use, incorrect

installation or commissioning by the owner or third parties, natural wear,

changes or modifications, incorrect or negligent handling , overuse,

chemical, electrochemical or electrical interference or humidity, unless this

is attributable to negligence on the part of CHARDER MEDICAL.

If operating, climatic or any other influences lead to a major change in

conditions or material quality, the treaty for perfect unit functioning shall be

rendered null and void. If CHARDER provides and individual warranty, this

means that the unit supplied will be free of faults for the length of the

warranty period.

DISPOSING OF THE SCALE

This product is not to be treated as regular household waste, but should be

handed in to an electrical/electronic equipment recycling centre.

You can obtain further details from your local council, your municipal waste

disposal company or the firm which you purchased the product

EXPLANATION OF THE GRAPHIC SYMBOLS

SN-T13000001

Designation of the serial number of

every device, applied at the device.

(Number as an example)

“Please note the accompanying

documents“

or “Observe operating instructions”

Charder Electronic Co., Ltd.

No.103, Guozhong Rd., Dali Dist.,

Taichung City 412, Taiwan (R.O.C.)

Identification of manufacturer of

medical product including address



“Electro-medical appliance“

with attachment for type B



Dispose of old appliances

separately from your household

waste !l!

Instead, take them to communal

collection points.



ERROR MESSAGE

POWER SUPPLY

MS 5900 use 6 xAA size alkaline batteries (not included) for

operation. If you want scale to be operated by battery, please install

batteries by referring to instruction below.

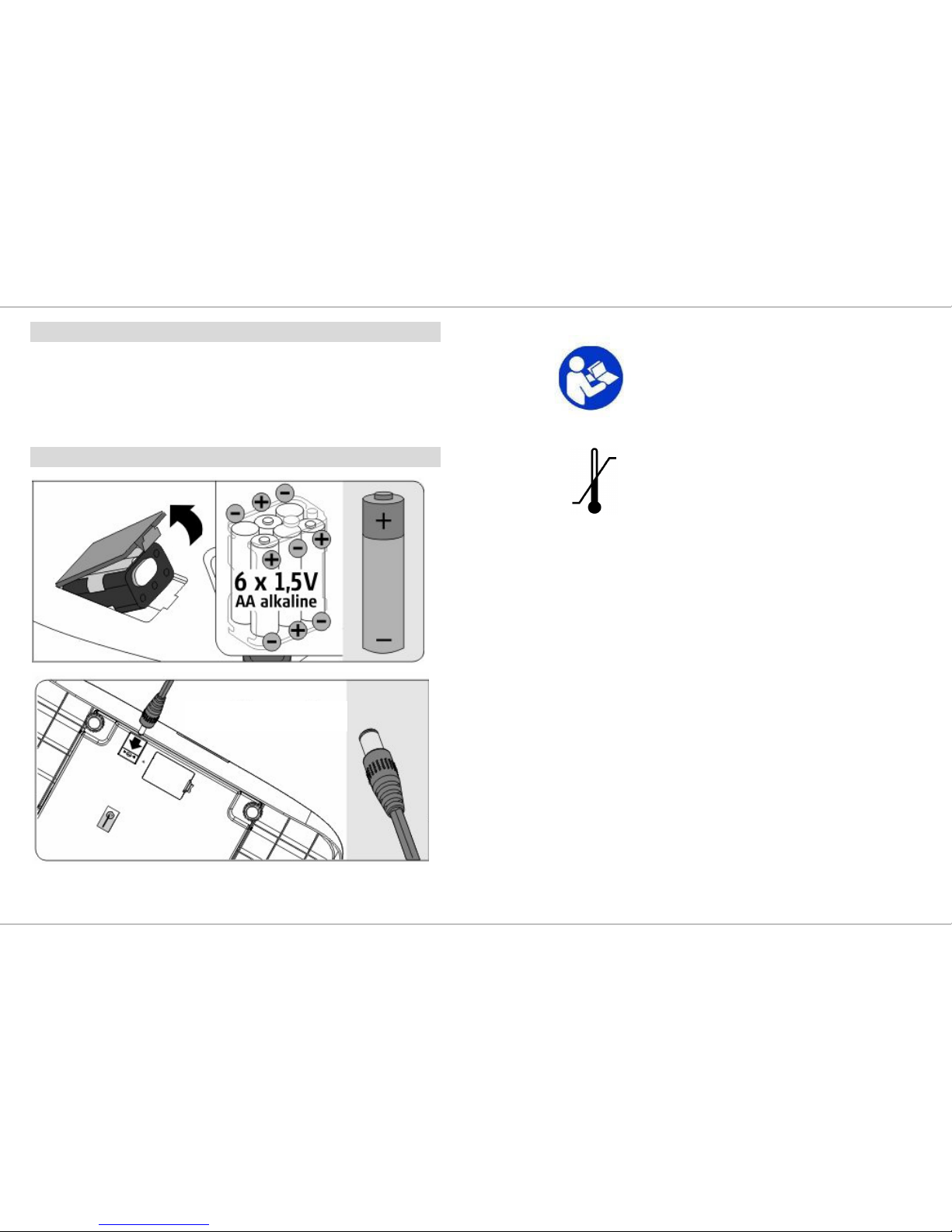

INSTALLING THE BATTERY

You can also use the adaptor (included) as power supply.

12V adaptor



Carefully read this operation manual

before setup and commissioning,

even if you are already familiar with

Charder scales.

Transport and storage temperature

limit indicating the upper and the

lower limit

(Transport and storage temperature

on packaging)

+60°C

-20°C

EMC GUIDANCE AND MANUFACTURER’S

DECLARATION



Guidance and manufacturer’s declaration-electromagnetic emissions

The MEDICAL SCALE MS5900 is intended for use in the electromagnetic

environment specified below.

The customer or the user of the MEDICAL SCALE MS5900 should assure

that it is used in such an environment.

Emission test Compliance Electromagnetic

environment-guidance

RF emissions

CISPR 11

Group 1 The MEDICAL SCALE

MS5900 uses RF energy only

for its internal function.

Therefore, its RF emissions

are very low and are not likely

to cause any interference in

nearby electronic equipment.

RF emissions

CISPR 11

Class B

Harmonic emissions

IEC 61000-3-2

Class A

Voltage fluctuations

/flicker emissions

IEC 61000-3-3

Compliance

The MEDICAL SCALE

MS5900 is suitable for use in

all establishments, including

domestic establishments and

those directly connected to the

public low-voltage power

supply network that supplies

buildings used for domestic

purposes.

Guidance and manufacturer’s declaration-electromagnetic immunity

The MEDICAL SCALE MS5900 is intended for use in the electromagnetic

environment specified below.

The customer or the user of the MEDICAL SCALE MS5900 should assure that it is

used in such an environment.

Immunity test IEC 60601 test

level Compliance

level Electromagnetic

environment-guidance

DISASSEMBLE BABY HEIGHT MEAS.

Find buckle at the bottom of height rod.

Press down the buckle and slide out height rod.

5. Install the bracket holder cover.

HM 80M

HM 80D

HM 80M

Slide

Electrostatic

discharge(ESD)

IEC 61000-4-2

± 6 kV contact

± 8 kV air

± 6 kV contact

± 8 kV air

Floors should be wood,

concrete or ceramic tile.

If floors are covered with

synthetic material, the

relative humidity should

be at least 30%

Electrical fast

transient/burst

IEC 61000-4-4

± 2kV for power

supply lines +

1kV for

input/output

lines

± 2kV for power

supply lines Not

applicable

Mains power quality

should be that of a typical

commercial or hospital

environment.

Surge IEC

61000-4-5

± 1kV line(s) to

line(s) ± 2kV

line(s) to earth

± 1kV differential

mode Not

applicable

Mains power quality

should be that of a typical

commercial or hospital

environment.

Voltage Dips,

short

interruptions

and voltage

variations on

power supply

input lines IEC

61000-4-11

<5% UT(>95%

dip in UT) for 0,5

cycle 40%

UT(60% dip in

UT) for 5 cycles

70% UT(30%

dip in UT) for 25

cycles <5%

UT(>95% dip in

UT) for 5 s

<5% UT(>95%

dip in UT) for 0,5

cycle 40%

UT(60% dip in

UT) for 5 cycles

70% UT(30%

dip in UT) for 25

cycles <5%

UT(>95% dip in

UT) for 5 s

Mains power quality

should be that of a typical

commercial or hospital

environment. If the user

of the MEDICAL SCALE

MS5900 requires

continued operation

during power mains

interruptions, it is

recommended that the

MEDICAL SCALE

MS5900 be powered

from an uninterruptible

power supply or a

battery.

Power

frequency(50/60

Hz) magnetic

field IEC

61000-4-8

3 A/m 3 A/m The MEDICAL SCALE

MS5900 power

frequency magnetic

fields should be at levels

characteristic of a typical

location in a typical

commercial or hospital

environment.

NOTE UT is the a.c. mains voltage prior to application of the test level.

Guidance and manufacturer’s declaration-electromagnetic immunity

The MEDICAL SCALE MS5900 is intended for use in the electromagnetic

environment specified below.

The customer or the user of the MEDICAL SCALE MS5900 should assure that is

used in such and environment.

Immunity test

IEC 60601 test

level Compliance

level Electromagnetic

environment-guidance

Conducted RF

IEC 61000-4-6

Radiated RF

IEC 61000-4-3

3 Vrms

150 KHz to 80 MHz

3 V/m 80MHz to 2,5

GHz

3 Vrms

3 V/m

Portable and mobile RF

communications equipment

should be used no closer to any

part of the

MEDICAL SCALE

MS5900 including cables, than

the recommended separation

distance calculated from the

equation applicable to the

frequency of the transmitter.

Recommended separation

distance:

d = 1,2 √P

d = 1,2 √P 80MHz to 800 MHz

d = 2,3 √P 800MHz to 2,5 GHz

Where P is the maximum output

power rating of the transmitter in

watts (W) according to the

transmitter manufacturer and d is

the recommended separation

distance in metres (m).

Field strengths from fixed RF

transmitters, as determined by an

electromagnetic site survey

should be less than the

compliance level in each

frequency range

Interference may occur in the

vicinity of equipment marked with

the following symbol:

4. Assemble baby height rod with the bracket carefully until click.

HM 80D

Slide

ASSEMBLING BABY HEIGHT MEAS. - HM 80D/M

1. Remove bracket holder cover.

2. Take off bracket holder cover.

3. Fixing bracket with two screws.

NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.

NOTE2 These guidelines may not apply in all situations. Electromagnetic

propagation is affected by absorption and reflection from structures, objects and

people.

a Field strengths from fixed transmitters, such as base stations for radio

(cellular/cordless) telephones and land mobile radios, amateur radio, AM and

FM radio broadcast and TV broadcast cannot be predicted theoretically with

accuracy. To assess the electromagnetic environment due to fixed RF

transmitters, an electromagnetic site survey should be considered. If the

measured field strength in the location in which the MEDICAL SCALE MS5900

is used exceeds the applicable RF compliance level above, the MEDICAL

SCALE MS5900 should be observed to verify normal operation. If abnormal

performance is observed, additional measures my be necessary, such as

re-orienting or relocating the MEDICAL SCALE MS5900.

b Over the frequency range 150 kHz to 80 MHz, field strengths should be les than

3 V/m.

Recommended separation distance between portable and mobile RF

communications equipment and the MEDICAL SCALE

The MEDICAL SCALE MS5900 is intended for use in an electromagnetic

environment in which radiated RF disturbances are controlled. The customer or

the user of the MEDICAL SCALE MS5900 can help prevent electromagnetic

interference by maintaining a minimum distance between portable and mobile

RF communications equipment (transmitters) and the MEDICAL SCALE

MS5900 as recommended below, according to the maximum output power of

the communications equipment.

Separation distance according to frequency of transmitter m

Rated maximum output

power of transmitter

150 kHz to 80 MHz

d =1,2√P

80 MHz to 800 MHz

d =1,2√P

800 MHz to 2,5 GHz

d =2,3√P

0,01 0,12 0,12 0,23

0,1 0,38 0,38 0,73

1 1,2 1,2 2,3

10 3,8 3,8 7,3

100 12 12 23

For transmitters rated at a maximum output power not listed above, the

recommended separation distance d in metres (m) can be estimated using the

equation applicable to the frequency of the transmitter, where p is the maximum

output power rating of the transmitter in watts (W) according to the transmitter

manufacturer.

NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher

frequency range applies.

NOTE2 These guidelines may not apply in all situations. Electromagnetic

propagation is affected by absorption and reflection from structures, objects

and people.

after switching off the scale.

SETTING UP AUTO-OFF TIME

For example: Set up 120s Auto-Off time.

1. Press ZERO/TARE key for 10~15 seconds to enter setting

mode.

2. Press ZERO/TARE when A_OFF displays on the screen.

3. Use HOLD key to select target time (60/120/180/240/300s/OFF).

4. To confirm the selection press ZERO/TARE key; the display will

return to ‘A_OFF’ display. For example: If you want to select 240

seconds as auto off time, press ZERO/TARE key when

displays on the screen. The LCD will return to ‘A_OFF’ display.

5. Press HOLD key once ‘END’ will display on the screen and then

press ZERO/TARE key again to complete the setting procedure

and settings to take place; the scale will return to weighing

mode.

SETTING DIAGRAM

*After finishing settings, press HOLD key ‘End’ will display and then

press the ZERO/TARE key to end the procedure and to apply the

changes. The scale will automatically re-power and will return to

weighing mode.

DESCRIPTION:

A_OFF: (auto off time) 60/120/180/240/300/off seconds

3. HOLD:

Press this key to lock the weight value before or while weighing.

To disable the weight lock (Hold) function, press HOLD key

again or pick up the weight (Tare weight also) from the platform;

display will come to zero weighing

4. MEMORY:

Press this key to recall the last locked weight value.

USING YOUR HOLD FUNCTION

1. Press HOLD key to enter into weighing lock mode.

2. The arrow pointing to hold mark will start to flicker and LCD will

display “HOLD”.

3. Place baby in the center of the scale; the scale will take the

average of fluctuating weight and lock the weight on the display.

4. After the weight value is locked, press HOLD key again or pick

up the weight (Tare weight also) from the platform to disable the

hold function. (The arrow of hold and locked value will

disappear and the instrument returns to normal mode.)

NOTE:

A. When the weighing lock (Hold) function is activated, all other

keys and functions can not operate.

B. After a weight value is locked, and weight still on the scale.

Press HOLD key to disable the hold function, or press TARE

key to disable the hold function and perform tare function.

C. Before a weight value is locked, press TARE key will only

perform tare function, but the hold function is not disabling.

USING YOUR MEMORY FUNCTION

1. MS 5900 automatically stores the last weighing result which was

been weighed using HOLD function. In normal mode, press this

key to recall the last locked weight value.

2. The last weighing result will remain in the scale memory even

weight lock key

SPECIFICATIONS

MODEL# MS 5900

Capacity

Division 0~6kg x 2g

6~15kg x 5g

0~10kg x 5g

10~20kg x 10g

Accuracy

±3g<6kg>±7.5g ±7.5g<10kg>±15g

Units of

Measure kg

Function keys ON/OFF(

)

, ZERO/TARE(

)

, HOLD,

MEMORY

Stabilisation

Time 1-2 seconds

Operating Temp.

0°C - 40°C

Power supply Six AA size alkaline batteries or Adaptor

Indicator display

1.0” LCD display with 5 active digits

Dimensions 660 x 334 x 125mm

Options Baby height rod: HM-80M / HM-80D

POWER ADAPTOR STANDARDS

AMP

VOLTAGE

DRAWING NO. CE APPROVED TYPE NO.

/ MODEL NO.

TYPE

9V DC 100mA

AD-038A D41W1090100-13/1 EU

9V DC 100mA

AD-0484 D35W090100-23/1 US

9V DC 100mA

AD-0484 SP35-90100 US

9V DC 100mA

AD-037A D41WK090100-13/2 UK

9V 200mA AD-8082A UE05WCP-0900205PC AU

12V 2A AD-8057 UE24WV-120200SPA EU

12V 2A AD-8058 UE24WU-120200SPA US

12V 2A AD-8056 UE24WB-120200SPA UK

12V 2A AD-8074 UE24W4-120200SPAS AU

12V 1A N/A UE24WV-120100SPA EU

12V 1A N/A UE24WV-120100SPA UK

15V300mA AD-8079A UE05WCP-150030SPC EU

15V300mA AD-016D D41W150300-13/1 US

15V300mA AD-8064 MTP121UL-120100A US

15V300mA AD-8079B UE05WCP-150030SPC UK

15V300mA AD-8079C UE05WCP-150030SPC AU

15V 300mA AD-0420 D41WI150300-13/1 EU

15V 300mA AD-0370 D41WK150300-13/2 UK

15V 300mA AD-0482 D41WA150300-13/2 AU

POWER SUPPLY & LOW BATTERY

1. The MS 5900 Baby scale uses 6 xAAsize alkaline batteries.

2. (Low battery indication) will display on LCD display

when battery power is insufficient to perform the weighing.

3. When is displayed, please change batteries. Please

refer to “INSTALLING THE BATTERY” on page 24.

PANEL AND LCD DISPLAY

LCD DISPLAY

1. : Stable symbol

2. : Minor weight value

3. : Zero

KEY FUNCTION DESCRIPTION:

1. ON/OFF:

To power ON/OFF the scale.

2. ZERO/TARE:

To Zero the scale (±2% of full capacity) and to tare any object

weight while weighing baby to get Net weight value.

Manufacturer’s Declaration of Conformity

This product has been manufactured in accordance with

the harmonized European standards, following the

provisions of the below stated directives:

93/42/EEC as amended by 2007/47/EC

Medical Device Directive

2014/31/EU

Non-

automatic Weighing Instruments

Directive

Please see separate document showing on sticker of device for

above CE marking.

Authorized EU Representative:

Manufactured by:

Charder Electronic Co., Ltd.

No.103, Guozhong Rd., Dali Dist.,

Taichung City 412 ,Taiwan (R.O.C.)

FDA no.: D072479

IN-1002 [10110I] 06/2016

MS 5900

Medical Scale

USER MANUAL

Please keep the instruction manual at hand all the time for future reference.
