Charder MS4400I User manual

1
USER MANUAL
MS4400I
Infant Scale
Please keep the instruction manual at hand all the time for future reference.

2
Explanation of Graphic Symbols on Label/Packaging
Caution, consult
accompanying documents
before use
Authorized
representative in the
European Community
Manufacturer of medical
device
Indicates that device
conforms to
International
Organization of Legal
Metrology (Class III)
requirements
Manufacturing year of
medical device
Indicates that device
conforms to
2014/31/EU Non
Automatic Weighing
Instruments Directive.
Numerals change
according to year of
manufacture. (ex: "19"
for 2019)
Separate collection for waste
of electrical and electronic
equipment, in accordance
with Directive 2002/96/EC
Indicates that device
conforms to 93/42/EEC
as amended by
2007/47/EC Medical
Device Directive. Four
digit number refers to
Notified Body.
Device catalogue number
Indicates that device
conforms to
2014/31/EU Non
Automatic Weighing
Instruments Directive.
Four digit number refers
to Notified Body.
Manufacturer's batch or lot
number
Indicates that device is
a medical device
Serial number
Carefully read user
manual before
installation and usage,
and follow instructions
for use.
Unique Device Identifier
Medical electrical
equipment with Type B
applied part

3
Copyright Notice
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist., Taichung City 41262 Taiwan
Tel: [phone]
Fax: [phone]
Website: www.chardermedical.com E-mail: [e-mail]
Copyright© Charder Electronic Co., Ltd. All rights reserved.
This user manual is protected by international copyright law. All content is
licensed, and usage is subject to written authorization from Charder
Electronic Co., Ltd. (hereinafter Charder) Charder is not liable for any
damage caused by a failure to adhere to requirements stated in this
manual. Charder reserves the right to correct misprints in the manual
without prior notice, and modify the exterior of the device for quality
purposes without customer consent.
Charder Electronic Co., Ltd.
No. 103, Guozhong Rd., Dali Dist.,
Taichung City, 412 Taiwan

4
CONTENTS
I. Safety Notes .......................................................................... 5
A. General Information.............................................................5
B. EMC Guidance and Manufacturer's Declaration.........................8
II. Installation..........................................................................12
III. Key Functions and Indicator ..............................................13
IV. Getting Started ...................................................................14
V. Using Device ........................................................................15
A. Correct usage....................................................................15
B. Tare .................................................................................17
C. Hold.................................................................................17
D. Incorrect usage examples...................................................18
VI. Wireless Connection ...........................................................19
VII. Troubleshooting ................................................................19
VIII. Product Specifications .....................................................22
IX. Declaration of Conformity...................................................24

5
I. Safety Notes
A. General Information
Thank you for choosing this Charder Medical device. It is designed to be
easy and straightforward to operate, but if you encounter any problems
not addressed in this manual, please contact your local Charder service
partner.
Before beginning operation of the device, please read this user manual
carefully, and keep it in a safe place for reference. It contains important
instructions regarding installation, proper usage, and maintenance.
Intended Use
This device is intended to measure the weight of babies and toddlers, for
diagnosis of weight-related issues by professionals.
General Handling
Ensure all parts are properly locked and tightened before operating
the device.
Safety Instructions
Before putting device into use, please read this user manual carefully. It
contains important instructions for installation, usage, and maintenance
of device.
The manufacturer shall not be liable for damages caused by failure to
heed the following instructions:
Batteries should be kept away from children. If swallowed, promptly
seek medical assistance.
Expected service life: 5 years.
Always comply with appropriate regulations when using electrical
components under increased safety requirements.
Improper installation will render the warranty null and void.
The device is intended for indoor use only.
Observe permissible ambient temperatures for use
Device meets requirements for electromagnetic compatibility. Do not
exceed the maximum values specified in the applicable standards.
Environmental

6
All batteries contain toxic compounds; batteries should be disposed
of via designated competent organizations. Batteries should not be
incinerated.
The optimum operating temperature for the device is 5℃to 35℃;
although it will operate at higher and lower temperatures, battery
life will adversely be effected.
Cleaning
Device surface should be cleaned using alcohol-based wipes.
Corrosive cleansing liquids should not be used. Pressure-washers
should not be used.
Do not use large amounts of water when cleaning the device, as it
may cause damage to the internal electronics.
Maintenance
Please contact your local Charder distributor for regular maintenance
and calibration.
Device does not require routine maintenance. However, regular
checking of accuracy is recommended; frequency to be determined
by level of use and state of device. If results are inaccurate, please
contact local distributor.
Warranty/Liability
If Charder is responsible for a fault or defect present upon receipt of
the unit, Charder shall either repair the fault, or supply a
replacement unit. Should the repairs or replacement delivery fail,
statutory provisions shall be valid. The period of warranty shall be
two years, beginning on the date of purchase. Please retain your
receipt as proof of purchase.
No responsibility shall be accepted for damage caused through any
of the following reasons: unsuitable or improper storage or use,
incorrect installation or commissioning by the owner or third parties,
natural wear and tear, changes or modifications, incorrect or
negligent handling, chemical, electrochemical, or electrical
interference, unless damage is attributable to negligence on the part
of Charder.
This device does not contain any user-maintained parts. All
maintenance, technical inspections, and repairs should be conducted
by an authorized Charder service partner, using original Charder
accessories and spare parts. Charder is not liable for any damages
arising from improper maintenance or usage. Dismantlement of the
device will void the warranty.

7
Disposal
This product is not to be treated as regular household waste, but
should be taken to a designated collection points for electronics.
Further information should be provided by local waste disposal
authorities.
Warning
Keep device away from liquids.
Do not under any circumstances dismantle or alter the device, as this
could result in electric shock or injury as well as adversely affect the
precision of measurements.
Do not place the device in direct sunlight, or in close proximity to an
intense heat source. Excessively high temperatures may damage the
internal electronics.
Incident Reporting
Any serious incident that has occurred in relation to the device should be
reported to the manufacturer, EU representative (if device is used in EU
member state), and competent authority of user/subject's member state.

8
B. EMC Guidance and Manufacturer's Declaration
Guidance and manufacturer’s declaration-electromagnetic emissions
The MS4400I Infant Scale is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in such an
environment.
Emission test Compliance Electromagnetic
environment-guidance
RF emissions CISPR 11
Group 1
The device uses RF energy only for
its internal function. Therefore, its
RF emissions are very low and are
not likely to cause any interference
in nearby electronic equipment.
RF emissions CISPR 11
Class B
The device is suitable for use in all
establishments, including domestic
establishments and those directly
connected to the public low-voltage
power supply network that supplies
buildings used for domestic
purposes.
Harmonic emissions IEC
61000-3-2
Class A
Voltage fluctuations /flicker
emissions IEC 61000-3-3
Compliance

9
Guidance and manufacturer’s declaration-electromagnetic immunity
The MS4400I Infant Scale is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that it is used in such an
environment.
Immunity test IEC 60601
test level Compliance level Electromagnetic environment-guidance
Electrostatic
discharge(ESD)
IEC 61000-4-2
±
8 kV contact
±2 kV, ± 4 kV,
± 8 kV, ± 15 kV
air
±
8 kV contact
±2 kV, ± 4 kV,
± 8 kV, ± 15 kV
air
Floors should be wood, concrete
or ceramic tile. If floors are
covered with synthetic material,
the relative humidity should be
at least 30%
Electrical fast
transient/burst
IEC 61000-4-4
± 2kV for
power supply
lines
+ 1kV for
input/output
lines
+ 2kV for power
supply lines
+ 1kV for
input/output
lines
Mains power quality should be
that of a typical commercial or
hospital environment.
Surge IEC
61000-4-5 ± 1kV line(s) to
line(s)
± 2kV line(s) to
earth
+ 1kV line(s) to
line(s)
+ 2kV line(s) to
earth
Mains power quality should be
that of a typical commercial or
hospital environment.
Voltage Dips,
short interruptions
and voltage
variations on
power supply
input lines IEC
61000-4-11
0% UT for 0,5
cycle
0% UT for 1
cycle
70% UT(30%
dip in UT) for
25 cycles
0% UT for 5 s
0% UT for 0,5
cycle
0% UT for 1
cycle
70% UT(30%
dip in UT) for 25
cycles
0% UT for 5 s
Mains power quality should be
that of a typical commercial or
hospital environment. If the
user of the device requires
continued operation during
power mains interruptions, it is
recommended that the device
be powered from an
uninterruptible power supply or
a battery.
Power
frequency(50/60
Hz) magnetic field
IEC 61000-4-8
30 A/m
30 A/m
The device power frequency
magnetic fields should be at
levels characteristic of a typical
location in a typical commercial
or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

10
Guidance and manufacturer’s declaration-electromagnetic immunity
The MS4400I Infant Scale is intended for use in the electromagnetic environment specified
below. The customer or the user of the device should assure that is used in such an
environment.
Immunity test
IEC 60601 test
level
Compliance
level
Electromagnetic
environment-guidance
Conducted RF
IEC 61000-4-6
Radiated RF IEC
61000-4-3
3 Vrms
150 KHz to 80 MHz
6 V in ISM bands
between 0,15 MHz
and 80 MHz
80 % AM at 1 kHz
3 V/m
80MHz to 2,7 GHz
3 Vrms
150 KHz to 80
MHz
6 V in ISM
bands between
0,15 MHz and
80 MHz
80 % AM at 1
kHz
3 V/m
80MHz to 2,7
GHz
Portable and mobile RF
communications equipment
should be used no closer to any
part of the device including
cables, than the recommended
separation distance calculated
from the equation applicable to
the frequency of the
transmitter.
Recommended separation
distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output
power rating of the transmitter
in watts (W) according to the
transmitter manufacturer and d
is the recommended separation
distance in metres (m).
Field strengths from fixed RF
transmitters, as determined by
an electromagnetic site surveya,
should be less than the
compliance level in each
frequency rangeb.
Interference may occur in the
vicinity of equipment marked
with the following symbol:

11
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV
broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location in which the device is used
exceeds the applicable RF compliance level above, the device should be observed to
verify normal operation. If abnormal performance is observed, additional measures may
be necessary, such as re-orienting or relocating the device.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distance between portable and mobile RF
communications equipment and the MS4400I Infant Scale
The device is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The customer or the user of the device can help prevent
electromagnetic interference by maintaining a minimum distance between portable and
mobile RF communications equipment (transmitters) and the device as recommended
below, according to the maximum output power of the communications equipment.
Rated maximum
output power of
transmitter
W
Separation distance according to frequency of
transmitter m
150 kHz to 80
MHz
d =1,2√P
80 MHz to 800
MHz
d =1,2√P
800 MHz to 2,5
GHz
d =2,3√P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended
separation distance d in metres (m) can be estimated using the equation applicable to the
frequency of the transmitter, where p is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range
applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is
affected by absorption and reflection from structures, objects and people.

12
II. Installation
Device does not require assembly, and can be used once batteries have
been inserted, and S-hook and sling are attached.
Inserting Batteries
1. Locate battery cover on bottom of device. Open cover, and remove
battery case from device.
(Fig. 1: battery cover location) (Fig 2. Empty battery case)
2. Insert batteries. Ensure polarity is correct.
3. Insert battery case into device and close
battery cover. Turn on device to test if batteries
are installed correctly.

13
III. Key Functions and Indicator

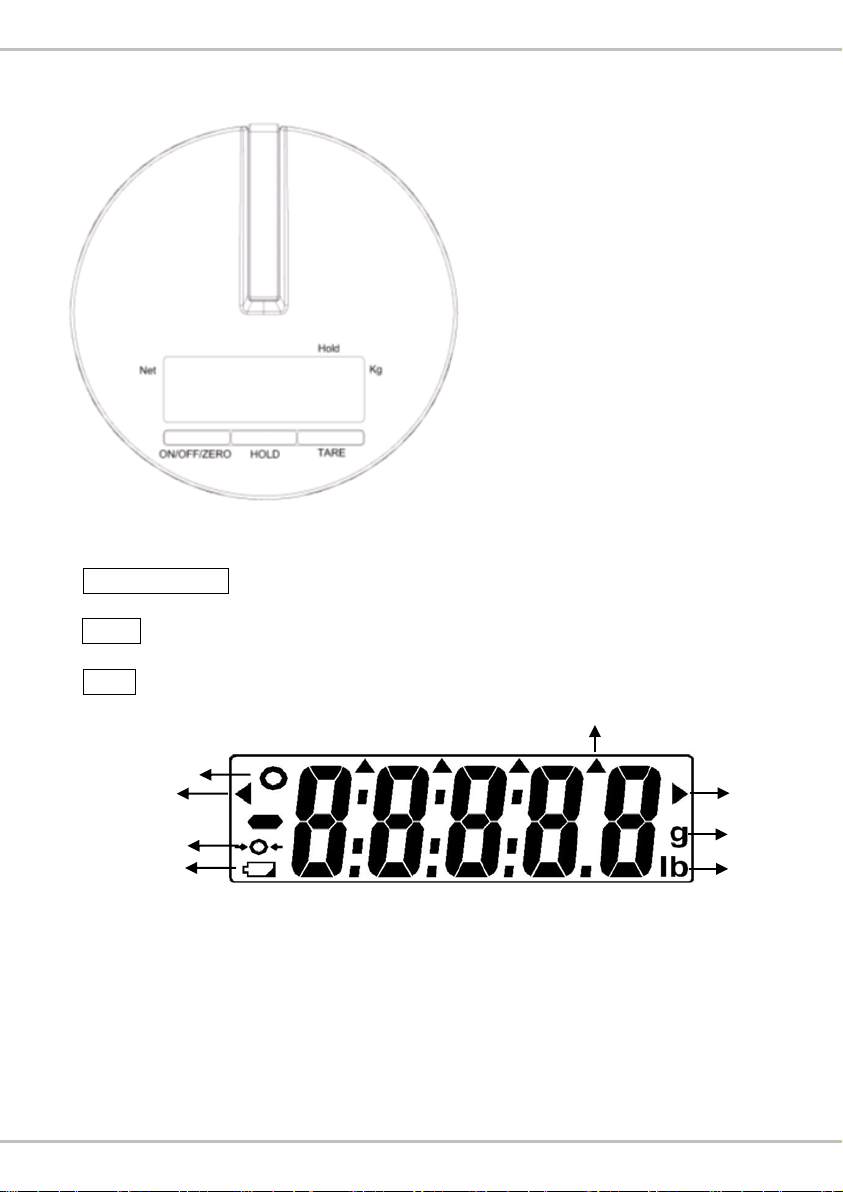

Key Functions
1. ON/OFF/ZERO: Turn device on and off. Zero scale (±2% of full
capacity). Press and hold to turn off device.
2. HOLD: Determine stable weighing value - should be used when weight
is unstable.
3. TARE: Deduct weight from reading after measurement
Indicator
1. Stable indicator: indicates that reading is stable
2. Net weight: indicates current reading is net weight
3. Zero indicator: indicates that device is at zero weight
4. Low battery: displays remaining battery life
5. Hold: indicates if Hold function is activated
6. Unit (kg / g / lb): unit of current reading. (lb unavailable on OIML
approved models)
Stable indicator
Hold
Kg
g unit
lb unit
Net weight
Zero indicator
Low battery

14
IV. Getting Started
Inspection before use
1. Confirm hook and sling are in good condition and undamaged
2. Clear and remove any sharp objects in area to ensure safety of infant
3. We recommend placing a cushion under the sling before weighing for
comfort and safety

15
V. Using Device
A. Correct usage

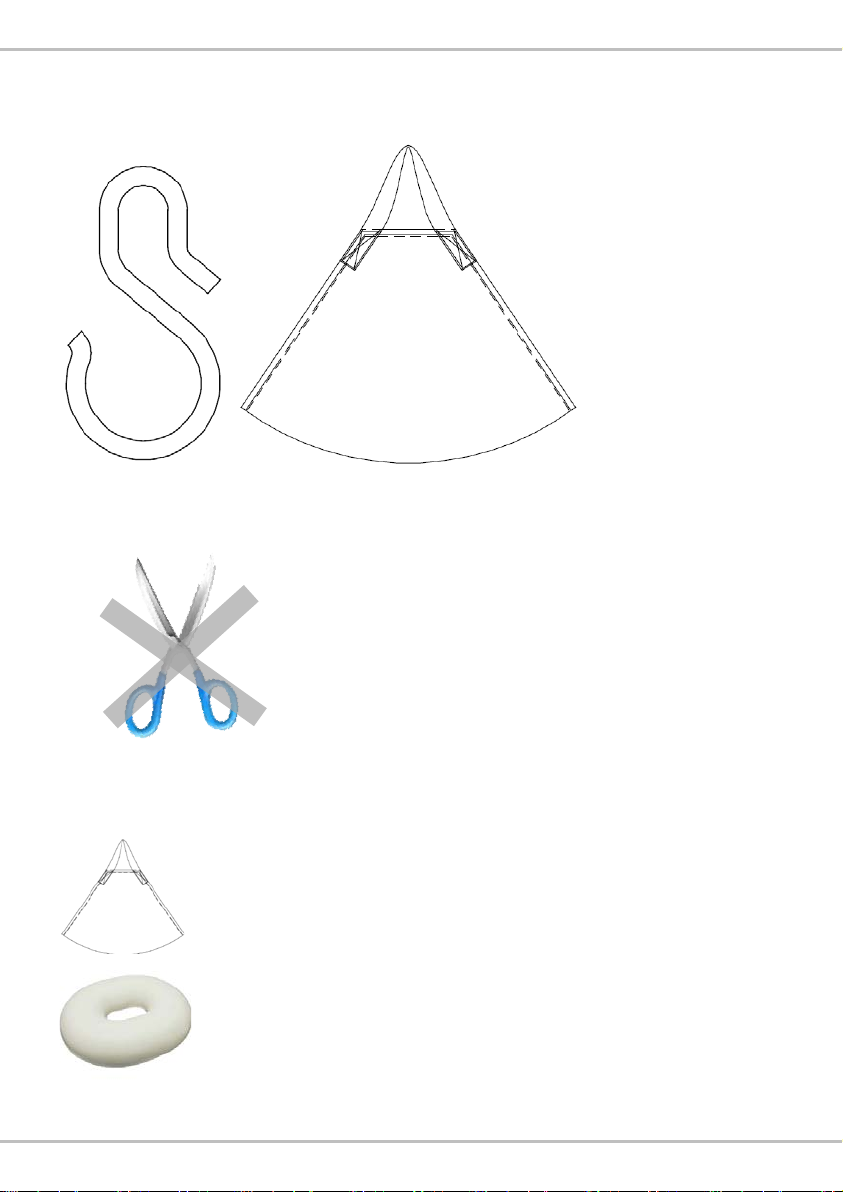

1. Lay sling upon table and spread
out evenly
2. Carefully place infant upon sling
3. Hook S-hook onto device
4. Hook s-hook onto sling. S-hook should now be hooked to both device
and sling.
5. Switch on the device using [ON/OFF/ZERO] key. The device will
automatically perform self-calibration, displaying software version.
Once "0.00 kg" appears on indicator, device is ready for measurement.
Note: If "0.00 kg" does not display on indicator, press [ON/OFF/ZERO]
key to zero the device. This function can be used for weight within ±2% of
full capacity.

16
6. Carefully lift device with both hands until baby no longer touches table.
After weight has stabilized, the reading on the indicator will flash. This
means the result has been locked. Device should be carefully lowered
until infant is safely placed back upon table.
Note: If infant's weight exceeds scale capacity (including tare), indicator
will display "Err" prompt due to overload.

17
B. Tare
The tare function allows the user to deduct the weight of objects from the
device's measurement result. Tare can be used when weight of object is ≧
at/above 2% of max capacity.
1. Place object that needs to be tared onto sling. Lift sling from ground
until weight is displayed on indicator.
2. Press [TARE] key. Display will indicate "0.00 kg".
3. Carefully place infant upon sling (along with tared object). Conduct
measurement.
4. To clear tare value, remove all objects from sling, and press [TARE]
key.
C. Hold
The hold function determines average weight, designed to be used if
subject's weight will not stabilize (ex: an active infant).
Note: if fluctuation is too severe, average weight determination will be
difficult and hold may not function correctly
1. Switch on the device normally.
2. Press the [HOLD] key. "HOLD" will be displayed on the indicator.
3. Carefully place infant on sling. Lift sling from ground.
4. After a few seconds, the average weight will be displayed on the
indicator. This weight will be locked - at this point, infant can be removed
from sling.
5. To release the locked weight, press the [HOLD] key again to return to
the device to normal mode.
Note: Hold function can be activated before or after infant is placed on
sling and lifted. However, if infant finds it difficult to hold still, we
recommend activating Hold after infant is placed on sling and lifted.

18
D. Incorrect usage examples
Using device with one hand
Thumbs not properly supporting device weight. Thumbs should be
wrapped around "neck" of device.

19
VI. Wireless Connection
If the device has the wireless or bluetooth module installed, the indicator
can transmit measurement results wirelessly. Please see Charder
wireless or bluetooth software instructions for details.
VII. Troubleshooting
Product Defects
Charder's warranty is effective for the original purchaser of this device,
subject to the terms and conditions listed in the Warranty Program &
Return Policy.
1. If Charder is responsible for a fault or defect present upon receipt of the
unit, Charder shall either repair the fault, or supply a replacement unit.
Should the repairs or replacement delivery fail, statutory provisions shall
be valid. The period of warranty shall be two years, beginning on the date
of purchase. Please retain your receipt as proof of purchase.
2. No responsibility shall be accepted for damage caused through any of
the following reasons: unsuitable or improper storage or use, incorrect
installation or commissioning by the owner or third parties, natural wear
and tear, changes or modifications, incorrect or negligent handling,
chemical, electrochemical, or electrical interference, unless damage is
attributable to negligence on the part of Charder.
If device is not covered under warranty, a service maintenance charge will
apply, plus cost of replacement parts.
Before contacting your local Charder distributor for repair service, we
recommend considering the following troubleshooting procedures:
Self-inspection
1. Device will not power on
If battery power is depleted, replace with new batteries
2. Indicator showing "0000" ZERO SPAN out of range
Interference due to factors such as RF disturbance or ground
vibration. Relocate device to location without interference and try
again

20
Distributor support required
If the following errors occur, we recommend contacting your local Charder
distributor for repair or replacement services:
1. Device will not power on
Faulty on/off key
Broken or damaged wires causing short circuit or faulty connection
Safety fuse burnout
2. Indicator damage
Possible hardware defects include: uneven brightness in LCD screen,
blurred text, smeared rainbow screen, incorrect decimal display
Unable to save or read data
Indicator shows "ERRL" after device is switched on
Keys not responding
