Charder MS3450 User manual

-39-
Manufacturer’s Declaration of Conformity
This product has been manufactured in accordance with
the harmonized European standards, following the
provisions of the below stated directives:
93/42/EEC as amended by 2007/47/EC
Medical Device Directive
Please see separate document showing on sticker of device for
above CE marking.
Authorized EU Representative:
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City, 412 Taiwan (R.O.C.)
CD-IN-00011 [REV004] 04/2019
-0-
MS3450
Stand-on Floor Scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference.

-1-
TABLE OF CONTENTS
PREFACE..................................................................................................... 2
GENERAL INFORMATION ....................................................................... 2
INTENDED USE ......................................................................................... 2
SAFETY INSTRUCTION ........................................................................... 2
ENVIROMENTAL....................................................................................... 3
CLEANING.................................................................................................. 3
MAINTENANCE......................................................................................... 4
WEIGHING OPERATION .......................................................................... 4
WARRANTY-LIABILITY........................................................................... 4
DISPOSING OF THE SCALE..................................................................... 5
EXPLANATION OF THE GRAPHIC SYMBOLS ..................................... 6
EMC guidance and manufacturer's declaration............................................ 7
SPECIFICATIONS..................................................................................... 12
PANEL........................................................................................................ 13
KEY FUNCTIONS..................................................................................... 13
LCD DISPLAY SYMBOLS....................................................................... 14
SYMBOLS information ............................................................................. 15
OPERATION.............................................................................................. 15
SETTING-UP ............................................................................................. 20
PRINT function and data transmission....................................................... 21
STANDARD ACCESSORIES ................................................................... 25
SCALE ASSEMBLY.................................................................................. 26
ASSEMBLE WITH HM201M HEIGHT ROD.......................................... 29
INSTRUCTION OF USING HM201M ..................................................... 30
INSTRUCTION FOR CHARGING AND CONNECTING ...................... 32
INSTRUCTION FOR REPLACING BATTERIES ................................... 33
ERROR MESSAGE ................................................................................... 34
TROUBLESHOOTING ............................................................................. 35
-38-
NOTE

-37-
NOTE
-2-
PREFACE
Thank you for choosing CHARDER MEDICAL product. All
features of this product were designed to state of the art and
are optimized for simple and straightforward use. If you have
any queries or experience any problems not addressed in the
operating instructions, please contact your CHARDER
MEDICAL service partner, or visit us on the Internet at
www.chardermedical.com
GENERAL INFORMATION
We strongly recommend you use the scales on flat and hard
surface. Any soft surface, like carpet will cause inaccuracy.
INTENDED USE
This scale is used to determine weight of patients who are supported
by professional personnel in rooms intended for carrying out health
care. The weighing value can be read off after a stable weighing
value has been obtained. Before any use, the scale must be checked
for correct condition by the authorized person.
SAFETY INSTRUCTION
Before putting the device into use, please read with care the
information given in the Operating Instructions. They contain
important instructions for installation, proper use and
maintenance of the device.
The manufacturer shall not be liable for damages arising out of
failure to heed the following instructions:
These batteries should be kept away from small children. If
swallowed, promptly seek medical assistance.
Expected Service Life: 5 years
When using electrical components under increased safety
requirements, always comply with the appropriate regulations.
Improper installation will render the warranty null and void.
Ensure the voltage marked on the power supply unit matches
your main power supply.

-3-
This device is designed for use indoors.
Observe the permissible ambient temperatures for use
The device meets the requirements for electromagnetic
compatibility. Do not exceed the maximum values specified in
the applicable standards.
If you have any question, contact your local CHARDER MEDICAL
service partner.
ENVIROMENTAL
All batteries contain toxic compounds; disposal of batteries should
be delegated to a competent organisation, complying with the
deposit of Poisonous Waste Regulation 1972.
Please do not incinerate batteries.
The optimum operating temperature for the scale is 5℃to +35℃;
although it will operate at higher and lower temperatures the
scales battery life will be adversely effected.
CLEANING
We would recommend using alcohol based wipes or similar
when cleaning the scales.
Please do not use large amounts of water when cleaning the
scales as this will cause damage to the scales electronics, you
should also refrain from using corrosive liquids or high pressure
washers.
Always disconnect the scales from the mains power supply
before cleaning.
-36-
3. Connection failure for data transmission to PC or printer
Wrong connection wires or faulty wires for transmission
between the digital indicator & load cells.
Wrong indicator models
Wrong internal wiring or wire broken
In case of the following defective mode occurs, it is suggested
to contact your nearest Authorized Dealer for further technician
service & repair:
1. Power Switch-on failure :
Push-button faulty
Short circuit wires - Wire broken
Safety fuse burnt out
Wire connection problem
Main power adaptor faulty – Parts Replacement
2. LCD display faulty
Possible hardware defects include: Uneven brightness in the
LCD display screen & texts color blurred, smeared rainbow
screen, incorrect decimal display
LCD PIN broken or short circuit
PCB cooper foil broken & loosed welding
Unable to save or read data – IC or transistor faulty, internal
parts broken.
LCD showing “ERRL” after switch on - Load cell damaged
Overload may cause the weigh to malfunction.
Software system crash
Resonator faulty
Load cells with faulty grinding standard.
Key buttons failure - Front key panel damaged or
disconnected
3. Buzzer malfunction
Wrong welding of PVC wire
Key buttons & control panel damaged or disconnected.

-35-
TROUBLESHOOTING
Troubleshooting for defective modes:
Original purchaser can enjoy the benefits under the effective
Warranty against functional defects in material and workmanship
subject to the terms and conditions listed in our Warranty Program &
Return Policy.
Our warranty service program includes the following:
1. Technician repair service under warranty or at a service
maintenance charge depending on the workmanship for the
defective functionality or cause of damage covered by the warranty.
2. Parts replacement from the manufacturing factory under the
warranty or at a certain cost for the replaced parts plus the
workmanship charge if not covered under the warranty.
Before you contact our Authorized Dealer in your country for
technician repair service, please read through the following section
carefully:
Self-checking Tips:
Some functional defects can be identified and maintained by users
as listed below:
1. Power-on failure
Check if the main power adaptor has not plugged onto the
scale properly
Check if the battery power is running low – Replace with
new batteries.
2. Indicator showing “0000” ZERO SPAN out of range
Incorrect weighing result - Avoid damages by external
environment force such as free-drop to the ground, collision
by external objects, etc.
Proper re-calibration procedure required to correct the setting
of weighing accuracy.
Interference due to RF disturbance, ground vibration…etc.
Unstable platform feet adjustments according to bubble level
indication
Incorrect position or other external objects within weighing
area
The weighing-scale is not put in a solid & firm ground area,
such as carpet floor or lawn.
-4-
MAINTENANCE
The scale does not require any routine maintenance. However,
we recommend checking the scale’s accuracy at regular intervals.
The regularity of these checks is dependent on the level of use and
the state of the scale. If any inaccuracies occur, please contact
your local dealer or CHARDER MEDICAL service partner.
WEIGHING OPERATION
Before reading detailed instructions on how to use all the weighing
functions that are built into your scale, please read the following
important guidelines:
Always be sure that the display shows `Zero` before use, if it does
not then please press the ZERO key.
The device is designed to detect when a stable weight is achieved,
the indicator will `bleep` twice to indicate a stable weight value, your
reading should be taken at this point.
WARRANTY-LIABILITY
If a fault or defect is present on receipt of the unit which is within
CHARDER MEDICAL’s scope of responsibility, CHARDER shall
have the right to either repair the fault or supply a replacement unit.
Replaced parts shall be the property of CHARDER. Should the fault
repairs or replacement delivery not be successful, the statutory
provisions shall be valid. The period of warranty shall be two years,
beginning on the date of purchase. Please retain your receipt as
proof of purchase. Should your scale require servicing, please
contact your dealer or CHARDER MEDICAL Customer Service.
No responsibility shall be accepted for damage caused through any
of the following reasons: Unsuitable or improper storage or use,
incorrect installation or commissioning by the owner or third parties,

-5-
natural wear, changes or modifications, incorrect or negligent
handling, overuse, chemical, electrochemical or electrical
interference or humidity, unless this is attributable to negligence on
the part of CHARDER MEDICAL.
If operating, climatic or any other influences lead to a major change
in conditions or material quality, the treaty for perfect unit
functioning shall be rendered null and void. If CHARDER provides
and individual warranty, this means that the unit supplied will be free
of faults for the length of the warranty period.
DISPOSING OF THE SCALE
This product is not to be treated as regular household waste, but
should be handed in to an electrical/electronic equipment recycling
centre.
You can obtain further details from your local council, your
municipal waste disposal company or the firm which you purchased
the product.
-34-
ERROR MESSAGE
Low Battery
1. Check battery voltage (>6.4V) and if needed replace new
battery for operation.
2. If the problem still persists inspect soldering of controller
PCB or replace the controller PCB.
Overload
This indicates that the scale’s load sensor(s) have been
overloaded. Reduce the loading and retry.
Counting Error
1. The signal from the load cells is too high or too low.
Please remove any weight from the scale and try to power on
again. If the scale continues to show the error message, it
indicates a fault with the electronics or wiring.
High/Low Zero Count
1. The scale is above its zero range. Please remove any weight
from the scale and power on again. If the scale continues to
show the error message, it indicates a fault with the
electronics.
2. The scale is below its zero range. Check there is nothing
jammed underneath the scale and power on again. If the scale
continues to show the error message, it indicates a fault with
the electronics.
AD Error
This indicates there is a fault with the scale’s software and is
normally caused by a fault with the PC board. Contact your
local service representative.
Negative weighing
When weight below -2kg, the display will shows “-----“.
Press ZERO to return to the normal mode.

-33-
INSTRUCTION FOR REPLACING BATTERIES
1. Removing the battery cover. 2. Take out the battery housing.
3. Replacing new batteries. 4. Batteries are well installed.
5. Installing the battery housing. 6. Reinstalling the battery cover.
-6-
EXPLANATION OF THE GRAPHIC SYMBOLS
SN-T13000001
Designation of the serial number of
every device, applied at the device.
(Number as an example)
“Please note the accompanying
documents“
or “Observe operating instructions”
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City 412, Taiwan (R.O.C.)
Identification of manufacturer of
medical product including address

“Type B applied part”

Dispose of old appliances
separately from your household
waste!l!
Instead, take them to communal
collection points.

Carefully read this operation manual
before setup and commissioning,
even if you are already familiar with
Charder scales.

-7-
EMC guidance and manufacturer's declaration
Guidance and manufacturer’s declaration-electromagnetic emissions
The MEDICAL SCALE MS3450 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS3450 should assure
that it is used in such an environment.
Emission test Compliance Electromagnetic
environment-guidance
RF emissions
CISPR 11
Group 1 The MEDICAL SCALE
MS3450 uses RF energy only
for its internal function.
Therefore, its RF emissions
are very low and are not likely
to cause any interference in
nearby electronic equipment.
RF emissions
CISPR 11
Class B The MEDICAL SCALE
MS3450 is suitable for use in
all establishments, including
domestic establishments and
those directly connected to the
public low-voltage power
supply network that supplies
buildings used for domestic
purposes.
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations
/flicker emissions
IEC 61000-3-3
Compliance
-32-
CAUTION:
Always connect the AC adaptor with the indicator before
connecting to the mains power supply.
Please disconnect the adaptor from main power supply before
unplug AC adaptor from the scale.
INSTRUCTION FOR CHARGING AND CONNECTING
If prompt displays on the LCD, please charge the
scale with MS 3450 exclusive adaptor or replace the batteries.
Locate adaptor plug-in at the back side of indicator.
Adaptorplug
USBport

-31-
MEASURING UNDER 121 cm
1. Fold the plate and press
the buckle.
2. Pull down head piece
while buckle is pressed
B
3. Height reading can be
taken at B point.
-8-
Guidance and manufacturer’s declaration-electromagnetic immunity
The MEDICAL SCALE MS3450 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS3450 should assure that it is
used in such an environment.
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic
environment-guidance
Electrostatic
discharge(ESD)
IEC 61000-4-2
±8 kV contact
±2 kV, ±4 kV,
±8 kV, ±15 kV
air
± 6 kV contact
± 8 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30%
Electrical fast
transient/burst
IEC 61000-4-4
± 2kV for power
supply lines +
1kV for
input/output
lines
± 2kV for power
supply lines Not
applicable
Mains power quality
should be that of a typical
commercial or hospital
environment.
Surge IEC
61000-4-5
± 1kV line(s) to
line(s) ± 2kV
line(s) to earth
± 1kV differential
mode Not
applicable
Mains power quality
should be that of a typical
commercial or hospital
environment.
Voltage Dips,
short
interruptions
and voltage
variations on
power supply
input lines IEC
61000-4-11
0% UT for 0,5
cycle
0% UT for 1
cycle
70% UT(30%
dip in UT) for 25
cycles
0% UT for 5 s
<5% UT(>95%
dip in UT) for 0,5
cycle 40%
UT(60% dip in
UT) for 5 cycles
70% UT(30%
dip in UT) for 25
cycles <5%
UT(>95% dip in
UT) for 5 s
Mains power quality
should be that of a typical
commercial or hospital
environment. If the user
of the MEDICAL SCALE
MS3450 requires
continued operation
during power mains
interruptions, it is
recommended that the
MEDICAL SCALE
MS3450 be powered
from an uninterruptible
power supply or a
battery.

-9-
Power
frequency(50/60
Hz) magnetic
field IEC
61000-4-8
30 A/m
3 A/m The MEDICAL SCALE
MS3450 power
frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration-electromagnetic immunity
The MEDICAL SCALE MS3450 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS3450 should assure that is
used in such and environment.
Immunity test IEC 60601 test
level
Compliance
level
Electromagnetic
environment-guidance
Conducted RF
IEC 61000-4-6
3 Vrms
150 KHz to 80 MHz
6 V in ISM bands
between 0,15 MHz
and
80 MHz
80 % AM at 1 kHz
3 Vrms
Portable and mobile RF
communications equipment
should be used no closer to any
part of the MEDICAL SCALE
MS3450 including cables, than
the recommended separation
distance calculated from the
equation applicable to the
frequency of the transmitter.
Recommended separation
distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,7 GHz
Where P is the maximum output
power rating of the transmitter in
watts (W) according to the
transmitter manufacturer and d is
the recommended separation
distance in metres (m).
Field strengths from fixed RF
-30-
INSTRUCTION OF USING HM201M
1.Pullouttherod.
MEASURING OVER 121 cm
2. Position the head piece
to horizontal position
A
3. Height reading can be
taken at A point.

-29-

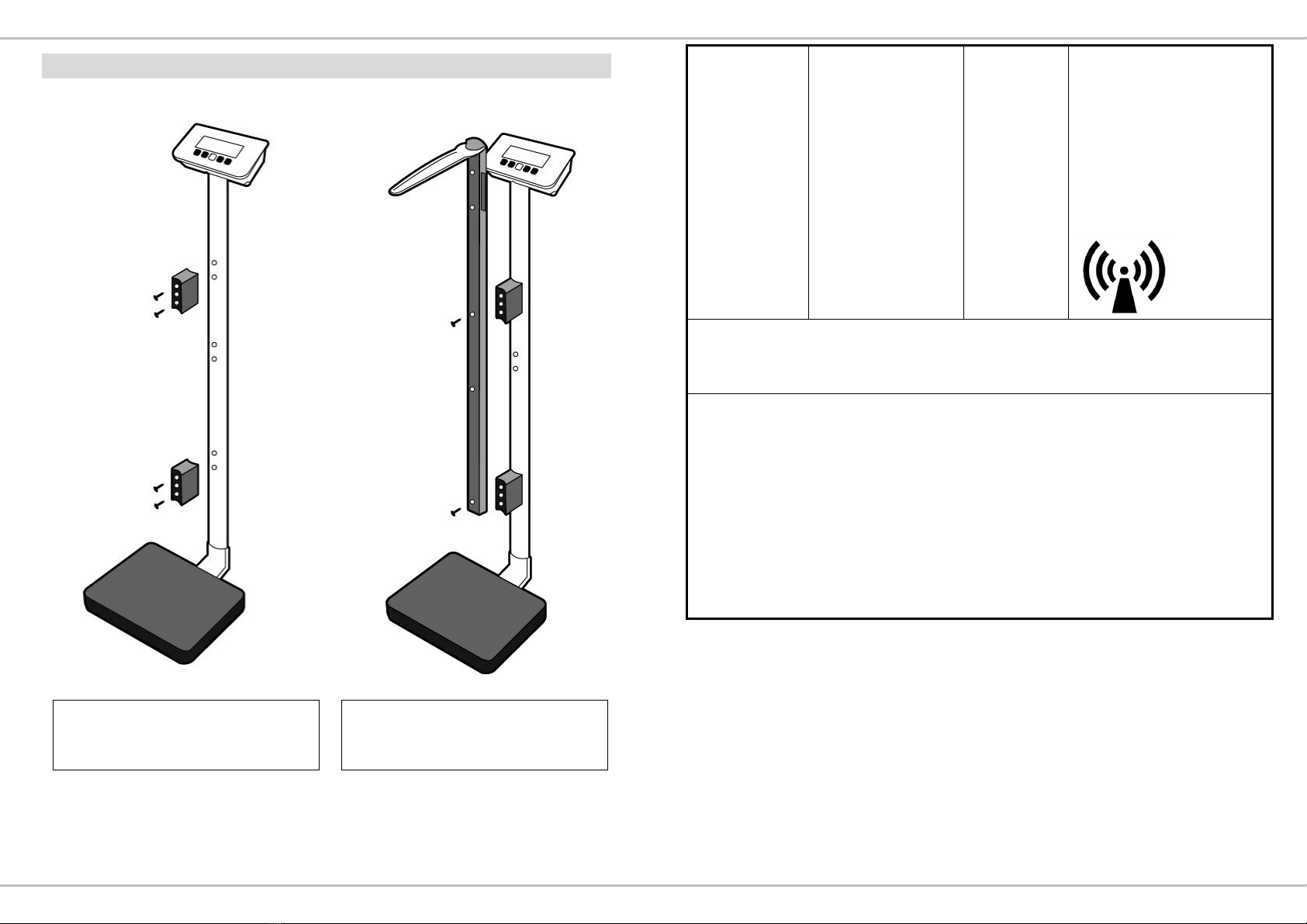

ASSEMBLE WITH HM201M HEIGHT ROD
1. Fix the brackets. 2. Fix HM201M on the
brackets.
-10-
Radiated RF
IEC 61000-4-3
3 V/m 80MHz to 2,7
GHz
3 V/m
transmitters, as determined by an
electromagnetic site surveya,
should be less than the
compliance level in each
frequency rangeb.
Interference may occur in the
vicinity of equipment marked with
the following symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects and
people.
a Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM and
FM radio broadcast and TV broadcast cannot be predicted theoretically with
accuracy. To assess the electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be considered. If the
measured field strength in the location in which the MEDICAL SCALE MS3450
is used exceeds the applicable RF compliance level above, the MEDICAL
SCALE MS3450 should be observed to verify normal operation. If abnormal
performance is observed, additional measures my be necessary, such as
re-orienting or relocating the MEDICAL SCALE MS3450.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be les than
3 V/m.

-11-
RecommendedseparationdistancebetweenportableandmobileRF
communicationsequipmentandtheMEDICALSCALE
The MEDICAL SCALE MS3450 is intended for use in an electromagnetic
environment in which radiated RF disturbances are controlled. The customer or
the user of the MEDICAL SCALE MS3450 can help prevent electromagnetic
interference by maintaining a minimum distance between portable and mobile
RF communications equipment (transmitters) and the MEDICAL SCALE
MS3450 as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter m
150 kHz to 80 MHz
d =1,2√P
80 MHz to 800 MHz
d =1,2√P
800 MHz to 2,7 GHz
d =2,3√P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in metres (m) can be estimated using the
equation applicable to the frequency of the transmitter, where p is the maximum
output power rating of the transmitter in watts (W) according to the transmitter
manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher
frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects
and people.
-28-
5. Complete

-27-
3. Arrange the cable along the gap in the column seat.
4. Cover the bottom cover and screw in four M4*0.7*8 screws
-12-
SPECIFICATIONS
Model MS 3450
Capacity 300 kg x 0.1 kg
Accuracy ±200g
Weight Unit Kg/lb
LCD Display 1.4” LCD digital display
Dimension Platform size: 310 x 310 mm
Column Height: 900mm
Key Functions UNIT, SEND, ON/OFF/ZERO,
HOLD/BMI, TARE/BSA
Optional Accessories HM201M height rod 60 ~ 210 cm / 6ft 10inch
Operating Temp. &
Humidity
+ 5°C ~ + 35°C
15% - 85% RH
Power Supply 12V adapter
1.5V AA battery * 6

-13-

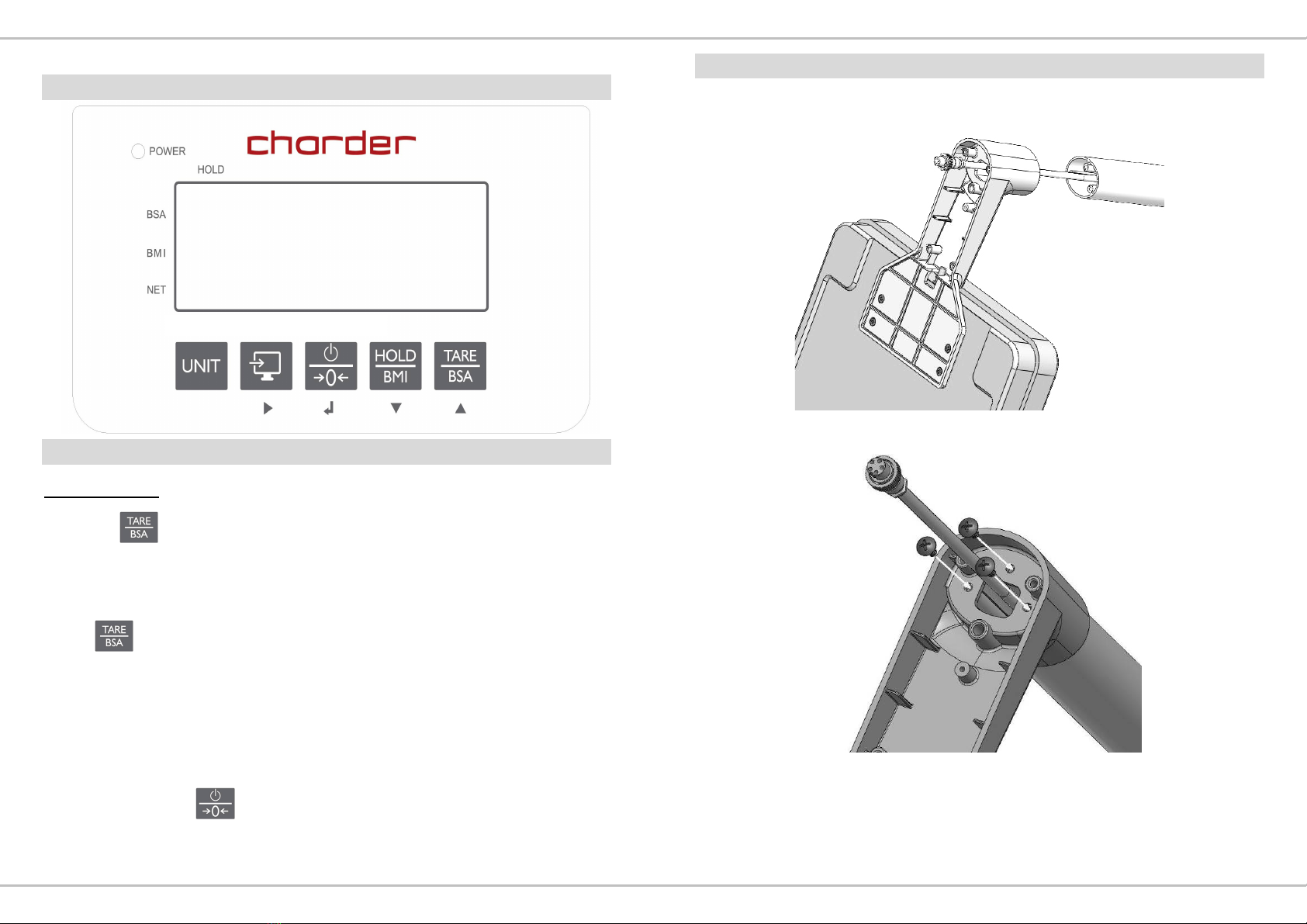

PANEL
KEY FUNCTIONS
Description:
TARE
Tare the weight of excess object in advance so that the user
can measure the net weight of the object / person at ease
without removing the tare object again.
BSA
The total surface area of human body. For many clinical
purpose, BSA is the better indicator of metabolic mass than
body weight, because it is less affected by abnormal adipose
mass. BSA is commonly used in medicine, particularly to
calculate doses of chemotherapeutic agents and index cardiac
output.
ON/ZERO/OFF
Key to power scales ON, OFF and ZERO.
-26-
SCALE ASSEMBLY
1. Plug the column into the column seat.
2. Screw in three M4*0.7*15 screws.

-25-
STANDARD ACCESSORIES
No. Accessories Item Spec Qty
1 M4 Screw M4*0.7*15 3
2 M4 Screw M4*0.7*8 4
3 Bottom
Cover
1
4
USB cable 1
5
12V
adaptor
AC adapter 1
6
User
manual IN-00011 1
-14-
UNIT
Key to switch kg or lb, and to change height value under BMI
mode.
HOLD/BMI
HOLD key and BMI (Body Mass Index) key
LCD DISPLAY SYMBOLS
BSA : Body surface area is activated
BMI : Body Mass Index is activated
NET : Net weight appears after press tare button
HOLD : Weight lock function is activated

-15-
SYMBOLS information
OPERATION
1 Switching on/off
Switching on
Press to switch scale on
For a few seconds the devices shows a start-up screen with
the full segmental LCD display, software version and then
0.0 kg
Switching off
Press and hold for 3 seconds to switch scale off
Zero the scale
Press while scale is on to zeroing the scale
2 Straight weighing
1. Place weighing object/person on the scale

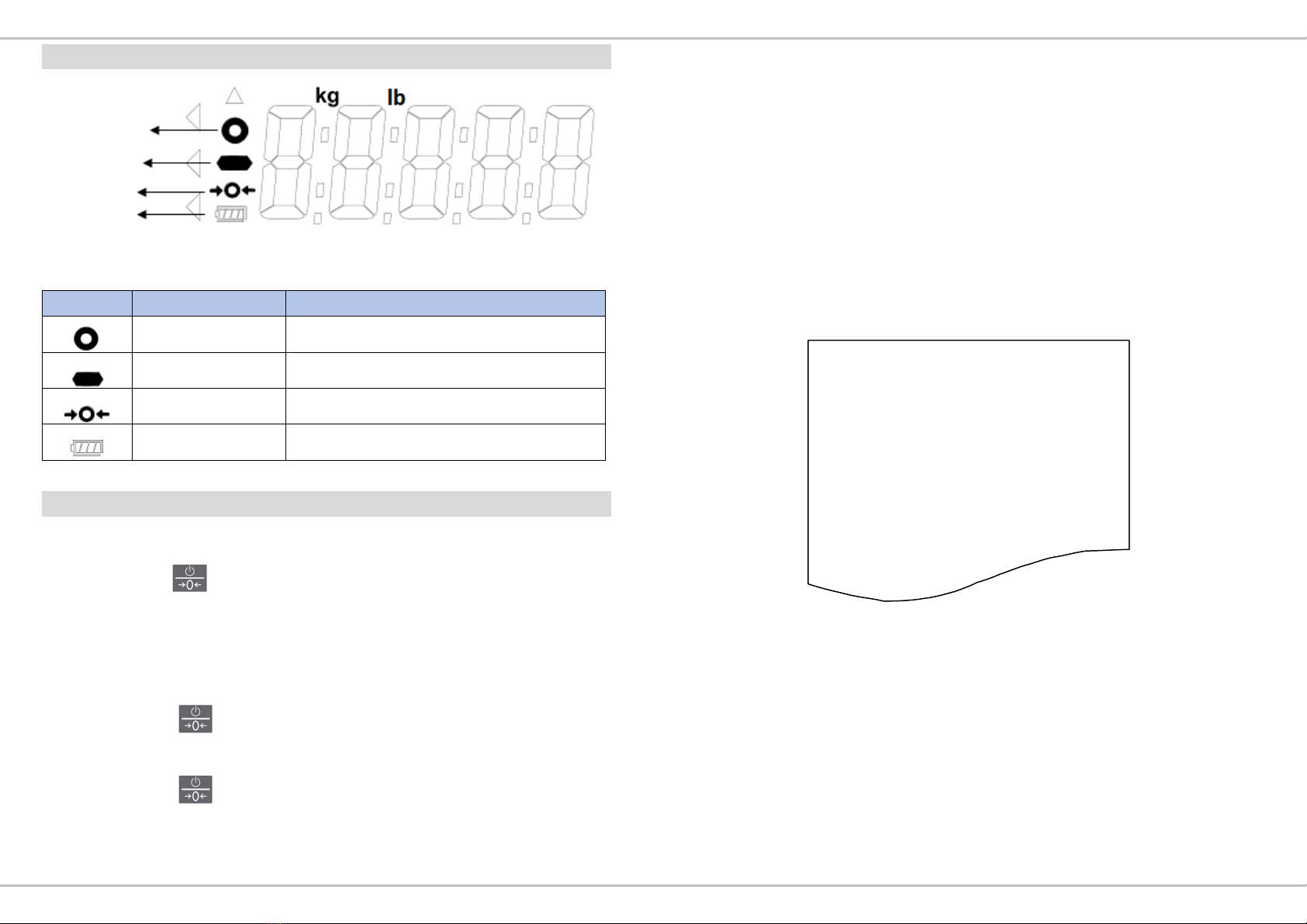

Symbol Information Remark
Stability sign Mark appears when weight is stable
Negative sign When weight value is negative
Zero indication When scale is set to zero
Battery symbol Indicate 5 level of battery power.
Stabilitysign
Negativesign
Zeroindication
Batterysymbol
-24-
8. Printout Data Through USB cable connector
Click OK button to complete the setting. The PC will retrieve the
weighing & BMI data from the CHARDER scale and display on
the HyperTerminal program similar to the layout below.
While the Hyper Terminal program is running, type “P” KEY on
the PC keyboard to transmit a print command to printout from the
thermal printer on the CHARDER scale for hard copy of weighing
data & BMI.
Or, press the [PRINT] button on the display panel of the
CHARDER scale, the printout presented below is the standard
format print layout as well as shown on the HyperTerminal
computer screen.
GROSS WEIGHT 70.00kg
TARE WEIGHT 0.00kg
NET WEIGHT 0.00kg
USER HEIGHT 170.0cm
USER B.M.I. 24.2
01/01/2013 10:00

-23-
6. Select COM Port on User PC
Click Connect to select COM port on the computer. Then click OK.
7. Port Settings for Printout
Set up as below:
Baud rate: 9600 bps
Parity check: None
Data length: 8 bits
Stop bit: 1 bit
Handshake: RTS/CTS
Data code: ASCII
USB Driver Install
The scale confirms to the USB PL2303
Make sure the computer software has a USB scale interface.
PL2303 driver download:
http://www.prolific.com.tw/US/ShowProduct.aspx?pcid=41&showlevel=001
7-0037-0041
-16-
2. Wait until the stability sign appears
3. Read the weighing result
3 Weighing with hold
This device is provided with the integrated hold function
(determination of average value). It enables people to be weighed
accurately although they are not still on the scale plate. Once the
HOLD key is pressed, the weight reading will remain on the display
after the item has been removed from the scale so the reading can
easily be read.
Note
Determination of average value is not possible when a person
moves too much.
HOLD function won’t work if the weight is under 2 kg.
1. Switch on the scale. The diagnostic self-checks is performed.
The scale is ready for weighing when the „0.0 kg” displays
on the screen.
2. Place object/person on the scale.
3. Press key. When the triangle is flashing on the
display, the scale records the fluctuating weight values and
then calculates average weight and displays the result on
the screen.
4. Remove object/person from the scale. The weight reading
will remain on the display.
5. Press key again to return the scale to the normal
weighing mode.
6. HOLD function can be activated before or after place the
weight on the SCALE.
4 Weighing with tare
Tare function allows the user to deduct the excess weight of a single tare
object value (additional loads or clothes) from the display reading, thus
calculate the actual net weight of the object/ person.
4.1.1 Taring
Place tare object (additional loads or clothes) on scale
and press to tare the weight of object.

-17-
The zero display and the symbol NET appear.
The tare weight remains stored until it is cleared.
4.1.2 Clear the tare
Press to clear tare weight
The symbol NET disappear
The gross weight appears in the display.
5 Weighing with BMI
For BMI calculation, height is needed, therefore it is recommended to
measure the height of subject before starting weighing procedure.
1. Switch on the scale.
2. Place object/person on the scale.
3. Press key and hold for 3 seconds. First, display will
show “HOLD” and lock weight then display show “height
value”.
4. Adjust height value by using (↓) and (↑) keys.
5. Switch between digits by using (→) key.
6. Press to confirm height value.
7. Display will show “HOLD” and lock weight to calculate BMI.
Body Mass Index Categories
Classification of weight for adults over 18 years on the basis of Body Mass Index
according to WHO, 2000 EK IV and WHO 2004 (WHO - World Health
Organization).
BMIHeightweight
-22-
Step.2- Go to All Programs.
Step.3- Select Accessories.
Step.4- Find Communications.
Step.5- In Communications section click on HyperTerminal.
5. New Connection Description
Name the connection and click OK Button

-21-
PRINT function and data transmission
The Weighing, BMI and Height results can be keep in PC for records using USB
interface cable, which is connected to the USB plug at the back terminal.
After complete BMI and BSA process, simply press key to transfer the
results to PC.
HOW TO SETUP USB CONNECTIONS ON PC
1. Make sure the PC hardware device has USB port version2.0 or
above compatibility. Users may need to consult with local
computer accessories dealer to select the proper USB cable
length that is most suitable to work environment for best
performance, then connect the cable first between the PC and
CHARDER Scale model.
2. Run HyperTerminal program under Windows OS computer and
input printer port parameter settings, please refer to the next
Section in <Step 7> on how to setup HyperTerminal program in
user’s computer for printer port parameters.
3. Once the HyperTerminal setting is ready, make sure the USB
cable is connected properly between the user PC’s USB port and
the CHARDER Scale Model again. Press PRINT button on the
Scale Display Panel for printout of weight & BMI data from thermal
printer.
Hyper Terminal setting in PC for printout
Hyper Terminal is a freeware on PC Windows XP SP3 or lower to
setup the PC printer com-port with USB cable connector
transmission.
For use on Windows Vista or higher please download hyper terminal
software program from Charder website:
http://www.chardermedical.com/download/dlist-4.htm
4. Start Hyper Terminal
After taking the weight and BMI, run Hyper Terminal program from
the PC’s Windows OS with the following steps:
Step.1- Click on Start Button.
-18-
6 Weighing with BSA
- Values for Body surface area (BSA) is the measured or calculated surface
area of a human body. For many clinical purposes BSA is a better indicator of
metabolic mass than body weight because it is less affected by abnormal
adipose mass. BSA are commonly used in medicine, particularly to calculate
doses of chemotherapeutic agents and index cardiac output.
Average BSA for children of various ages, for men, and for women, are taken to
be:
Age BSA
Neonate (newborn) 0.25 m²
Child of 2 years 0.5 m²
9 years 1.07 m²
10 years 1.14 m²
12-13 years 1.33 m²
Women 1.6 m²
Men 1.9 m²
There was an average BSA of 1.73 m² for 3,000 cancer patients from 1990 to 1998 in a European
Organisation for Research and Treatment of Cancer (EORTC) database.
During 2005 there was an average BSA of 1.79 m² for 3,613 adult cancer patients in the UK. Among
them the average BSA for men was 1.91 m² and for women was 1.71 m².
However, there is some evidence that BSA values are less accurate at extremes of height and weight,
where Body Mass Index may be a better estimate.

-19-

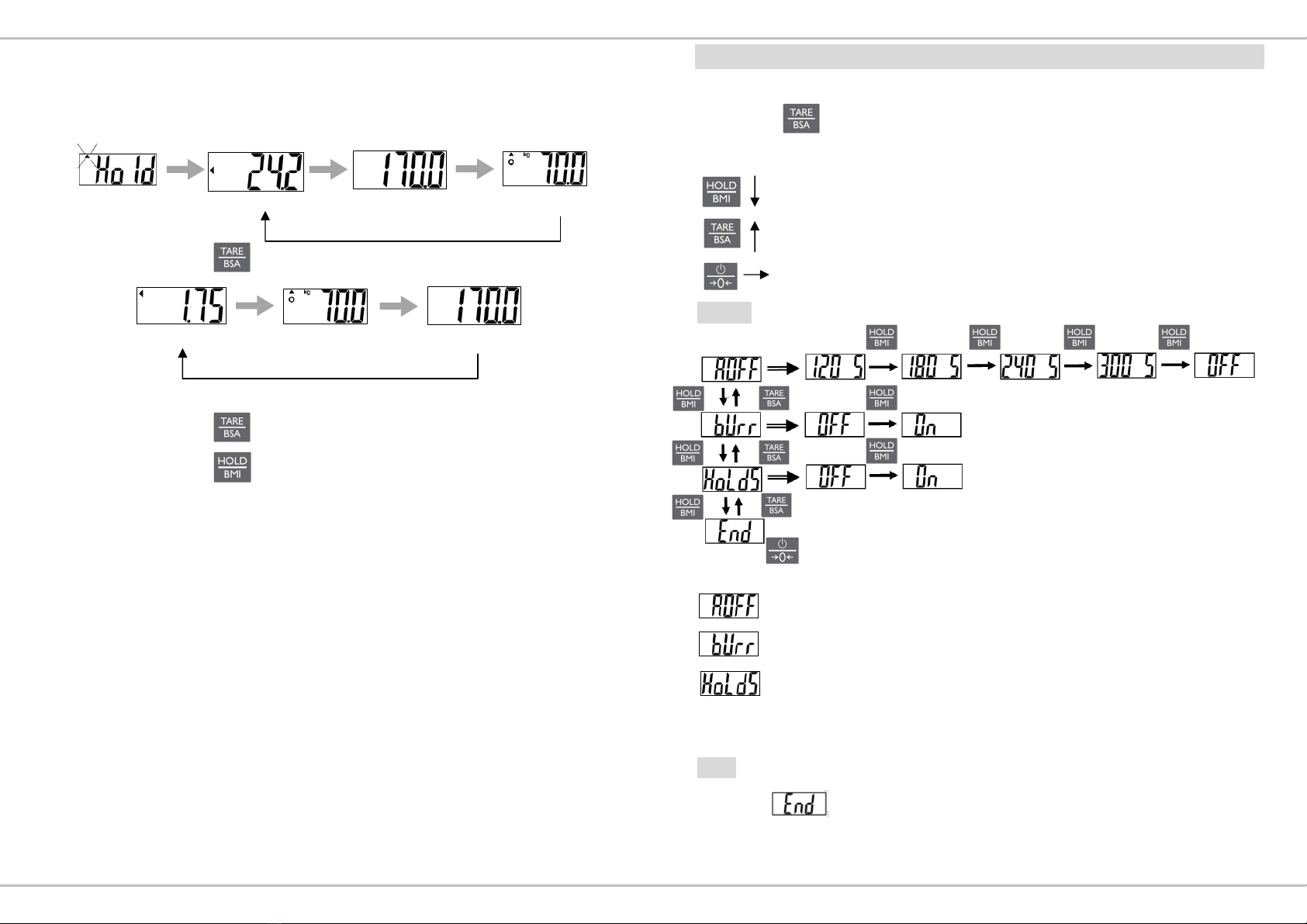

6.1.1 Enable BSA in BMI mode
1. Starting with BMI process
2. When BMI, weight and height is playing rotationally.
3. Press to play BSA value.
4. Press to return to BMI mode.
5. Press to return to normal mode.
BMIHeightweight
Height
weight
BSA
-20-
SETTING-UP
1. Switch on the scale.
2. Press key and hold for 6 seconds to enable setting mode.
3. LCD shows “SETUP” first and then “A.OFF” appears.
Switch between modes and menu
Reverse switch between modes and menu
Confirmsetting.
MENU
AUTO-OFF TIME SETUP
This enables operator to select the auto turn OFF time of the device.
BUZZER ON/OFF SETUP
Set auto-off timer between 120/180/240/300/off
Set buzzer on and off
Set HOLD function release after unload weight ON and
OFF.
Note
Confirm in the menu to save all settings.
