Chattanooga Triton 4749 User manual

Moving
Rehabilitation
Forward™
User Manual
Model 4749 - Triton® Traction Unit
Model 4798 - Triton® DTS Traction Unit
Electromagnetic
Compatibility
(EMC) Tables
ISO 13485 Certified

Triton® Traction
FOREWORD ......................................... 1
Product Description ...................................................1
ABOUT TRACTION THERAPY........................ 28
Precautionary Instructions.............................................2
Cautions ............................................................3-4
Warnings ...........................................................4-5
Dangers ..............................................................5
Overview of Traction Therapy ..........................................6
Common Terms .......................................................6
Indications............................................................7
Contraindications .....................................................7
NOMENCLATURE .................................813
Base Unit - Front View ...............................................8-9
Base Unit - Rear View ............................................. 10-11

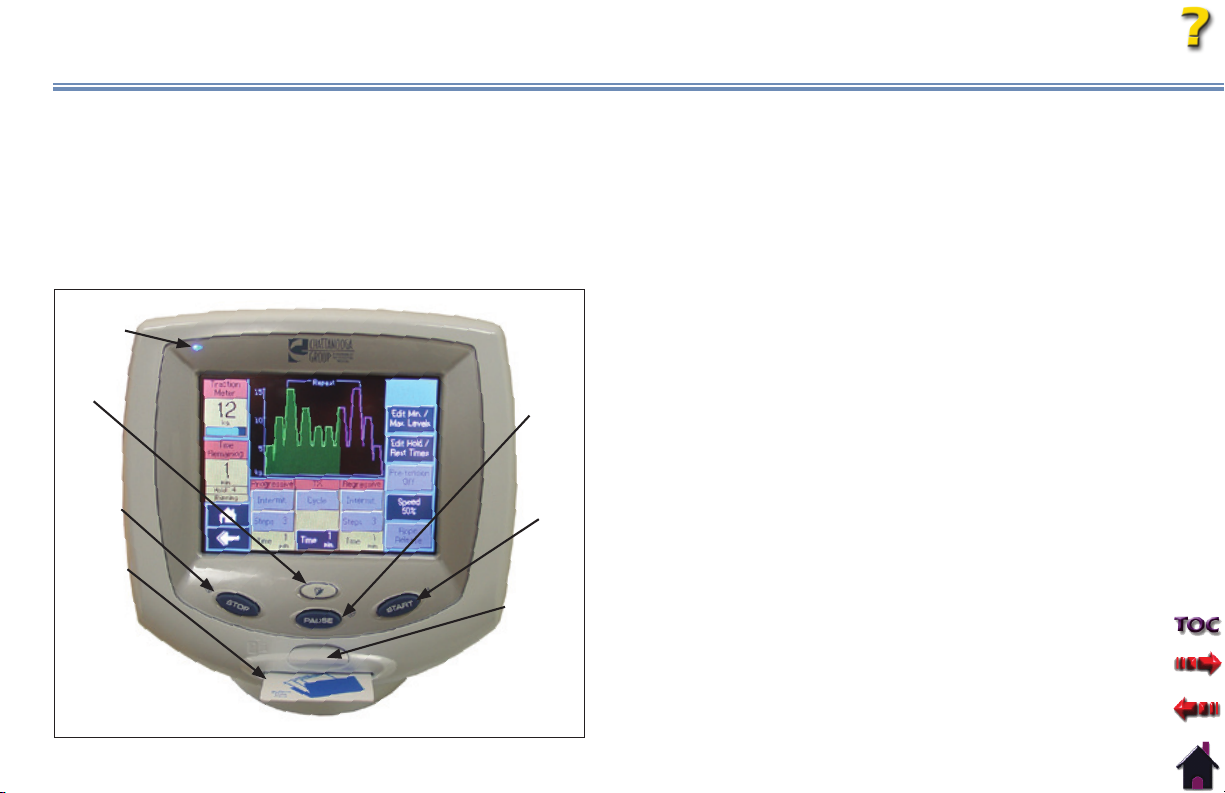

LCD Base.............................................................12
Symbol Denitions ...................................................13
SPECIFICATIONS.................................1416
Traction Unit Dimensions and Specications...........................14
sEMG Module Dimensions and Specications ..........................15
Description of Device Markings .......................................16
SETUP.........................................1723
Contents of Carton ...................................................17
Mounting Unit on Table ..............................................18
Attaching the Patient Switch Hook ....................................19
Installing the sEMG Module...........................................20
Removing the sEMG Module ..........................................21
Initial Unit Setup ................................................. 22-23
OPERATION .....................................2448
Patient Preparation............................................... 24-25
Operating Controls - Home Screen ................................ 26-28
Operating Controls - Treatment Screen ............................ 29-32
sEMG Traction Treatment ......................................... 33-35
Starting, Pausing and Stopping Treatment......................... 36-37
Saving Treatment to a Patient Data Card........................... 38-40
Retrieving Data from Existing Patient Data Card .......................41
Erasing Patient Data Card.............................................42
User Protocols ................................................... 43-44
Clinical Protocols™ ............................................... 45-46
Multimedia Card (MMC) Graphics Library ..............................47
DTS Pull Patterns (If Applicable) .......................................48
ACCESSORIES ...................................4950
TROUBLESHOOTING .............................5154
Troubleshooting ................................................. 51-52
Error Messages................................................... 53-54
MAINTENANCE ..................................5556
Cleaning.............................................................55
Preventative Maintenance Schedule ..................................55
Calibration Requirements.............................................55
Service ..............................................................56
WARRANTY ........................................57
TABLE OF CONTENTS

Triton® Traction
1
This manual has been written for the operators of the Triton traction unit. It contains general instructions for operation, precautionary
instructions, and maintenance recommendations. In order to obtain maximum life and efficiency from your Triton traction unit, and to
assist in the proper operation of the unit, read and understand this manual thoroughly.
The specifications put forth in this manual were in effect at the time of publication. However, owing to DJO, LLC's policy of continuous
improvement, changes to these specifications may be made at any time without obligation on the part of DJO, LLC.
Before administering any treatment to a patient, you should become acquainted with the operating procedures, as well as the indications,
contraindications, cautions, warnings, and dangers. Consult other resources for additional information regarding the application of traction
therapy.
Product Description
The Triton traction unit is a simple to use digital touch screen user interface traction unit that offers static, intermittent, and cyclic traction
with user definable hold, rest, and treatment times. An optional sEMG Module and DTS software upgrade are available for separate
purchase. Patient Pain Profiles are recorded before and after treatment with a Numeric Pain Scale, VAS (Visual Analog Scale), and Pain Map
for each patient. Once treatment parameters are customized for a patient, clinicians can store them as either the default user protocol or as
one of twenty user defined protocols.
This equipment is to be used only under the prescription and supervision of a licensed practitioner.
©2011 DJO, LLC Vista, California, USA. Any use of editorial, pictorial, or layout composition of this publication without express written consent from DJO, LLC is strictly prohibited. This publication was
written, illustrated, and prepared for distribution by DJO, LLC.
FOREWORD

Triton® Traction
2
The precautionary instructions found in this section and throughout this
manual are indicated by specific symbols. Understand these symbols
and their definitions before operating this equipment. The definitions of
these symbols are as follows:
Caution-
Text with a “CAUTION” indicator will explain possible safety infractions
that could have the potential to cause minor to moderate injury or
damage to equipment.
Warning-
Text with a “WARNING” indicator will explain possible safety infractions
that will potentially cause serious injury and equipment damage.
Danger-
Text with a “DANGER” indicator will explain possible safety infractions that
are imminently hazardous situations that would result in death or serious
injury.
PRECAUTIONARY INSTRUCTIONS
ABOUT TRACTION THERAPY
NOTE:
Throughout this manual “NOTE” may be found. These Notes are helpful
information to aid in the particular area or function being described.
Text with an “Explosion Hazard” indicator will explain possible
safety infractions if this equipment is used in the presence of
flammable anesthetics.
Explosion Hazard

Triton® Traction
3
•Read, understand, and practice the precautionary and operating
instructions. Know the limitations and hazards associated with using
sEMG, DTS Pull Patterns and the Triton traction unit. Observe the
precautionary and operational decals placed on the unit.
•DO NOT operate this unit in an environment where other devices
are being used that intentionally radiates electromagnetic energy
in an unshielded manner. Portable and mobile RF communications
equipment can affect Medical Electrical Equipment.
•This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to other devices in
the vicinity. However, there is no guarantee that interference will
not occur in a particular installation. Harmful interference to other
devices can be determined by turning this equipment on and off.
Try to correct the interference using one or more of the following:
reorient or relocate the receiving device, increase the separation
between the equipment, connect the equipment to an outlet on a
different circuit from that which the other device(s) are connected
and consult the DJO, LLC Service Department for help.
•This unit should be operated, transported, and stored in
temperatures between -18 °C and 60 °C (0° F and 140° F).
•The unit should be routinely checked before each use to determine
all controls function normally.
•Do not use electrodes that have been previously used as the
electrodes used with this unit are designed for single use only.
•Do not operate the unit when connected to any unit other than
Chattanooga devices. Do not use devices manufactured by other
companies on Chattanooga equipment. DJO, LLC is not responsible
for any consequence resulting from using products manufactured
by other companies.
•Handle the unit with care. Inappropriate handling of the unit may
adversely affect its characteristics.
•Before each use, inspect the Traction Cord for wear. Prolonged wear
on the cord will cause it to break, which may cause sudden release
of traction pressure on a patient.
•Inspect lead wires and associated connectors for signs of damage
before each use. Replace damaged lead wires immediately before
any treatment is applied.
•Always test the Patient Interrupt Switch cable before each use for
proper operation.
•Do not use sharp objects such as a pencil point or ballpoint pen
to operate the buttons on the Touch Screen base as damage may
result.
•Do not remove the cover. This may cause unit damage, malfunction,
electrical shock, fire, or personal injury. There are no user-serviceable
parts inside the unit. If a malfunction occurs, discontinue use
immediately, disconnect the Mains Power Cord from the outlet, and
consult the dealer for repair service.
•Do not disassemble, modify, or remodel the unit or accessories.
This may cause unit damage, malfunction, electrical shock, fire, or
personal injury.
•Do not use the traction unit near devices such as X-ray units or
diathermy units. These units may emit high frequency noise that
may affect the operation of the unit.
ABOUT TRACTION THERAPY

Triton® Traction
4
ABOUT TRACTION THERAPY
•Do not use the Clevis as a handle to pick up or carry the unit.
•Do not permit any foreign materials or liquids to enter the unit. Take
care to prevent any foreign materials including, but not limited to,
inflammables, water, and metallic objects from entering the unit.
These may cause unit damage, malfunction, electrical shock, fire, or
personal injury.
•If you have difficulty operating the unit after carefully reviewing this
operator’s guide, contact your DJO, LLC dealer for assistance.
•Failure to use and maintain the traction unit and its accessories
in accordance with the instructions outlined in this manual will
invalidate your warranty.
•The Patient Interrupt Switch is essential for the functioning of the
unit. If it is not connected, or if it is malfunctioning, the unit will not
work.
•A licensed practitioner experienced with traction therapy must be
familiar with all instructions contained in this manual before
administering traction therapy. Do not attempt to become familiar
with the Triton traction unit while administering traction therapy on
a patient.
•In the event of a loss of power to the unit or when quick release
is needed, traction tension should only be released by having the
patient move towards the traction head to release the tension on
the rope. Once the tension on the rope has been released, loosen
the patient harness adjustment straps.
•This device should only be used under the continued supervision of a
licensed practitioner.
•Care must be taken when operating this unit adjacent to or
stacked with other equipment. Potential electromagnetic or other
interference could occur to this or other equipment. Try to minimize
this interference by not using other equipment (i.e. cell phones, etc.)
in conjunction with it.
•Use of controls or adjustments or performance of procedures other
than those specified herein may result in a hazardous traction related
injury.
•Before connecting the unit to an electrical outlet, make certain the
unit is electronically grounded by connecting only to a grounded
electrical service receptacle conforming to the applicable national
and local electrical codes.
•Do not use a damaged Mains Power Cord. Using a damaged Mains
Power Cord may cause unit damage, malfunction, electrical shock,
fire, or personal injury. If the Mains Power Cord becomes damaged,
discontinue use immediately and contact the dealer for replacement
of the Mains Power Cord.
•To prevent electrical shock, disconnect the unit from the power
source before attempting any maintenance procedures.
•This device should be kept out of the reach of children.
•Always hand tighten the Lock Knob securely to avoid any slippage.
•The Patient Interrupt Switch must be in the patient’s grasp
throughout the traction therapy.
•Do not apply external pressure (heat or cold) to the electrode sites
during therapy.
•Dispose of all products in accordance with local and national
regulations and codes.

Triton® Traction
5
ABOUT TRACTION THERAPY
•Handle, clean, and dispose of components and accessories that have
come in contact with bodily fluids according to National, Local and
Facility rules, regulations and procedures.
•Do not connect the unit to an electrical supply without first verifying
that the power supply is the correct voltage. Incorrect voltage may
cause unit damage, malfunction, electrical shock, fire, or personal
injury. Your unit was constructed to operate only on the electrical
voltage specified on the Voltage Rating and Serial Number plate.
Contact your DJO, LLC dealer if the unit is not properly rated.
•Should Traction Cord fray or damage to the Traction Cord or knot be
apparent from visual inspection, immediately stop use of the unit and
contact the Dealer or DJO, LLC for service.
•Do not attempt to repair the Traction Cord.
•An improperly tied knot may result in injury. Do not attempt to
re-tie the knot unless properly trained.
• Not for use in the presence of flammable anesthetics.
•Use only tables, stands, power cords and accessories that are specially
designed for the Triton traction unit. Do not use accessories manufactured
by other companies on the Triton traction unit. DJO, LLC is not responsible
for any consequence resulting from using products manufactured by other
companies. The use of other accessories or cables may result in increased
emissions or decreased immunity of the Triton traction unit.
•Do not use other accessories other than those supplied with the system
or recommended by DJO, LLC. The safety of other products has not been
established, and their use could result in injury to the patient.
•To prevent accidental disengagement, this unit must be securely
attached to the mounting surface of the pedestal or traction stand. It
is the responsibility of the user to verify the adequacy of the
installation before use in therapy.
•Do not apply electrodes over broken or compromised skin (e.g., sunburn, cuts,
acne) due to increased risk of skin reactions.
•Do not plug lead wires into power outlets such as wall sockets and line cord
receptacles. Doing so could result in severe shock or burns whether or not the
lead wires are attached to the unit.
•In the event that an Error message or Warning appears beginning with a 2
or 3, immediately stop all use of the system and contact the dealer or DJO,
LLC for service. Errors and Warnings in these categories indicate an internal
problem with the unit that must be tested by DJO, LLC or a Field Service
Technician certified by DJO, LLC before any further operation or use of the
unit. Use of a unit that indicates an Error or Warning in these categories may
pose a risk of injury to the patient, user or extensive internal damage to the
unit.
•Disconnect the traction unit from the power source before attempting any
maintenance, installation, removal, or replacement procedures to prevent
electrical shock and possible damage to the unit.
•The traction unit should only be used by a qualified licensed practitioner in a
position of supervision during therapy. For that reason, do not attempt to put
yourself in traction with this unit.

Triton® Traction
6
ABOUT TRACTION THERAPY
Effects of Traction Therapy
The Triton traction device provides a treatment in static, intermittent,
and cyclic distraction forces to relieve pressures on structures that may
be causing pain of skeletal or muscular origin (cervical, thoracic, lumbar,
hip, wrist, shoulder). Therapeutic distraction can be applied in a variety of
programmable patterns, cycles and functions.
Progressive Traction
Progressive traction refers to a traction phase during the treatment when
the tension gradually increases.
Regressive Traction
Regressive traction refers to a traction phase during the treatment when
the tension gradually decreases.
TX (Traction)
TX (Traction) refers to the type of traction used during a treatment. There
are three modes to choose from: Static, Intermittent or Cyclic Traction
Mode.
Steps
The term “step” refers to the increment in which the traction tension is
either increased or decreased during therapy.
Static Traction Therapy
This term denotes that a steady amount of traction is applied for periods
from a few minutes up to 99 minutes. The shorter duration is usually
coupled with more tension. Static lumbar traction is most effective if
a split table is utilized to reduce friction. It is important that it is the
type that maintains constant tension. This way, any slack developed as
the patient relaxes during the traction therapy is automatically taken
up and the desired amount of traction is maintained. Static traction is
sometimes referred to as sustained traction.
Intermittent Traction Therapy
This form of traction alternates traction tension between tension levels
- Maximum and Minimum - every few seconds throughout the timed
treatment. It is also most effective if a split table is used to reduce friction
when giving lumbar traction. In the progressive and regressive phases,
the traction unit pulls to the calculated tension, holds for the set hold
time, then drops to 50% of the tension level, holds the set rest time and
then repeats this step for the number of steps selected. However, once
the minimum level is reached, the traction unit uses the minimum level
for the rest time.
Cyclic Traction
Cyclic traction refers to progressive and regressive phases of the traction
program being repeated continuously throughout the entire course of
the traction treatment.
OVERVIEW OF TRACTION THERAPY
COMMON TERMS

Triton® Traction
7
ABOUT TRACTION THERAPY
The Triton traction device provides traction and mobilization of skeletal
structures and skeletal muscles.
The Triton traction device may be used to relieve peripheral radiation/
sciatica and pain associated with:
•Protrudingdiscs   •Spinalrootimpingement
•Bulgingdiscs   •Hypomobility
•Herniateddiscs   •Degenerativejointdisease
•Degenerativediscdisease  •Facetsyndrome
•Posteriorfacetsyndrome  •Compressionsfracture
•Acutefacetproblems  •Jointpain
•Radicularpain   •Discogenicpain
•Prolapseddiscs 
The Triton traction device achieves these effects through mechanical
traction of intervertebral discs, that is, unloading due to distraction and
positioning.
Traction is contraindicated for the following:
•Structuraldiseasesecondarytotumororinfection
•Patientswithvascularcompromise
•Anyconditionforwhichmovementiscontraindicated
•Patientswithacutestrains,sprains,andinflammationwhichwouldbe
aggravated by traction therapy
•Patientswithjointinstabilityofthespine
•Pregnancy
•Osteoporosis
•Hiatushernia
•Claustrophobia
•Cardiacorpulmonaryproblems
INDICATIONS CONTRAINDICATIONS

Triton® Traction
8
NOMENCLATURE
BASE UNIT FRONT VIEW
The Base Unit serves to house the mechanical and electrical components
that provide the actual traction tension for the Triton traction unit under
the electronic control and supervision of the Controller.
Traction Cord
To prevent wear and fraying, the unit
should be mounted facing toward
the desired direction of pull so that
the Traction Cord does not contact
the side of the slot from which it
extends.
Traction Cord
Patient
Interrupt
Switch
Receptacle
Touch Screen
User Interface
Clevis
Attachment Slots
•Should Traction Cord fray or damage to the Traction Cord or knot be
apparent from visual inspection, immediately stop use of the unit
and contact the Dealer or DJO, LLC for service.
•Do not attempt to repair the Traction Cord.
•An improperly tied knot may result in injury. Do not attempt to
re-tie the knot unless properly trained.
sEMG
Lead Wire
Receptacle
(Model 4798
or with sEMG
Module P/N
4766)

Triton® Traction
9
NOMENCLATURE
BASE UNIT FRONT VIEW CONTINUED
Accessory Clip
The Accessory Clip allows you to
attach the desired accessory (i.e.,
Spreader Bar or traction harnesses) to
the unit.
Clevis Attachment Slots
The Clevis Attachment Slots serve as
a connection point for other traction
apparatus (not included), such as
cervical or wrist.
•DonotusetheClevisasahandletopickuporcarrytheunit.
Patient Interrupt Switch
Receptacle
The Patient Interrupt Switch
Receptacle is located on the front of
the unit.
•ThePatientInterruptSwitchisessentialforthefunctioningoftheunit.
If it is not connected, or if it is malfunctioning, the unit will not work.
sEMG Lead Wire Receptacle
(Model 4798 or with sEMG
Module P/N 4766)
The sEMG lead wire connection is
located on the front of the unit.

Triton® Traction
10
NOMENCLATURE
BASE UNIT REAR VIEW
The rear view of the base unit is the site of electric current control and
surge protection, and serves as a connection point for both the traction
controls and safety features of the Triton traction unit.
Power On/Off Switch
The Power On/Off Switch is a toggle
switch located on the back of the
unit. This switch controls the flow of
electricity from the outlet to the unit.
Mains Power Cord Receptacle
The Mains Power Cord Receptacle
accepts the Mains Power Cord
(female end).
Screen Contrast Control
The Screen Contrast Control is
used to set a comfortable viewing
of brightness of the Touch Screen
User Interface. Functional On
Monochrome Units Only.
Screen
Contrast
Control
Power
On/Off
Switch
Mains
Power
Cord
Receptacle
Lock
Knob
Serial Number and
Electrical Rating
Plate
Data Port
(Factory
use Only)

Triton® Traction
11
NOMENCLATURE
BASE UNIT REAR VIEW CONTINUED
Lock Knob
The Lock Knob is used to clamp the
Triton traction unit to the base
(i.e. pedestal, traction stand).

Triton® Traction
12
NOMENCLATURE
LCD BASE
The LCD Base serves as a programming terminal during the selection
of the traction parameters, as well as a display showing all the factors
affecting the traction during therapy. Traction parameters are selected
with the buttons on the LCD Base and the Touch Screen User Interface.
The Touch Screen and beeper make various audio and visual indications,
and warn the operator when unsuitable parameters are chosen.
(1) LED Indicator (Power On/Off)
This indicator will illuminate when the unit is powered on.
NOTE: The LED indicator will blink when the unit goes in screen saver
mode (the screen will go blank after twenty minutes of inactivity).
Simply touch the screen to reactivate.
(2) Clinical Resources
This button allows you to access the following features of the traction
unit:
•Patient Card •Protocols
  •PatientCard(PatientName)•RetrieveProtocol
  •EditCurrentPainProfile•SaveProtocol
  •Edit/SaveCompletedPainProfile•ClinicalProtocols™
  •ErasePatientCard
 •Utilities
  •UnitSettings
(3) Stop
This button will stop the treatment program. Traction tension slowly
decreases to zero.
(4) Pause
This button will pause the treatment program. Traction tension slowly
decreases to zero. Press the pause button again to resume treatment
program and traction tension.
(5) Start
Touch this button to start the treatment program.
(6) Patient Data Card Port
Access port to insert a Patient Data Card to save and retrieve patient
treatments.
(7) Multimedia Card (MMC) Port
Access port to insert a MMC Card to display traction techniques and the
anatomical library.
1
3
2
5
4
6
7

Triton® Traction
13
NOMENCLATURE
SYMBOL DEFINITIONS
Below are the definitions for all of the Symbols used on the Triton traction unit hardware and software. Study and learn these symbols before any operation
of the unit.
Contrast
Control
On/Off
Switch
Data
Port
(Factory
Use Only)
Patient Card/ Multi-Media
Card (MMC)/ DTS Software
Upgrade Card
Stop
Treatment
Pause
Treatment
Start
Treatment
System Hardware Symbols
Patient Interrupt
Switch
Clinical Resources
Home
Move UP
Move DOWN
Accept and
Return
System Software Symbols
Cancel
Back
Lock/
Unlock
Lock Knob
sEMG
Lead Wires
Forward

Triton® Traction
14
SPECIFICATIONS
TRACTION UNIT DIMENSIONS AND SPECIFICATIONS
Height
Width
Depth
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 cm (9.5 in)
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 cm (17.5 in)
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45 cm (17.5 in)
Weight
Standard Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 kg (30 lbs)
Shipping Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 kg (40 lbs)
Power
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100V-240V (50/60Hz)
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Continuous Operation
Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75 VA
Current Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.2 Amps Max
Electrical Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class I
Traction Electrical Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Type B
sEMG Electrical Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Type BF
Traction Modes
Static, Intermittent, Cyclic, and their combinations.
Traction Type: Mechanical
LCD Display: High contrast color touch screen
Traction Tension
Parameters Minimum Maximum Increments
Traction Period 1 minute 99 minutes 1 minute
Hold Period 0 seconds 99 seconds 1 second
Rest Period 0 seconds 99 seconds 1 second
Traction Tension 0 kg (0 lb/0 N) 90 kg (200 lb/890 N) 1 kg (1 lb/5 N)
Progressive and
Regressive Steps 1 step 9 steps 1 step
Meets Directive 93 /42 /EEC
IEC/UL/EN: 60601-1 60601-1-2
Certified to CAN/CSA
Standard C22.2 No. 601.1-M90w/A2

Triton® Traction
15
SPECIFICATIONS
sEMG MODULE DIMENSIONS AND SPECIFICATIONS
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16.83 cm (6.63 in)
Depth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.62 cm (3 in)
Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.13 cm (1.63 in)
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 1,000,000 ohm
Input Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.0 µV RMS
Frequency Range . . . . . . . 15Hz - 1000Hz with CMMR of > 120 dB CMMR
at 50/60 Hz > 180 dB
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146 g (5.2 oz)
Product Type
Internally Powered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Triton Traction Unit
Electrical Class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class I
Electrical Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Type BF
For Continuous Operation
Regulatory Compliance
Depth
Height
Width
Meets Directive 93 /42 /EEC
IEC/UL/EN: 60601-1 60601-1-2
Certified to CAN/CSA
Standard C22.2 No. 601.1-M90w/A2

Triton® Traction
16
SPECIFICATIONS
DESCRIPTION OF DEVICE MARKINGS
The markings on the Triton traction unit are your assurance of its conformity to the highest applicable standards of medical equipment safety and
electromagnetic compatibility. One or more of the following markings may appear on the device:
Meets Directive 93 /42 /EEC
IEC/UL/EN 60601-1, 60601-1-2
Certified to CAN/CSA
Standard C22.2 No. 601.1-M90w/A2
Refer to Instruction Manual/Booklet
Type B Equipment
Type BF Equipment
Protective Earth
This product complies with WEEE Directive 2002/96/EG
(waste electrical and electronic equipment). Separate
collection for electrical and electronic equipment.

Triton® Traction
17
SETUP
CONTENTS OF CARTON
Remove the Triton traction unit and all accessories from the shipping
cartons. Visually inspect for damage.
Report any damage to the carrier immediately.
Contents of Cartons:
Model 4749 - Triton Traction Unit
•TritonTractionUnit
•PatientDataCards(5)
•PatientInterruptSwitch-2.75m(9ft)incablelength,shielded,26AWG
•PatientInterruptSwitchHookKit
•MainsPowerCord-203cm(80in)incablelength,shielded,18AWG
•UserManual(CD-ROM)
Model 4798 - DTS Traction Unit
•TritonDTSTractionUnit
•PatientDataCards(5)
•sEMGleadwire-2.44m(8ft)incablelength,unshielded,24/28AWG
•(4)Dura-StickIIElectrodes-3cm(1.25in)Round
•(4)Dura-StickIIElectrodes-5cm(2in)Round
•PatientInterruptSwitch- 2.75 m (9 ft) in cable length, shielded, 26 AWG
•PatientInterruptSwitchHookKit
•MainsPowerCord-203cm(80in)incablelength,shielded,18AWG
•UserManual(CD-ROM)
NOTE: When shipping the unit back to the dealer or factory, make
certain the original packaging is used. If the original packaging
is not available, contact DJO, LLC to obtain the following
packaging materials for shipment:
48059 Inner Pack Box Top
48093 Left Inner Pack
48094 Right Inner Pack
48092 Shipping Box
48095 Shipping Bag
Any damage sustained from improper packaging may render the
warranty null and void.

Triton® Traction
18
The Triton traction unit was designed to be utilized with Chattanooga
traction tables:
NOTE: The Triton traction unit should be mounted facing the direction
of pull so the Traction Cord does not contact the side of the slot
from which it extends.
SETUP
MOUNTING UNIT ON TABLE
1. To secure the traction unit to the
mounting surface, first loosen the
Clamp Knob by turning to the left.
Fit the unit to the mounting
surface, then turn the Clamp Knob
to the right, tightening the clamp
and securing the unit in place.
2. Remove the cover on the back
of the unit and connect the Mains
Power Cord (female end) to the
Mains Power Cord Receptacle.
3. Verify that there is a good
connection between the Mains
Power Cord and the Mains Power
Cord Receptacle. Always make
certain that the Mains Power Cord
is properly plugged into the unit.
4. Check the voltage rating on the
serial plate located on the back of
the unit. Plug the Mains Power
Cord into a 100V-240V AC outlet,
as required. Replace the cover on
the back of the unit.
•Topreventaccidentaldisengagement,thisunitmustbesecurely
attached to the mounting surface of the pedestal or traction stand. It
is the responsibility of the user to verify the adequacy of the
installation before use in patient therapy.
•Donotoperatetheunitwhenconnectedtoanyunitotherthan
Chattanooga devices. Do not use devices manufactured by
other companies on Chattanooga equipment. DJO, LLC is not
responsible for any consequence resulting from using
products manufactured by other companies.
