Chauvet Satellite TV System User manual

3000 N 29th Ct, Hollywood, FL 33020 U.S.A.
[phone] –[phone]
FAX [phone]
www.chauvetlighting.com
Snapshot
Use on Dimmer
Outdoor Use
Sound Activated
DMX
Master/Slave
Auto-ranging
Power Supply
Replaceable Fuse
User Serviceable
Duty Cycle
User Manual

CHAUVET®, 2009, All Rights Reserved
Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no
responsibility or liability for any errors or inaccuracies that may appear in this manual.
TABLE OF CONTENTS
1. BEFORE YOU BEGIN................................................................................................................................................... 3
WHAT IS INCLUDED ................................................................................................................................................................................ 3
UNPACKING INSTRUCTIONS .................................................................................................................................................................... 3
MANUAL CONVENTIONS ......................................................................................................................................................................... 3
ICONS .................................................................................................................................................................................................. 3
SAFETY INSTRUCTIONS .......................................................................................................................................................................... 4
2. INTRODUCTION ........................................................................................................................................................... 5
FEATURES ............................................................................................................................................................................................ 5
PRODUCT DIMENSIONS .......................................................................................................................................................................... 5
PRODUCT OVERVIEW............................................................................................................................................................................. 6
3. SETUP .......................................................................................................................................................................... 7
CHARGING THE BATTERY........................................................................................................................................................................ 7
STORING THE PRODUCT......................................................................................................................................................................... 7
BATTERY REPLACEMENT........................................................................................................................................................................ 8
MOUNTING............................................................................................................................................................................................ 9
Orientation................................................................................................................................................................ 9
Rigging ..................................................................................................................................................................... 9
D-FI™PLUS/SATELLITE™D-FI CONFIGURATION OPTIONS .................................................................................................................. 10
CONFIGURATIONS ............................................................................................................................................................................... 10
Configuration #2...................................................................................................................................................... 10
Configuration #1...................................................................................................................................................... 10
4. OPERATING INSTRUCTIONS.................................................................................................................................... 11
USING THE CONTROL PANEL ................................................................................................................................................................. 11
MODE SELECTION ............................................................................................................................................................................... 11
FREQUENCY SELECTION ...................................................................................................................................................................... 11
5. APPENDIX.................................................................................................................................................................. 12
DMX PRIMER ..................................................................................................................................................................................... 12
GENERAL MAINTENANCE...................................................................................................................................................................... 12
DATA CABLING.................................................................................................................................................................................... 13
DMX Data Cable..................................................................................................................................................... 13
Cable Connectors................................................................................................................................................... 13
FIXTURE LINKING................................................................................................................................................................................. 13
CLAIMS .............................................................................................................................................................................................. 13
Setting up a DMX Serial Data Link.......................................................................................................................... 14
RETURNS PROCEDURE ........................................................................................................................................................................ 14
SETTING THE STARTING ADDRESS ........................................................................................................................................................ 14
GENERAL TROUBLESHOOTING .............................................................................................................................................................. 15
CONTACT US...................................................................................................................................................................................... 15
3-Pin to 5-Pin Conversion Chart.............................................................................................................................. 15
TECHNICAL SPECIFICATIONS ................................................................................................................................................................ 16

1. Before You Begin 3 12/28/2009 12:38 PM
1. BEFORE YOU BEGIN
What is included
1 x Satellite™ D-Fi
1 x Antenna
1 x Battery charger
1 x 4-pin DIN cable (1 m in length)
1 x Warranty Card
1 x User Manual
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
Manual Conventions
CHAUVET® manuals use the following conventions to differentiate certain types of information from
the regular text.
CONVENTION
MEANING
[10]
A DIP switch to be configured
<Menu>
A key to be pressed on the fixture’s control panel
1~512
A range of values
50/60
A set of values of which only one can be chosen
Settings
A menu option not to be modified (for example, showing the operating
mode/current status)
MENU > Settings
A sequence of menu options to be followed
ON
A value to be entered or selected
Icons
This manual uses the following icons to indicate information that requires special attention on the part
of the user.
ICONS
MEANING
This paragraph contains critical installation, configuration or operation
information. Failure to comply with this information may render the fixture
partially or completely inoperative, cause damage to the fixture or cause
harm to the user.
This paragraph contains important installation or configuration information.
Failure to comply with this information may prevent the fixture from
functioning correctly.
This paragraph reminds you of useful, although not critical, information.

1. Before You Begin 4 12/28/2009 12:38 PM
Safety Instructions
Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Always make sure that you are connecting to the proper voltage, and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the fixture.
This product is intended for indoor use only! To prevent risk of fire or shock, do not expose fixture to
rain or moisture.
Make sure there are no flammable materials close to the unit while operating.
The unit must be installed in a location with adequate ventilation, at least 20 in (50 cm) from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Always disconnect from power source before servicing or replacing fuse and be sure to replace with
same fuse source.
Secure fixture to fastening device using a safety chain.
Maximum ambient temperature (Ta) is 104° F (40° C). Do not operate fixture at temperatures higher
than this.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the
unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center.
Never connect the device to a dimmer pack.
Make sure the power cord is never crimped or damaged.
Never disconnect the power cord by pulling or tugging on the cord.
Never carry the fixture directly from the cord. Always use the carrying handles.
The unit must be operated, charged, and stored upright at all times.
Please read these instructions carefully. It includes important
information about the installation, usage and maintenance of this
product.

2. Introduction 5 12/28/2009 12:38 PM
2. INTRODUCTION
Features
Cordless battery pack works with all Satellite™-ready fixtures
Built-in wireless DMX receiver works with D-Fi system
3-pin and 5-pin DMX connections
LED indicators display battery life
Easy-access door to connect and change battery
Removable antenna
Product Dimensions

2. Introduction 6 12/28/2009 12:38 PM
Product Overview
Antenna
(included)
Battery Life Meter
Carrying Handle
(removable)
DMX Out (5-pin)
Fixture Mounting
Location (13 mm)
LCD Control Panel
Battery Door
Screw
DMX In (5-pin)
DMX Out (3-pin)
Mounting Brackets
(removable)
Power On/Off
Switch
Safety
Attachment Point
12 VDC
Charger In
4-pin Power
Out to Light
DMX In (3-pin)

3. Setup 7 12/28/2009 12:38 PM
3. SETUP
Charging the battery
The battery charger runs on 100~240 VAC, 50/60 Hz.
On the supplied battery charger, the LED will light green to indicate that the battery is fully charged. The LED
on the battery charger will light red to indicate that the battery is charging.
Please see the following instructions for charging the battery.
1. Disconnect the power cable between the Satellite™ D-Fi and the light.
2. Turn the power switch to the Satellite™ D-Fi off.
3. Plug in the supplied battery charger.
4. Allow to fully charge until the LED indicator on the supplied battery charger turns green
when connected. This indicates a full charge.
5. For best results, charge for 8~10 hours.
The LED on the supplied battery charger will also light green if it is not connected to the
Satellite™ D-Fi.
Always connect the charger to a switched circuit. Never connect the fixture to a rheostat
(variable resistor) or dimmer circuit, even if the rheostat or dimmer channel is used only as a 0
to 100% switch.
In order to get an even charge and ensure a long battery life, disconnect the light from the
battery before connecting the battery charger. Then, allow the battery to fully charge before
using it.
Storing the Product
In order to maintain a long life for the internal battery, the following procedures for storage must be followed.
1. Always recharge the battery every 30 days.
2. Never leave the battery charging for longer than 12 hours.
3. If planning on storing for longer than 30 days, store in a location below 80° F

3. Setup 8 12/28/2009 12:38 PM
Battery Replacement
As with any battery, the battery in this product will not last forever. Eventually, it must be replaced. Please
see the following instructions for this procedure.
1. Disconnect the battery charger.
2. Turn the power switch OFF.
3. Remove the external battery door screw with a #2 screwdriver
4. Remove the internal battery latch screw with a #2 screwdriver.
5. Slide the old battery out halfway.
6. Remove the positive (+) and negative (-) wires from the old battery.
7. Fully remove the old battery.
8. Insert the new battery halfway, with the 2 terminals facing towards the batter door.
9. Attach the positive (+) and negative (-) wires to the new battery.
10. Fully insert the new battery.
11. Replace the external battery door screw with a #2 screwdriver
12. Replace the internal battery latch screw with a #2 screwdriver.
13. You may now use the product under normal operation.
If you feel any resistance when reinstalling the new battery, STOP. Do not force the new
battery into position. You may cause damage the product which may cause a hazardous
condition.

3. Setup 9 12/28/2009 12:38 PM

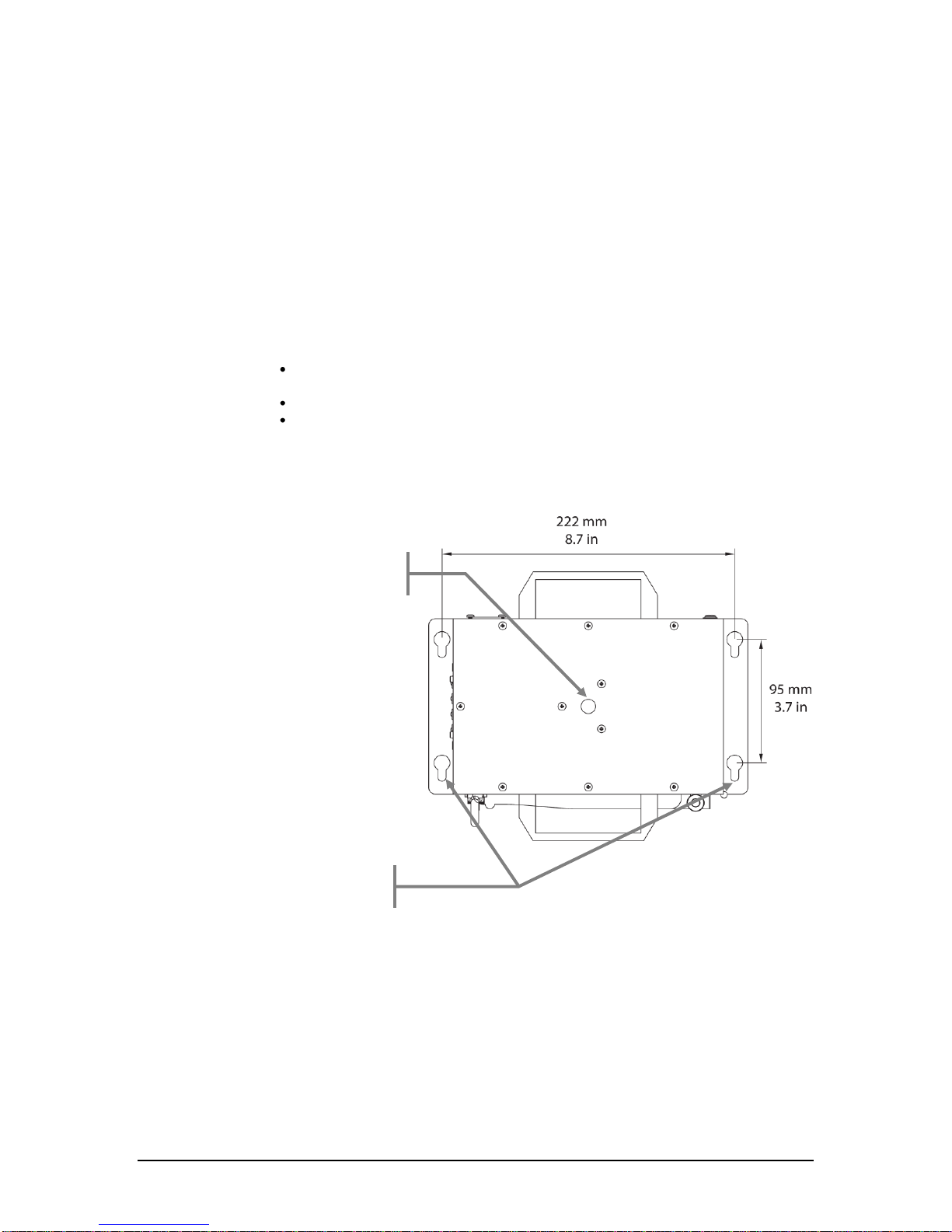

Fixture Mounting
Location
Mounting
Brackets (2)
Mounting
Orientation
The Satellite™ D-Fi may be mounted in an upright, safe position, provided there is adequate room for
ventilation.
Rigging
Be sure that the structure can support the weight of the fixture. Please see the “Technical
Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This
may be done with a screw, nut and bolt, or a hanging clamp. The hole in each mounting bracket is 13
mm in size. When rigging, consider routine maintenance and control panel access. Please see the
following steps for installation.
Due to the internal battery in the product, this product may not be operated in a position
other than upright.
Safety cables must always be used.
2 clamps, one on either mounting bracket, must be used if operating this fixture is any
position other than floor standing.

3. Setup 10 12/28/2009 12:38 PM

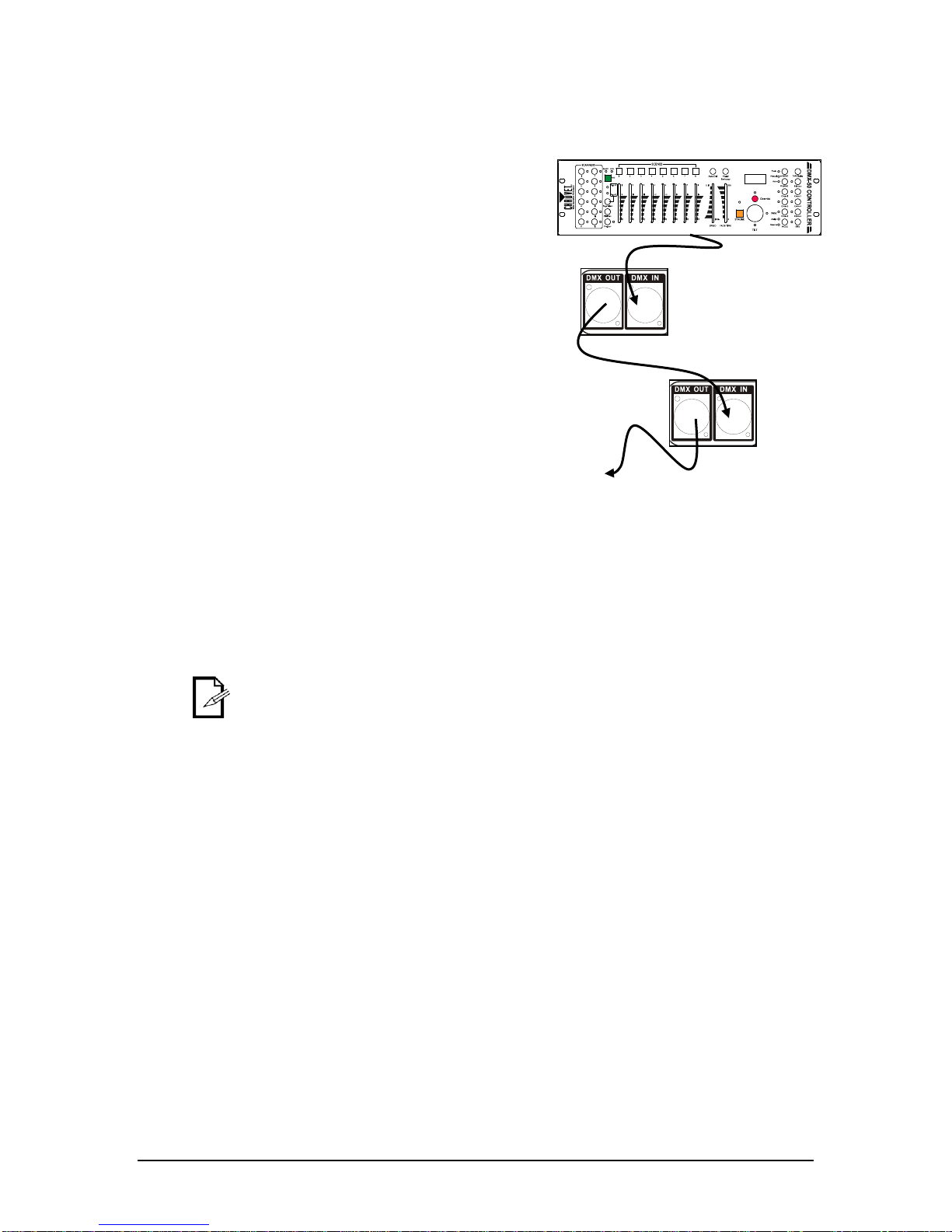

DMX Fixture
Configuration #2
DMX Controller
DMX Fixture
Configuration #1
Receiver
Transmitter
DMX Fixture
Receiver
DMX Fixture
Receiver
Transmitter
D-Fi™PLUS/Satellite™ D-Fi Configuration Options
The Satellite™ D-Fi is fully compatible with the standalone D-Fi™ PLUS wireless DMX products.
DMX connection for the Satellite™ D-Fi
There are both 3-pin and 5-pin DMX connection on the product. However, only one input and one output must
be used at any time.
Configurations
1. A transmitter is connected to the output of the controller, and a receiver is connected at the input of
the first DMX fixture.
2. A transmitter is connected to the output of a DMX fixture, and a receiver is connected to the input of
the next DMX fixture.
The following diagrams are to demonstrate possible configurations. Multiple receivers may be
used in any possible configuration.

4. Operating Instructions 11 12/28/2009 12:38 PM

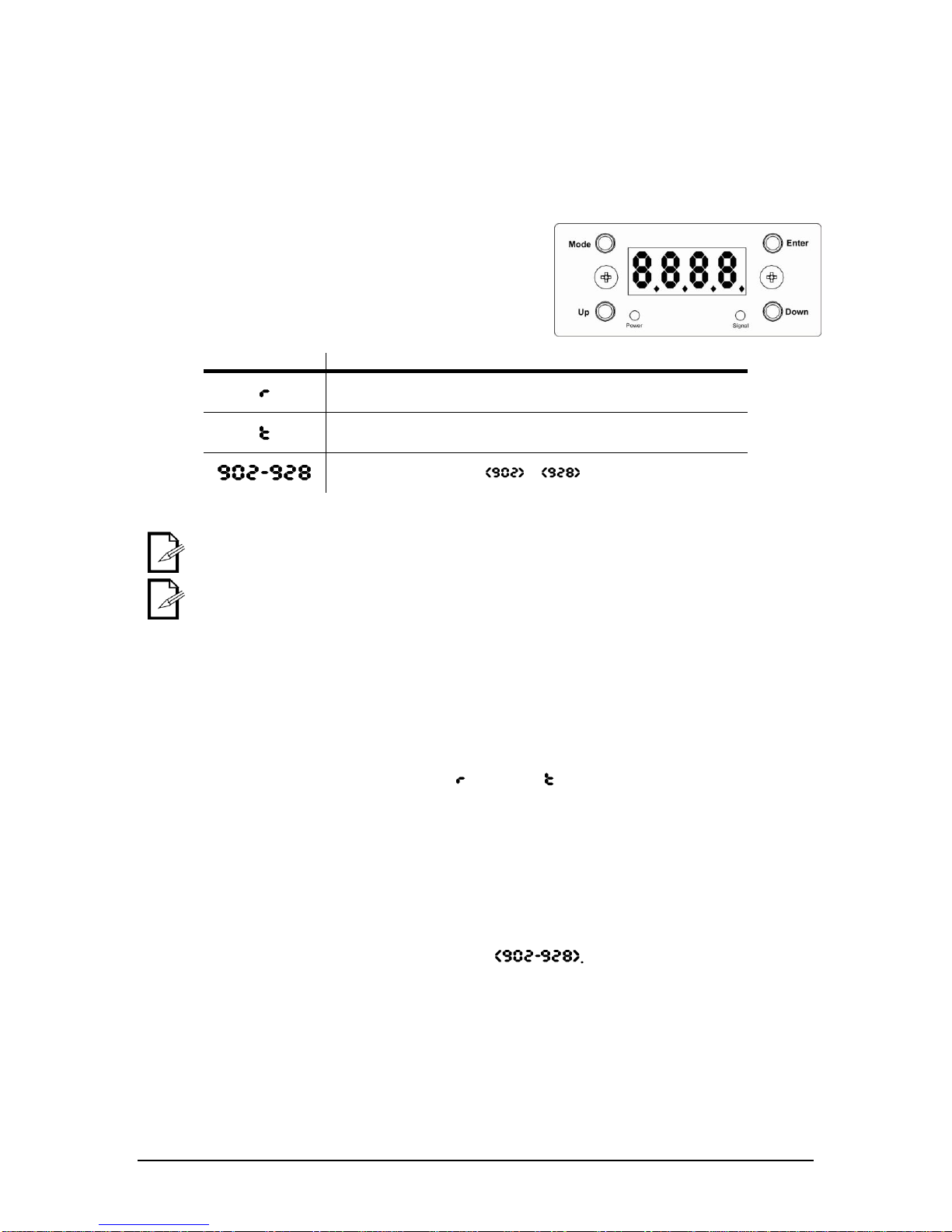

4. OPERATING INSTRUCTIONS
Using the control panel
Press <MODE> to switch between transmit and receive
mode; this will also enable the frequency assignment.
Press <DOWN/UP>to scroll through the operating
frequencies.
Press <ENTER> to save the settings.
Menu Option
Description
Receive mode: Sets the Satellite™ D-Fi/D-Fi™ PLUS to receive from a
transmitting D-Fi™ PLUS operating on the same frequency
Transmit mode: Sets the Satellite™ D-Fi/D-Fi™ PLUS to transmit to a
receiving Satellite™ D-Fi/D-Fi™ PLUS operating on the same frequency
Operating frequency: from to
A system is one Satellite™ D-Fi/D-Fi™ PLUS transmitting and one or more Satellite™ D-Fi/D-Fi™ PLUS
units receiving on the same frequency.
A minimum of 2 Satellite™ D-Fi/D-Fi™ PLUS units are required for operation.
Mode Selection
Each Satellite™ D-Fi may be used as a transmitter or a receiver, and is thereby referred to as a transceiver. In
order to the appropriate mode, please see the following steps.
1. Press <MODE>. The first group of segments on the LED display will begin blinking rapidly.
2. Press <MODE> again to change between (receive) and (transmit).
3. Press <ENTER>.
Frequency Selection
An operable system requires one transmitter and at least one receiver to be used on the same frequency.
Please see the steps below for instructions on how to set the frequency.
1. Press <MODE>. The first group of segments on the LED display will begin blinking rapidly.
2. Use <UP> and <DOWN> to select the frequency
3. Press <ENTER>.

5. Appendix 12 12/28/2009 12:38 PM
5. APPENDIX
DMX Primer
There are 512 channels in a DMX connection. Channels may be assigned in any manner. A fixture
capable of receiving DMX will require one or a number of sequential channels. The user must assign
a starting address on the fixture that indicates the first channel reserved in the controller. There are
many different types of DMX controllable fixtures and they all may vary in the total number of
channels required. Choosing a start address should be planned in advance. Channels should never
overlap. If they do, this will result in erratic operation of the fixtures whose starting address is set
incorrectly. You can however, control multiple fixtures of the same type using the same starting
address as long as the intended result is that of unison movement or operation. In other words, the
fixtures will be slaved together and all respond exactly the same.
DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is
where the DATA OUT of one fixture connects to the DATA IN of the next fixture. The order in which
the fixtures are connected is not important and has no effect on how a controller communicates to
each fixture. Use an order that provides for the easiest and most direct cabling. Connect fixtures
using shielded two conductor twisted pair cable with three pin XLR male to female connectors. The
shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+).
General Maintenance
To maintain optimum performance and minimize wear, fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Dust build up reduces light output performance and can cause
overheating. This can lead to reduced lamp life and increased mechanical wear. Be sure to power off
fixture before conducting maintenance.
Unplug fixture from power.
Use a vacuum or air compressor and a soft brush to remove dust collected on external
vents.
Clean all glass when the fixture is cold with a mild solution of glass cleaner or Isopropyl
Alcohol and a soft lint free cotton cloth or lens tissue.
Apply solution to the cloth or tissue and drag dirt and grime to the outside of the lens.
Gently polish optical surfaces until they are free of haze and lint.
The cleaning of external optical lenses and/or mirrors must be carried out periodically to optimize light
output. Cleaning frequency depends on the environment in which the fixture operates. Damp, smoky
or particularly dirty surroundings can cause greater accumulation of dirt on the unit’s optics. Clean
with soft cloth using normal glass cleaning fluid. Clean the external optics at least every 20 days.
Clean the fixture at least every 30/60 days.
Always dry the parts carefully after cleaning them.
Never spin a fan using compressed air.

5. Appendix 13 12/28/2009 12:38 PM
Data Cabling
To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX
cables directly from a dealer/distributor or construct your own cable. If you choose to create your own
cable please use data-grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
DMX Data Cable
Use a Belden© 9841 or equivalent cable which meets the specifications for EIA RS-485 applications.
Standard microphone cables cannot transmit DMX data reliably over long distances. The cable must
have the following characteristics:
Type: shielded, 2-conductor twisted pair
Maximum capacitance between conductors: 30 pF/ft
Maximum capacitance between conductor and shield: 55 pF/ft
Maximum resistance: 20 ohms/1000 ft
Nominal impedance: 100 ~ 140 ohms
Cable Connectors
Cabling must have a male XLR connector on one end and a female XLR connector on the other end.
Do not allow contact between the common and the fixture’s chassis ground.
Grounding the common can cause a ground loop, and your fixture may perform
erratically. Test cables with an ohm meter to verify correct polarity and to make sure
the pins are not grounded or shorted to the shield or each other.
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX controller or to
run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined
number of channels required by all the fixtures on a serial data link determines the number of fixtures
the data link can support.
Fixtures on a serial data link must be daisy chained in one single line. To comply with the EIA-
485 standard, no more than 32 fixtures should be connected on one data link. Connecting
more than 32 fixtures on one serial data link without the use of a DMX optically-isolated
splitter may result in deterioration of the digital DMX signal.
Maximum recommended serial data link distance: 500 m (1640 ft)
Maximum recommended number of fixtures on a serial data link: 32
Claims
Damage incurred in shipping is the responsibility of the shipper; therefore, the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim
for items such as missing component/part, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise
COMMON
DMX +
DMX -
INPUT
OUTPUT
1
3
2
1
3
2
1
3
2
120 ohm ¼ W
resistor between
pin 2 (DMX -) and
pin 3 (DMX +) on
the output of the
last fixture
To avoid signal transmission problems
and interference, it is always advisable to
connect a DMX signal terminator.
DMX connector configuration

5. Appendix 14 12/28/2009 12:38 PM
This drawing
provides a general
illustration of the
DMX input/output
panel of a lighting
fixture.
Universal DMX Controller
Continue the link
Setting up a DMX Serial Data Link
3. Connect the (male) 3-pin connector side of
the DMX cable to the output (female) 3-pin
connector of the controller.
4. Connect the end of the cable coming from
the controller which will have a (female)
3-pin connector to the input connector of the
next fixture consisting of a (male) 3-pin
connector.
5. Then, proceed to connect from the output as
stated above to the input of the following
fixture and so
Returns Procedure
Returned merchandise must be sent prepaid and in the original packing; call tags will not be issued.
Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #).
Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to
shipping the fixture. Be prepared to provide the model number, serial number and a brief description
of the cause for the return. Be sure to pack fixture properly; any shipping damage resulting from
inadequate packaging is the customer’s responsibility. As a suggestion, proper UPS packing or
double-boxing is always a safe method to use.
CHAUVET® reserves the right to use its own discretion to repair or replace product(s).
If you are given an RMA #, please include the following information on a piece of paper inside
the box:
1) Your name
2) Your address
3) Your phone number
4) The RMA #
5) A brief description of the symptoms
Setting the Starting Address
This DMX mode enables the use of a universal DMX controller device. Each fixture requires a start address
from 1~512. A fixture requiring one or more channels for control begins to read the data on the channel
indicated by the start address. For example, a fixture that uses six DMX channels and was addressed to start
on DMX channel 100, would read data from channels: 100, 101, 102, 103, 104, and 105. Choose start
addresses so that the channels used do not overlap, and note the start address selected for future reference.
If this is your first time addressing a fixture using the DMX control protocol, we suggest jumping to the
“Appendix” section and reading the heading “DMX Primer”. It contains very useful information that will help you
understand its use.

5. Appendix 15 12/28/2009 12:38 PM
General Troubleshooting
SYMPTOM
POSSIBLE CAUSE(S)
POSSIBLE ACTION(S)
Breaker/Fuse
keeps blowing
Excessive circuit load
Check total load placed on the electrical circuit.
Short circuit along the power
wires
Check for a short in the electrical wiring (internal and/or
external)
Device does not
power up
No power
Check for power on power outlet
Loose power cord
Check power cord
Fixture is not
responding to
DMX
Wrong DMX addressing
Check Control Panel and unit addressing
Damaged DMX cables
Check DMX cables
Wrong polarity settings on the
controller
Check polarity switch settings on the controller
Loose DMX cables
Check cable connections
Faulty DMX interface
Replace DMX input
Faulty Main PCB
Replace Main PCB
Loss of signal
Non DMX cables
Use only DMX compatible cables
Bouncing signals
Install terminator as suggested
Long cable / Low level signal
Install amplifier right after fixture with strong signal
Too many fixtures
Install an optically coupled DMX splitter after unit #32
Interference from AC wires
Keep DMX cables separated from power cables or
black lights
If you still have a problem after trying the above solutions, please contact CHAUVET Technical
Support.
Contact Us
World Wide General Information CHAUVET
3000 North 29th Court
Hollywood, FL 33020
voice: 954.929.1115
fax: [phone]
toll free: 800.762.1084
Technical Support CHAUVET
3000 North 29th Court
Hollywood, FL 33020
voice: 954.929.1115 (Press 4)
fax: [phone] (Attention: Service)
World Wide Web www.chauvetlighting.com
3-Pin to 5-Pin Conversion Chart
If you use a controller with a 5-pin DMX output connector, you will need to use a 5-
pin to 3-pin adapter. The chart below details a proper cable conversion:
3-PIN TO 5-PIN CONVERSION CHART
Conductor
3-Pin Female (Output)
5-Pin Male (Input)
Ground/Shield
Pin 1
Pin 1
Data ( - ) signal
Pin 2
Pin 2
Data ( + ) signal
Pin 3
Pin 3
Not used
Pin 4
Not used
Pin 5

5. Appendix 16 12/28/2009 12:38 PM
Technical Specifications
WEIGHT & DIMENSIONS
Length..........................................................................................................................9.5 in (241 mm)
Width............................................................................................................................8.5 in (216 mm)
Height ..........................................................................................................................5.5 in (140 mm)
Weight......................................................................................................................... 10.1 lbs (4.6 kg)
POWER
Supplied battery charger........12 VDC 2,000 mA, 24 VA output (100~240 VAC, 50/60 Hz, 1.5 A input)
COOLING................................................................................................................Convection cooled
OPERATING RANGE (BAND/FREQUENCIES)
UHF .......................................................................................................................902 Mhz ~ 928 Mhz
BATTERY
Sealed lead acid (SLA).........................................................................................................12 V, 7 Ah
Output voltage........................................................................................................................12 V, 7 A
THERMAL
Maximum ambient temperature......................................................................................104° F (40° C)
CONTROL & PROGRAMMING
Data input ............................................................................................. locking 3-pin XLR male socket
Data output ........................................................................................ locking 3-pin XLR female socket
Data input ............................................................................................. locking 5-pin XLR male socket
Data output ........................................................................................ locking 5-pin XLR female socket
Data pin configuration ............................................................................pin 1 shield, pin 2 (-), pin 3 (+)
Protocols.....................................................................................................................DMX-512 USITT
Maximum DMX channels (transmit/receive) ...........................................................512 (per frequency)
Unobstructed operating distance.....................................................................................393 ft (120 m)
ORDERING INFORMATION
Satellite™ D-Fi............................................................................................................. SATELLITEDFI
WARRANTY INFORMATION
Warranty...........................................................................................................2-year limited warranty
