Stage Wash™Controller Pack
USER MANUAL
TFX-32CON
Mode
TFX-32F
TFX-32CON
Stage Wash™Controller
TFX-32F
Stage Wash™Foot Controller

TFX-32CONPK User Manual 2 Revision: 2006-01-05/11:45
TABLE OF CONTENT
BEFORE YOU BEGIN ...................................................................................................................................................... 3
WHAT IS INCLUDED................................................................................................................................................................................ 3
UNPACKING INSTRUCTIONS.................................................................................................................................................................... 3
SAFETY INSTRUCTIONS.......................................................................................................................................................................... 3
INTRODUCTION............................................................................................................................................................... 4
FEATURES............................................................................................................................................................................................ 4
PRODUCT OVERVIEW (TFX-32F)........................................................................................................................................................... 4
PRODUCT OVERVIEW (TFX-32CON)..................................................................................................................................................... 5
SETUP.............................................................................................................................................................................. 6
CONNECTION........................................................................................................................................................................................ 6
TFX-32CON Stage Wash™Controller...................................................................................................................... 6
TFX-32F Stage Wash™Foot Controller ................................................................................................................... 6
OPERATING FUNCTIONS ........................................................................................................................................................................ 7
TFX-32CON Stage Wash™Controller...................................................................................................................... 7
Master Slider...................................................................................................................................................................................................... 7
Hold.................................................................................................................................................................................................................... 7
Spectrum Mix ..................................................................................................................................................................................................... 7
Chase................................................................................................................................................................................................................. 7
Sound................................................................................................................................................................................................................. 7
Full On................................................................................................................................................................................................................ 7
Blackout ............................................................................................................................................................................................................. 7
TFX-32F™FOOT CONTROLLER MODES................................................................................................................................................ 8
Chase Mode....................................................................................................................................................................................................... 8
Hold Color Mode ................................................................................................................................................................................................ 8
Full On................................................................................................................................................................................................................ 8
Blackout ............................................................................................................................................................................................................. 8
APPENDIX........................................................................................................................................................................ 9
DMX PRIMER ....................................................................................................................................................................................... 9
Fixture Linking.................................................................................................................................................................................................... 9
MAINTENANCE .................................................................................................................................................................................... 10
RETURNS PROCEDURE........................................................................................................................................................................ 10
CLAIMS .............................................................................................................................................................................................. 10
GENERAL TROUBLESHOOTING.............................................................................................................................................................. 11
TECHNICAL SPECIFICATIONS ................................................................................................................................................................ 12

TFX-32CONPK User Manual 3 Revision: 2006-01-05/11:45
BEFORE YOU BEGIN
What is included
This manual includes instructions for both the TFX-32CON and TFX-32F controllers.
TFX-32CON Stage Wash™Controller
1 x TFX-32CON
DC 9~12V 500mA power adapter 110V or 230V
Warranty Card & Manual
TFX-32F Stage Wash™Foot Controller
1 x TFX-32F Foot Controller
33-feet, 5-pin XLR cable included
Warranty Card & Manual
Unpacking Instructions
Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture
must be returned to the factory, it is important that the fixture be returned in the original factory box
and packing.
Safety Instructions
Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that
they also receive this instruction booklet.
Always make sure that you are connecting to the proper voltage and that the line voltage you are
connecting to is not higher than that stated on decal or rear panel of the fixture.
This product is intended for indoor use only!
To prevent risk of fire or shock, do not expose fixture to rain or moisture. Make sure there are no
flammable materials close to the unit while operating.
The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent
surfaces. Be sure that no ventilation slots are blocked.
Always disconnect from power source before servicing or replacing lamp or fuse and be sure to
replace with same lamp source.
In the event of serious operating problem, stop using the unit immediately. Never try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please
contact the nearest authorized technical assistance center. Always use the same type spare parts.
Don’t connect the device to a dimmer pack.
Make sure power cord is never crimped or damaged.
Never disconnect power cord by pulling or tugging on the cord.
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt
any repairs yourself. In the unlikely event your unit may require service, please contact
CHAUVET.
Please read these instructions carefully, which includes important
information about the installation, usage and maintenance?

TFX-32CONPK User Manual 4 Revision: 2006-01-05/11:45
INTRODUCTION
Features
TFX-32CON™Stage Wash™Controller
DMX-512 color wash controller for Stage Wash™950, 1550 and 1800
DMX channels: 4
Pre-programmed color hold buttons for fast access to colors
40 preset colors (RGB mixed)
12 chase patterns
Sound-activation
Optional TFX-32F Stage Wash™Foot Controller
Power: 9~12V 500mA DC Adapter
2-year Limited Warranty
TFX-32F Stage Wash™Foot Controller
Requires TFX-32CON Stage Wash™Controller and Stage Wash™950, 1550 or 1800
Selectable modes:
1. Blackout
2. Color Hold
3. Chase
Up and down pedal buttons select colors and chase patterns
33-feet, 5-pin XLR cable included
1-year Limited Warranty

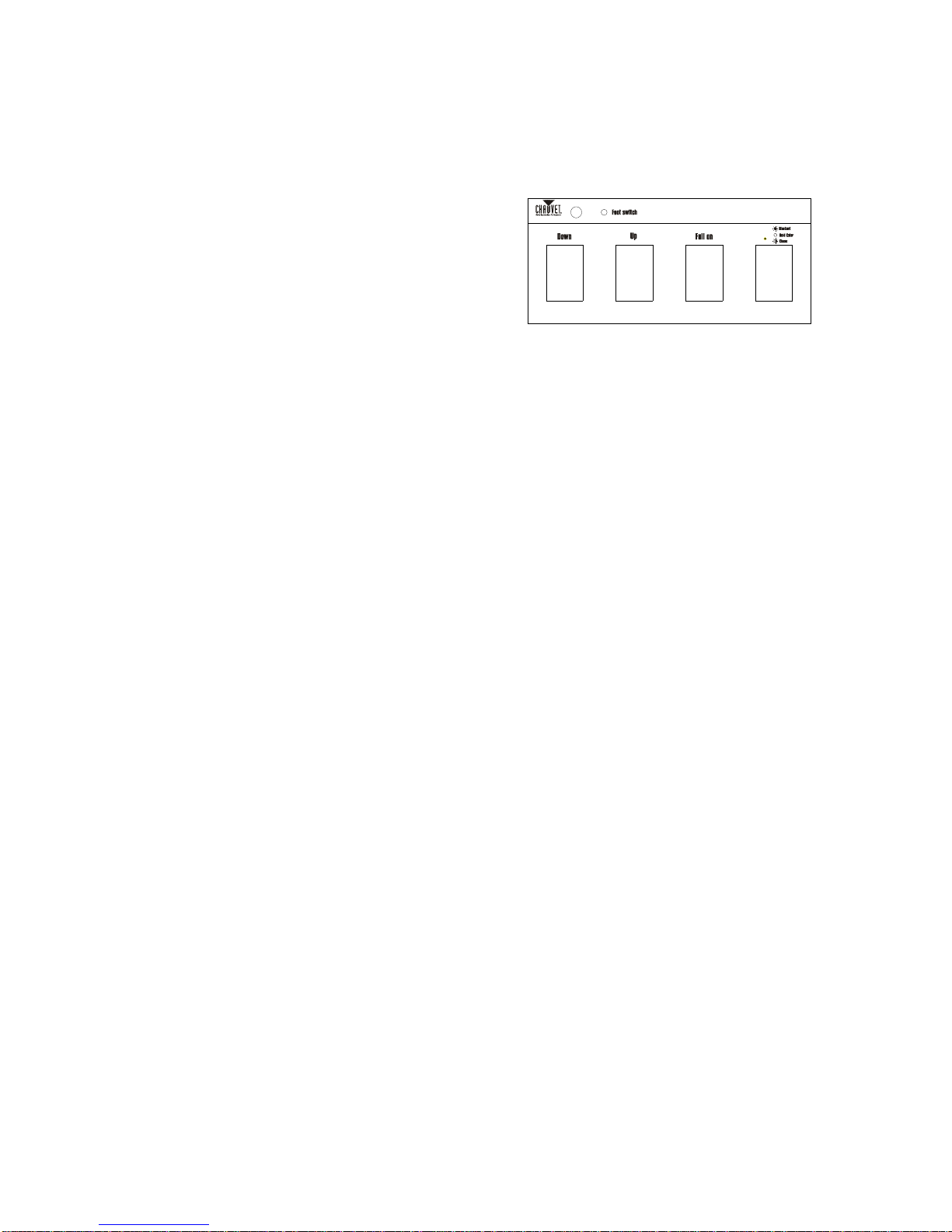

Product Overview (TFX-32F)
Operating Modes
> Blackout (LED On)
> Hold Color (LED Off)
> Chase (LED Blinking)
Pedal Function
Down Toggles hold colors or chase patterns
Up Toggles hold colors or chase patterns
Full On Turns all lamps to full output
Mode Selects operating modes, blackout, hold-color & chase
Mode LED

TFX-32CONPK User Manual 5 Revision: 2006-01-05/11:45
Product Overview (TFX-32CON)
TFX-32CON
Button or Fader Function
Blackout Blackout for all Stage Washes
Full On Turn all lamps to full output
Sound Activates Sound to Light Mode
Master Overall Intensity
Speed-Fade
(fader) Chase speed adjust between .1 and 2.5 seconds while conversely affecting fade time between chases.
Select from preset pattern chases
Chase/Spectrum Mix
(fader) Select from 40 predefined colors
Hold Colors 9 buttons provide immediate activation of the most popular colors available
Hold Activates “Hold Colors”palette
Chase Activates “Chase”fader control of preset chase patterns
Spectrum Mix Activates “Spectrum Mix”fader for control of 32 predefined colors

TFX-32CONPK User Manual 6 Revision: 2006-01-05/11:45
TF X-32C ON
Terminator
Sold separately!
To Fixtures
Mode
TFX -3 2F
TFX-3 2 CO N
SETUP
Connection
TFX-32CON Stage Wash™Controller
Using a qualified 3-pin XLR DMX cable as described in the Appendix section under DMX Primer,
connect the output of the TFX-32CON Controller to the input of the first TFX-950CM, TFX-64CM or
TFX-1550CM Stage Wash™.
TFX-32F Stage Wash™Foot Controller
The TFX-32F foot controller connects to the TFX-32CON using the 5-pin XLR cable foot controller
output, located at the rear of the controller. This cable is included with your purchase. The TFX-32F
will only work with the TFX-32CON Stage Wash™Controller.

Operating Functions
TFX-32CONPK User Manual 7 Revision: 2006-01-05/11:45
Operating Functions
To operate the Stage Wash™(TFX-950CM, TFX-1550CM and TFX-64CM) with the TFX-32CON
Stage Wash™Controller, simply connect the controller to the DMX input of the Stage Wash™.
TFX-32CON Stage Wash™Controller
MASTER SLIDER
The Master Slider is used to adjust the overall light intensity of all Stage Washes connected to the
controller. Increasing and decreasing the Master Slider will result in slight color deviation from what
was originally set at full intensity.
HOLD
The Hold button will activate the Hold Color function which
provides the user immediate access to the colors designated on the buttons. The
Hold button is activated when the LED just above it is turned on.
SPECTRUM MIX
The Spectrum Mix button will activate the Spectrum Mix slider
which provides the user immediate access to 40 pre-
defined/mixed colors as listed along the right side of the slider.
Simply slide the slider up and watch tentatively as the colors
change gradually. It is best to move the slider very slowly in order
to achieve the greatest resolution possible so that you don’t
unintentionally skip any of the 40 colors.
CHASE
The Chase button will activate the Chase slider enabling the user
to select from 12 defined color chases as labeled directly along the left side of the slider. Positioning
the Speed/Fade slider will increase the chase speed and shorten the fade time between pattern
changes or do the exact opposite as labeled.
SOUND
The Sound button will activate the internal microphone on the controller and enable sound to light
triggering of the 12 pattern chases in the controller.
FULL ON
The Full On button will bring all the lamps in all the Stage Washes to full power, resulting in a wash of
white light.
BLACKOUT
The Blackout button brings all lighting output to 0 or off. The same affect as sliding the Master slider
all the way down.

Operating Functions
TFX-32CONPK User Manual 8 Revision: 2006-01-05/11:45
Mode
TFX-32F
TFX-32F™Foot Controller Modes
The TFX-32F was created specifically to work with the TFX-32CON Stage Wash™Controller. No
other device should be connected to its 5-pin XLR connector.
Turning on the power button on the TFX-32F
will disable the TFX-32CON™Controller. This
is normal operation. To regain control using the
TFX-32CON Controller simply turn off the TFX-
32F.
CHASE MODE
To enable the Chase mode, press the {Mode} pedal and hold until the LED blinks. The Up and
Down pedals allows the user to select any of the 12 chase patterns available.
HOLD COLOR MODE
To enable the Hold Color Mode, press the {Mode} pedal until the LED is off. The Up and Down
pedals allows the user to select any of the 9 preset primary colors available.
FULL ON
The Full On pedal will bring all the lamps in all the Stage Washes to full power, resulting in a wash of
white light.
BLACKOUT
To enable the Blackout Mode, press the {Mode} pedal until the LED is on. All light output will be
brought to 0 or off.

TFX-32CONPK User Manual 9 Revision: 2006-01-05/11:45
APPENDIX
DMX Primer
There are 512 channels in a DMX-512 connection. Channels may be assigned in any manner. A
fixture capable of receiving DMX 512 will require one or a number of sequential channels. The user
must assign a starting address on the fixture that indicates the first channel reserved in the controller.
There are many different types of DMX controllable fixtures and they all may vary in the total number
of channels required. Choosing a start address should be planned in advance. Channels should
never overlap. If they do, this will result in erratic operation of the fixtures whose starting address is
set incorrectly. You can however, control multiple fixtures of the same type using the same starting
address as long as the intended result is that of unison movement or operation. In other words, the
fixtures will be slaved together and all respond exactly the same.
DMX fixtures are designed to receive data through a serial Daisy Chain. A Daisy Chain connection is
where the DATA OUT of one fixture connects to the DATA IN of the next fixture. The order in which
the fixtures are connected is not important and has no effect on how a controller communicates to
each fixture. Use an order that provides for the easiest and most direct cabling. Connect fixtures
using shielded two conductor twisted pair cable with three pin XLR male to female connectors. The
shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET
carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’)
FIXTURE LINKING
Note! If you use a controller with a 5 pin DMX output connector, you will need to use a 5
pin to 3 pin adapter. CHAUVET Model No: DMX5M.
The chart below details a proper cable conversion:
3 Pin to 5 Pin Conversion Chart
Conductor 3 Pin Female (output) 5 Pin Male (Input)
Ground/Shield Pin 1 Pin 1
Data ( - )signal Pin 2 Pin 2
Data ( + ) signal Pin 3 Pin 3
Do not use Do not use
Do not use Do not use
COMMON
DMX +
DMX
-
INPUT OUTPUT
1
3
2
1
3
2
1
3
2
Resistance 120
ohm 1/4w between
pin 2 (DMX -) and
pin 3 (DMX +) of
the last fixture.
Termination reduces signal errors and to
avoid signal transmission problems and
interference, it is always advisable to connect
a DMX signal terminator.
Figure 1 - DMX connector configuration

Appendix
TFX-32CONPK User Manual 10 Revision: 2006-01-05/11:45
Maintenance
To maintain optimum performance and minimize wear fixtures should be cleaned frequently. Usage
and environment are contributing factors in determining frequency. As a general rule, fixtures should
be cleaned at least twice a month. Be sure to power off fixture before conducting maintenance.
Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust
collected on external vents and internal components. Clean all glass when the fixture is cold with a
mild solution of glass cleaner or Isopropyl Alcohol and a soft lint free cotton cloth or lens tissue. Apply
solution to the cloth or tissue and drag dirt and grime to the outside of the lens. Gently polish optical
surfaces until they are free of haze and lint.
Returns Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products
returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the
fixture. Be prepared to provide the model number, serial number and a brief description of the cause
for the return. Be sure to properly pack fixture, any shipping damage resulting from inadequate
packaging is the customer’s responsibility. CHAUVET reserves the right to use its own discretion to
repair or replace product(s). As a suggestion, proper UPS packing or double-boxing is always a safe
method to use.
Claims
Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise. It is the customer's responsibility to notify and
submit claims with the shipper in the event that a fixture is damaged due to shipping. Any other claim
for items such as missing component/part, damage not related to shipping, and concealed damage,
must be made within seven (7) days of receiving merchandise.
