Quick Reference Guide
English EN
Español ES
Français FR

ÉPIX™ Drive 642 QRG EN
2
Safety
Notes
Read all the following Safety Notes before working with this
product. These notes include important information about the
installation, usage, and maintenance of this product.
This icon indicates critical installation, configuration, or
operation information. Failure to comply with this information
may render the fixture partially or completely inoperative,
damage third-party equipment, or cause harm to the user.
There are no user-serviceable parts in this product. Any
reference to servicing in this guide applies only to properly
certified Chauvet technicians. Do not open the housing or
attempt any repairs unless you are certified by Chauvet.
This icon indicates useful, although non-critical information.
•DO NOT open this product. It contains no user-serviceable parts.
•To eliminate unnecessary wear and improve its lifespan, during periods of non-use
completely disconnect the product from power via breaker or by unplugging it.
•CAUTION: When transferring product from extreme temperature environments, (e.g.
cold truck to warm humid ball
room) condensation may form on the internal electronics
of the product. To avoid causing a failure, allow product to fully acclimate to the
surrounding environment before connecting it to power.
•CAUTION: This product’s housing may be hot when lights are operating.
•Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from
adjacent surfaces.
•DO NOT leave any flammable material within 50 cm of this product while operating or
connected to power.
•This product is for indoor use only! To prevent risk of fire or shock, do not expose this
product to rain or moisture.
•DO NOT connect this product to a dimmer or rheostat.
•ONLY connect this product to a grounded and protected circuit.
•Always make sure you are connecting this product to the proper voltage, as per the
Technical Specifications in this guide or on the product’s specification label.
•Do not operate this product if you see damage on the housing, I/O ports, or cables.
Have the damaged parts replaced by an Chauvet certified technician at once.
•Do not cover the ventilation slots when operating to avoid internal overheating.
•The maximum ambient temperature is 104 °F (40 °C). Do not operate
this product at a
higher temperature.
•In case of a serious operating problem, stop using this product immediately!

EN ÉPIX™ Drive 642 QRG
3
What Is Included
Once you receive the product, carefully open the package and make sure all the
pieces included are in good condition. The followng items should be included in
the package:
•EPIX™ Drive 642
•NEUTRIK® powerCON® to Edison Plug Input Power Cord
•Warranty Card
•Quick Reference Guide
If there are any missing pieces, please contact the local dealer where you
purchased the product.
Installation Procedure
Before installing any product, you should completely read through the guide that
was shipped with the product.
1. Carefully remove all items from the package and place on a secure
foundation.
2. Mount product.
3. Connect product to computer/controller via router.
4. Connect ÉPIX™ Strip 2.0 and/or Bar 2.0.
5. Install power cable and connect to power.

ÉPIX™ Drive 642 QRG EN
4
Product Overview
ÉPIX™ Drive 642 hosts the processing and power supply for the EPIX™ 2.0
product line in one convenient device. It controls up to 16 ÉPIX™ Strip 2.0 4
ÉPIX™ Tile 2.0, or 4 ÉPIX™ Bar 2.0 using Art-Net™ (3.0 compliant) or Arkaos
Kling-Net. Additionally, you can manage configuration and software updates
with a network-based remote web server.
Front View
Art-Net™/Kling-
Net In/Out
Power Output
Mounting/Safety Points
ÉPIX™ Strip 2.0, ÉPIX™
Tile 2.0 or ÉPIX™ Bar
2.0 Output
Power Input
Side Views

EN ÉPIX™ Drive 642 QRG
5
Mounting
The ÉPIX™ Drive 642 has four (4) mounting points (one on each corner) with 13
mm holes to which you can install screws and mount this product directly to
almost any flat surface, truss, or other load bearing structure in any orientation.
The product may also be installed with clamps for hanging on truss. You must
supply your own clamps and make sure the clamps are capable of supporting
the weight of this product.
Mounting Guidelines
Chauvet recommends using the following guidelines when mounting this
product:
•Make sure to mount this product away from any flammable material as indicated
in the Safety Notes section.
•Never mount in places where rain, high humidity, extreme temperature changes,
or restricted ventilation may affect the product.
•Before deciding on a location, always make sure there is easy access to
the product for maintenance and programming.
•Make sure that the structure or surface onto which you are mounting the
product can support the product’s weight (see the Technical
Specifications).
•When mounting the product overhead, always use a safety cable.
Mount the product securely to a rigging point, such as an elevated
platform or a truss.
•When rigging the product onto a truss, you should use a mounting
clamp of appropriate weight capacity.
•When mounting the product on the floor, make sure that the product and
cables are away from people and vehicles.

ÉPIX™ Drive 642 QRG EN
6

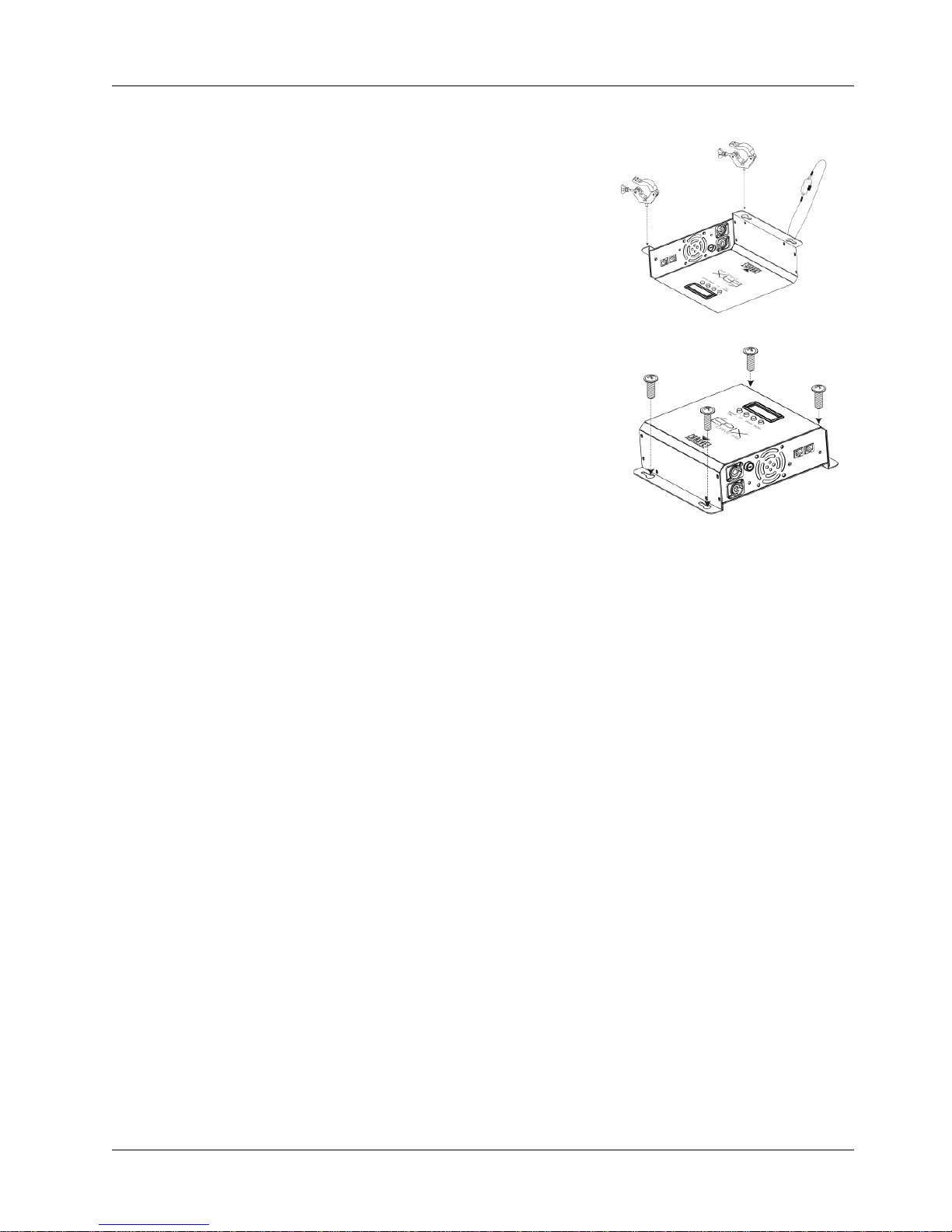

Mounting Instructions
Mounting hardware is not included with the product.
Using Mounting Clamps:
1. Attach the clamp to the mounting bracket.
2. Attach a safety cable to the product’s safety
loop.
3. Attach the clamp to the desired structure or surface.
4. Attach a safety cable through the mounting points.
Using Mounting Points:
1. Screw product in the mounting points
securely into a mounting surface.

EN ÉPIX™ Drive 642 QRG
7

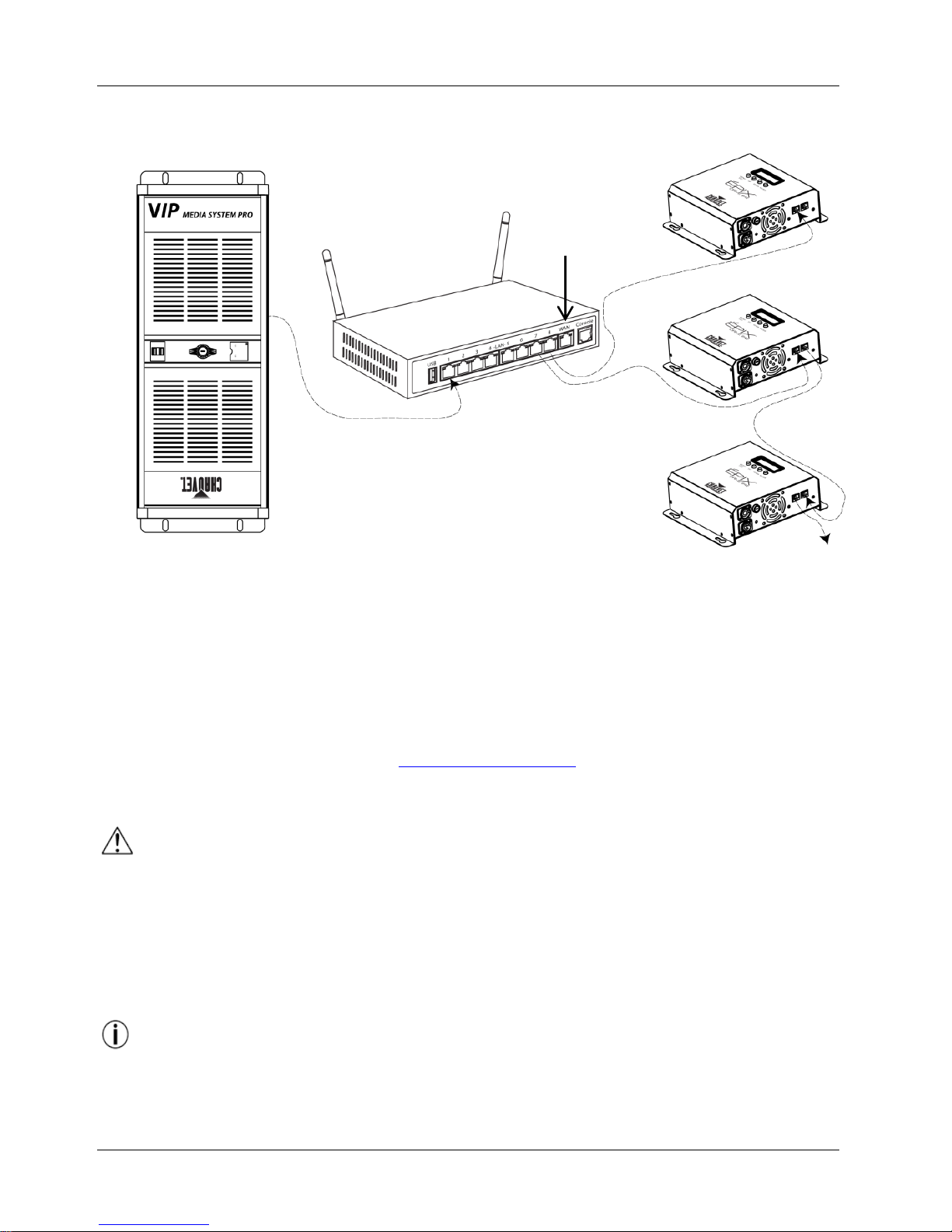

Signal Connections
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP that transfers large amount of
DMX512 data using an etherCON® RJ45 connection over a large network. An Art-Net™
protocol document is available from www.chauvetpro.com.Art-Net™ is designed and
copyrighted by Artistic Licence Holdings Ltd.
This product is not designed to respond to controllers sending in Broadcast mode via
Art-Net™. For best results, use Unicast mode. For information about which control
protocol your controller uses, please contact the manufacturer of your controller.
Kling-Net Connection
Kling-Net is a network protocol that allows auto configuration of display devices using an
etherCON® RJ45 Ethernet connection. Refer to the ArKaos software manual for detailed
instructions on programming this product.
For smooth-running operation, ArKaos Kling-Net requires a gigabit (1000 Mbps) Ethernet card
and network router.
Do not use
WAN port!
Computer/Controller
(running Kling-Net
or Art-Net™ protocol)
Router
ÉPIX™
Drive 642
To other Kling-Net
or Art-Net™ Devices

ÉPIX™ Drive 642 QRG EN
8
Connecting ÉPIX™ Products to the Power Supply
The ÉPIX™ Drive 642 uses an RJ45 data connection to link all data ports. You
can connect either 4- ÉPIX™ strips, 1 ÉPIX™ Tile 2.0 or 1- ÉPIX™ Bar per
output on the ÉPIX™ Drive 642. The following diagram illustrates how to
assemble the data connections.
Each port of ÉPIX™ Drive 642 can support 1 pc. ÉPIX™ Bar 2.0, ÉPIX™ Tile 2.0 or 4 pcs.
ÉPIX™ Strip 2.0. Make sure the total length of the connecting network cables (RJ45)
does not exceed 10 meters.
Be sure power is disconnected from the ÉPIX™ Drive 642 before connecting any ÉPIX™
2.0 products. Failure to do so may cause damage and void your warranty.
Total length
of cables
cannot
exceed 10 m
Total length
of cables
cannot
exceed 10 m

EN ÉPIX™ Drive 642 QRG
9
Software Upgrade Instructions
These instructions below apply to VERSION 1 hardware only. Do Not load VERSION 2
software onto VERSION 1 hardware.
The following steps refer to the Windows® 7 operating system environment.
Step 1:
1. Connect the ÉPIX™ Drive 642 to the
router.
2.
Verify the computer is using the same
network as the ÉPIX™ Drive 642
product.
Step 2:
1.
From the ÉPIX™ Drive 642
main level,
navigate to Input Mode > Art-Net.
Step 3:
1.
Select IP Mode.
2.
Select <Static>.
Step 4:
1.
From the Windows® start menu, click
the <Start> button.
2.
From the Search box, type Network
and Sharing Center. Windows will
generate the
search results in the Start
window.
3.
Select Network and Sharing Center,
and the Network and Sharing Center
dialog appears.
IP Mode
Static
Input Mode
Art-Net

ÉPIX™ Drive 642 QRG EN
10
Step 5:
1.
Select the desired network the
product is connected to.
If you are running a hard-
wired line
from the PC to your
router, then select
Local Area Connection. The Local Area
Connection Status dialog appears.
2. Click Properties. The Local Area
Connection Properties dialog
appears.
Step 6:
1. From the Networking tab, select
Internet Protocol Version 4
(TCP/IPv4).
2. Click Properties. The Internet
Protocol Version 4 (TCP/IPv4)
Properties dialog appears.
Step 7:
1. From the General tab, select Use the
following IP address:.
2. Enter the following information:
3. Enter 2.255.0.0 in the IP address box.
4. Enter 255.255.255.0 in the Subnet
mask box.
5. Click OK.
6. Close existing dialogs that are
currently open.
7. Minimize the Control Panel, as it will
be necessary to access this window
after the software upgrade is
uploaded to the product.
2. 255 .0.0
255 . 255 . 255 . 0

EN ÉPIX™ Drive 642 QRG
11
Step 8:
1. From the ÉPIX™ Drive 642 control
panel, navigate to the Info main level.
2. Select IP Address.
3. From the PC, open the Internet
browser.
4. Enter the IP address for the ÉPIX™
Drive 642 you are working with in the
address bar. For example, if the IP
address shown in the product’s
control panel is 2.34.58.104, then
type that into your internet browser
address bar.
5. Press ENTER. The Authentication
Required dialog appears.
Step 9:
1. Enter the following information:
•Enter admin in the User Name
box.
•Enter admin in the Password
box.
2. Click Log In. The ÉPIX™ Drive 642
firmware window appears.
If the user name/password you entered
is invalid, follow the Factory Reset
procedure.
Step 10:
1. From the Navigation bar, select the
Upgrade tab.
2. From the Firmware Upgrade section,
click Choose File. The Open dialog
appears.

ÉPIX™ Drive 642 QRG EN
12
Step 11:
1.
From the Open dialog, select the file
to upload the firmware onto the
ÉPIX™ Drive 642 product.
2. Click Open.
The “Downloading…” message appears in the
product’s control panel.
Once the firmware finishes downloading the
software, the product will automatically reset the unit
and the control panel flickers.
Do not turn off the product during the downloading
process. It will take approximately 1 minute to reset.
Step 12:
1. Go to the Info main level.
2. Select Version.
3. Verify the product’s control panel
displays the uploaded version.
The software upgrade is now complete.
Downloading…
CHAUVET Lighting
v.1.xx

EN ÉPIX™ Drive 642 QRG
13
Step 13:
Once the software upgrade is complete, the IP
setting on your PC needs to be changed back to the
original settings.
1. Refer to Step 4 for navigation
instructions on how to access the
Internet Protocol Version 4 Properties
(TCP/IPv4) dialog.
2. From the General tab, select Obtain
an IP address automatically, and
click OK.
3. Continue to close the dialogs
displayed until you exit out of the
Control Panel.
The installation process is complete.

ÉPIX™ Drive 642 QRG EN
14
Power Linking
The ÉPIX™ Drive 642 supports power linking. You can power link up to
•Seven (7) ÉPIX™ Drive 642 drives at 120 VAC; or
•Eleven (11) ÉPIX™ Drive 642 drives at 230 VAC
A power input cord is included with the ÉPIX™ Drive 642. A power linking cord
is not included; however, is available as an option.

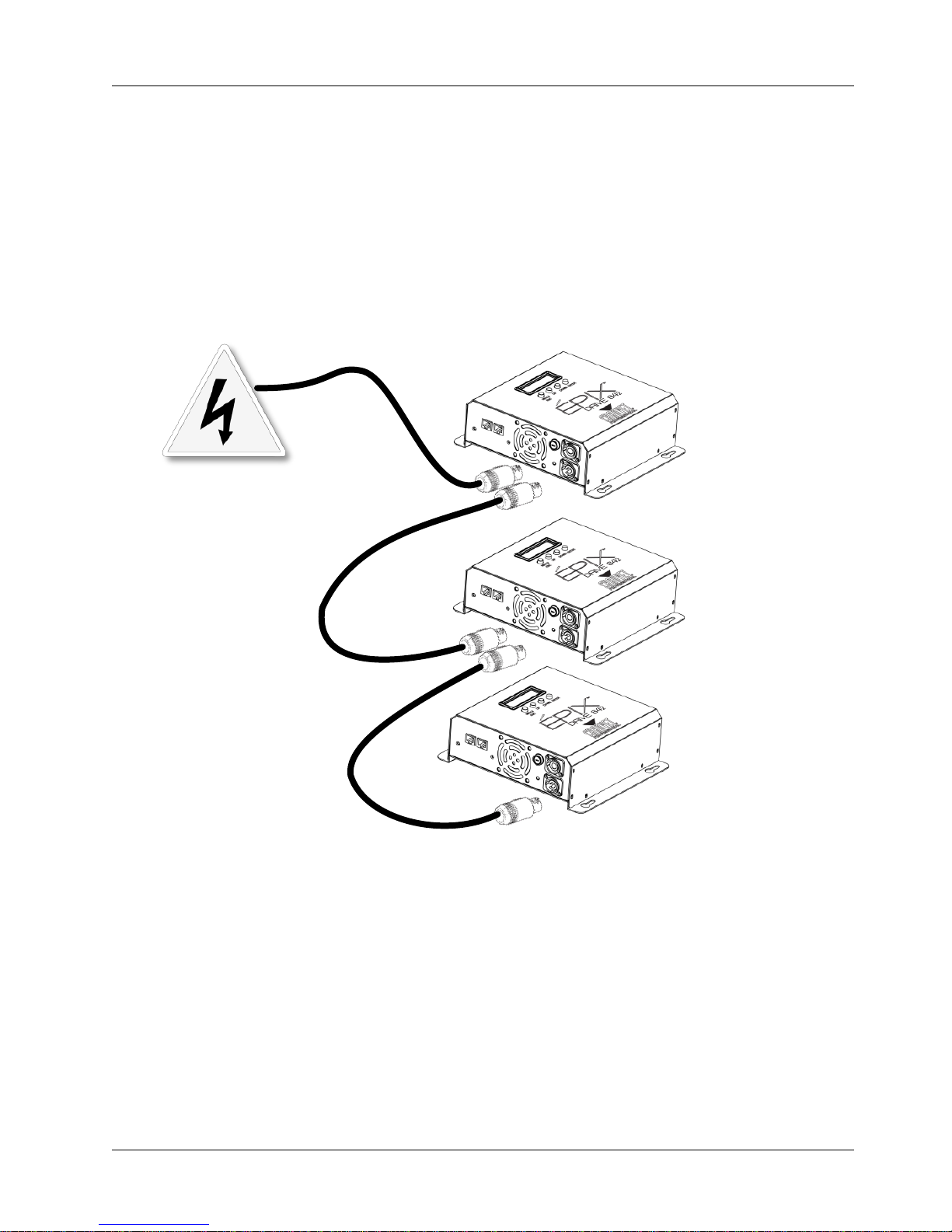

Drive Power Linking Diagram

EN ÉPIX™ Drive 642 QRG
15
Menu Options
Main Level
Programming Levels
Description
Input Mode
Art-Net
Selects the protocol and determines what
other Main Level options are available
Kling-Net
IP Mode
Manual
Set IP address manually
Static
Set static IP address
DHCP
Sets IP address from the DHCP
Net
0–127
Sets Net address
Subnet
0–15
Sets subnet address
Universe #1
0–15
Sets universe #1 address
Universe #2
0–15
Sets universe #2 address
Universe #3
0–15
Sets universe #3 address
Universe #4
0–15
Sets universe #4 address
Channel #1
1–393
Sets channel #1 address
Channel #2
1–393
Sets channel #2 address
Channel #3
1–393
Sets channel #3 address
Channel #4
1–393
Sets channel #4 address
IP Address
Shows current IP address
Device ID
Shows device ID
Output Test
Red
Red LEDs at full
Green
Green LEDs at full
Blue
Blue LEDs at full
White
White LEDs at full
Color Scroll
Color roll snap at full
Color Change
Color roll fade at full
Choice Pixel
16x40
Sets for EPIX™ Bars or Strips
48x12
Sets for EPIX™ Tiles
These instructions below apply to VERSION 1 hardware only. Do Not load VERSION 2
software onto VERSION 1 hardware.

ÉPIX™ Drive 642 QRG EN
16
Product Maintenance
To maintain optimum performance and minimize wear, you should clean this
product frequently. Usage and environment are contributing factors in
determining the cleaning frequency.
As a rule, clean this product at least twice a month. Dust build-up reduces light
output performance and can cause overheating. This can lead to reduced light
source life and increased mechanical wear.
Cleaning the ÉPIX™ Drive 642:
1. Unplug the product.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust
collected on the external vents and accessible internal components.
4. Clean all external surfaces with a mild solution of non-ammonia glass cleaner or
isopropyl alcohol.
5. Apply a solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
Wipe any dirt or grime to the outside edge of the surface. Gently polish the
surfaces with the lint-free cotton cloth or lens cleaning tissue until they are
free of haze and lint. Always dry the external surfaces carefully after cleaning
them.
Replacing the Fuse
1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove the blown fuse and replace with a good fuse of the same type and
rating.
4. Screw the fuse holder cap back into place and reconnect the power.

EN ÉPIX™ Drive 642 QRG
17
Return Policy and Procedure
You must send the merchandise prepaid, in the original box, and with the
original packing and accessories. Chauvet will not issue call tags. Refer to the
Contact Us section in this manual for addresses and phone numbers.
1. Call Chauvet and request a Return Merchandise Authorization (RMA)
number before shipping the product. When calling, be prepared to
provide the model number, serial number, and a brief description of the
reason for the return.
2. Once you have received the RMA number, include the following
information on a piece of paper inside the box:
•Your name
•Your address
•Your phone number
•RMA number
•A brief description of the problem
3. Clearly label the package with the RMA number that was provided to
you.
Chauvet will refuse any product returned without an RMA number. Write the RMA
number on a properly affixed label. DO NOT write the RMA number directly on the box.
Submitting a Claim
If the container or material inside the container (product and included
accessories) appears damaged from shipping or shows signs of mishandling,
notify the carrier immediately upon receipt - not Chauvet. Failure to notify the
carrier in a timely manner may invalidate your claim. In addition, keep the
container and all the packing material for inspection.
For other issues such as missing components or parts, damage not related to
shipping, or concealed damage, file a claim with Chauvet within seven (7) days
of receiving the merchandise.
Be sure the product is packed securely. Any shipping damage resulting from
inadequate packaging will be the customer’s responsibility. As a suggestion,
proper FedEx packing or double-boxing is the preferred method Chauvet
recommends.
Chauvet reserves the right to use its own discretion to repair or replace returned
product(s).

ÉPIX™ Drive 642 QRG EN
18
Technical Specification
Dimensions
and Weight
Length
Width
Height
Weight
8.3 in (210 mm)
10.1 in (257 mm)
3 in (78 mm)
5.6 lb (2.5 kg)
Note: Dimensions in inches rounded to the nearest decimal digit.
Electrical
Power Supply Type
Range
Auto-ranging
100 to 240 V, 50/60 Hz
Parameter
120 V, 60 Hz
230 V, 50 Hz
Consumption
232 W
276 W
Operating
1.92 A
1.20 A
Fuse
5 x 20 mm Glass
T 5 A, 250 V
5 x 20 mm Glass
T 5 A, 250 V
Power I/O
Input
Output
Connectors
Neutrik® powerCON® A
Neutrik® powerCON® B
Cord plug
Edison
N/A
Thermal
Max. External
Temperature
Cooling System
104 °F (40 °C)
Fan-Assisted Convection
Data
Connections
I/O Connectors
Channel Range
RJ45
Kling-Net
Determined by ArKaos
software
Art-Net™
4 Universes with 480
channels each
Ordering
Product Name
Item Code
UPC Number
ÉPIX™ Drive 642
03090734
781462210823

EN ÉPIX™ Drive 642 QRG
19
Legal Notices
Trademarks
Chauvet is a registered trademark of CHAUVET & Sons Inc.
(d/b/a Chauvet or Chauvet). The Chauvet logo in its entirety
including the CHAUVET name and the dotted triangle, and all
other trademarks in this guide
pertaining to services, products, or
marketing statements (example: It’s Green Thinking™) are
owned or licensed by Chauvet. Any other product names, logos,
brands, company names, and other trademarks featured or
referred to within this document are the property of their
respective trademark holders.
Copyright
Notice
Chauvet owns the content of this guide in its entirety, including
but not limited to pictures, logos, trademarks, and resources.
© Copyright 2013 Chauvet. All rights reserved.
Electronically published by Chauvet in the United States of
America.
Disclaimer
Chauvet believes that the information contained in t
his manual is
accurate in all respects. However, Chauvet assumes no
responsibility for any errors or omissions in this document.
Chauvet reserves the right to revise and make changes to the
content of this document without obligation that Chauvet notify
any person or company of such revision or changes. This does
not in any way constitute a commitment by Chauvet to make
such changes. Chauvet may issue a revision of this manual or a
new edition to incorporate such changes.
About Quick Reference Guide
The ÉPIX™ Drive 642 Quick Reference Guide is subject to change without
notice. Download the latest version from www.chauvetlighting.com.
Chauvet authorizes its customers to download and print this guide for
professional information purposes only. Chauvet expressly prohibits the
usage, copy, storage, distribution, modification, or printing of this manual or its
content for any other purpose without written consent from Chauvet.
For optimal results, print this document in color, on letter-sized paper (8.5 x 11
in), double-sided. If using A4 paper (210 x 297 mm), configure your printer to
scale the content accordingly.

ÉPIX™ Drive 642 GRR ES
14
Notas de
seguridad
Por favor, lea todas las siguientes Notas de seguridad antes
de poner en funcionamiento este producto. Estas notas
incluyen información importante de seguridad sobre la
instalación, uso y mantenimiento de este producto.
Este icono indica información de funcionamiento,
instalación crítica o configuración. Hacer caso omis
de esta información puede provocar que este
aparato no funcione en parte o totalmente, averíe
equipo de terceros o cause daños al usuario.
No hay piezas reparables por el usuario en este producto.
Cualquier referencia a la reparación en esta guía se aplica
solamente a técnicos certificados por Chauvet
. No abra la carca
ni intente ninguna reparación a menos que esté autorizado por
Chauvet.
Este icono indica información útil, aunque no crítica.
•NO abra este producto. No contiene piezas reparables por el usuario.
•Para evitar un desgaste innecesario y alargar su vida útil, desconecte complemente
el producto de la alimentación, mediante el interruptor o desenchufándolo, durante
los periodos en los que no se use.
•CUIDADO: cuando transfiera el producto desde ambientes con temperatura extrema
(p. ej., del remolque frío de un camión a una sala de baile con calor y humedad),
puede formarse condensación en la electrónica interna del producto. Para evitar que
se produzca una avería, deje que el producto se aclimate completamente al ambiente
antes de conectar la alimentación.
•CUIDADO: La carcasa de este producto puede estar caliente cuando las luces están
en funcionamiento.
•Monte este producto en una ubicación con ventilación adecuada, al menos a 20'' (50
cm) de superficies adyacentes.
•NO deje ningún material inflamable a menos de 50 cm de este producto mientras
esté funcionando o conectado a la alimentación.
•
¡Este producto es para uso en interiores solamente! Para evitar riesgos de incendio o
descarga, no exponga este producto a la lluvia o la humedad.
•NO conecte este producto a un atenuador o reostato.
•Conecte este producto SOLO a un circuito con toma de tierra y protegido.
•Asegúrese siempre de que conecta este producto a la tensión adecuada, en
concordancia con las Especificaciones Técnicas de este manual o de la etiqueta de
especificación del producto.
•
No haga funcionar este producto si aprecia daño en la carcasa, en los puertos de E/S
o en los cables. Haga que un técnico autorizado por Chauvet sustituya todas las
piezas estropeadas.
•No cubra las ranuras de ventilación cuando esté funcionando, para evitar
sobrecalentamiento interno.
•La temperatura ambiente máxima es de 40 °C (104 °F). No haga funcionar este
producto a temperaturas más altas.
•¡En caso de un problema grave de funcionamiento, deje de usar el producto
inmediatamente!
